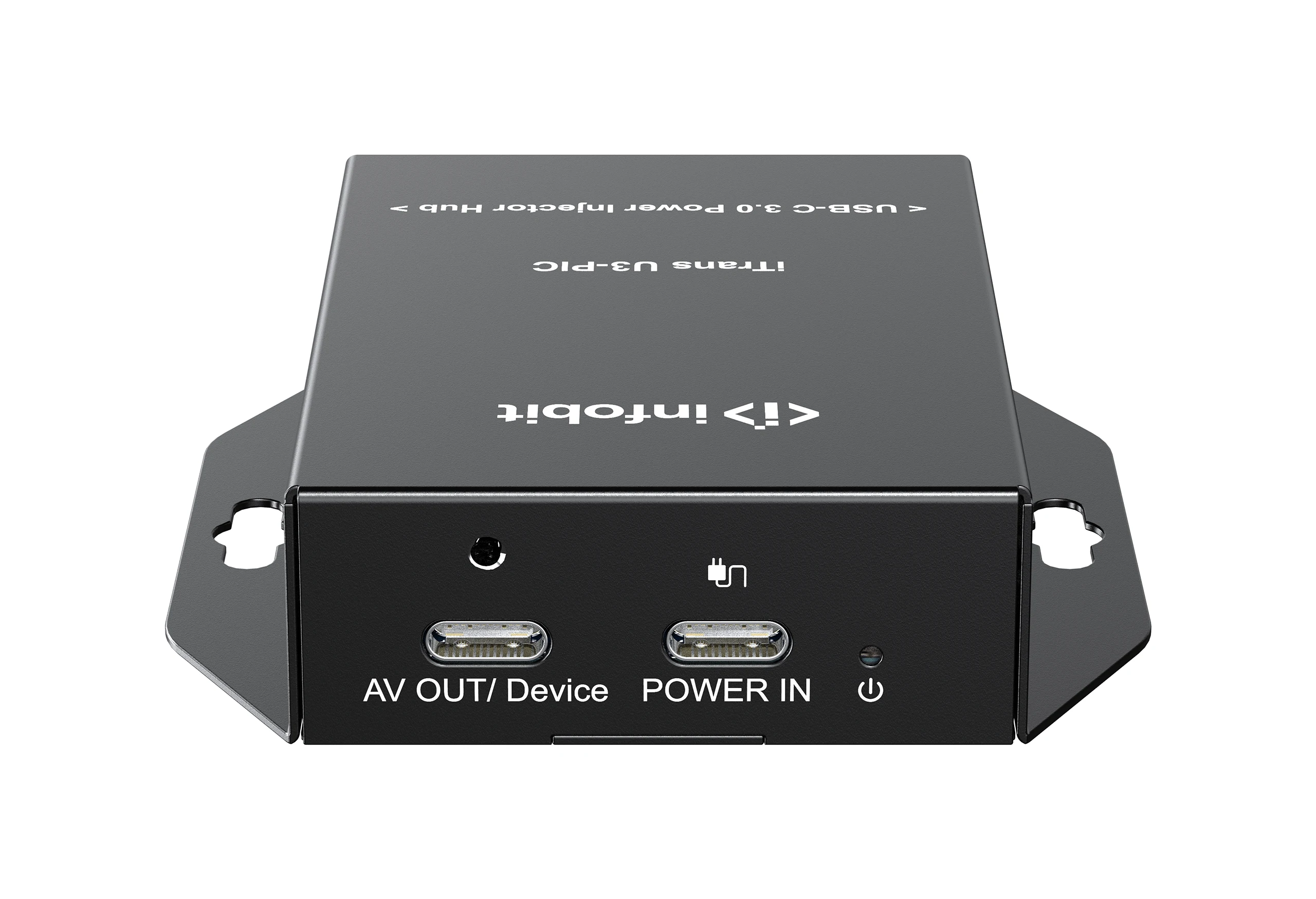

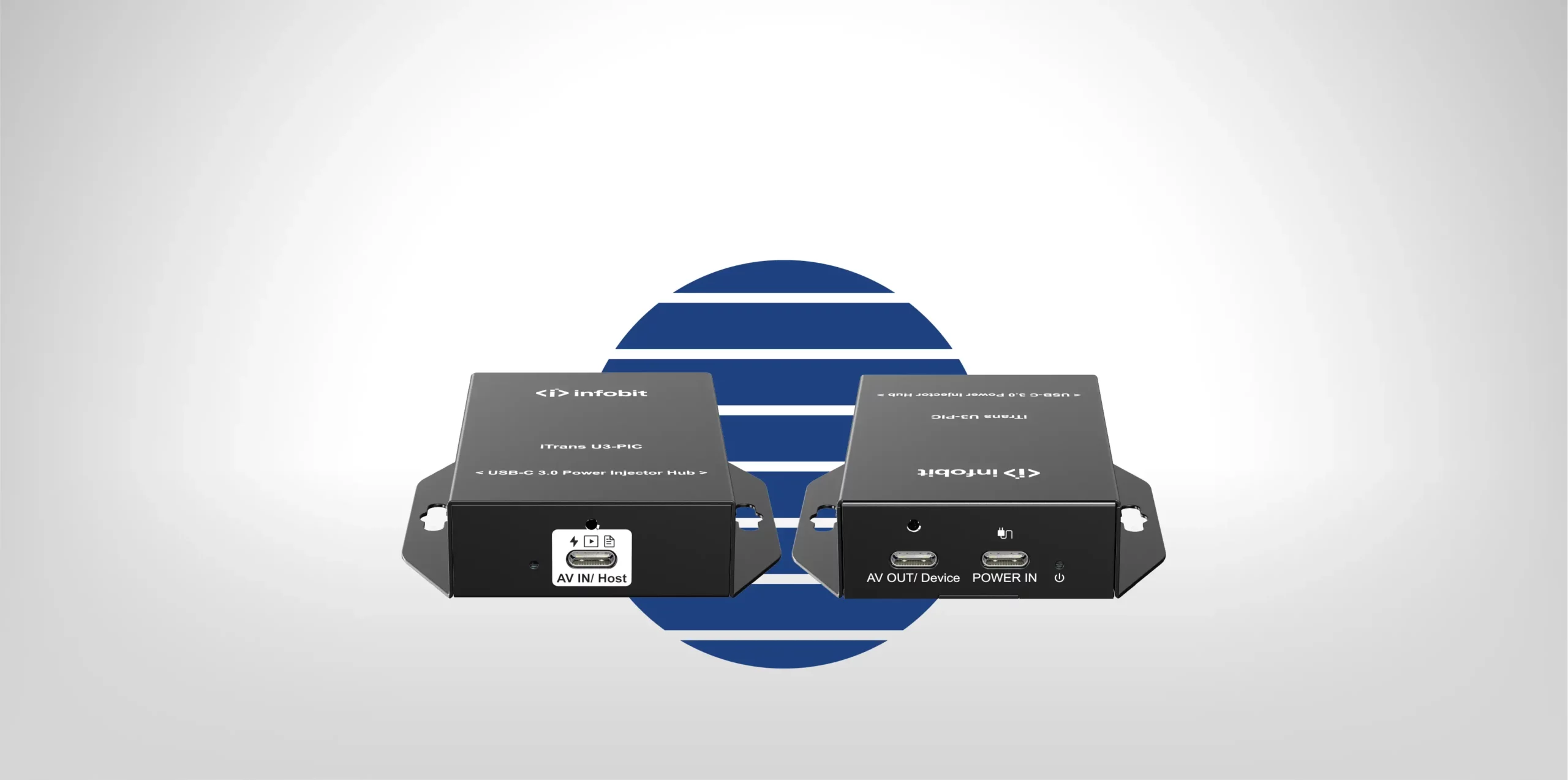

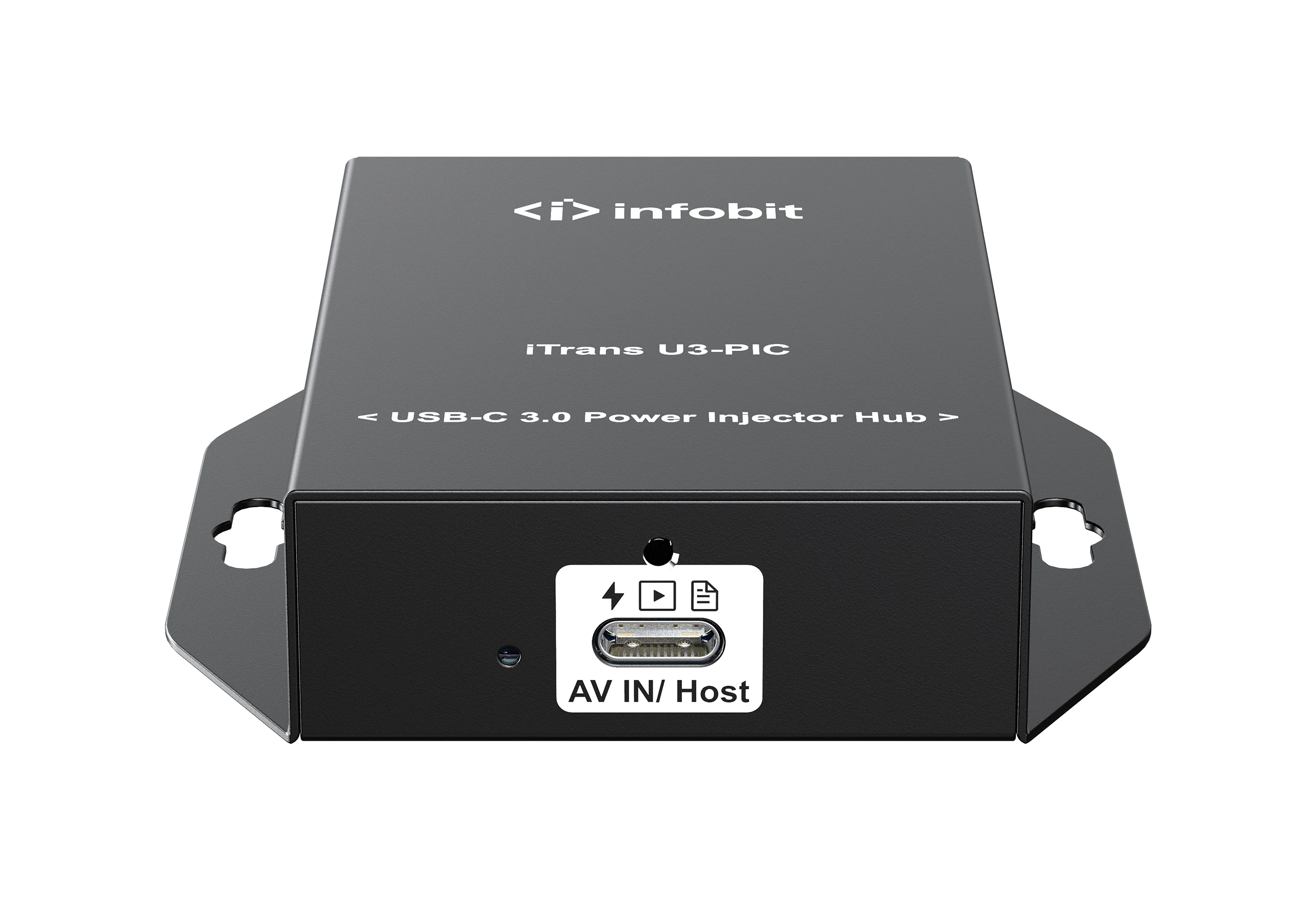

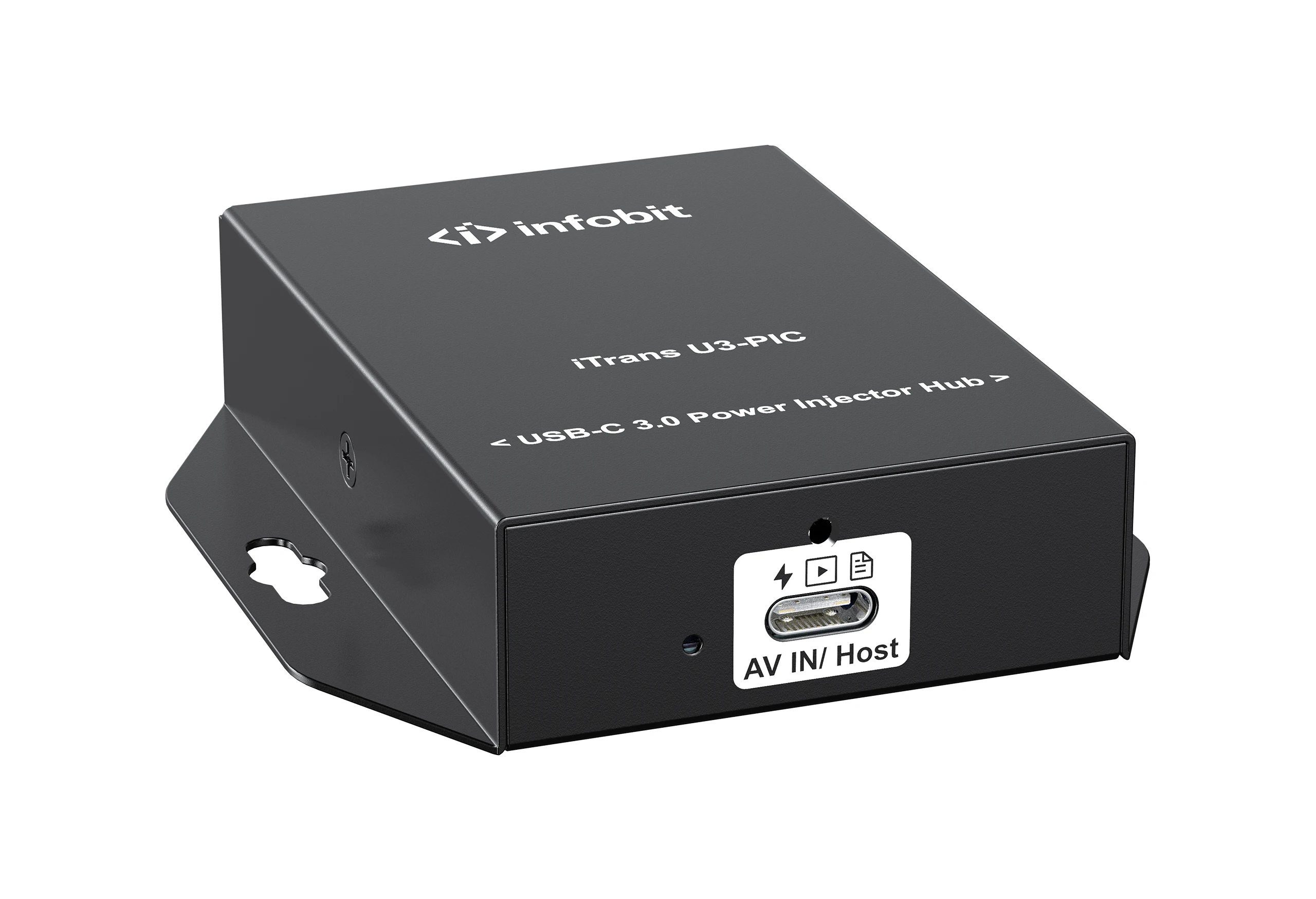

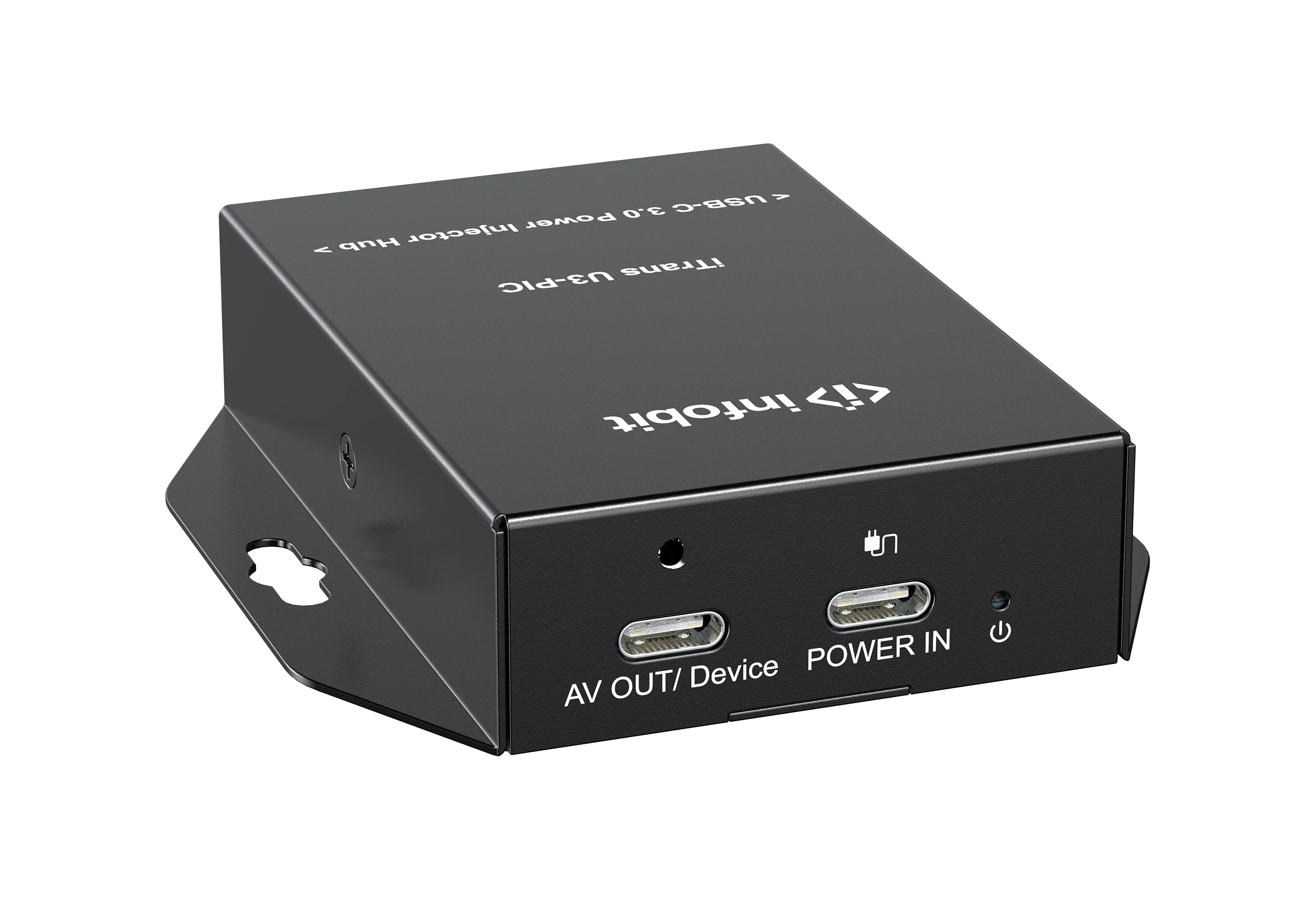

iTrans U3-PIC

Single USB-C cable BYOD/ BYOM laptop connection.

Adds Power Delivery PD3.0 to standard USB-C or Active Optical Cables (AOC) up to 100W

4Lan USB-C fully featured

PD+Data Out USB Type-C: Locking USB-C jack supporting USB Video, audio, power, and DisplayPort Alt-mode 4K60 4:4:4 video

USB Pass-through Support: USB 3.1 Gen 2 (10Gbps)

Power Input: USB-C, 20V@5A

Firmware can be upgraded via USB-C

Extend Full-featured USB-C

Removes the need for users to carry their own bulky power bricks

Designed for home workspace, huddle space, and medium- to large-size meeting rooms.

With under-table mounting ears.

Chat Now

Ultimate Single-Cable Home Workspace

This compact USB-C power injector hub expands your laptop setup.
It simultaneously charges your MacBook,
outputs high-definition video to an external display,
and provides stable, dedicated power delivery.

Seamless Huddle Room Integration

This USB-C PD injector optimizes compact meeting spaces.
It extends data and AV signals to connected conference devices
while delivering reliable Power Delivery back to the presenter's host PC.

Pro BYOM Videobar Connectivity

This USB-C PD injector elevates small meeting rooms.
It bridges BYOD/BYOM PCs directly to smart videobars,
seamlessly routing high-speed camera data,
AV streams, and laptop Power Delivery through a single hub.

Interactive Touch Screen Collaboration

This USB-C PD injector empowers small interactive meeting spaces.
It enables seamless touch-back control
from a touch screen display to the host PC
while simultaneously transmitting data, AV, and power.

Advanced Medium Room BYOM Extension

This USB-C PD injector optimizes medium meeting rooms.
Paired with the iBox Core-500 table box,
it extends USB signal reach to seamlessly connect videobars,
touch screens, and host PCs.

Enterprise Large Room PTZ Integration

This USB-C PD injector scales up large meeting spaces.
Combined with the iBox Core-500 table box,
it extends long-distance USB connectivity
to seamlessly integrate professional PTZ cameras
and interactive touch screens.

Datasheet

Model	iTrans U3-PIC
Name	USB-C 3.0 Power Injector Hub
Input	1x USB-C
Output	1x USB-C
Video	Input: Up to 4K@60Hz 4:4:4 Output: Up to 4K@60Hz 4:4:4 (4Lan USB C)
USB	Data Rate: 10 Gbps Device Power: 5V3A
PD Standard	PD 3.0
Power Consumption	1W (Exclude USB device load)
Dimension	54(W) x 20(H) x 80(D) mm
Net Weight	130g
Operation Temperature	-5 ~ +55 °C
Storage Temperature	-25 ~ +70 °C
Relative Humidity	10% ~ 90%

Download

iTrans U3-PIC Datasheet V1.0.pdf

1.94M

2026-05-15
iTrans U3-PIC User Manual V1.0.pdf

2.13M

2026-05-15
iTrans USB Extenders Connection guide V1.0.pdf

1.6M

2026-09-15
