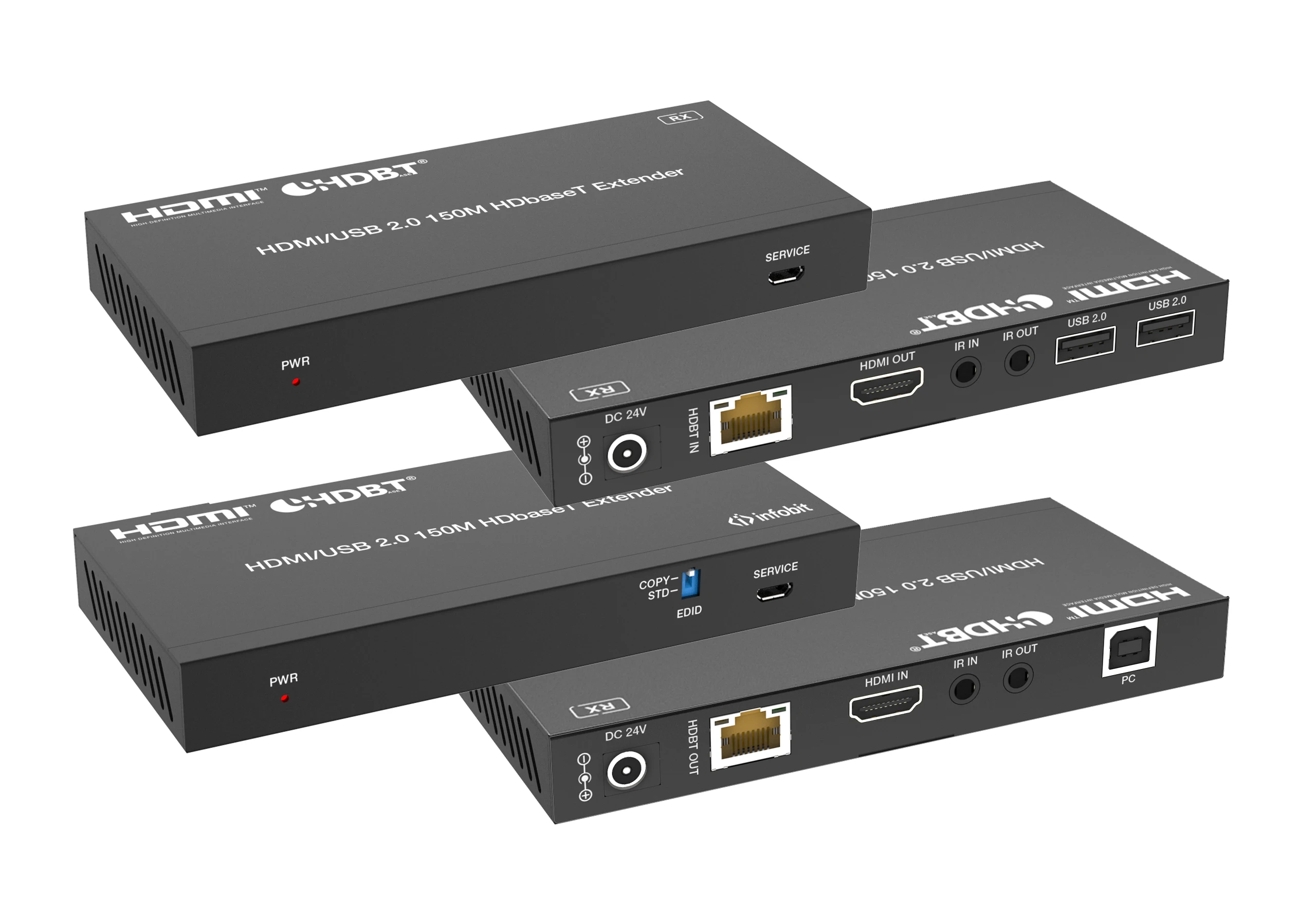

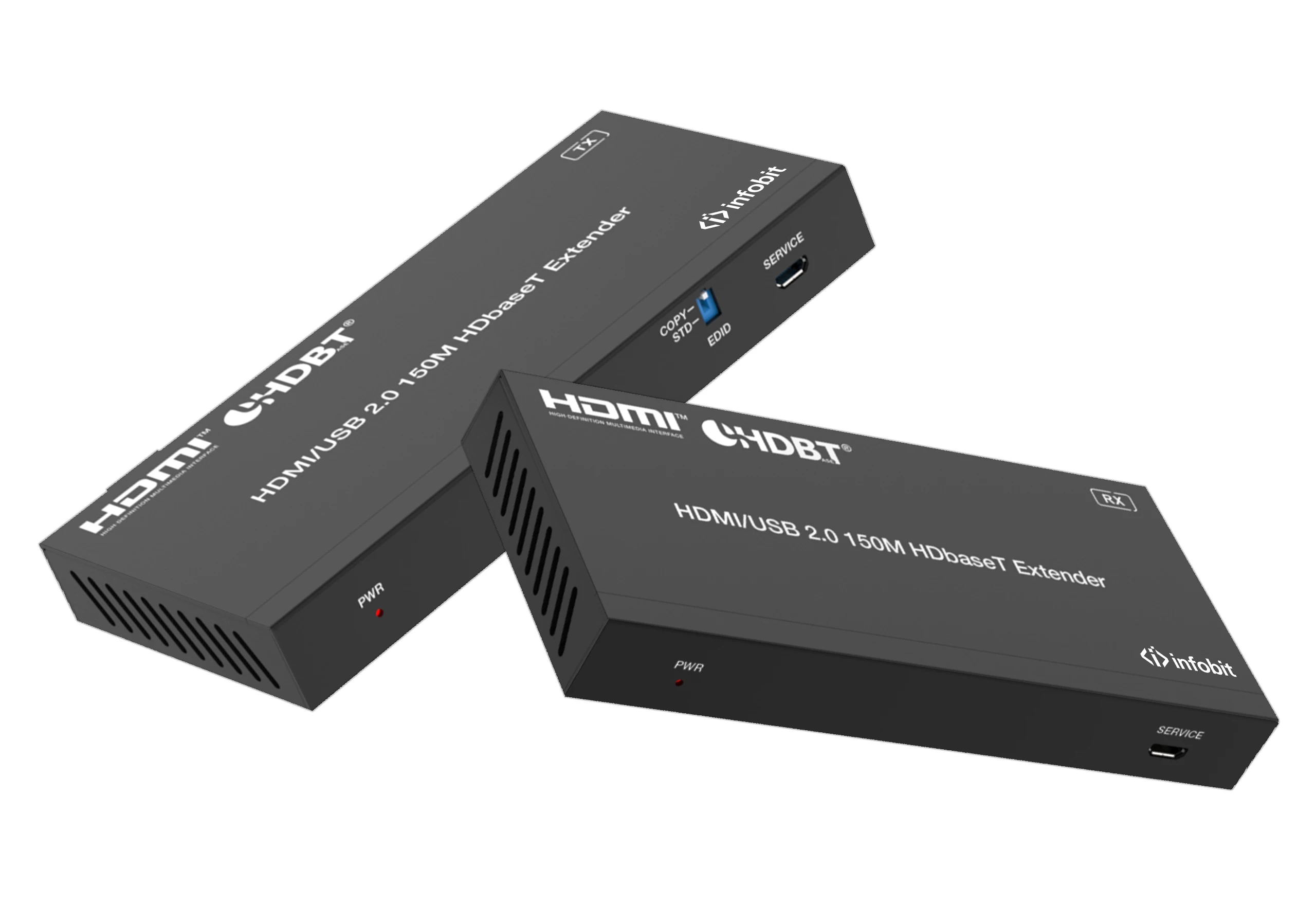

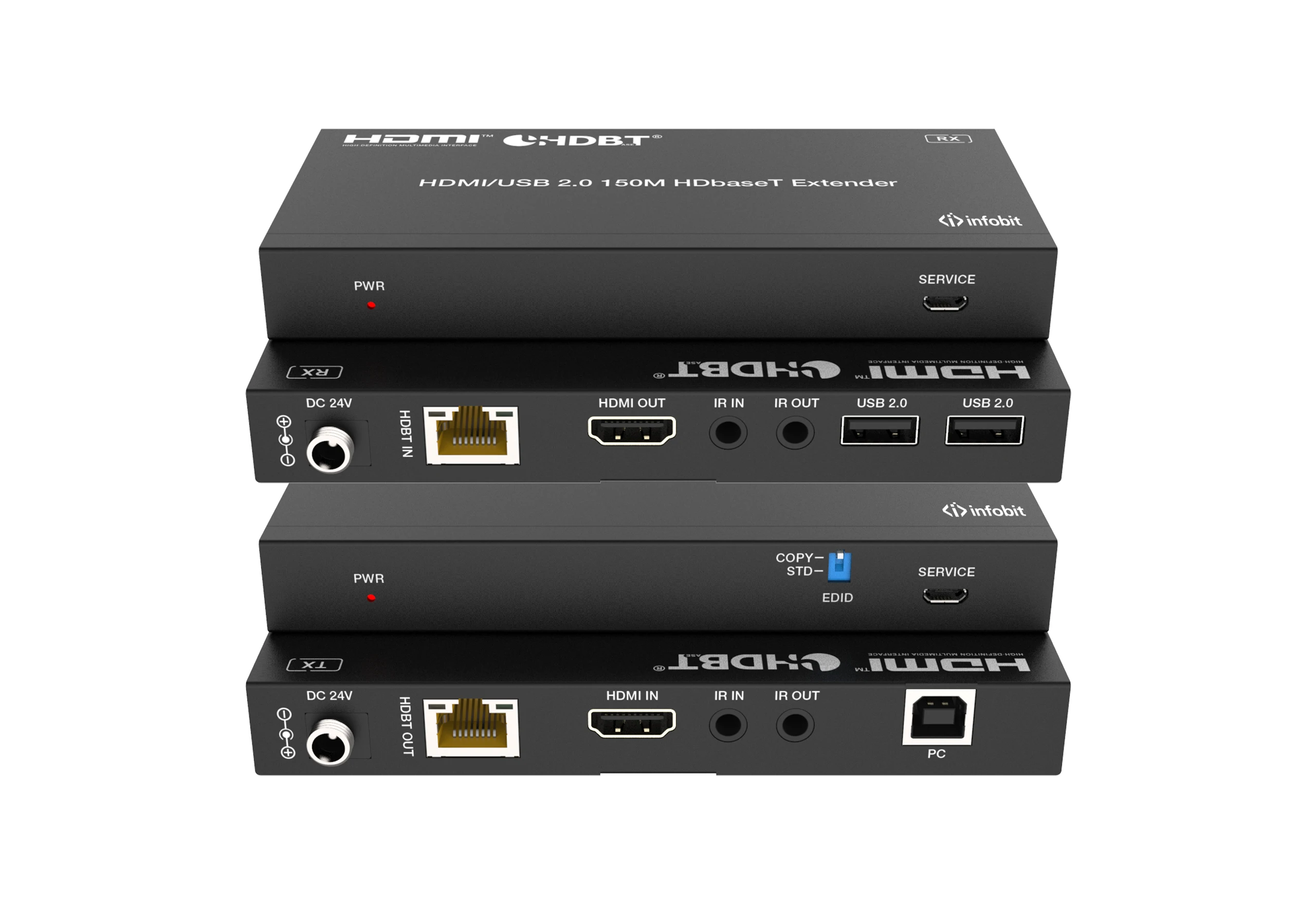

iTrans E150U2
HDMI 4K60 18Gbps HDBaseT Extender with USB 2.0
HDMI 2.0b and HDCP 2.2 compliant
Support 18Gbps video bandwidth
Up to 4K2K@60Hz YUV 4:4:4
Up to 492ft / 150m for 1080P@60Hz, or 394ft / 120m for 4K2K@60Hz 4:4:4 via a single CAT6 cable
Support bi-directional IR signal and USB KVM signal pass-through
Support bi-directional POC (Power over Cable) function
Support Touch control, USB camera, Microphone, Speakerphone
Support USB 2.0 transmission
EDID management
Compact design for easy and flexible installation

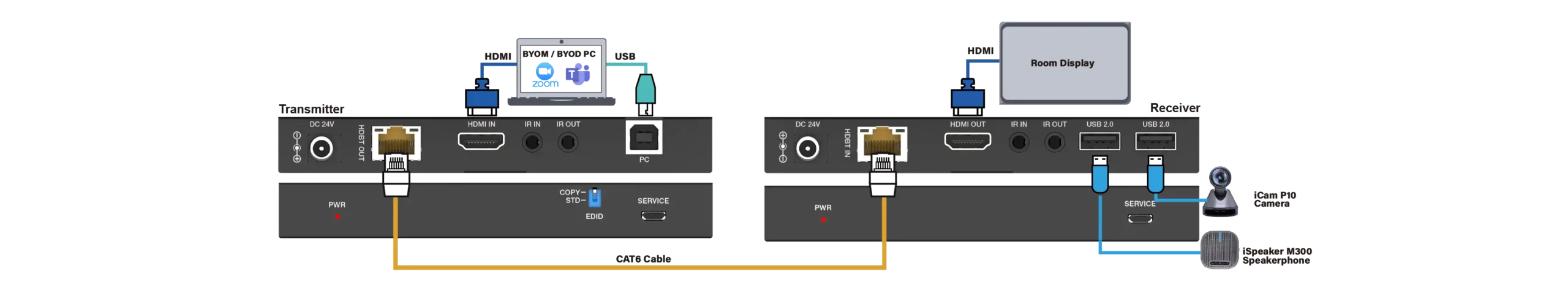

For BYOM/ BYOD conference
The iTrans E150U2 allows anyone in a conference room to access high-quality USB devices (cameras, microphones) in mere seconds through his own PC.

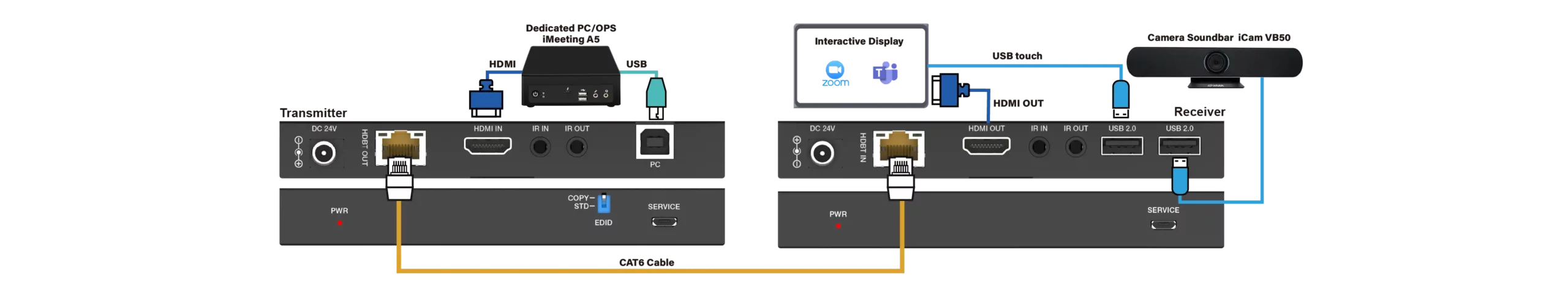

For dedicated conference room
The iTrans E150U2 allows anyone in a conference room to access high-quality USB devices (cameras, microphones) directly through the Room PC or interactive.

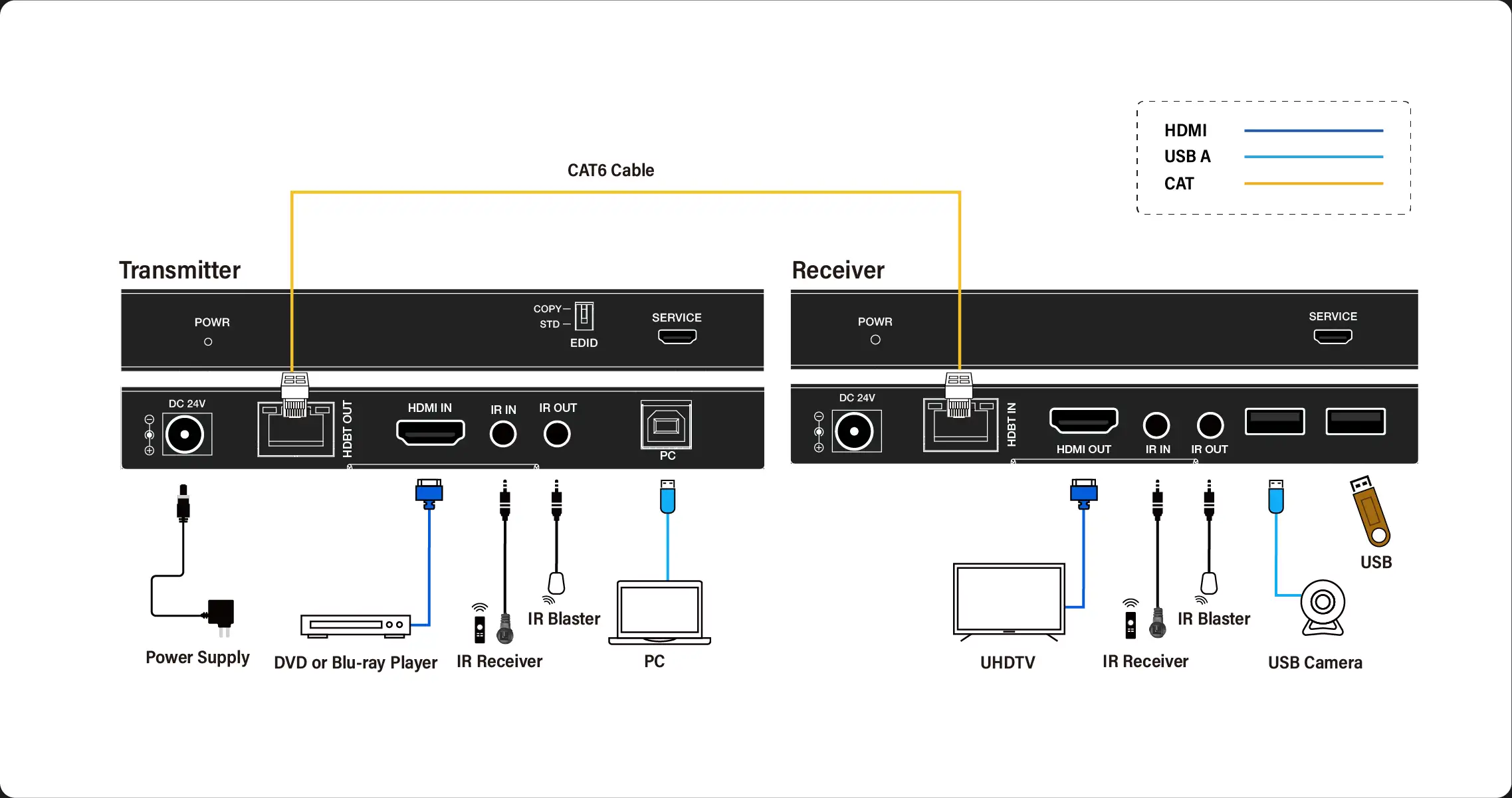

Diagram
Datasheet
| Model | iTrans E150U2 |
| Name | HDMI 4K60 18Gbps HDBaseT Extender with USB 2.0 |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4K2K@60Hz YUV 4:4:4 |
| USB Compliance | USB 2.0 |
| IR Level | 5Vp-p |
| IR Frequency | Wideband 20K-60KHz |
| Transmission Distance | 1080P/60–150m, 4K60 –120m |
| Color Space | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8-bit, 10-bit, 12-bit (1080P) 8-bit (4K60) 8-bit, 10-bit, 12-bit (4K24/30) |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Audio Formats | LPCM 7.1CH, Dolby True HD and DTS-HD Master |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |

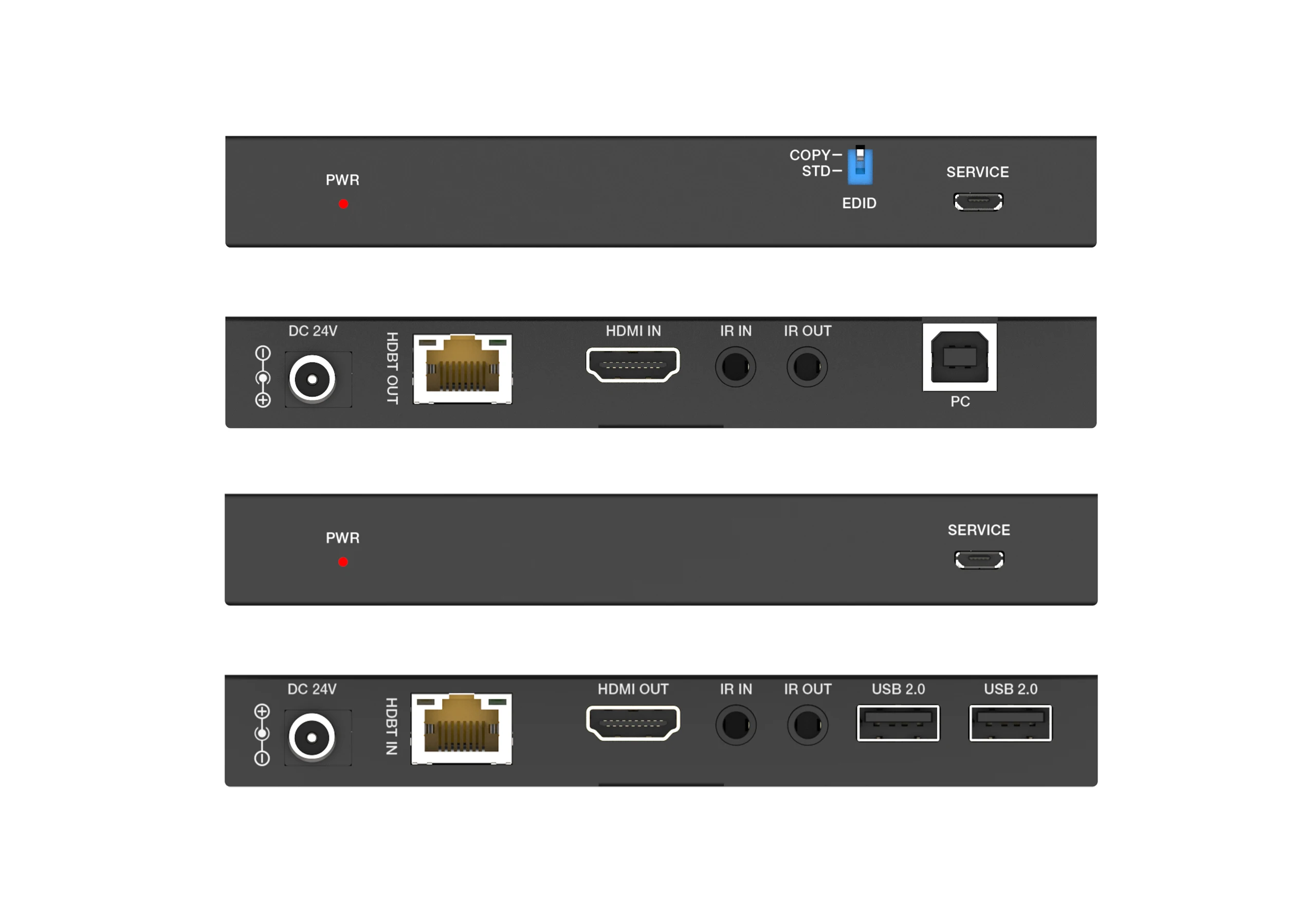

| Transmitter | Input: 1×HDMI IN [TypeA, 19-pin female] 1×IR IN [3.5mm Stereo Mini-jack] 1×SERVICE [Micro-USB jack] 1×USB [USB-B, 4-pin female] Output: 1×HDBT OUT [RJ45] 1×IR OUT [3.5mm Stereo Mini-jack] |
| Receiver | Input: 1×HDBT IN [RJ45 with light] 1×IR IN [3.5mm Stereo Mini-jack] 1×SERVICE [Micro-USB jack] Output: 1×HDMI OUT [TypeA, 19-pin female] 1×IR OUT [3.5mm Stereo Mini-jack] 2×USB 2.0 [USB-A, 4-pin female] |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | Transmitter / Receiver:140mm (W)×65mm (D)×18mm (H) |
| Weight | Transmitter: 245g, Receiver: 249g |
| Power Supply | DC 24V/1A |
| Power Consumption | 13.2W (Max.) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |
| Resolution / Cable Length: HDMI IN OUT | 1080P60Hz, 42ft / 15M |
