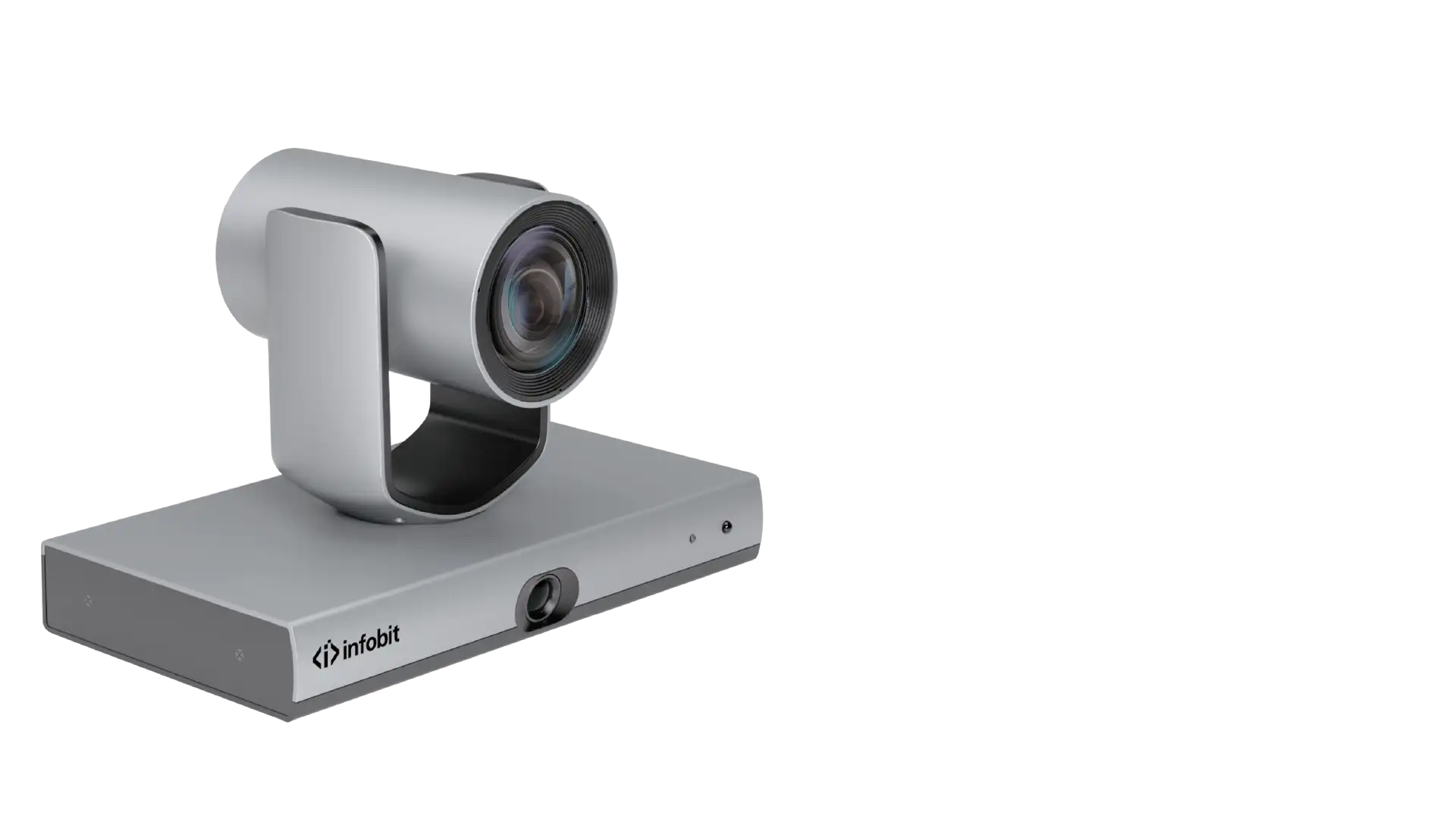

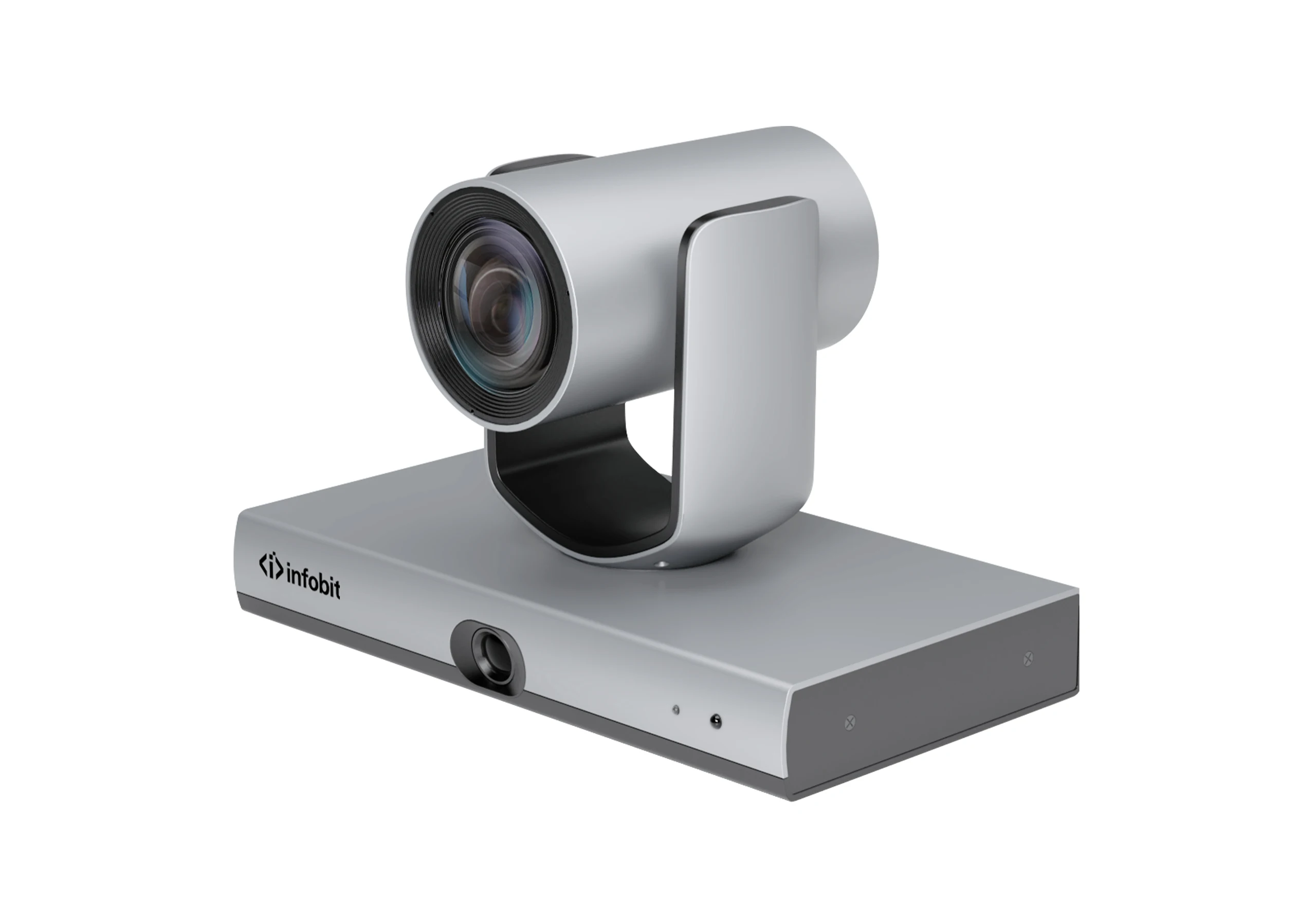

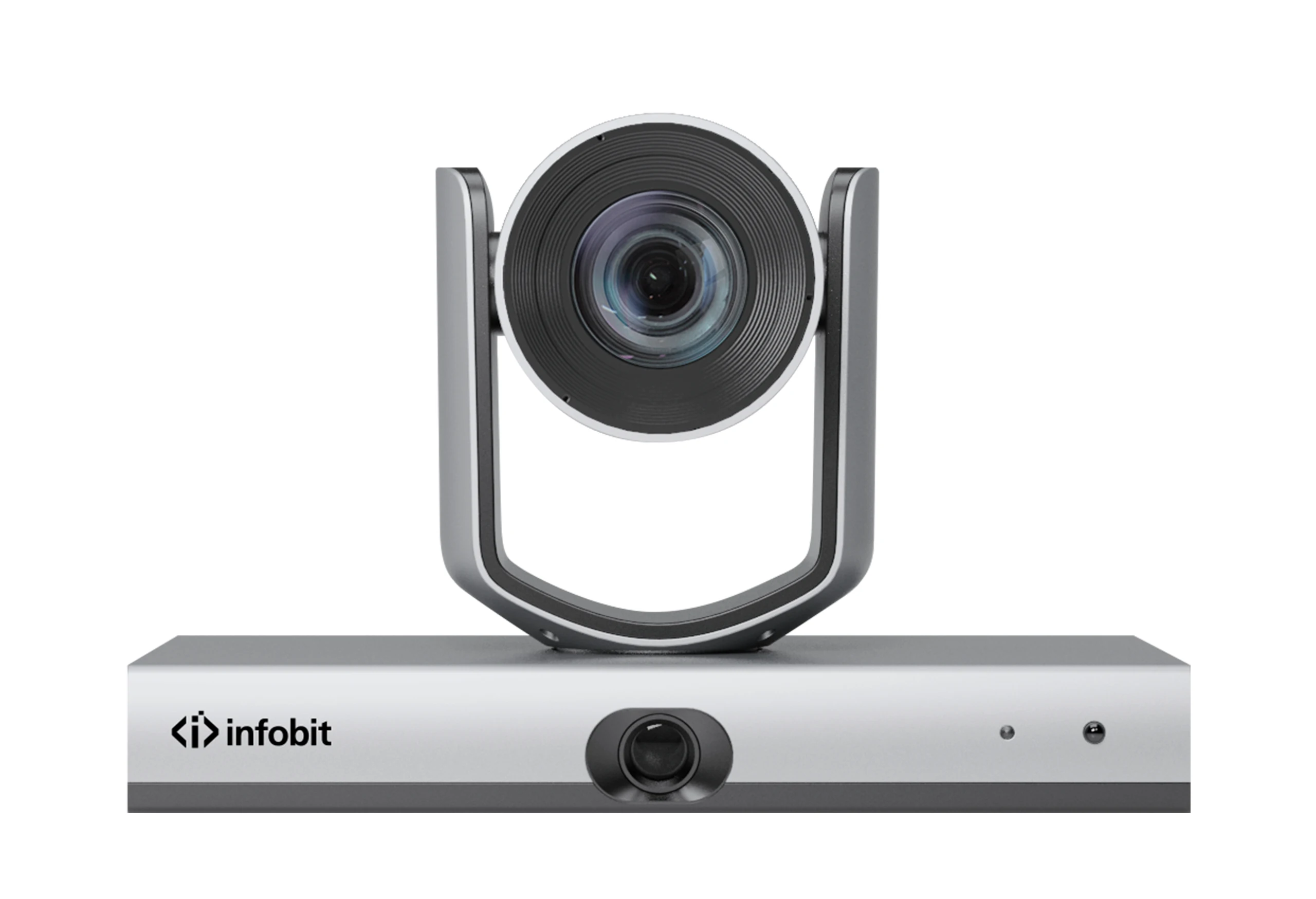

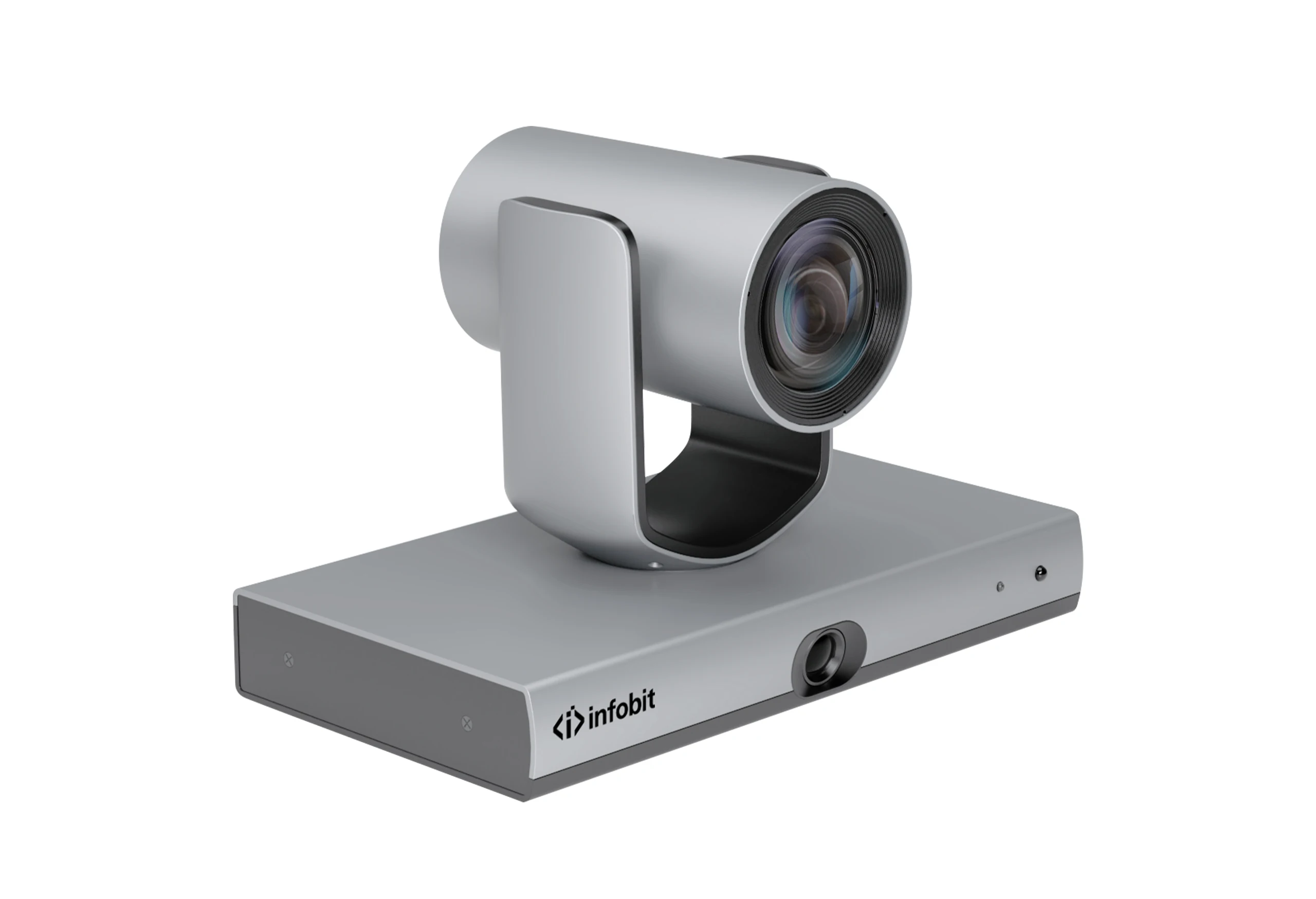

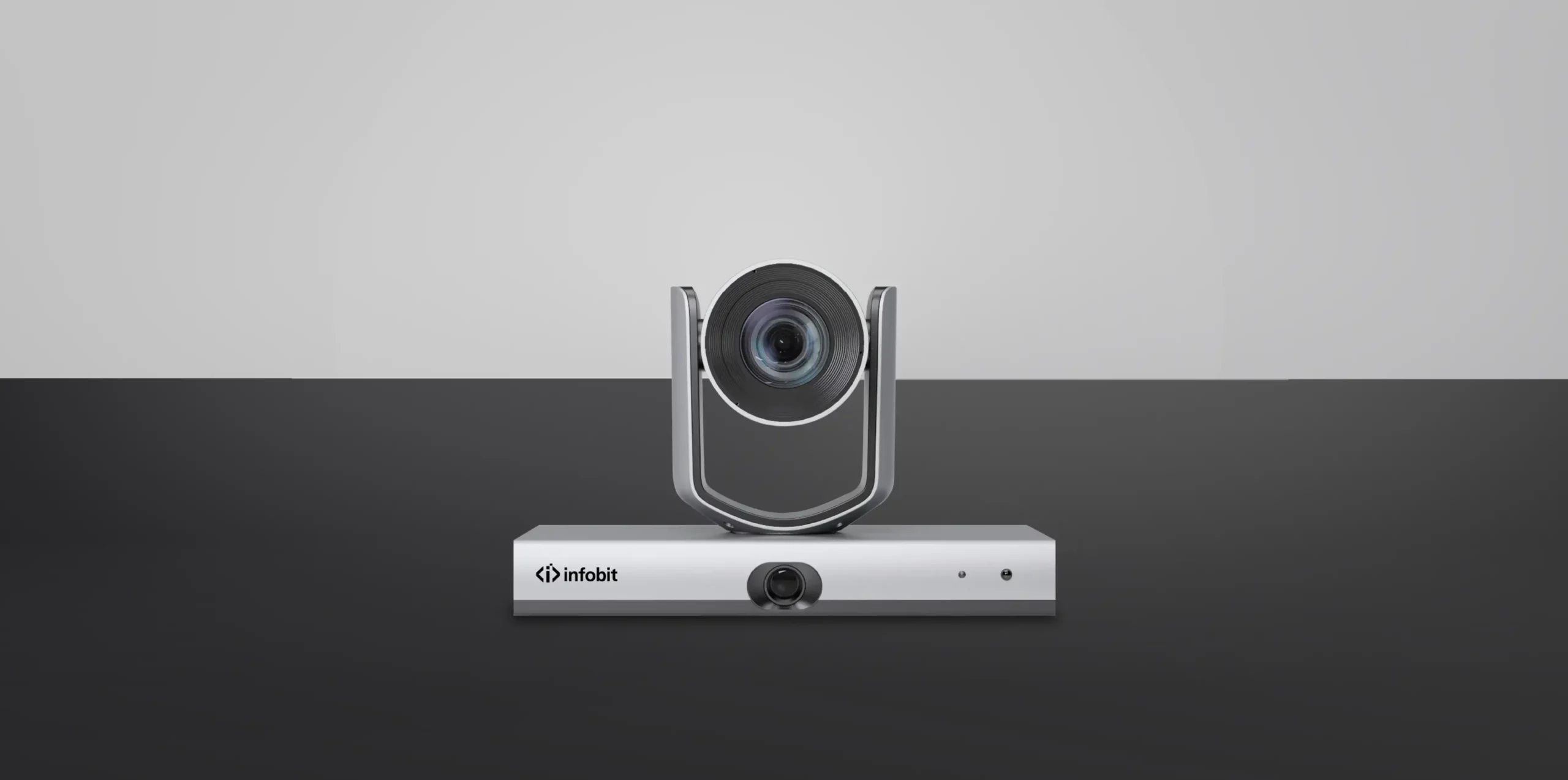

30x Zoom 4K60 AI Tracking PTZ Camera
AI Tracking
30x Optical Zoom
4KP60
Dual 4K
Lecturer Tracking
Max 30x Optical Zoom PTZ Camera,
4KP60, UHD Video Output,
Smart AI auto tracking,
NDI HX3, SRT (Note: the iCam P30VN with NDI)
Built-in Web UI,
Dual Cam Design.
| Models | iCam P30V | iCam P30VN |
| Close-up Camera | ||
| Image Sensor | 1/2.8” CMOS, 8.46MP | |
| Optical Zoom | 30 Optical; 16x Digital | |
| Focal | f=5.2mm ~156mm | |
| Iris | F1.6 ~ F5 | |
| HFOV | 56.5° ~ 1.9° | |
| Distortion Correction | Support | |
| NDI | Not support | Support |
| Full View Camera | ||
| Image Sensor | 1/2.8” CMOS, 8.46MP | |
| Focal | f=2.8mm | |
| Iris | F2 | |
| FOV | H：94° V：62° | |
| Image Parameters | ||
| Image Style | One-click switching between multiple image styles | |
| Noise Reduction | 2D & 3D DNR | |
| Shutter Speed | 1/25s ~ 1/10,000s | |
| Gain | Auto, Manual | |
| White Balance | Auto, Manual, Indoor, Outdoor, Auto Tracking, Static Color Temperature, One push, Follow the full-view | |
| BLC | Support | |
| WD | Support | |
| Exposure Mode | Auto, Manual, Shutter Priority, Brightness Priority, Iris Priority, Auto Tracking, Follow the full-view | |
| Metering Mode | Top, Bottom, Center, Average, Left, Right | |
| SNR | ≥50dB | |
| Parameter Adjustment | Image parameters of close-up and full-views can be adjusted independently | |
| Image Flip | Horizontal mirroring, Vertical flipping | |
| PTZ | ||
| Horizontal | -130° ~ +130°； 0.1° ~ 80°/s | |
| Vertical | -30° ~ +90°； 0.1° ~ 60°/s | |
| Software Function | ||
| Preset Position Freezing | Support | |
| PIP | Supports picture-in-picture | |
| OSD | Customized overlay of OSD character | |
| WebUI | Supports | |
| Software Upgrade | 1. USB, WEB or Network MgrTools upgrade | |
| Powerful AI | ||

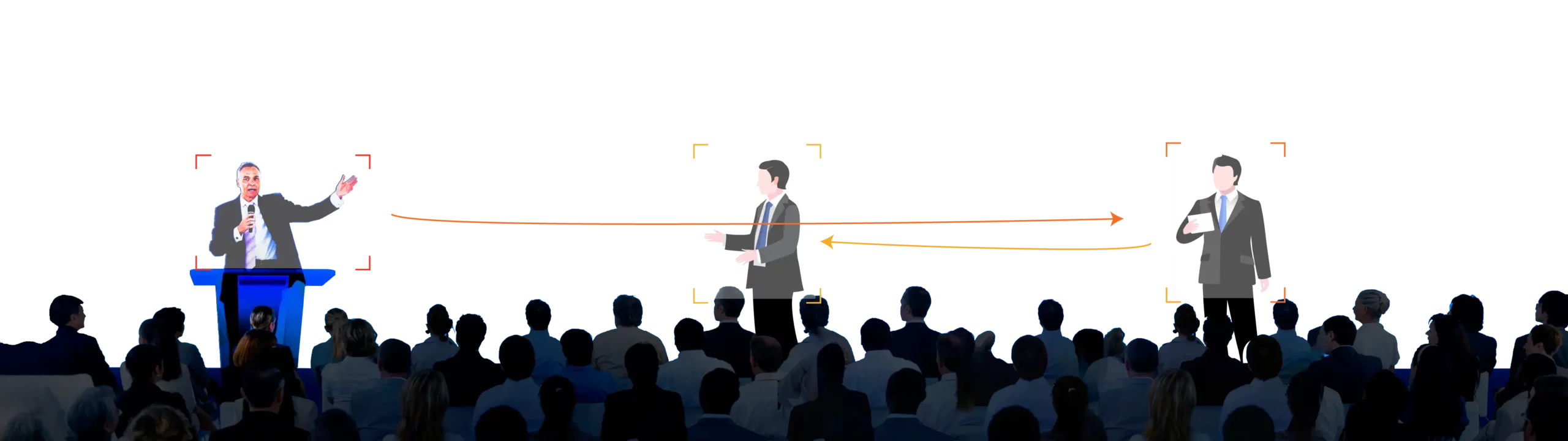

| Lecturer Tracking | Supports everywhere tracking, zone tracking, and selected target tracking | |
| Auto Framing | Multi-person framing (framing within designated zone) Support people counting |
|
| Custom Tracking Area | Supports customizing any image area as the tracking region and eliminating interference in complex scenes. | |

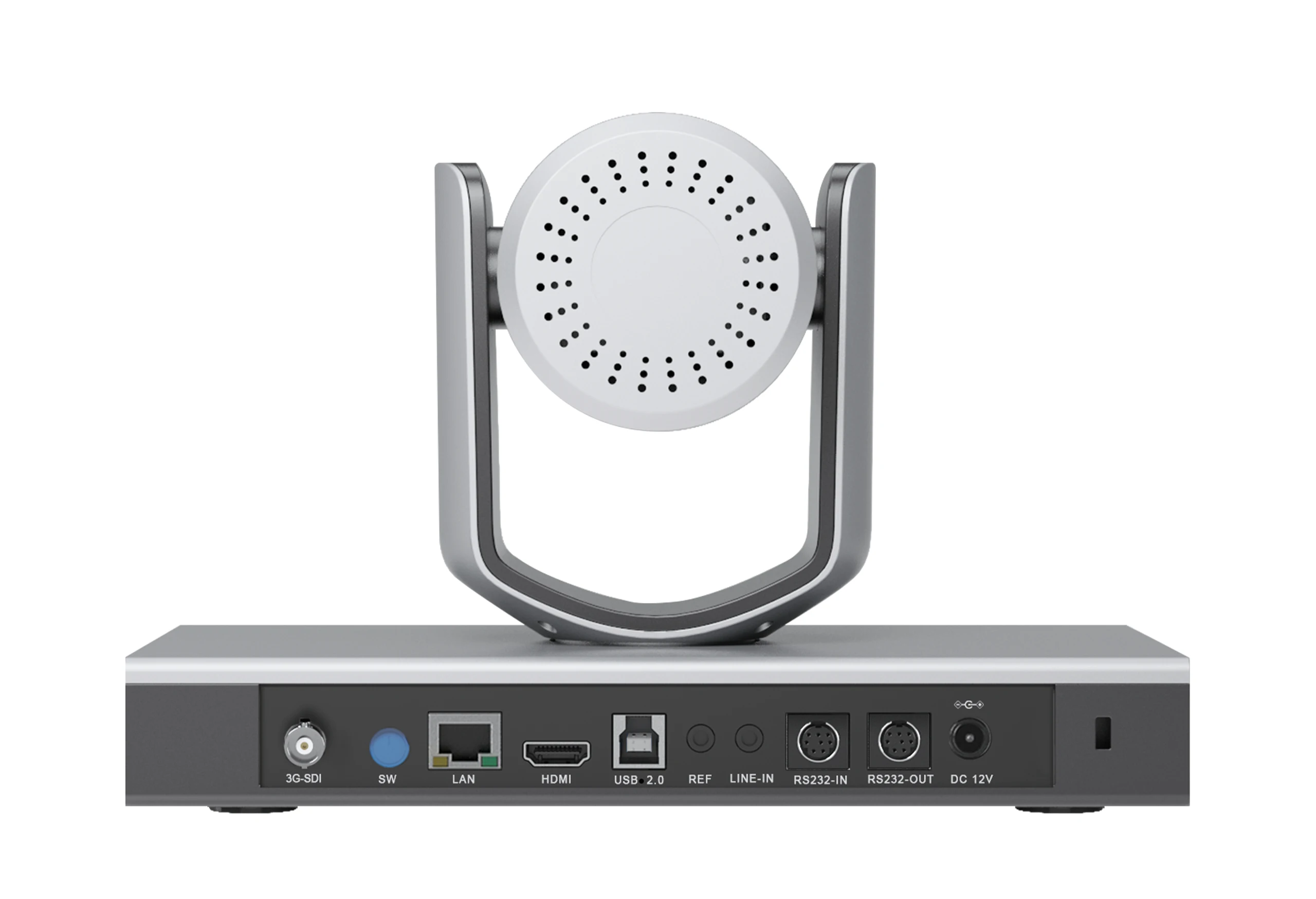

| Interfaces | ||
| HDMI | 1-channel HDMI 2.0, switchable close-up & full-view output | |
| 3G-SDI | One channel of 3G-SDI, switchable close-up & full-view output | |
| Network | 1-channel RJ-45 interface, supporting 10M/100M/1000M adaptive Ethernet. | |
| USB | 1-channel USB 2.0 Type-B | |
| Audio | 1-channel LINE IN, 3.5mm; support ACC, G.711; | |
| REF | 1-channel REF, Reserved | |
| Control | 1-channel RS-232 IN, 1-channel RS-232 OUT; Support daisy chain | |
| Power | Input: 100-240V, 50-60Hz, output: DC 12V, 1.5A, ＜18W | |
| General | ||
| Preset Number | 256 | |
| Indicator Light | Power Indicator | |
| IR Remote Control | Supported | |
| Installation Method | Upright, Inverted | |
| Control Protocol | VISCA / PELCO-P / PELCO-D | |
| Operating Environment | Temperature: 0°C~+40°C; Humidity: 10%RH~90%RH | |
| Storage Environment | Temperature: -20°C~+60°C; Humidity: 10%RH ~95%RH | |
| Dimensions (L*W*H) | 245mm*145mm*165mm | |
| Weight | 1.8kg | |
