iMatrix H88HAW

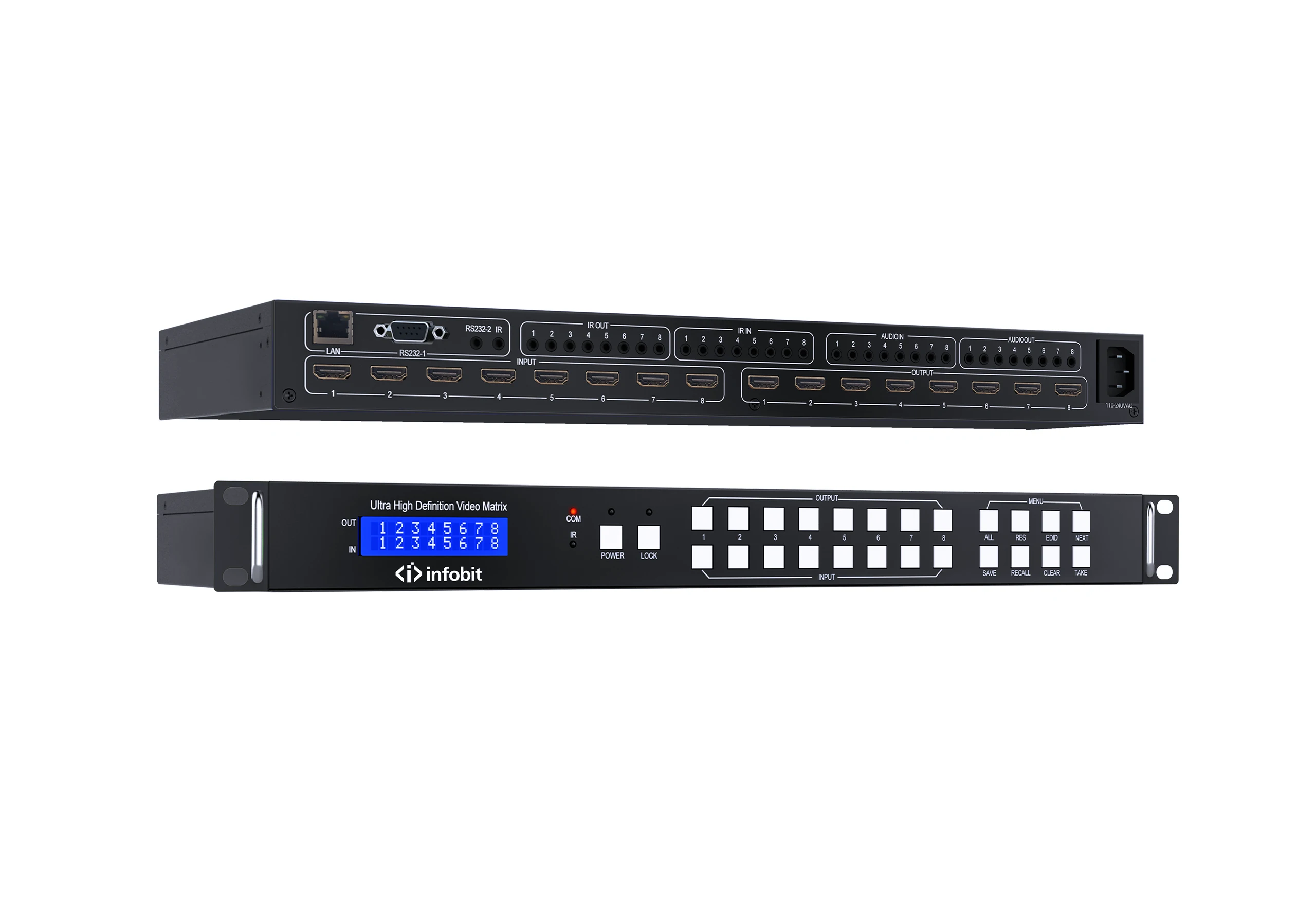

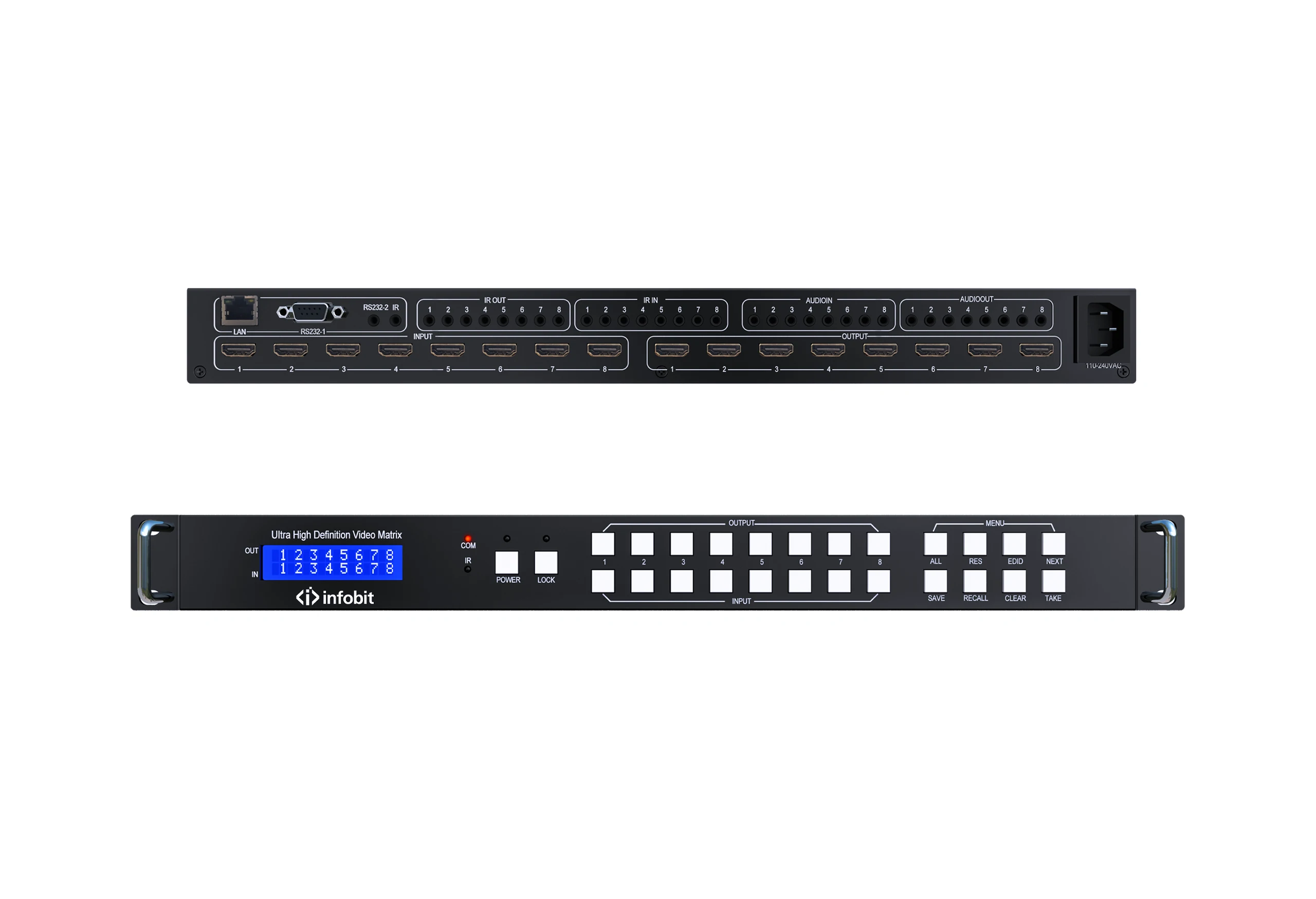

8x8 18Gbps HDMI 4K60 Seamless Matrix Switcher with Videowall
HDMI 2.0 and HDCP 2.2 compliant
Support 18 Gbps video bandwidth
Support seamless switching
Support video wall
Support IR matrix
Support HDMI audio extract
Support external L/R audio insert on HDMI stream
Support EDID management
HDMI video output resolution up to 3840x2160@60
Support front panel, RS232, TCP/IP (LAN 10M/100M) control

Matrix or Videowall

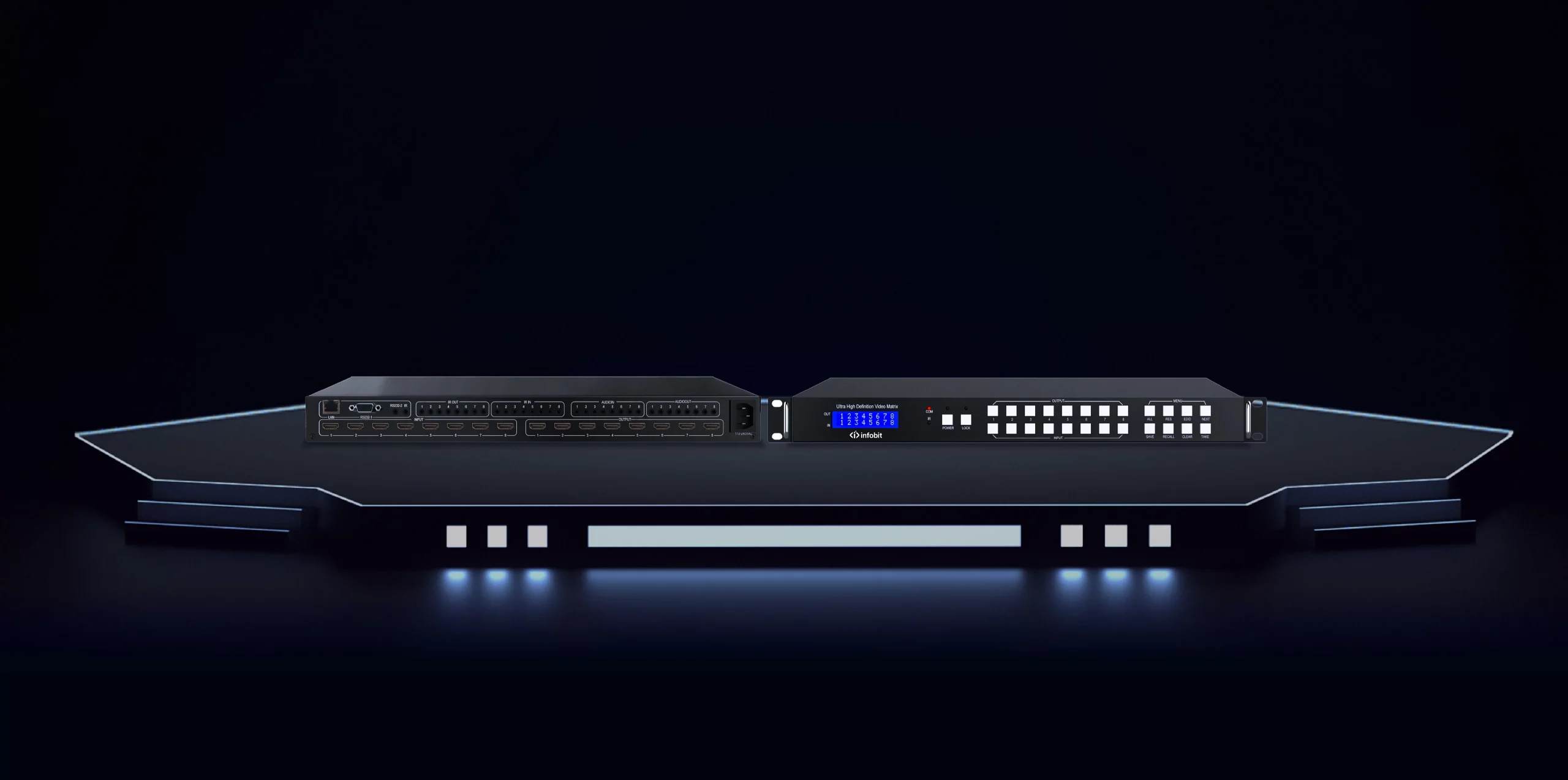

The 18Gbps 8x8 seamless UHD Matrix can connect 4 HDMI sources to 4 HDMI displays in seamless switching or videowall modes.

Application

The INFOBIT iMatrix H88HAW 4K60 HDMI matrix switchers w/ audio are used in broadcast, education, conference, home theater, control room and digital signage.

Datasheet

Model iMatrix H88HAW
Name 8×8 18Gbps HDMI 4K60 Seamless Matrix Switcher with Videowall
HDMI Compliance HDMI 2.0
HDCP Compliance HDCP 2.2
Video Bandwidth 18Gbps
Video Resolution Up to 4K60Hz (4:4:4)
Color Space RGB 4:4:4, YCbCr 4:4:4/4:2:2
HDMI Amplitude T.M.D.S +/- 0.4Vpp
Differential Impedance 100±15ohm
ESD Protection Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge)
Baud rate and Protocol Baud rate: 9600, data bit: 8
Stop bit: 1, no parity checking
Ethernet IE10.0+,HTML5
Matrix  Inputs:
8 x HDMI Type A [19-pin female]
8 × Coaxial audio [3.5mm Stereo Mini-jack]
Outputs:
8 x HDMI Type A [19-pin female]
8 × Coaxial audio [3.5mm Stereo Mini-jack]
Controls:
8 x IR IN [3.5mm Stereo Mini-jack]
8 x IR OUT [3.5mm Stereo Mini-jack]
1 × TCP/IP [RJ45]
1 × RS-232 [D-Sub 9]
Housing Metal Enclosure
Color Black
Dimensions Matrix: 430mm (W) × 300mm (D) × 44mm (H)
Weight 5kg
Power Supply AC 100 – 240V 50/60Hz
Power Consumption 100W (Max)
Operating Temperature  0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature  -20°C ~ 70°C / -4°F ~ 158°F
Relative Humidity 10~50% RH (non-condensing)

Download

  • iMatrix H88HAW User Manual_V1.0.pdf

    18.72M 19-09-2022
