Supports system-level and outlet-level metering.
Supports metering of voltage, current, and power consumption.
2x TCP/IP network ports to provide continuous network services.
Overload protection, wiring error protection, remote login verification.

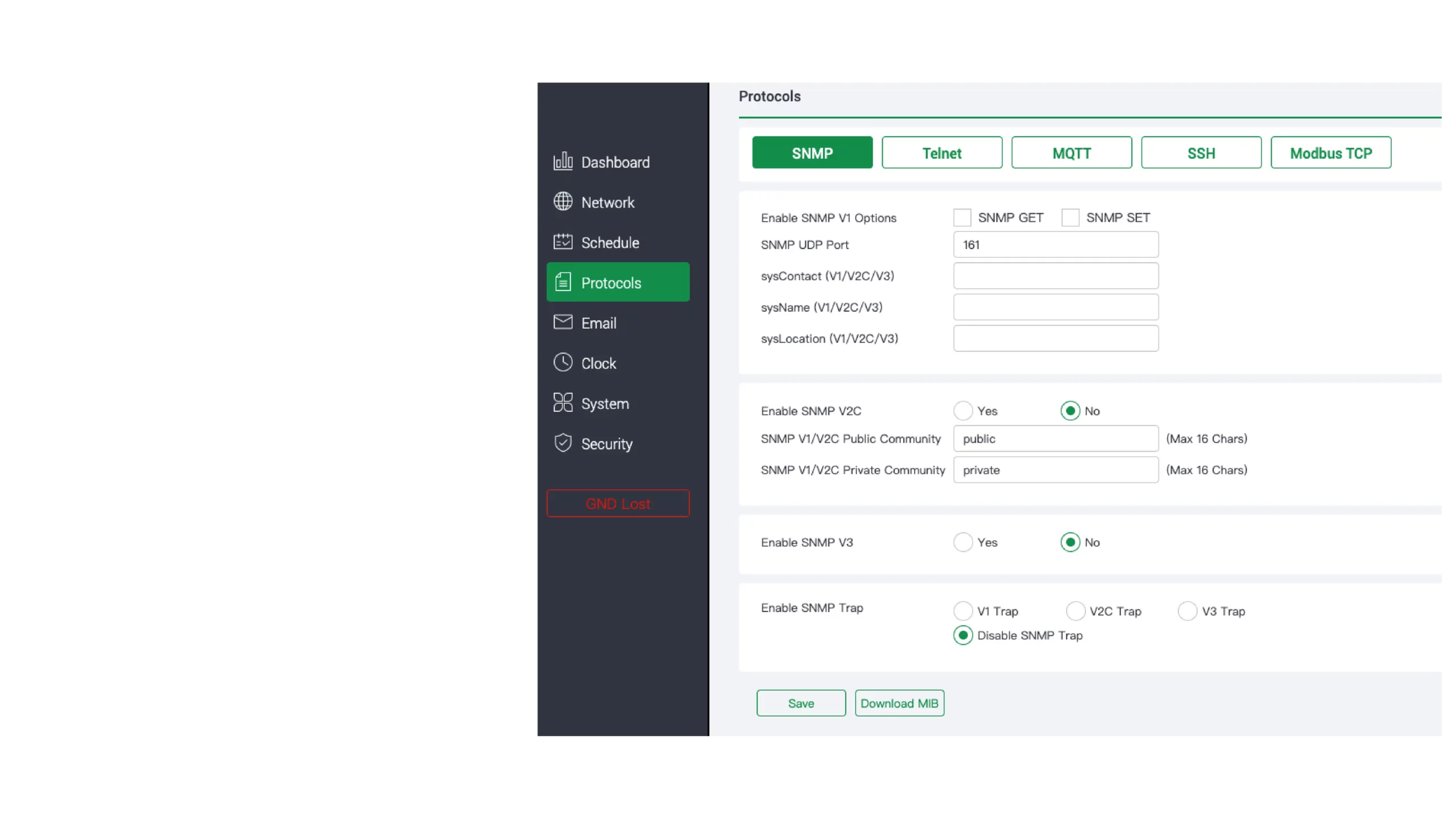

Supports multiple network protocols and IoT protocols.
Controllable via buttons, RS-232, and Web GUI.
| Input | |
| Voltage | AC 110-250V |
| Frequency | 50/ 60Hz |
| Current | Max. 16A |
| Connector | 1x IEC C20 |
| Output | |
| Voltage | AC 110-250V |
| Frequency | 50/ 60Hz |
| Current | Max. 10A for outlet Max. 16A in total |
| Connector | 8x IEC C13 |
| Control | |
| Mode | Button: 8x white buttons TCP/IP: 2x RJ45 RS-232: 1x 3-pin Phoenix terminal |
| General | |
| Voltage Range | 110-250V |
| Current Range | 0-16A |
| Frequency Range | 45-65Hz |
| Power Factor | 0-1 |
| Operation Temperature | -5℃ ~ +55℃ |
| Storage Temperature | -20℃ ~ +70℃ |
| Relative Humility | 0% ~ 80% |
| Standby Power Consumption | 1.5W |
| Dimension (W*H*D) | 436.4mm x 44mm x 225mm |
| Net Weight | 2.8kg |
