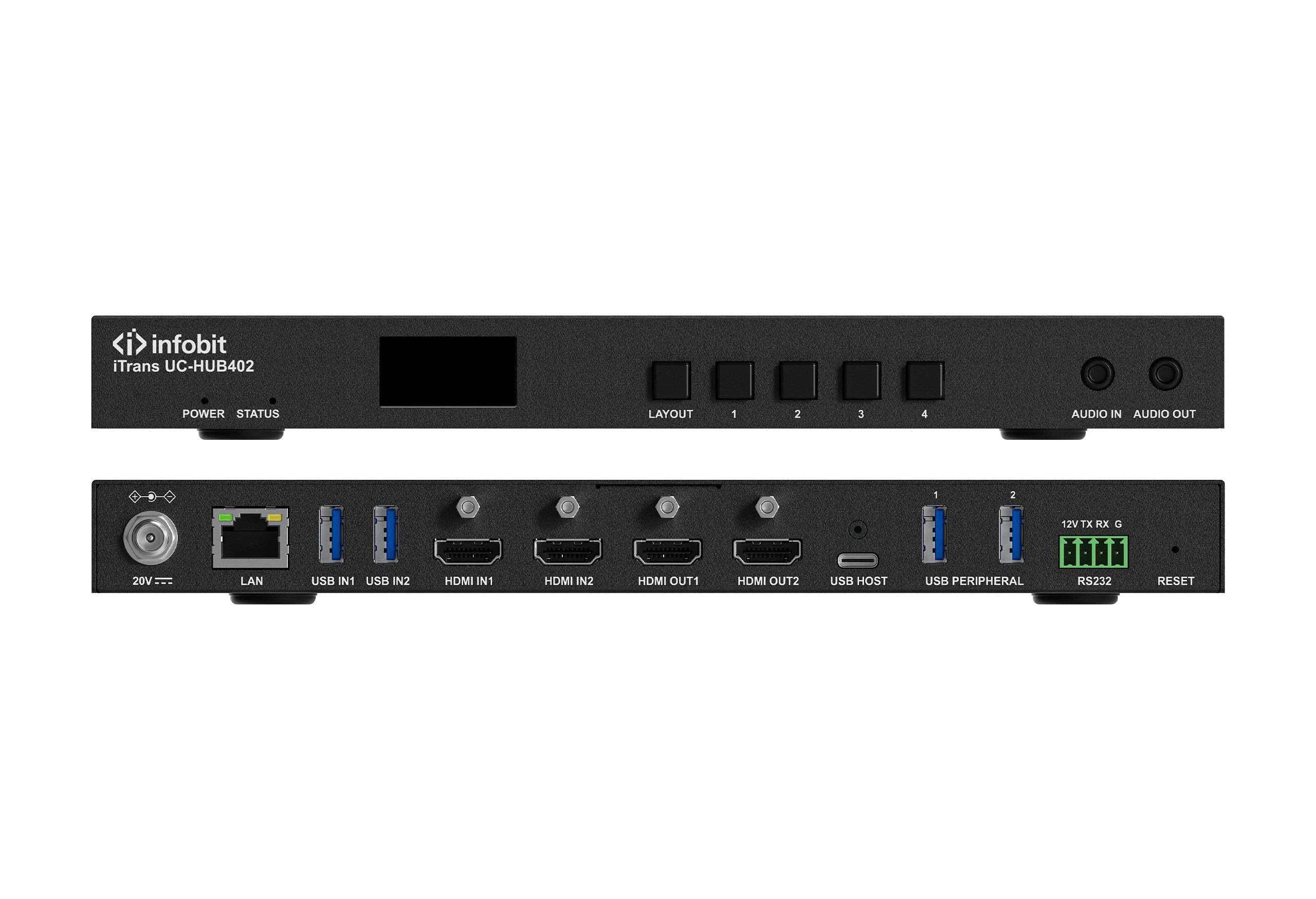

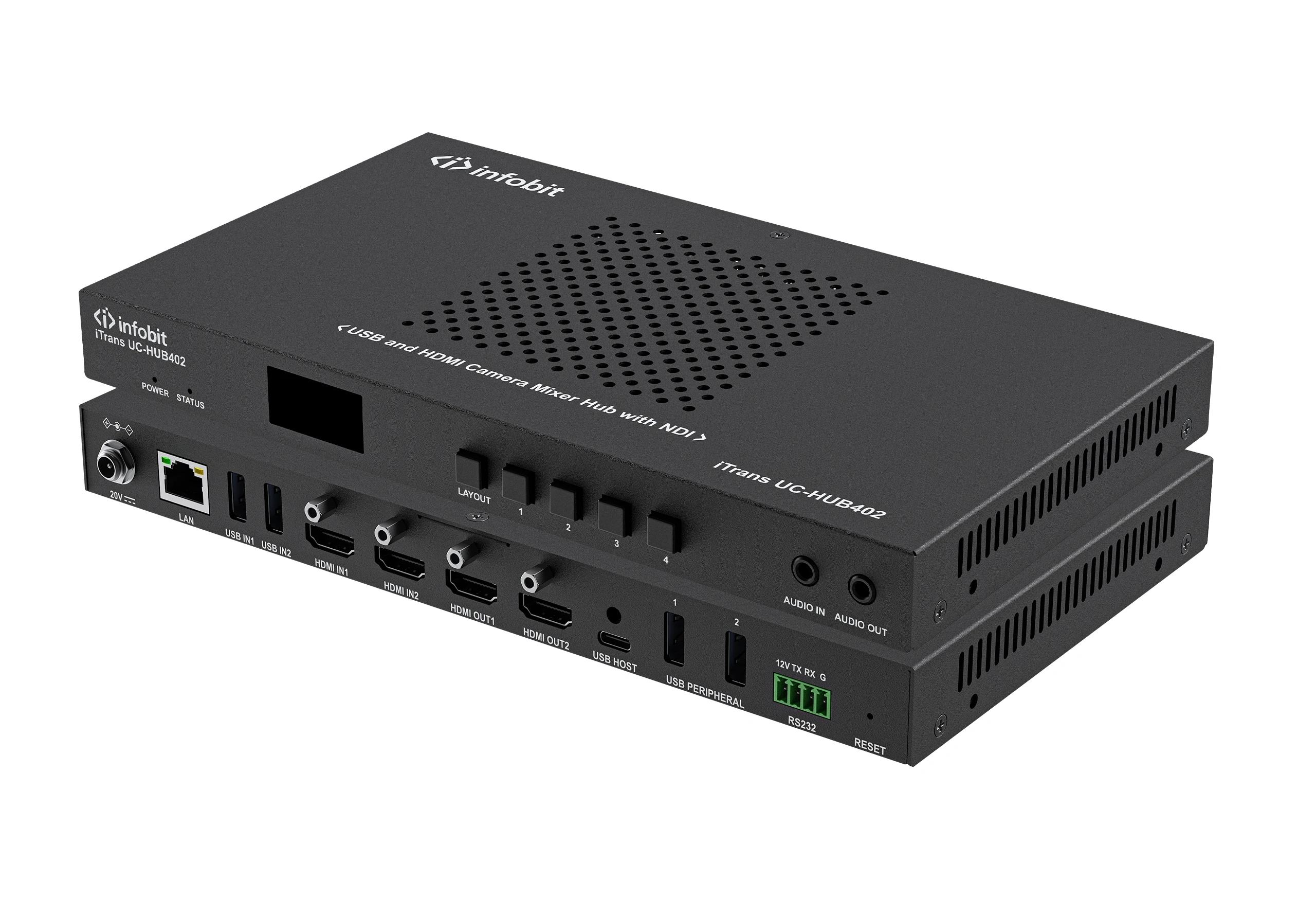

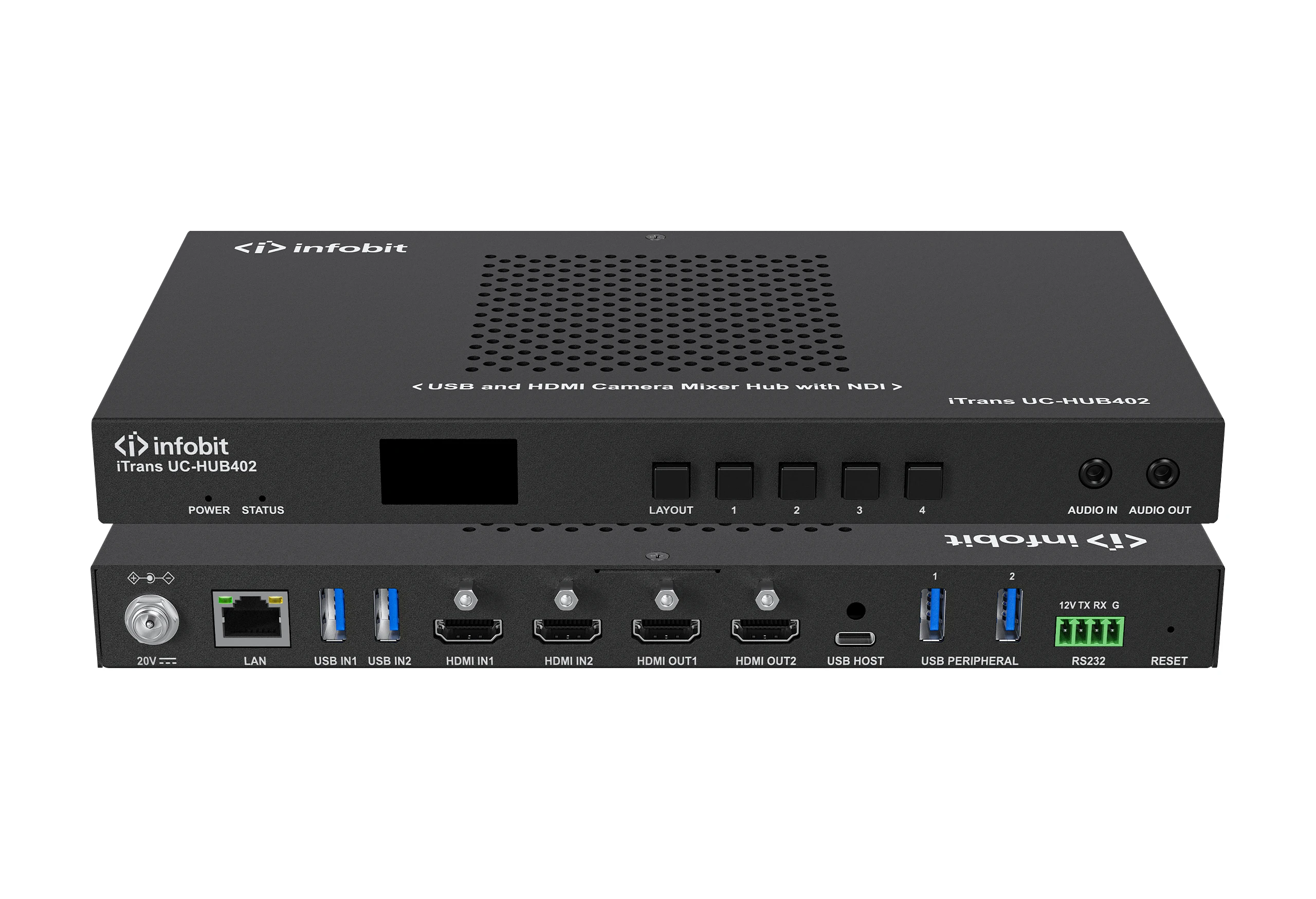

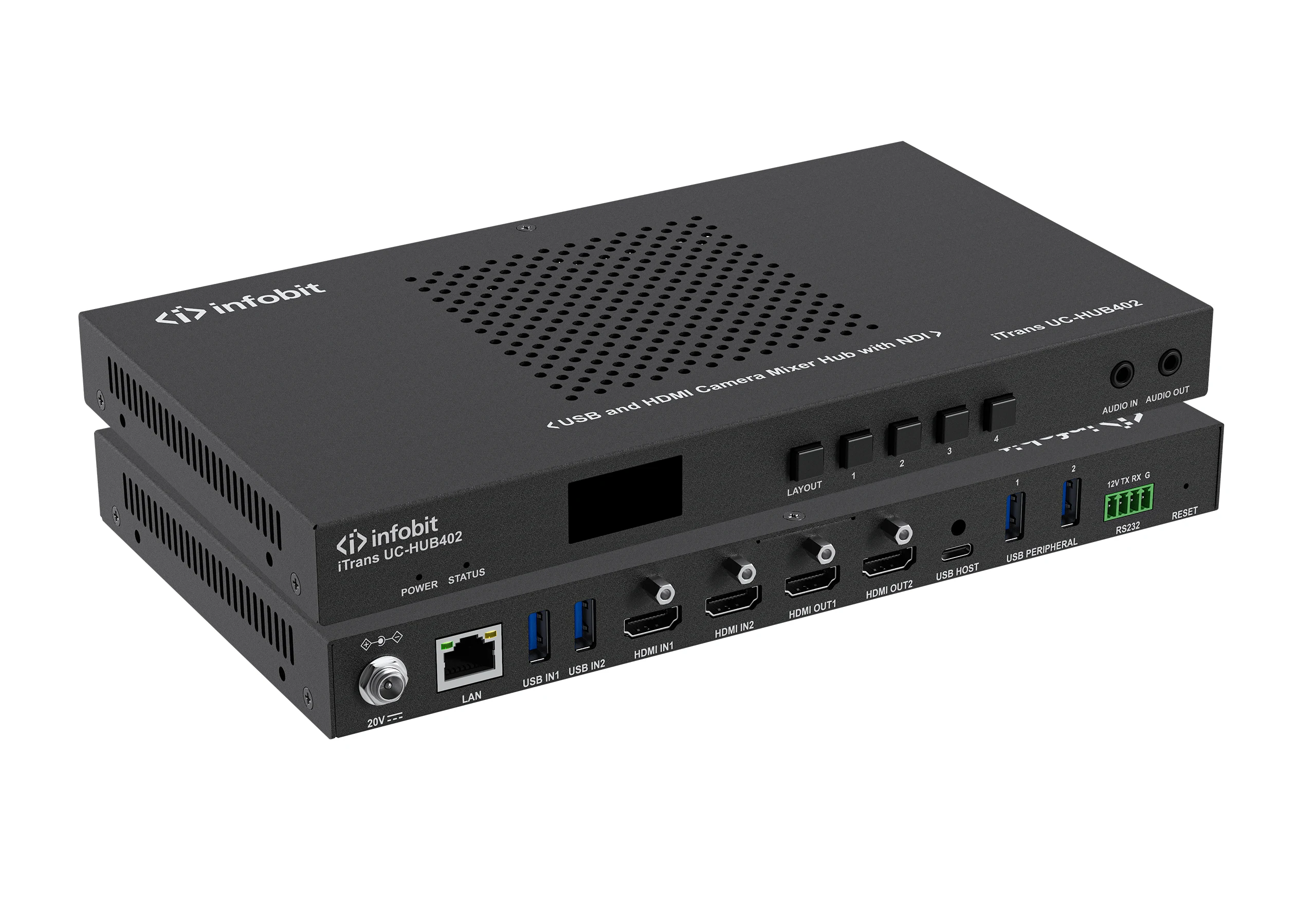

iTrans UC-HUB402

Four-input multi-camera switcher with two HDMI inputs and two USB camera inputs

Supports HDMI and USB video sources up to 4K@30Hz

Multi-view display modes, including quad view, picture-in-picture, side-by-side, and pyramid layouts

Simultaneous HDMI and USB video output with HDMI OUT2 mirrored to USB HOST

Dedicated full-screen output on HDMI OUT1

Supports up to four NDI inputs and one mirrored NDI output (video only)

Seamless low-latency source switching

Built-in USB 3.0 hub with two USB peripheral ports routed to USB HOST

Integrated audio matrix with flexible audio routing, mixing, volume, and mute control

One analog audio input and one analog audio output for external audio integration

Front-panel OLED display for device status, IP address, and firmware information

Front-panel control buttons for quick source switching and layout selection

Web UI, Telnet API, and RS-232 control support

Compatible with Windows and macOS systems

Chat Now

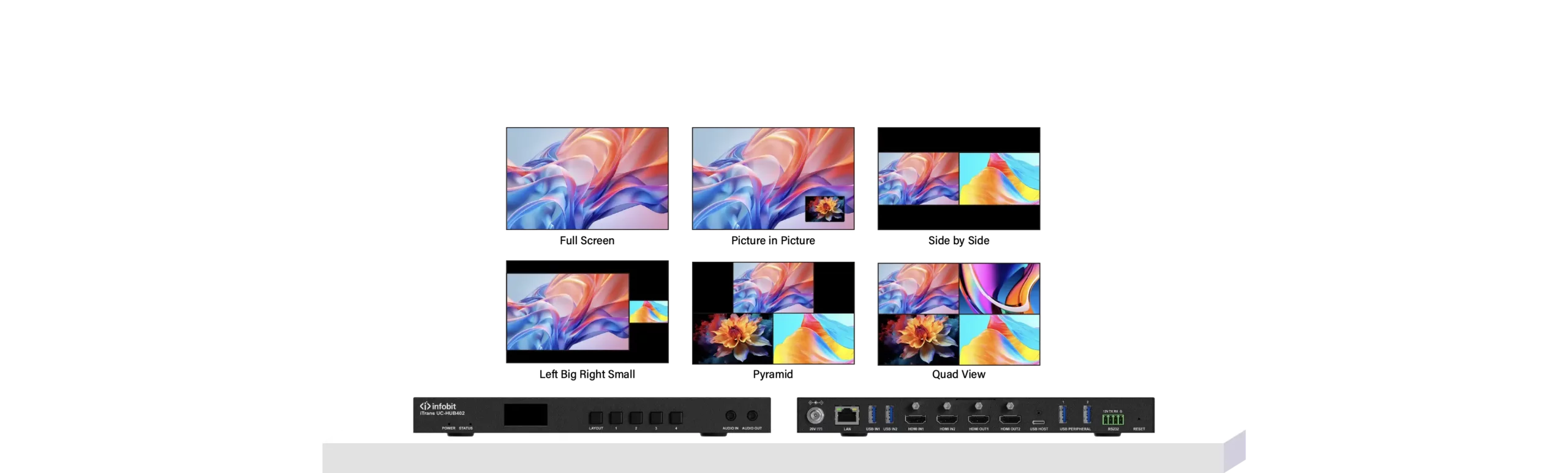

Flexible Multiviewer Display Modes

Full Screen, Picture-in-Picture (PiP), Side-by-Side, and Quad View—providing total preview of USB, HDMI or NDI cameras images.

Datasheet

Model	iTrans UC-HUB402
Name	USB and HDMI Camera Mixer Hub with NDI
Video Input	USB IN 1–2: 2 x USB 3.0 Type-A Female (USB 3.0/2.0) HDMI IN 3–4: 2 x HDMI Type-A (HDMI 1.4, HDCP 1.4) LAN: 1 x RJ-45 Female Connector (H.264/H.265, NDI input)
Input Resolutions	USB IN 1–2: Single input: 3840x2160P@30Hz, 1920x1080P@60Hz, 1920x1080P@ 30Hz, 1280x720P@60Hz, 1280x720P@30Hz Dual input: 1920x1080P@30Hz, 1280x720P@60Hz, 1280x720P@30Hz HDMI IN 1–2: Max. 3840x2160P@30Hz LAN: Dual stream: 3840x2160P@30Hz, 1920x1080P@60Hz, 1920x1080P@ 30Hz, 1280x720P@60Hz, 1280x720P@30Hz Quad stream: 1920x1080P@60Hz, 1920x1080P@30Hz, 1280x720P@ 60Hz, 1280x720P@30Hz
Video Output	HDMI OUT 1: 1 x HDMI Type-A (HDMI 2.0, HDCP 2.2) HDMI OUT 2: 1 x HDMI Type-A (HDMI 1.4, HDCP 2.2) USB HOST: 1 x USB 3.0 Type-C (USB 3.0/2.0) LAN: 1 x RJ-45 (H.264/H.265, NDI output)
Output Resolutions	HDMI OUT 1: Max. 3840x2160P@60Hz HDMI OUT 2: Max. 3840x2160P@30Hz USB HOST: Max. 3840x2160P@30Hz LAN: Max. 3840x2160P@30Hz
USB Protocol	USB IN 1–2 & USB HOST: UAC, UVC USB DEVICE: Full Features
Input Audio Port	2 x USB IN; 2 x HDMI IN; 1 x USB HOST
Input Audio Format	LPCM, 2CH
Output Audio Port	1 x HDMI; 1 x USB HOST; 2 x USB IN
Output Audio Format	LPCM, 2CH
Control Method	Front panel OLED screen and buttons, RS232, LAN-based control (Web UI & Telnet API)
Operating Temperature/ Humidity	32–113°F (0–45°C), 10%–90% RH, non-condensing
Storage Temperature/ Humidity	-4–158°F (-20–70°C), 10%–90% RH, non-condensing
ESD Protection	Human body model: ±12kV (air-gap discharge) / ±8kV (contact discharge)
Power	20V DC 3A
Power Consumption	Max: 31.4W
Dimensions (W x H x D)	9.84” x 0.98” x 5.52” (250mm x 25mm x 140.2mm)
Net Weight	2.02lbs (0.92kg)
