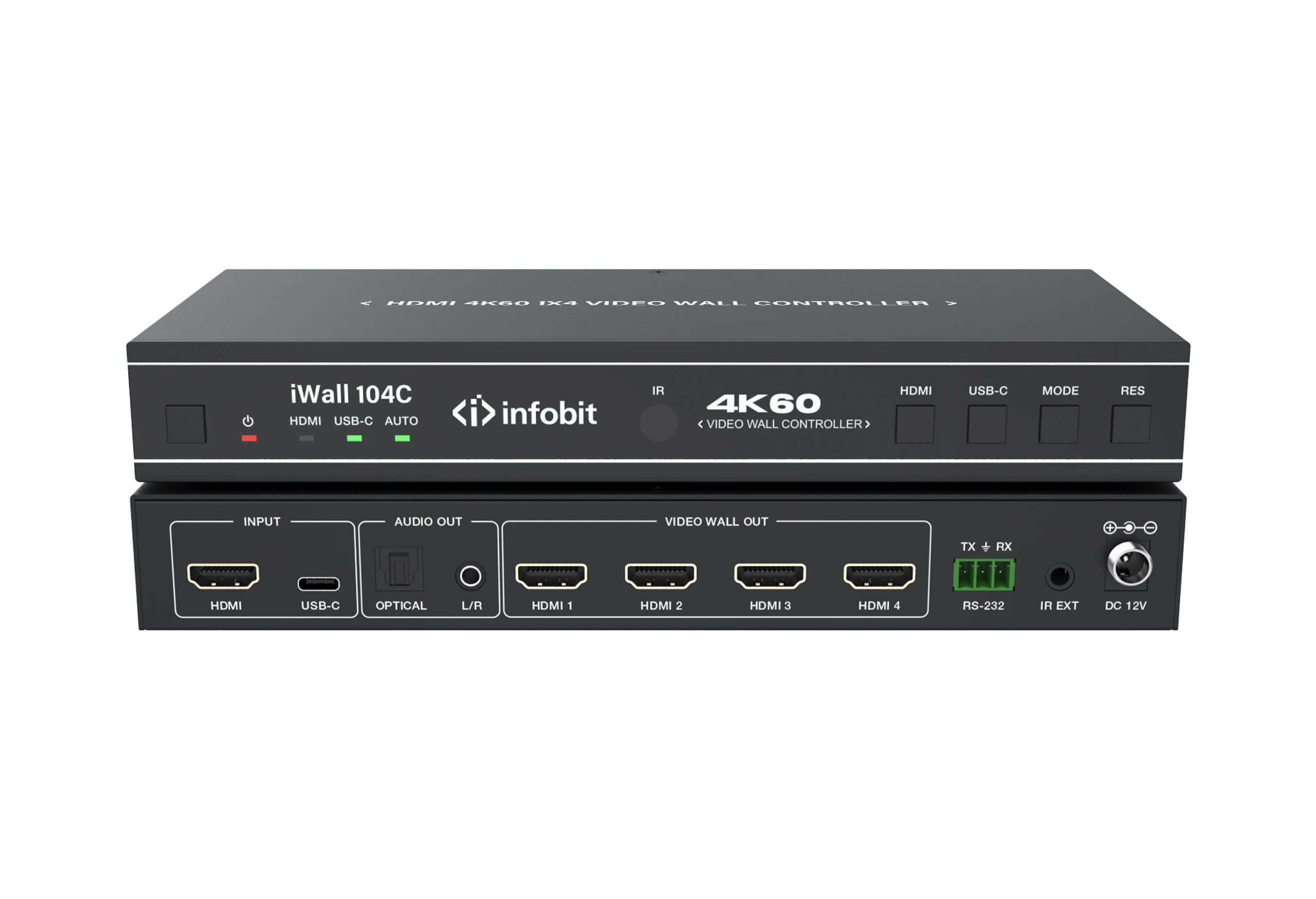

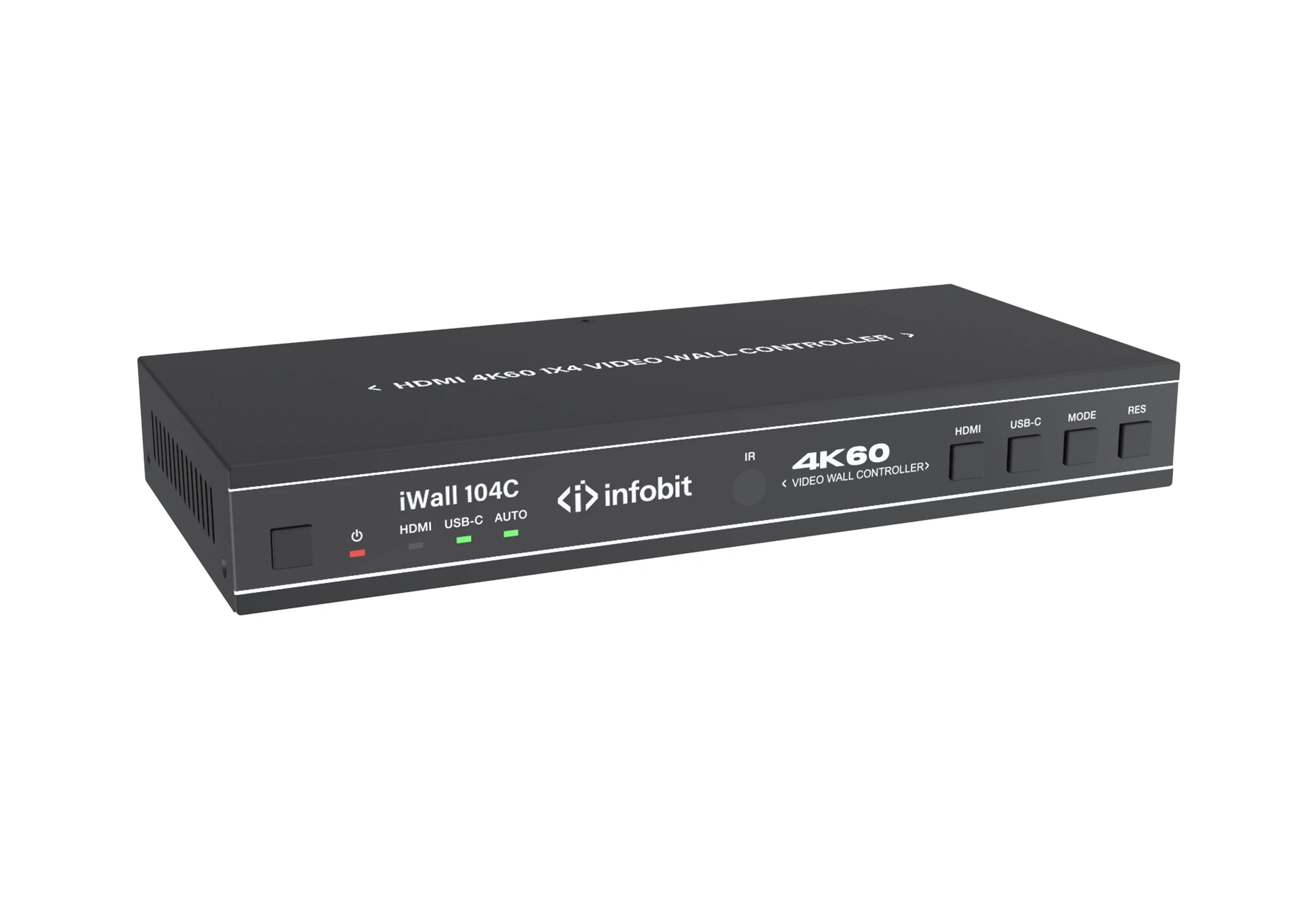

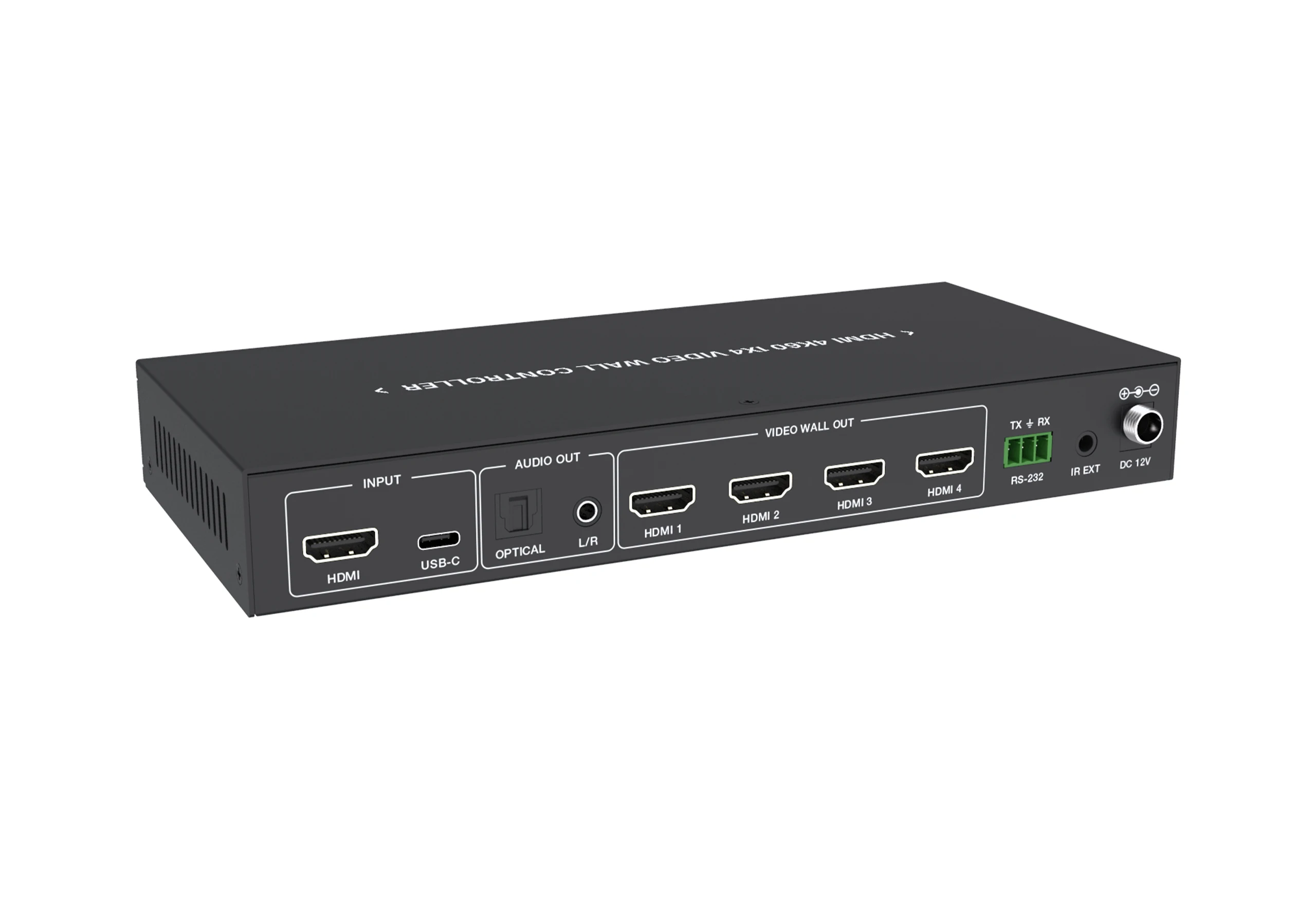

iWall 104C
1x HDMI IN, 1x USB C IN, 4x HDMI OUT
HDMI 2.0, HDCP 2.2 and DP1.2a compliant
Support HDMI and USB-C inputs, resolution up to 4K@60Hz 4:4:4, not working simultaneously
Support optical and L/R analog audio de-embedding outputs
Support 8x video wall modes: 1x1, 2x1, 3x1, 4x1, 1x2, 1x3, 1x4, 2x2
Support image 180° rotation, convenient for ceiling installation
Support bezel adjustment
Advanced EDID management
Control via front panel buttons, IR remote and RS-232 commands
Plug and play, no driver or software required

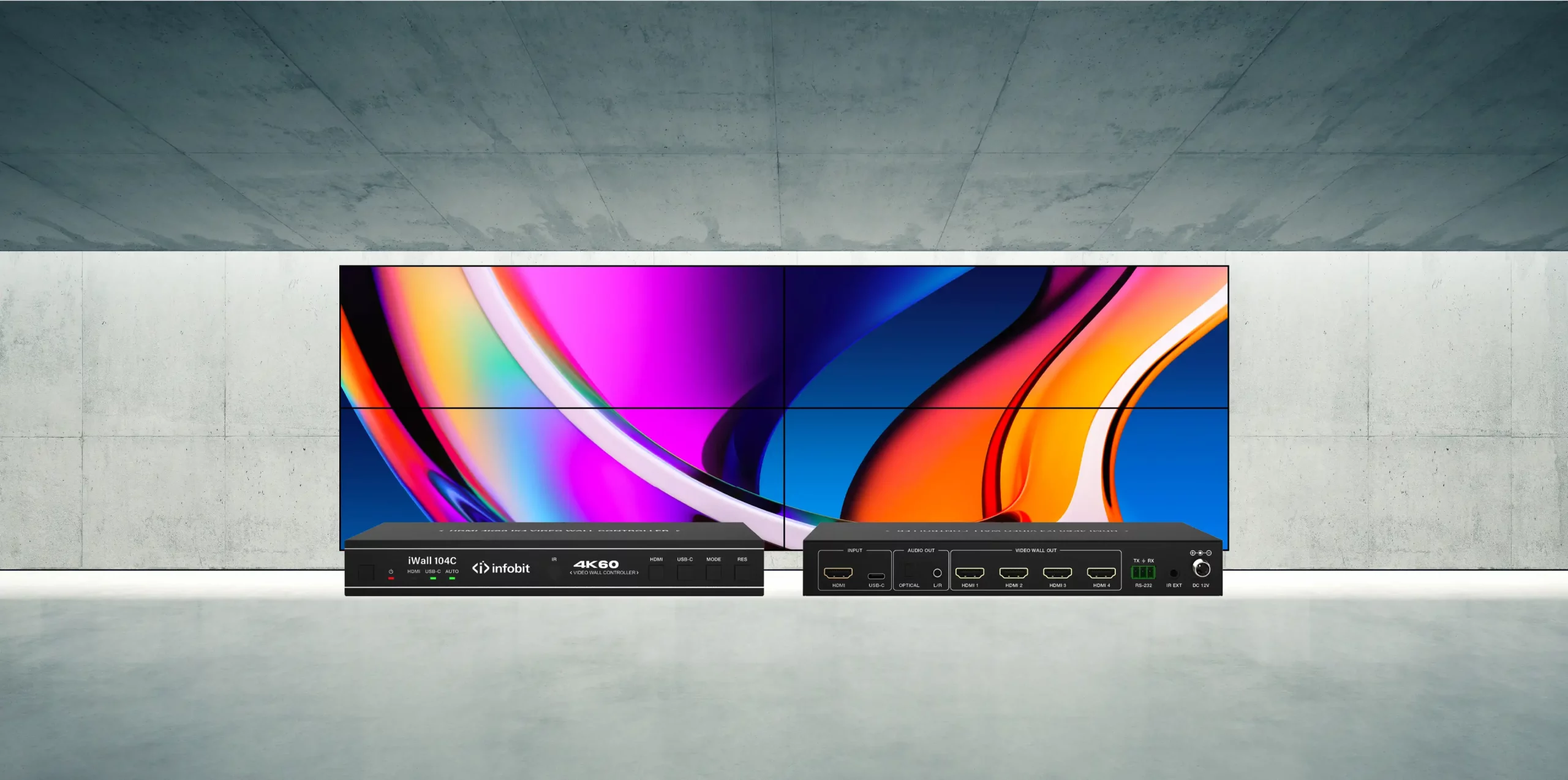

Flexible videowall installation

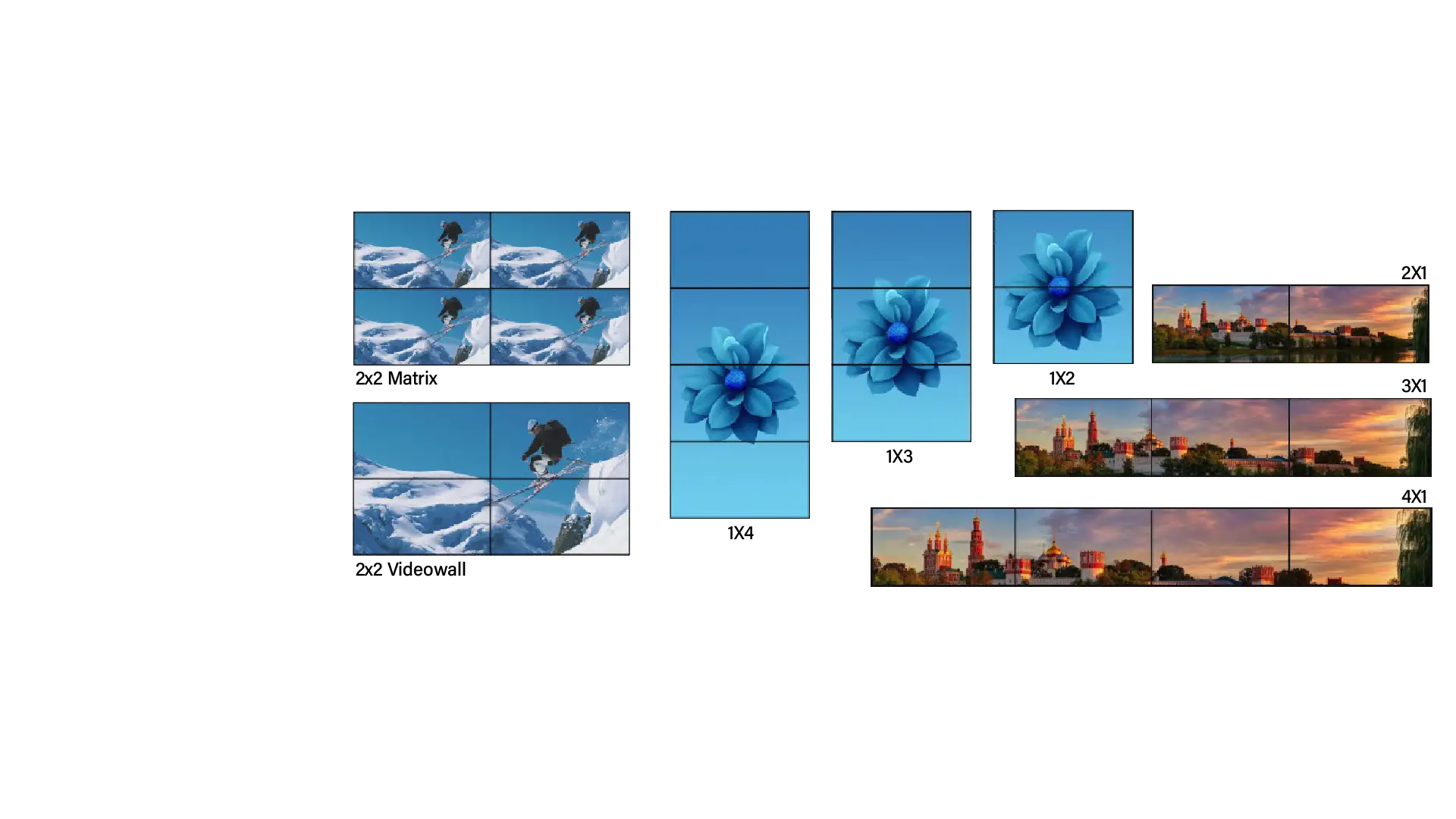

Supports 8x videowall displaying modes from 1x2 to 2x2 videowalls.

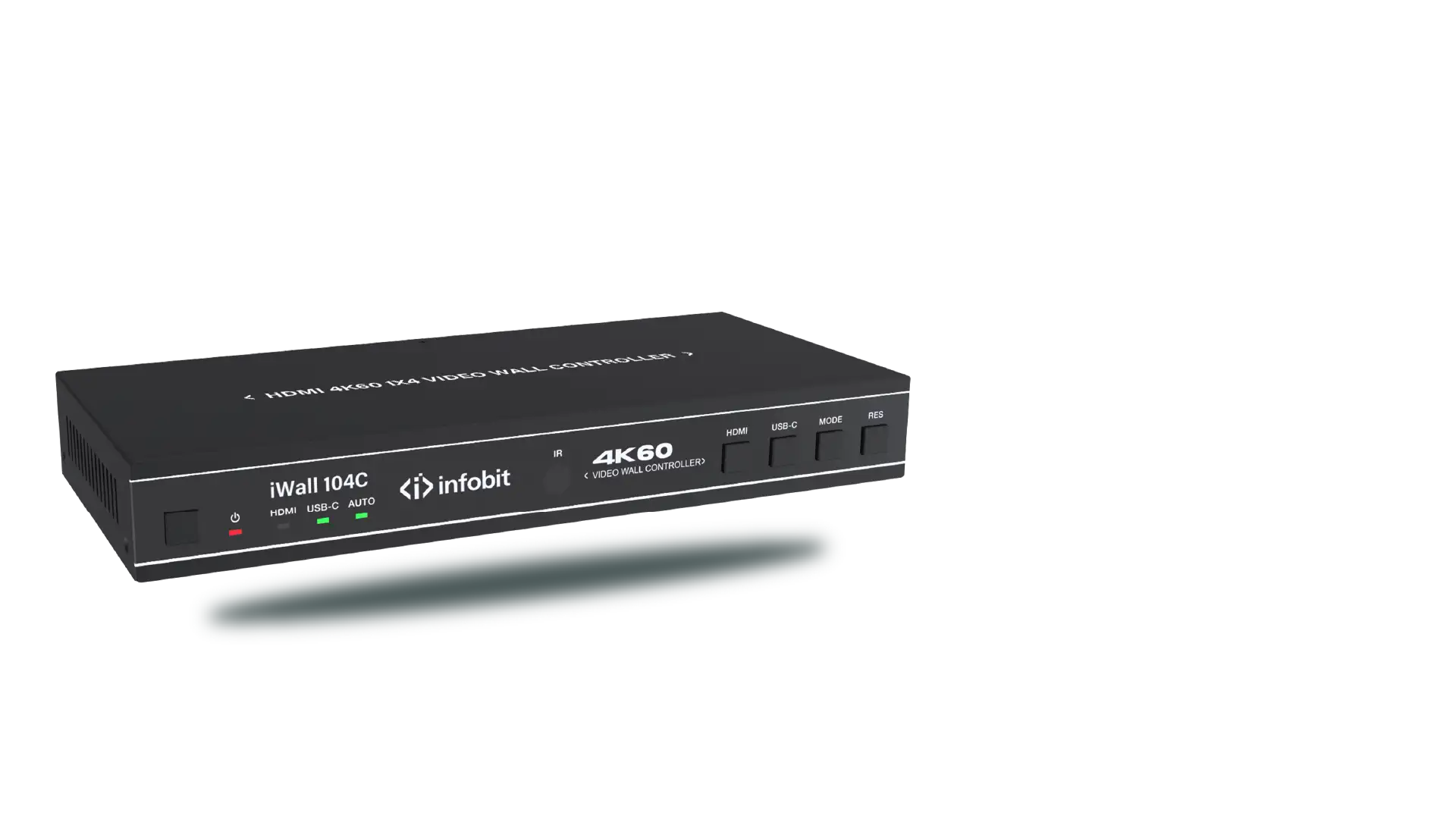

Support both HDMI and USB C inputs

Support HDMI and USB-C inputs, resolution up to 4K@60Hz 4:4:4, the HDMI and USB C input signals can be switched seamlessly, but not working simultaneously

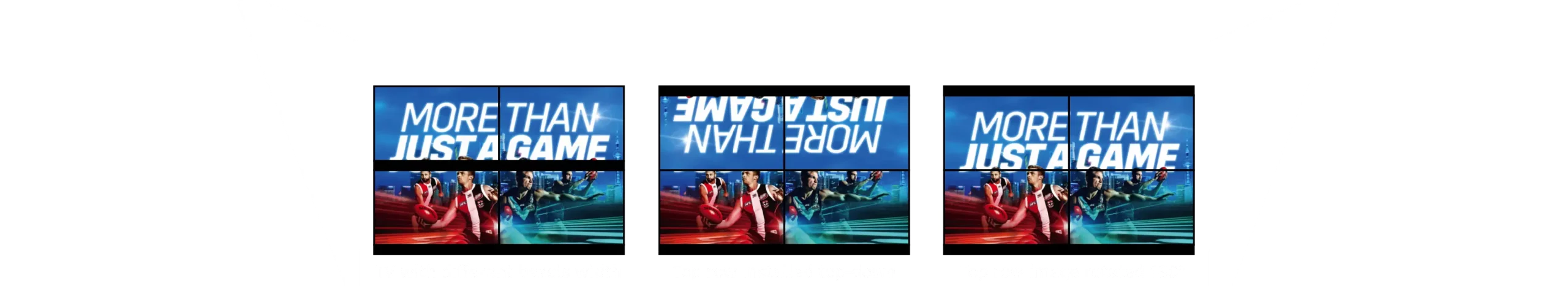

Rotate the first row at 180°

The first row of outputs can be rotated at 180°, iedal for TV wall for sports bar, restaurant or shops.

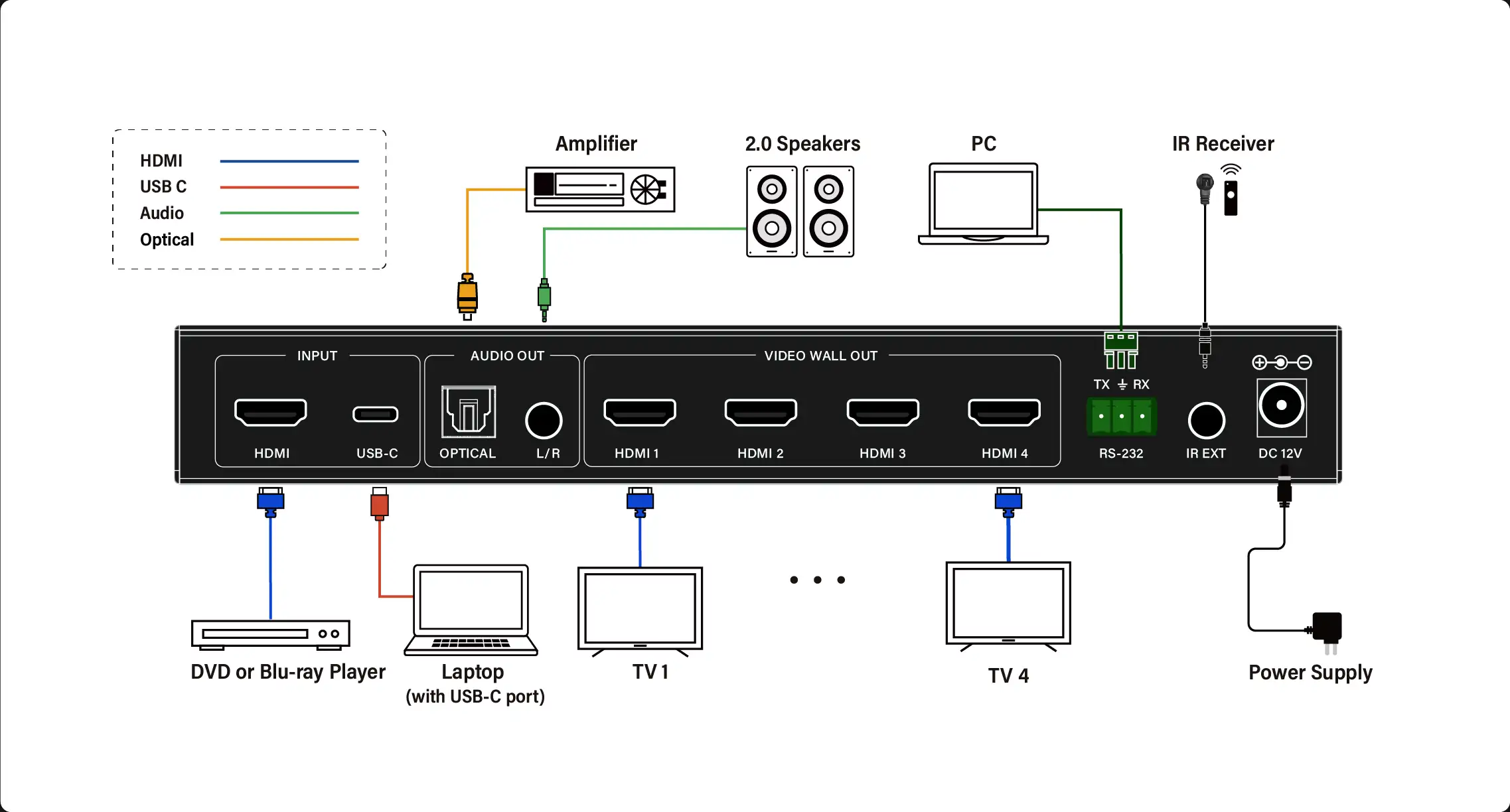

Diagram

Datasheet

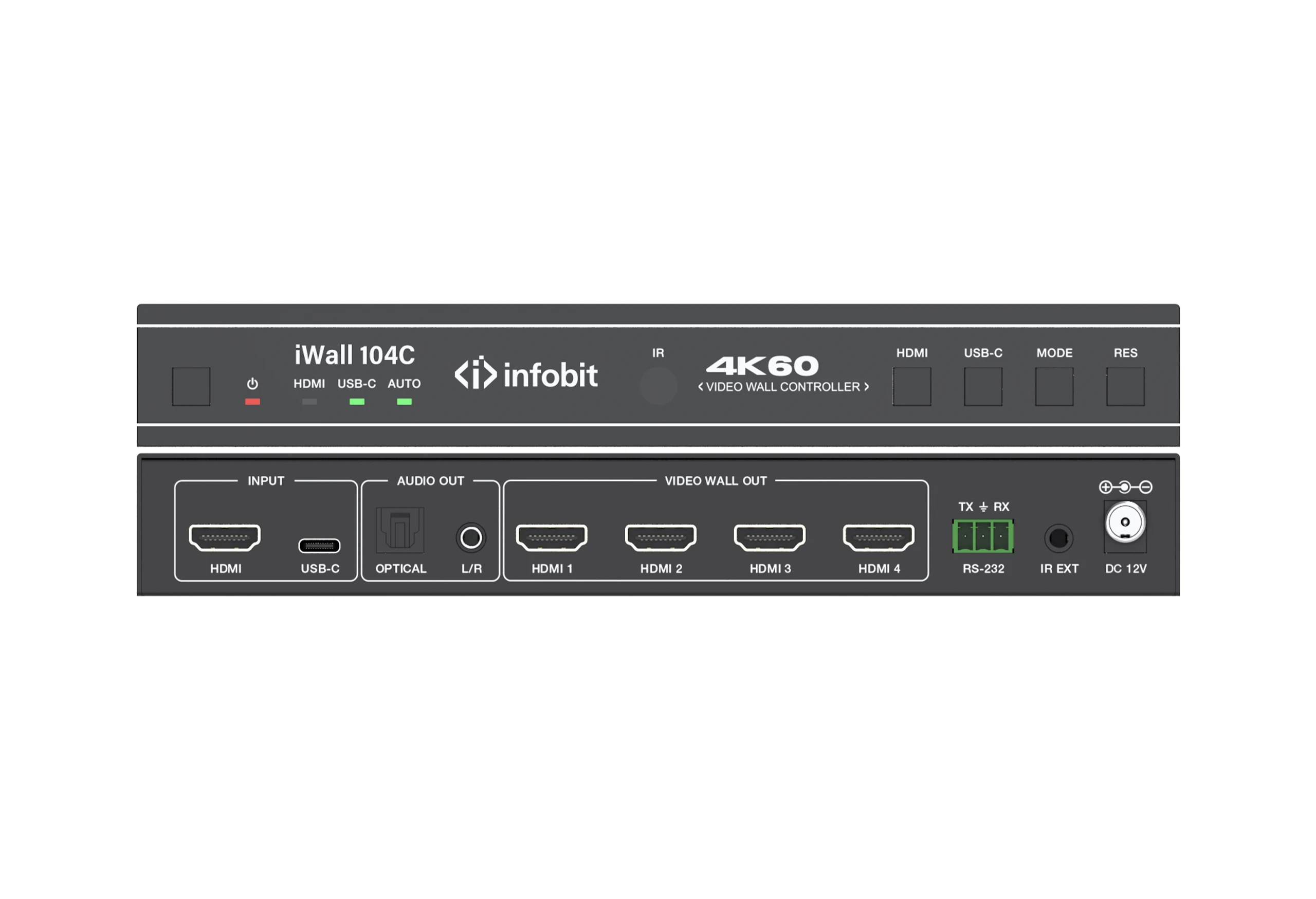

Model iWall 104C
Name HDMI 4K60 1×4 Video Wall Controller
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2
Video Bandwidth 18Gbps
Video Resolution Input: up to 4K@60Hz 4:4:4
Output: 720P60Hz, 1080P60Hz, 4K30Hz, 1024x768P60Hz
Color Space RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
Color Depth 8/10/12 bit
IR Level 5Vp-p
IR Frequency 38KHz
Audio Formats HDMI IN/OUT: LPCM 2.0/5.1/7.1, Dolby Digital/Plus/EX, DTS, DTS-EX, DTS-96/24
L/R OUT: PCM 2.0
SPDIF(OPTICAL): Dolby Digital/plus, DTS 5.1, PCM 2.0
Audio Latency No Latency
Video Latency No Latency
ESD Protection Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Input ports 1 × HDMI INPUT [Type A, 19-pin female]
1 × USB-C INPUT [Type C, 24-pin female]
Output ports 4 × HDMI OUTPUT [Type A, 19-pin female]
1 × OPTICAL AUDIO OUT [S/PDIF]
1 × L/R AUDIO OUT [RCA]
Control ports 1 × RS-232 [3pin-3.81mm phoenix connector]
1 × IR EXT [3.5mm, Stereo Mini-jack]
Housing Metal Enclosure
Color Black
Dimensions 220mm [W] × 100mm [D] × 30mm [H]
Weight 590g
Power Supply Input: AC 100-240V 50/60Hz, Output: DC 12V/1A (US/EU standard, CE/FCC/UL certified)
Power Consumption 5.5W (Max)
Operating Temperature 32 – 104°F / 0 – 40°C
Storage Temperature -4 – 140°F / -20 – 60°C
Relative Humidity 20 – 90% RH (no-condensing)
Video Resolution/ length 4K60: 8m; 4K24: 10m; 1080P60: 15m
