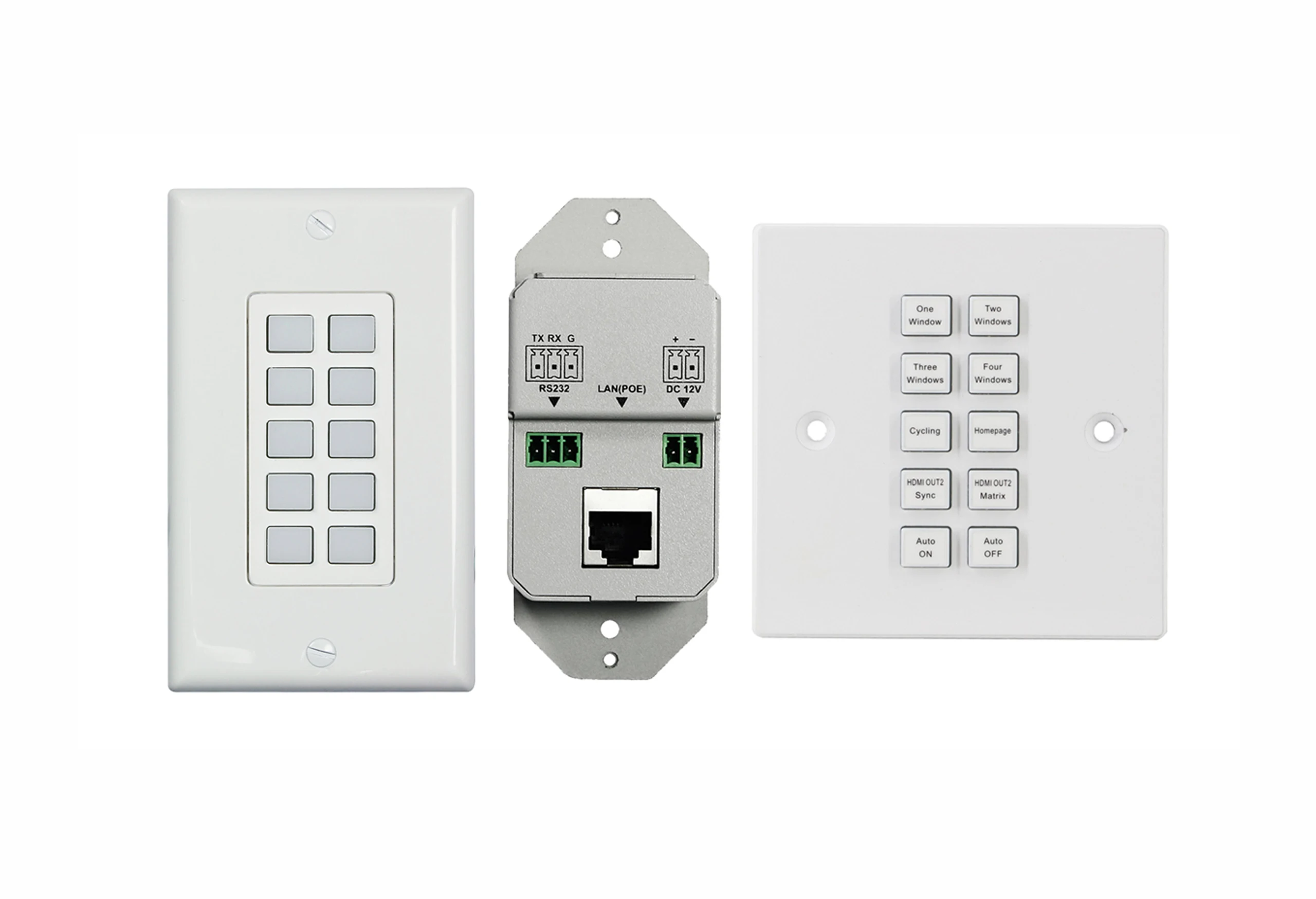

iControl K10 10 buttons control keypad

10 button programmable control keypad with PoE function

Buttons can be individually programmed, support customizable labels

Table Box version: Keypad+Table box, with 6 retractable cable pass-through

US/ UK single panel

Programmable via Web Interface

Control end devices via TCP/IP, Telnet, RS232

Config files to restore

Installation: In-wall, Table mount

Table cutout: 150mm* 122mm (L*H)

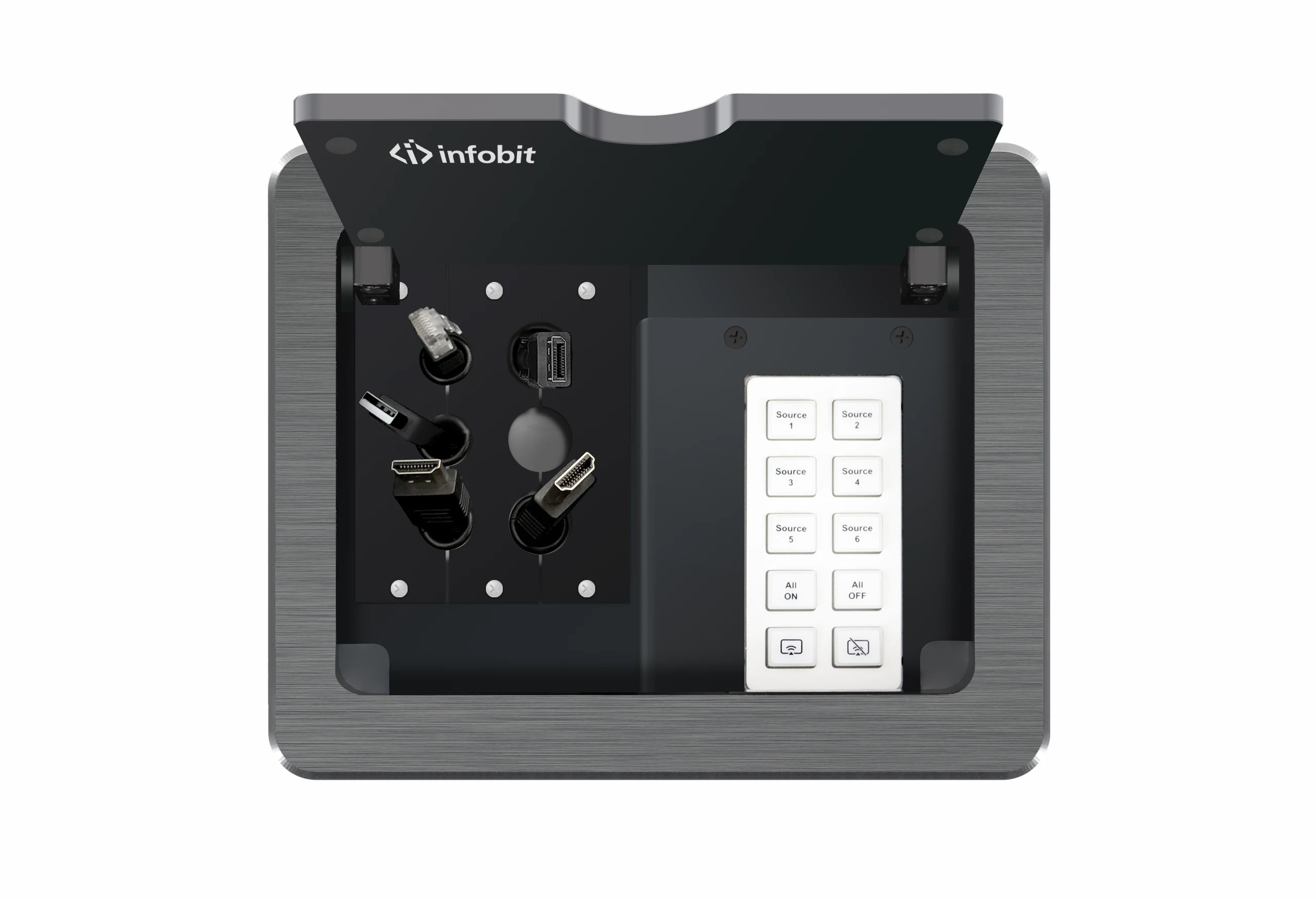

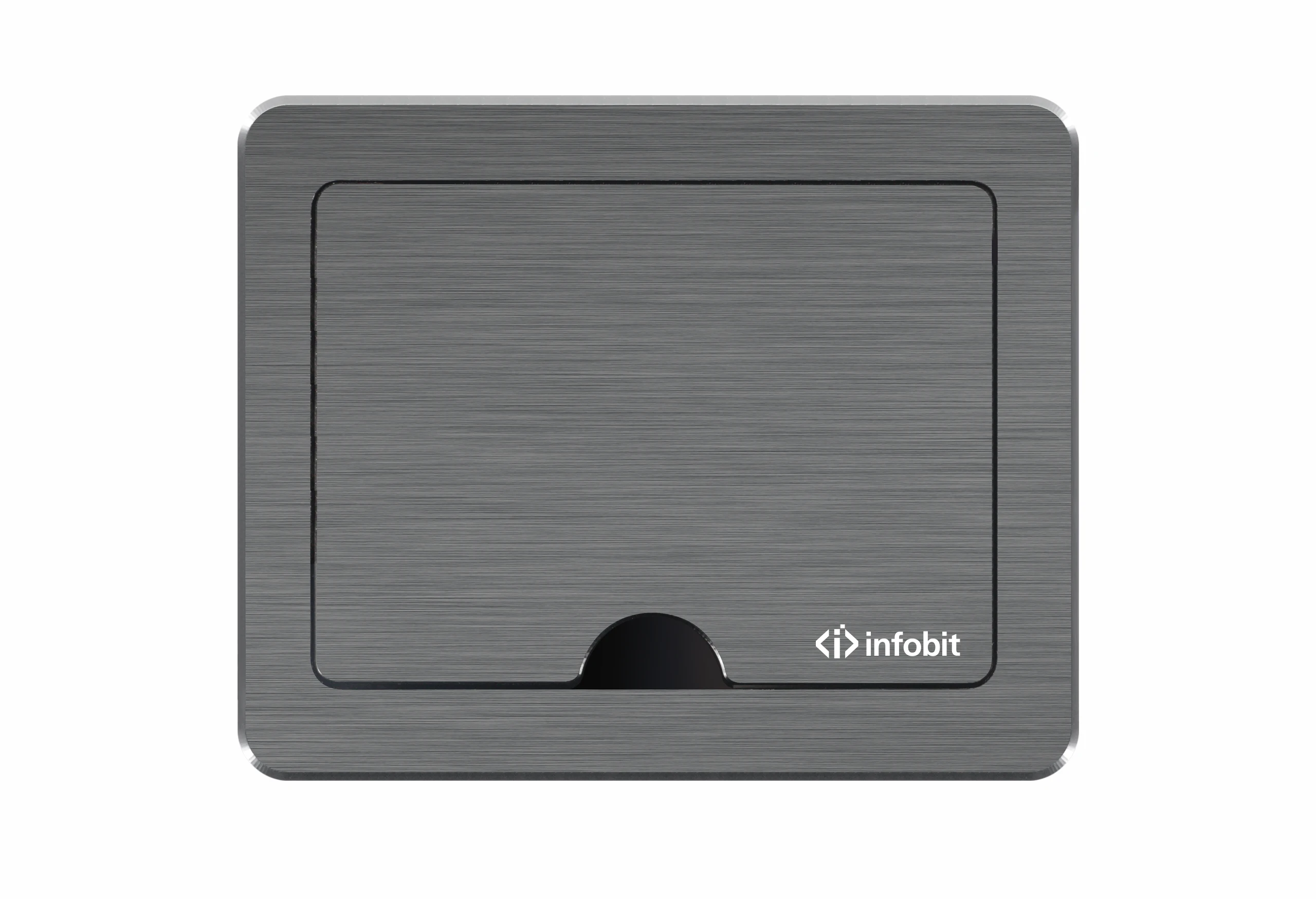

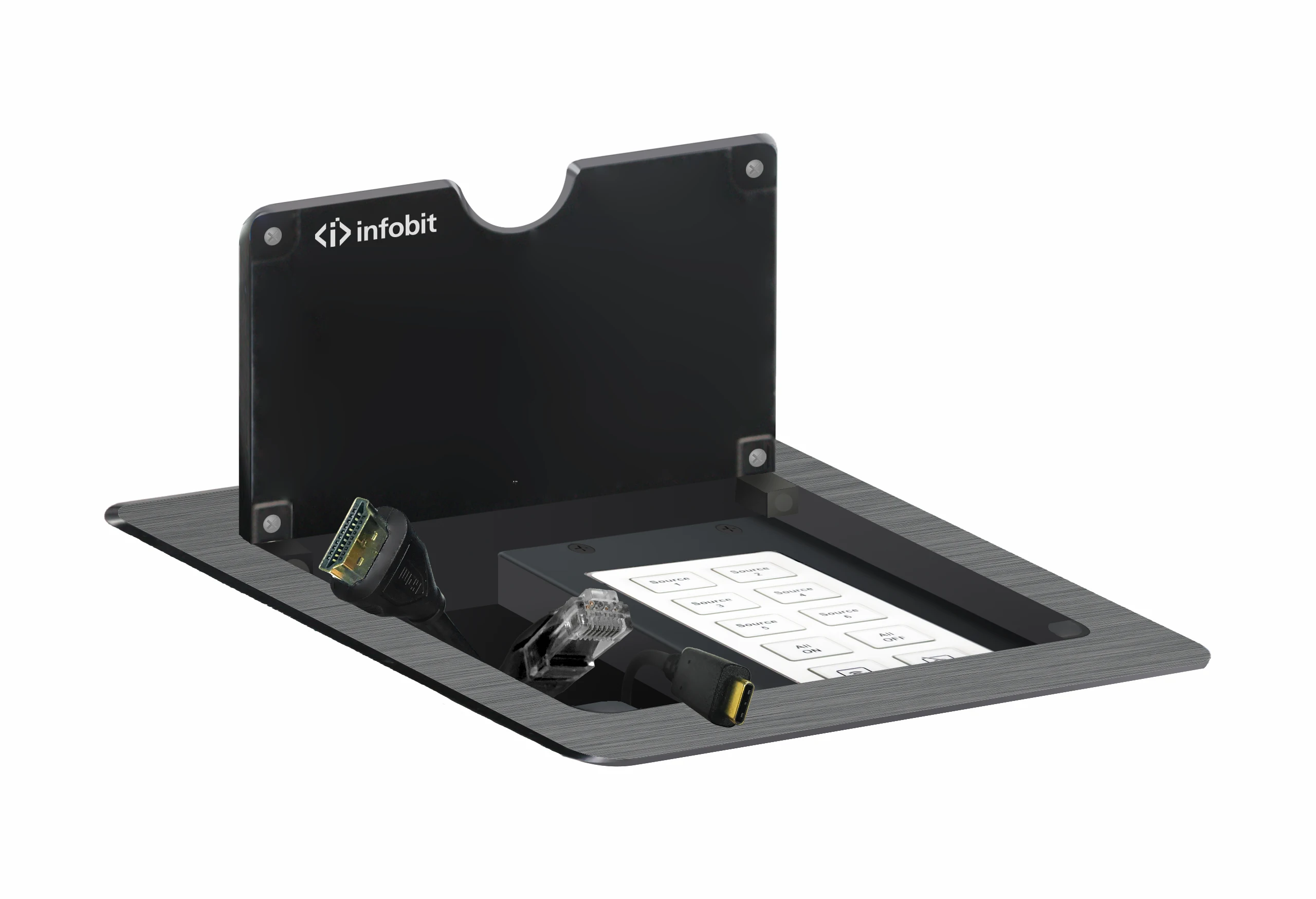

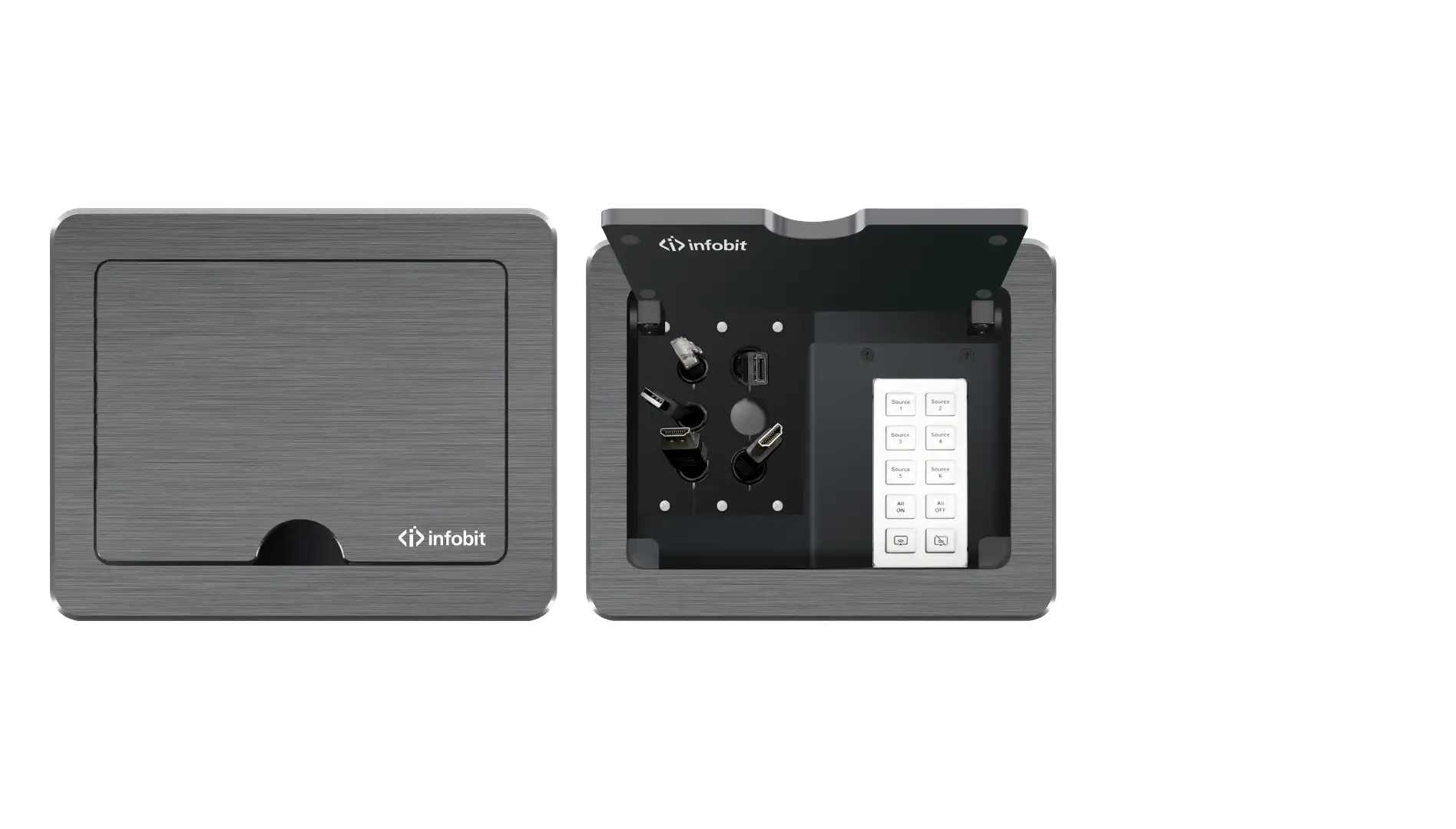

Table Box version

10 Keys Control Keypad, 1 x LAN (RJ45, PoE), 1 x RS232; 1 x DC 12V Power In. Fully configurable and programmable, Table Box version.
Model: iControl K10-TB

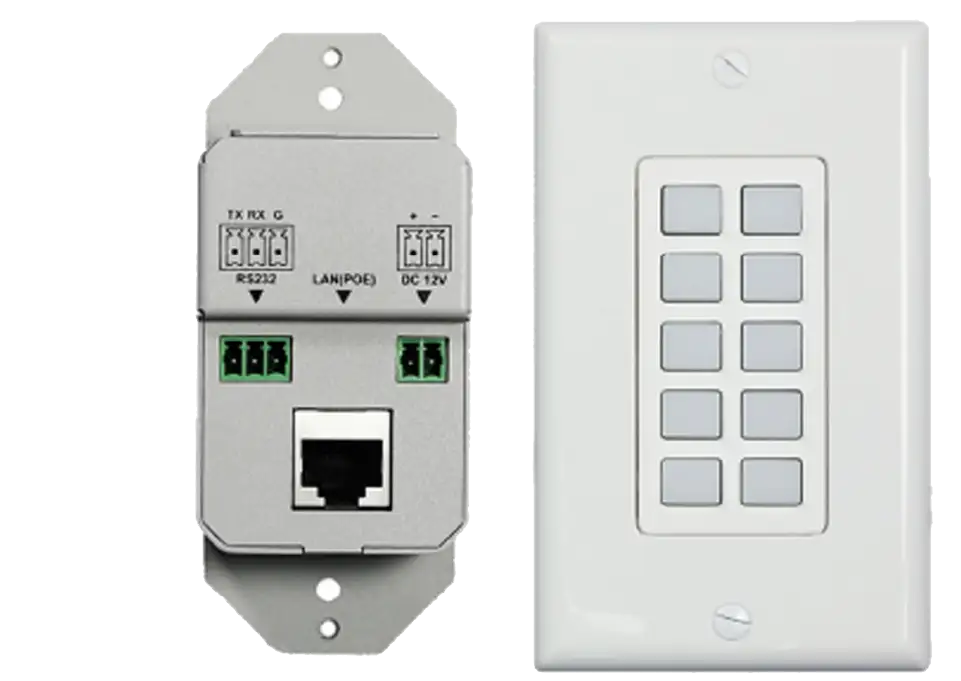

1 Gang US version

10 Keys Control Keypad, 1 x LAN (RJ45, PoE), 1 x RS232; 1 x DC 12V Power In. Fully configurable and programmable, 1 Gang US version.
Model: iControl K10-US

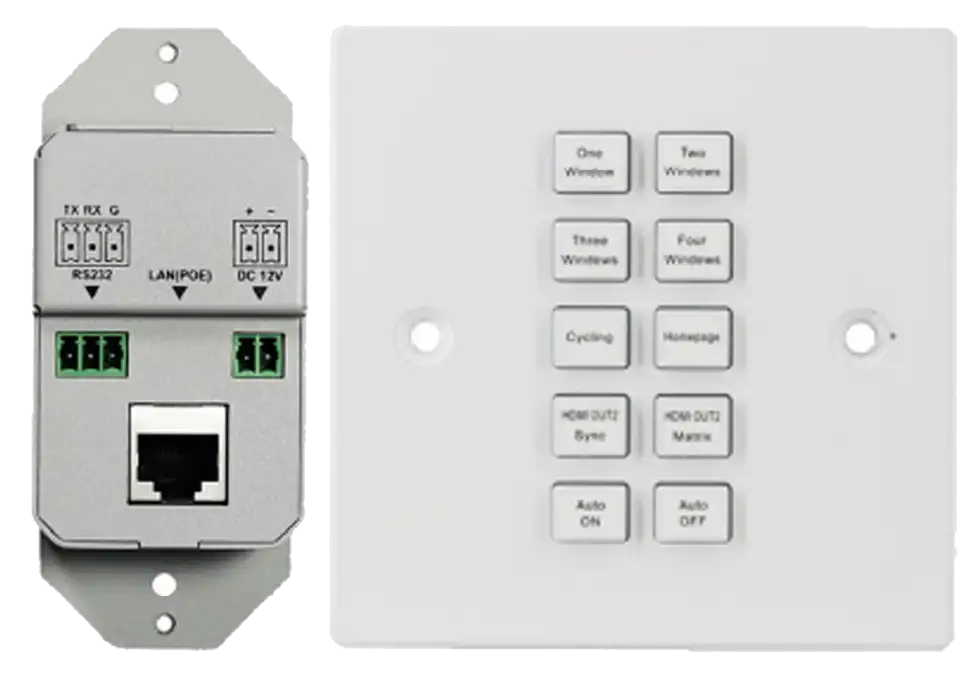

1 Gang UK version

10 Keys Control Keypad, 1 x LAN (RJ45, PoE), 1 x RS232; 1 x DC 12V Power In. Fully configurable and programmable, 1 Gang UK version.
Model: iControl K10-UK

Multiple Control

Push Buttons, RS232, TCP/IP, and Web GUI control.

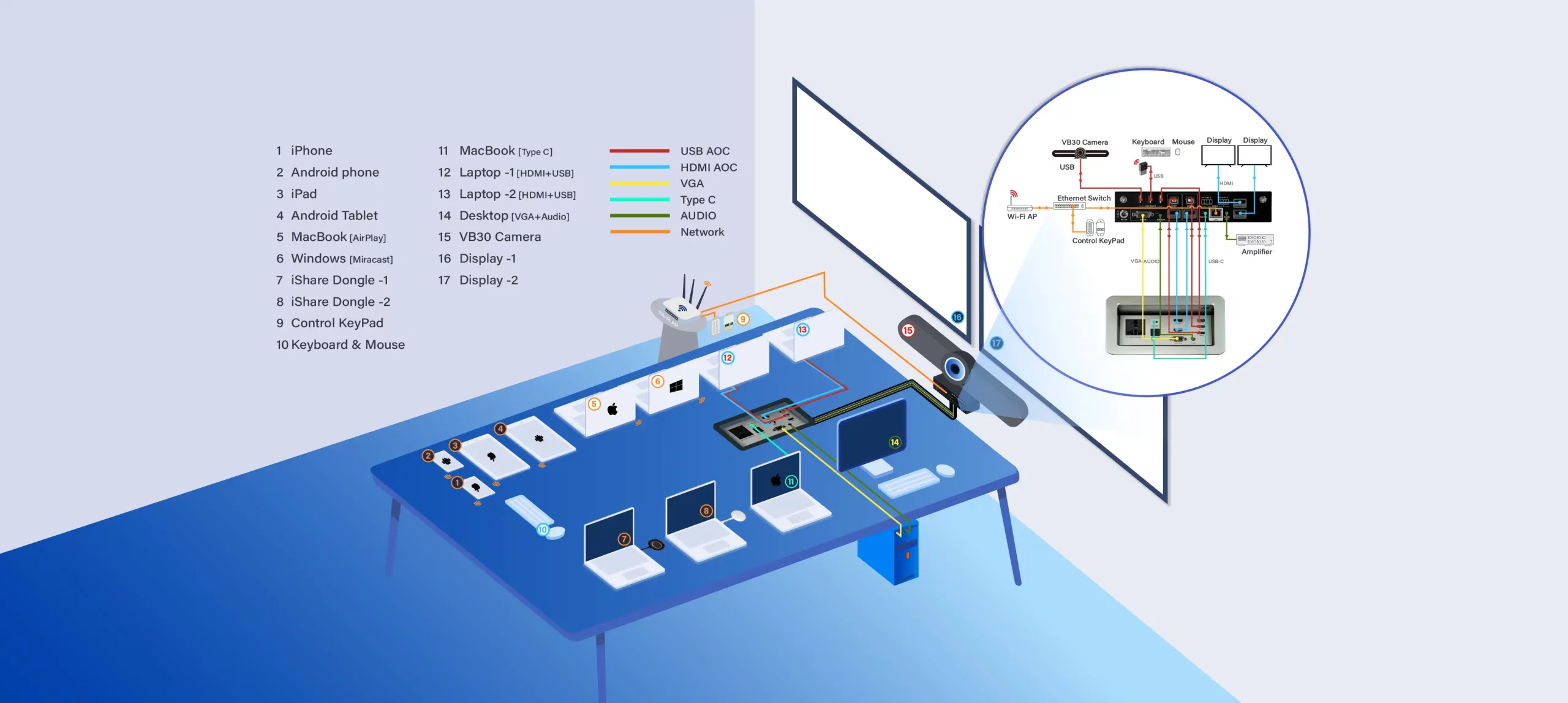

The iControl K10 can control INFOBIT products iWall Video Wall Controller, iMatrix HDMI Matrix Switchers, iShare+ Wireless Presentation,
as well as third party devices such as projectors and projector screens, displays, AV sources and other similar devices.

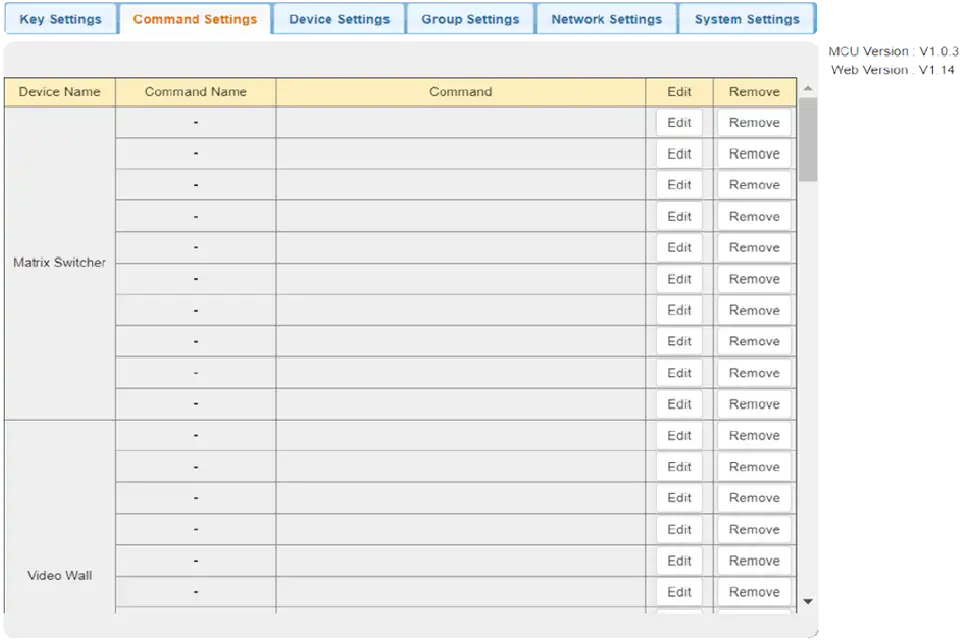

Programmable via Web Interface

The iControl K10 supports a web interface, allowing it to be configured and managed via a browser.
The web interface allows the unit keys to be programmed individually, supports unit configuration.

Datasheet

Model iControl K10 Series
Front panel 10 x Buttons (silicone soft buttons)
Back panel 1 x LAN (RJ45, PoE), 1 x RS232; 1 x DC 12V Power In
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Humidity 10% to 90%, non-condensing
ESD Protection Human-body Model, ±8kV (Air-gap discharge)/±4kV (Contact discharge)
Power Supply DC 12V 0.5A (Power adapter is not included in the package)
Consumption (Max) 1.3W
POE RJ45 Supports
Control RS232, TCP/IP
Installation In-wall, Table mount
Table cutout 150mm* 122mm (L*H)
Configuration By Web GUI
Available models iControl K10-UK: 1 gang UK version
iControl K10-US: 1 gang US version
iControl K10-TB: Table Box version with K10 keypad and cable pass-through
US Size Dimension  45mm x 105.6mm x 36mm/ 1.77” x 4.16” x 1.42”
Product Weight 0.18kg/0.40lb

Download

  • iControl K10 Datasheet_V1.0.pdf

    0.29M 06-02-2021
  • iControl K10 User manual V1.0.pdf

    1.46M 06-02-2021
  • Telnet commands for iShare Plus_V1.0.pdf

    0.1M 07-02-2021
