iTrans UC-Hub21
4K60 4K60 18Gbps HDMI/USB-C 2x1 UC Hub with KVM
1- HDCP 2.3 and DP 1.4 compliant
2- Ultra-wide Screen, resolution up to 4K@60Hz, 2K@60Hz/144Hz as specified in HDMI 2.0
3- HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
4- Using only 1 set of keyboard, mouse and monitor to control 2 computers
5- Support video fast switching, and keyboard/mouse seamless switching
6- Each input port has an EDID emulator to provide the correct information for the PC
7- Support hot plug, disconnect or connect devices to the KVM at any time
8- Switching via front panel buttons, keyboard/mouse hotkeys, IR remote control, and RS-232
9- Support auto switching
10- Input supports 1x HDMI port and 1x USB-C port
11- With USB-C charging port, supporting PD3.0 charging 100W
12- Advanced hardware/software design and production ensure zero latency
13- The integrated USB 3.0 ports allow you to share USB peripherals like printer, scanner, webcam and hard disk between computers with data transfer rate up to 5Gbp/s
14- Compact design for easy and flexible installation

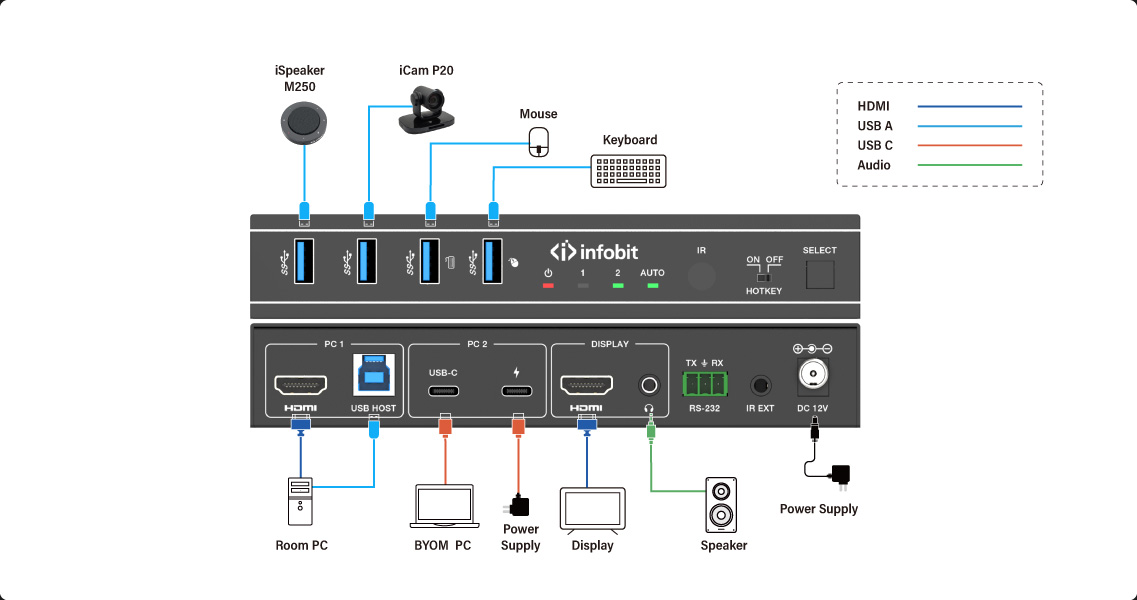

Diagram
Datasheet
| Model | iTrans UC-Hub21 |
| Name | 4K60 18Gbps HDMI/USB-C 2×1 UC/KVM Hub |
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.3 |
| DP Compliance | DP 1.4 |
| Video Bandwidth | 18Gbps |
| Audio Latency | No Latency |
| Video Latency | No Latency |
| Video Resolution | Up to 4K@60Hz, 2K@60Hz/144Hz |
| IR Level | 5Vp-p |
| IR Frequency | Fixed frequency 38KHz |
| Color Space | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8/10/12bit |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| CEC | Support |
| Audio Formats | HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD L/R OUT: PCM 2.0CH |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
| Input ports | 1 x HDMI input [Type A, 19-pin female] 1 x USB-C [AV signal input] 1 x USB-C [Power input] |
| Output ports | 1 x HDMI output [Type A, 19-pin female] 1 x L/R audio output [3.5mm Stereo Mini-jack] |
| Control ports | 1 x RS-232 [3pin-3.81mm phoenix connector] 1 x IR EXT [3.5mm Stereo Mini-jack] 1 x USB HOST [USB 3.0 Type B,11-pin female] 4 x USB DEVICES [USB 3.0 Type A,13-pin female] |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 175mm [W] x 100mm [D] x 30mm [H] |
| Weight | 505g |
| Power Supply | Input: AC 100 – 240V 50/60Hz Output: DC 12V/1A (US/EU standard, CE/FCC/UL certified) |
| Power Consumption | Typical value: 7.8W Standby mode: 0.6W |
| Operating Temperature | 32 – 104°F / 0 – 40°C |
| Storage Temperature | -4 – 140°F / -20 – 60°C |
| Relative Humidity | 20 – 90% RH (no-condensing) |
