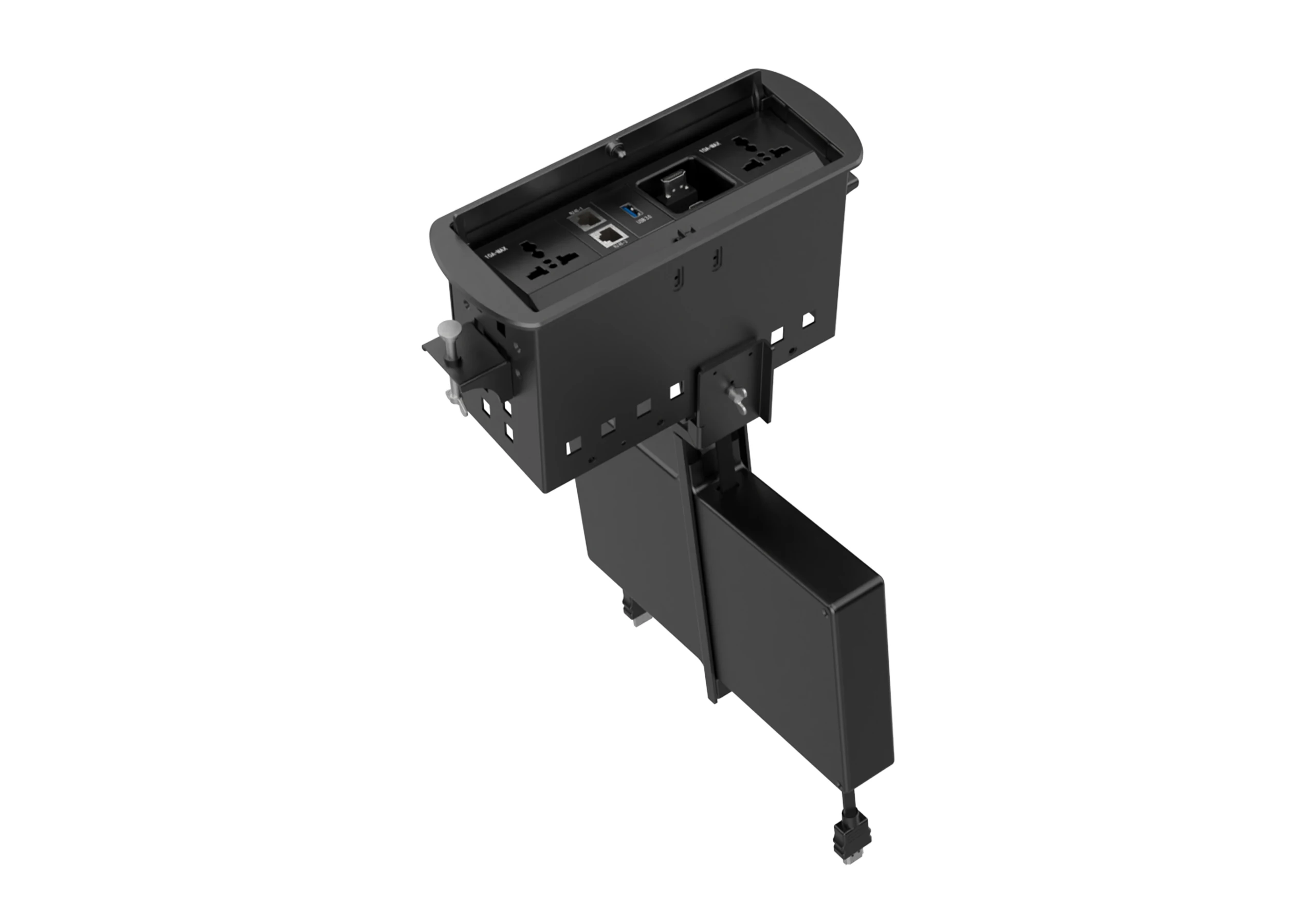

iBox Flex2

Modular Table Box w/ Retractable System

iBox Flex2
iBox Flex2
iBox Flex2
iBox Flex2
iBox Flex2
iBox Flex2
iBox Flex2
iBox Flex2
iBox Flex2
iBox Flex2
iBox Flex2
iBox Flex2
iBox Flex2

Interchangeable Modular Design: Swappable AC power sockets, USB-A and USB-C 3.0 Data, full-feature USB-C, 4K HDMI, RJ45 Ethernet, 2×1 4K HDMI switching modular, and dedicated USB-A and USB-C 65W PD charging modular.

Clean Access Mechanisms: Features fluid, soft-closing pocket doors and manual tilt-up panels that conceal ports.

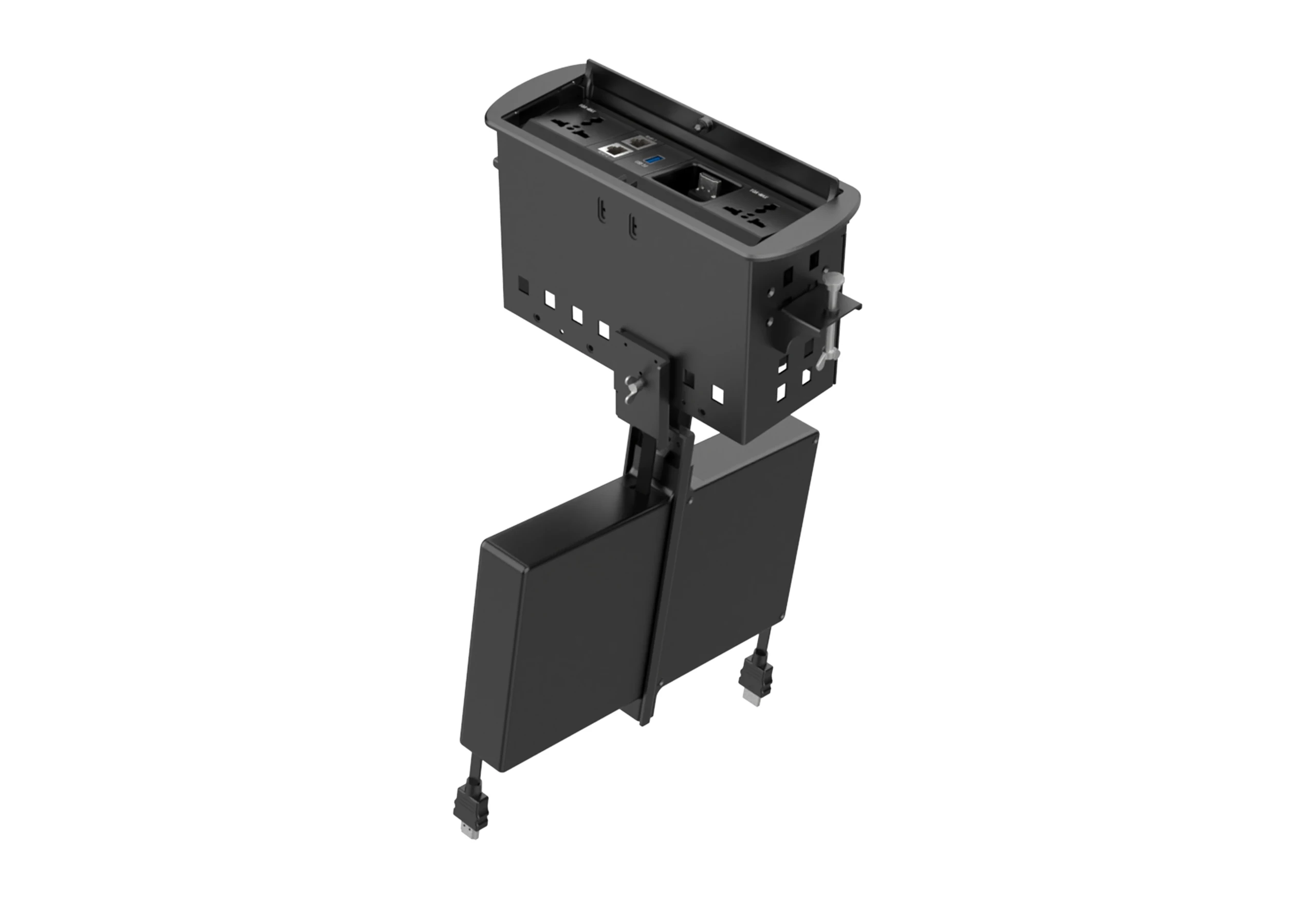

Under-Table Cable Management: Equipped with dynamic pull-out cable retractors to guide wiring seamlessly beneath the floor or wall.

Tool-Free Snap-In Mechanism: Modules clip instantly into the main chassis using precise-space retention tabs, eliminating the need for mounting screws, screwdrivers, or hardware tools.

Screwdriver-free Locks: Utilizes quick-release butterfly locks that grip the underside of the table cutout safely, securing the entire box casing in seconds.

1,500mm (4.9 ft) Extension Range: Retractable modulars extend up to 1.5 meters from the table surface

Smooth Pull-and-Lock System: Features an intuitive “pull and stop” mechanism that keeps the exact amount of cord extended without constant counter-tension pulling back on the device.

Tensioned Automatic Retraction: Automatically recoils smoothly back into the desk housing with a gentle tug.

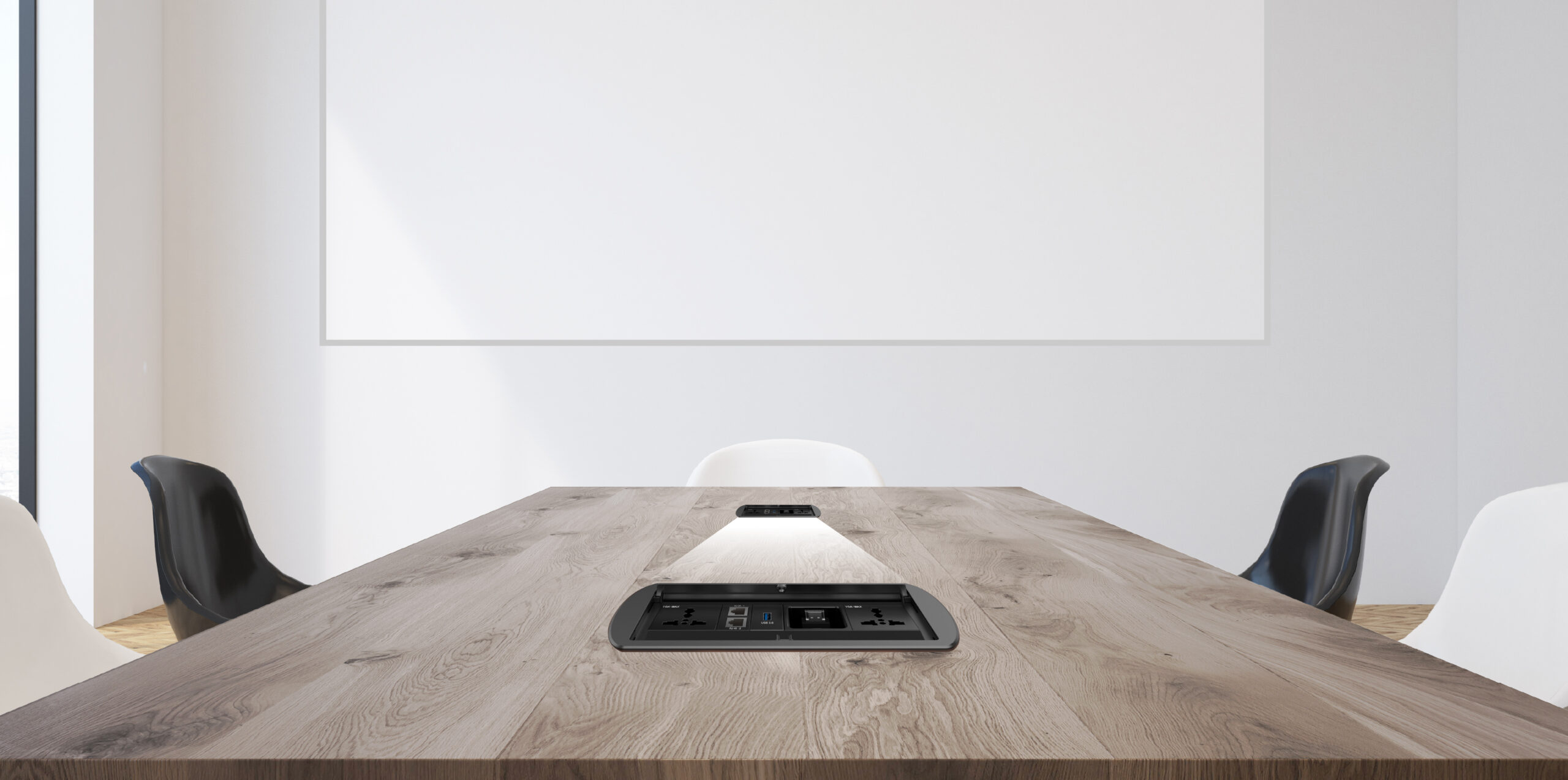

Applications: Corporate Boardrooms & Meeting Spaces, Hot-Desking & Coworking Hubs, Smart Classrooms & Training Rooms, Executive Desks & Home Offices, Hospitality/ Hotels

iBox Flex2
iBox Flex2
iBox Flex2
iBox Flex2
iBox Flex2
iBox Flex2

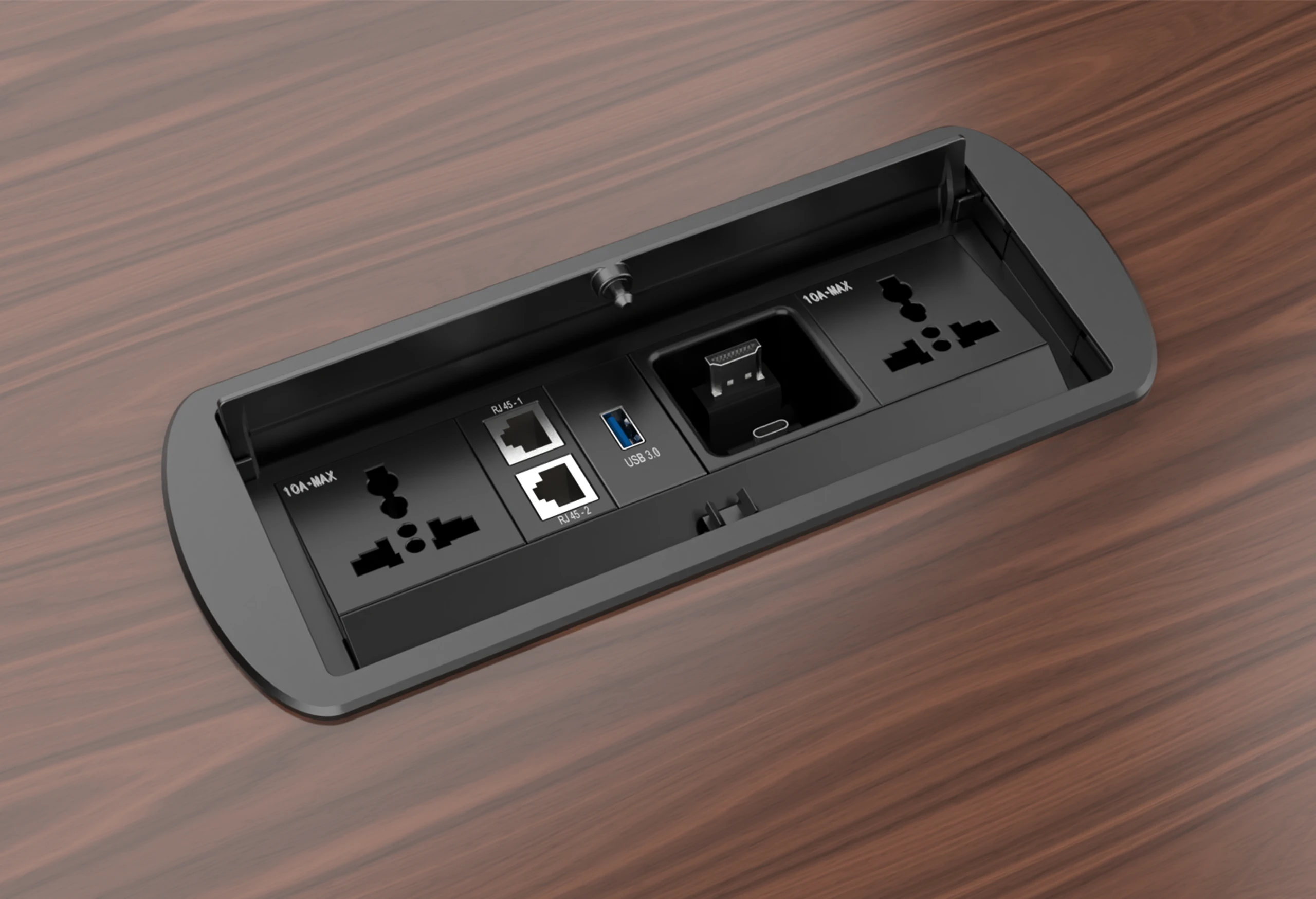

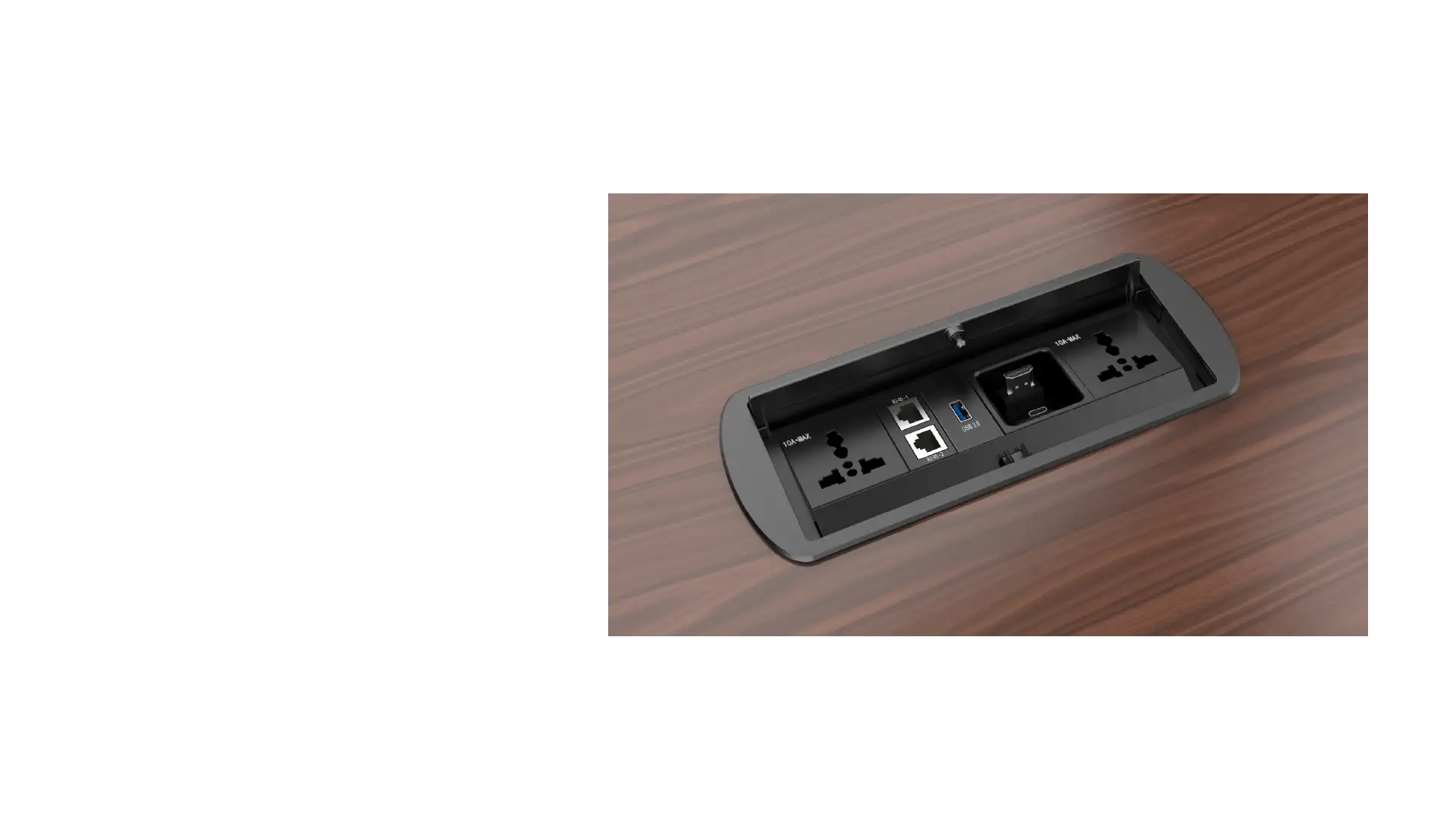

  Modular Table Box- iBox Flex2
Modular Table Box- iBox Flex2

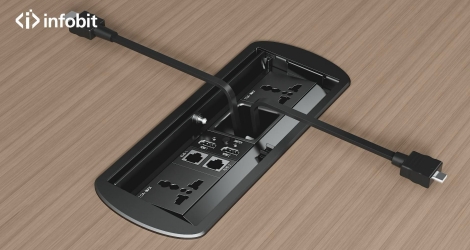

Professional modular-designed compact cable box,
designed with intuitive use with pull and stop or pull and retract system,
is compatible with smart cable types, including HDMI, Full-featured Type C,
RJ-45, USB-A, 65W PD charging, and options of EU, UK, US or universal AC sockets.

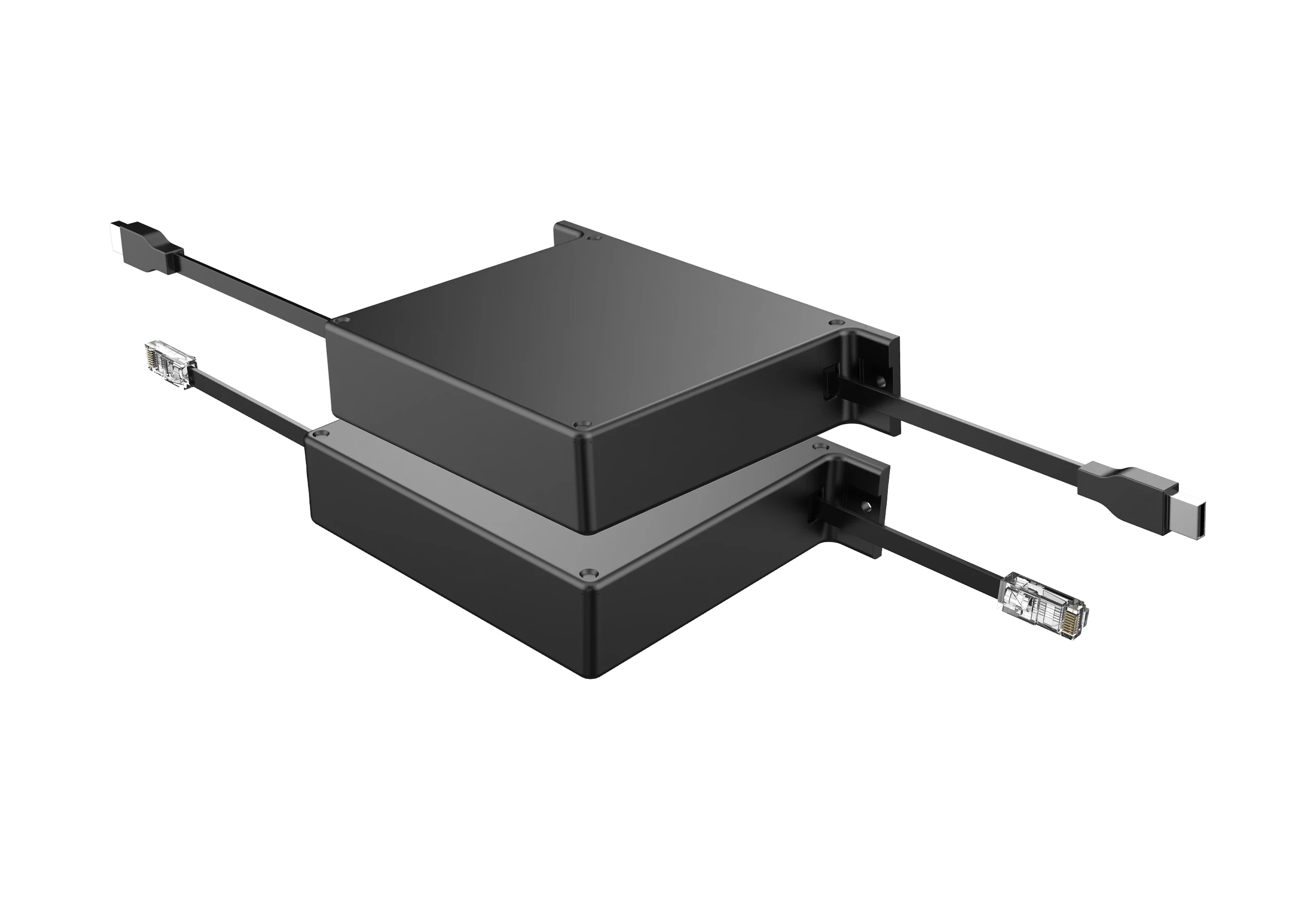

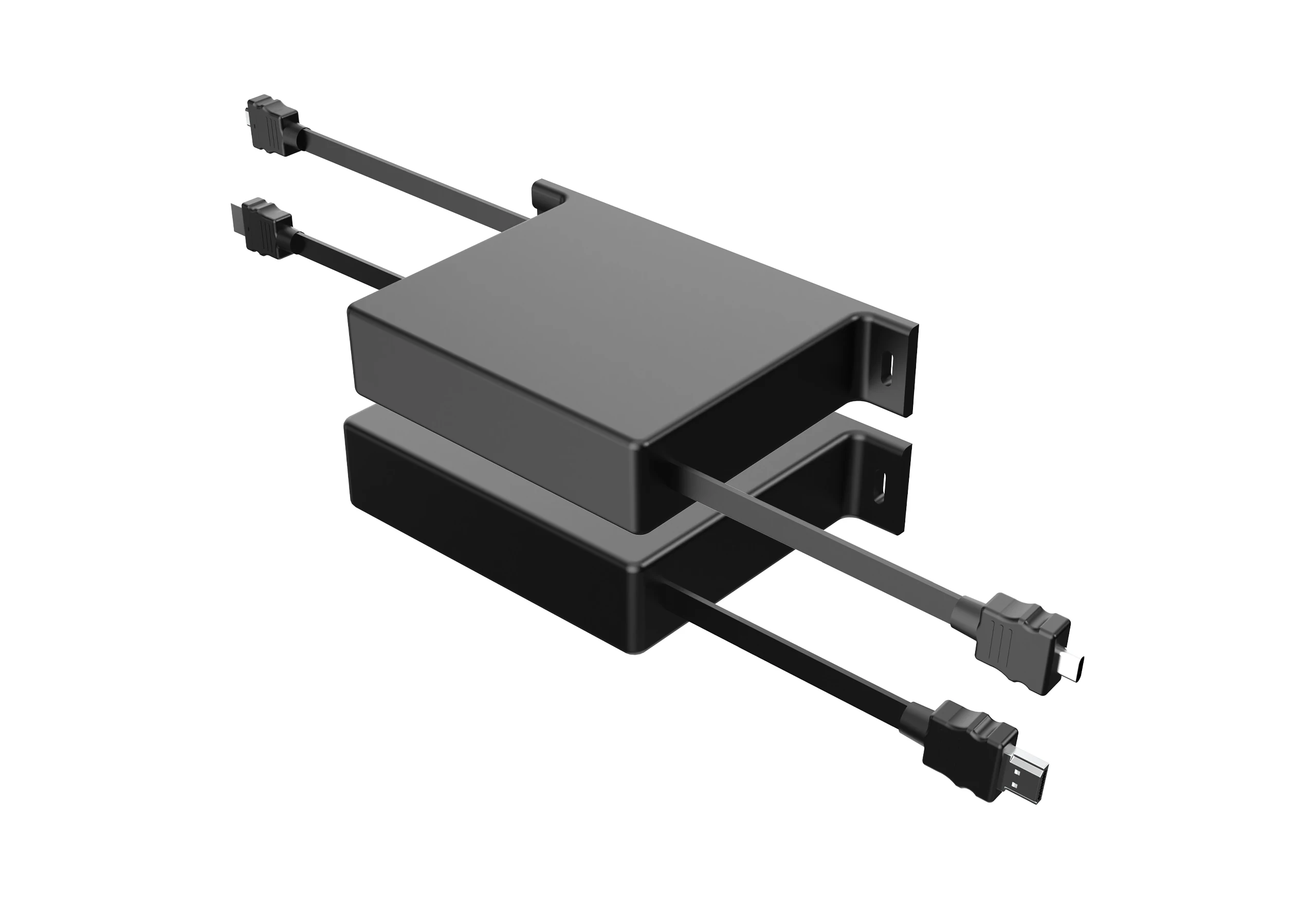

 Retractable Modulars
Retractable Modulars
With 4x Pull-and-stop or pull-and-retract modulars, including 1x 4K HDMI, 1x Full-featured USB-C, 1x RJ-45,
and 1x USB-A cables.

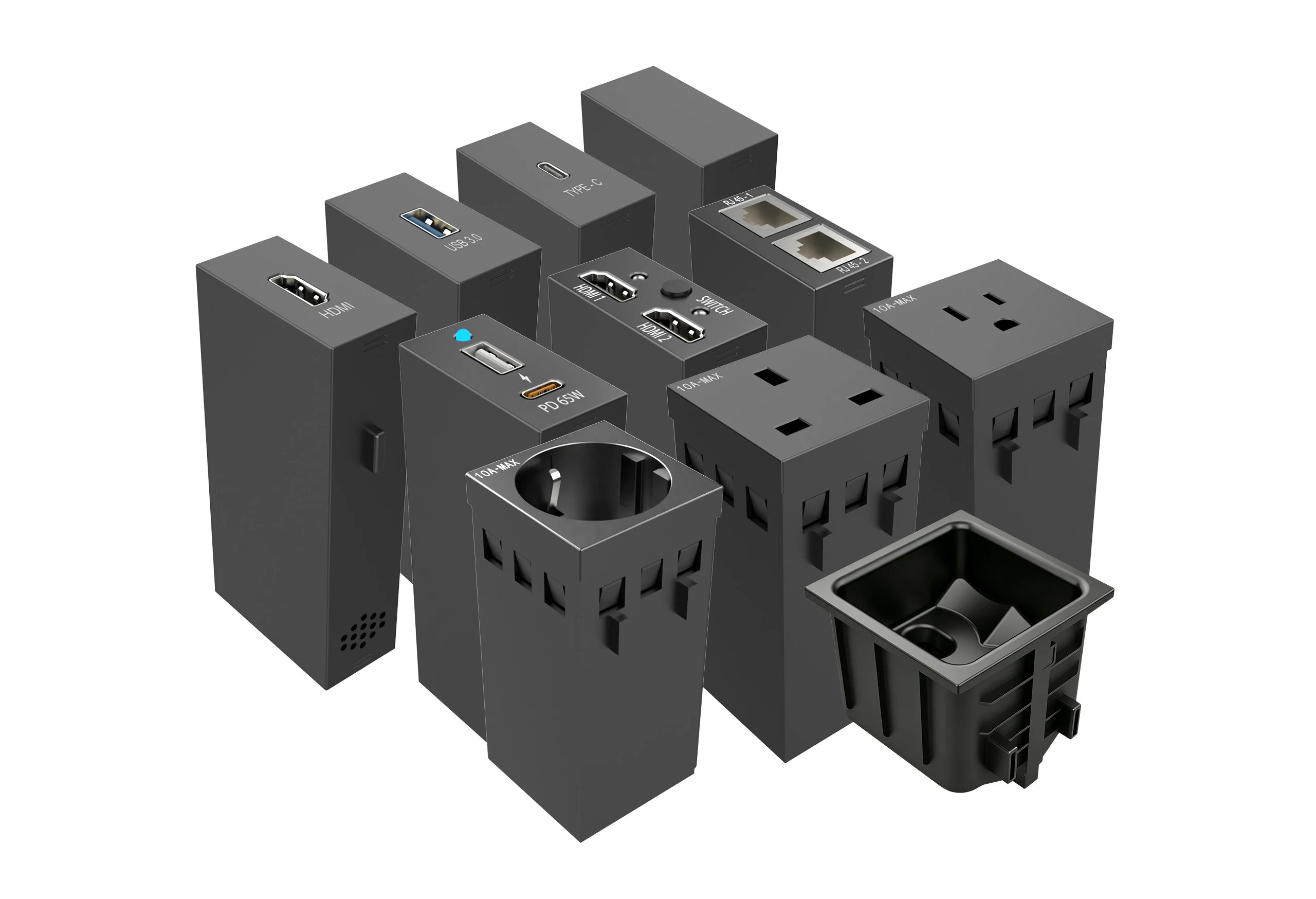

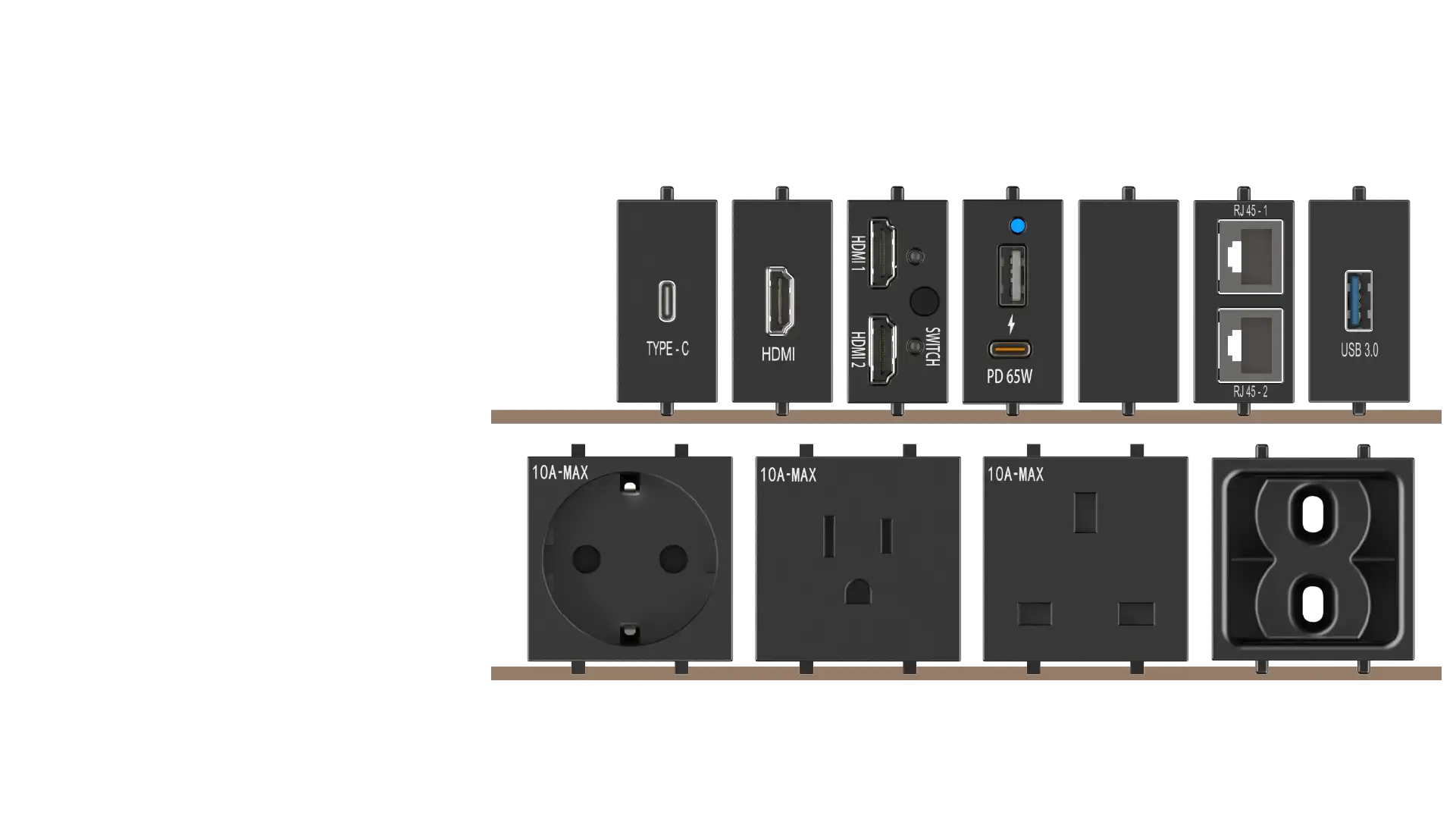

 Interchangeable Modular
Interchangeable Modular
Swappable connection plates can be mixed and matched with AC power sockets,
USB-A and USB-C 3.0 Data, full feature USB-C, 4K HDMI, RJ45 Ethernet,
2x1 4K HDMI switching modular and dedicated USB-A
and USB-C 65W PD charging modular.

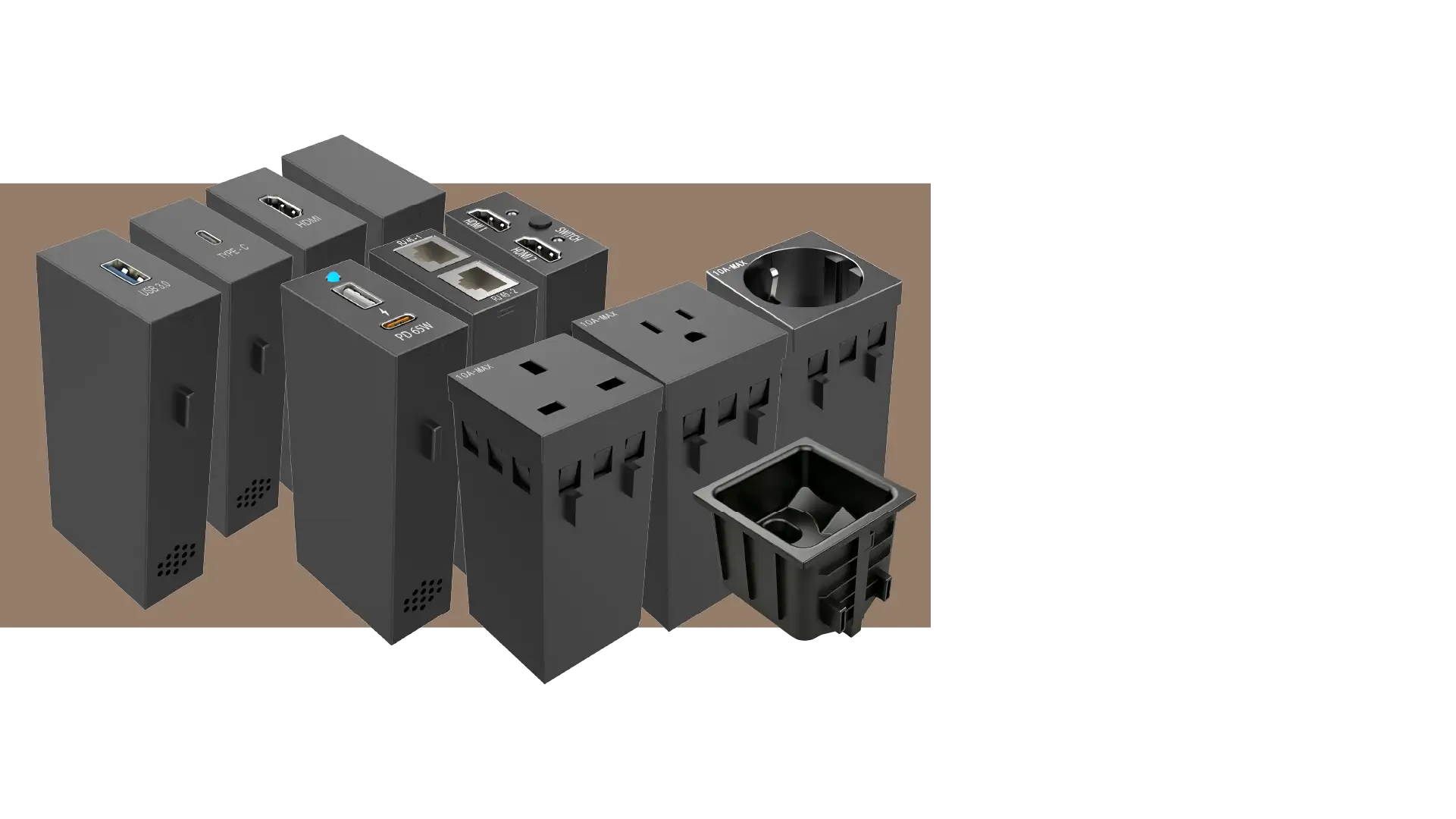

 Tool-Free Snap-In Mechanism
Tool-Free Snap-In Mechanism
Modules clip instantly into the main chassis
using precise-space retention tabs, eliminating the need for
mounting screws, screwdrivers, or hardware tools.
Datasheet
MAIN CHASSIS
Model Name Cutout opening size Units spaces
iBox Flex2-FR Main Chassis 203*84mm/ 7.99*3.31’’ 8x
NON-RETRACTABLE MODULARS
Models Name Specs Units spaces
iBox Flex2-1H 1x HDMI 2.0 Module Passive module with 1x HDMI port input female.
Output- 1x HDMI female. (4K30Hz)
1x
iBox Flex2-2H1 2×1 HDMI 2.0 Switching Module Passive module with 2x HDMI port input female.
Output- 1x HDMI female. (4K60Hz, 2-to-1 switching button.)
1x
iBox Flex2-2N 2x RJ45 Network Module Passive module with 2x RJ45 ports input. 2x female outputs. (S/FTP CAT6a) 1x
iBox Flex2-1C 1x USB-C Module Passive module with 1x USB-C FF port input female.
Output 1x USB-C female. (Full feature, 4K30Hz, 10Gbps.)
1x
iBox Flex2-1A 1x USB-A 3.0 Module Passive module with 1x USB-A FF port input female.
Output- 1x USB-A female. (5Gbps Data)
1x
iBox Flex2-1A1C 1x USB-A and 1x USB-C 65W Charging Module Input: 100-250V~50/60Hz 10A
Output:
TYPE-C: 5V3A/ 9V3A/ 12V3A/ 15V3A/ 20V3.25A (Max. 65W)
USB-A: 5V3A/ 9V/2A/ 12V1.5A (Max. 18W)
1x
iBox Flex2-KB Blank cover module Fill in the vacant installation position. 1x
iBox Flex2-2PS 2x Retractable Pass-through Grommet Pass-through cable-holder with 2x hole. Accommodates cables up to 10 mm in diameter. (2-Hole) 2x
iBox Flex2-PWEU EU Power Outlet Module Input 100-250V ~50/60Hz 10A Fuse- 10A 250V
OUT- Maximum 10A
2x
iBox Flex2-PWUK UK Power Outlet Module Input 100-250V ~50/60Hz 10A Fuse- 10A 250V
OUT- Maximum 10A
2x
iBox Flex2-PWUS US Power Outlet Module Input 100-250V ~50/60Hz 10A Fuse- 10A 250V
OUT- Maximum 10A
2x
iBox Flex2-PWUV Universal Power Outlet Module Input 100-250V ~50/60Hz 10A Fuse- 10A 250V
OUT- Maximum 10A
2x
RETRACTABLE MODULARS
Models Name Specs
iBox Flex2-RTH HDMI 2.0 Retractable Module Upper: Retractable 1,500mm HDMI Male cable.
Under: 250-600mm HDMI Male cable.

iBox Flex2-RTN RJ45 Network Retractable Module Upper: Retractable 1,500mm HDMI Male cable.
Under: 250-600mm HDMI Male cable.

iBox Flex2-RTUA USB-A 3.0 Retractable Module Upper: Retractable 1,500mm HDMI Male cable.
Under: 250-600mm HDMI Male cable.

iBox Flex2-RTUC Full-feature USB-C Retractable Module Upper: Retractable 1,500mm HDMI Male cable.
Under: 250-600mm HDMI Male cable.

Download
  • INFOBIT AV iBox Flex2 User Manual V1.0.pdf
    1.71M
    2026-06-24
