iSpeaker-M260-B
iSpeaker M260

USB Speakerphone with USB Hub

iSpeaker M260
iSpeaker M260
iSpeaker M260
iSpeaker M260
iSpeaker M260
iSpeaker M260
iSpeaker M260
iSpeaker M260
iSpeaker M260

Highly sensitive speakerphone with loud and clear voice.

With 4 Microphones built-in, it supports 360-degree clear and rich audio picking up within 3 – 5m.

Audio DSP algorithm, enhance human voice and optimize the experience in conference.

Supports HDMI or USB-C 4K@60Hz UHD video output.

Supports 85W reverse charging, users don’t need to worry about the power of the laptop.

Dual USB 3.2 10Gbps ports, which can used to be connected to 4K USB camera and solid-state disk.

Plug-and-play, with no driver installation required.

iSpeaker M260
iSpeaker M260
iSpeaker M260
iSpeaker M260

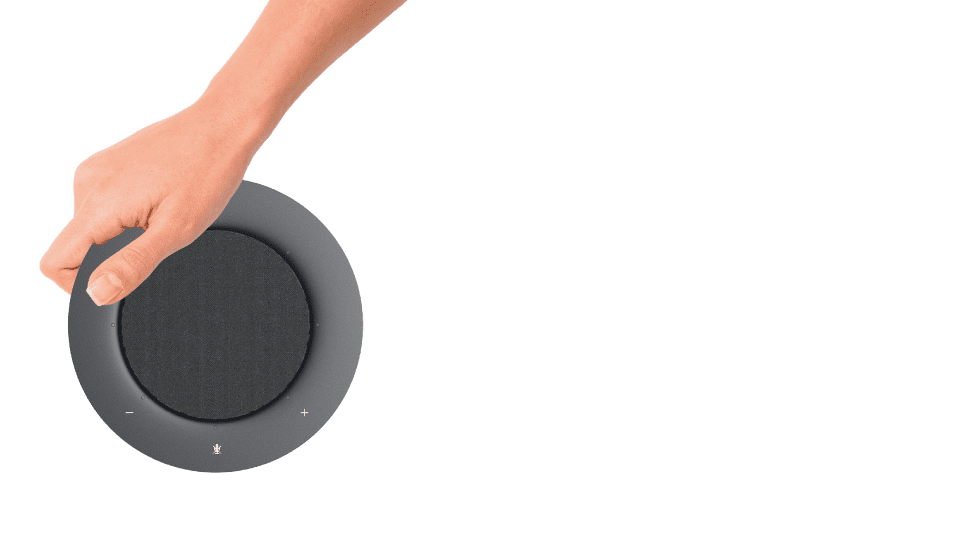

 Exclusive portable design
Exclusive portable design
Be mobile with a lightweight design, protective travel pouch.

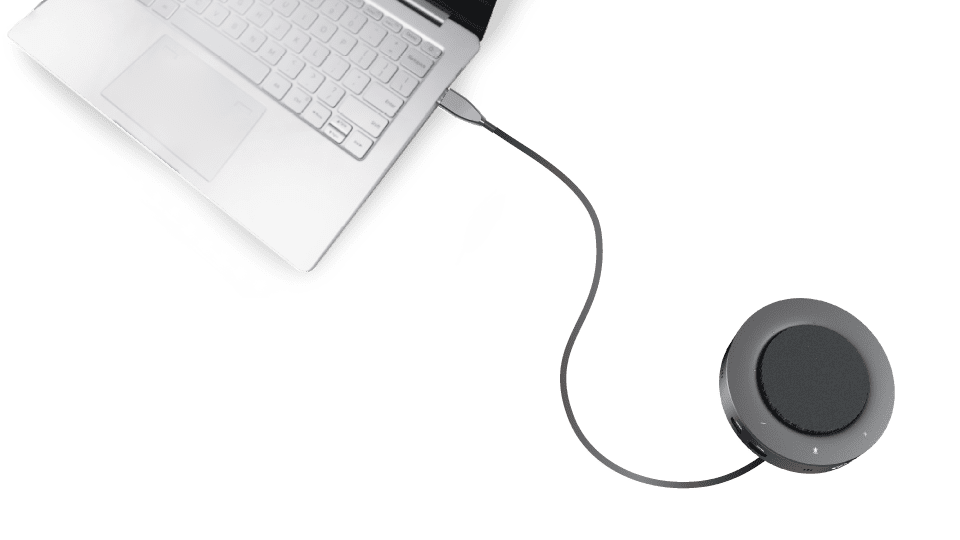

 USB cable connection
USB cable connection
Connect to a laptop via the universal USB cable.
Datasheet
Mode iSpeaker M260
Name USB Speakerphone w/ USB Hub
Video & USB
Input Port 1x USB- C (Laptop)
Input Signal Type USB-C multifunctional port with display, data, and power delivery.
Data: USB 3.2 Gen 2, up to 10Gbps.
Video: DP alt mode, up to 4K@60Hz.
Forward Power: power from the laptop, 5V/3A recommended.
Reverse (PD): PD 2.0, charging HOST device, 85W maximum.
Output Signal Type 1x HDMI out: HDMI 2.0, up to 4K@60Hz.
2x USB-A: USB 3.2 Gen 2 type-A, up to 10Gbps.
1x USB-C multifunctional port:
Power: Power in, up to 130W.
Data: USB 3.2 Gen 2, up to 10Gbps.
Video out: DP alt mode, up to 4K@60Hz.
Button Touch control, Volume up/down, Mute/Unmute
Speaker
Speaker Type Electrodynamic Speaker with Neodymium Magnet
Speaker Frequency Range 200Hz-20kHz
Speaker Rated Power 2W
Microphone
Microphone Coverage 360 degrees, omni-directional
Microphone Quantity x4
Microphone Frequency 100Hz – 10kHz
Digital Signal Processing Built-in echo cancellation and noise reduction
Others
Operating Temperature 0 to + 40°C (32 to + 104 °F)
Storage Temperature -20 to +70°C (-4 to + 158 °F)
Humidity 10% to 90%, non-condensing
Power Supply Powered by laptop: 5V 3A
Powered by power adapter or USB-C PD display: 60W or above
Product Dimension (φ x H) 128.07mm x 37.3mm /5.04” x 1.47”
Product Weight 0.28kg/0.62lb

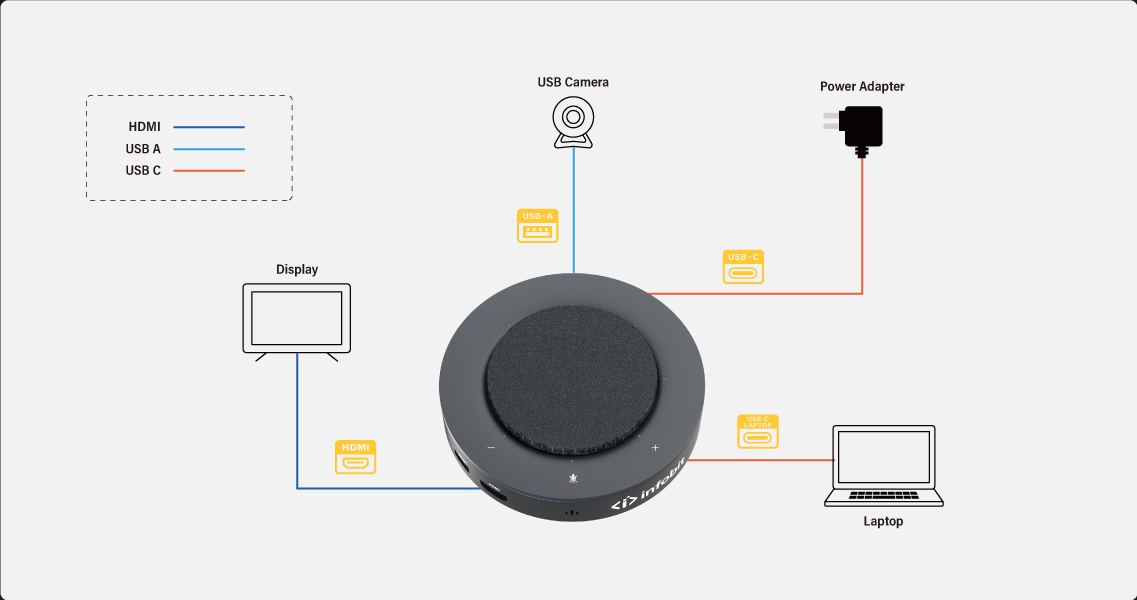

Diagram
Download
  • iSpeaker M260 User Manual V1.0.pdf
    1.3M
    2024-08-27
