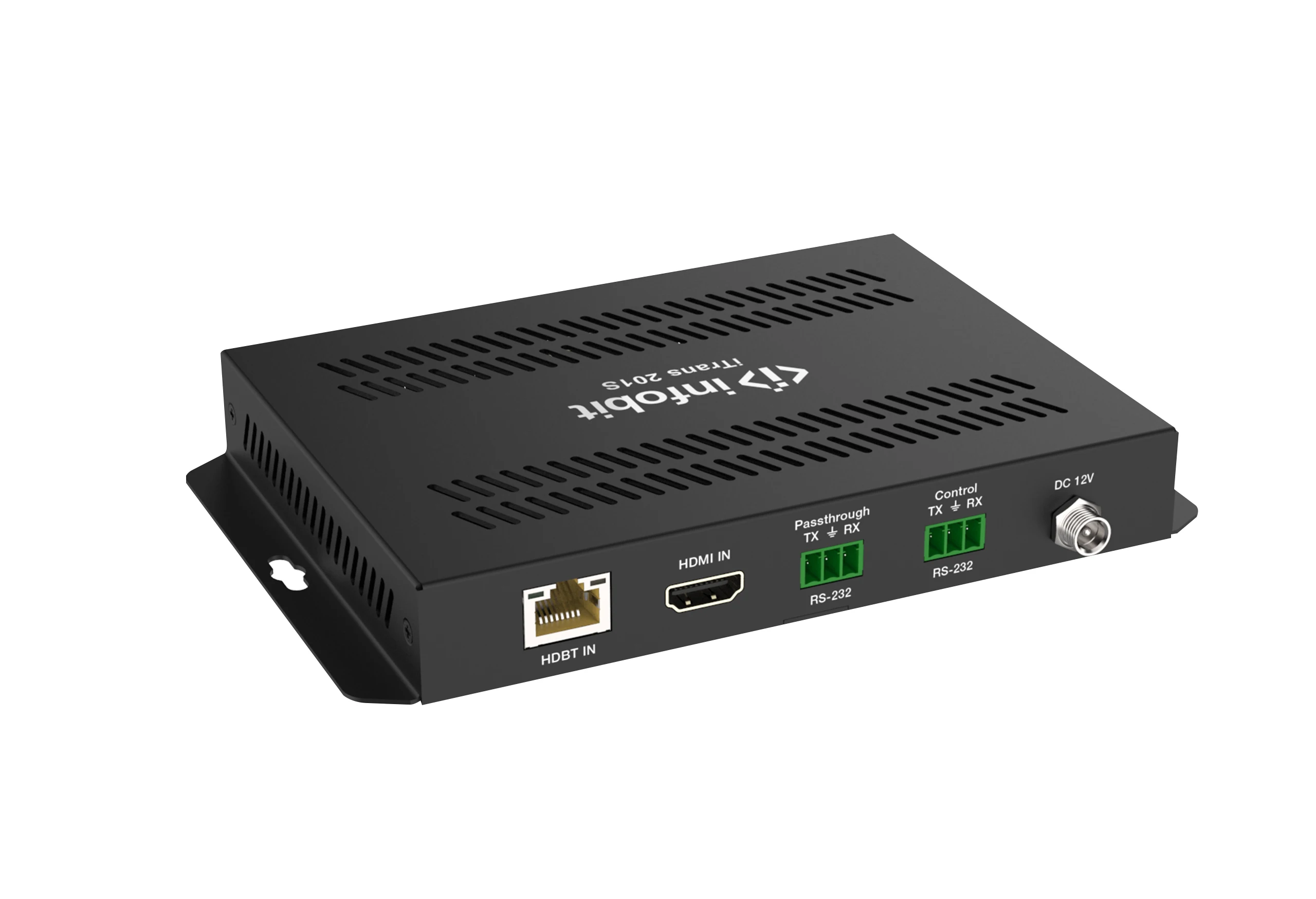

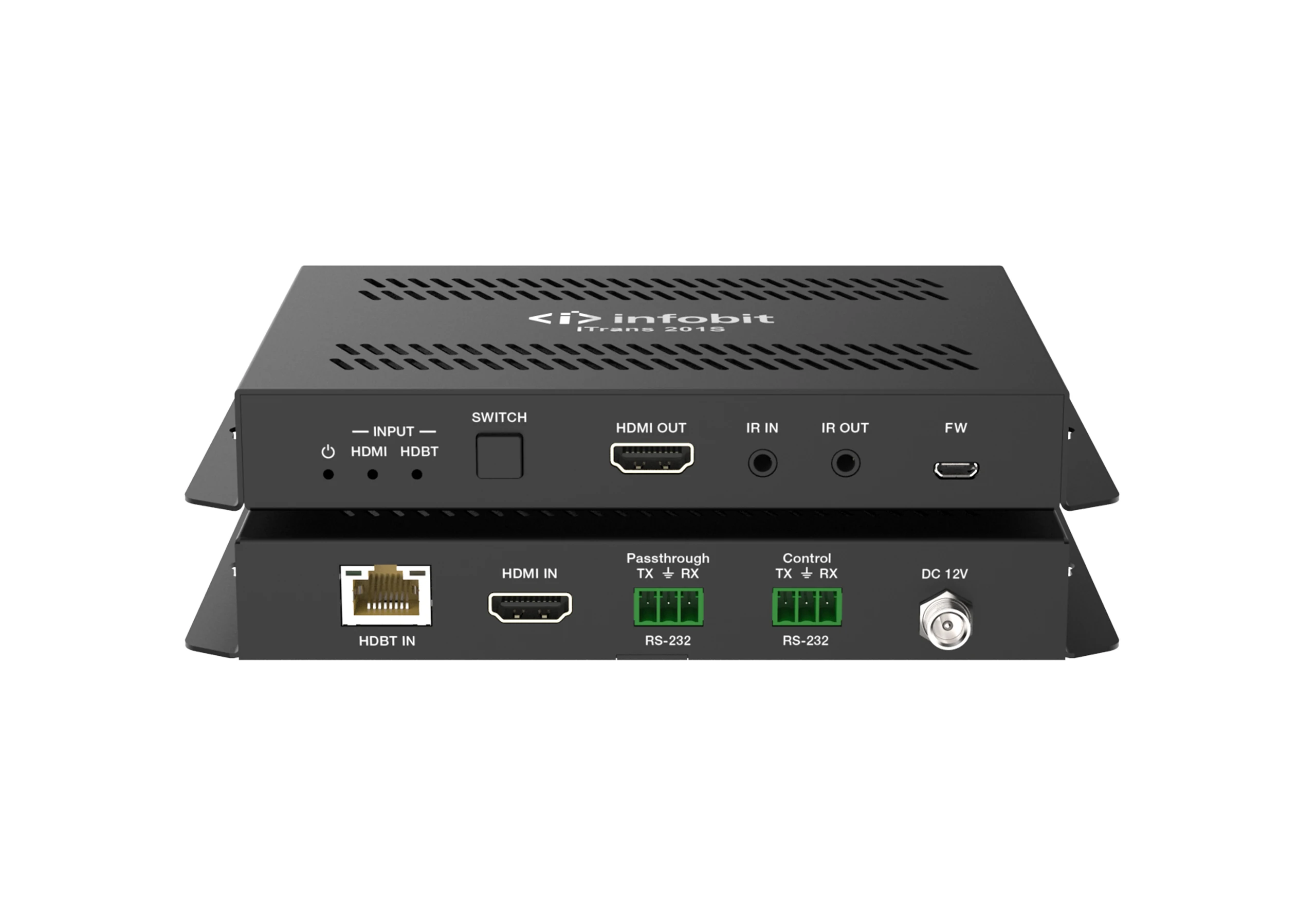

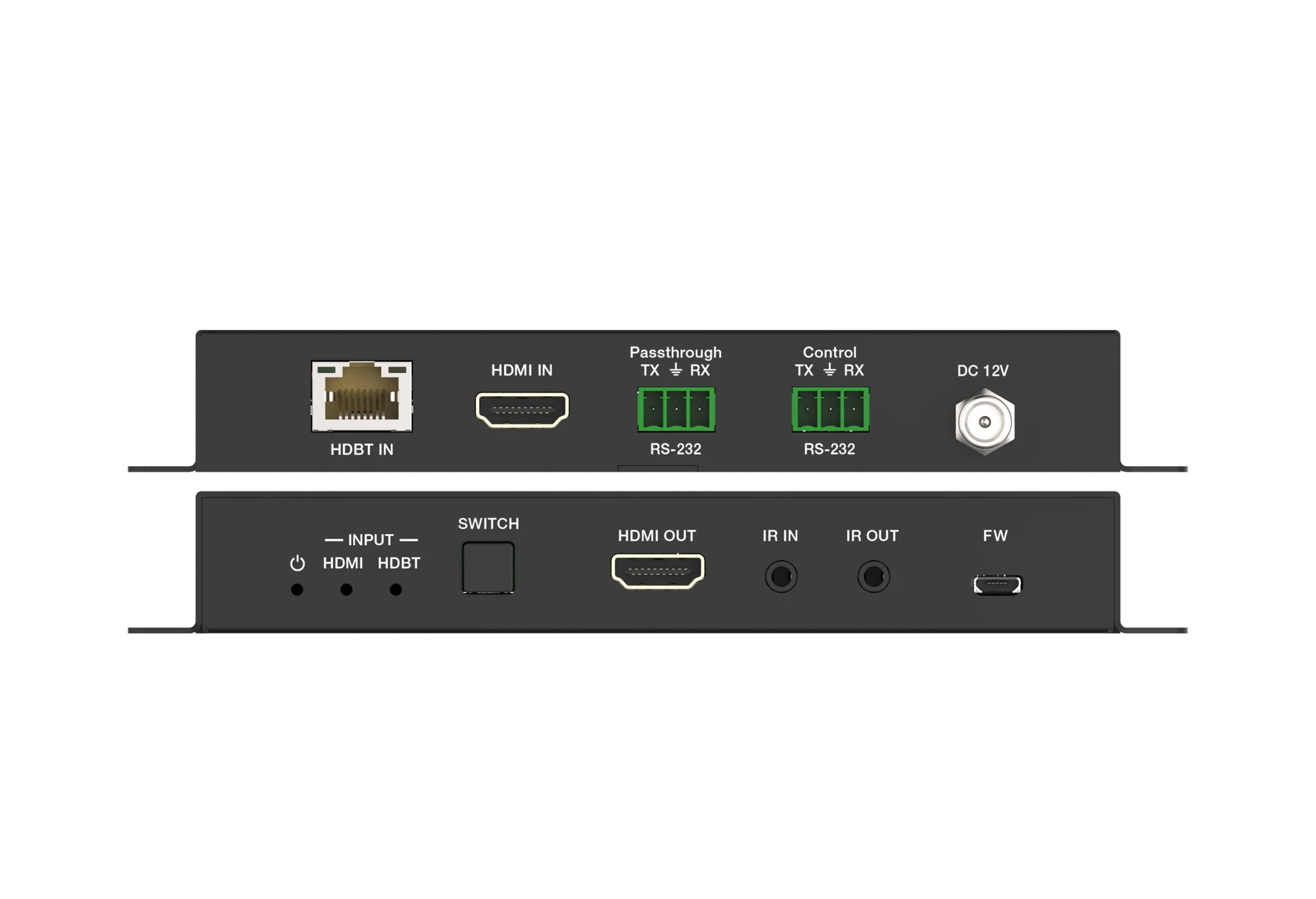

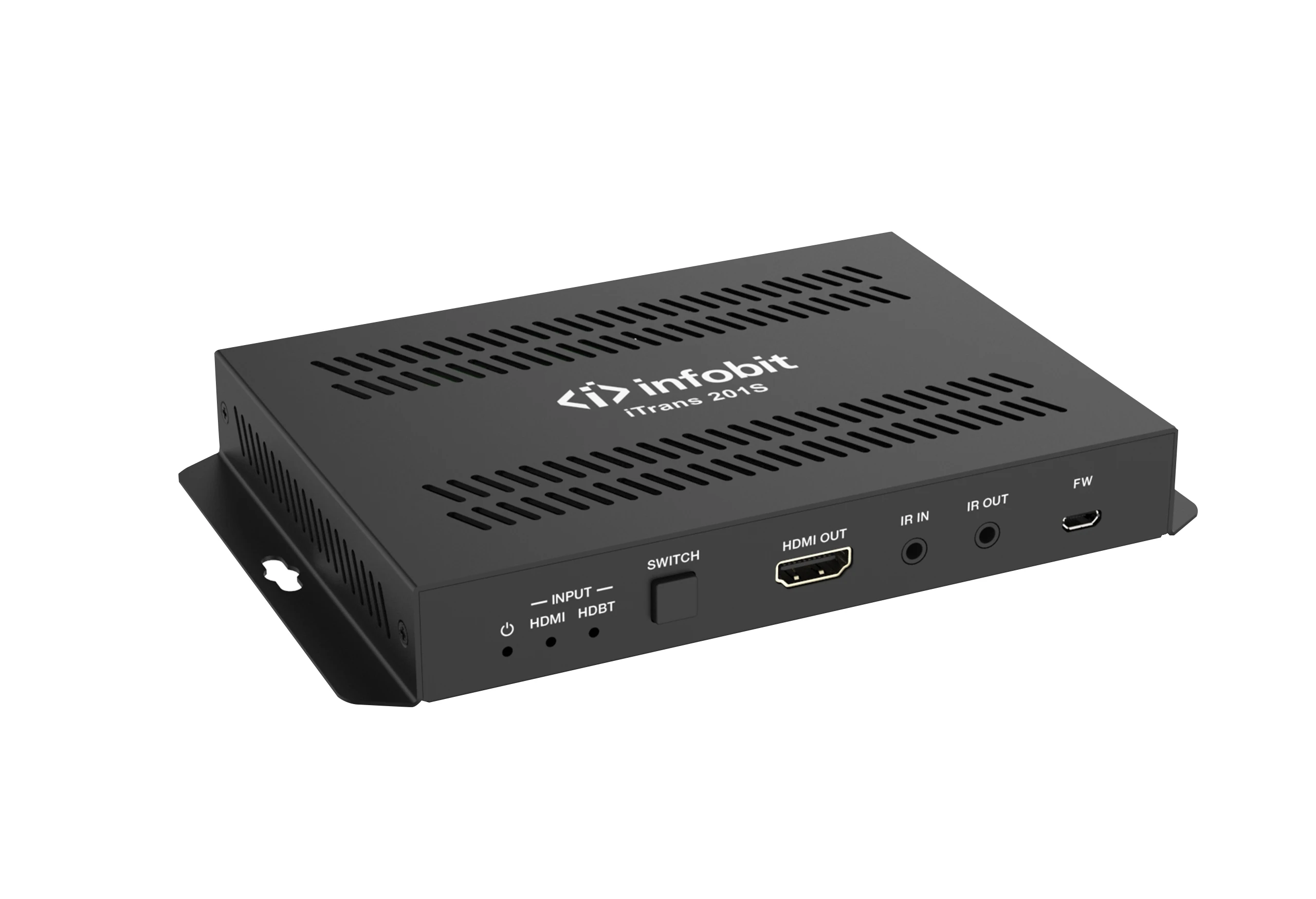

iTrans 201S
1 HDMI input and 1 HDBaseT input.
The HDMI output resolution can be selected from 720p to 4Kx2K @60Hz 4:4:4 to assure preferred output.
HDMI signals transmission up to 70m at 4K and 100m at 1080p on HDBT input.
Output resolutions are selectable to assure the preferred output
Support various output resolutions, such as 4Kx2K@60Hz, 4Kx2K@30Hz, 1920x1080p@60Hz, 1280x720@60Hz and more.
Supports RS232 pass-through to communicate control signal between the scaler and the connected HDBaseT matrix.
Controllable via RS232 local and pass-through, IR local and pass-through.
The receiver can be powered by the connected HDBaseT matrix via PoC.
Supports advanced built-in EDID management.

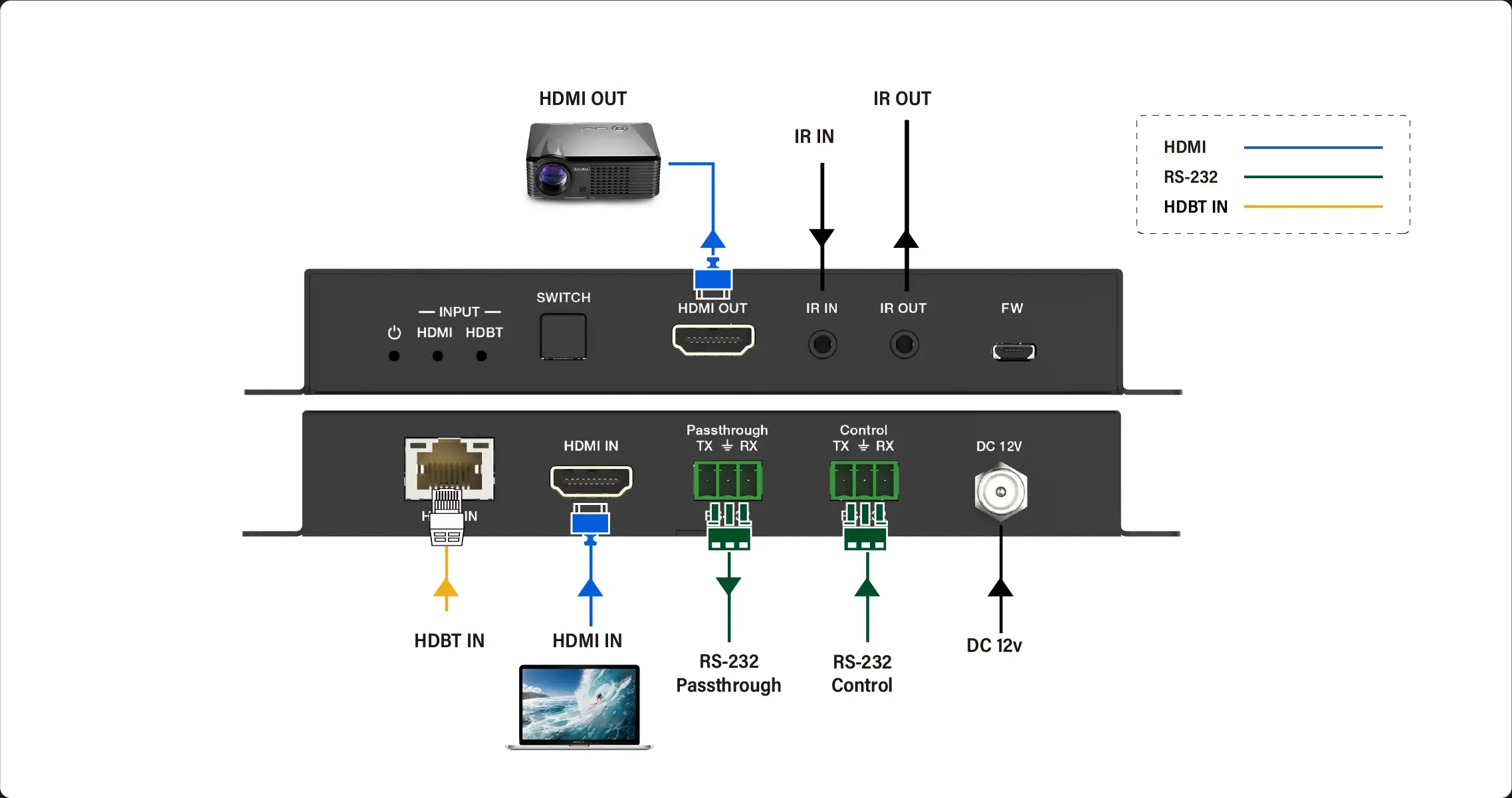

Diagram
Datasheet
| Model | iTrans 201S |
| Name | 4K60 2×1 HDBaset Receiver w/ Scaler |
| Input | 1×HDMI, 1×HDBT |
| Input Connector | 1×Type-A female HDMI, 1×RJ45 |
| Video input Video Resolution | Up to 4K@60Hz 4:4:4 HDR (HDMI) Up to 4K@60Hz 4:2:0 (HDBT) |
| Output | 1×HDMI |
| Output Connector | 1×Type-A female HDMI |
| Video output Video Resolution | Up to 4K@60Hz 4:4:4 HDR (HDMI) Up to 4K@60Hz 4:2:0 (HDBT) |
| Control Port | 1×IR IN, 1×IR Out, 1×RS232 (Control) 1×RS232 (Passthrough) |
| Control Connector | 2×3.5mm jacks, 2×3-pin phoenix connectors |
| HDMI Version | Up to 2.0 |
| HDCP Version | Up to 2.2 |
| Bandwidth | 18Gbps |
| HDBT Transmission Distance | 1080p@60Hz ≤ 100 meters (328 feet), 4K@60Hz ≤ 70 meters (230 feet) |
| Operation Temperature | -10 ~ +40°C (+14°F~ +104°F) |
| Storage Temperature | -15 to +55°C (-5°F to +131°F) |
| Relative Humidity | 10% to 90% |
| External Power Supply | 12V DC 1A |
| Power Consumption | 8W (max) |
| Dimension (W*H*D) | 150 mm x 23 mm x 110 mm |
| Net weight | 375 g |
