iSwitch 401MV
4K60 4x1 Multiviewer Seamless Video Switcher
HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
Support 18Gbps video bandwidth
Input and output resolutions support up to 4K@60Hz
Support LPCM, AC3, DD+, DTS, DTS-HD, up to 7.1 audio channel
Seamless switching between input channels and combined multiple images on a single UHD monitor
Up to 8 display modes: SINGLE, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2)
Seamless switching on single screen display mode
Fast switching on multiview display mode
Audio de-embedding via analog and optical fiber audio ports
Support volume control and independent audio selection
Support OSD navigation for advanced setting
EDID management
Control via front panel buttons, IR remote, RS-232 commands
Compact design for easy and flexible installation

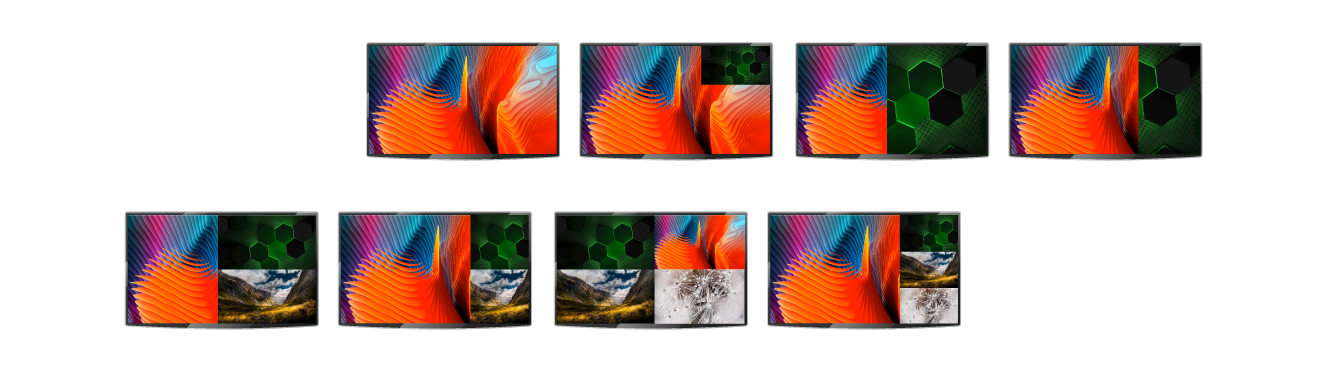

8 Display Modes
Up to 8 display modes. Seamless switching on single screen display mode and fast switching on multiview mode.
Diagram
Datasheet
| Model | iSwitch 401MV |
| Name | 4K60 4×1 Multiviewer Seamless Video Switcher |
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2/ 1.x |
| Video Bandwidth | 18Gbps |
| IR Level | 5Vp-p |
| IR Frequency | 38KHz |
| Video Resolution | Up to 4K60Hz (4:4:4) |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8bit |
| Audio Formats | HDMI: PCM2.0/5.1/7.1CH, Dolby Digital/Plus, DTS, DTS High Res Analog audio [3.5mm L/R]: PCM2.0; SPDIF (OPTICAL): Dolby Digital, DTS 5.1, PCM2.0. Note: It does not support HBR audio. |
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge) |
| Inputs | 4 x HDMI IN [Type A, 19-pin female] |
| Output | 1 x HDMI OUT [Type A, 19-pin female] 1 x L/R OUTPUT [RCA] 1 x OPTICAL OUTPUT [S/PDIF] |
| Control | 1 x RS-232 [3pin-3.81mm phoenix connector] 1 x IR EXT [3.5mm Stereo Mini-jack] |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 220mm (W) × 100mm (D) × 30mm (H) |
| Weight | 620g |
| Power Supply | AC 100 – 240V 50/60Hz DC 12V/2.5A |
| Power Consumption | 10W (Max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |
