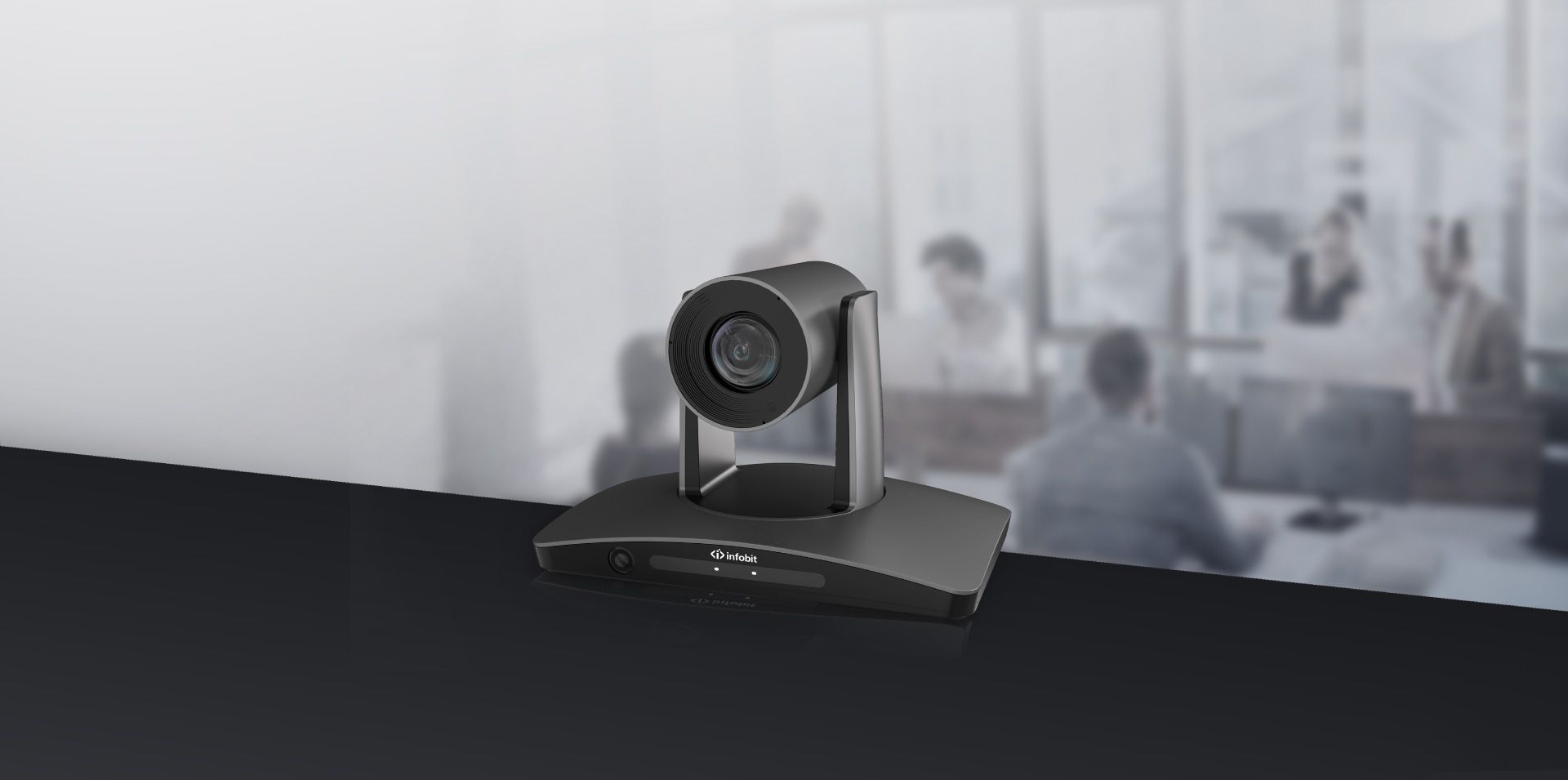

iCam P40

20x HD Dual-lens Lecturer Tracking PTZ Camera

AI-based human body detection and lock tracking image algorithm, auto camera;

1080P60 SDI video output of tracking camera;

Adjust automatically as per the height of the lecturer/ teacher;

Track the lecturer/ teacher all around the classroom, even if he walks into the student’s area;

Excellent locking and anti-interference performance: the camera keeps tracking the object even if the object is still for a long period. Other moving objects and video from projectors do not interfere with the tracking performance;

Support 3G-SDI, HDMI, Ethernet and USB3.0 video output interface;

Support UVC/UAC protocol;

Support remote and RS-232 control.

Chat Now

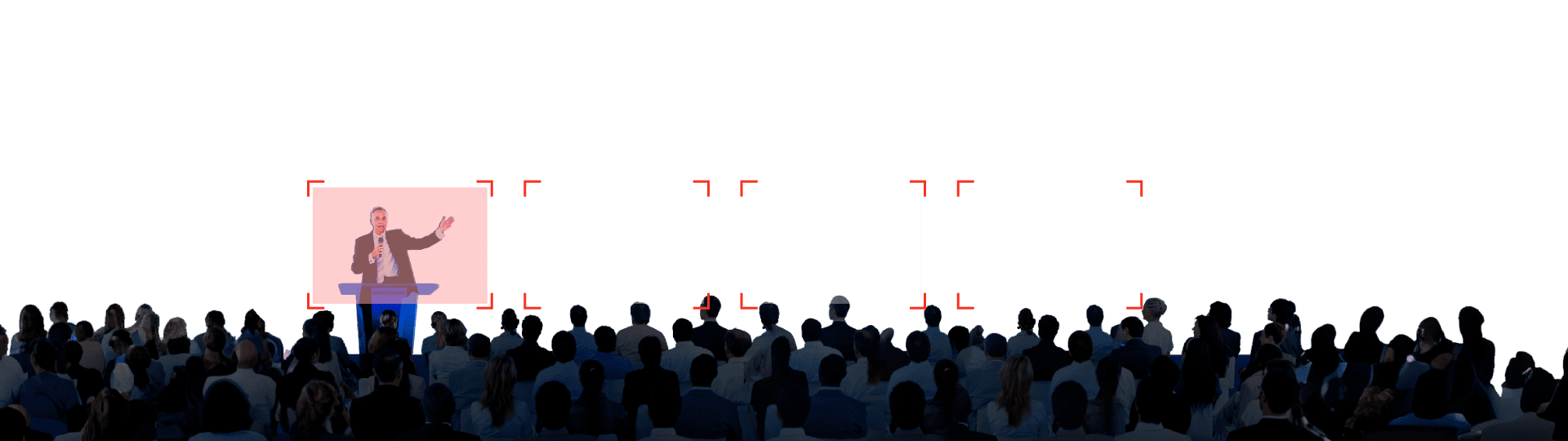

Segment tracking

Never miss a step. Enhance the capturing of content on multiple displays with Segment Tracking. Create 4 Content Zones that allow for immediate recognition and tracking of your target as they move between Content Zones, perfectly capturing the content on display rather than your presenter.

Stage tracking

Track your target in any environment.Get high quality, hands-free video streaming and recording with Stage Tracking.
Fluidly track your target with Effective Zone settings allowing for up to 8 blocking zones to capture strategic professional looking video.

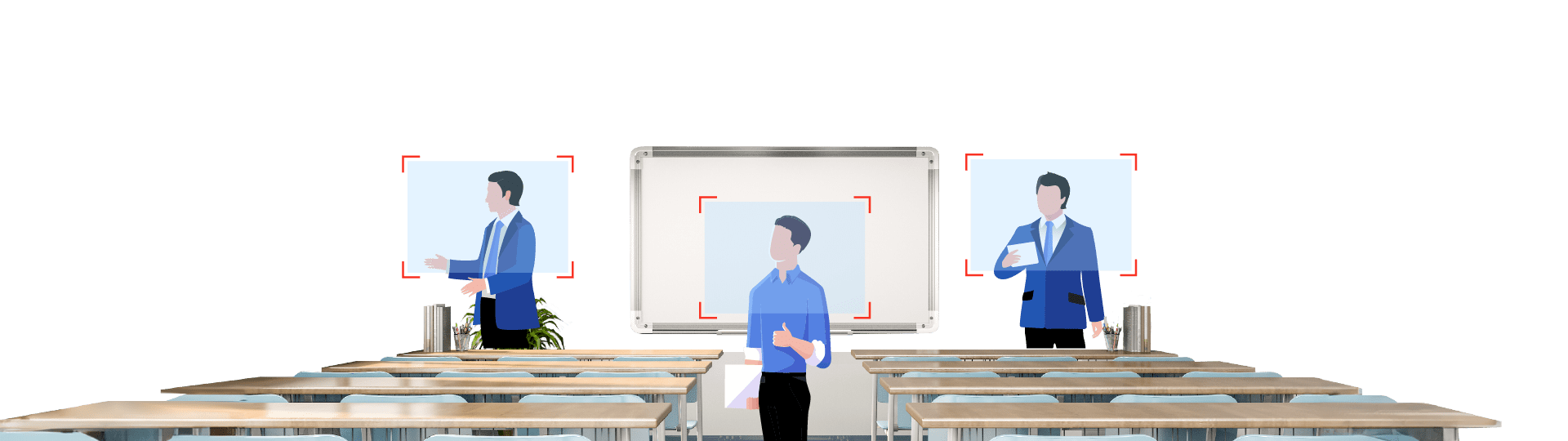

Wide area tracking

Capture every interaction. Track your target everywhere with Wide Area Tracking. Wide Area Tracking provides presenters the flexibility to leave the stage and interact with a crowd or students, all while being continuously tracked even if they become obscured by other people or objects.

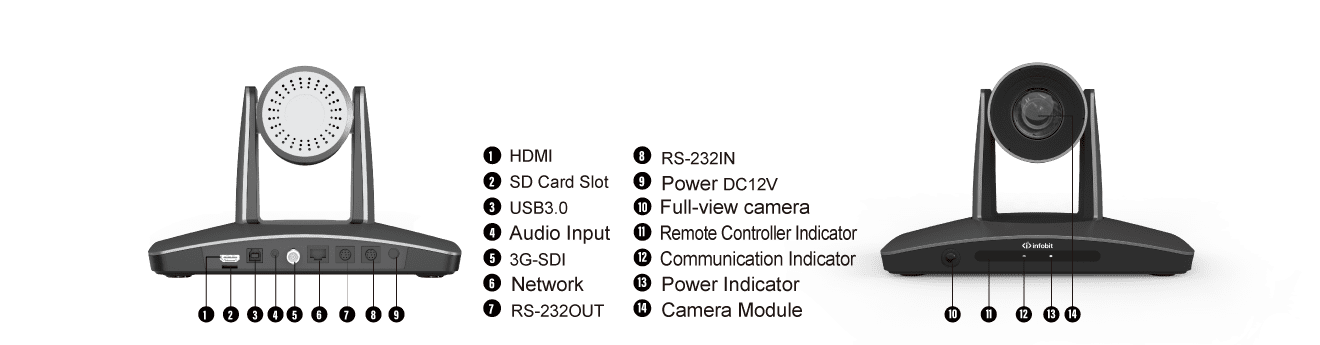

Enriched Ports

Supports HDMI, 3G-SDI, LAN, USB, Line IN. Dual stream outputs.

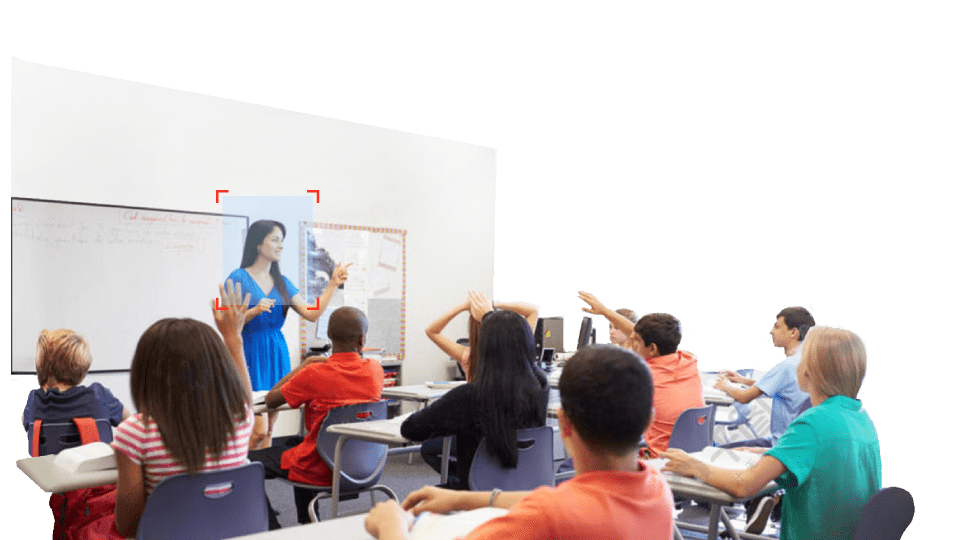

Track in the crowd

With the extraordinary intelligent tracking technology,
the iCam P40 automatically identify
and lock the lecturer and keep tracking.

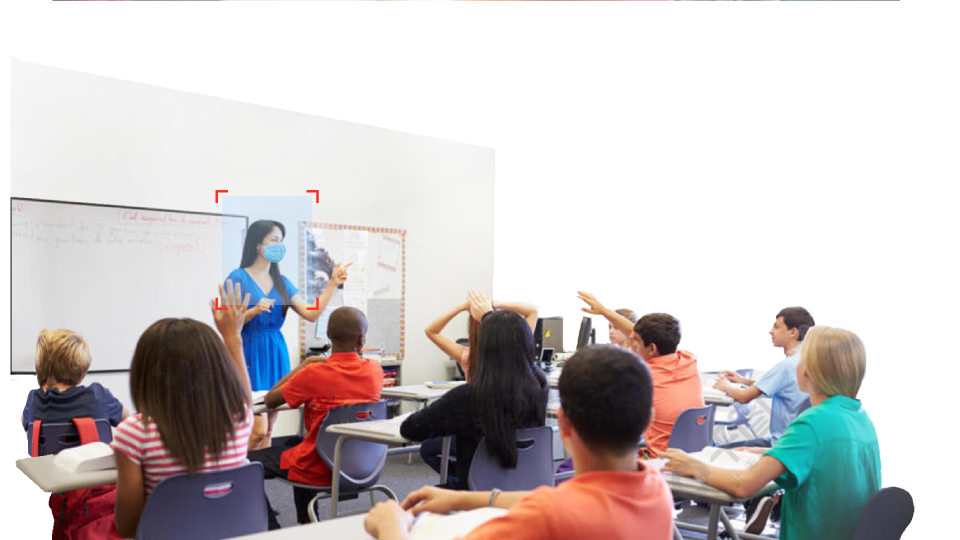

Strong face detection

With the super strong AI-based face detection technology,
the iCam P40 can track even the lecturer wearing mask.

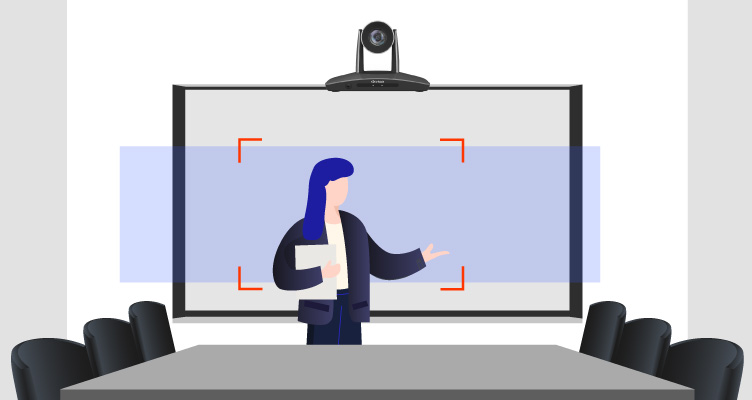

Intelligent motion tracking

The iCam P40 can auto adjust the tilt angle as per
the lecturer's motion and height.

Tile motion tracking

The iCam P40 can keep tracking even the teacher standing
among the students.

Focus tracking

The iCam P40 keeps tracking the teacher
only rather than other moving person.

Track with lights ON/OFF

The iCam P40 keep tracking the teacher only
and NOT track any moving objects/person
on display or projection screen.

Applications

The iCam P40 is ideal solution for traditional classroom, ladder classroom, training room and multimedia room.

Datasheet

Model	iCam P40
Name	20x HD Dual-lens Lecturer Tracking PTZ Camera
Tracking Camera
Image Sensor	1/2.8″ CMOS, 2.14 megapixel
Focal Lens	f=4.7~94.0mm
Iris	F1.8 – F3.5
Optical Zoom	20x
Digital Zoom	8x
Angle of view	59.5° – 2.9°
Focus	Auto, Manual, PTZ Trigger, One Push Trigger
Min. Illumination	0.5lux
Shutter	1/60~ 1/10,000 sec
Gain	Auto/Manual
White Balance	Auto, One Push, Manual, Static color temperature
Exposure	Auto, Manual, Iris Priority, Shutter priority, Brightness Priority
S/N Ratio	≥50dB
Menu	English
Full-view Camera
Image Sensor	1/2.8” CMOS, 2.14 megapixel
White Balance	Auto
Exposure Auto
Lens	Fix-focus 2.4mm
Angle of view	Horizontal:88°, Vertical:54°
PTZ
Pan Range	-170°~+170°
Tilt Range	-30°~+90°
Pan Speed	0.1°~120°/s
Tilt Speed	0.1°~90°/s
Flip	Support
Preset Number	64
Interface
HDMI	HDMI Output; Video resolution 1080P60/P59.94/P50/P30/29.97/P25; 720P60/P59.94/P50
Network	RJ45 (10/100M) interface, supports POE; 1. Video resolution up to 1080P60 2. Video format: support H.264, H.265 3. Network protocols: ONVIF, RTSP, RTMP, NDI, SRT 4. Audio compression: AAC 5. Support multi-stream
USB	1x USB3.0 1.UVC Protocol: UVC1.1; 2. UVC video compression support H.264/H.265/MJPEG; Video resolution 1080P30/P25, 720P30/P25, 360P30/P25 3. UAC Audio format: PCM
3G-SDI	1x 3G-SDI Video resolution: 1080P60/P50/P30/P25, 720P60/P50
Audio interface	1x LINE IN, 3.5mm
Control interface	1x RS-232 IN, 1x RS-232 OUT
TF card	TF card, Max 64G
Power supply	DC12V
General
Control protocol	VISCA, PELCO-D, PELCO-P
Power Consumption	15W
Working Temp	0°C ~ + 40°C
Storage Temp	-20°C~+60°C
Working humidity	10%RH ~ 90 %RH
Storage humidity	10%RH ~ 95 %RH
Dimensions	243mm×157mm×163mm
Weight N.W.	2kg
Color	Gray

Download

iCam P40 Lecture Tracking Camera Manual V1.0.pdf

2.16M

2024-08-22
