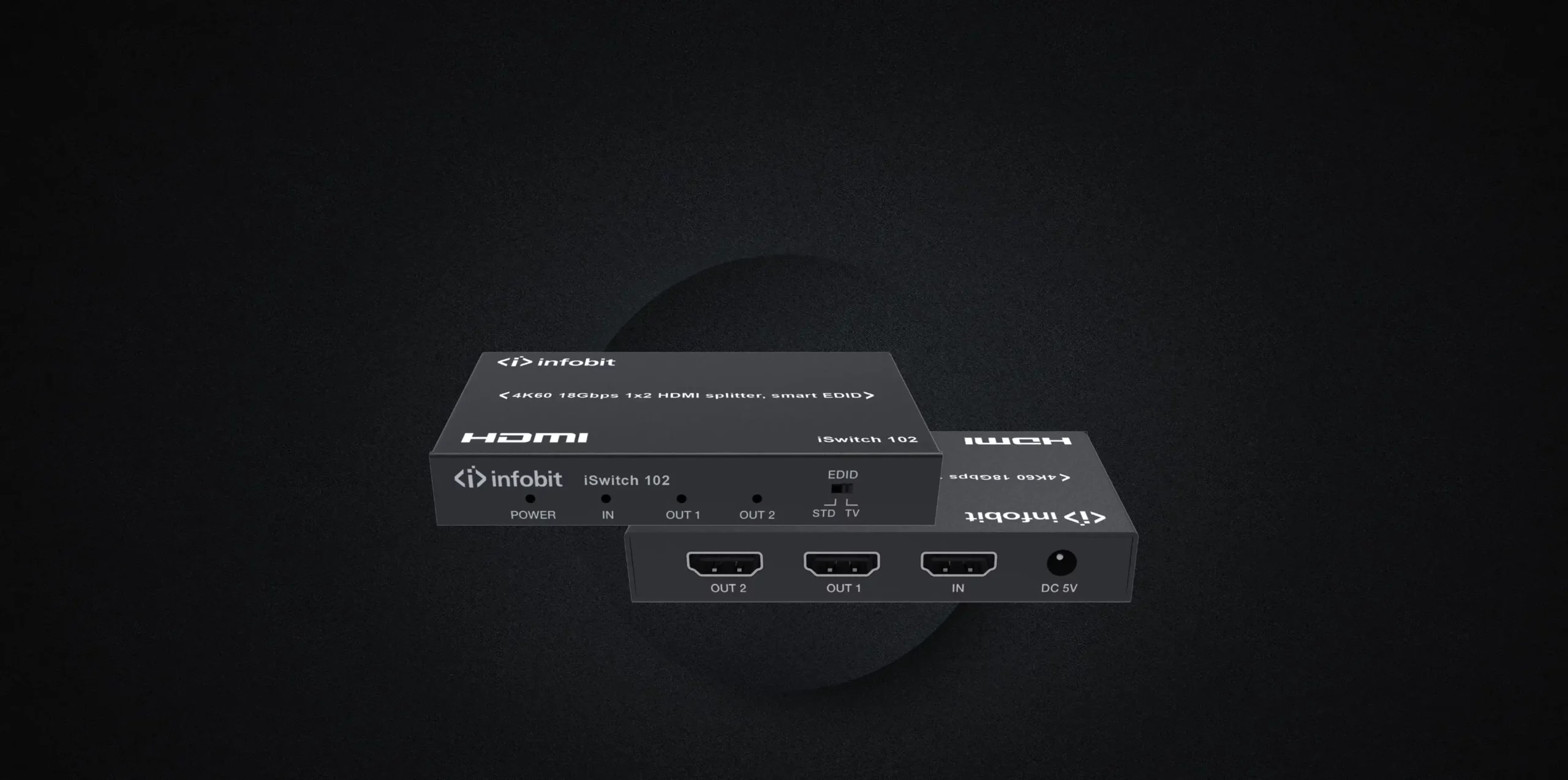

iSwitch 102
1x2 HDMI 18Gbps 4K60 Splitter
HDMI 2.0b, HDCP 2.2 compliant
Up to 4K2K@60Hz with 24bit RGB/YCbCr 4:4:4
VESA format up to QSXGA@60Hz
Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
Built-in equalizer, retiming, and driver
Smart EDID, STD(1080p) mode and TV(copy OUT1) mode
Compact design for an easy and flexible installation
Diagram
Datasheet
| Model | iSwitch 102 |
| Name | 1×2 HDMI 18Gbps Splitter |
| Video Bandwidth | 600MHz/18Gbps |
| Input Port | 1×HDMI Type A (19-pin female) |
| Output Ports | 2×HDMI Type A (19-pin female) |
| Video Resolution | 4K2K 24/25/30/60Hz |
| ESD Protection | Human body model—±8kV (Air-gap discharge) &±4kV (Contact discharge) |
| Chassis Material | Metal |
| Color | Black |
| Power Consumption | 2W |
| Weight | 165g |
| Power Supply | Input: AC100 – 240V 50/60Hz Output: DC 5V/1A |
| Dimensions | 56 mm(W)×100 mm(D)×16mm(H) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |
