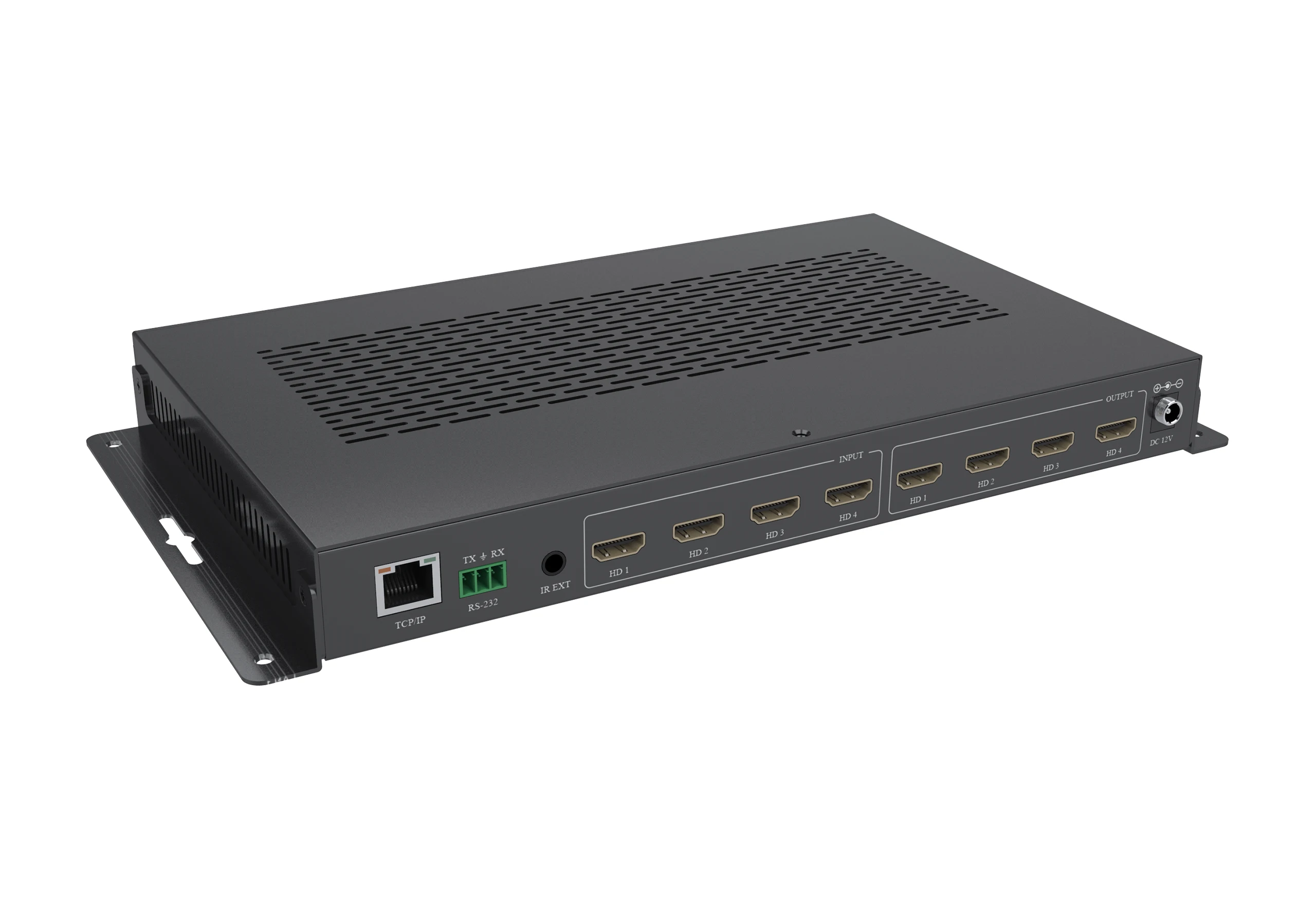

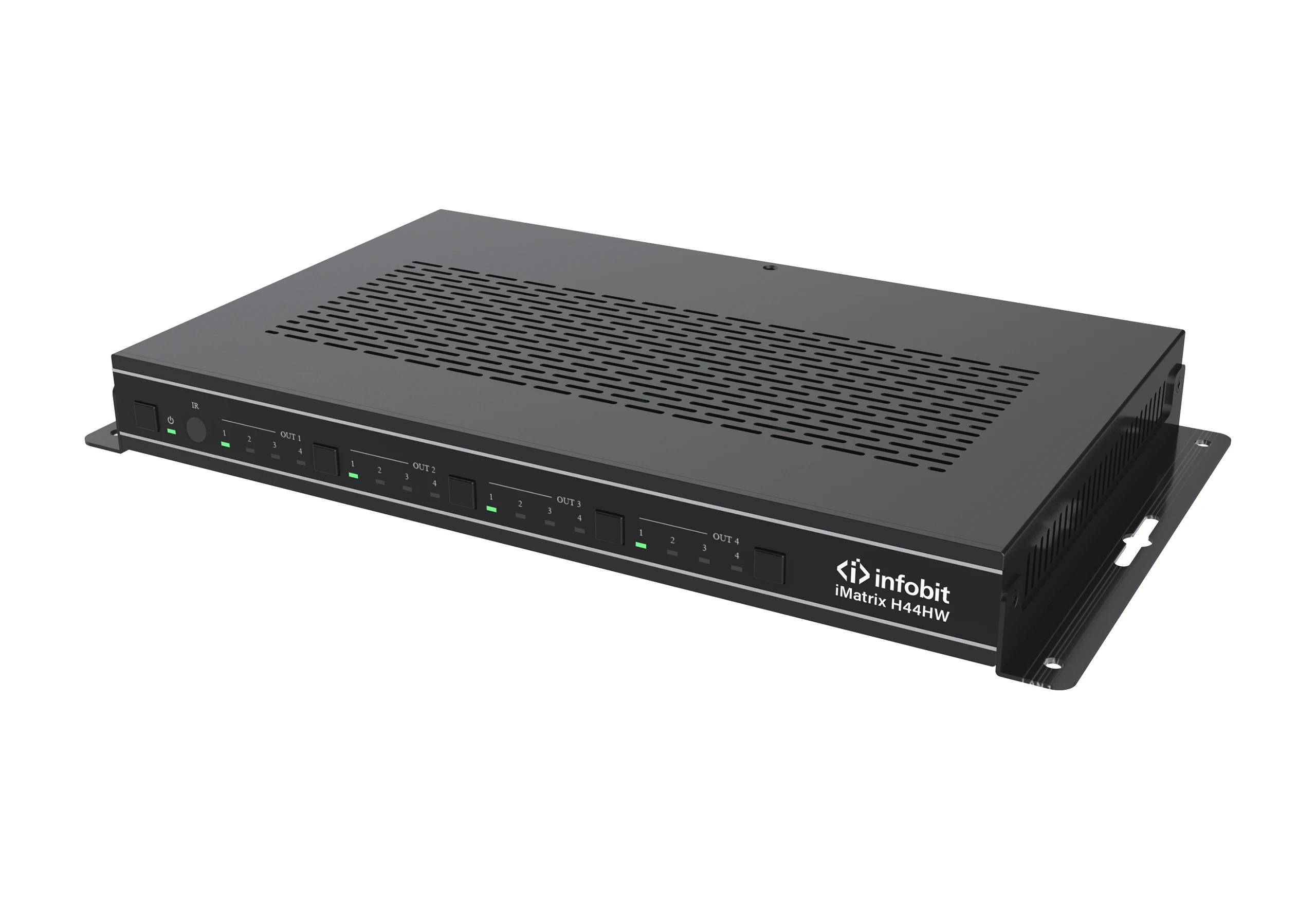

iMatrix H44HW
4K60 Seamless Matrix Switcher w/ Videowall
Compliant HDMI 2.0b
Compliant HDCP 2.2 and HDCP 1.4
Features 2 operational modes:
- 4×4 Matrix (seamless switch)
- Video wall (2×2, 4×1 or 1×4 etc configuration)
Seamless video switching
Video inputs support all industry standard video resolutions including VGA-WUXGA (up to 1920×1200 @60Hz) and 480i-4K (3840 x 2160 @60Hz 4:4:4, 4096 x 2160 @60Hz 4:4:4)
HDMI outputs support upscale or downscale to any resolution, up to 4096 x 2160@60Hz 4:4:4
Support LPCM, DD, DD+, DTS, Dolby TrueHD, DTS HD-master pass-through
Advanced EDID management
Web GUI for control and configuration of Matrix
Control via front panel, IR, RS-232 and TCP/IP
3rd Party drivers available for all major home control brands

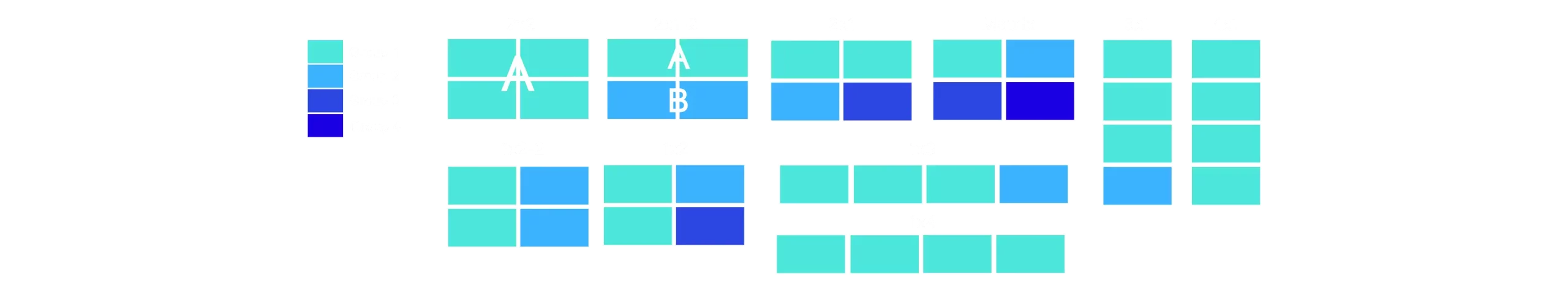

Supports both Matrix and Videowall
The 4K60 matrix switcher can perform as a 4×4 seamless matrix, or a 2×2, 4×1 or 1×4 etc video wall solution.
Diagram
Datasheet
| Model | iMatrix H44HW |
| Name | 4K60 4×4 Seamless Matrix w/ Videowall |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2/1.4 |
| Video Bandwidth | 594MHz/18Gbps |
| Video Resolution | Input: VGA-WUXGA (up to 1920×1200@60Hz), 480i-4K (3840×2160@60Hz 4:4:4, 4096×2160@60Hz 4:4:4) |
| Output: 4096x2160p60, 4096x2160p50, 3840x2160p60, 3840x2160p50, 3840x2160p30, 1920x1080p60, 1920x1080p50, 1920x1080i60, 1920x1080i50, 1920x1200p60rb, 1360x768p60, 1280x800p60, 1280x720p60, 1280x720p50, 1024x768p60, auto |
|
| Color Space | RGB, YCbCr 4:4:4/4:2:2, YUV 4:2:0 |
| Color Depth | 8/10/12-bi |
| IR Level | 12Vp-p |
| IR Frequency | 38KHz |
| HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio |

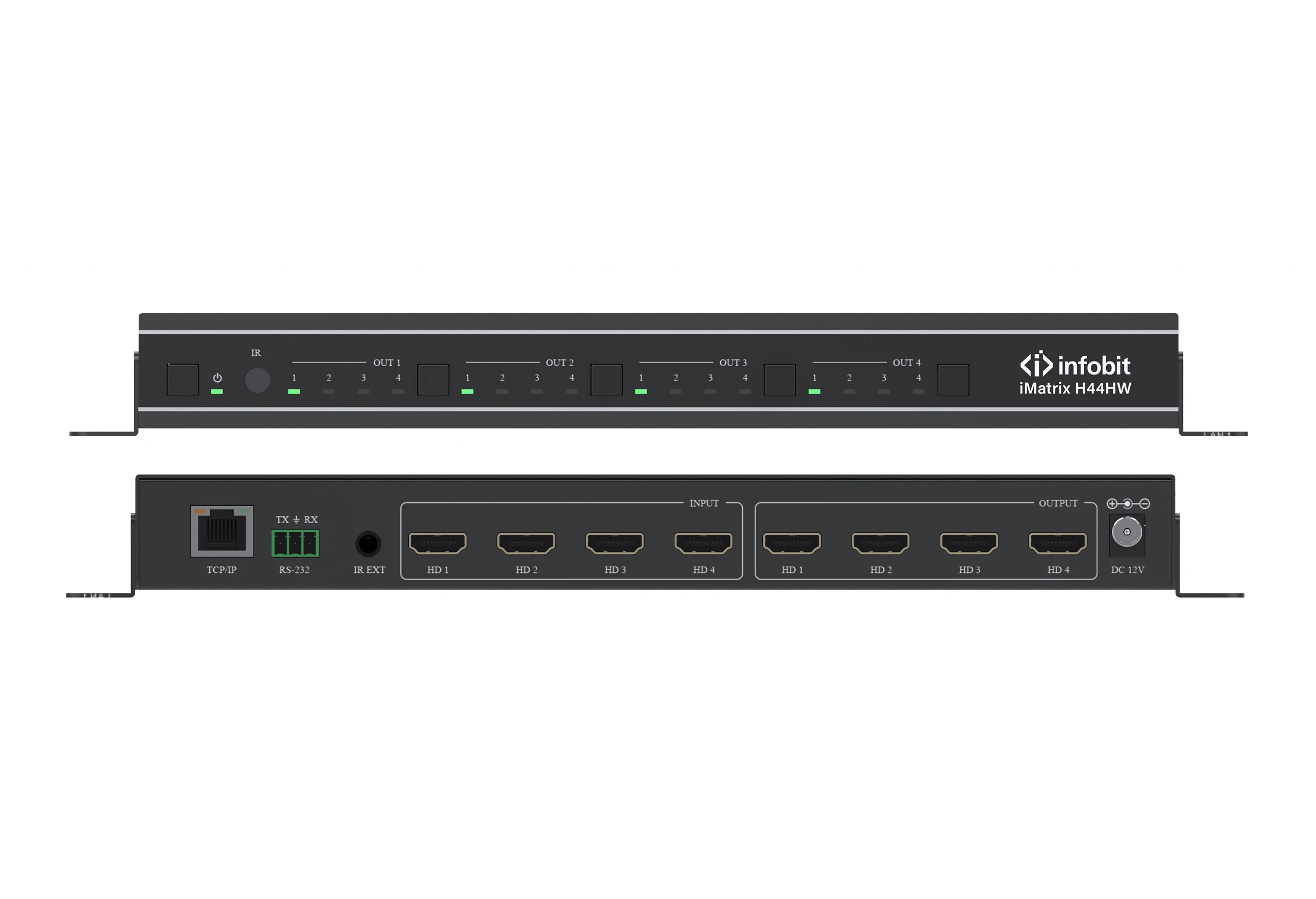

| Inputs | 4 × HDMI Type A [19-pin female] |
| Outputs | 4 x HDMI Type A [19-pin female] |
| Control | 1 × RS-232 [3pin-3.81mm phoenix connector] 1 × TCP/IP [RJ45] 1 × IR EXT [3.5mm Stereo Mini-jack] |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 270mm (W) × 166mm (D) × 30mm (H) |
| Weight | 1165g |
| Power Supply | Input: AC 100 – 240V 50/60Hz Output: DC 12V/2.5A (US/EU standard, CE/FCC/UL certified) |
| Power Consumption | 19.56W (Max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |
