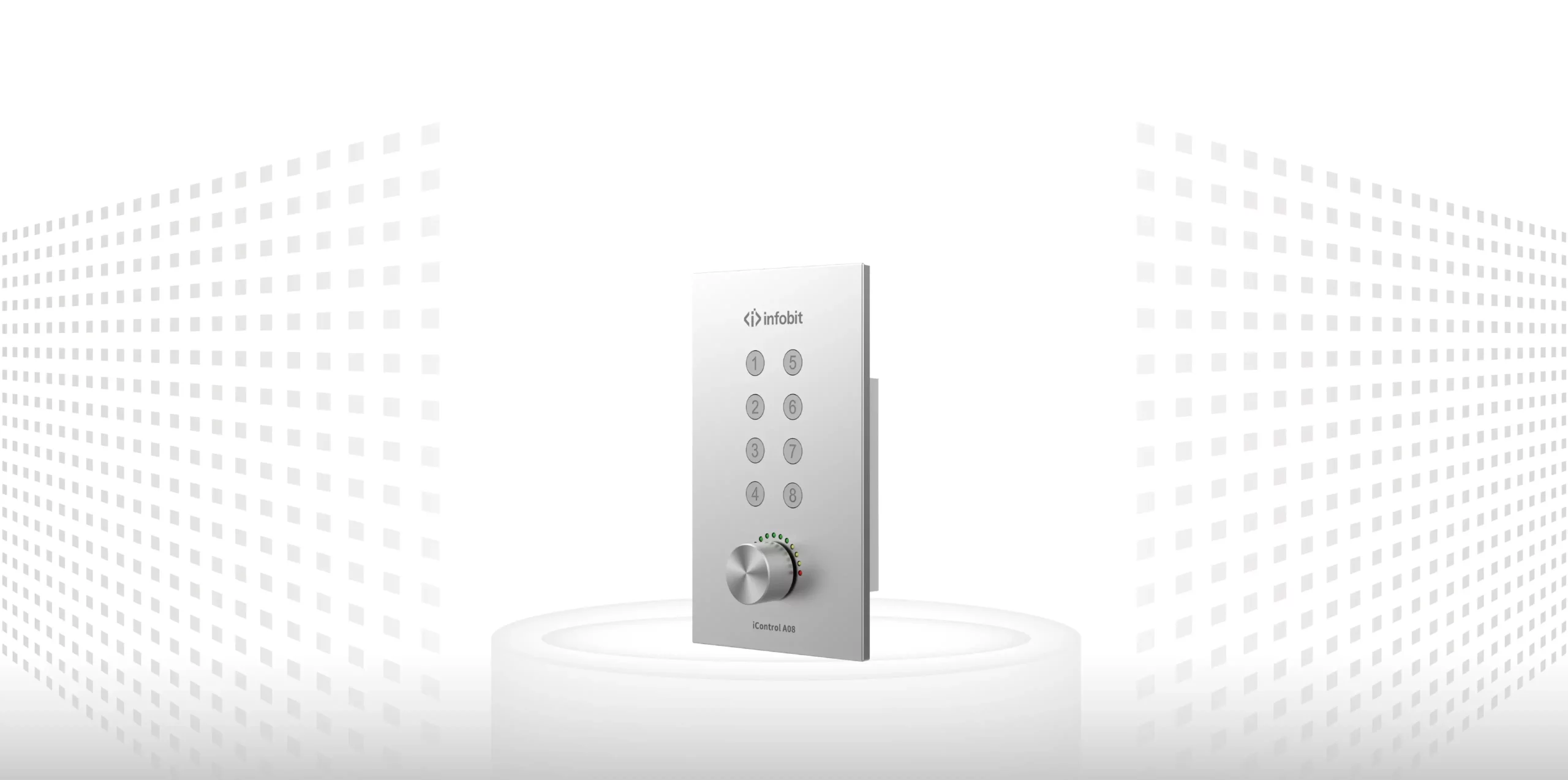

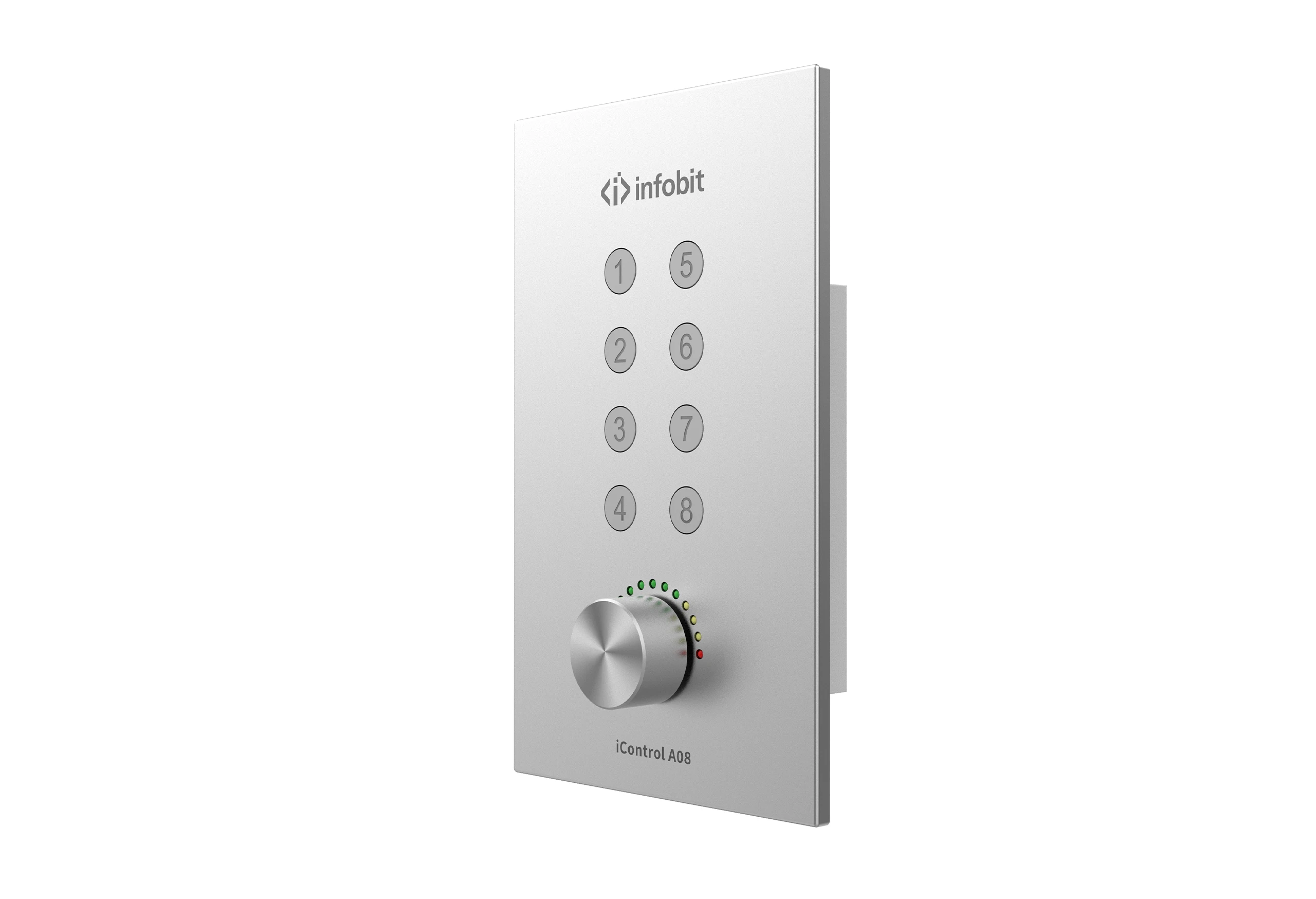

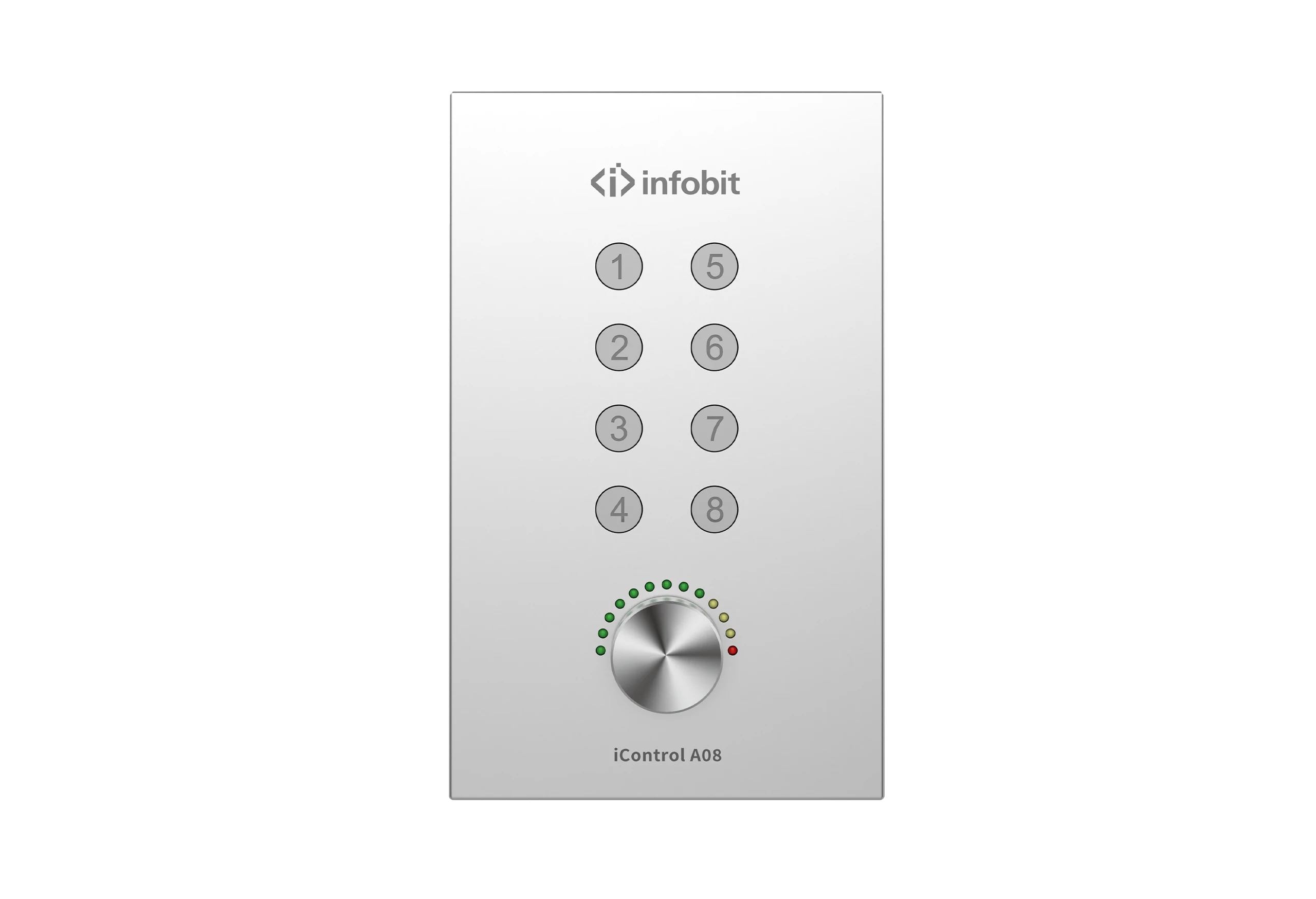

iControl A08
1- 8x programable buttons on the panel support customized functions
2- 1x programable control knob, with 8 indicators showing the control status.
3- The device is connected via standard CAT-5/6/7 cables and is powered over Ethernet (PoE)
4- Multiple remote control panels can be connected over large distances.
5- Partnered with one or more iSound Series DSPs from INFOBIT AV
6- A range of audio control abilities such as volume, mixing, and scene switching.
7- With PoE power supply and UDP communication protocol.
8- Can control the 3rd party device through iSound DSPs.
Note: Must works with INFOBIT iSound DSPs.
Datasheet
| Model | iControl A08 |
| Name | 8-button Dante Audio Controller |
| Programmable Buttons | 8 pcs |
| Control knob | 1 pcs |
| Control protocols | UDP |
| Address setting method | TCP/IP |
| Signal cable length | 100 Meters |
| Power supply | PoE |
| Connection port | RJ45 |
| Power consumption | <100mW |
| Material | Aluminium alloy sandblasting |
| Color | Silver White |
| Cover dimensions | 156 x 96mm |

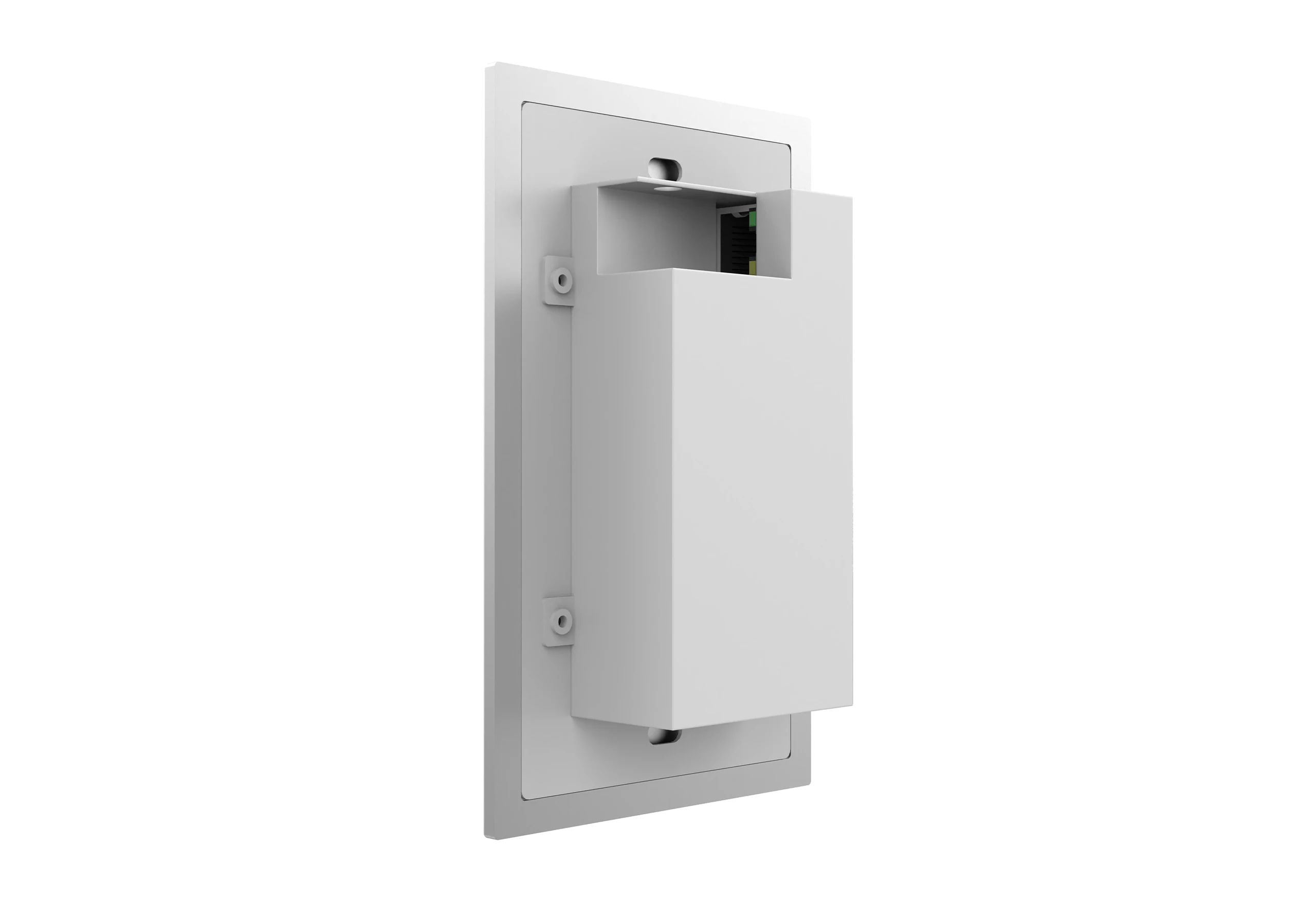

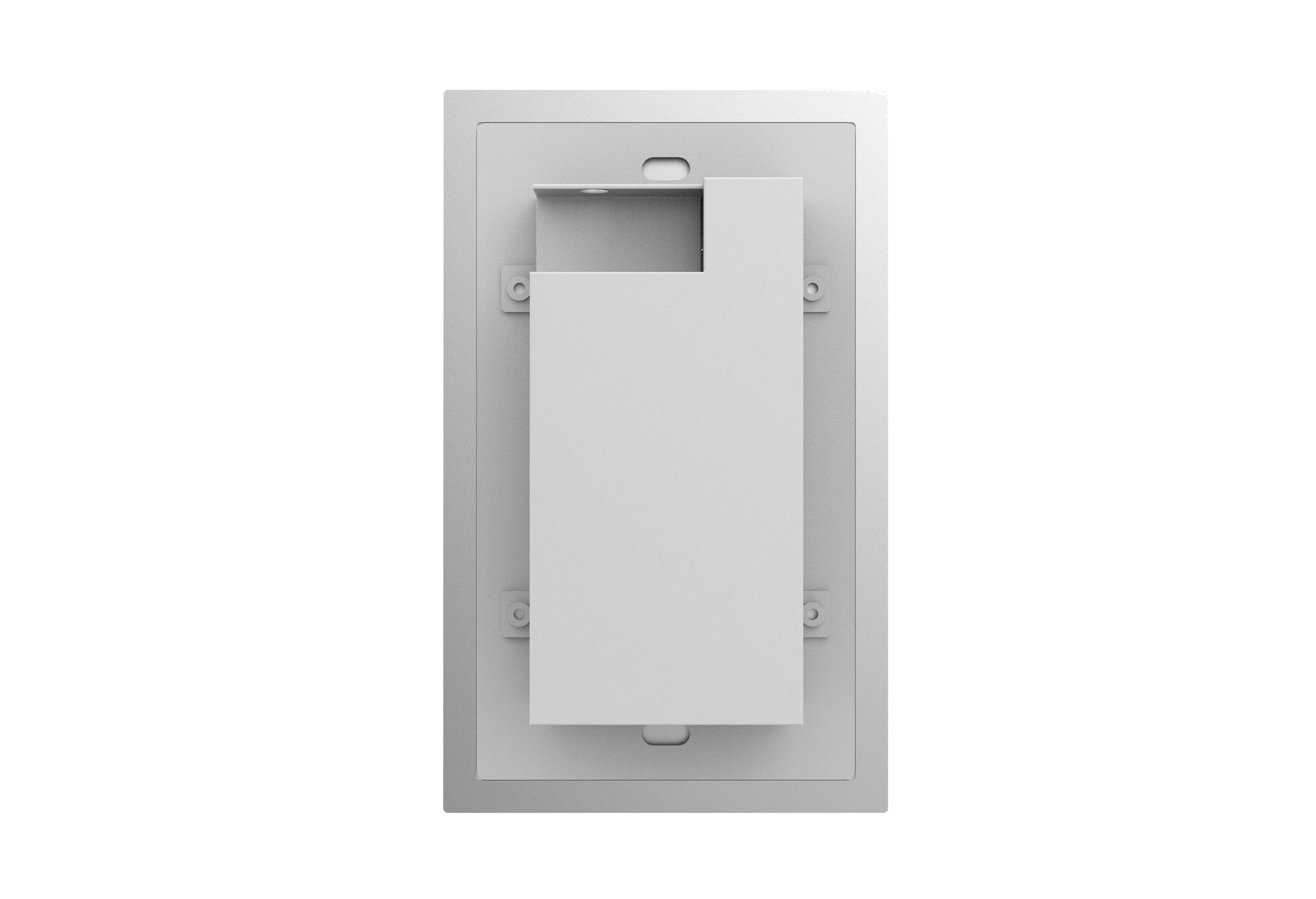

| Wall box dimensions | 152 x 84 x 50mm (H x W x D). |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Operating Temperature | +32 to +104 °F (0 to +40 °C) |
