1x TYPE-C upstream female port: Connects to the host PC, with 60W Power Supply passthrough

1x TYPE-C downstream female ports (USB 3.1, 10Gbps): for USB data

3x USB-A ports (USB 3.1, 10Gbps): Connect to USB devices like camera, microphone, USB drive, Keyboard/mouse, printer...

1x 3.5mm audio female port (Audio+Mic): 3.5mm audio head 3-pole/ 4-pole adaptive

1x microphone port

1x RJ45 port: 1,000\100\10Mbps adaptive

2x HDMI ports: Up to 4K/60Hz (3840*2160) video output

2x DP output: Up to 5K/60Hz (5120*2880) video output

1x TF card slot: supports max. 2TB TF card

1x SD card slot: supports max. 2TB SD card

1x DC24V power supply

Single DP port: 5K/60Hz

Dual 4K/60Hz: HDMI + HDMI, DP + DP, or HDMI + DP connection.

Support DisplayLink

Your Meeting Room One Cable Station
OCS 15 in 1

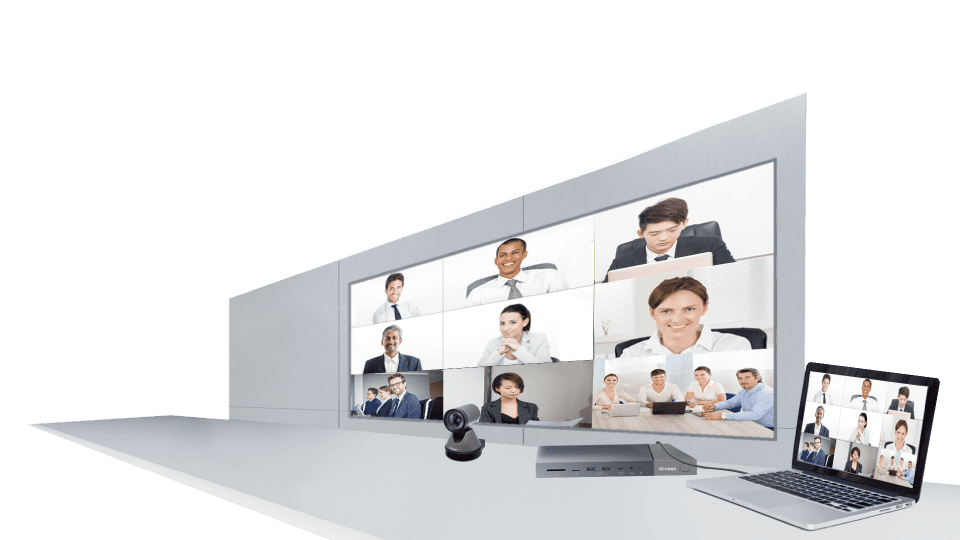

The iTrans OCS 151 offers a one-cable laptop link to a room’s conference camera and devices,
making it easy for teams to meet, present, and stream over any service.

Just One Cable? Yes!

The INFOBIT OCS is the real hustle-free solution for video conferencing in every kind of meeting room. It supports INFOBIT One Cable Station, so a single USB C to C cable is all you need to connect the camera, the speakerphone and the room’s screen to the collaboration app on your laptop.

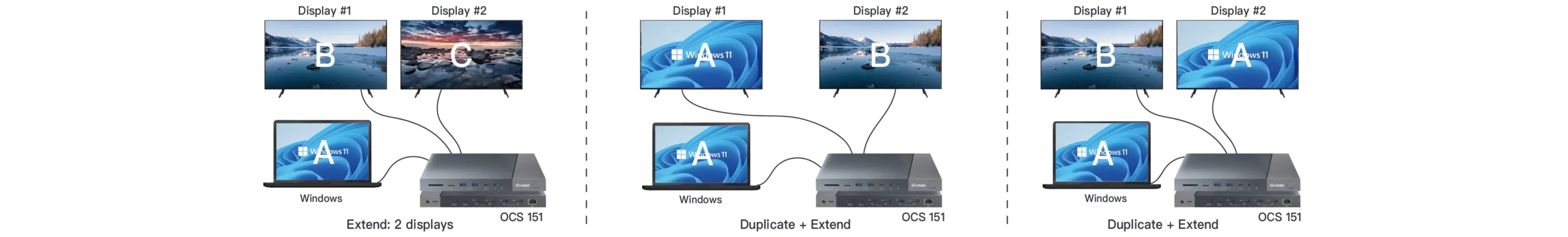

For Microsoft Windows

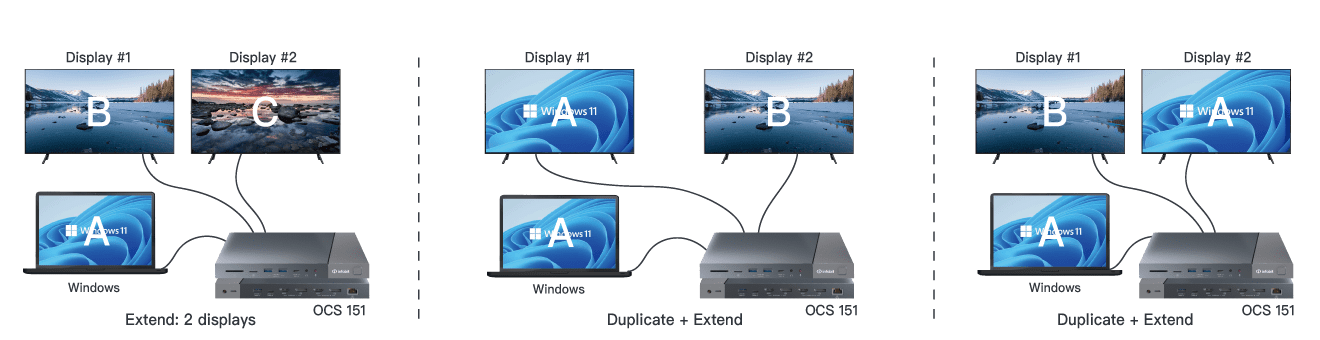

Each display group includes one DisplayPort port and one HDMI port which can support flexible extension or duplication displaying modes.

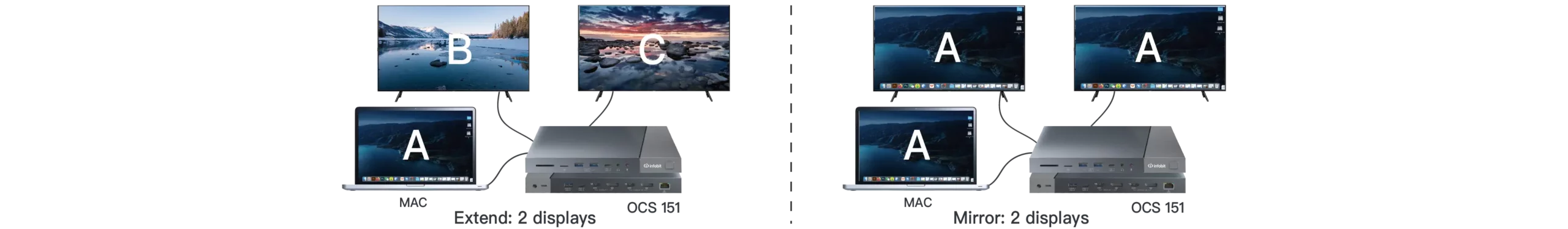

For macOS

Extend or mirror to 2 identical displays, up to 4K/60Hz.

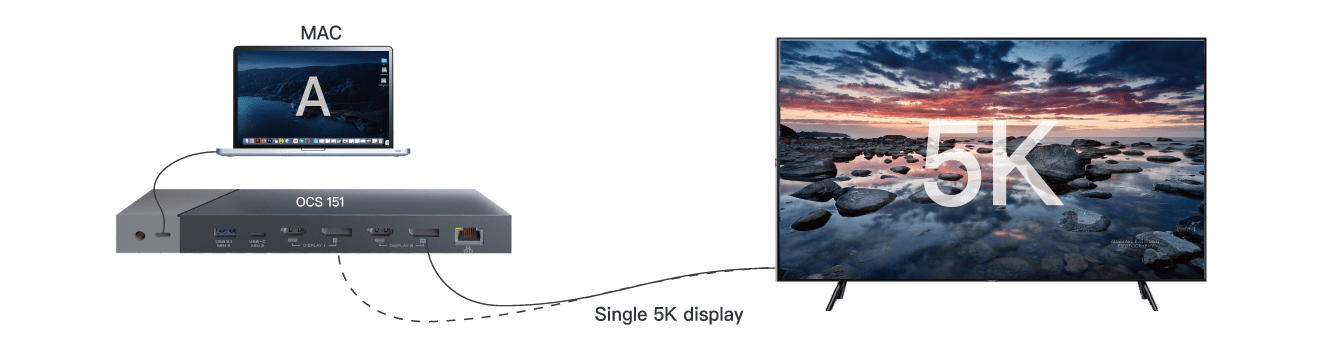

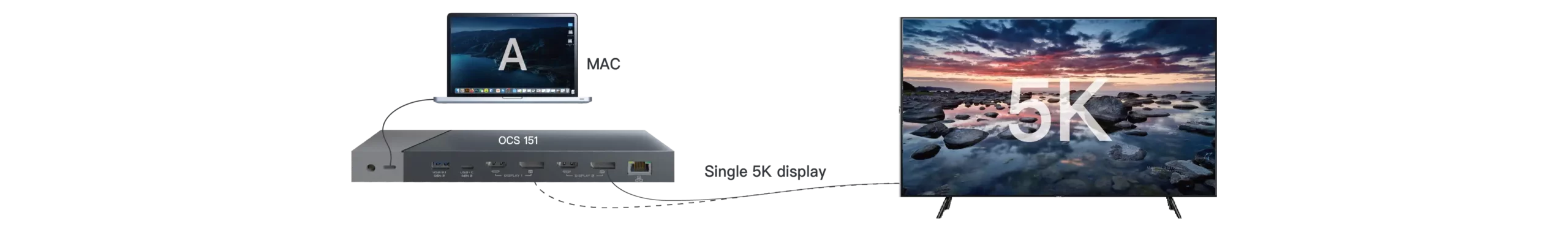

Single DP 5K/60Hz

It supports single 5K/60Hz (5120*2880) UHD resolution when connect one single DP port.

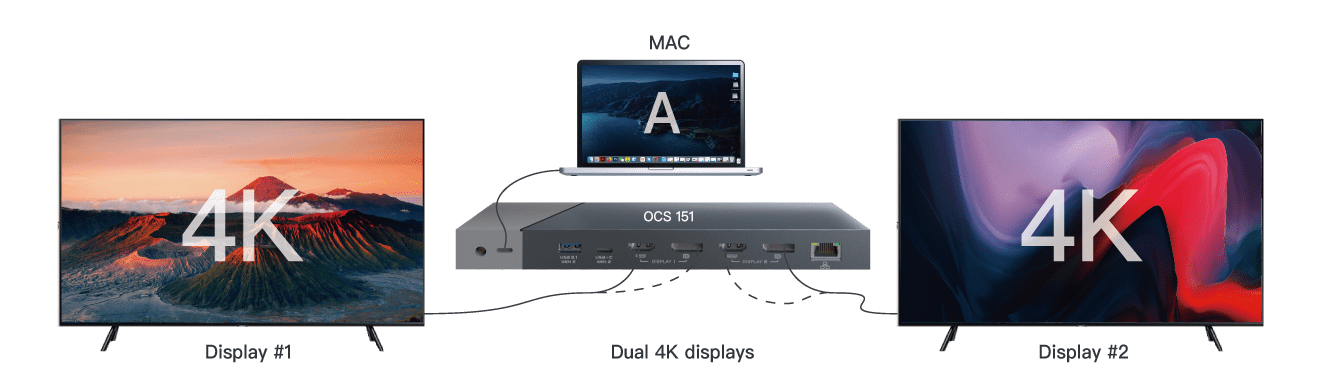

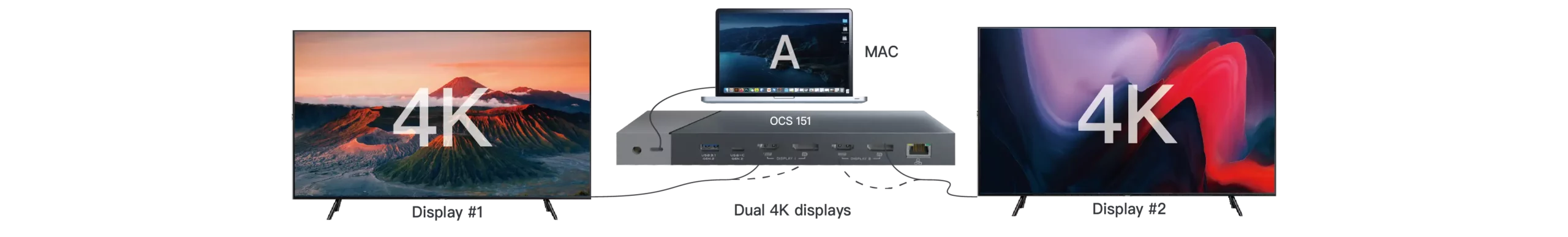

Dual 4K/60Hz

It supports dual 4K/60Hz (3840*2160) UHD displays when connect by HDMI + HDMI, DP + DP, or HDMI + DP connection.

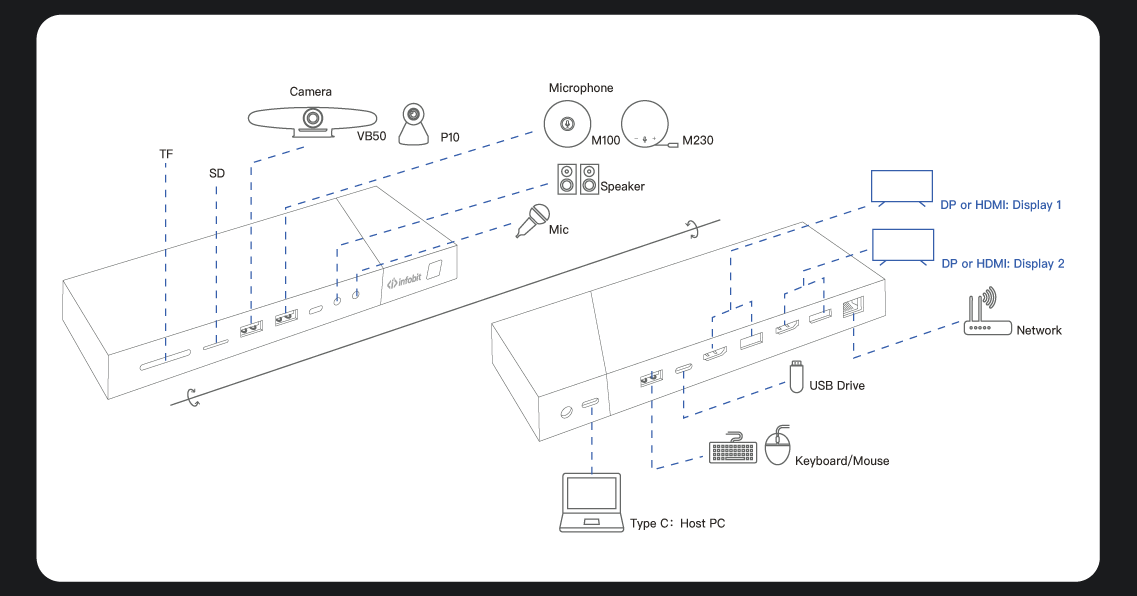

Diagram

Datasheet

Model iTrans OCS 151
Name One Cable Station- OCS 15 in 1
USB Type C 1x USB C Upstream female port, support charging the PC
1x USB C Downstream female ports, 10Gbps
USB A 3x USB A female ports ( USB 3.1 Gen 2, 10Gbps)
3.5mm Audio/ Mic 1x 3.5mm Audio female port
1x 3.5mm Audio/ Mic separated port
RJ45 1x RJ45, 1,000M
HDMI 2x HDMI outputs, max. 4K60
DP 2x DP outputs, 5K60Hz (5120*2880)
Card Reader 1x TF, 1x SD
DC 1x DC 24V power supply
DisplayLink Yes
