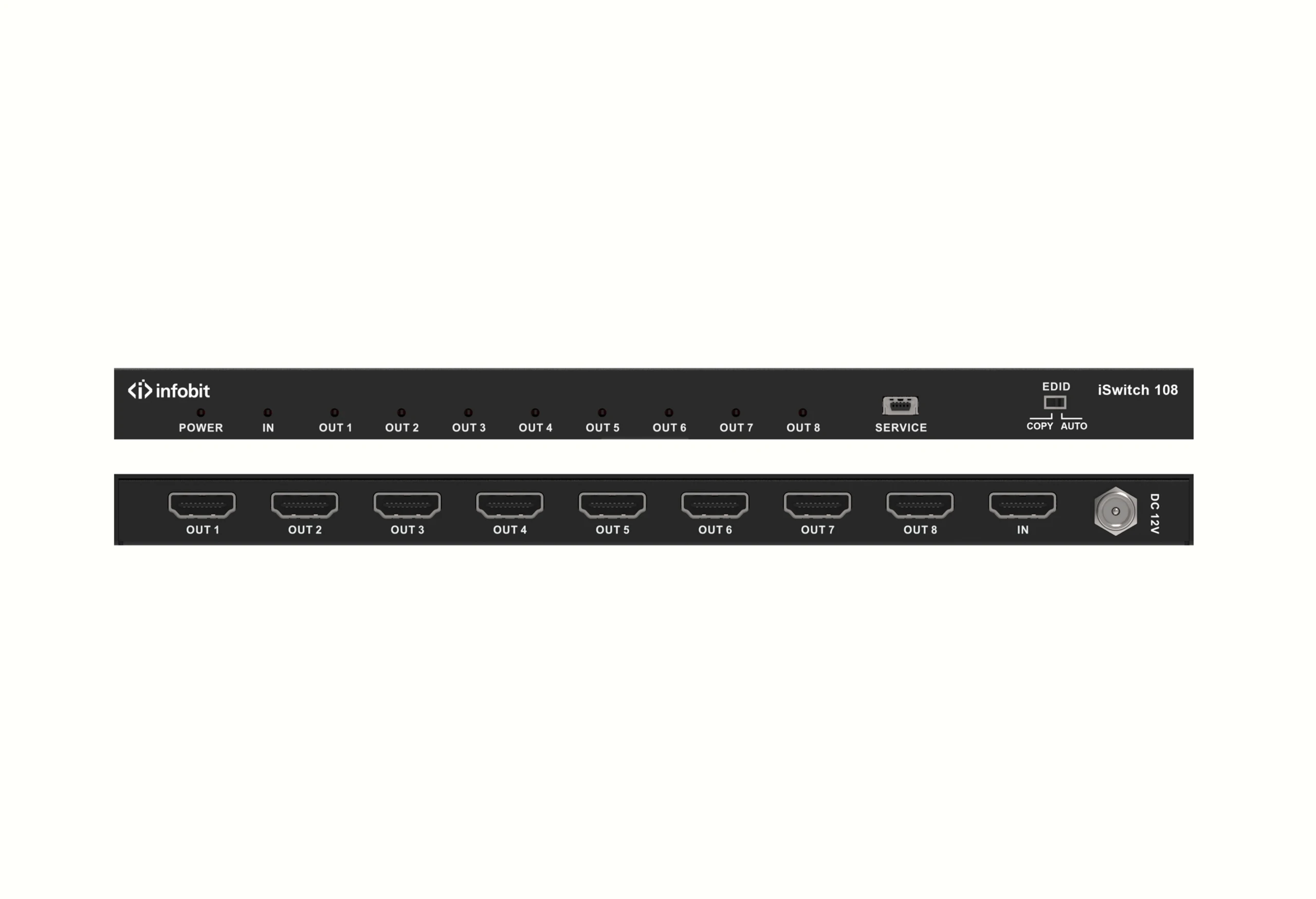

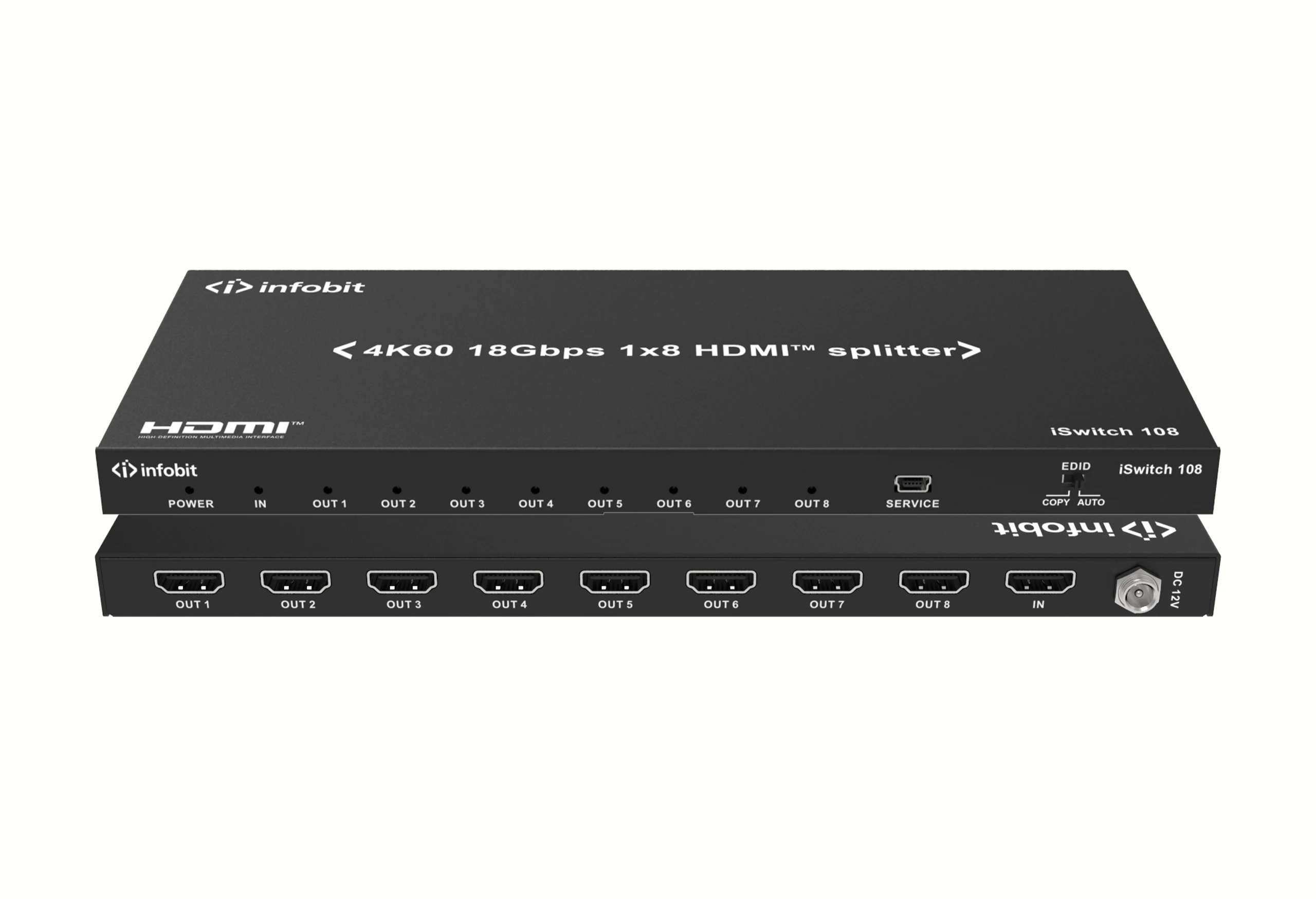

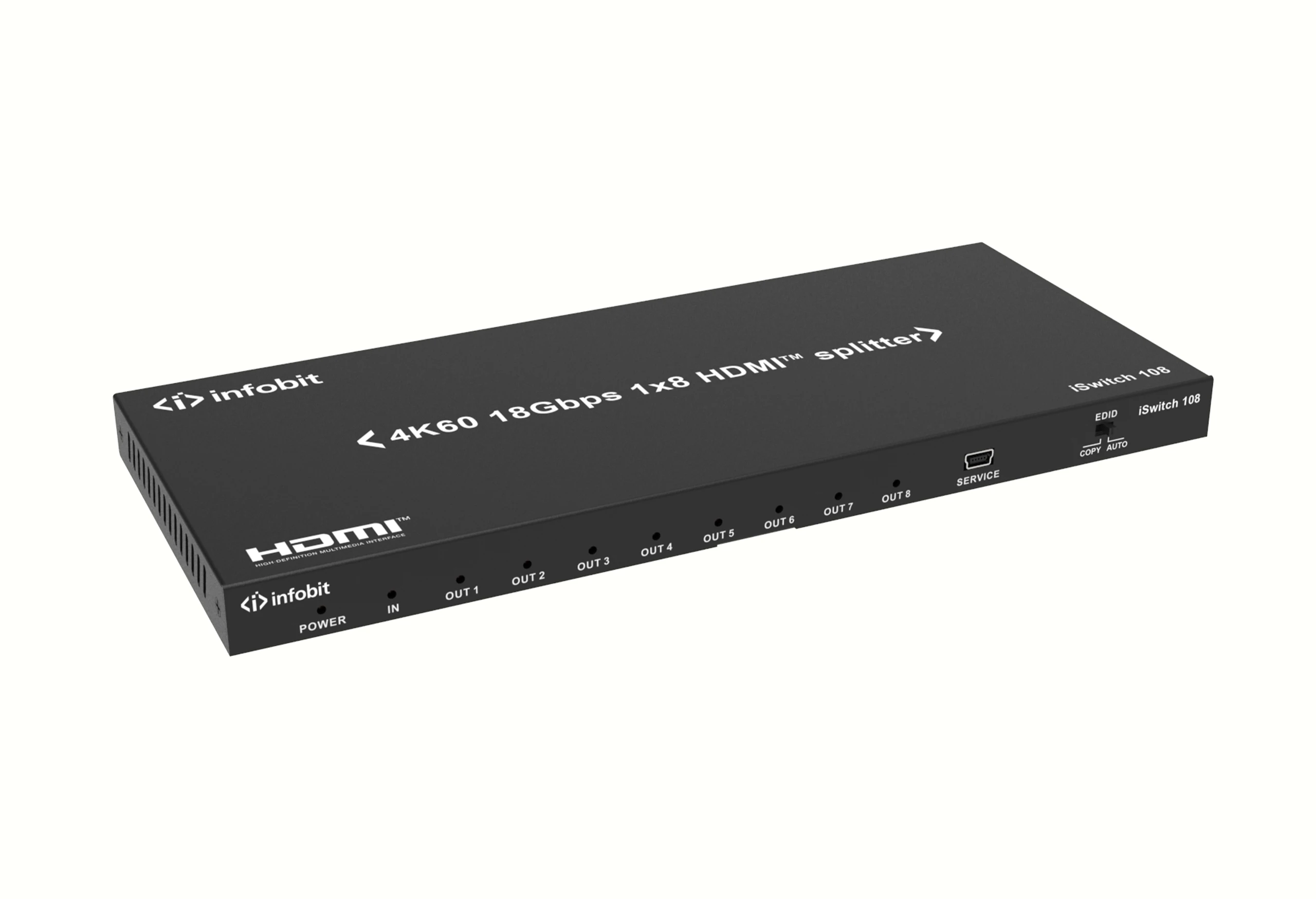

iSwitch 108
1x8 HDMI 18Gbps Splitter
HDMI 2.0b, HDCP 2.2 compliant
Supports 18Gbps bandwidth
Supports resolution up to 4K@60Hz 4:4:4
Supports HDR function
Supports COPY/AUTO EDID control via dialing the dip switch
Compact design for easy and flexible installation

Diagram

Datasheet

Model iSwitch 108
Name 1×8 HDMI 18Gbps Splitter
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2
Video Bandwidth  594MHz/18Gbps
Input Port  1×HDMI Type A (19-pin female)
1×SERVICE (Micro USB, Update port)
Output Ports  8×HDMI Type A (19-pin female)
Video Resolution  480i ~1080p50/60, 4Kx2K@24/30, 4k2k@60Hz
HDMI Audio Formats PCM 2CH, LPCM 7.1/5.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos and DTS:X
ESD Protection Human body model—±8kV (Air-gap discharge) &±4kV (Contact discharge)
Chassis Material Metal
Color  Black
Power Consumption  6.15W
Weight  572g
Power Supply Input: AC100 – 240V 50/60Hz
Output: DC 5V/1A
Dimensions 243 mm(W)×102 mm(D)×16mm(H)
Operating Temperature  -10°C ~ 50°C / 14°F ~ 122°F
Storage Temperature  -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity  20~90% RH (non-condensing)

Download

  • iSwitch 108 User Manual_V1.0.pdf

    1.68M 06-09-2022
