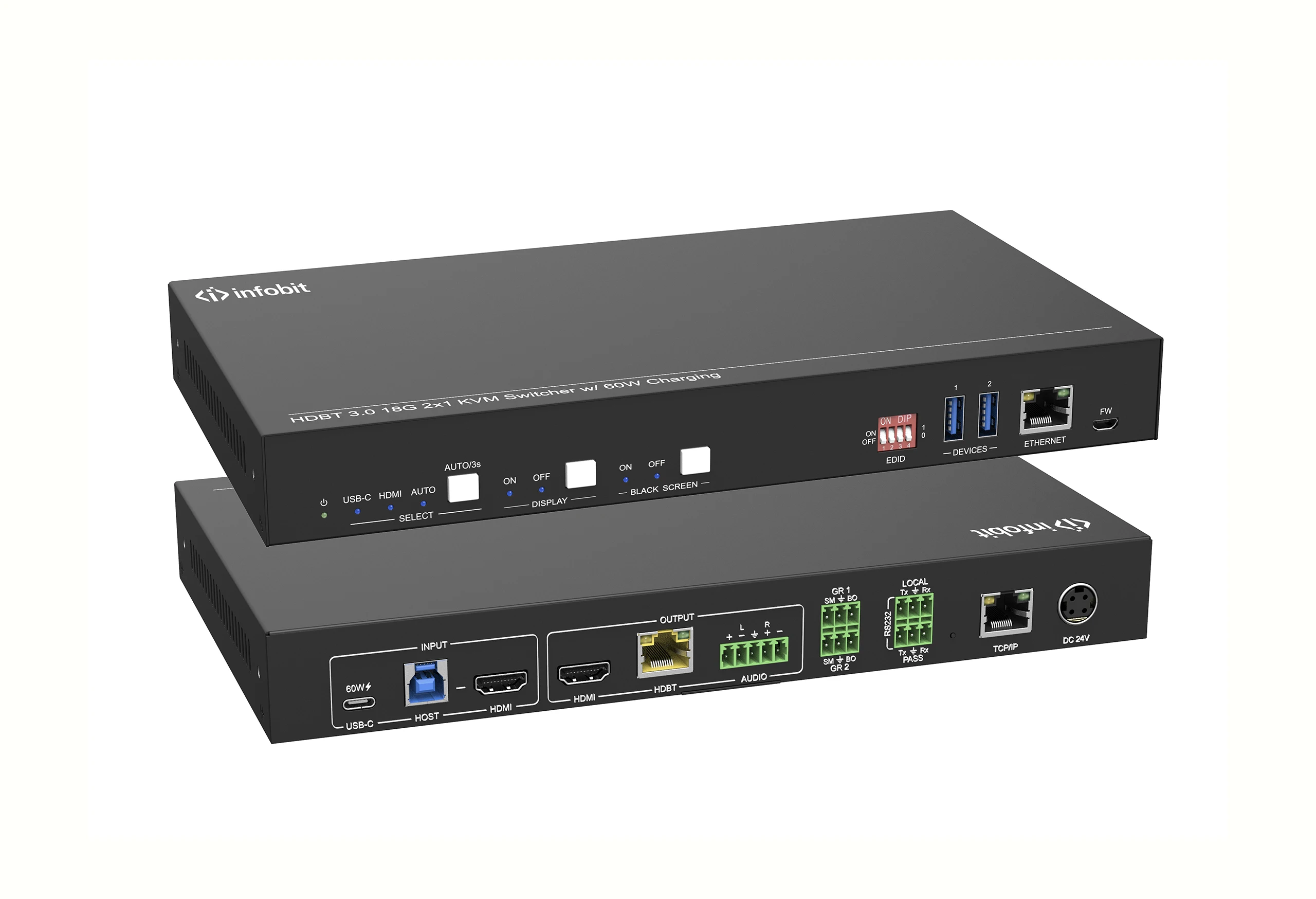

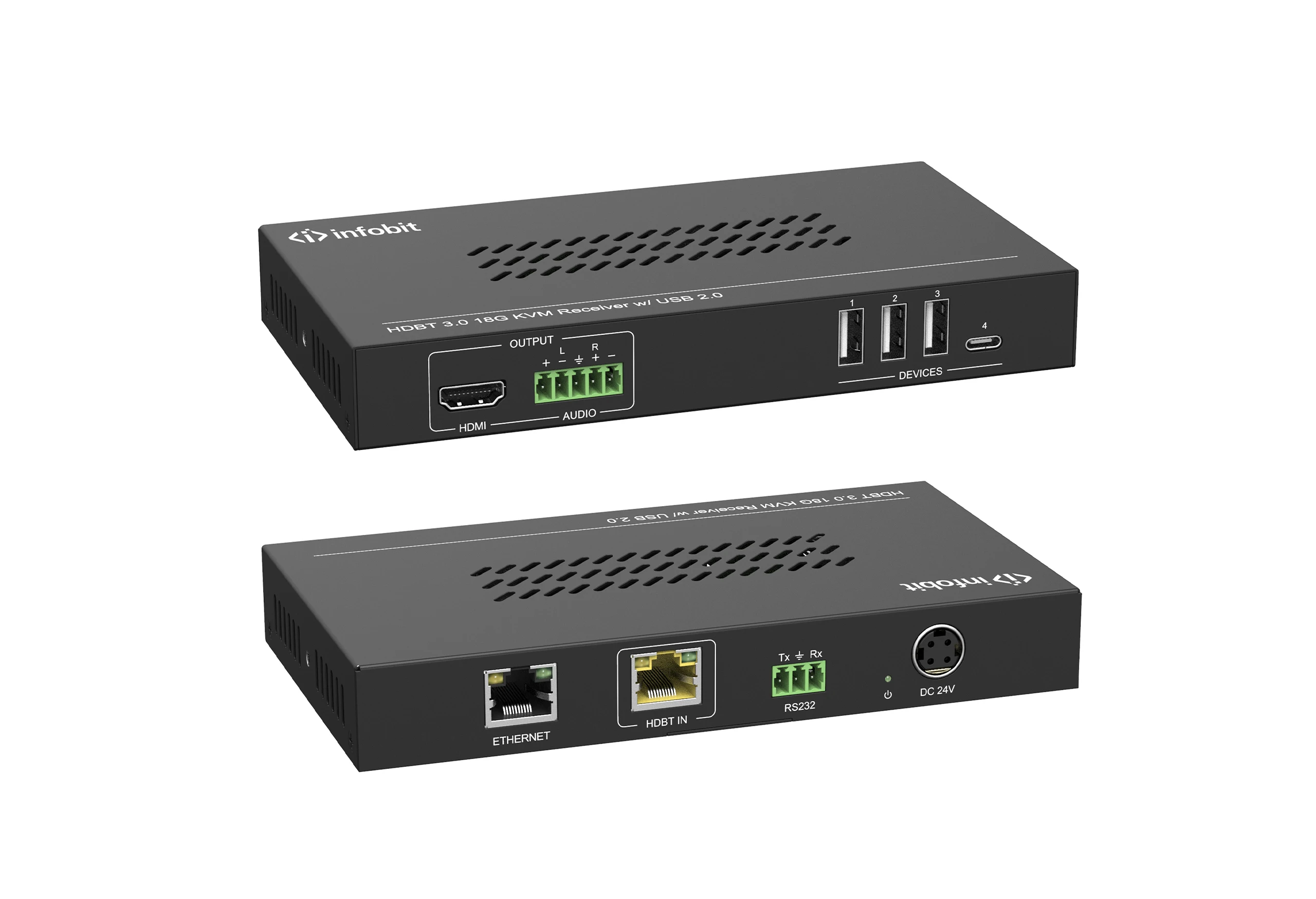

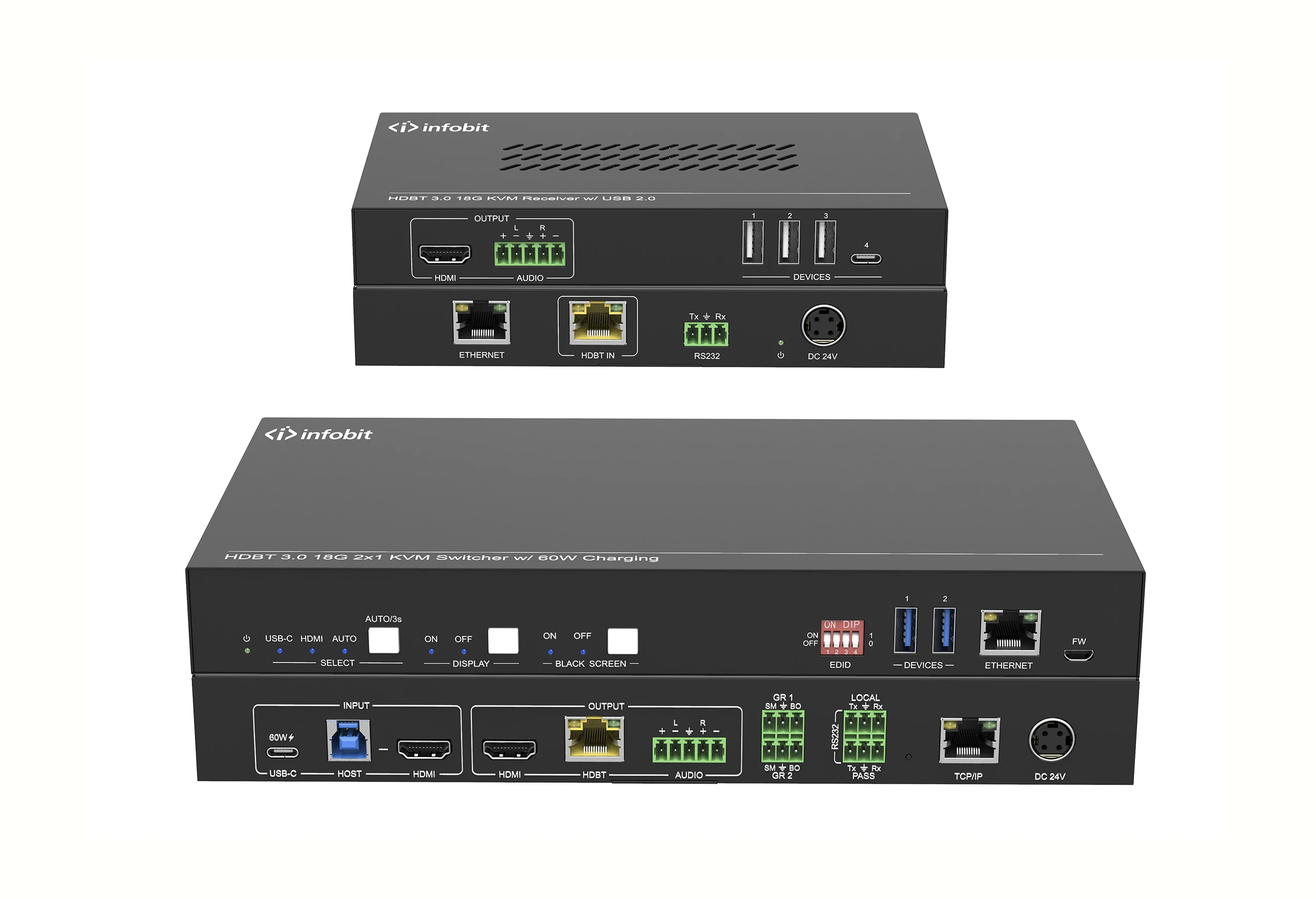

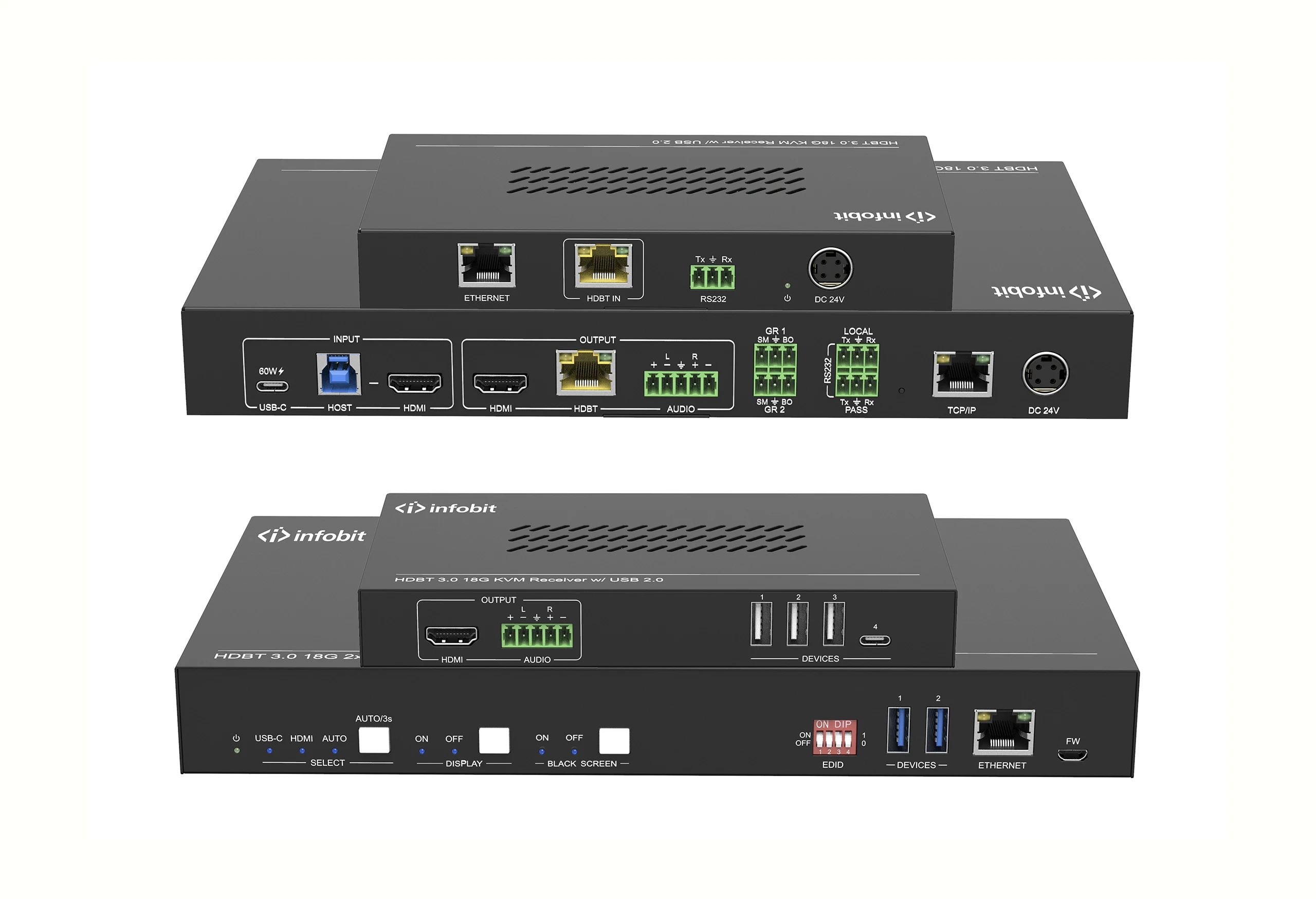

iSwitch 201K
18Gbps HDMI+USB-C KVM Switcher KIT
HDMI 2.0, highest support 4K@60HZ 4:4:4, HDR10 and Dolby Vision, HDCP 2.2
1 x HDMI input, 1 x USB-B host, 1 x USB-C input, 1 x HDMI output and 1 x HDBaseT output
HDBT 3.0, supports 100m transmission and bidirectional 48V PoC
Support RS232 control and CEC control
USB-C input support 60W external charging
Auto switch 5V or TMDS detection
Support Dry Contact control

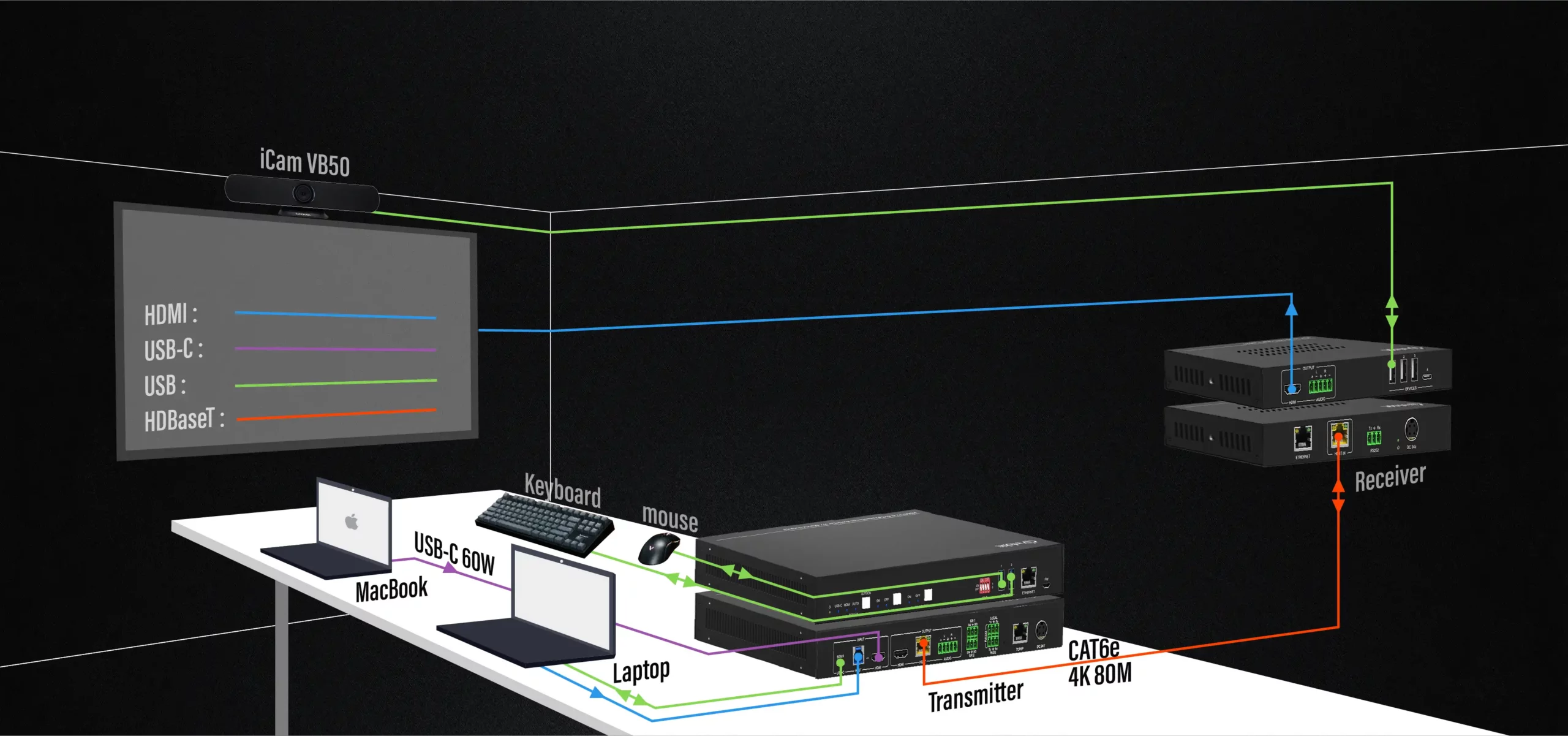

For Huddle/ Small Room

The iSwitch 201K is compatible with iCam VB series all-in-one camera video bar for huddle or small meeting room.

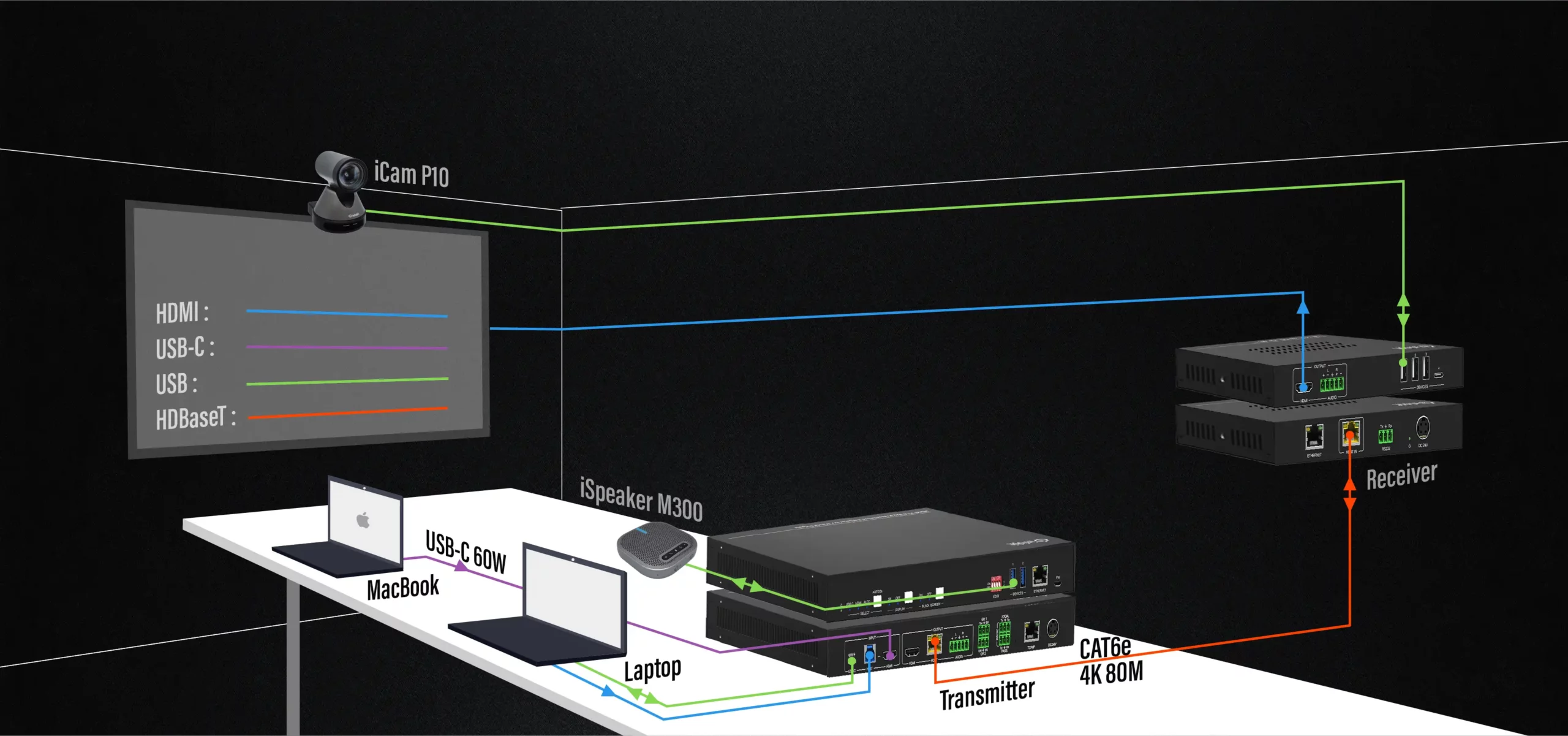

For medium-to-large Room

The iSwitch 201K is compatible with iCam series PTZ camera and iSpeaker series speakerphone/microphone for medium-to-large meeting room.

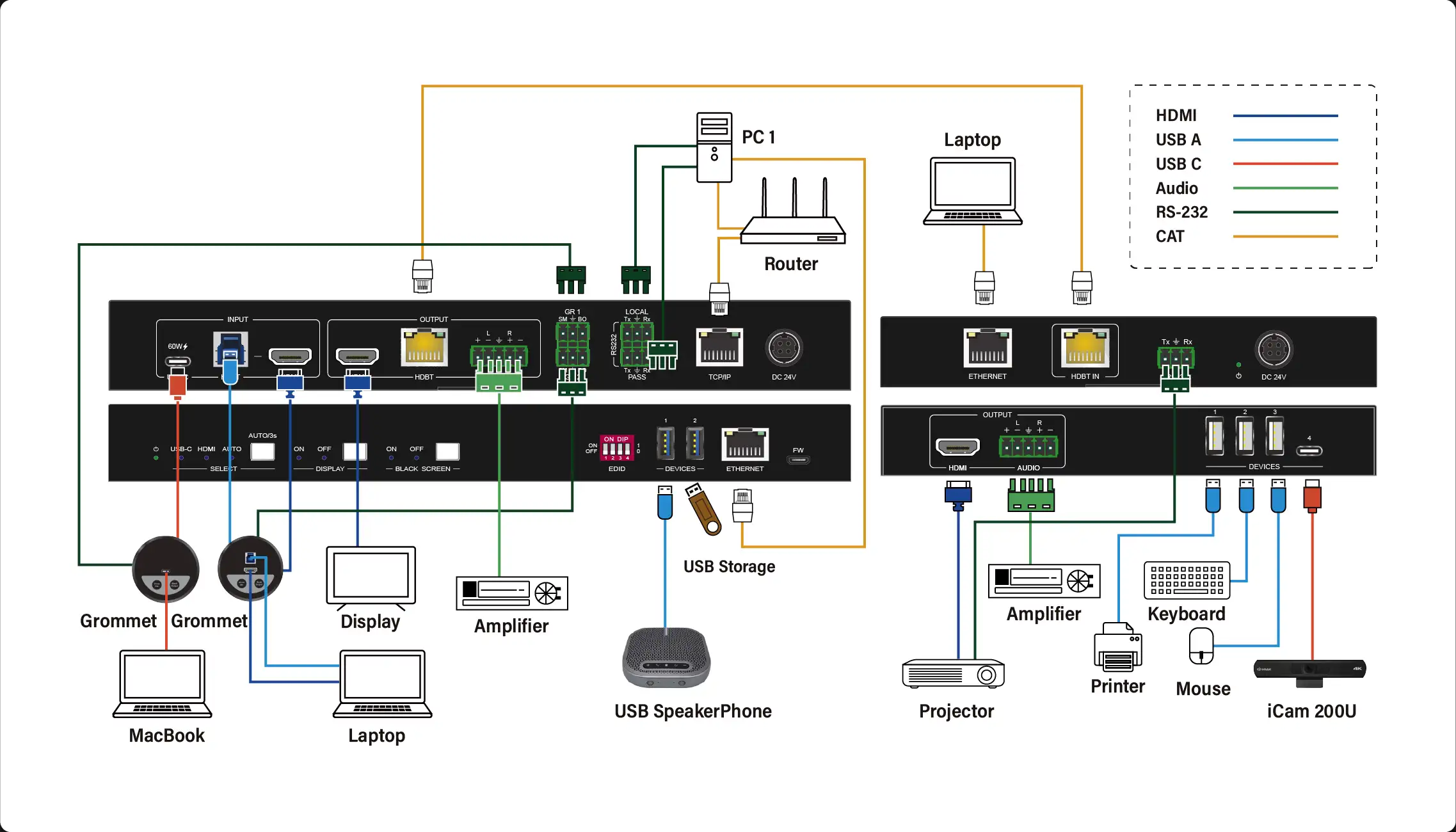

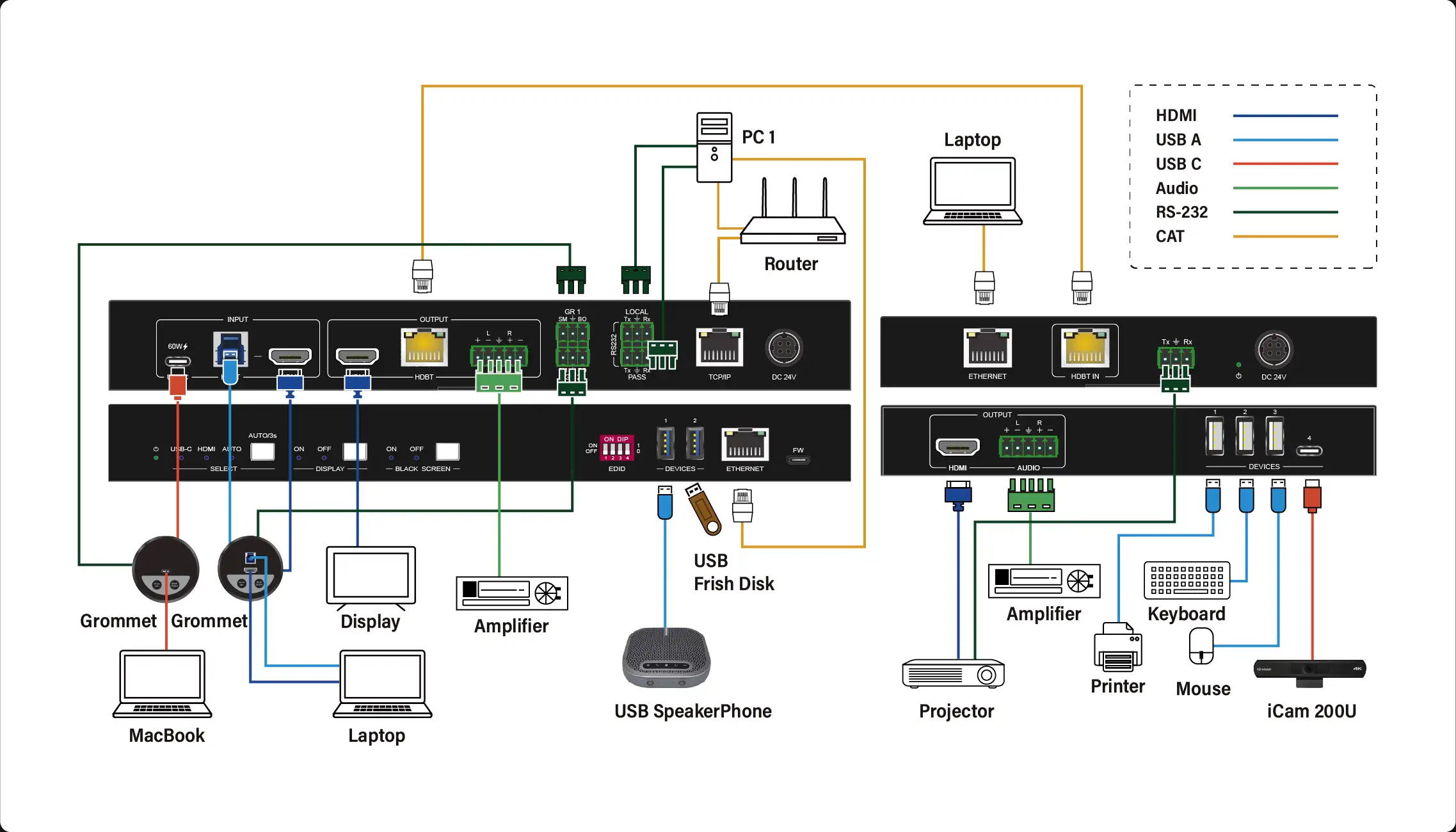

Diagram

Datasheet

Model iSwitch 201K
Name 18Gbps HDMI+USB-C KVM Switcher KIT
Video
Video Input (1) HDMI IN, (1) USB-C IN (1) HDBT IN
Video Output Connector (1) Type-A female HDMI
(1) Type-C
(1) RJ45
Input Resolution HDMI: Up to 4K@60Hz 4:4:4 HDR10, Dolby Vision
USB-C: Up to 4K@60Hz 4:4:4
Up to 4K@60Hz 4:2:0
Video Output (1) HDMI OUT (1) HDBT OUT (1) HDMI
Video Output Connector (2) Type-A female HDMI (1) Type-A female HDMI
Output Resolution HDMI: Up to 4K@60Hz 4:4:4 HDR10, Dolby Vision
HDBT: Up to 4K@60Hz 4:2:0
Up to 4K@60Hz 4:4:4 HDR10, Dolby Vision
HDMI Standard Up to HDMI 2.0b Up to HDMI 2.0b
HDCP Version Up to HDCP 2.2 Up to HDCP 2.2
Audio
HDMI Embedded Audio Format LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through.
Audio Output Connector (1) 5-pin terminal block  (1) 5-pin terminal block
Frequency Response 20Hz–20KHz, ±3dB
Max Output Level 0.88 Vrms ± 0.5 dB. 2 V = 16 dB headroom above -10 dBV (316 mV) nominal consumer line level signal
SPDIF: ±0.05dBFS
THD+N < 0.05% (-80 dB), 20 Hz – 20 kHz bandwidth, 1 kHz sine at 0 dBFS level (or max level)
SNR > 80dB, 20Hz-20 kHz bandwidth
SPDIF: > 90dB, 20Hz-20 kHz bandwidth
Crosstalk Isolation < -80 dB, 10 kHz sine at 0 dBFS level (or max level before clipping)
L-R Level Deviation < 0.3 dB, 1 kHz sine at 0 dBFS level (or max level before clipping)
Output Load Capability 1k ohm and higher (supports 10x paralleled 10k ohm loads)
Noise Level >70dB @ 1 kHz
Control
Control port (1) EDID switch, (2) DEVICES
(1) ETHERNET, (1) FW,
(1) HOST, (2) GR, (2) RS232
(1) TCP/IP
(4) DEVICE, (1) ETHERNET
(1) RS232
Control Connector (1) 4-pin DIP switch
(2) USB Type-A, (1) RJ45
(1) Micro-USB, (1) USB Type-B
(2) 3-pin terminal block
(2) 3-pin terminal block, (1) RJ45
(3) USB Type-A, (1) USB Type-C
(1) RJ45, (1) 3-pin terminal block
General
Operation Temperature -5 ~ +55℃
Storage Temperature -25 ~ +70℃
Relative Humidity 10% ~ 90%
External Power Supply Input: AC 100~240V, 50/60Hz; Output: 24V DC 5A.
Power Consumption 76.5W (Max)
USB-C Power Charging 60W(Max)
Dimension (W*H*D) 265W x 150D x 32H mm 173W x 95D x 24.5H mm
Net Weight 1020g 410g

Download

  • iSwitch 201K User Manual_V1.0.pdf

    1.11M 13-12-2022
  • iSwitch 201K datasheet_V1.0.pdf

    0.51M 13-12-2022
