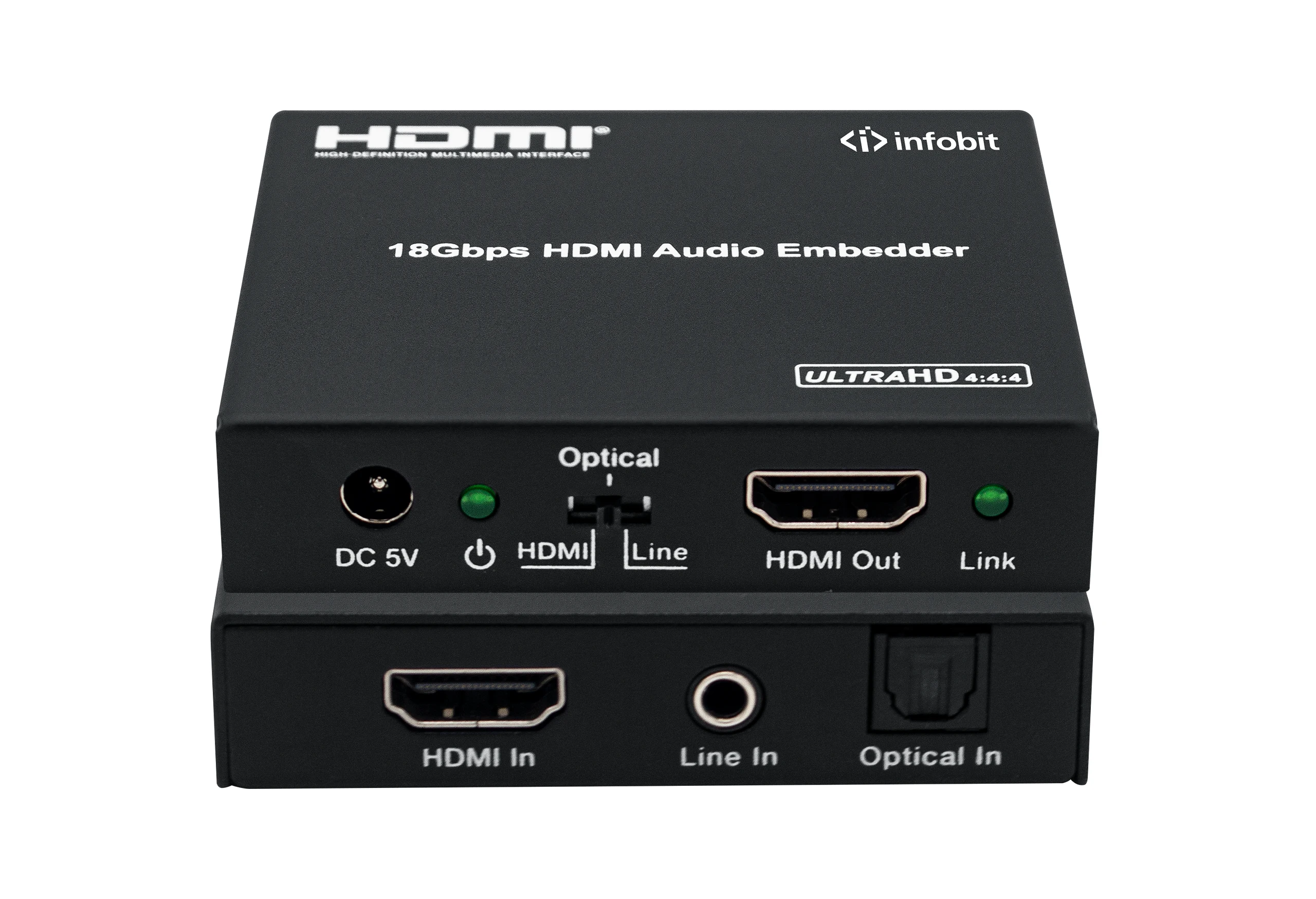

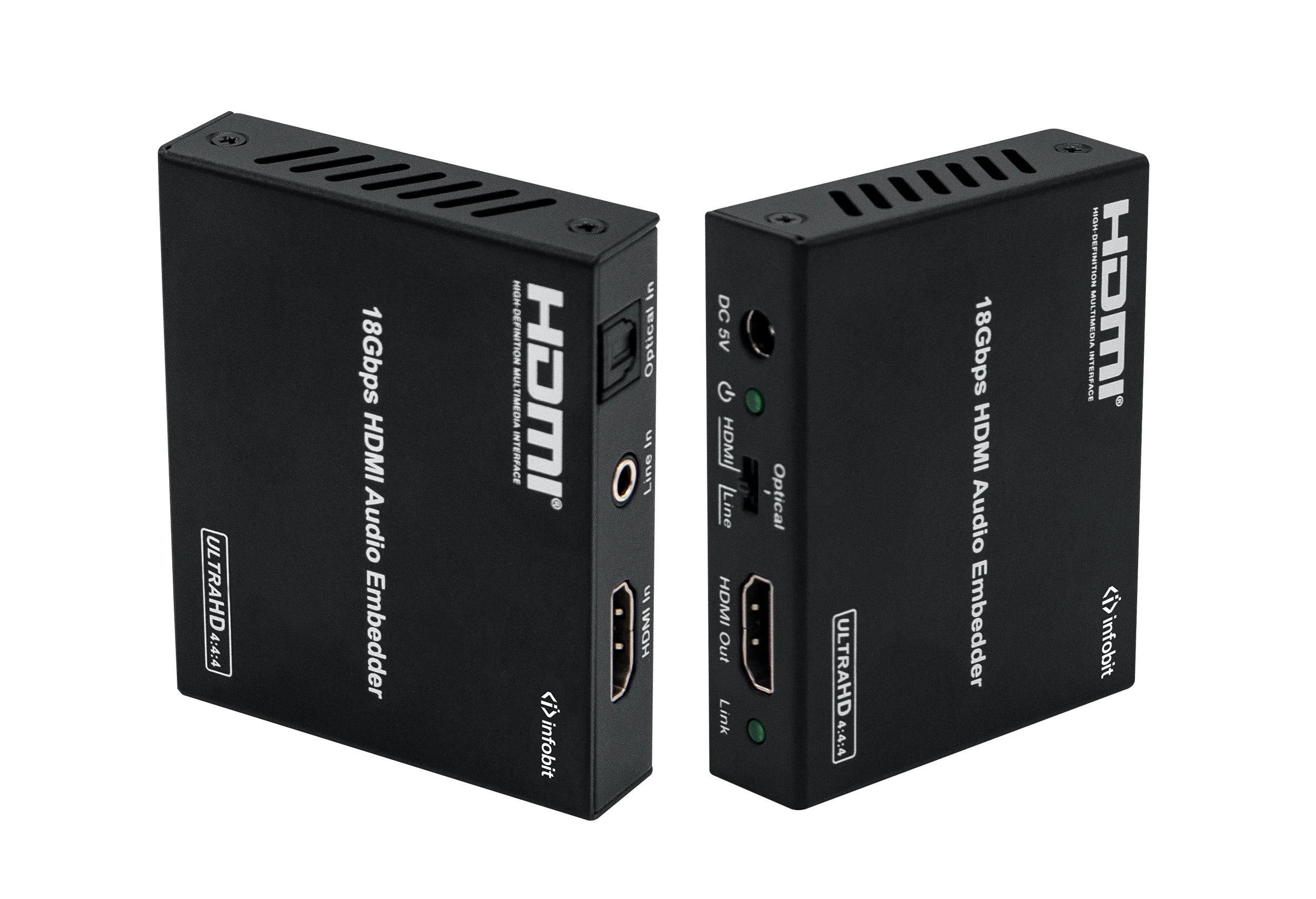

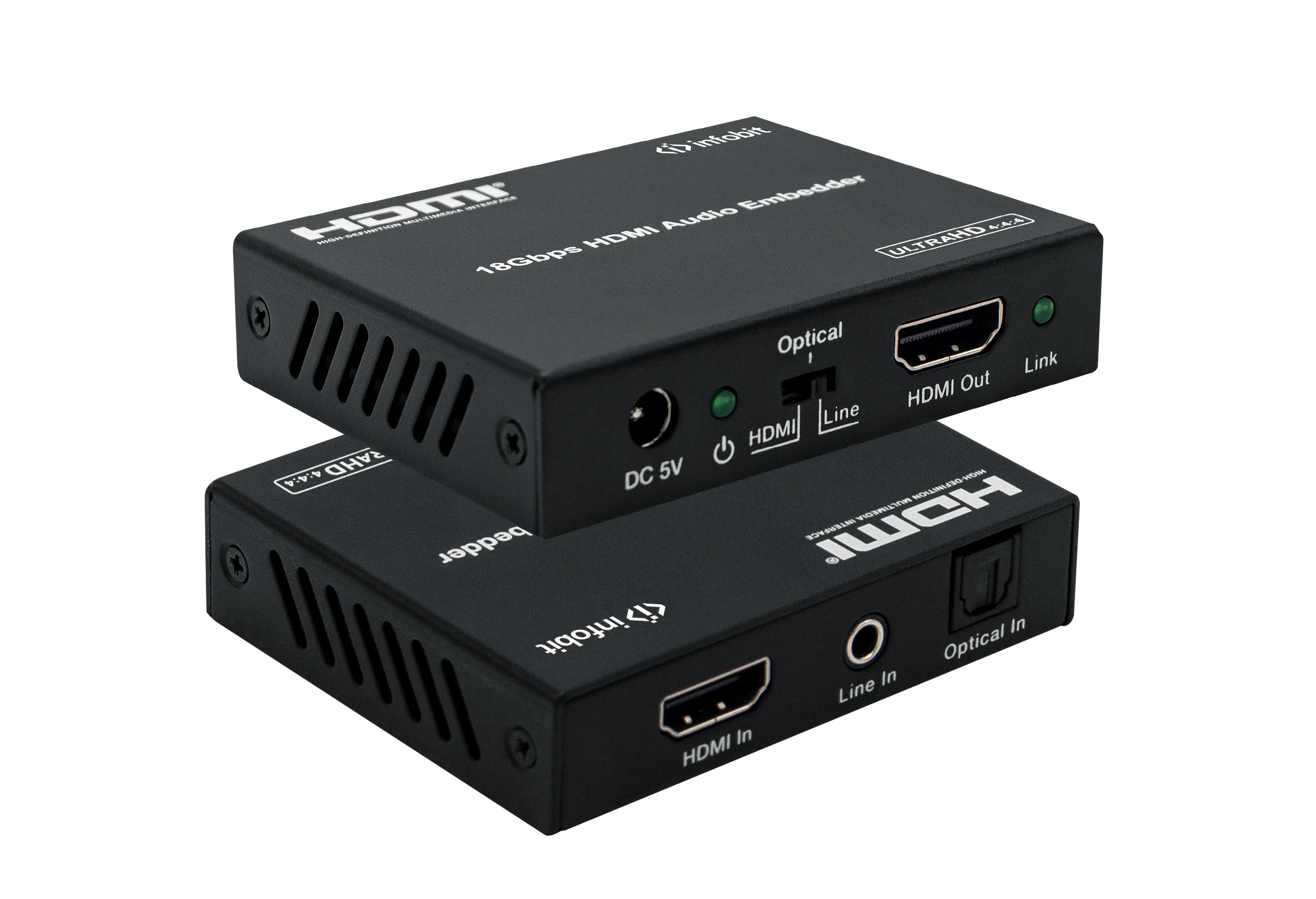

iTrans AE01
HDMI 18Gbps Audio Embedder with HDCP 2.2
Embeds multi-channel optical (SPDIF) or Line analog audio to HDMI output
Optical audio supports LPCM 2CH, Dobly Digital 2/ 5.1CH, DTS 2/5.1CH
Analog audio supports PCM2.0
HDMI 2.0b (18Gbps), HDCP 2.2 and DVI 1.0 compliant
Video resolutions up to 4K2K@50/60Hz (YUV444)
Supports HDMI High Bit Rate(HBR) audio pass-through
10bits HDR (High Dynamic Range) pass-through
Supports CEC bypass

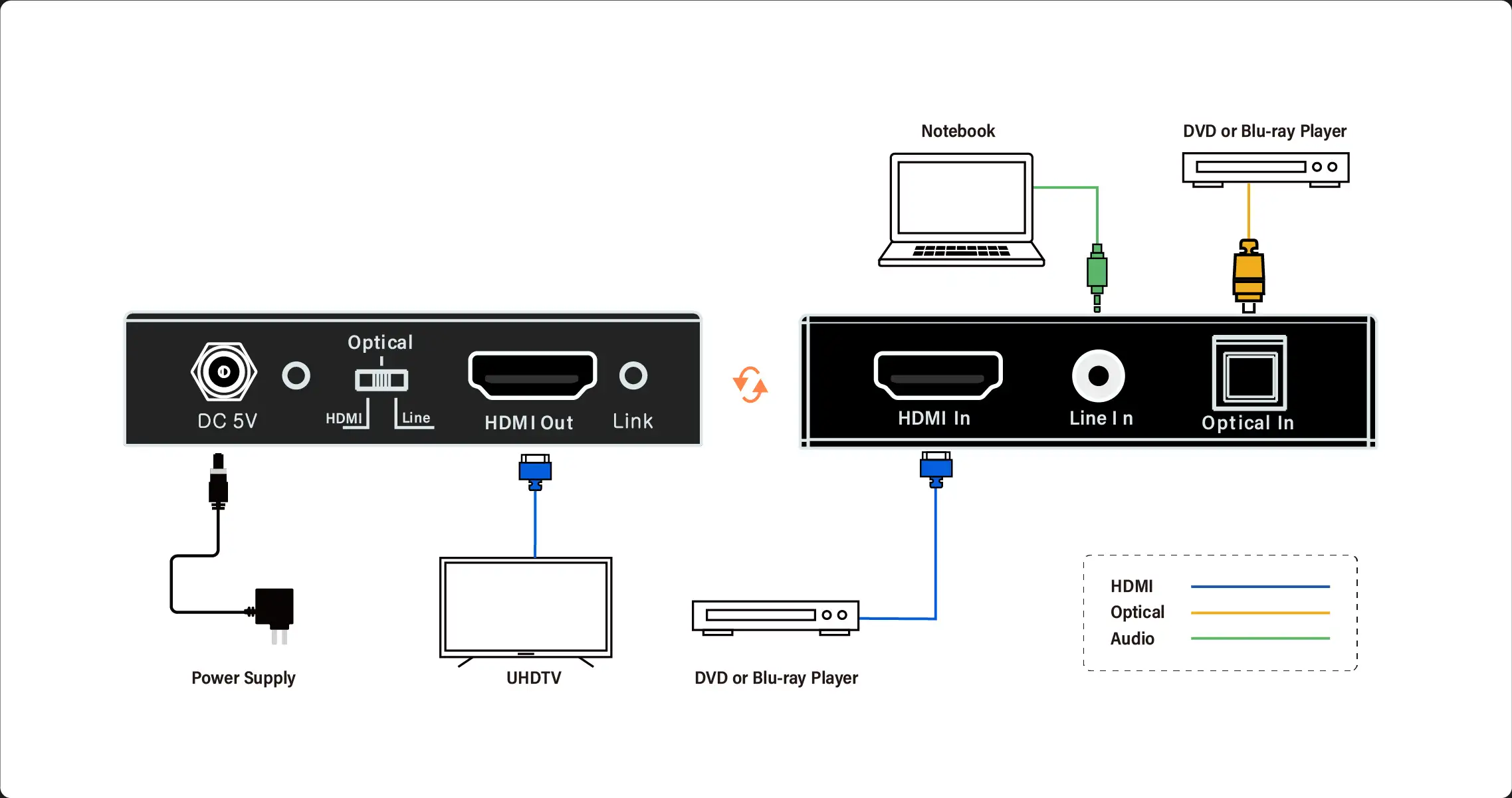

Diagram
Datasheet
| Model | iTrans AE01 |
| Name | HDMI 18Gbps Audio Embedder with HDCP 2.2 |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 and HDCP 1.4 |
| Video Bandwidth | 18Gbps |
| Video Resolutions | Up to 4K2K@50/60Hz(YUV4:4:4), 4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 10-bit, 12-bit |
| HDMI Audio Formats (Pass-through) | LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| Optical Audio Formats | LPCM 2CH/ 5.1, Dolby Digital 2/5.1CH, DTS 2/ 5.1 |
| L/R Audio Formats | Analog Stereo 2CH |
| ESD Protection | Human body model +8kV (air-gap discharge) & ‡4kV (contact discharge) |

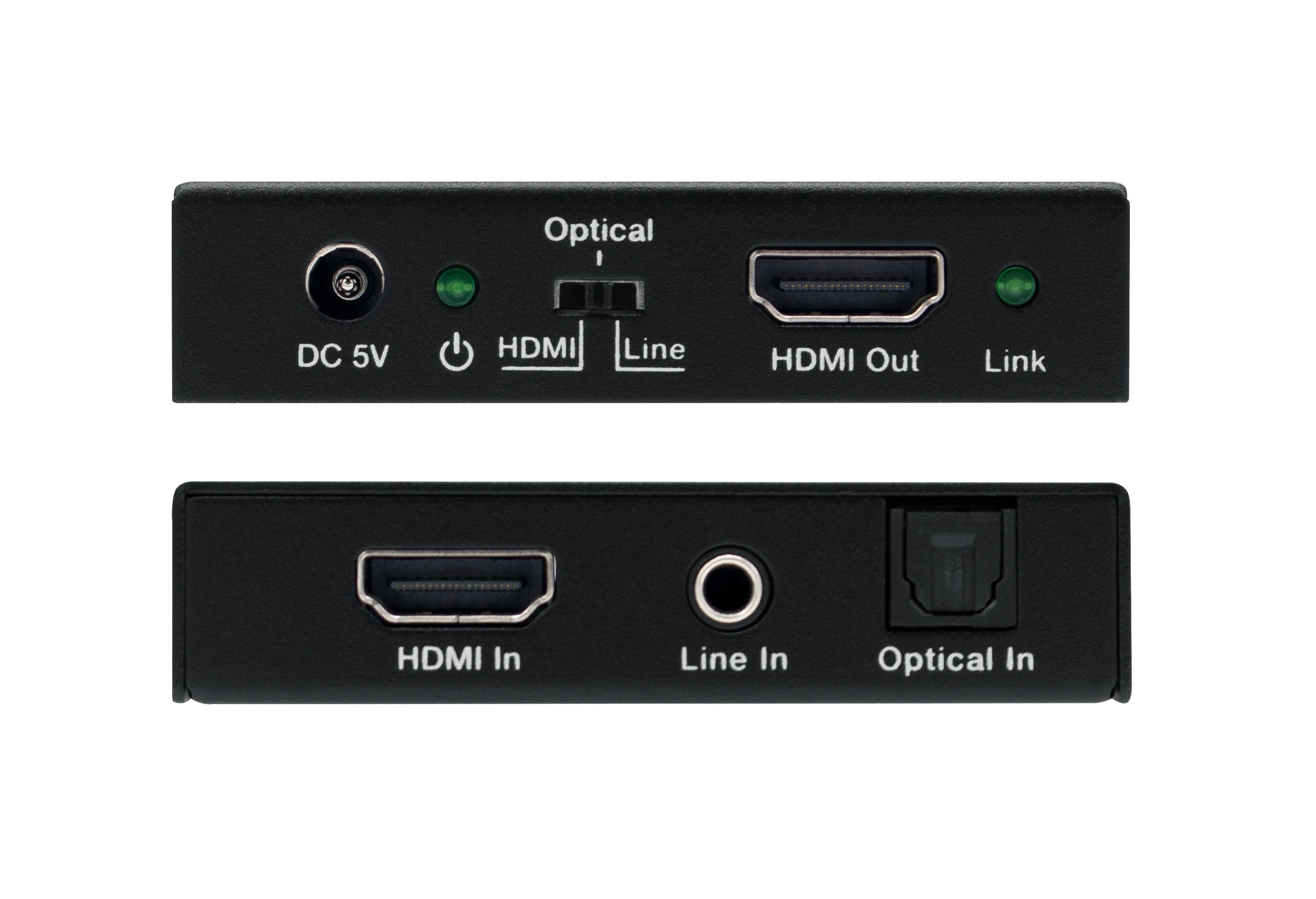

| Inputs | 1x HDMI Type A [19-pin female] 1x Optical Out (SPDIF) 1x Line IN (3.5mm Stereo Mini-jack) |
| Outputs | 1x HDMI Type A [19-pin female] |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 73.5mm (W) × 60.7mm (D) × 17mm (H) |
| Weight | 122g |
| Power Supply | DC 5V/1A Adaptor |
| Power Consumption | 1.25W (Max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |
