1) Support network control, with an independent IP address.
2) Support VISCA,VISCA over IP, ONVIF,Pelco-d,Pelco-P protocol.
3) Realize the control of conference camera software, with a central control function.
4) It adopts an imported variable speed four-dimensional rocker for control and feels comfortable. The twisting rocker can control zoom in and out and directly control the omnidirectional rotation of the conference camera. According to the strength of the joystick, the speed can be controlled.
5) The zoom control of the conference camera is carried out by a switch shaping like a ship. Operation is convenient and powerful.
6) Support full-key backlight effect, can be turned on / off independently.
7) Support IE browser to add configuration front-end device parameters.

Datasheet

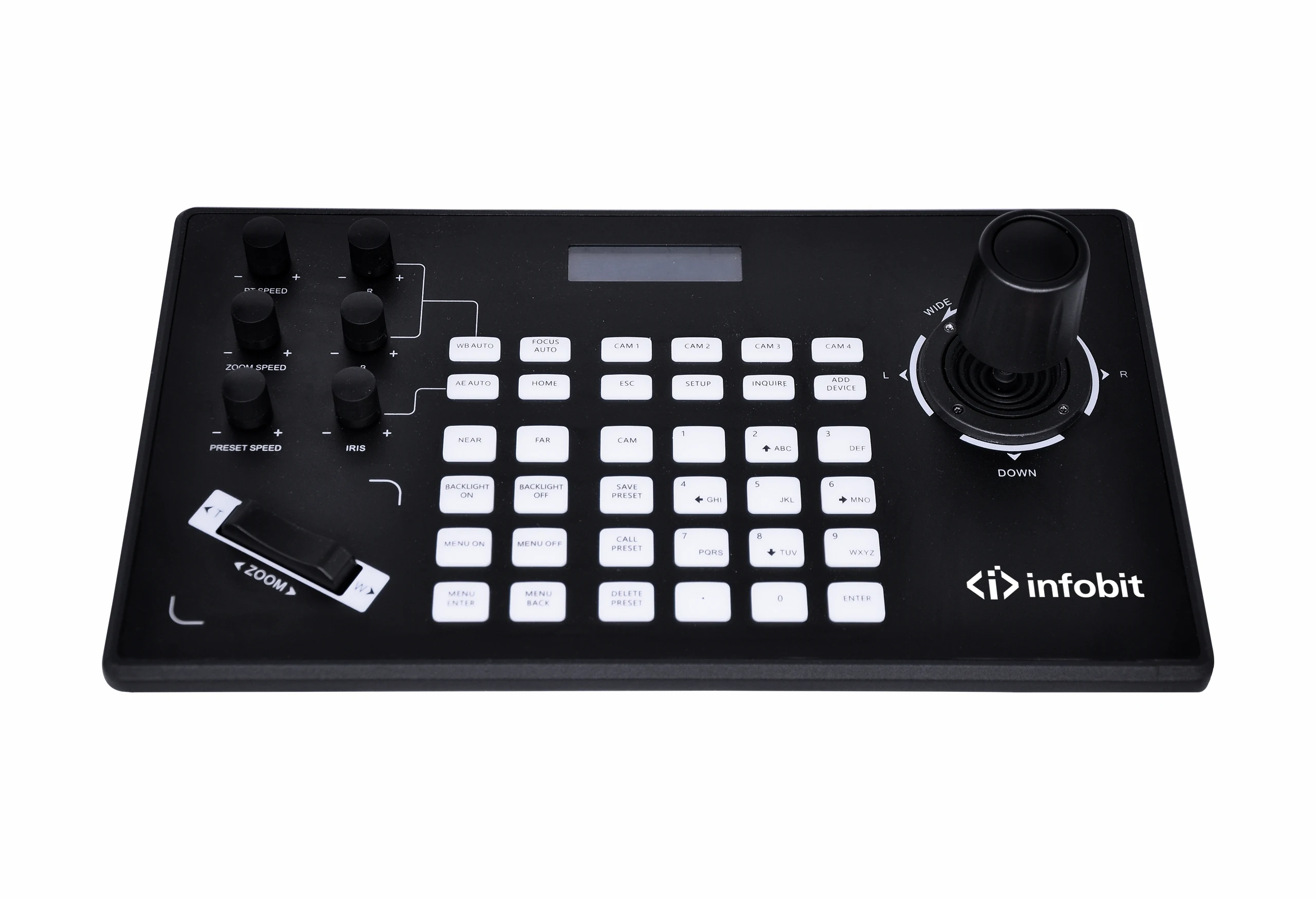

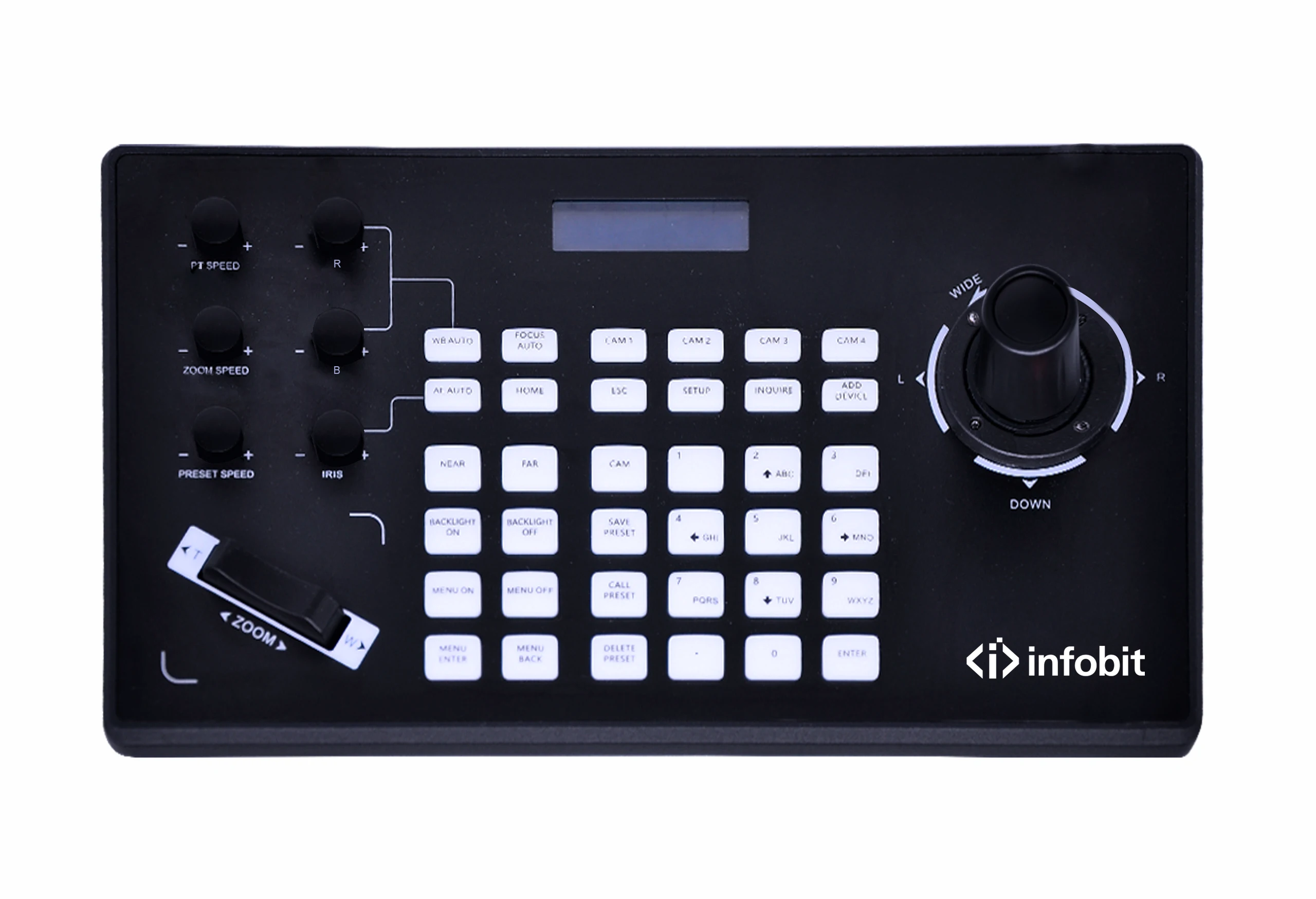

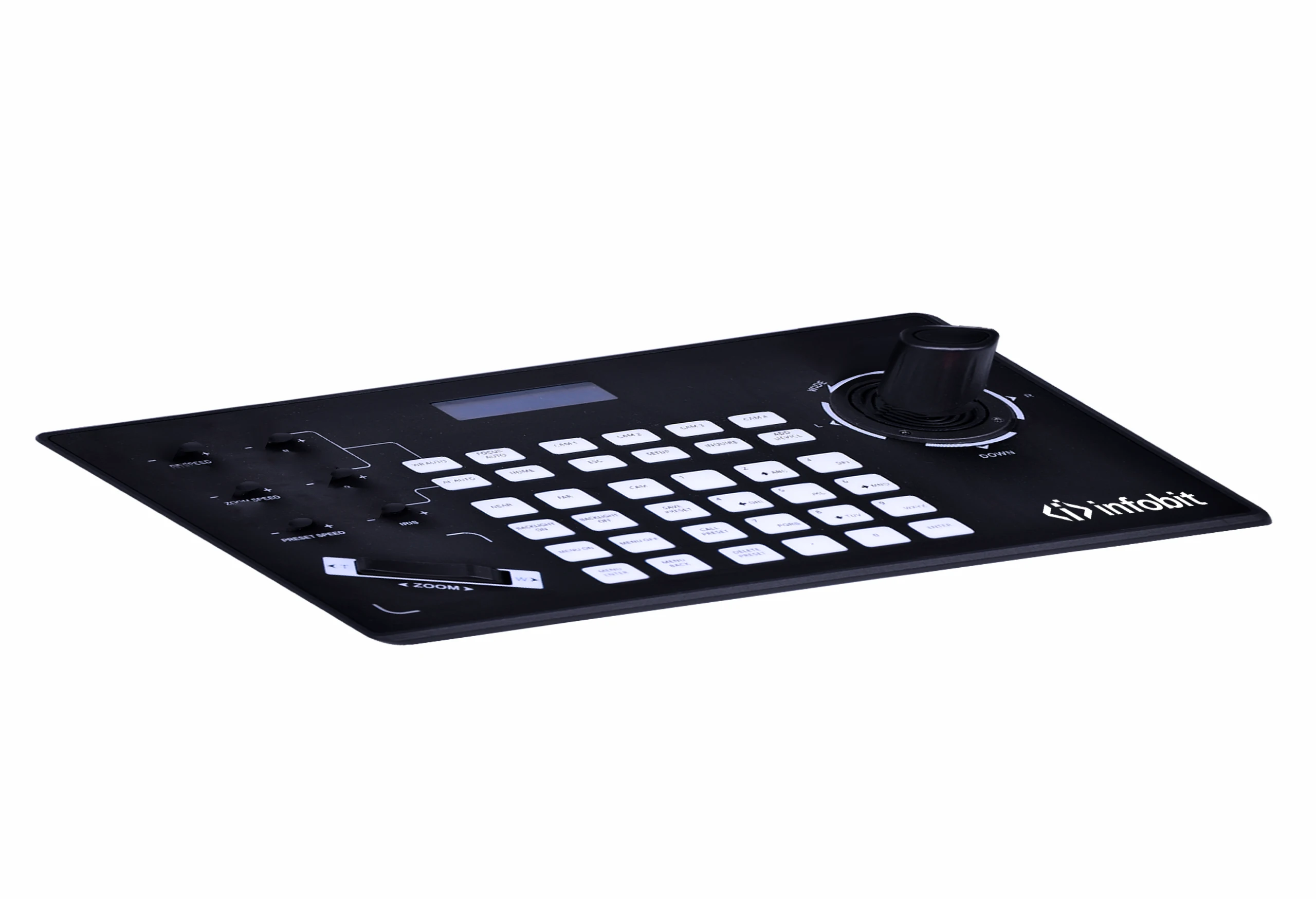

Model iControl J10
Interfaces RS422/RS485, RS232, Network, USB2.0
Protocol VISCA, VISCA over IP, ONVIF, Pelco-P, Pelco-D
Display mode LCD
Power Power supply: DC 12V-2A
Power consumption: 6W (max)
Size Dimension (mm): 320*180*100
Working Temperature 0℃~55℃  /  14°F~131°F
20~80% (No-Condensation)
Storage Temperature -10℃~60℃  /  14°F~140°F
0~90%(No-Condensation)

Download

  • iControl J10 Datasheet V1.0.pdf

    0.37M 24-09-2021
  • iControl J10 User manual V1.0.pdf

    0.48M 24-09-2021
