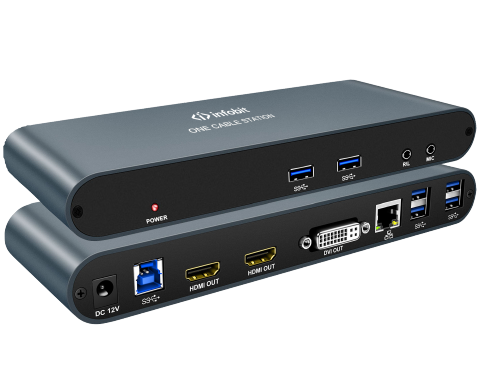

iTrans OCS 131 One Cable Station 13 in 1

The real hustle-free solution for video conferencing in every kind of meeting room. It supports INFOBIT One Cable Station, so a single USB A cable is all you need to connect the camera, the speakerphone and the room’s screen to the collaboration app on your laptop.

Support Windows 7, 8, 8.1, 10, XP (32bit), Vista (32bit), macOS, Chrome OS system

Support 1 USB input, with DisplayLink.

Support 3.5mm stereo output.

Support 1 microphone input.

Support 2 HDMI outputs, can only display the same picture.

Support 1 DVI output.

Support 6x USB3.0 outputs.

Support 1 channel RJ45 network port.

The output resolution is up to 1920 * 1080P / 60Hz.

One Cable Station

The iTrans OCS 131 offers a one-cable laptop link to a room’s conference camera and devices, making it easy for teams to meet, present, and stream over any service. It integrates beautifully with your meeting rooms. Keep the tabletop clean and organized with the compact hub, or route the OCS through an existing cable well.

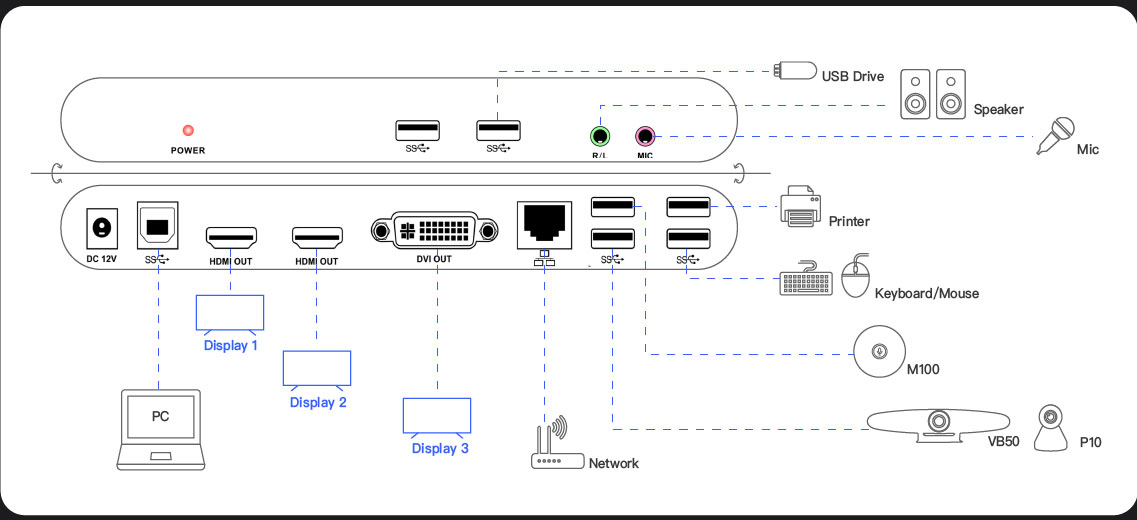

Diagram

iTrans OCS 131 One Cable Station 13 in 1

Datasheet

Model iTrans OCS 131
Name One Cable Station- OCS 13 in 1
USB A 6x USB A female ports ( USB 3.0, 5Gbps)
USB B 1x USB B female port (USB 3.0, 5Gbps)
3.5mm Audio/ Mic 1x 3.5mm Audio female port
1x 3.5mm Audio/ Mic separated port
RJ45 1x RJ45, 1,000M
HDMI 2x HDMI outputs, max. 2K60
DVI 1x DVI output, 2K60
Adapter 1x DVI to HDMI female adapter
1x DVI to VGA female adapter
DC 1x DC power supply

Download

  • iTrans OCS 131 Datasheet V1.0.pdf

    0.35M 04-08-2021
  • iTrans OCS 131 User Manual V1.0.pdf

    0.64M 04-08-2021
