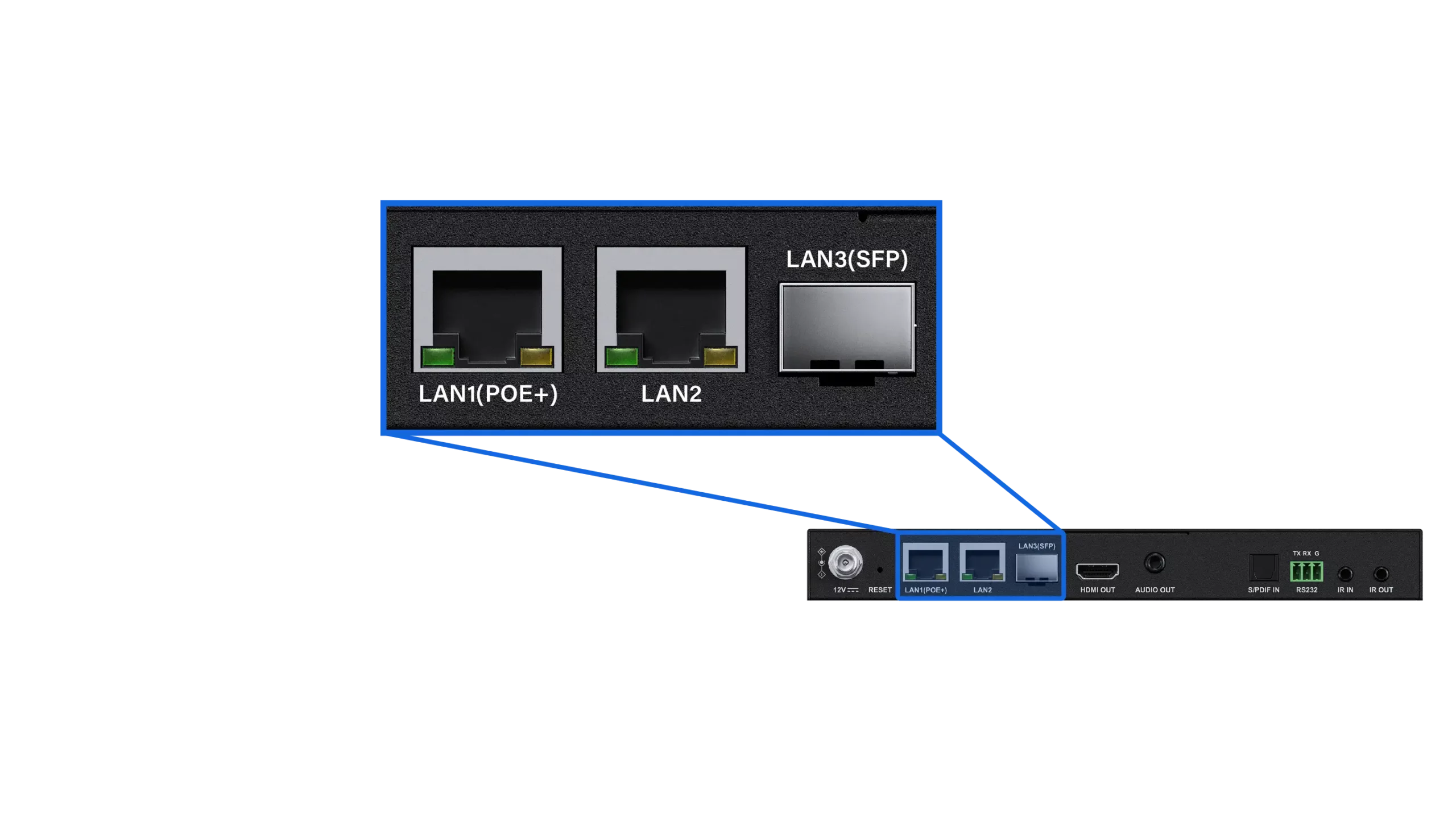

Features three Ethernet ports, any of which can be used to transmit A/V streams, control data, and Dante audio streams.
Supports input and output resolutions up to 3840 × 2160 @ 60 Hz, 4:4:4.
Supports video walls up to 16 × 16.
Supports HDR10 and Dolby Vision.
Supports CEC one-touch-play and standby commands for powering displays on/off, as well as CEC Frames.
Supports multi-channel audio up to PCM 7.1, Dolby Atmos, DTS-HD Master Audio, and DTS:X.
Supports HDMI eARC audio return.
Provides analog audio de-embedding.
HDCP 2.2/2.3
Flexible routing of audio, video, USB, RS-232, and IR signals independently or together throughout the matrix system.
Extends audio, video, USB, RS-232, IR, and power signals up to 328 ft (100 m) over a single Cat 5e (or higher) cable.
Provides 1-frame latency.
Supports bidirectional RS-232
Supports bidirectional IR passthrough for controlling remote source and display devices between encoders and decoders.
Supports IR generation, allowing IR codes to be sent via API.
Features dual USB engines for high-performance USB 2.0 over IP, enhanced camera support, and seamless KM over IP switching and roaming.

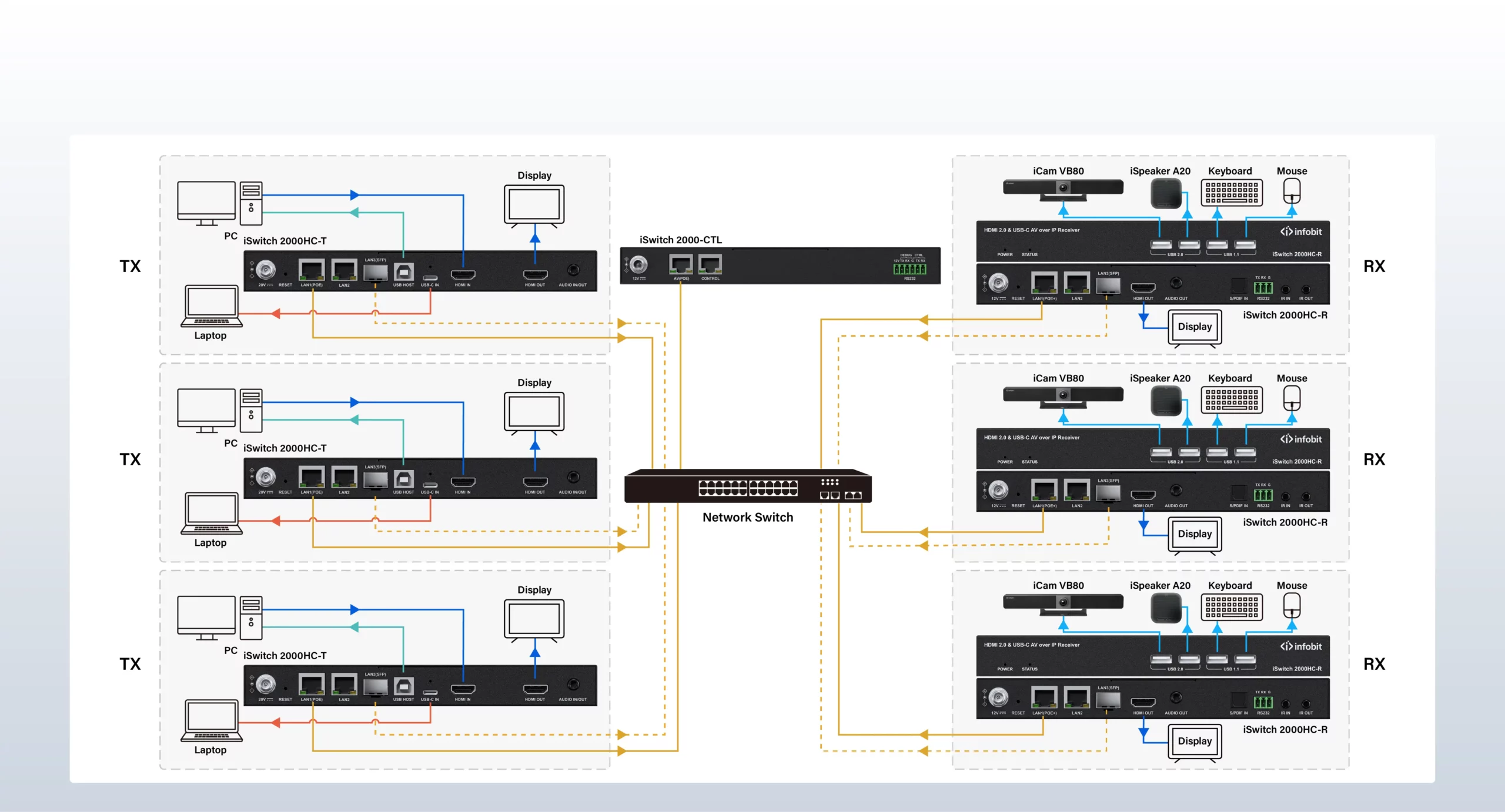

Supports point-to-point, point-to-multipoint, multipoint-to-point, and multipoint-to-multipoint
Supports PoE+, allowing the unit to be powered by compatible power sourcing equipment, such as a PoE-enabled Ethernet switch, eliminating the need for a local power adapter.
Provides “Fit In” and “Stretch Out” modes for video wall processing, as well as video rotation management. Decoded video can fill a video wall, maintain aspect ratio, and rotate 180° and 270° clockwise to meet various display requirements.
Supports DHCP by default and falls back to Auto-IP if no DHCP server is detected.
Supports control via Telnet API or an IP controller (iSwitch 2000-CTL).
Supports Telnet, SSH, HTTP, and HTTPS

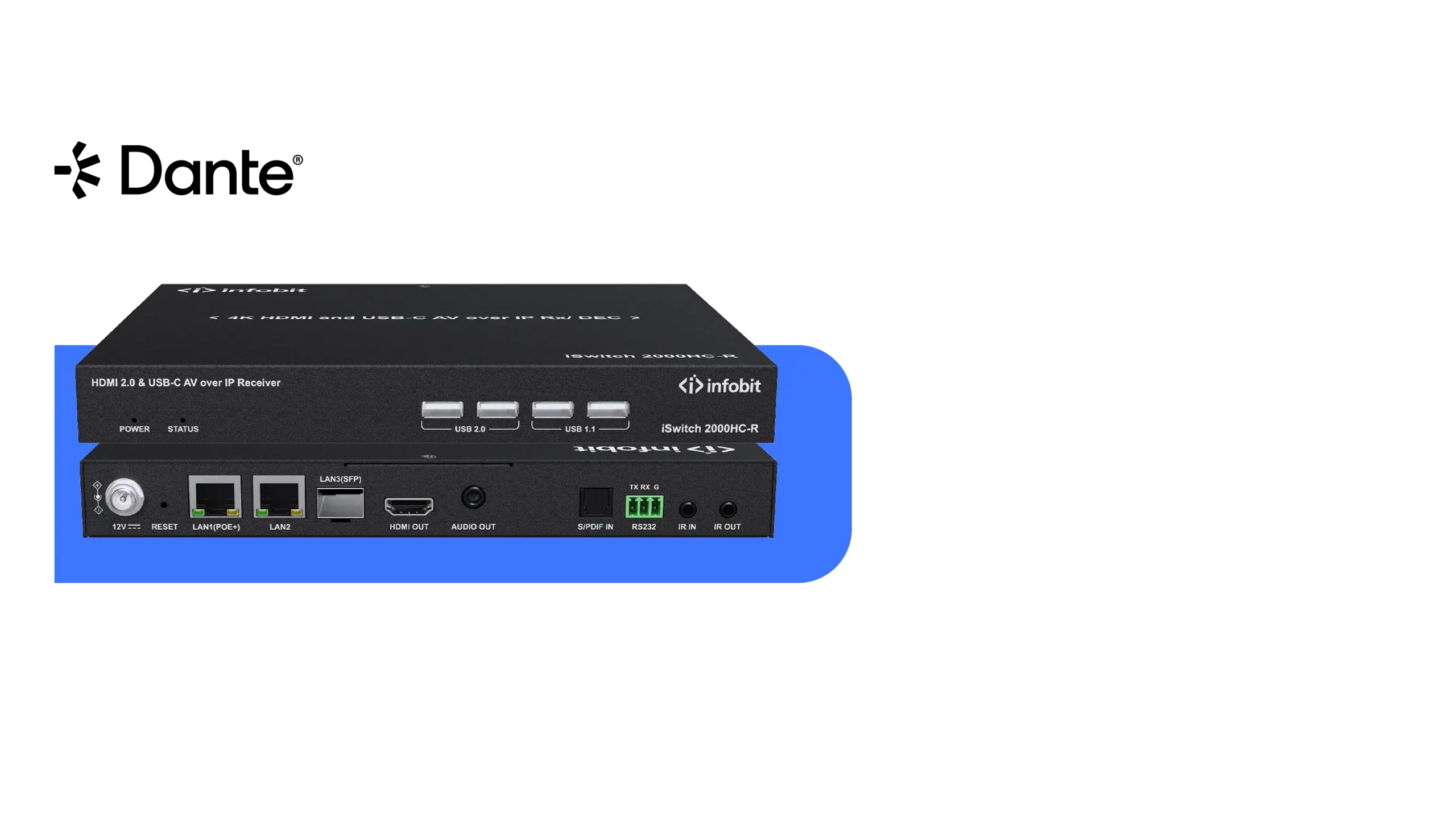

Supports 2-channel Dante receive and 2-channel Dante transmit audio streams when Dante is licensed (default: Dante unlicensed).
