iMatrix H44VAW
4K60 4x4 Seamless Matrix
Matrix+ Videowall processor+ Multiviewer
Audio embedded and de-embedded.
HDMI 2.0 and HDCP 2.2 compliant
Video resolution is up to 4K@60Hz 4:4:4
Each of the sources can be individually scaled.
Support 18Gbps video bandwidth
Support 12 displaying multi-viewer modes, and 9 videowall modes.
HDMI audio format: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS- EX, DTS-96/24, DTS High Res DTS-HD Master Audio
Support CEC control, and multiple video resolution outputs
Advanced EDID management
Control via front panel buttons, IR remote, RS-232, and Web GUI

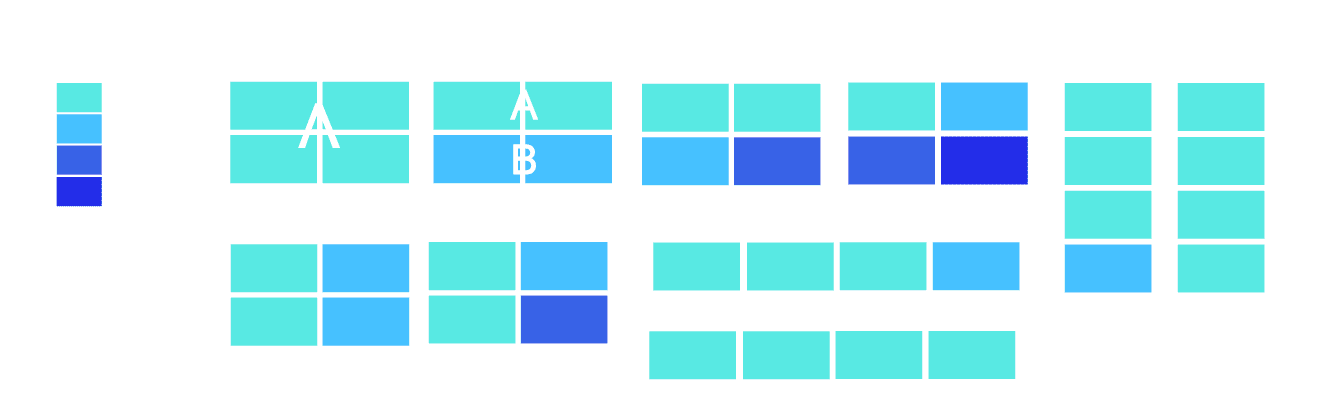

Supports both Matrix and Videowall

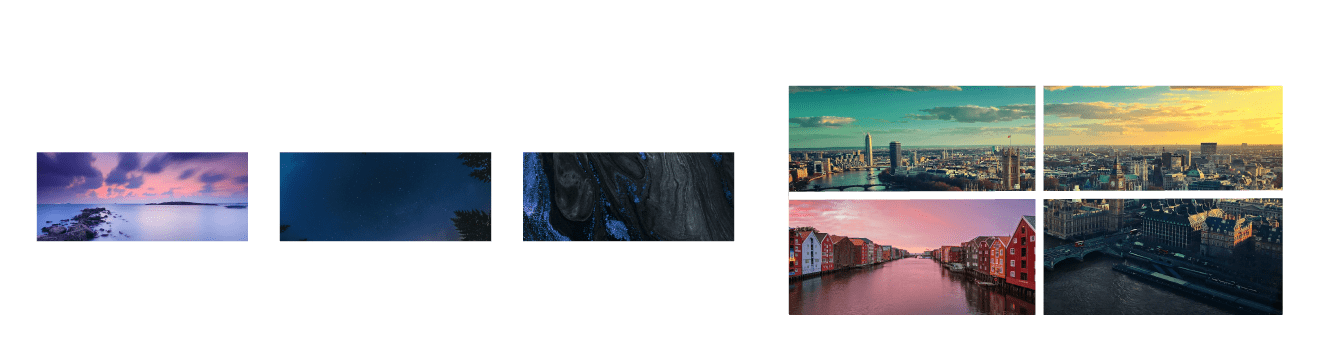

The 4K60 matrix switcher supports not only 4x4 seamless matrix displays, but also any layouts of 4-screen video wall.

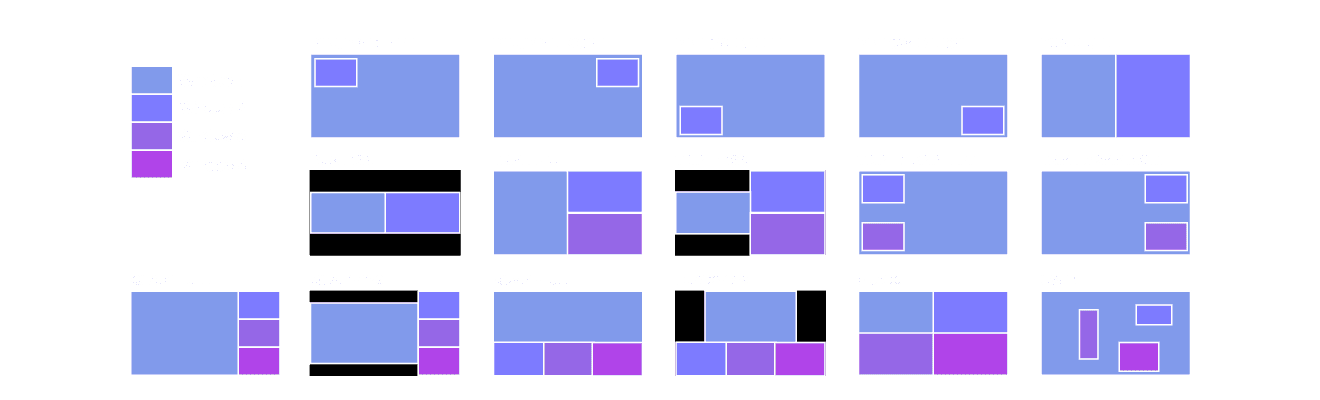

Support multiviewer
Support max. 15 display categories in multi-viewer mode.

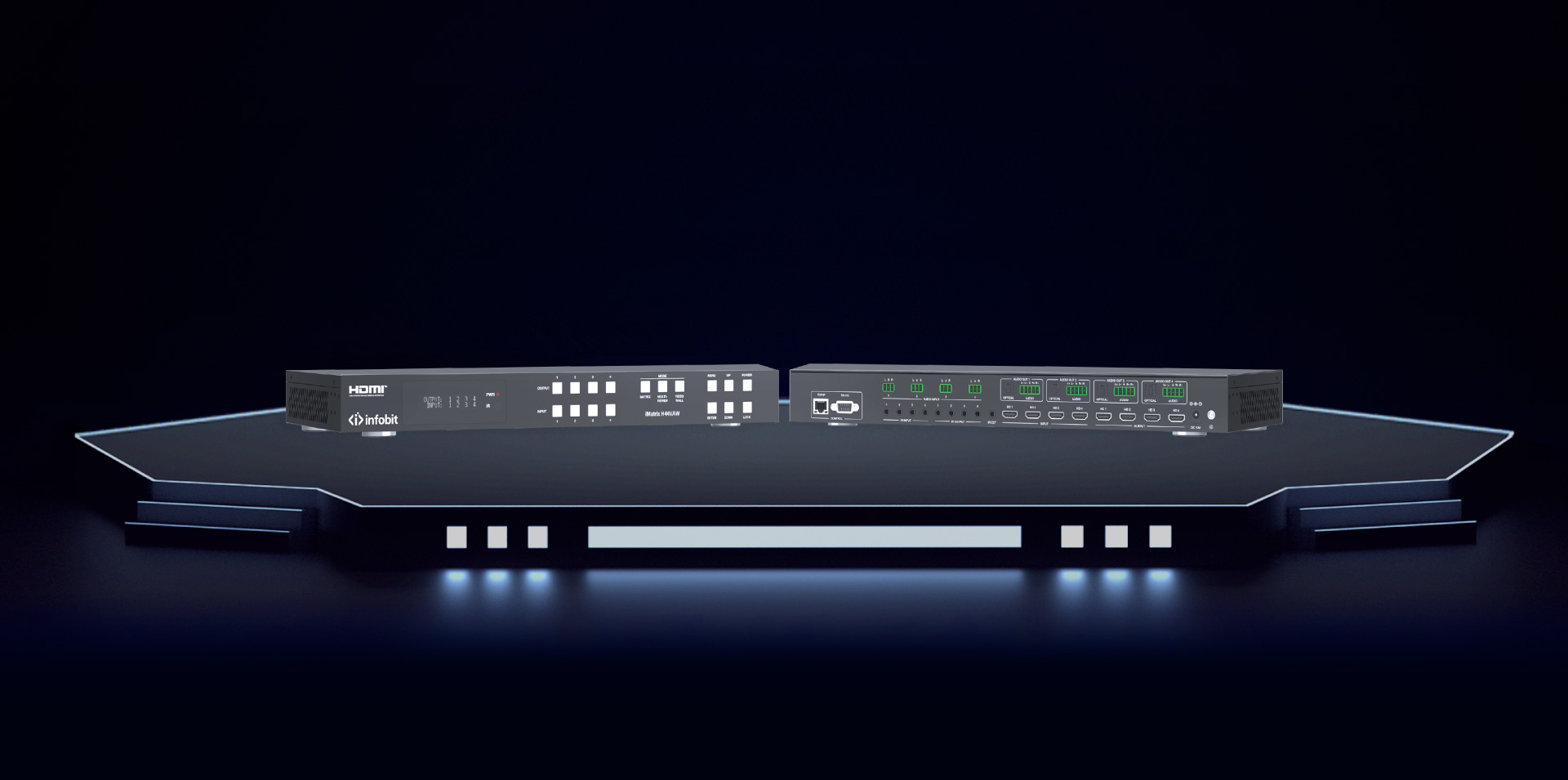

Genuine 4K60 Experience
4k 60Hz processing at 4:4:4 to deliver the 4K experience without any compromising.

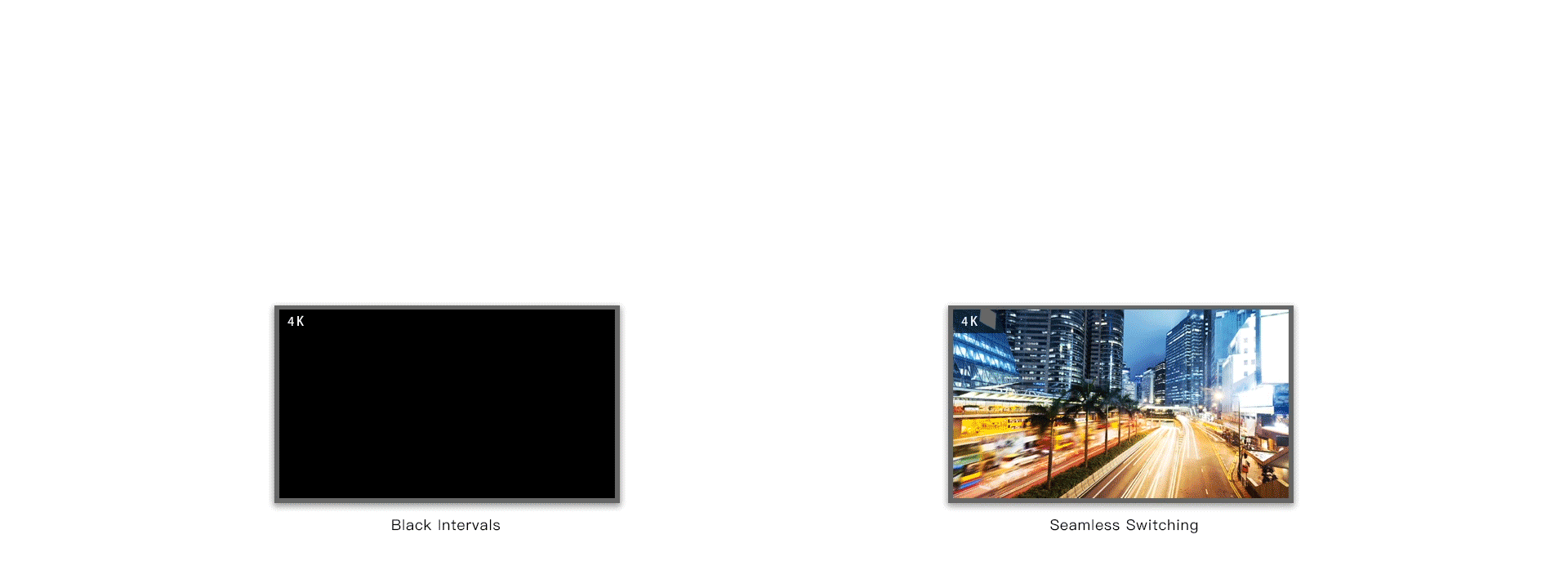

4K seamless switching
The iMatrix H44VAW delivers seamlessly switching experience of 4K60 sources without any black intervals for quality presentations.

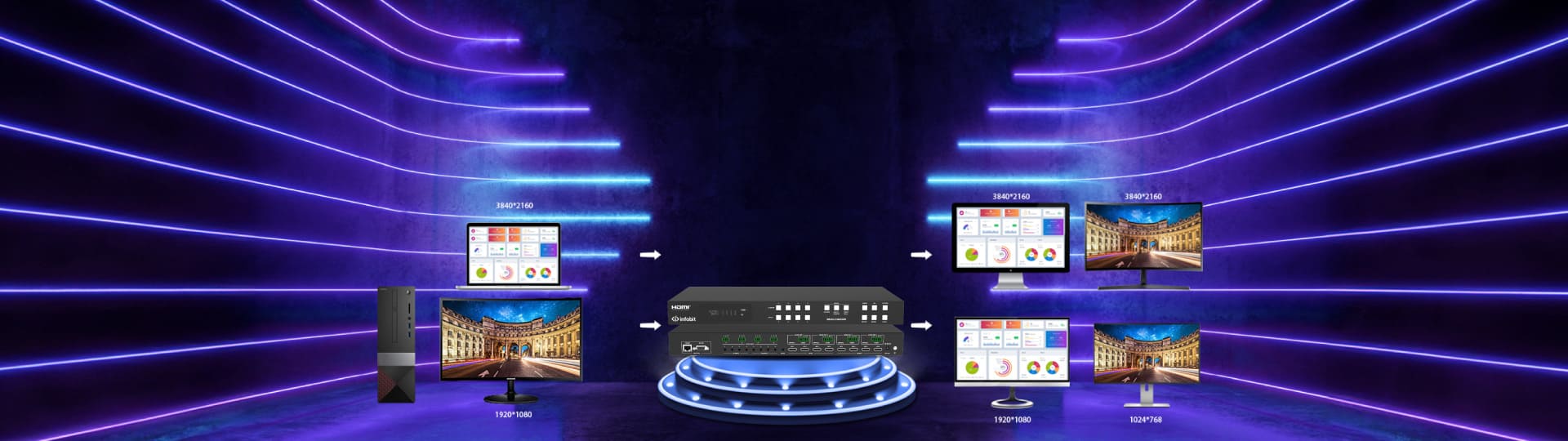

Auto Scaller
Video resolution is up to 4K@60Hz 4:4:4. Each of the sources can be individually scaled.
The iMatrix H44HAW will auto adjust output resolution to best fit display device when switching difference sources.
It offers the flexibility for applications requiring multiple display devices.

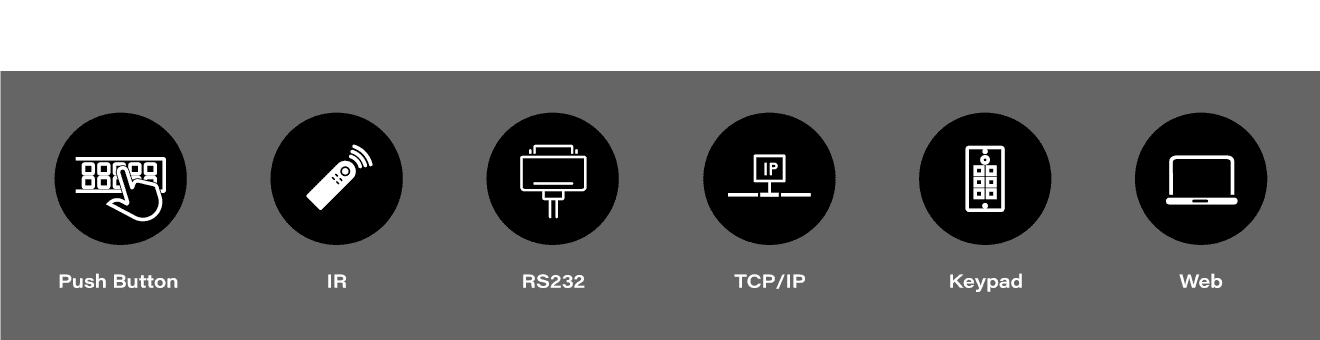

Multiple Control
Push Buttons, IR, RS232, TCP/IP, PC-based software and Web GUI control.
Application
The INFOBIT iMatrix H44HAW 4K60 HDMI matrix switchers w/ audio are used in broadcast, education, conference, home theater, control room and digital signage.

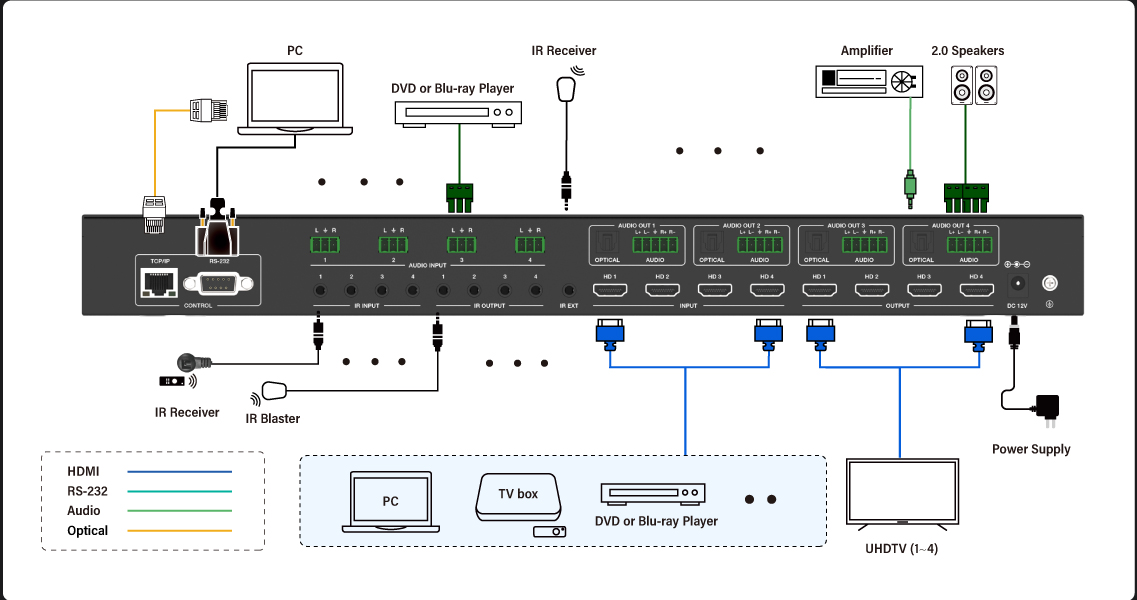

Diagram
Datasheet
| Model | iMatrix H44VAW |
| Name | 4K60 4×4 Seamless Matrix, w/ videowall & multiviewer |
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 594MHz/18Gbps |
| Video Resolution | 480i ~1080P@50/60Hz, 4K2K@24/30Hz, 4K2K@60Hz |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8/10/12-bit |
| Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS- 96/24, DTS High Res, DTS-HD Master Audio |
| IR Level | 12Vp-p |
| IR Frequency | Wideband 20K-60KHz |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) |
| Input ports | 4× HDMI INPUT [Type A, 19-pin female] 4× L/R AUDIO INPUT [3.81mm, 3pin Phoenix Connectors |
| Output ports | 4× HDMI OUTPUT [Type A, 19-pin female] 4× OPTICAL AUDIO OUT [S/PDIF] 4× L/R AUDIO OUT [3.81mm, 5pin Phoenix Connector] |
| Control ports | 1× TCP/IP [RJ45] 1× RS-232 [D-Sub 9] 1× IR EXT [3.5mm, Stereo Mini-jack] 4× IR INPUT [3.5mm, Stereo Mini-jack] 4× IR OUTPUT [3.5mm, Stereo Mini-jack] |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 440mm [W] × 203mm [D] × 44.5mm [H] |
| Weight | 2.55kg |
| Power Supply | Input: AC 100-240V 50/60Hz, Output: DC 12V/2.5A (US/EU standard, CE/FCC/UL certified) |
| Power Consumption | 25W (Max) |
| Operating Temperature | 32 – 104°F / 0 – 40°C |
| Storage Temperature | -4 – 140°F / -20 – 60°C |
| Relative Humidity | 20 – 90% RH (no-condensing) |
| HMDI distance | 4K60: 5m; 4K30: 10m; 1080p60: 15m |
