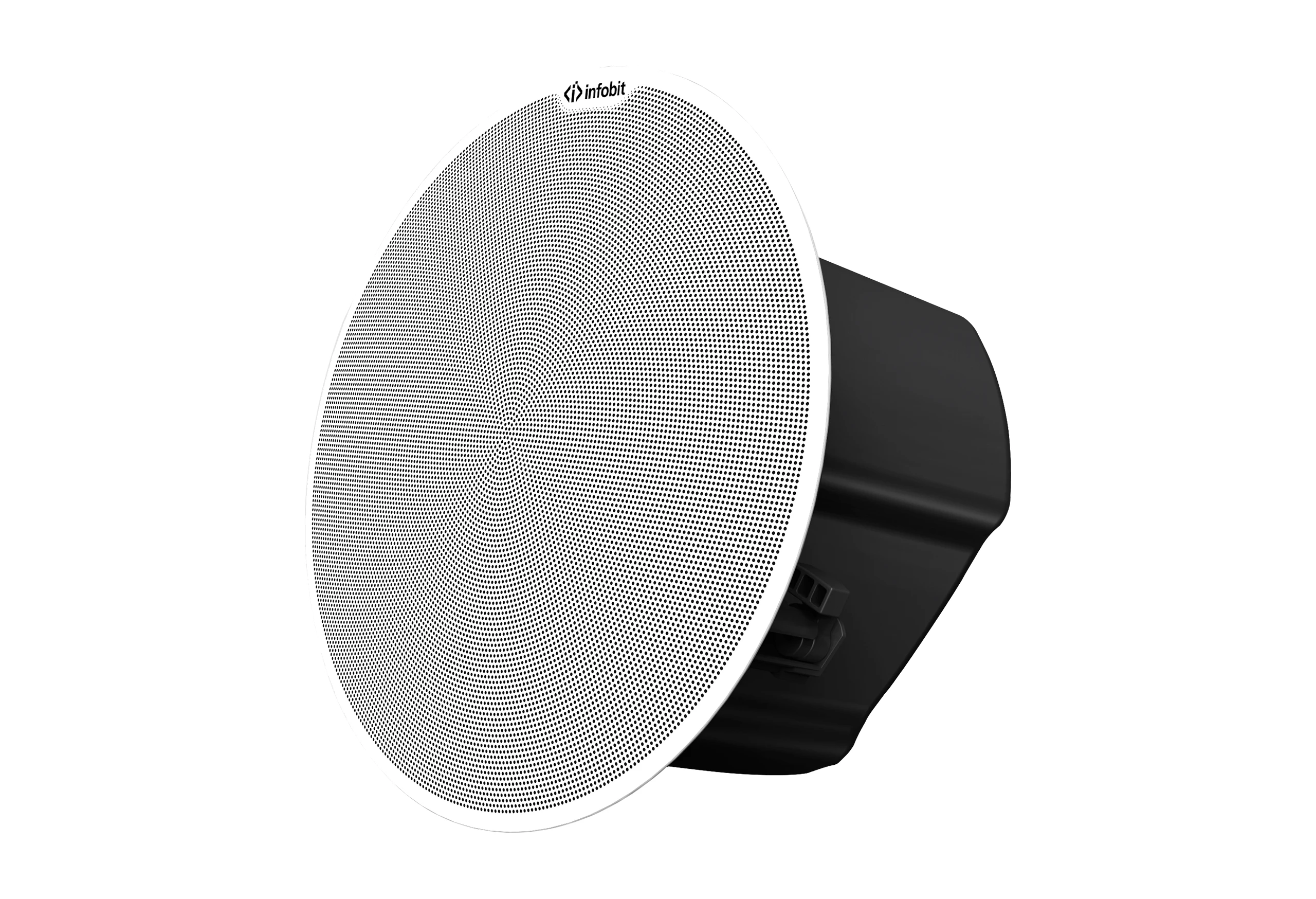

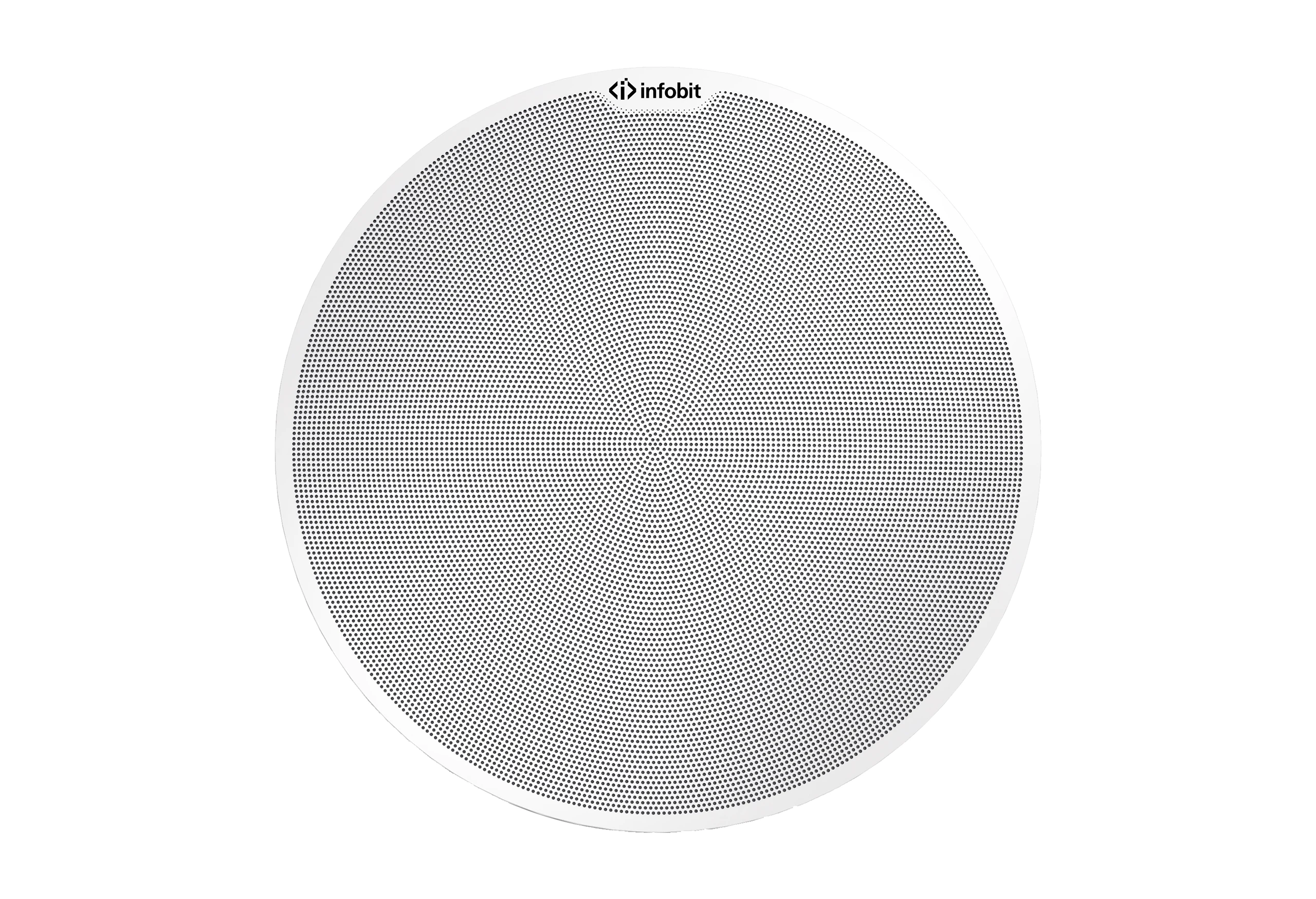

iSpeaker DAC6S
1- 1x6.5"+1x1" dome
2- Sensitivity of 93dB
3- Output power of 60W
4- Rated power (8Ω fixed resistance): 60W
5- Designed with 8x N42 high-strength magnets, more stable.
6- With anti-dropping rope.
7- Easy wiring: Front-out wiring cable raceway.
8- Suitable for narrow ceiling spaces.
9- Supports Dante
10- Supports PoE: 802.3af/802.3at/802.3bt

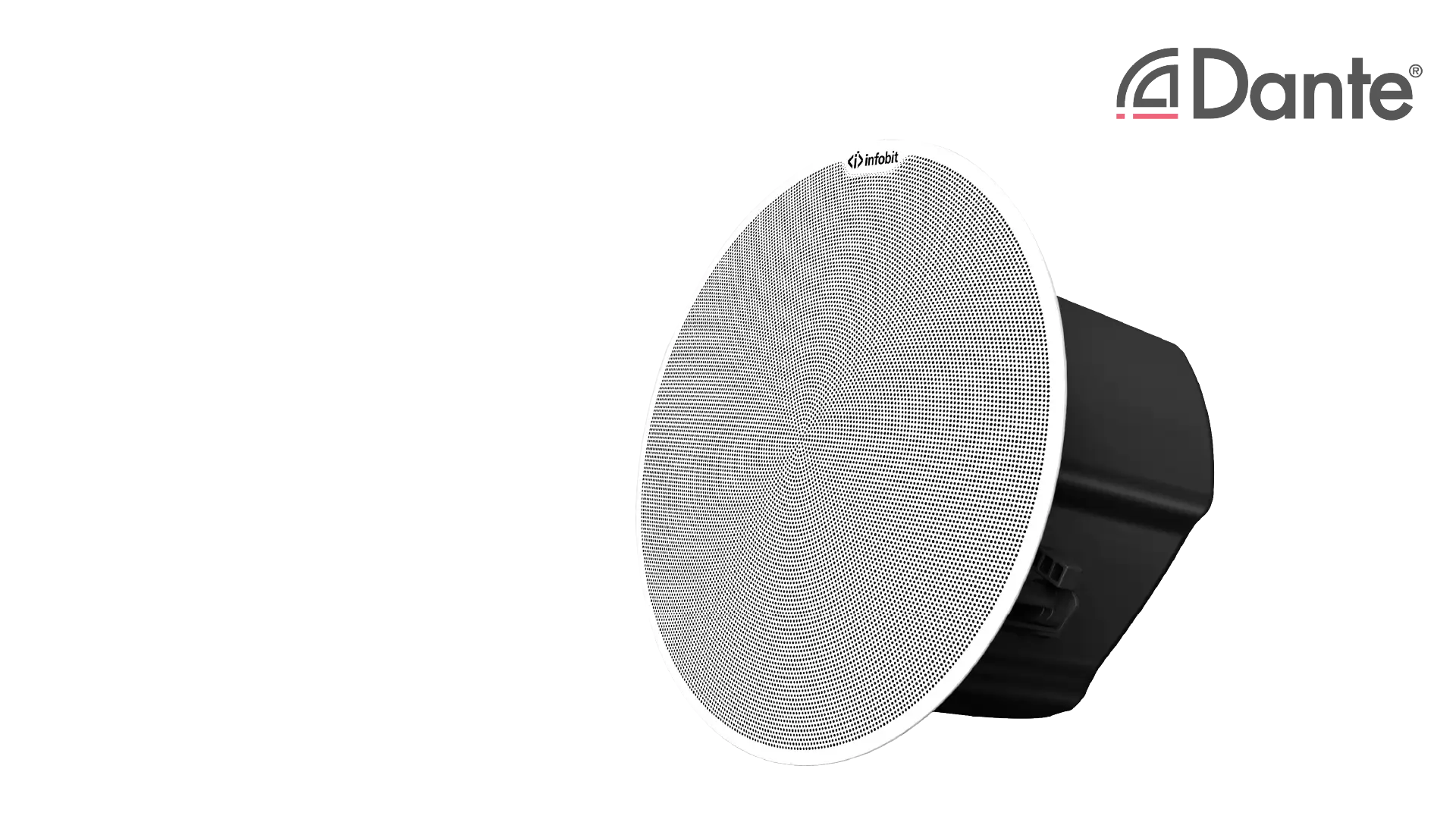

Supports Dante

The iSpeaker DAC6S supports Dante Audio, PoE 802.3af/802.3at/802.3bt.

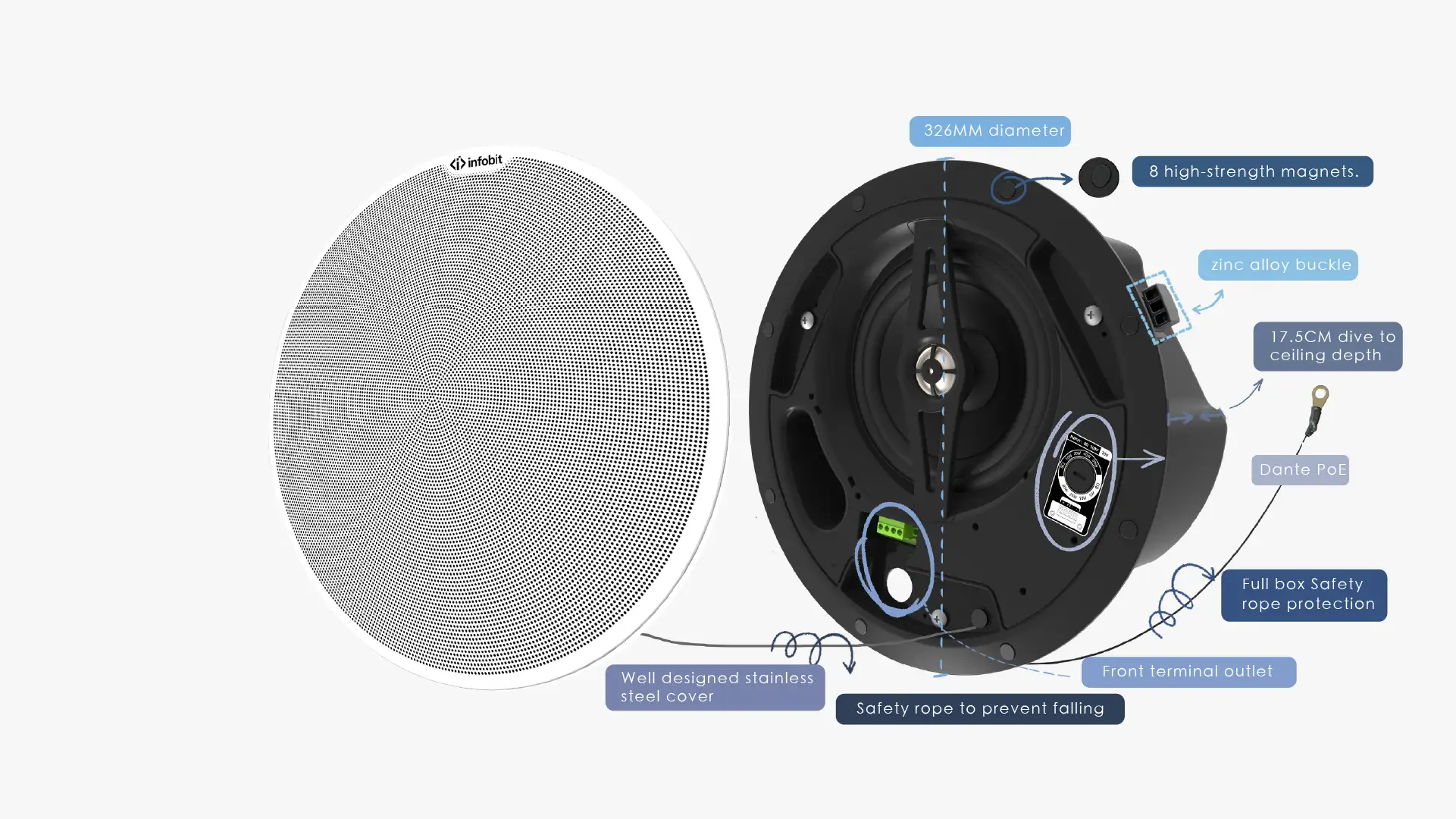

More Features

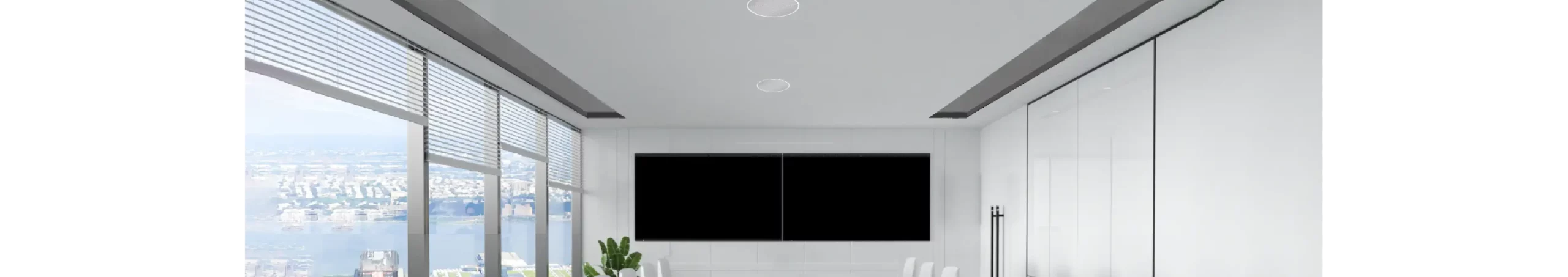

Meeting Rooms

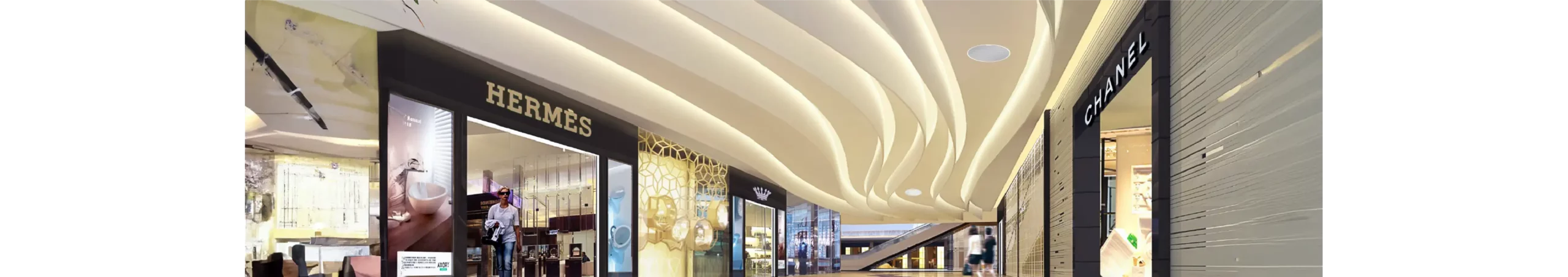

Shopping Malls

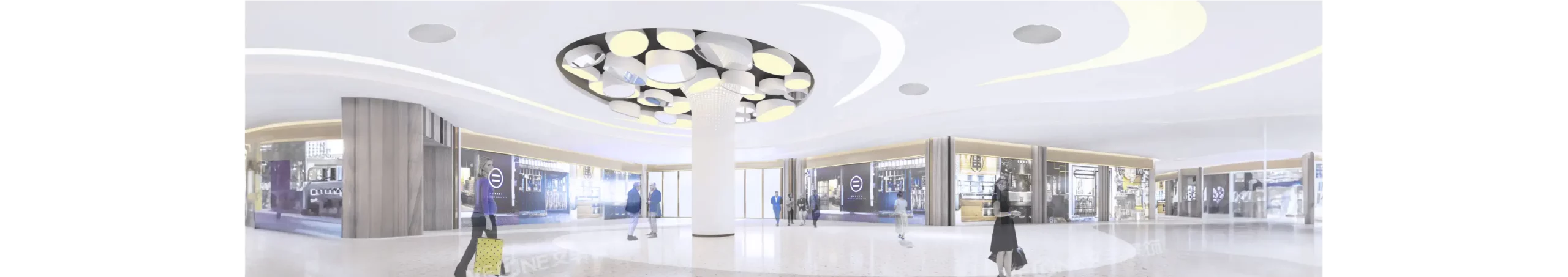

Airport

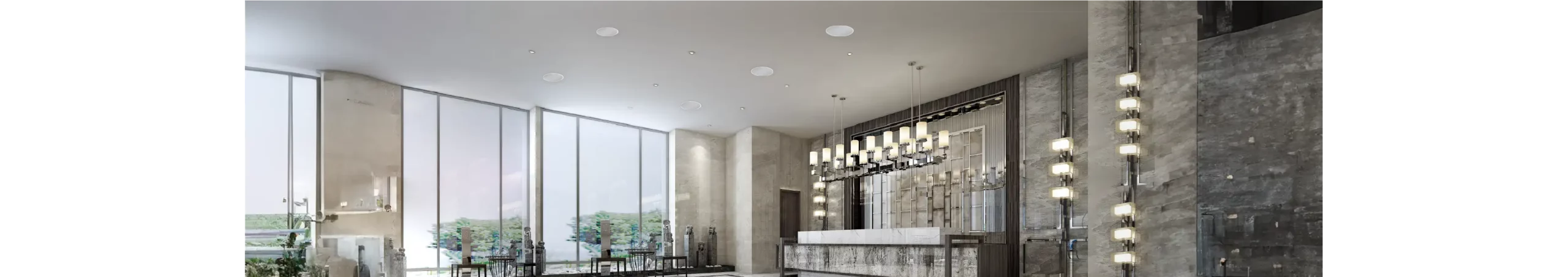

Hospitality Loby

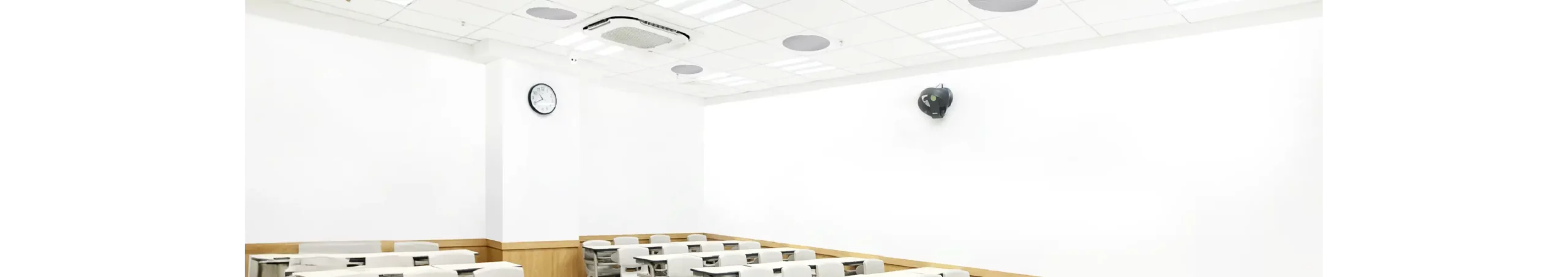

Conference Halls

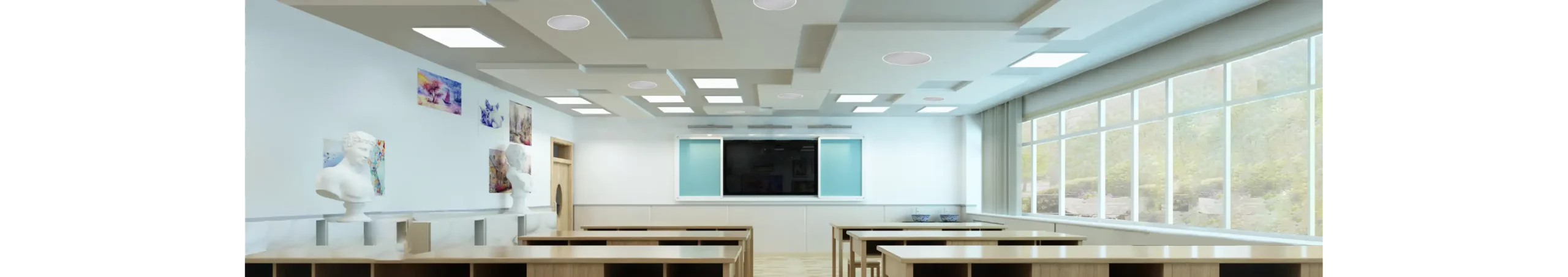

Education Classrooms

Datasheet

Model iSpeaker DAC6S
Name Dante Ceiling Speaker 6.5”

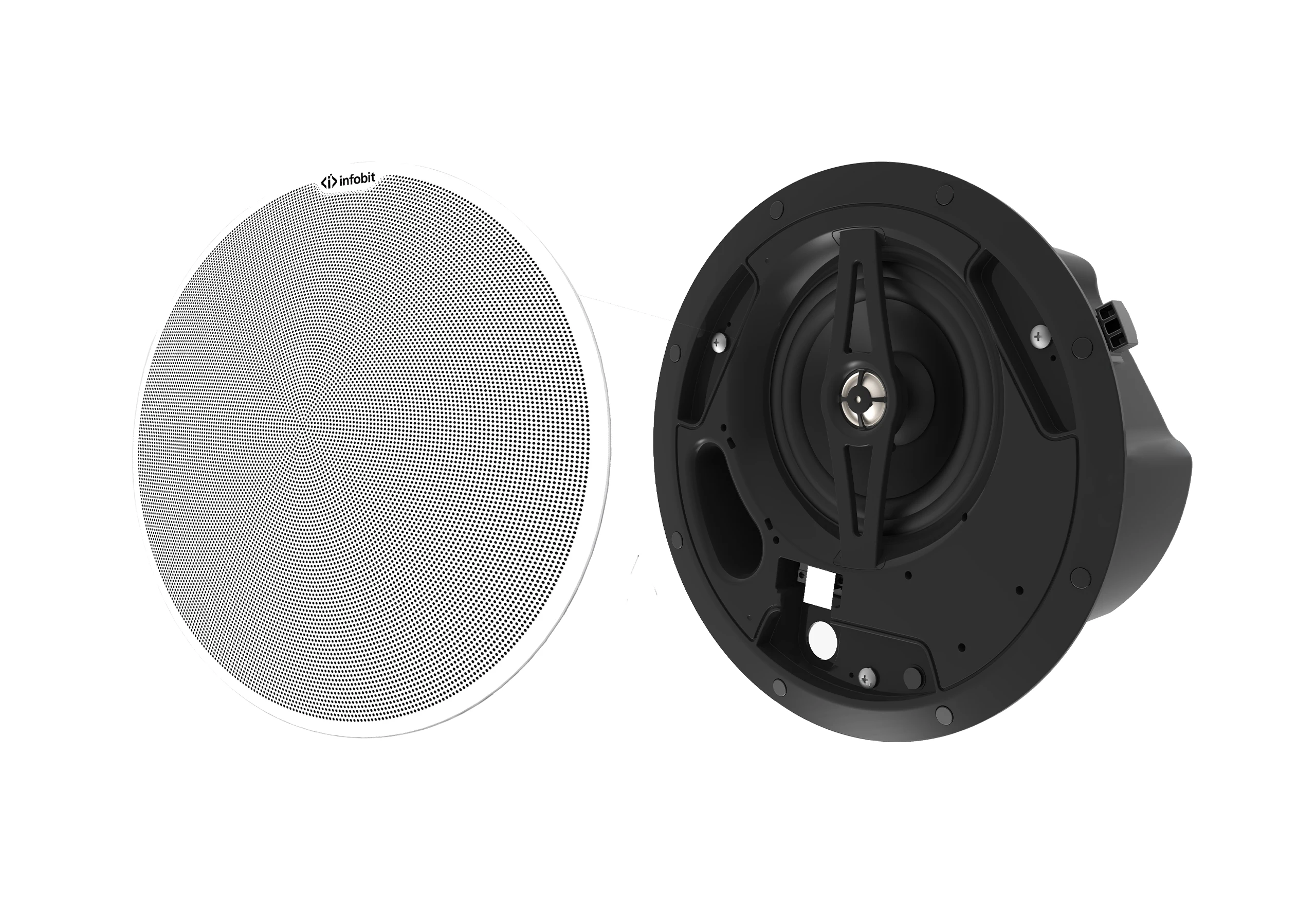

Structure 1×6.5″+1×1″ dome, coaxial design.
Rated Impedance
Rated power 60W
Effective frequency range 75Hz~20KHz
Sensitivity level (1m/1W) 93dB
Sound pressure level In the specified frequency band: 110dB
Net cover material Metal mesh
Back shell material Iron
Installation dimension Total height: 197mm
Embedded depth: 176mm
Installation thickness: 10-50mm
Opening diameter: 270-280mm
Speaker outer diameter: 316mm
Port Dante RJ45 PoE
PoE 802.3af/802.3at/802.3bt
Net Weight 4.87kg
Gross Weight 6.4kg

Download

  • iSpeaker DAC6S Datasheet V1.0.pdf

    0M 04-07-2024
