iTrans-USB2-TR80--b

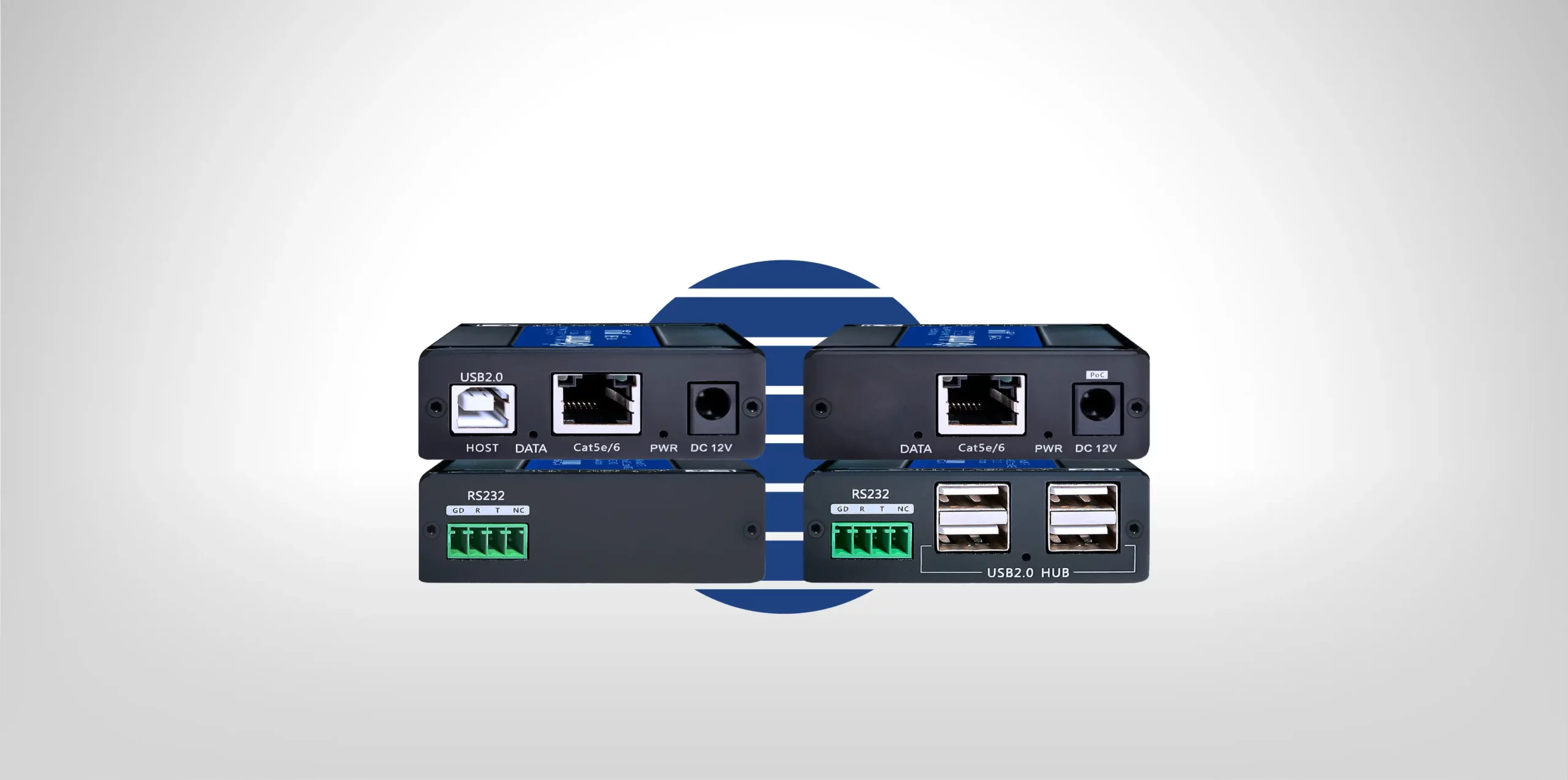

iTrans USB2-TR80

USB 2.0 Extender, 80m, RS232

USB 1.1

USB 1.1

USB 2.0

USB 2.0

KVM

KVM

USB HUB

USB HUB

80M

80M

480Mbps

480Mbps

iTrans USB2-TR80
iTrans USB2-TR80
iTrans USB2-TR80
iTrans USB2-TR80
iTrans USB2-TR80
iTrans USB2-TR80
iTrans USB2-TR80

4 port USB 2.0 extender, 80m

With RS232

Support PoC, 12V2A power supply

Works with all brands of USB cameras, microphones, speakerphones

Supports KVM

iTrans USB2-TR80
iTrans USB2-TR80
iTrans USB2-TR80
Datasheet
Item Description
Power DC 12V1A PoC (Recommended to supply power at the Rx end when storage devices are connected.)
Consumption <5W
USB interface USB 2.0
Cable interface Cat6, Cat5e
Extension distance Max. 80 meters (K/M);
Mobile hard disk/USB disk 60 meter
Working Mode Point to Point extension, long-distance control
Size 125mm*84mm*25mm
Working Temperature -5°C – + 75°C
Working Humidity 5% ~ 90% RH (Non-condensing)

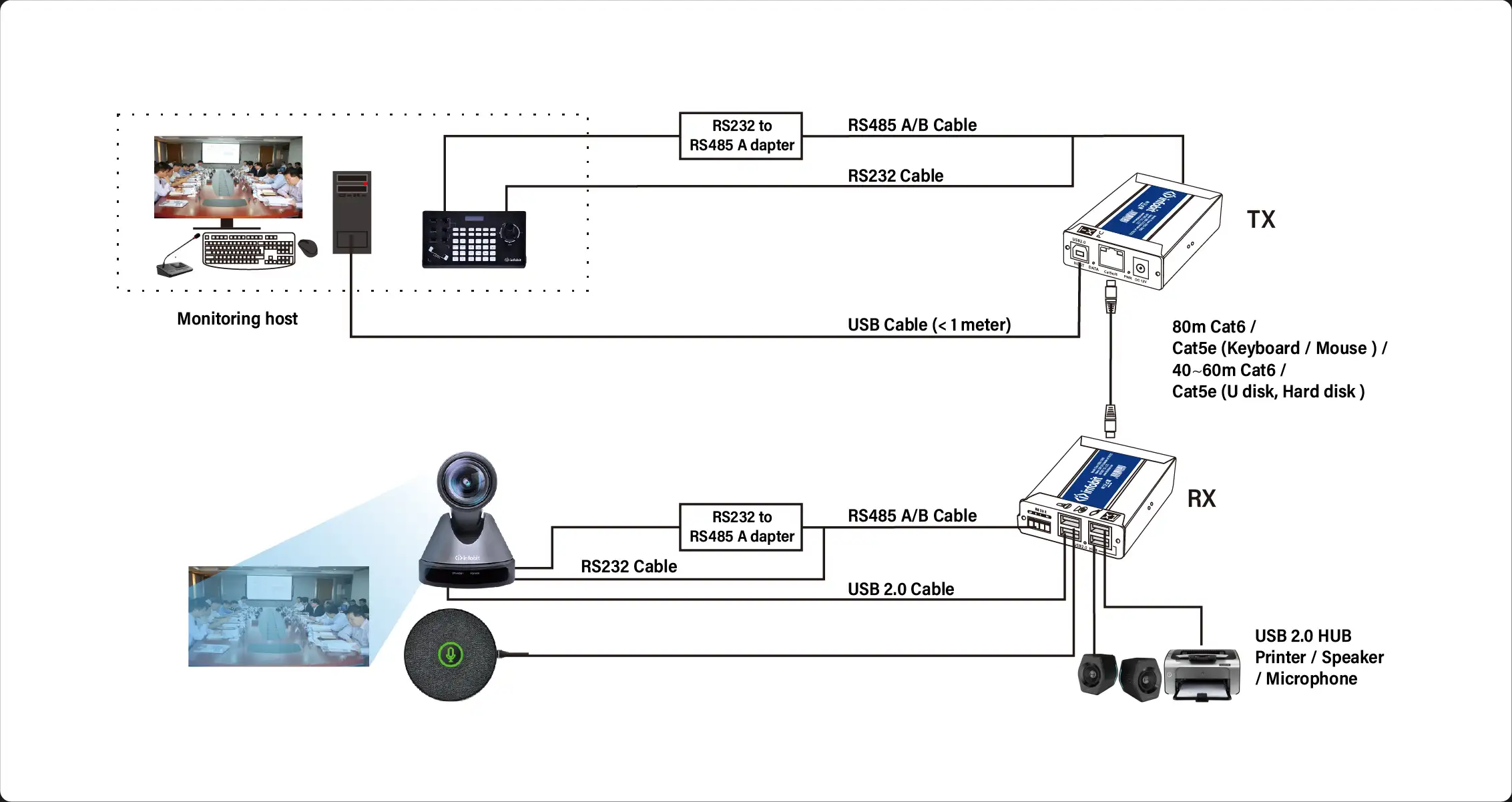

Diagram
Download
  • iTrans USB2-TR80 User Manual V1.1.pdf
    0.37M
    2024-09-10
