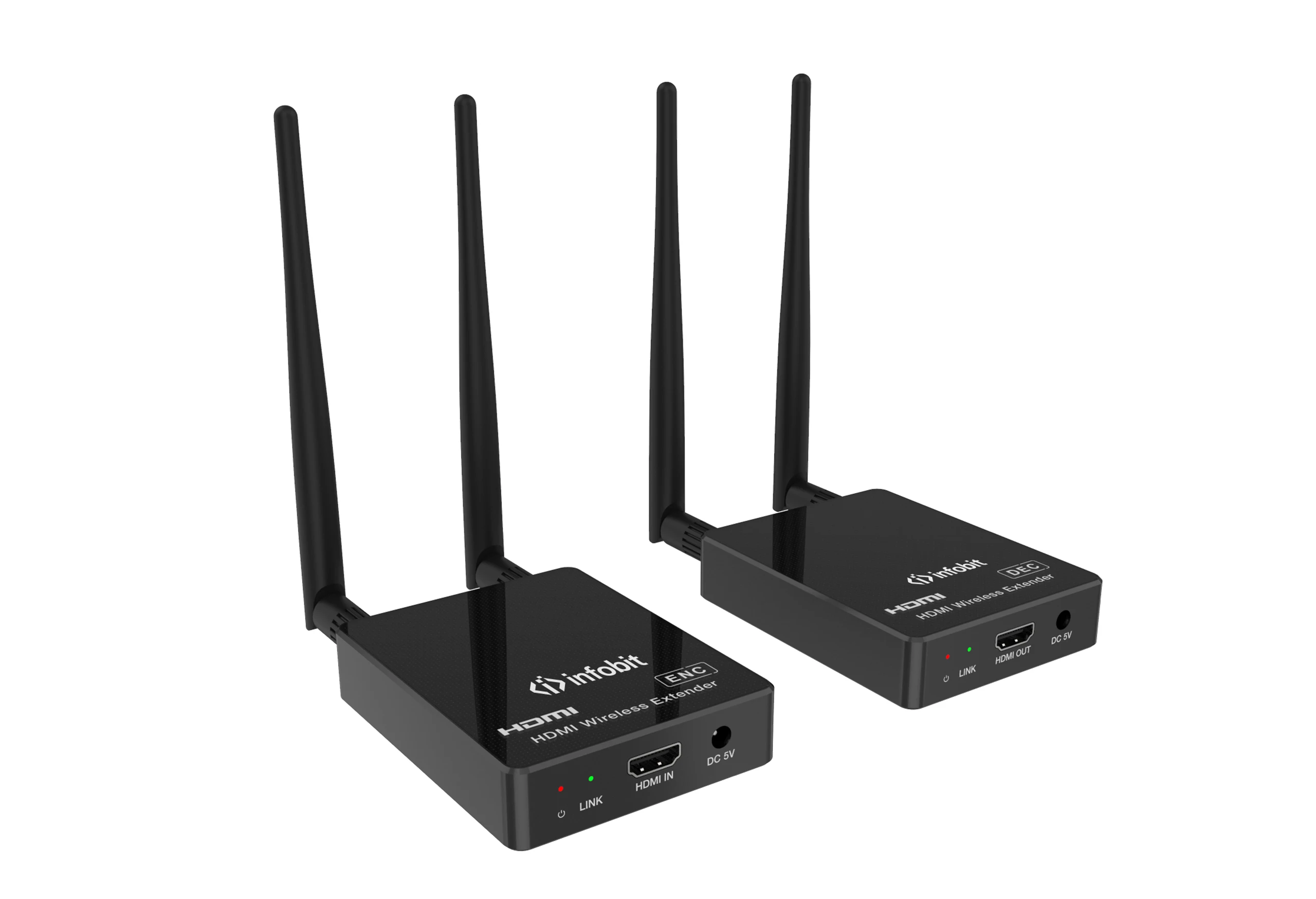

iTrans W100
100m HDMI FHD Wireless Extender with One-way IR
HDMI 1.3, HDCP 1.4 and DVI 1.0 compliant
Transmit one HDMI HD source signal to one HDMI HD display via wireless
With one-way IR control
Input and output video resolution are up to 1920×1080@60Hz YCbCr 4:4:4
Wireless transmission distance up to 330ft/100m. (In an open environment without Wi-Fi interference.)
HDMI audio formats: Input: LPCM 2.0CH 32KHz/44.1KHz/48KHz/88.2KHz/96KHz/176.4KHz/ 192KHz Output: LPCM 2.0CH 48KHz
H.265 high-performance codec technology
End-to-end delay is less than 120ms
Compact design for easy and flexible installation

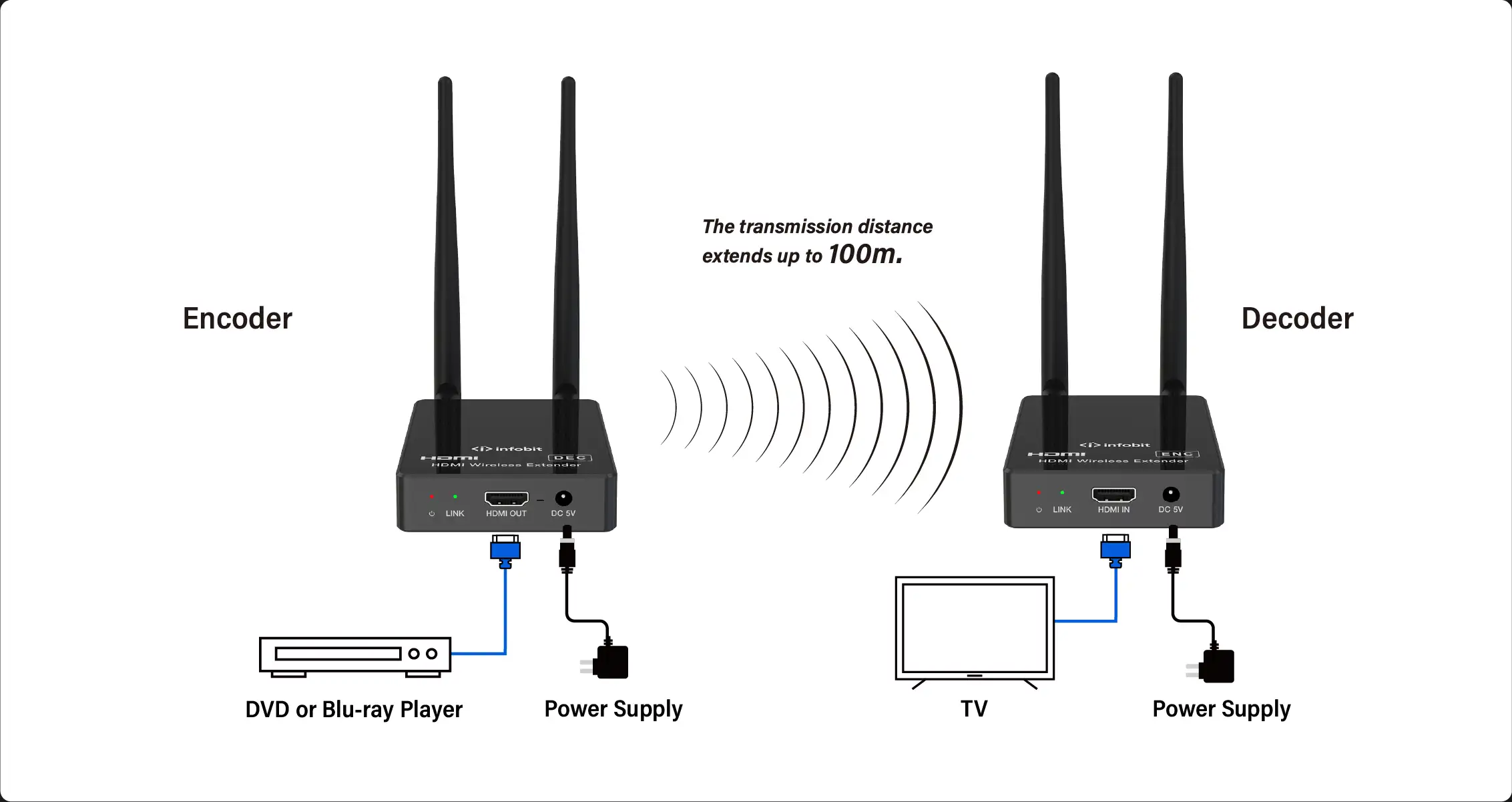

Diagram

Datasheet

Model iTrans W100
Name 100m HDMI FHD Wireless Extender with One-way IR
HDMI Compliance HDMI 1.3
HDCP Compliance HDCP 1.4
Video Bandwidth 4.95Gbps
Video Resolution Input: Up to 1920×1080@60Hz
Output: Up to 1080P@60Hz
Color Space RGB, YCbCr 4:4:4 / 4:2:2
Color Depth 8-bit, 10-bit, 12-bit
HDMI Audio Formats  Input: LPCM 2.0CH 32KHz/44.1KHz/48KHz/88.2KHz/96KHz/176.4KHz/192KHz
Output: LPCM 2.0CH 48KHz
ESD Protection Human body model — ±8kV (Air-gap discharge) &
±4kV (Contact discharge)
Transmitter/ Encoder Inputs: 1x HDMI IN [Type A, 19-pin female]
Outputs: 1x IR OUT [3.5mm Stereo Mini-jack]; 2x WiFi OUT [WiFi antenna]
Control: 1x SERVICE [Micro USB, Update port]
Receiver/ Decoder Inputs: 1x IR IN [3.5mm Stereo Mini-jack]; 2x WiFi IN [WiFi antenna]
Outputs: 1x HDMI OUT [Type A, 19-pin female]
Control: 1x SERVICE [Micro USB, Update port]
Housing Plastic Enclosure
Color Black
Dimensions Encoder / Decoder:
76mm [W] x 98mm [D] x 21mm [H]
Weight Encoder / Decoder: 100g
Power Supply Input: AC 100 – 240V 50/60Hz
Output: DC 5V/2A
Power Consumption Encoder: 5.6W, Decoder: 2.65W (Max)
Operating Temperature  0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature  -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20~90% RH (non-condensing)
Resolution / Cable Length: HDMI IN OUT 1080P60Hz, 42ft / 15M

Download

  • iTrans W100 User Manual_V1.0.pdf

    0M 03-10-2022
