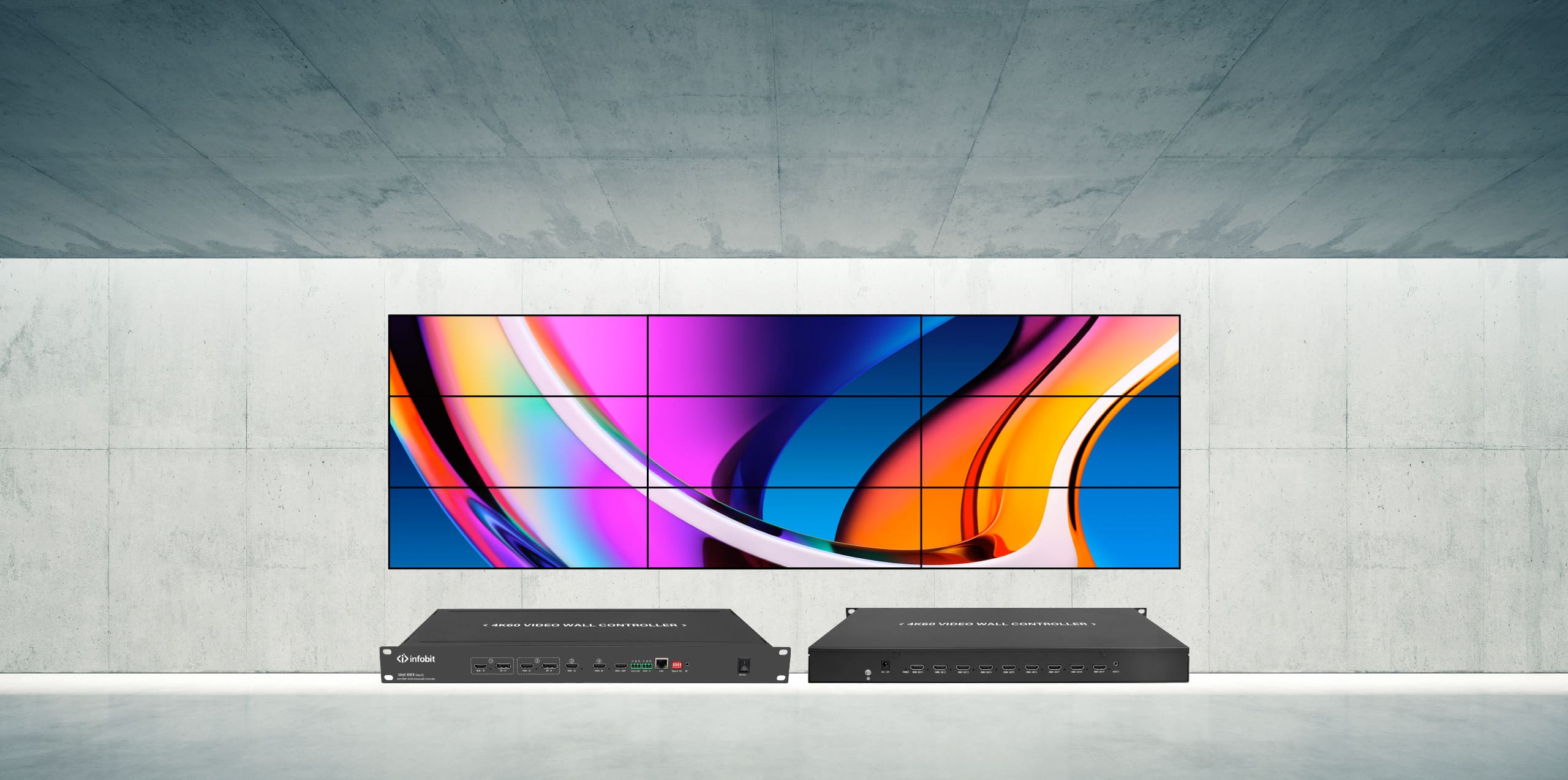

iWall 409R Gen2
1. Pure hardware, real-time processing architecture without delay and with anti-static design.
2. Supports single image, PIP (Picture in Picture), POP (Picture on Picture), PYP ( Picture by Picture) or Quad-view. All video windows support free zooming, cross-screen roaming, re-sizing with arbitrary layers overlay.
3. Supports signal cropping, which can remove black edges and crop the focused content to emphasize any details.
4. Supports 16x videowall displaying modes such as horizontal screen 1x1 to 1x9; vertical screen 9x1 to 1x1; or mosaic type: 2x2, 2x3, 3x3, 2x4, 4x2... etc.
5. Supports 4 channels of 4K60 inputs, 9x 1080p outputs
6. Supports inputs and outputs rotation: any input can be rotated in 90°, 180° or 270°, and the first row of output can be rotated in 180°.
7. Supports 4x9 matrix mode.
8. Supports seamless real-time switching, without black screen intervals or lag during the signal switching.
9. Supports IR remote control, RS232, TCP/IP control methods, with keyboard shortcuts quick operation.
10. Optional audio de-embedded, audio output can follow the HDMI OUT 1 or all output ports.
11. Supports full-channel 24bit, RGB 8:8:8 high color sampling depth, high-quality video image output.

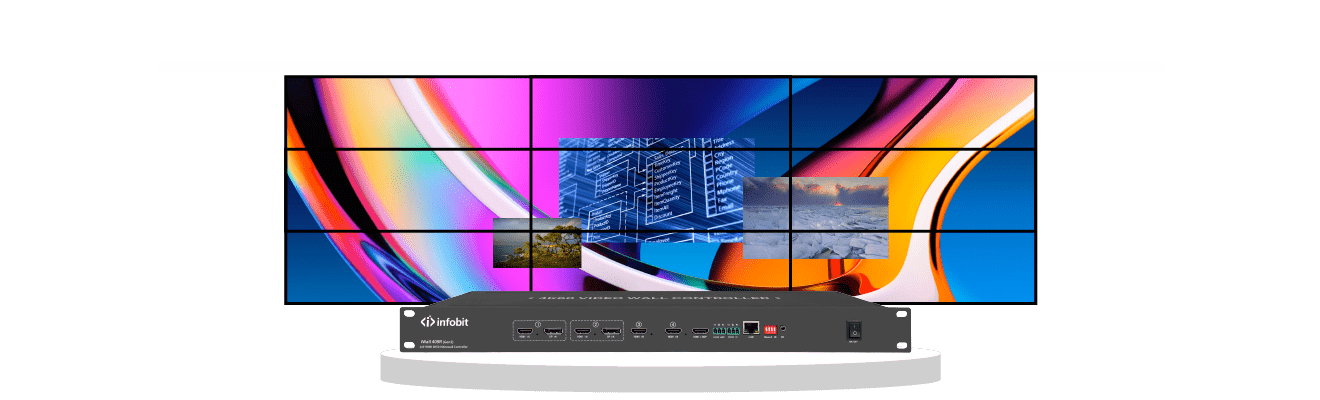

Pure Hardware without Windows OS

Without Window blue screen, virus risks, OS vulnerability, and breakdown. Lower requirements of IT technology background, save your training cost.
All video windows support free zooming, cross-screen roaming, re-sizing with arbitrary layers overlay.

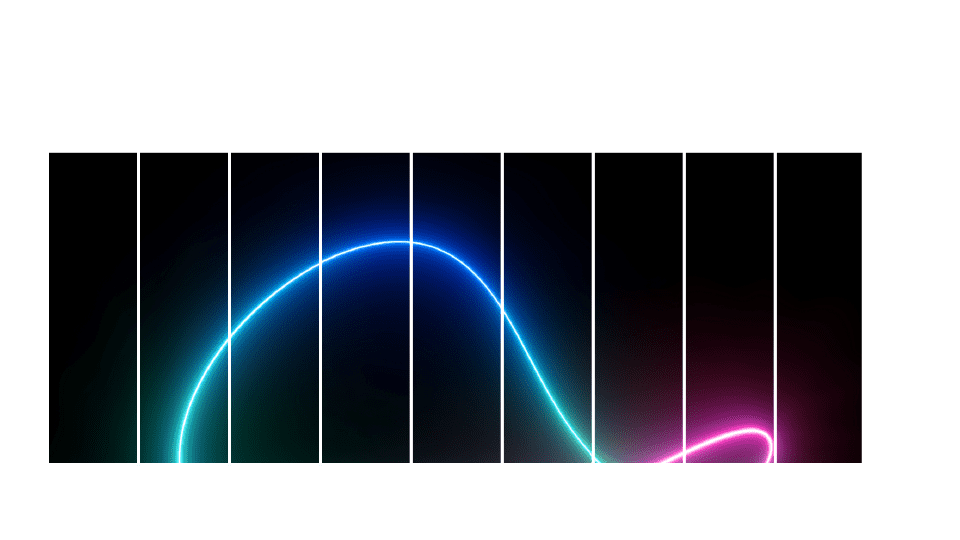

Flexible videowall installation

Supports 16x videowall displaying modes such as horizontal screen 1x1 to 1x9; vertical screen 9x1 to 1x1; or mosaic type: 2x2, 2x3, 3x3, 2x4, 4x2... etc.
Supports both landscape and portrait videowall installation.

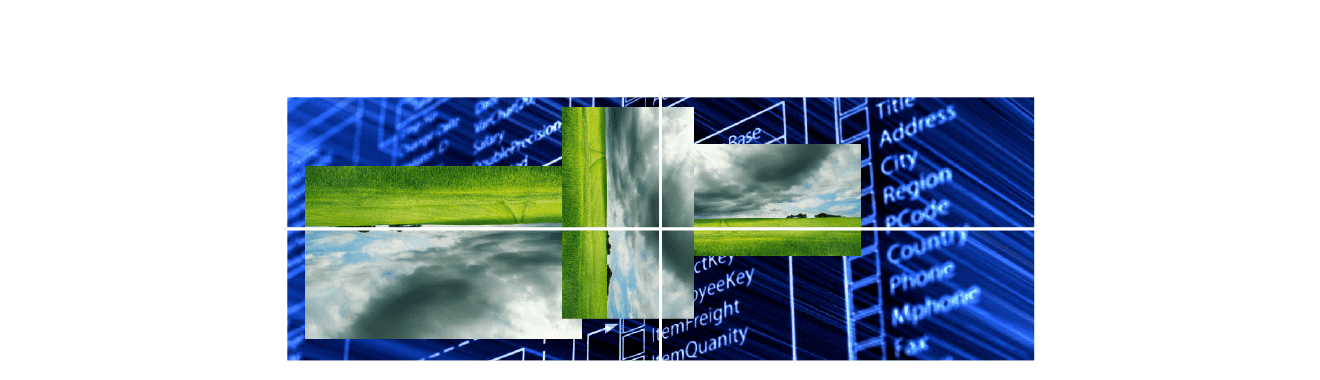

Rotate each image in 90° increment

Any input can be rotated at 90°, 180° or 270°.
Fully compatible with both landscape and portrait videowalls.

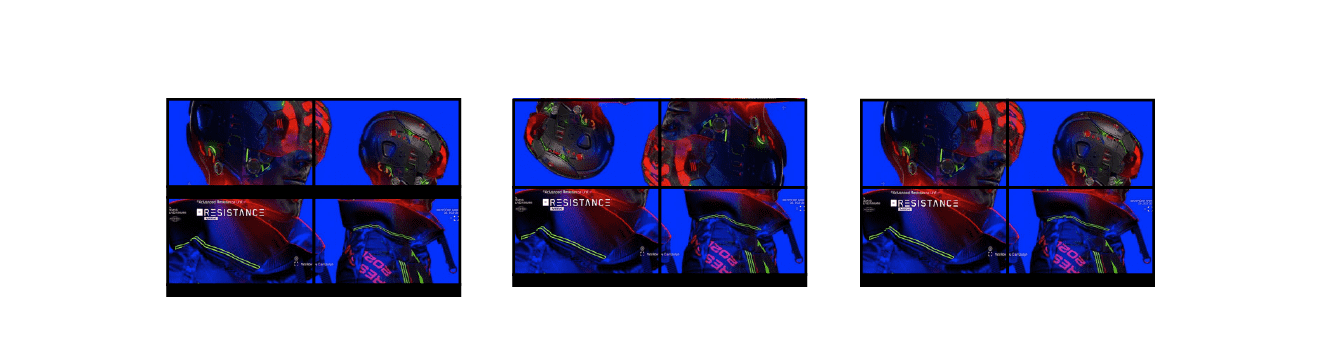

Rotate the first row at 180°

The first row of outputs can be rotated at 180°, iedal for TV wall for sports bar, restaurant or shops.

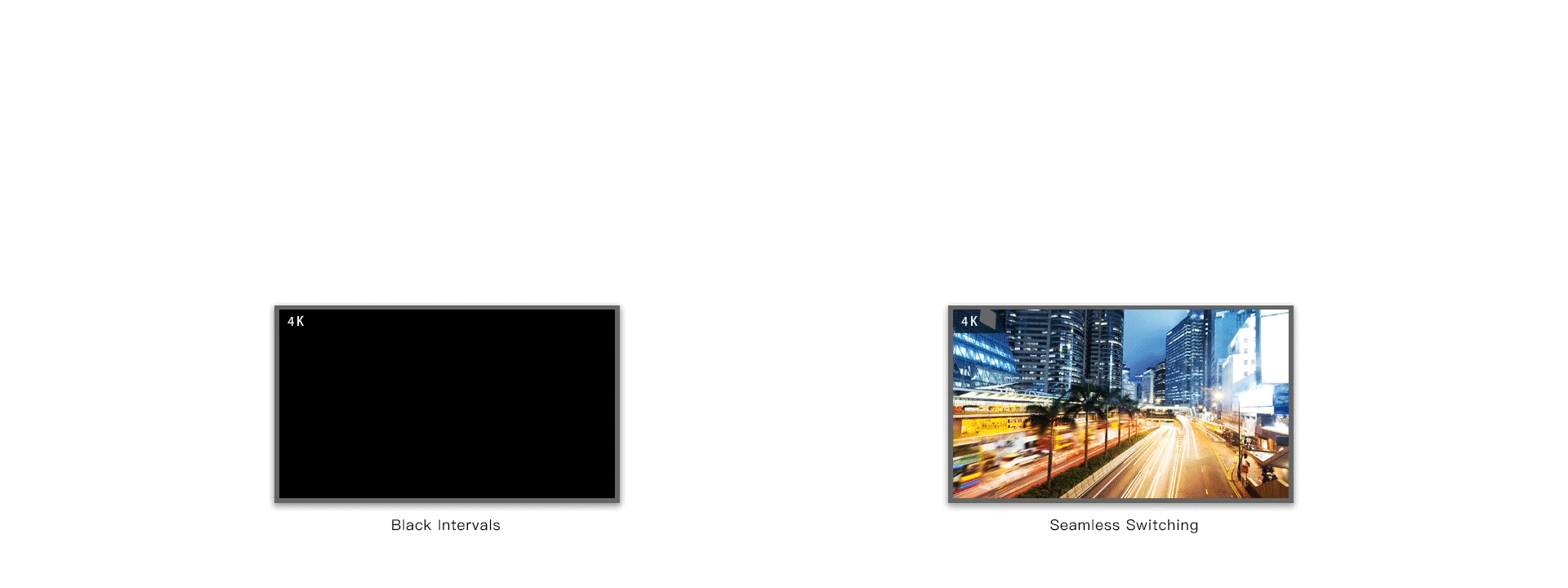

Seamless Switching

Supports seamless real-time switching, without black screen intervals or lag during the signal switching.

Datasheet

Model iWall 409R Gen2
Name HDMI 4K60Hz 4×9 Video Wall Controller
Inputs HDMI 2.0 x4; DP 1.2 x2; HDCP 2.2
Input max. video frequency 600MHz
Max. input resolution 4096×2160@60Hz
Input color depth 30bit, RGB444, YUV444
Outputs HDMI 1.3 x9 (≤15m)
HDMI 2.0 x1 (Loopout)
Output max. video frequency 165MHz
Max. output resolution 1920×1080@60Hz, 1920×1200@60Hz
Output color depth 24bit, RGB444
Control IR, RS232, PC software
Power DC 12V/5A
Consumption 36W
Storage/operation temp. -10~50ºC/ 0~80ºC
Chassis Metal
Dimension 437x182x44mm
G.W/ N.W 3.7KG/ 3.1KG
Package list 12V/5A Power adaptor x1
IR Receiver x1
IR remote x1
RJ45 cable x1
Warranty 3 years

Download

  • INFOBIT iWall 409R Gen2 User Manual V2.0.pdf

    2.56M 04-01-2024
  • iWall-409R V3.1 software.zip

    33.76M 20-02-2024
  • INFOBIT iWall 409R Gen2 Design Spec for integrators- designers V1.0.pdf

    0.17M 26-12-2023
