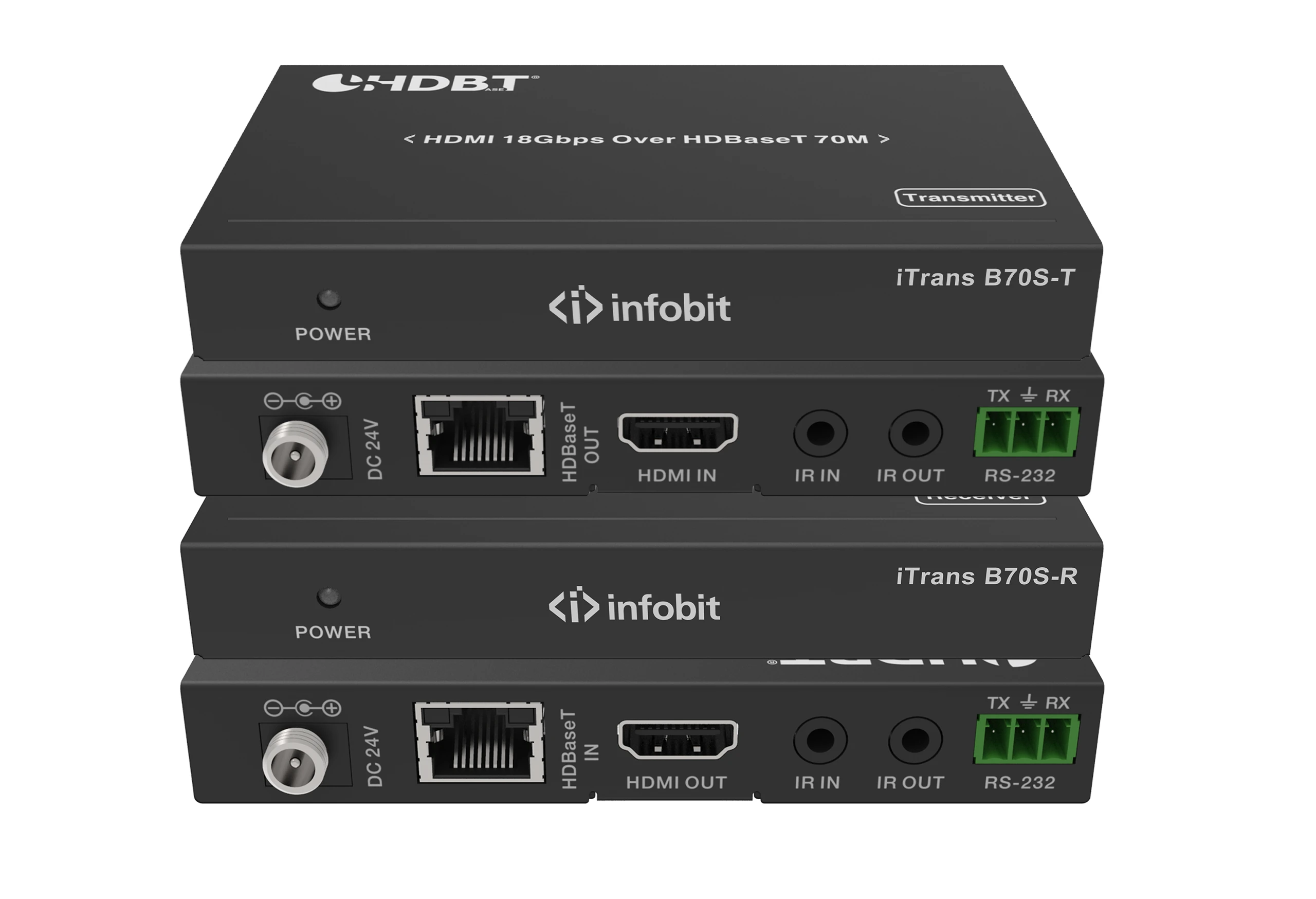

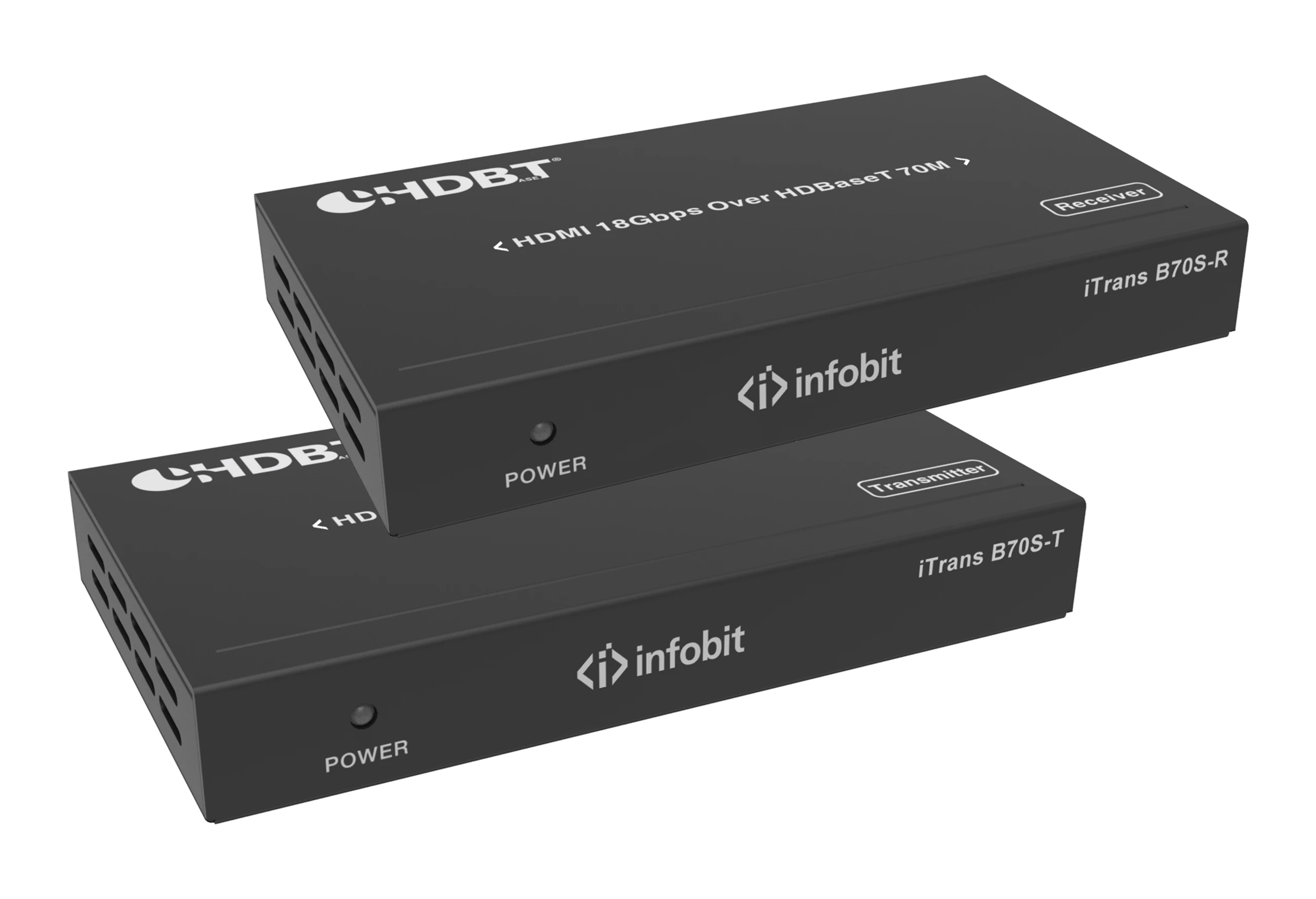

iTrans B70S
1- HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
2- Video resolutions up to 4K2K@50/60Hz (YUV444)
3- 10bits HDR (High Dynamic Range) pass through
4- Supports HDMI High Bit Rate(HBR) audio pass through
5- Supports CEC bypass
6- Optical audio supports LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH
7- POC (Power Over Cable) function is supported, either TX or RX is powered by 24V@1A power supply, the another does not need power
supply from the DC jack. POC Power consumption is less than 10W.
8- Transfer Bidirectional Infrared control signal together with the HDMI signal.
9- Transfer Bidirectional RS-232 control signal together with the HDMI signal.
10- Transmission distance: 70 meters 1080P @60Hz; 40 meters 4K2K@50/60Hz (YUV444)


Model iTrans B70S
Name 18Gbps HDMI over HDBaseT Extender
HDMI Compliance  HDMI 2.0b
HDCP Compliance  HDCP 2.2 and 1.4
Video Bandwidth  18Gbps
Video Resolution  Up to 4K@60Hz 4:4:4
Color Space  RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth  10/12bit
Audio Formats  HDMI: LPCM 2/5.1/7.1CH, Dolby Digital+, Dolby True HD, DTS 5.1, DTS-X,  DTS-HD Master Audio, Dolby Atomos
Optical: LPCM 2CH, LPCM5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH
ESD Protection  Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Transmission Distance  70m: Up to 1080P; 40m: Up to 4K60 4:4:4

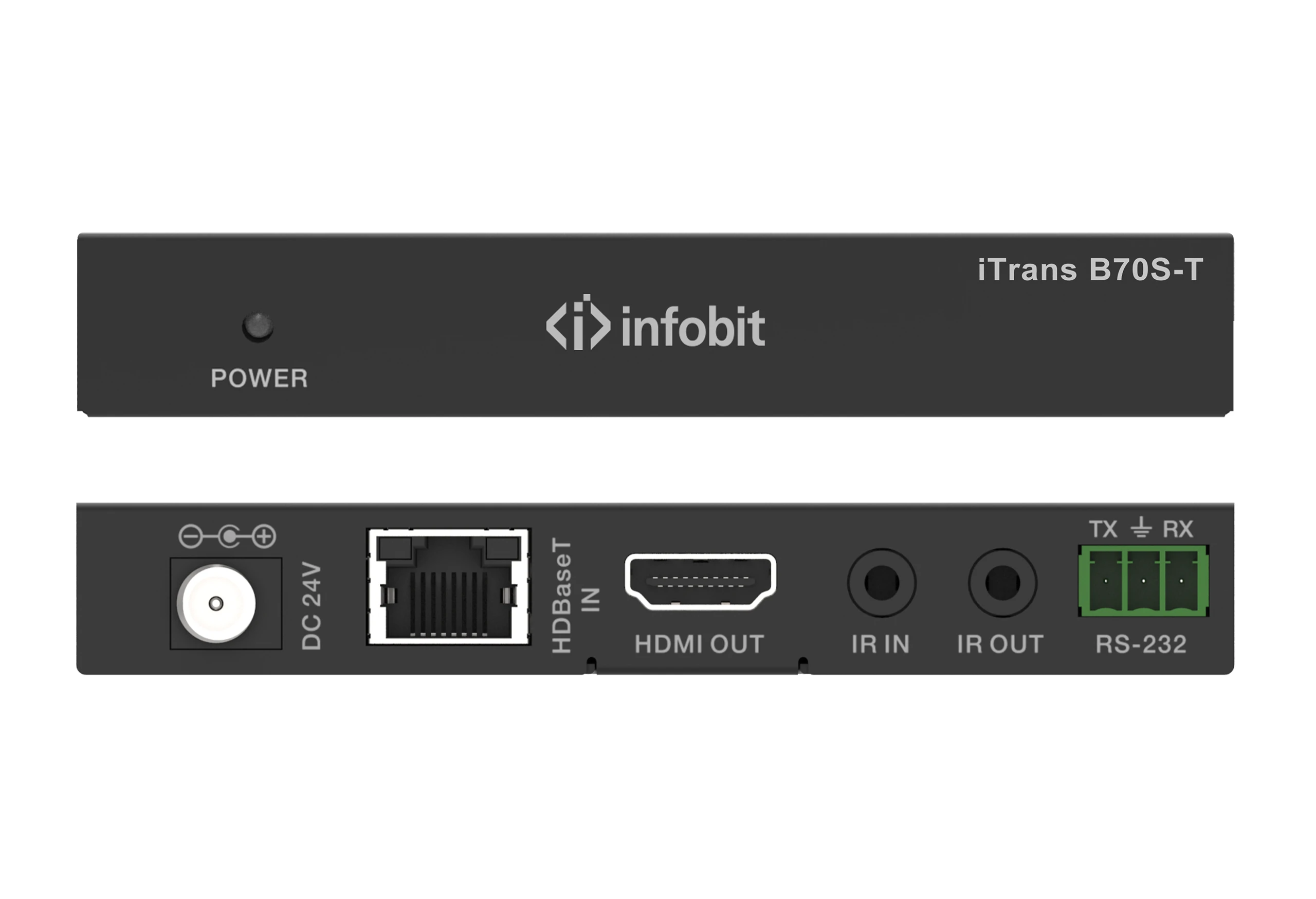

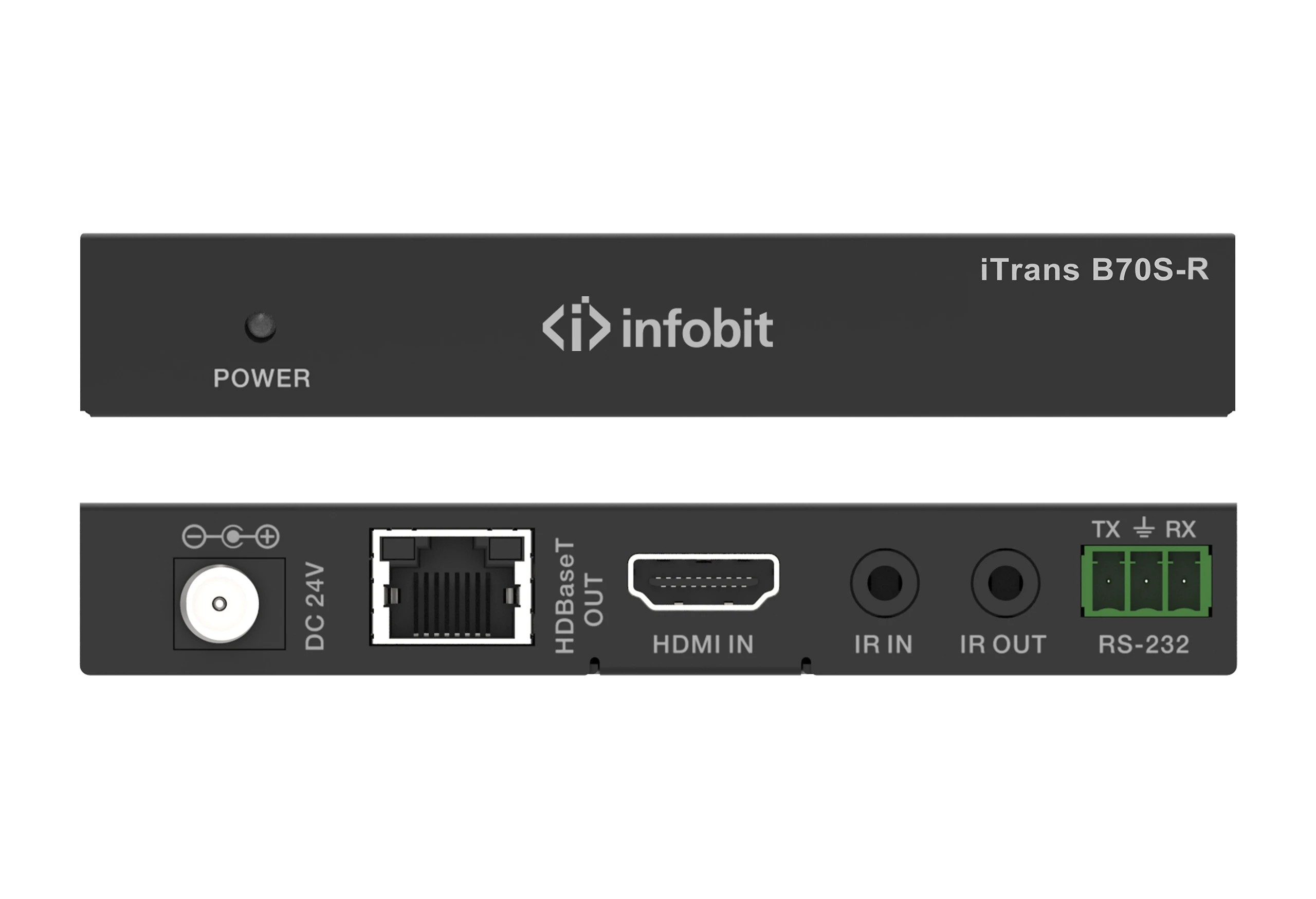

1 x HDMI IN [Type A, 19-pin female]
1x IR INPUT (3.5mm stereo Mini-jack)
1x RS-232 (Phoenix jack)

1 x HDBaseT IN [RJ45, 8-pin female]
1 x IR IN [3.5mm Stereo Mini-jack]
1 x RS-232 [3pin-3.81mm phoenix connector]


1 x HDBaseT OUT [RJ45, 8-pin female]
1x IR OUTPUT (3.5mm stereo Mini-jack)

1 x IR OUT [3.5mm Stereo Mini-jack]
1 x HDMI OUT [Type A, 19-pin female]

Housing Metal Enclosure
Color Black
Dimensions Transmitter or Receiver: 115mm [W] x 65mm [D] x 17mm [H]
Weight Transmitter or Receiver: 405g
Power Supply Input: AC 100 – 240V 50/60Hz
Output: DC 24V/1A (US/EU standard, CE/FCC/UL certified)
Power Consumption (Max) 24W max.
Operating Temperature 32 – 104°F / 0 – 40°C
Storage Temperature -4 – 140°F / -20 – 60°C
Relative Humidity 20 – 90% RH (no condensation)
