iSound PAD150
- Dante 2CH digital audio and Line balanced analog level inputs
- Dante 2CH digital audio, Line-balanced analog level and AMP outputs
- Built-in audio DSP processor, excellent signal-to-noise ratio, and ultra-low distortion rate
- Switching between Lo-Z and Hi-Z can be achieved to adapt to various types of speaker installation.
- In Lo-Z output mode, single channel 150W 8 Ω or dual channel 75W 4Ω/8Ω can be selected.
- In Hi-Z output mode, single channel 150W to 70V/100V can be provided.
- Independent input gain, output EQ and volume control
- 48KHz sampling rate, 24bit independent A/D and D/A converters
- 2x75W AMP out supports 4Ω/8Ω/70V/100V speaker
- 5-12V trigger input
- Auto standby
- Flexible control via RS-232, LAN and Web GUI

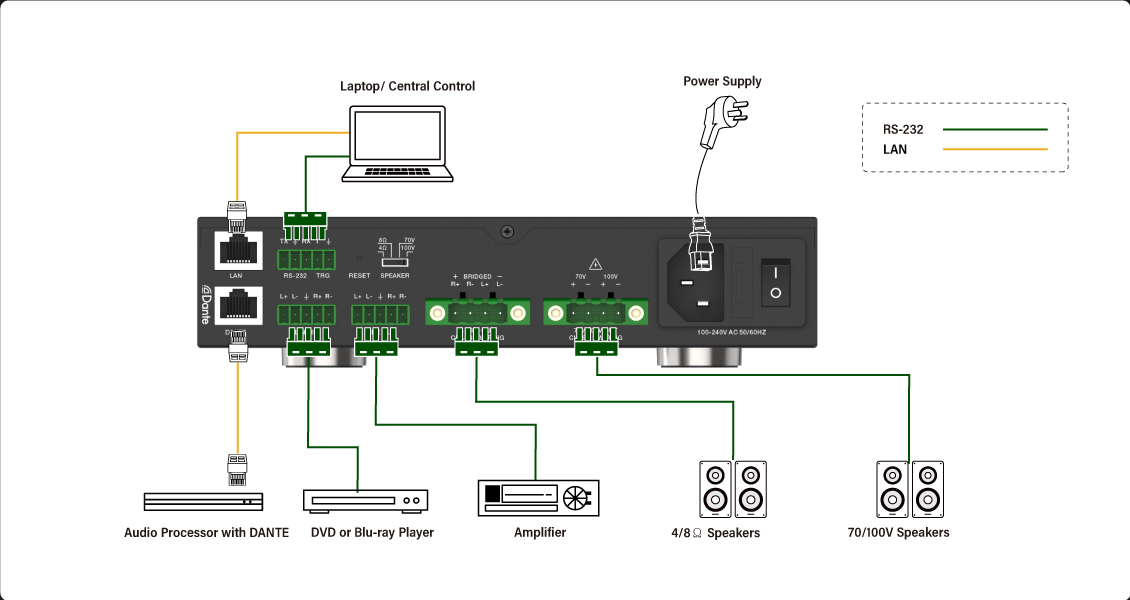

Diagram
Datasheet
| Model | iSound PAD150 |
| Name | 150W Class D Amplifier with DSP and Dante |
| Input | 1x Dante Network audio input 1x LINE balanced stereo 0dBu/10kΩ input |
| Output | 1x Dante Network audio output 1x Stereo or constant voltage 70V/100V speaker output 1x LINE balanced stereo output |
| Input Sensitivity | Full power@0.775V (0dBu) |
| Output Power | DC power supply: 2x 75W@4Ω/8Ω; 1x 150W@8Ω; 1x 150W@70V/100V |
| Maximum Voltage Gain | 27－30dB SE/39－42dB BTL |
| Amplifier Type | D Class |
| Frequency Response | 20Hz ~ 20kHz @ ±3dB |
| Signal to Noise Ratio | 87dB 0dBu, 20Hz-10kHz |
| THD+N | THD+N (1KHz@1W) 0.04% |
| Control | RS-232, Web GUI |
| Video Network Bandwidth | 100M |
| Audio Format | LINE IN [Analog audio, Balanced 2CH, Max input level 2VRMS] LINE OUT [Analog audio, Balanced 2CH, Max output level 2VRMS] DANTE [Digital audio 2×2 in/out, PCM 2CH 44.1K-96KHz 16/24Bit] AMP OUT [Analog audio, Balanced 2CH, Max output level 24.5VRMS] 70V/100V AMP OUT [Analog audio, Unbalanced 1CH, Max output level 70V/100VRMS] |
| Transmission Distance | 328ft/100m |
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge) |
| Input connectors | 1x LINE IN [5pin-3.81mm Phoenix Connector] 1x DANTE [RJ45 connector] |
| Output connectors | 1x LINE OUT [5pin-3.81mm Phoenix Connector] 1x 4/8Ω AMP OUT [MSTB 2.5-GF-5.08, 4-pin locking phoenix, 5.08mm] 1x 70V/100V AMP OUT [MSTB 2.5-GF-5.08, 4-pin locking phoenix, 5.08mm] |
| Control connectors | 1x RS-232/TRG [5pin-3.81mm phoenix connector] [TRG: 5-12V trigger input to turn on/off the amplifier] 1x LAN [RJ45 connector] |
| Housing | Front panel: Aluminum; Rear case: Metal Enclosure |
| Color | Black |
| Dimensions | 240mm [W]×210mm [D]×44mm [H] |
| Weight | 1.88Kg |
| Power Supply | DC Input: AC100 – 240V 50/60Hz |
| Power Consumption | 150W (Max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20%~90% RH (non-condensing) |
