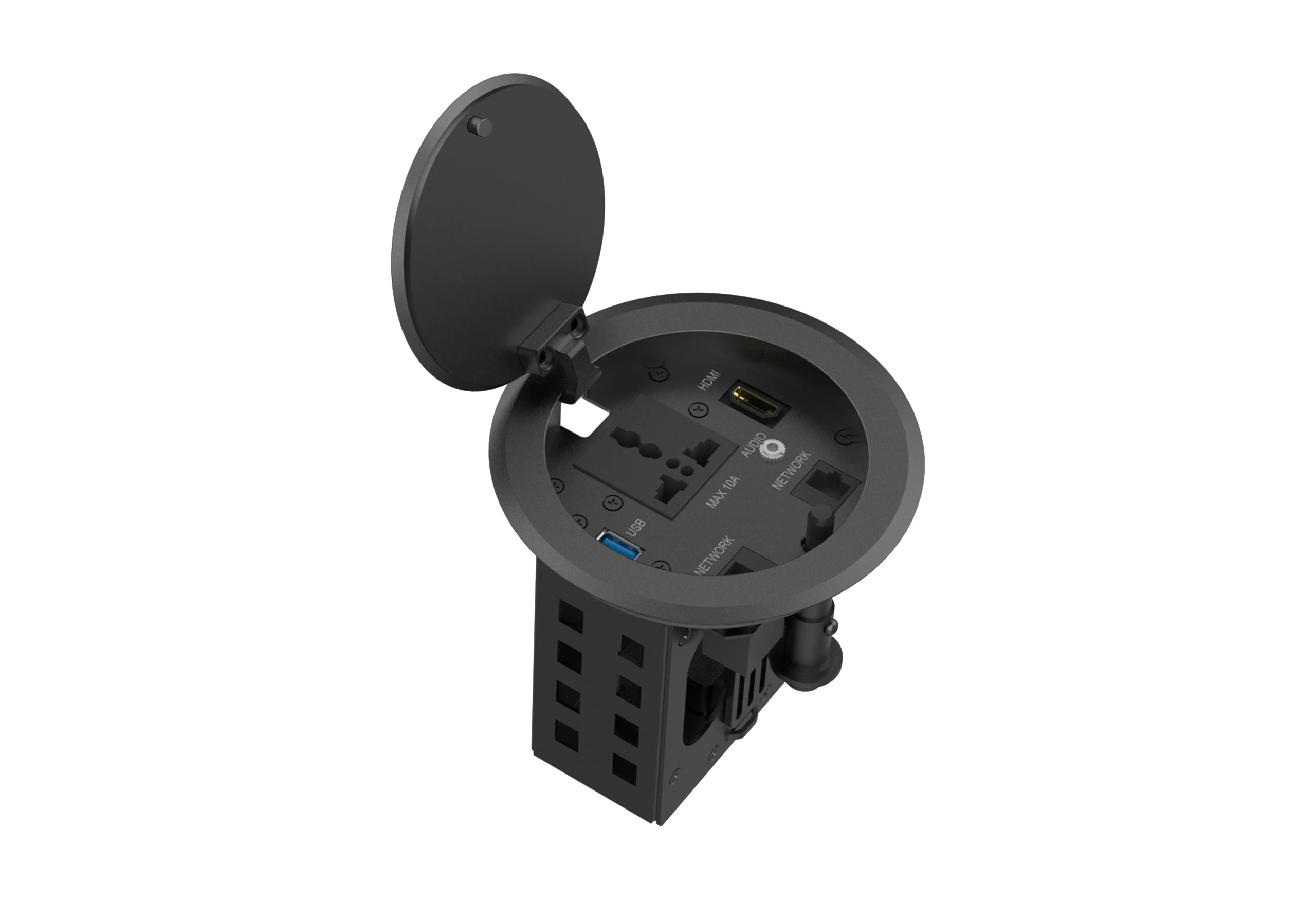

The INFOBIT AV iBox TP Table Box provides an extremely simple, but stylish round pneumatic pop−up multi−connection conference room connectivity solution.

• Multi connectivity ports
• Pneumatic Lift Pop-up Lid
• Stylish and discreet design
• Sandblasted anodized aluminum top finish
• Universal power socket is compatible with all sorts of power plugs
• Easy to install and terminate

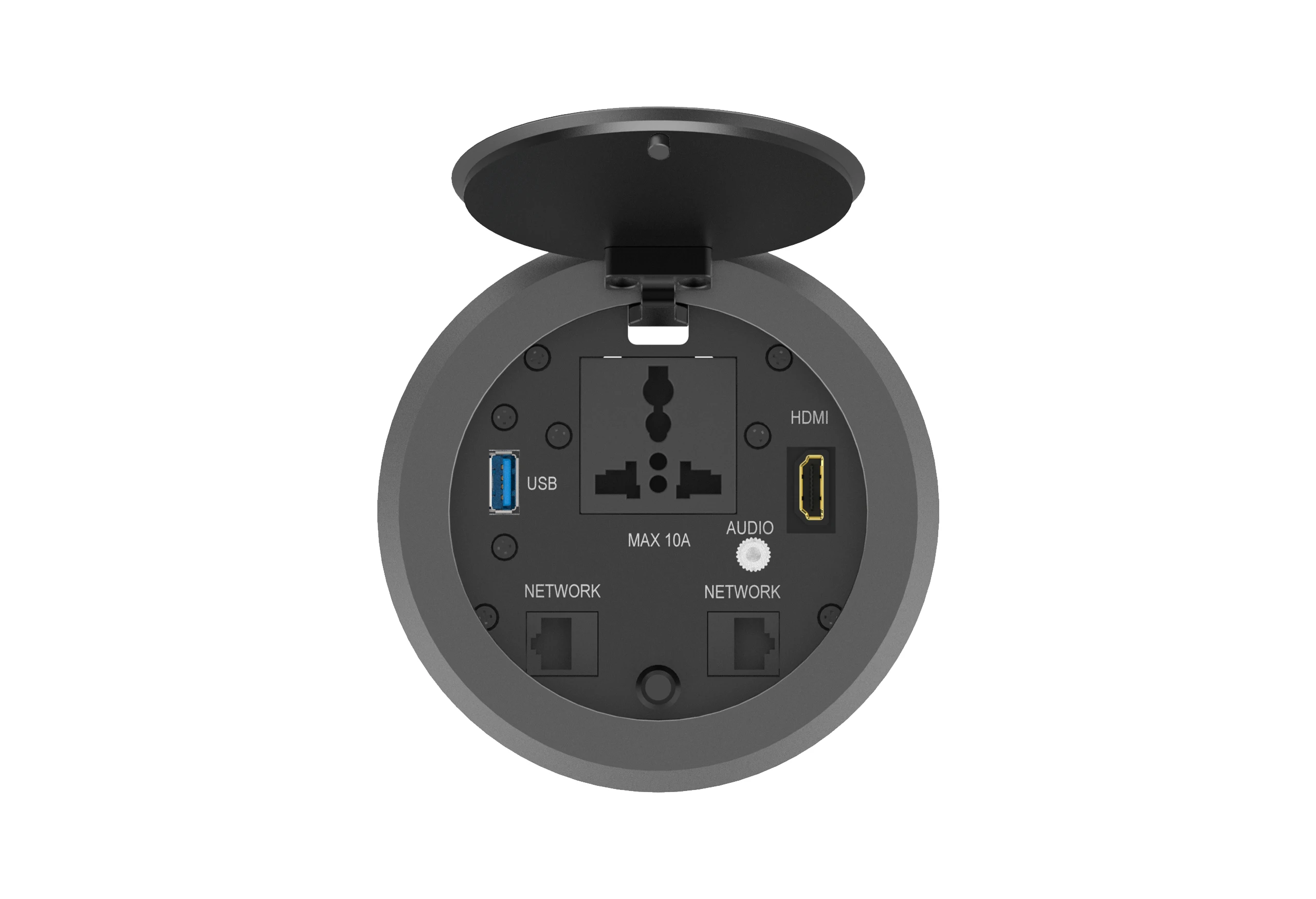

• 1x Universal Power Socket, 1x HDMI, 1x USB A charging, 1x 3.5mm Audio, 2x RJ45

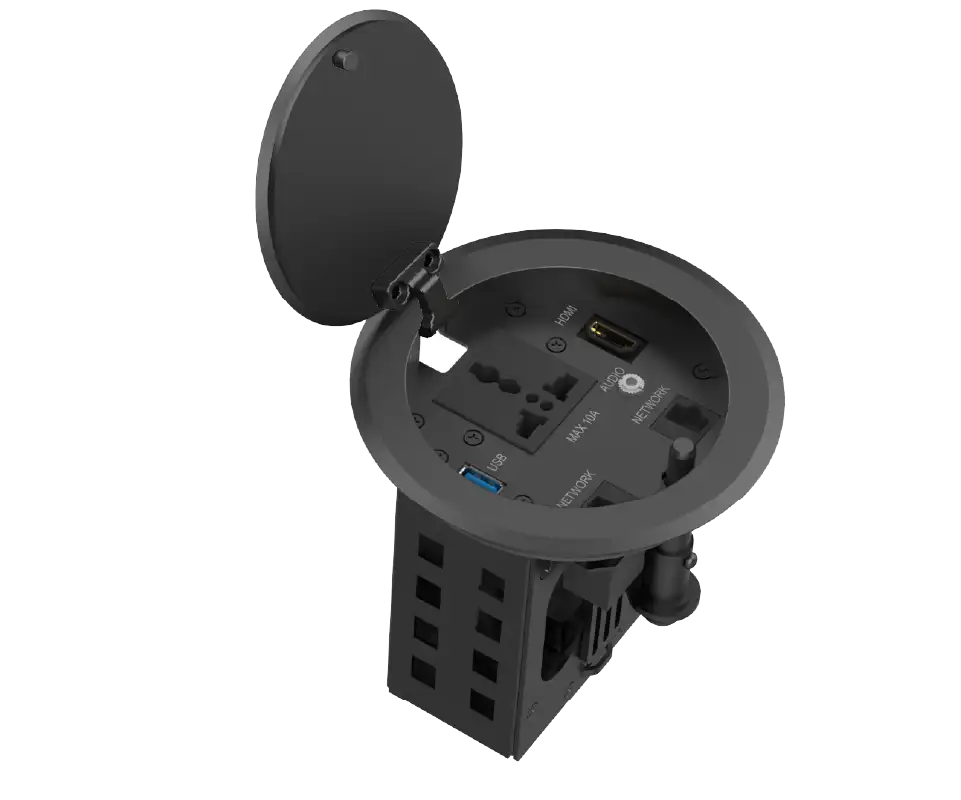

Stylish and discreet design

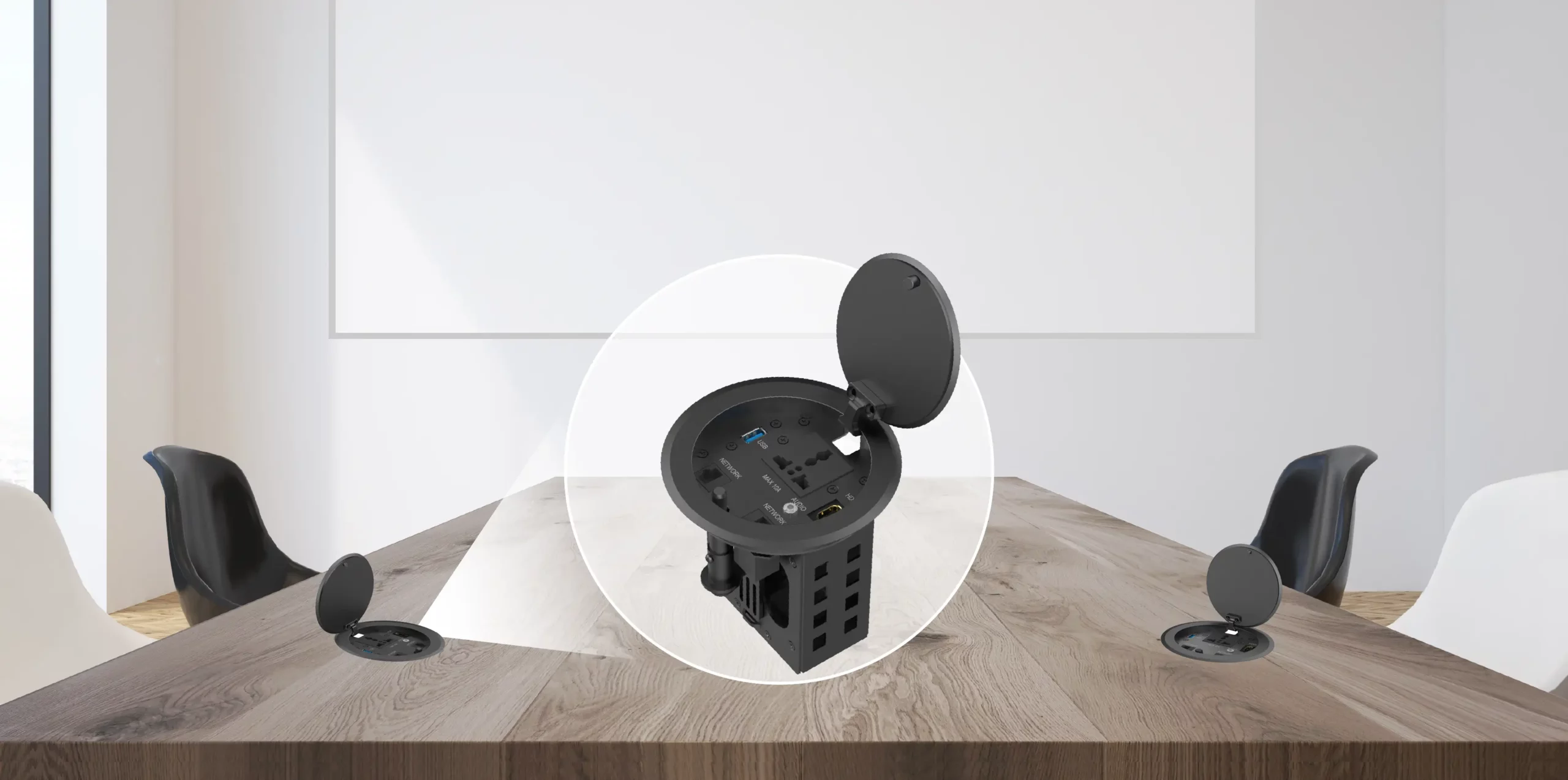

It is an In-Desk Mount Connectivity Box which can be flush mounted into a desk or boardroom table
to provide discreet, out-of-the-way storage and connectivity of a wide range of AV inputs and outputs.

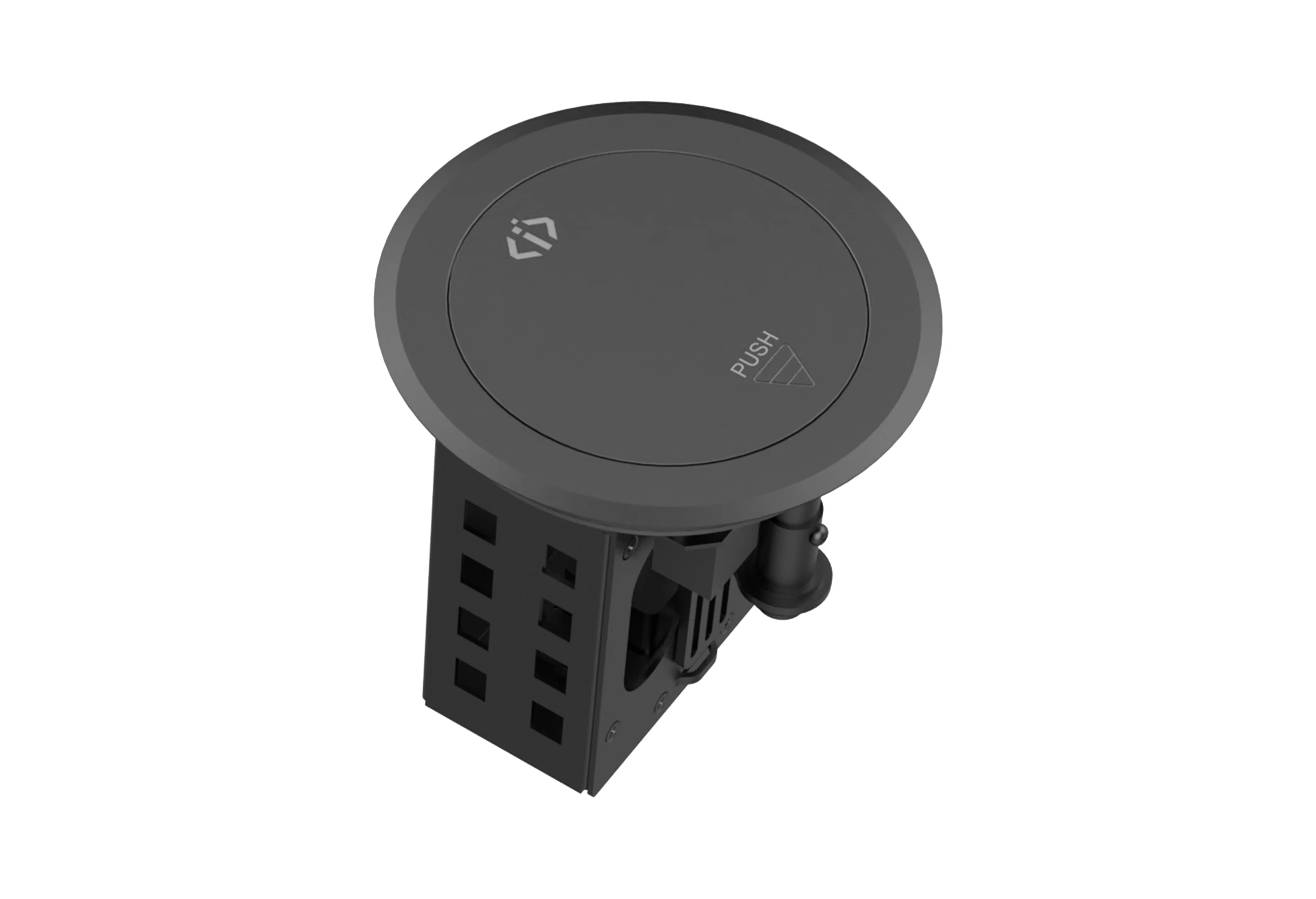

By pressing down gently on the lid, the unit opens and closes pneumatically.
It is fast and easy to install and maintenance making it
ideal for any conference room, classroom and meeting room


Model iBox TP
Name INFOBIT Table Box w/ Pop-up lid
Dimensions 141x150x128mm
Cut out size φ115mm
Connectivity Ports 1 Universal power socket, 1 charging USB, 1 HDMI, 1 3.5mm, 2 RJ45
Power Input AC 110V to 250V, 50/60Hz
Operating Temperature 0~40 degrees Centigrade
Operating Humidity 10%-90% non-condensing
Storage Temperature -20~60 degrees Centigrade
Storage Humidity 10%~90% non-condensing
Color Black, sandblasted anodized finish
Warranty 2 years


  • iBox TP Datasheet_V1.0.pdf

    0.12M 02-04-2022
  • Installation Instructions- iBox TP, TW, TPC, TPV.pdf

    0.93M 20-04-2023
