iSpeaker A20---B
iSpeaker A20

Digital Speakerphone Kit

iSpeaker A20
iSpeaker A20
iSpeaker A20
iSpeaker A20
iSpeaker A20
iSpeaker A20
iSpeaker A20
iSpeaker A20
iSpeaker A20

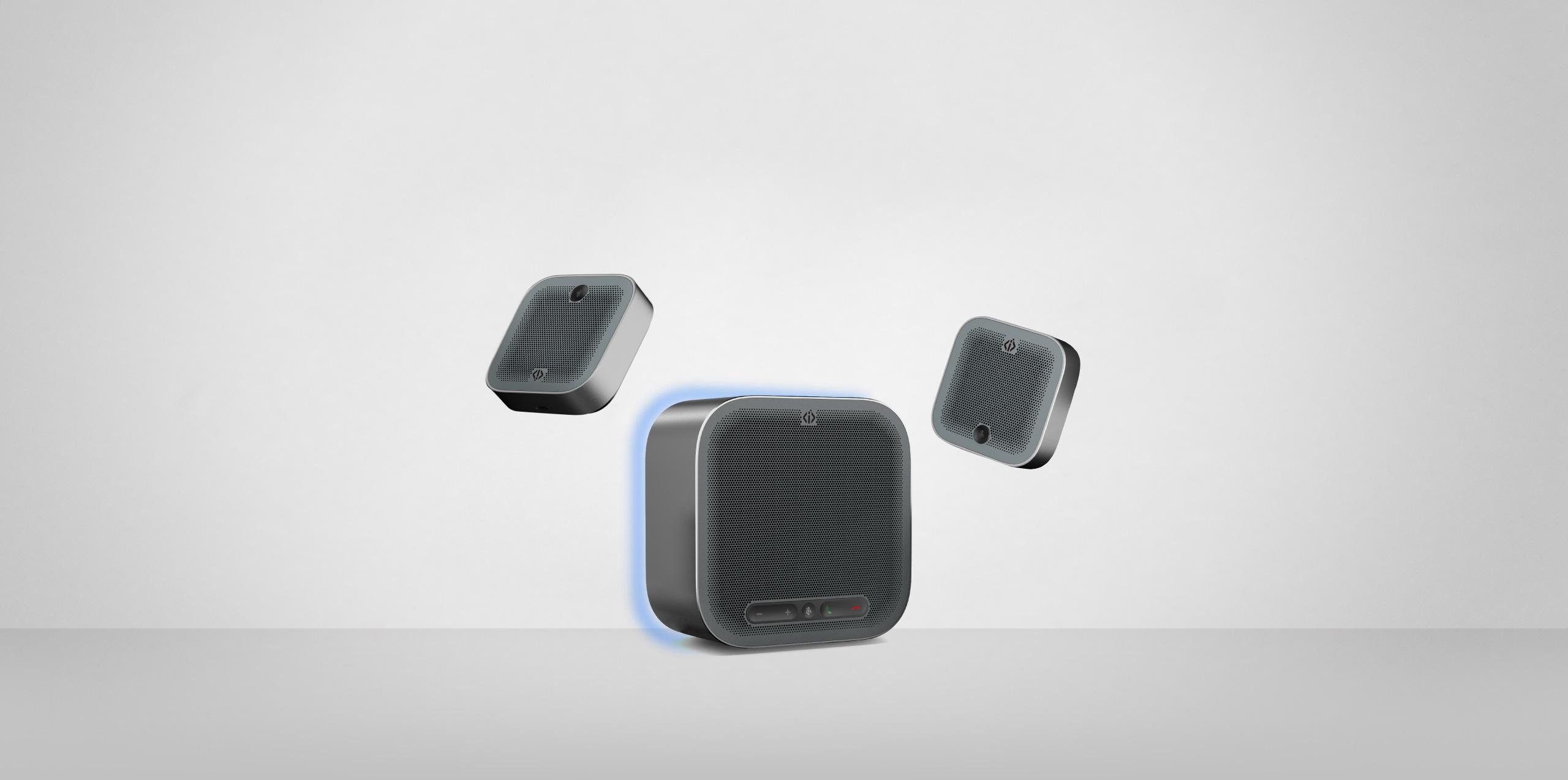

One host speakerphone (w/ 4 mic array) and two expansion mics ( w/ 1 mic array each)

Built-in AI beam-forming algorithm, precisely locates the source of the soun

Effectively eliminate the background noise (cough, mouse-clicking, knocking, fan, typing and etc)

For full duplex calls, echo cancellation

Max voice pickup range could be 100㎡

Plug and play, with tidy cable management

Effective pickup radius 10m

Reverberation suppression

Touch-button control

iSpeaker A20
iSpeaker A20
iSpeaker A20
iSpeaker A20
 4+2 Digital microphone array
4+2 Digital microphone array
One host speakerphone (w/ 4 mic array) and two expansion mics ( w/ 1 mic array each), effective pickup radius 10m
 Next generation AI noise reduction
Next generation AI noise reduction
Effectively eliminate the background noise (cough, mouse-clicking, knocking, fan, typing and etc)
 For large meeting room
For large meeting room
 For medium meeting room
For medium meeting room
 For small meeting room
For small meeting room

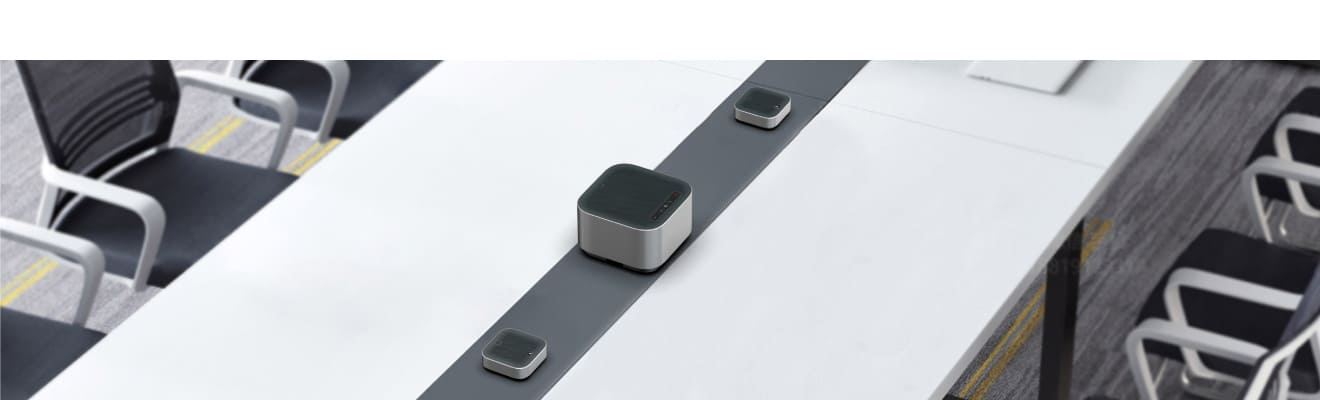

 Plug and play, tidy cable management
Plug and play, tidy cable management
With the minimal configuration, plug and play, allow user to quick deploy the conferencing system. Tidy cable management, away from the messy desk.

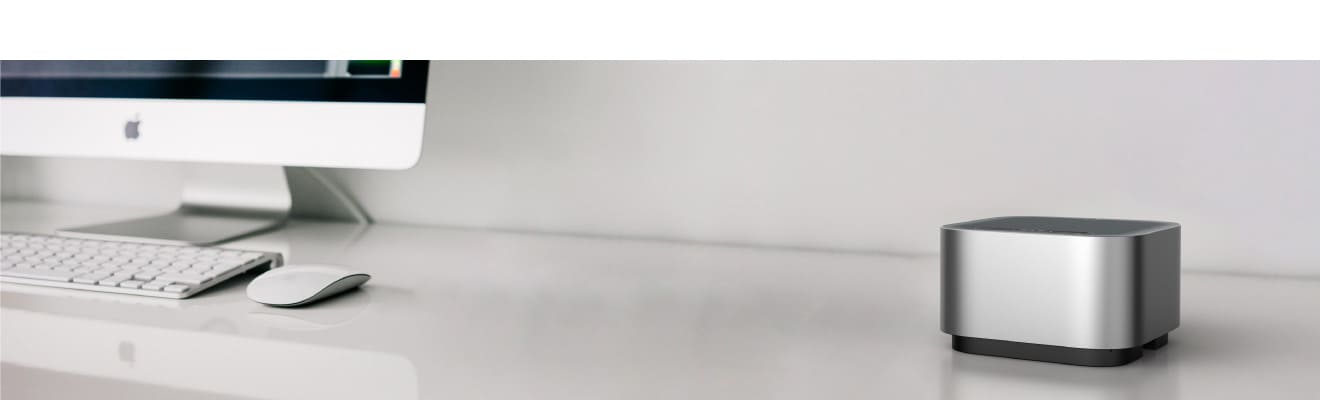

 Professional acoustic design
Professional acoustic design
A10 is equipped with a professional high-fidelity acoustic design sound box, with well-tuned tweeter and woofer units, can deliver clear, natural sound.
Datasheet
Model number iSpeaker A20
Product name USB Omnidirectional Speakerphone
Cover area 20-100㎡
Attendance 6-20 attendees
Connection type USB2.0
Microphone
Microphone type Omnidirectional digital microphone
Microphone array 6*Built-in microphone(Host Mic:4*MEMS mic, Ext Mic:2*MEMS mic)
Pickup distance Effective pickup radius 10m (Ext microphones work mode)
Frequency response 50Hz~16kHz
SNR 68dB
Sensitivity -35dBFS 94dB SPL @1KHz
Speaker
Speaker type Full frequency speaker
Consumption 15W
Frequency range 50Hz ~ 20kHz
Volume 89dBA @1m
THD total harmonic distortion <3%
Audio
Audio feature 32K sampling rate, HD broadband audio, full duplex voice
USB protocol UAC2.0
AEC Support, AI-driven
ANS Support, AI-driven, Maximum noise suppression: 90dB
AGC Support, Intelligent gain adjustment within 10 meters, clear sound pickup
Reverberation suppression Support, AI-driven
Interface
USB Type C port 1*Type C, for PC connection, 1.0m cable
2*Type C, for external mic connection, 2.0m cables
Power supply DC12V/3A, external PSU for power supply
Button Touch-button(Volume+/-, Call On/off, Mute, with indicator light)
General spec
Size 150m*150mm* 89mm (host mic), 80m*80mm*25mm (Ext mic)
Weight Host mic: 1.23kg, Ext mic: 0.13kg
Environment Temp.:0°C ~ 40°C (Operation), -40°C ~ 60°C (None-operation)
Humidy:45% ~ 90% (Operation), 30% ~ 90% (None-operation)
Certification CE, RoHS, FCC
Packing list 1*Host speakerphone
2*Ext microphones
1*USB cable for host microphone
2*USB cables for ext microphone
1*AC adapter
1*Manual
Download
  • INFOBIT iSpeaker A20 Brochure V1.0.pdf
    5.11M
    2024-08-30
  • INFOBIT iSpeaker A20 User manual V1.0
    2.31M
    2024-08-30
  • INFOBIT iSpeaker A20 Datasheet V1.0.pdf
    0.33M
    2024-08-30
Related Video
iSpeaker A20 Noise Fence Technology test demo
INFOBIT Noise-Fence is a set of technologies designed to keep non-human noises (e.g. keyboard/mouse typing, paper shuffling, plastic bag rustling sounds, etc.) from impacting INFOBIT-powered video and audio calls.
