iTrans F1000

HDMI 4K60 18Gbps Optical Fiber Extender with Audio Extracting

18Gpbs

18Gpbs

IR

IR

4K60

4K60

HDMI

HDMI

iTrans F1000
iTrans F1000
iTrans F1000
iTrans F1000
iTrans F1000
iTrans F1000
iTrans F1000

HDMI 4K60 18Gbps Optical Fiber Extender with Audio Extracting

HDMI 2.0b, HDCP 2.2 and DVI 1.0 compliant

Support 18Gbps video bandwidth

Video resolution up to 4k2k@50/60Hz 4:4:4

HDMI audio formats: LPCM2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

Support 3D and HDR format video, without CEC control

Transmission distance up to 33,000 feet/10 km (over single-mode fiber cable)

Support bi-directional IR control, RS-232 pass-through, and EDID management for simple and convenient control

The transmitter supports loop output (sharing local HD video and audio) and audio embedding function

The receiver supports audio extracting

Compact design for easy and flexible installation

iTrans F1000
iTrans F1000
iTrans F1000
Datasheet
Model iTrans F1000
Name HDMI 4K60 18Gbps Optical Fiber Extender with Audio Extracting
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2
Video Bandwidth 18Gbps
Video Resolution 480i ~1080p50/60Hz, 4Kx2K@24/30Hz, 4k2k@60Hz
Color Space RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
Color Depth 8-bit, 10-bit, 12-bit
HDMI Audio Formats  LPCM2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD,  Master Audio, DSD
Transmission Distance Up to 33000 feet/10 km over single-mode fiber cable
IR Frequency  20KHz-60KHz
RS-232 4800-115200bps
ESD Protection Human body model — ±8kV (Air-gap discharge) &
±4kV (Contact discharge)

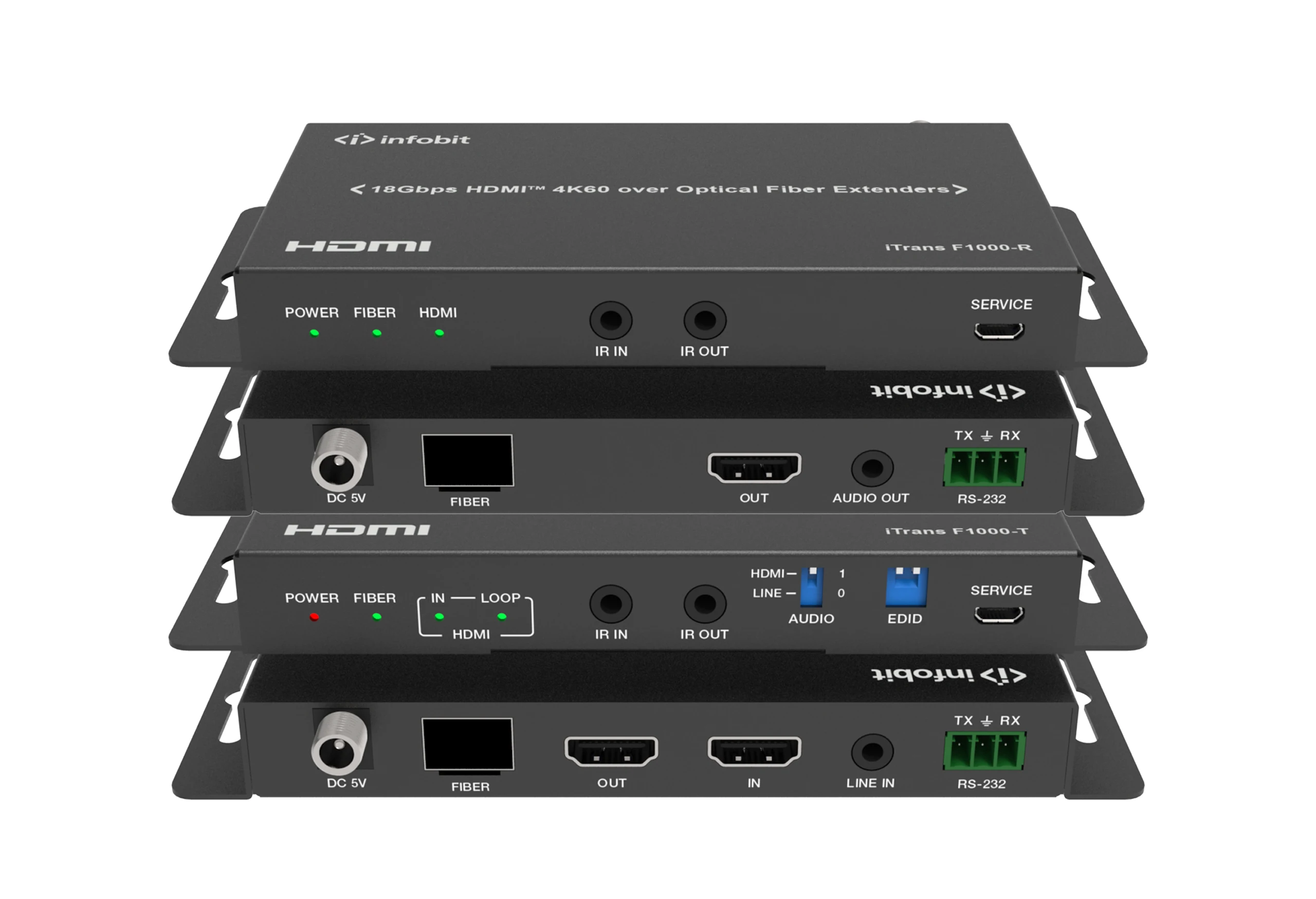

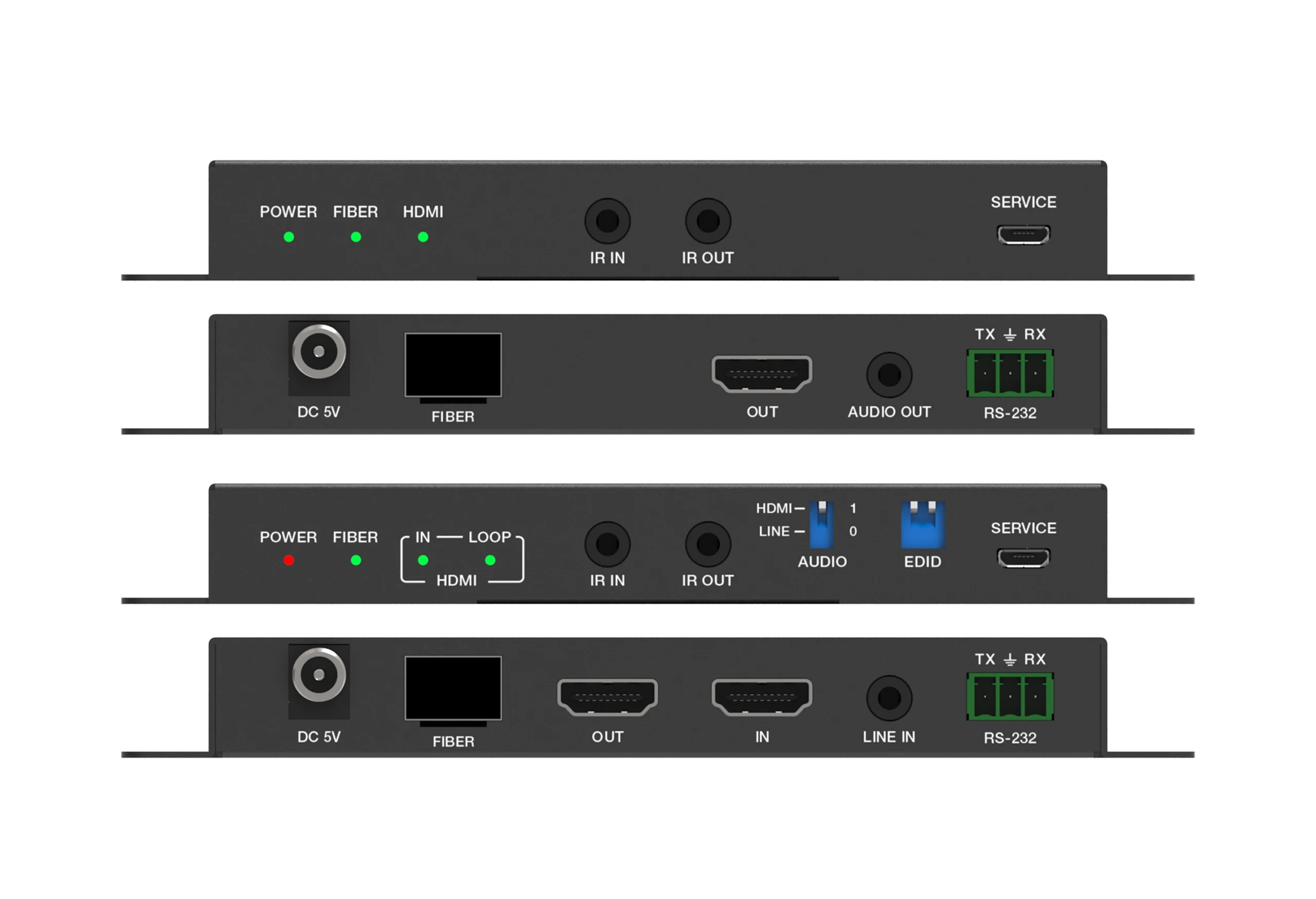

Transmitter Input:
1 x HDMI IN [Type A 19-pin female]
1 x LINE IN [3.5mm Stereo Mini-jack]
1 x IR IN [3.5mm Stereo Mini-jack]
1 x RS-232 [3.81mm Phoenix connector]
1 x SERVICE [Micro USB, Update port]
Output:
1 x HDMI OUT [Type A 19-pin female]
1 x Optical Fiber Out [LC female]
1 x IR OUT [3.5mm Stereo Mini-jack]
Receiver Input:
1 x Optical Fiber In [LC female]
1 x IR IN [3.5mm Stereo Mini-jack]
1 x SERVICE [Micro USB, Update port]
Output:
1 x HDMI OUT [Type A 19-pin female]
1 x RS-232 [3.81mm Phoenix connector]
1 x IR OUT [3.5mm Stereo Mini-jack]
1 x AUDIO OUT [3.5mm Stereo Mini-jack]
Housing Metal Enclosure
Color Black
Dimensions Transmitter / Receiver:
134mm [W] x 68mm [D] x 18mm [H]
Weight Transmitter: 280g, Receiver: 278g
Power Supply Input: AC 100 – 240V 50/60Hz
Output: DC 5V/1A
Power Consumption Transmitter: 3.85 W (Max), Receiver: 2.7 W (Max)
Operating Temperature  0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature  -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20~90% RH (non-condensing)

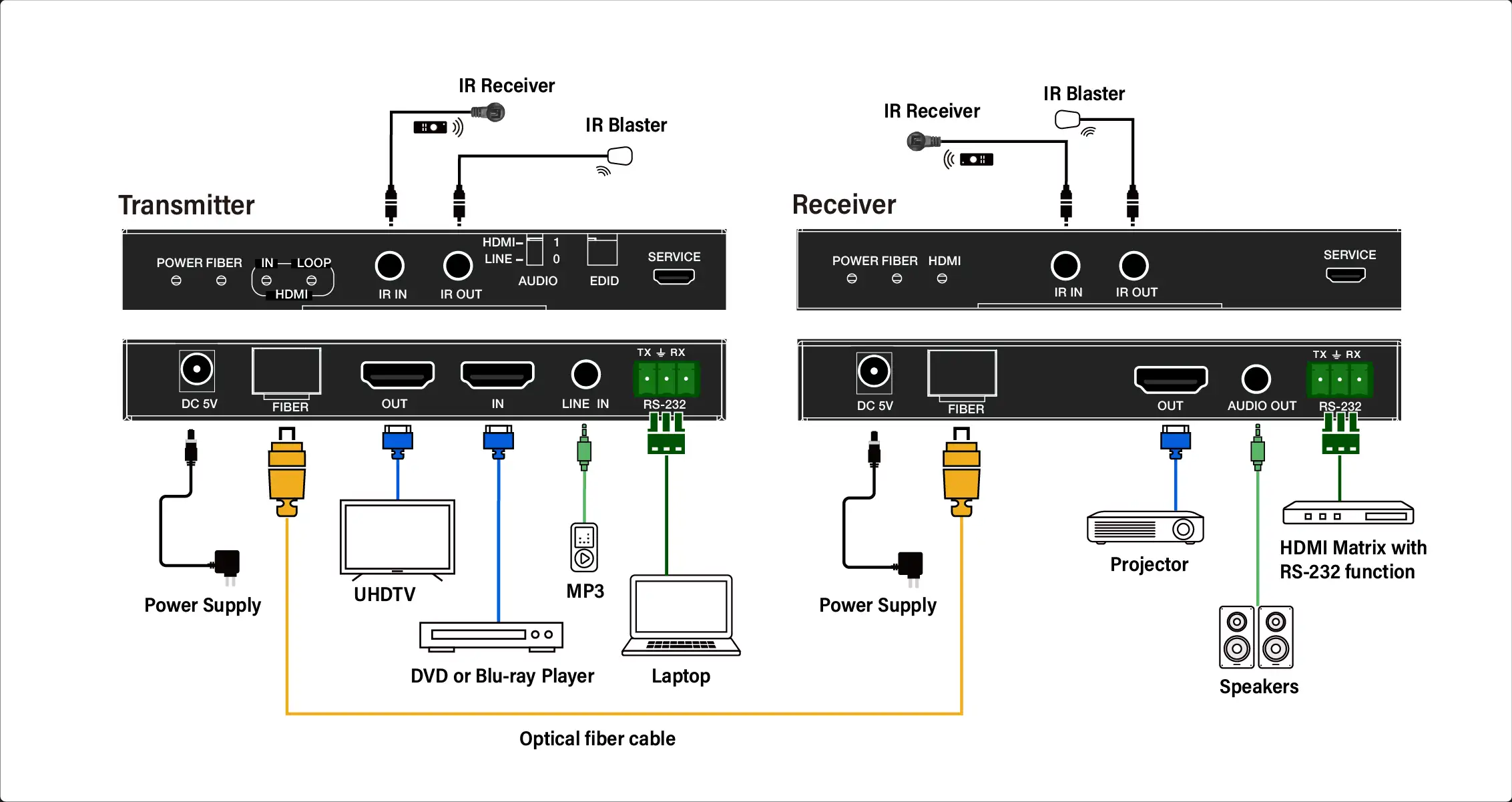

Diagram
Download
  • iTrans F1000 User Manual_V2.0.pdf
    7.78M
    2024-09-10
