| Name |

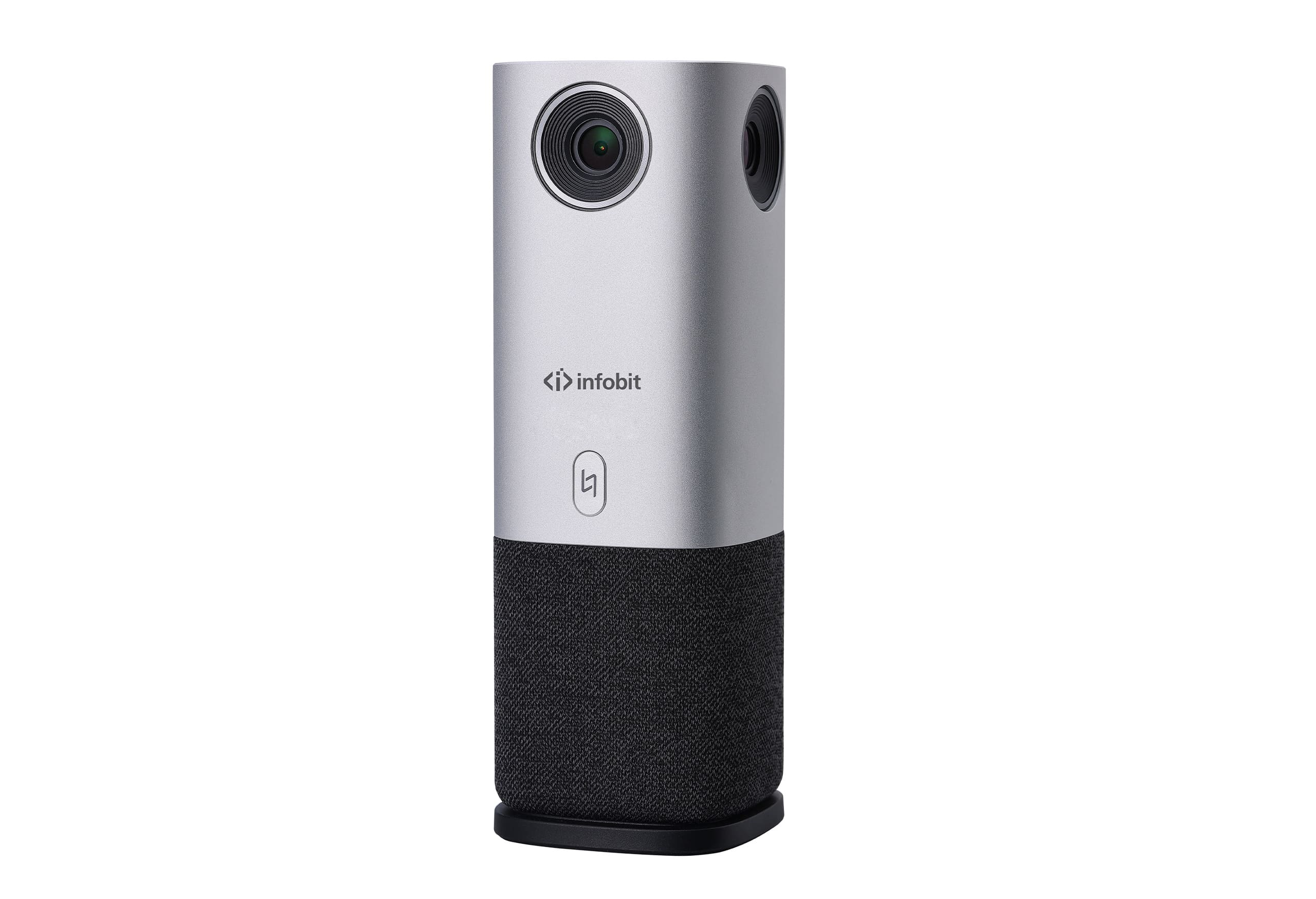

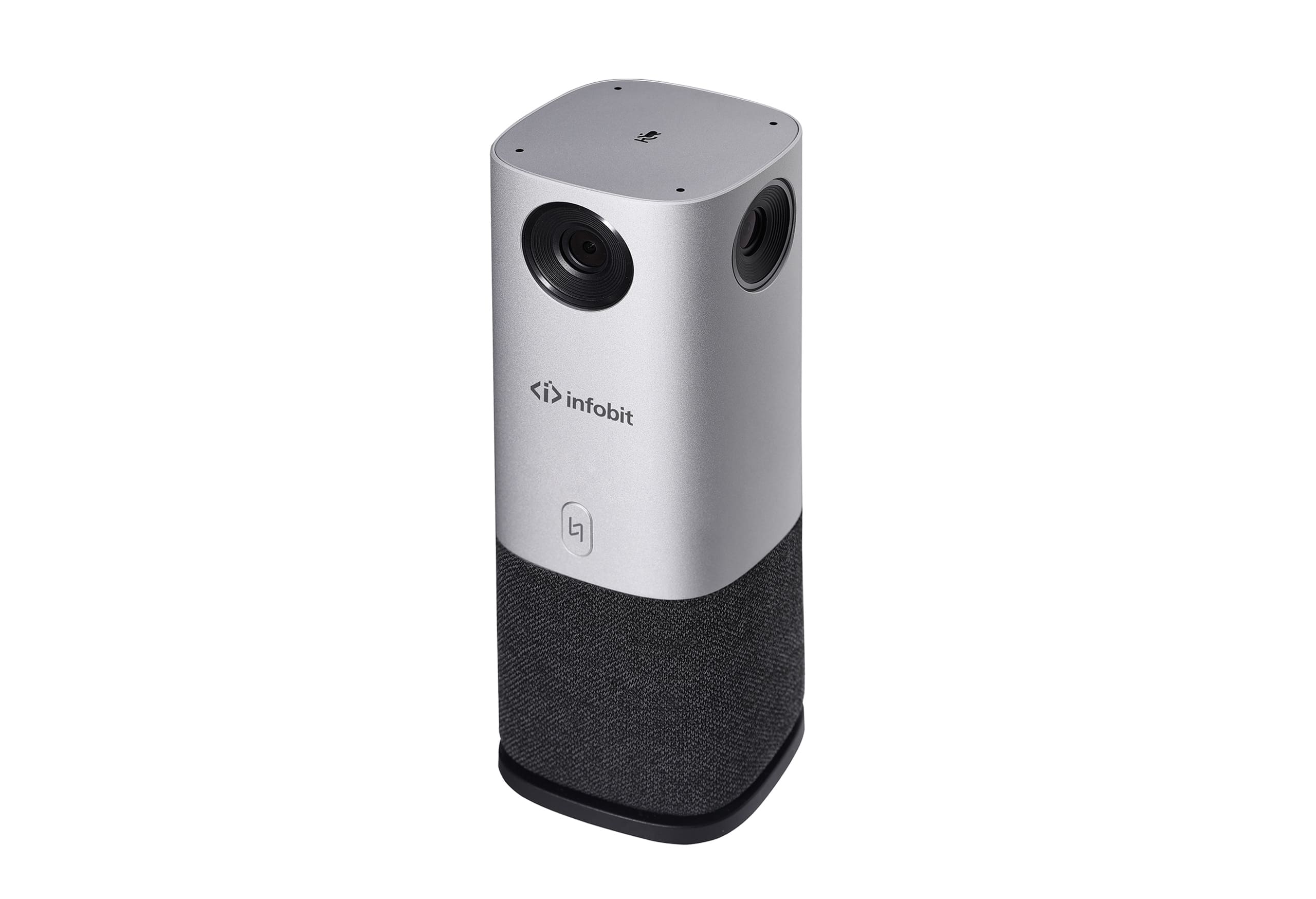

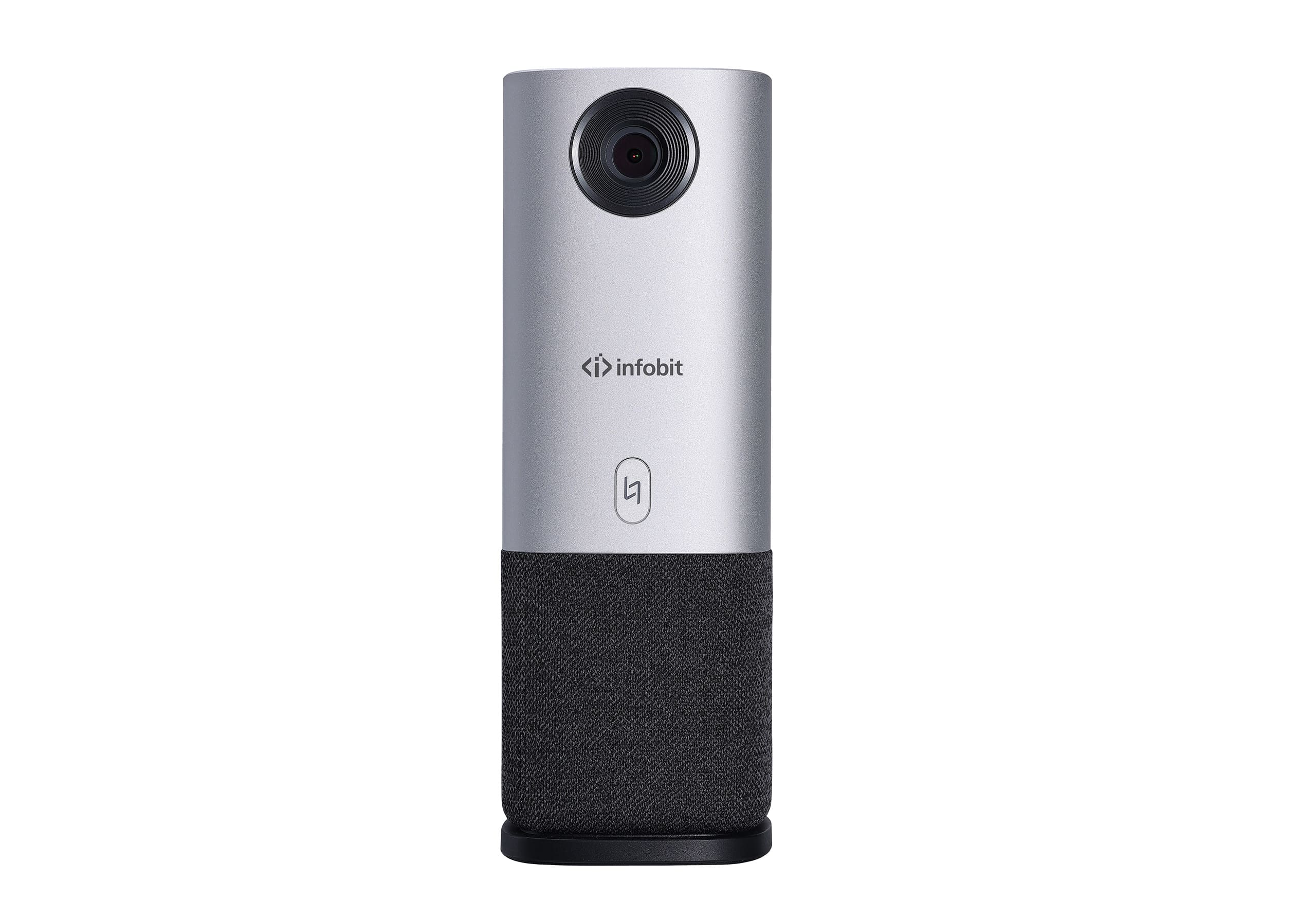

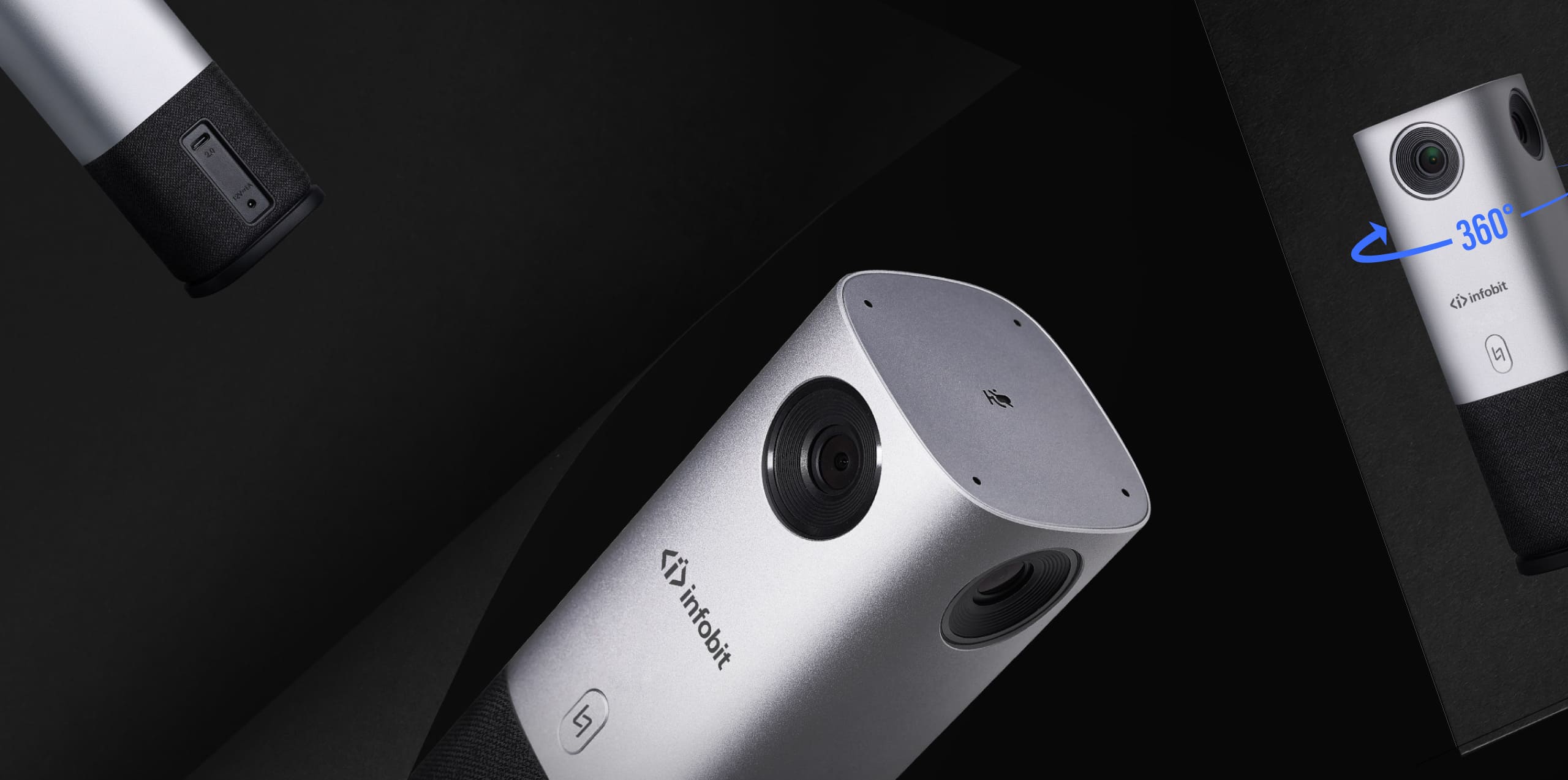

INFOBIT 360° Panoramic All-in-One Conference Camera |
| Model |
iCam 360 |
| Image Sensor |
1/2.7” CMOS Sensor |
| Max Frate Rate |
2592H x 1944V @30fps 10 bits |
| Field of View |
140° (D), 140° (H), 103° (V) |
| Hareware Out |

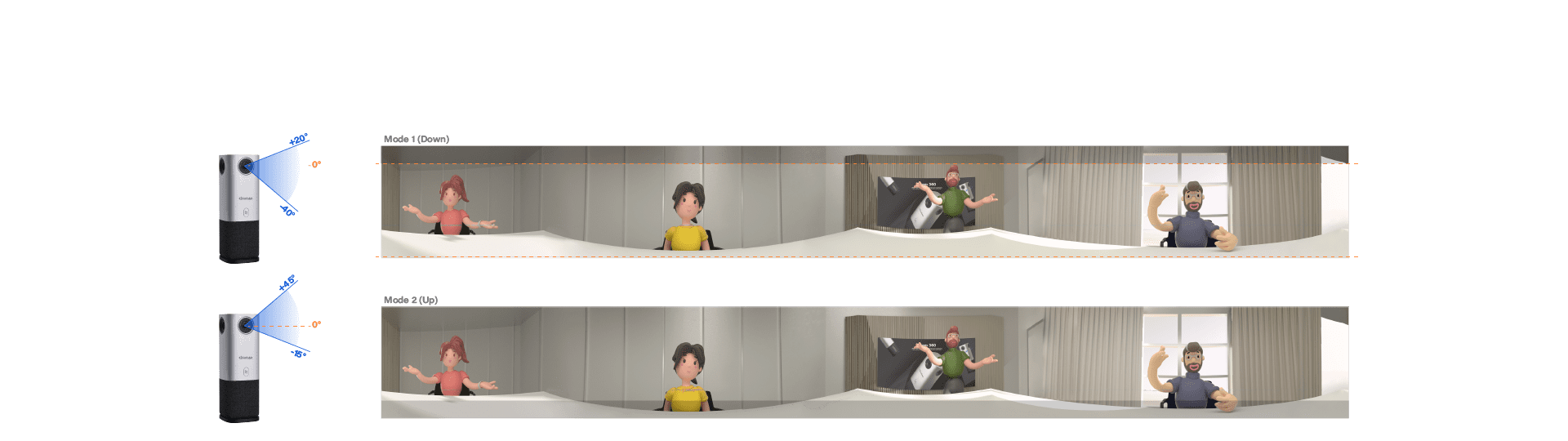

4992×928/30fps (Panorama Only) |
| 1920×1080@30fps, 1280×720@30fps, 640×360@fps (Panorama, Top Down,Panning) |

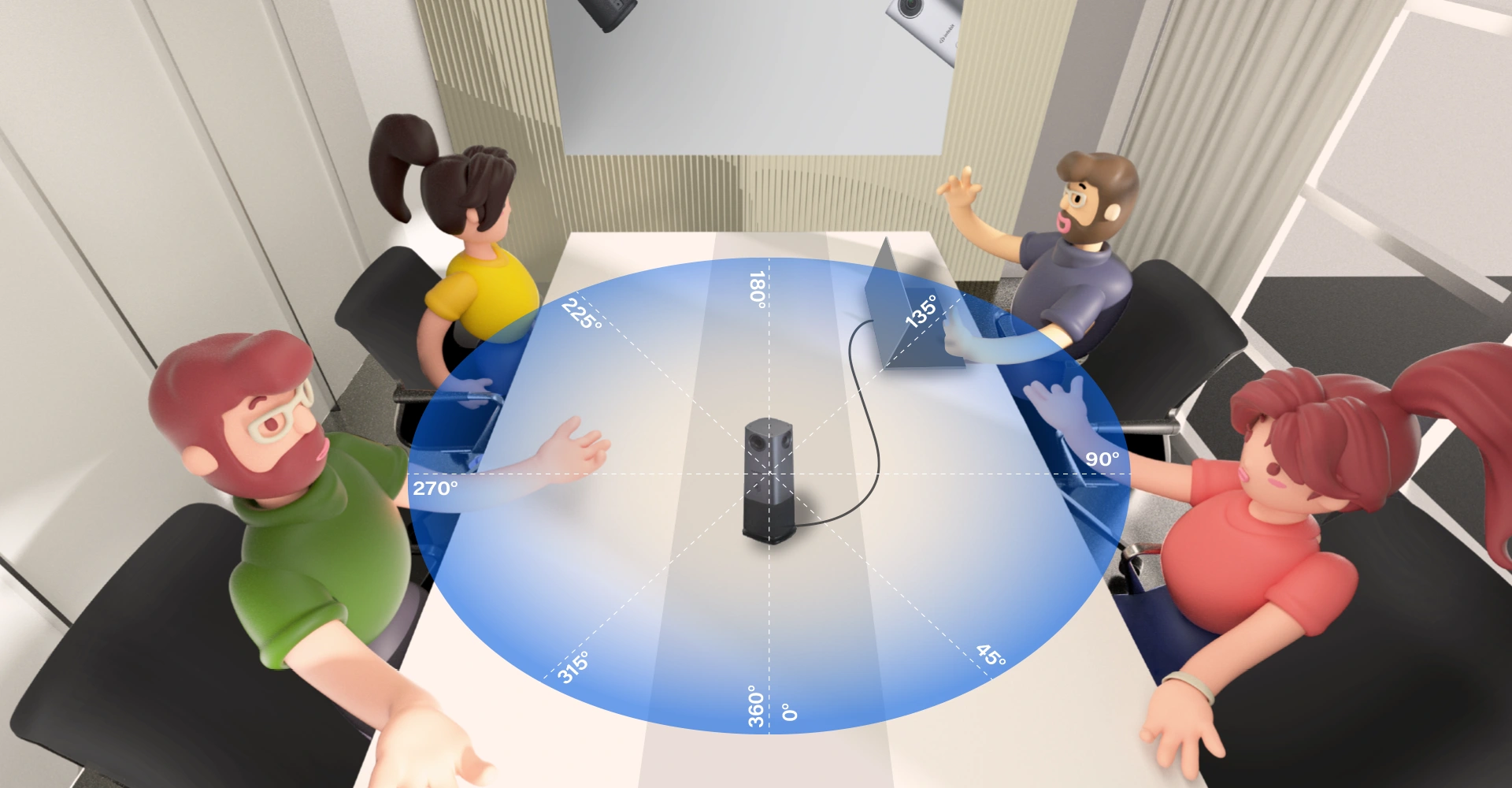

| DOA: Direction of Arrival |
| Video Format |
MJPG/YUV2 |
| Field of View |
Horizontal: 360° / Vertical 60° |
| FOV Top: Vertical + 45° up / – 15° down |
| FOV Middle: Vertical ± 30˚ |
| FOV-Down: Vertical + 20˚ up / -40˚ down |
| IQ Effect |
Lighting: 0 – 100; 3D NR: 0 – 100; |
| Gamma: 0 – 100; Flicker: Auto , 50Hz / 60Hz; |
| Reset: Reset to Factory Setting; |
| Features |
Adaptive ROI; People Tracking; Beamforming Tracking |
| Lens Construction |
5 Layer of Glass + IRCF Elements |
| Effective Pixels |
5.0 Megapixels |
| Focal Length |
f=2.49mm |
| Aperture |
F2.5 |
| Stitching Technology |
Dynamic Real + Time Stitching Technology |
| Resolution |
Input: 4992×928 / 30fps |
| Output:1920×1080 / 30fps |

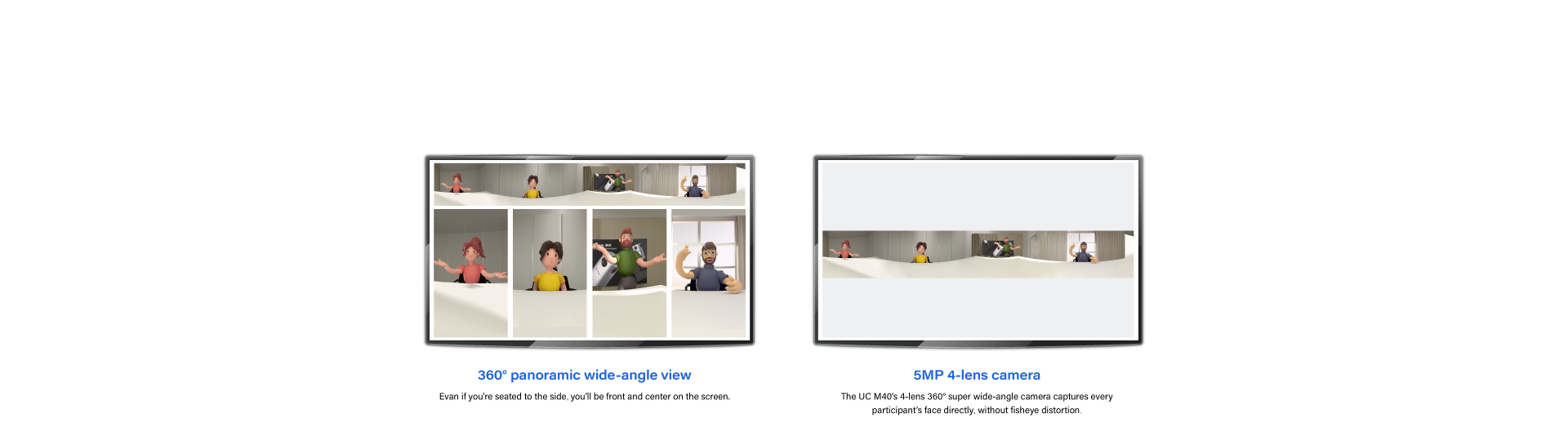

| Modes |

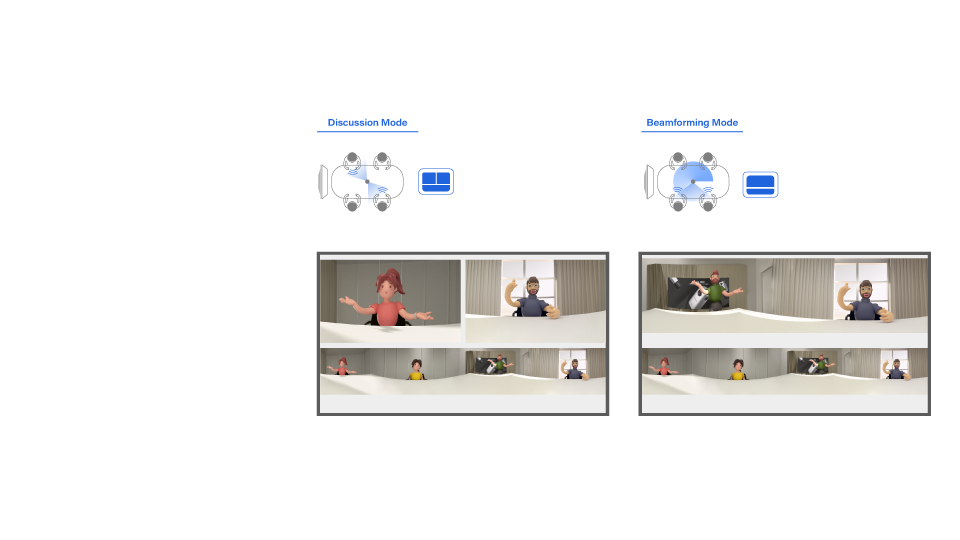

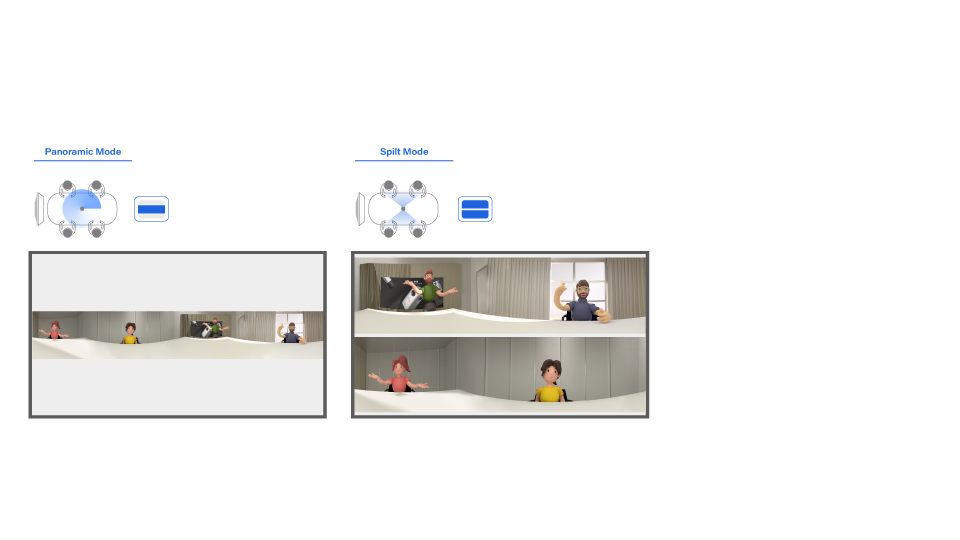

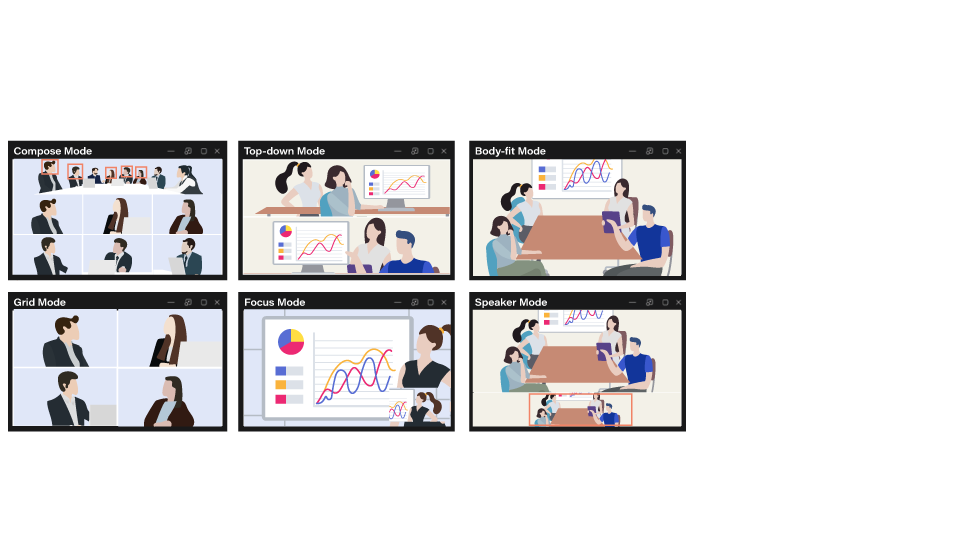

Panorama / Discussion / Beamforming / Speaker / Top-Down |
| Tools |
Lighting : 0 – 100; |
| 3D NR: 0 – 100; |
| Gamma: 0 – 100; |
| EV Adjust: -2 ~ +2; |
| Flicker: Auto , 50Hz / 60Hz; |
| Reset: Reset to Factory Setting |
| Advantages |
High resolution, low distortion; |
| Flexible screen layout with hardware dynamic ROI crop; AI & Beam Forming integration; |

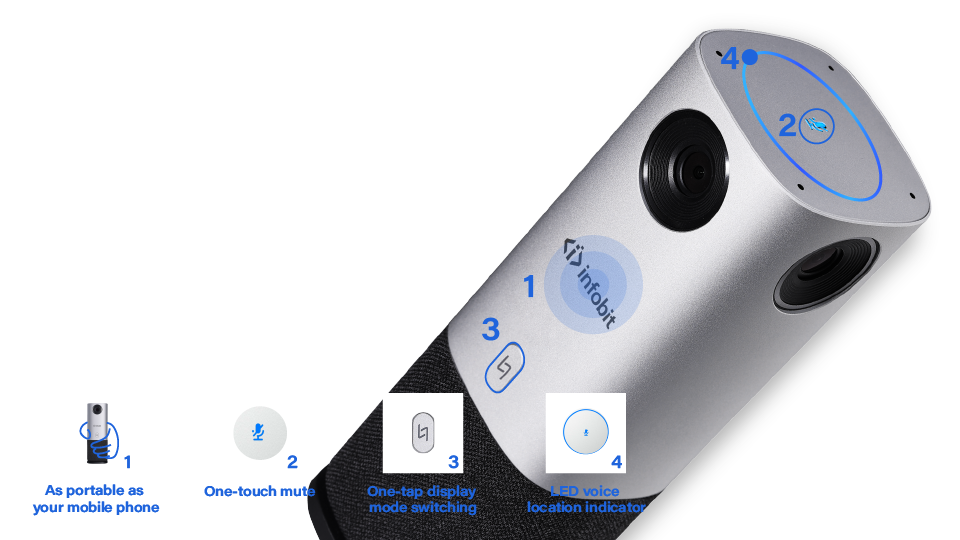

| Button |
Mute Button (Touch SW); |
| Mode Select Button, (Switch H/W Image Output Mode and DOA Function) |
| Microphone Parameters |
| Microphone Array |
Built-in 4 Digital Microphones / Unidirectional Microphones |
| Far-Field Voice Capture |
Support |
| Beamforming |
Yes |
| Speaker |
Full-Range Speaker x 1 |
| Sound Pressure |
70db (@1m at : pink noise 0dB) |
| Pickup Range |
5M |
| Acoustic Echo Cancellation |
Yes |
| Response Frequency |
200 Hz to 8k Hz |
| Rating Power |
3W (mono) |
| Sound Playback Frequency Range |
200 Hz to 10k Hz |
| General Parameters |
| LED Display |
Circularity 12*2 Blue LED Indicators / Touch Button Display RGB colors |
| Maximum Power Consumption |
< 8W |
| UVC / UAC Version |
1.1 / 1.0 |
| Compatible Software |
Can be used in video conferencing software that supports UVC Cameras Zoom, Cisco Webex, Google Meet, Skype, Microsoft Teams and more. |

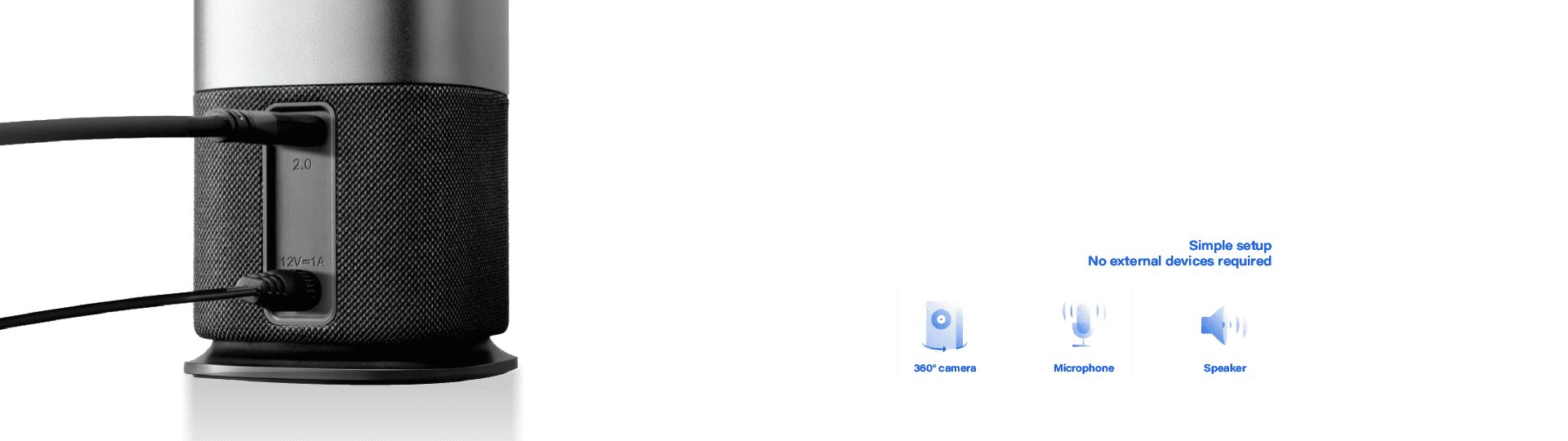

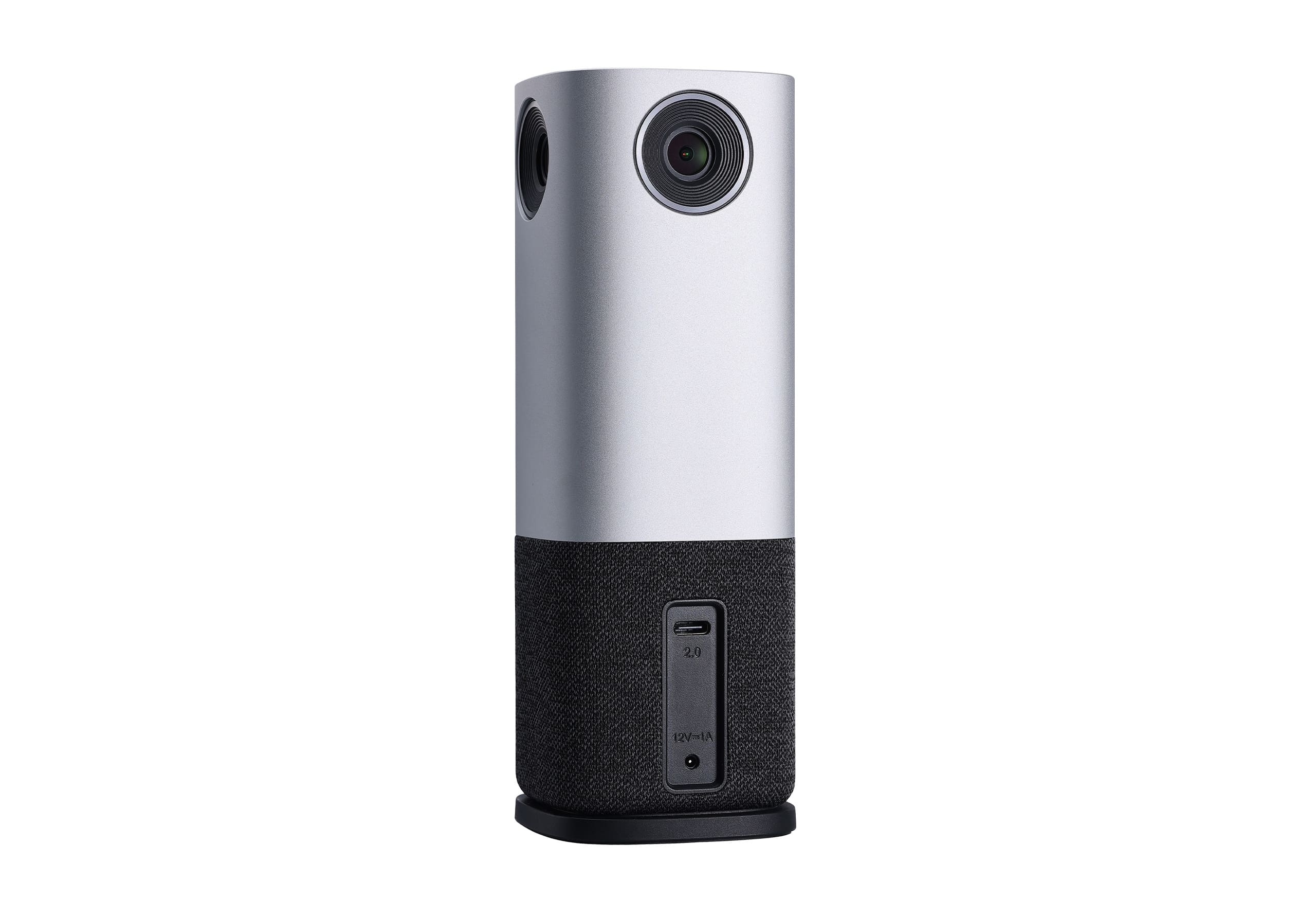

| Physical Interfaces: |
DC In: DC Jack Φ2.5mm |
| Power Supply |
12V/1A |
| USB |
TYPE-C ( USB 2.0 ) |
| Operating Environment: |
Temperature: 0 to 40 °C / Humidity: 10 to 90% |
| System Requirements: |
Windows: OS: Windows: 7, 10 64bit |
| Recommended to use Intel 7th generation i5 or above (or equivalent), RAM 4GB or above; |
| MAC: OS: 10.15 |
| Recommended to use Mac mini i3 (2018) or above (or equivalent), RAM 8GB or above |
| Weight |
447g (net weight) |
| Size |
67.5mm x 67.5mm x 182.3mm |
