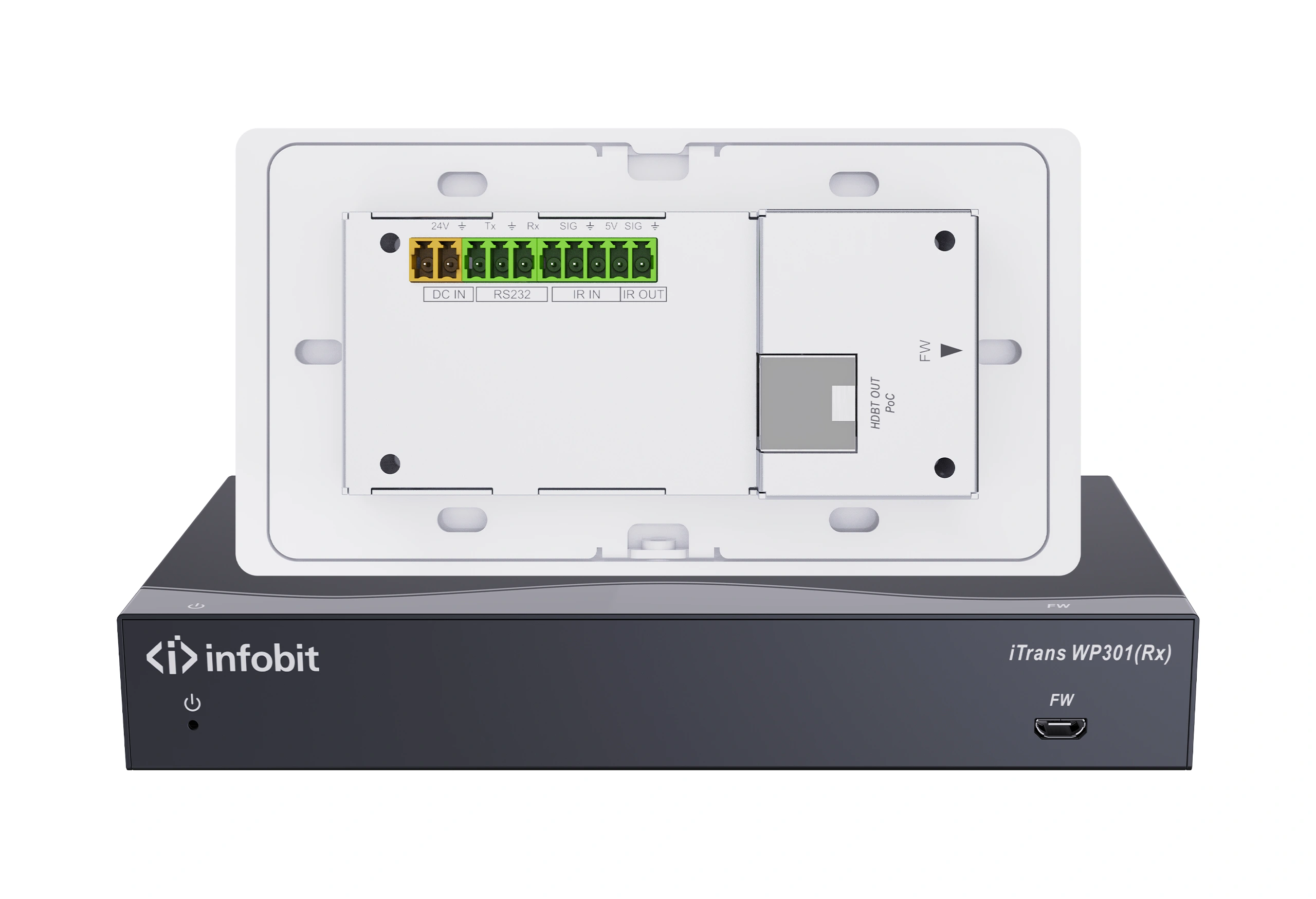

iTrans WP301-Kit

iTrans WP301-Kit (EU)

Supports HDMI signals up to 4K@60Hz 4:4:4 and USB-C signals up to 4K@30Hz 4:4:4.

Supports the HDMI V2.0 standard and is HDCP 2.2-compliant.

Active input automatic detective.

Extending the HDMI signal 4K@60Hz up to 131ft/40m and 1080p@60Hz up to 229ft/70m.

The USB-C Host supports video and USB data transmission.

Support 60W PD charging

Supports RS232 control with HDBaseT connection and local control.

Supports bidirectional IR pass-through to control the display device from the local side or control the source device from a remote side.

Supports CEC to turn on/off the display by the DISPLAY ON/OFF button, and the button can be programmed by IR learning feature or RS232 command.

Supports bi-directional 24V PoC power supply. (Note: Only the USB-C power IN supports USB-C host PD charging, NOT from Rx PoC)

Supports USB 2.0 KVM solutions.

Micro-USB port for firmware upgrade.

Chat Now

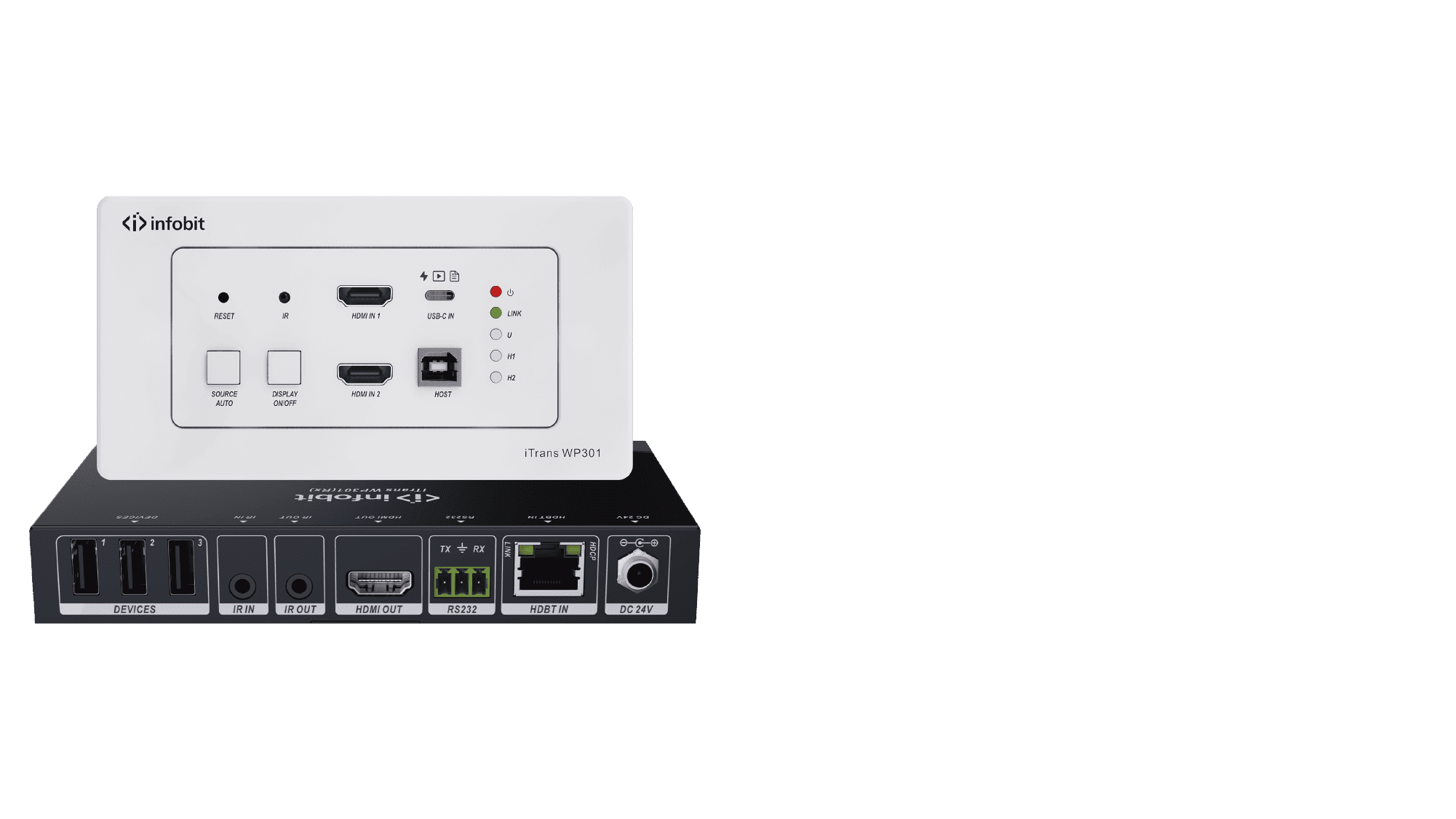

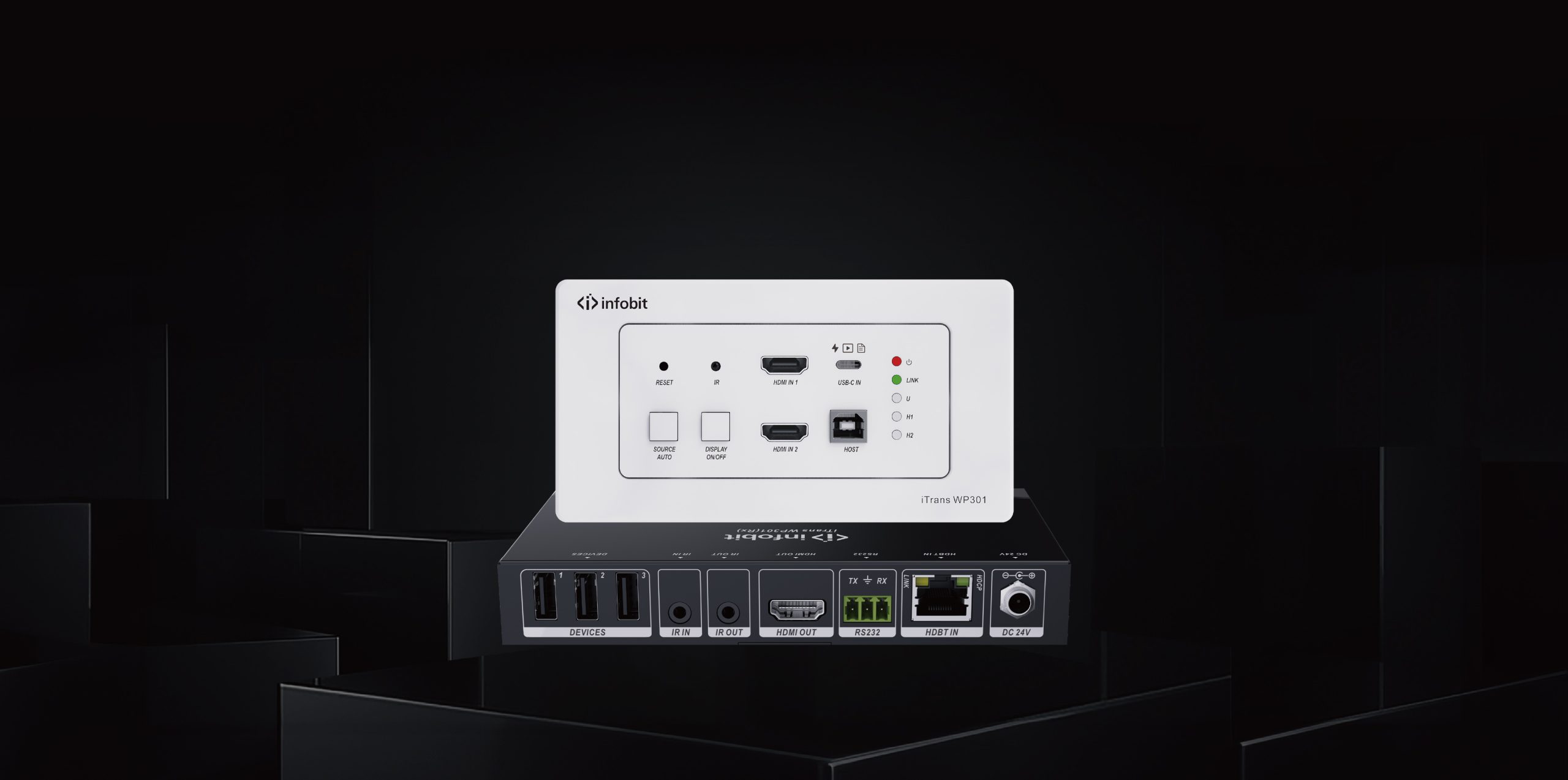

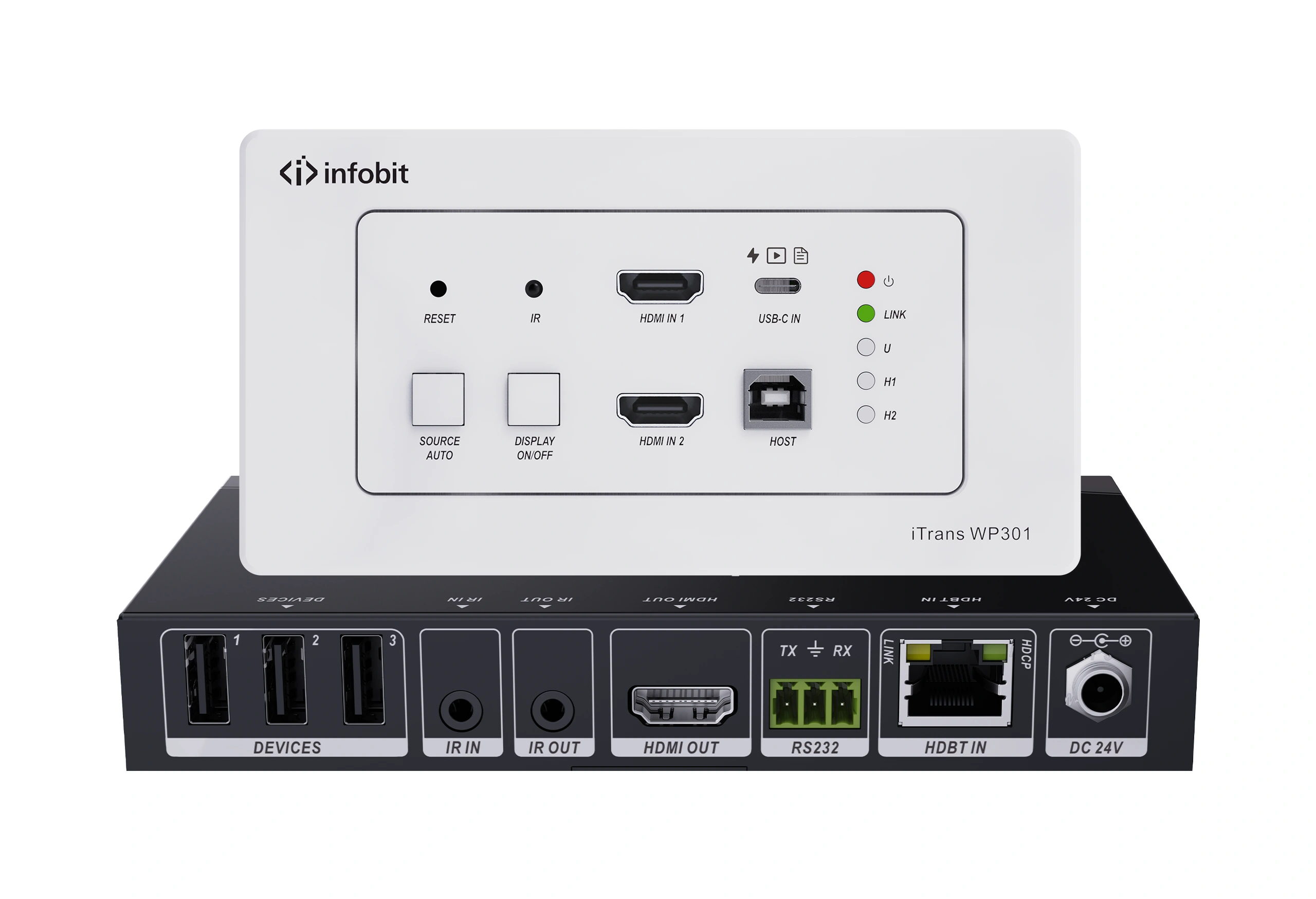

3x1 Wallplate Switcher Kit

Two HDMI and one USB-C inputs,
it can be selected by the SOURCE AUTO button on the front panel.
The switcher supports CEC.
The DISPLAY ON/OFF button on front panel is used to
control the far-end display device,
and it can be programmed by IR learning or RS232 command to
ensure the compatibility with various display devices.

No more guesswork

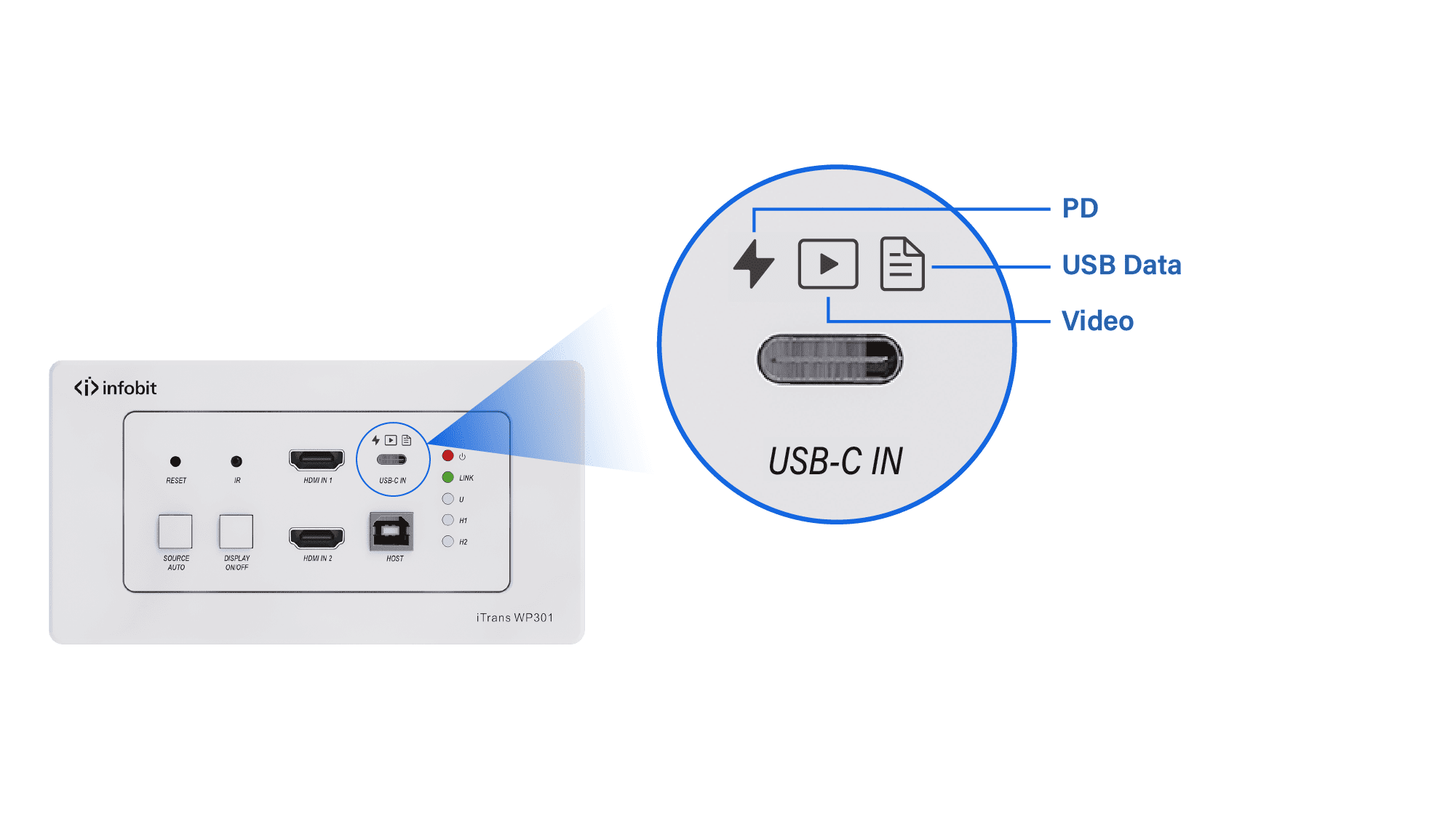

The USB IN port is with the charging, data and video labels.
No more
guesswork or confusion to users.

Datasheet

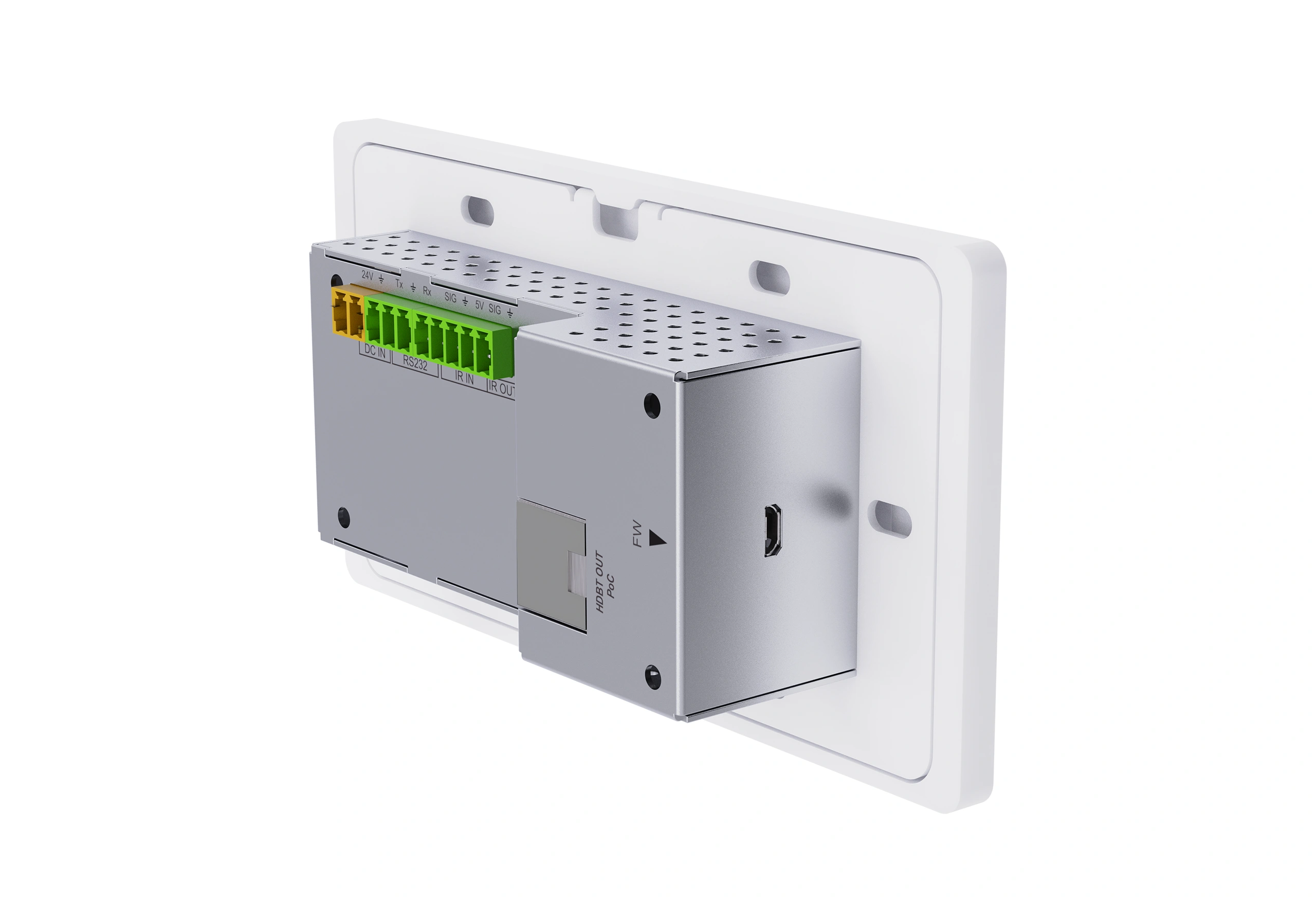

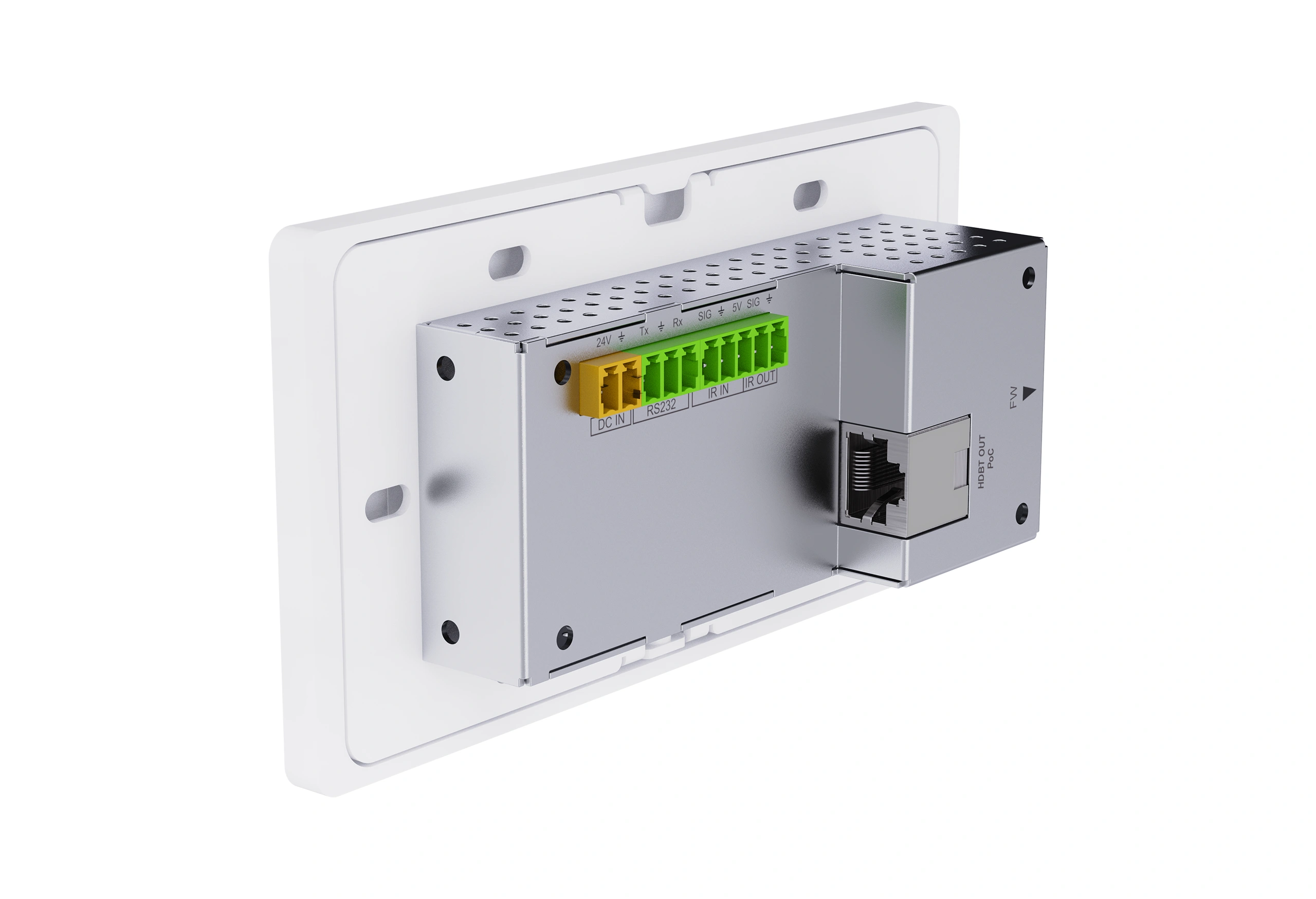

Wall Plate Tx (Model WP301T-EU)
Input	(2) HDMI, (1) USB-C
Input Connector	(2) Female type A HDMI, (1) Type-C USB
HDMI Input Resolution	Up to 4K@60Hz 4:4:4
USB-C Input Resolution	Up to 4K@30Hz 4:4:4
Output	(1) HDBT OUT
Output Connector	(1) RJ45
HDBT Output Resolution	Up to 4K@60Hz 4:4:4
Control Ports	(1) IR, (1) HOST, (1) FIRMWARE, (1) RS232, (1) IR IN, (1) IR OUT
Control Connector	(1) Built-in IR sensor, (1) Type-B USB 2.0, (1) Micro-USB, (2) 3-pin terminal block, (1) 2-pin terminal block
Bandwidth	18Gbps
HDMI Version	2
HDCP Version	2.2
Transmission Distance	1080p ≤ 230 feet (70 meters), 4K@60Hz ≤ 131 feet (40 meters)
External Power Supply	Input:100V to 240V AC; Output: 24VDC 1.25A
Power Consumption	20W (Max, add extra HDBaseT receiver)
Operation Temperature	-5 to +55℃ (+23° to +131°F)
Storage Temperature	-25 to +70℃ (-13° to +158°F)
Relative Humidity	10% to 90%
Dimension (WHD)	146mm x 86mm x 42mm
Net Weight	240g

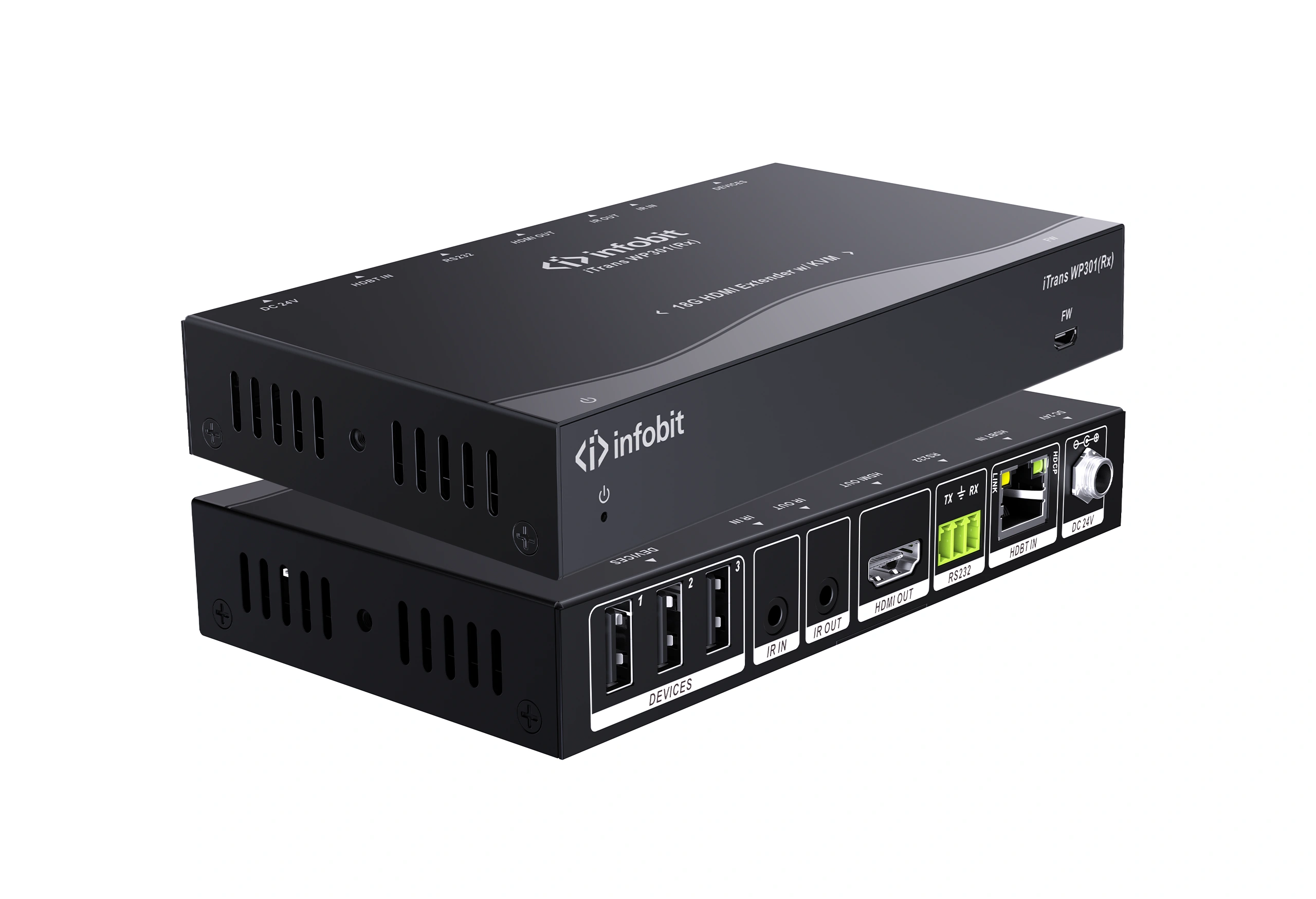

Receiver (Model WP301R)
Input	(1) HDBT
Input Connector	(1) RJ45
Output	(1) HDMI
Output Connector	(1) Type-A female HDMI
Control port	(1) FW, (1) IR IN, (1) IR OUT, (1) RS232, (3) USB IN
Control Connector	(1) Micro-USB, (2) 3.5mm jacks, (1) 3-pin terminal block, (3) Type-A USB 2.0
Bandwidth	18Gbps
HDMI Version	2
HDCP Version	2.2
Video Resolution	Up to 4K@60Hz 4:4:4
Transmission Distance	1080p ≤ 230 feet (70 meters), 4K@60Hz ≤ 131 feet (40 meters)
AC Adapter Input Power	100 to 240V AC, 50/60Hz
Input Power	24V DC 1.25A
Power Consumption	20W (Max, work with the switcher)
Operation Temperature	-5 to +55℃ (+23° to +131°F)
Storage Temperature	-25 to +70℃ (-13° to +158°F)
Relative Humidity	10% to 90%, Non-condensing
Dimension (WHD)	152mm x 23.5mm x 84mm
Net Weight	300g

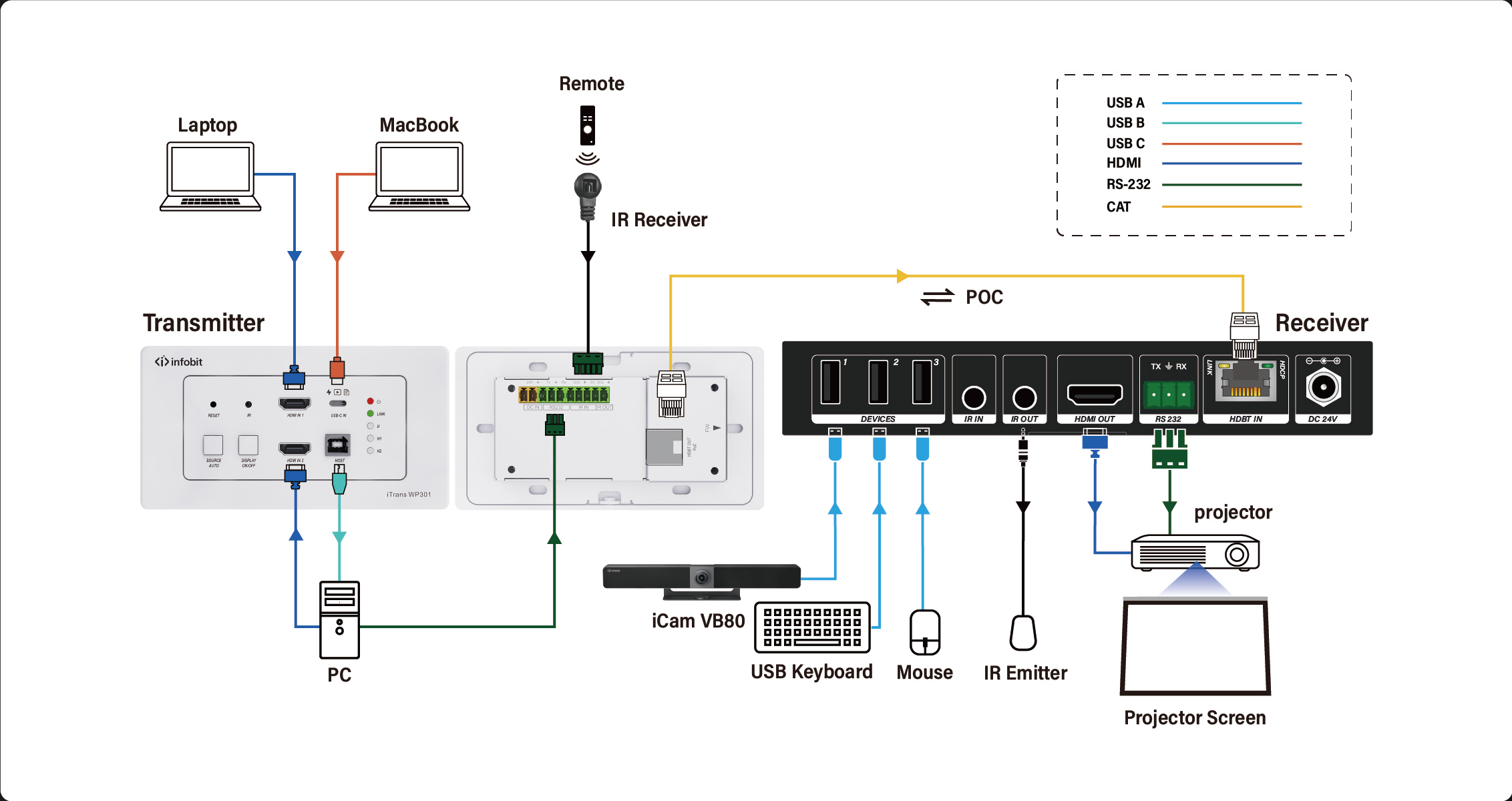

Diagram

Download

iTrans WP301 Kit User Manual V2.1.pdf

3.19M

2025-12-12
