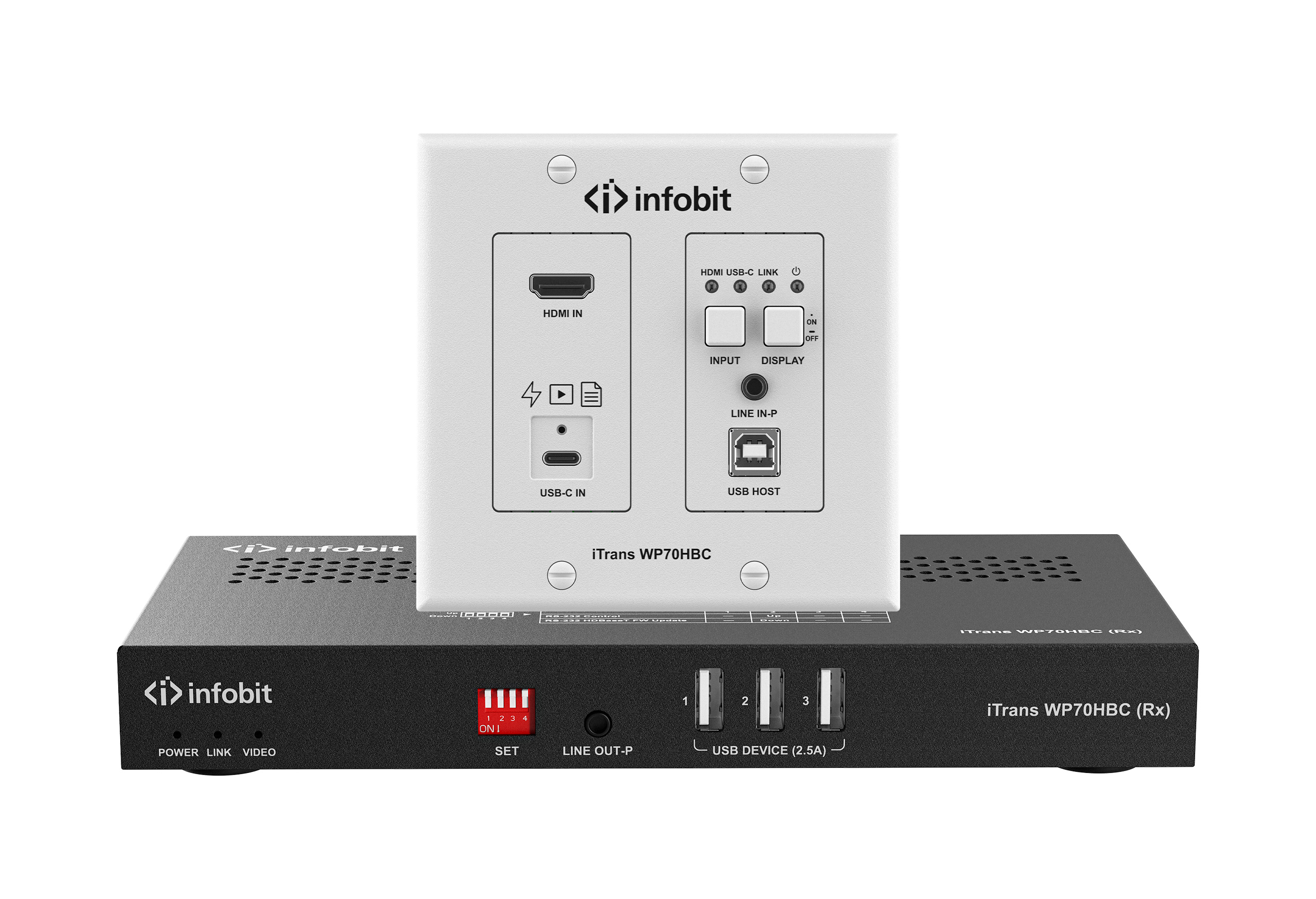

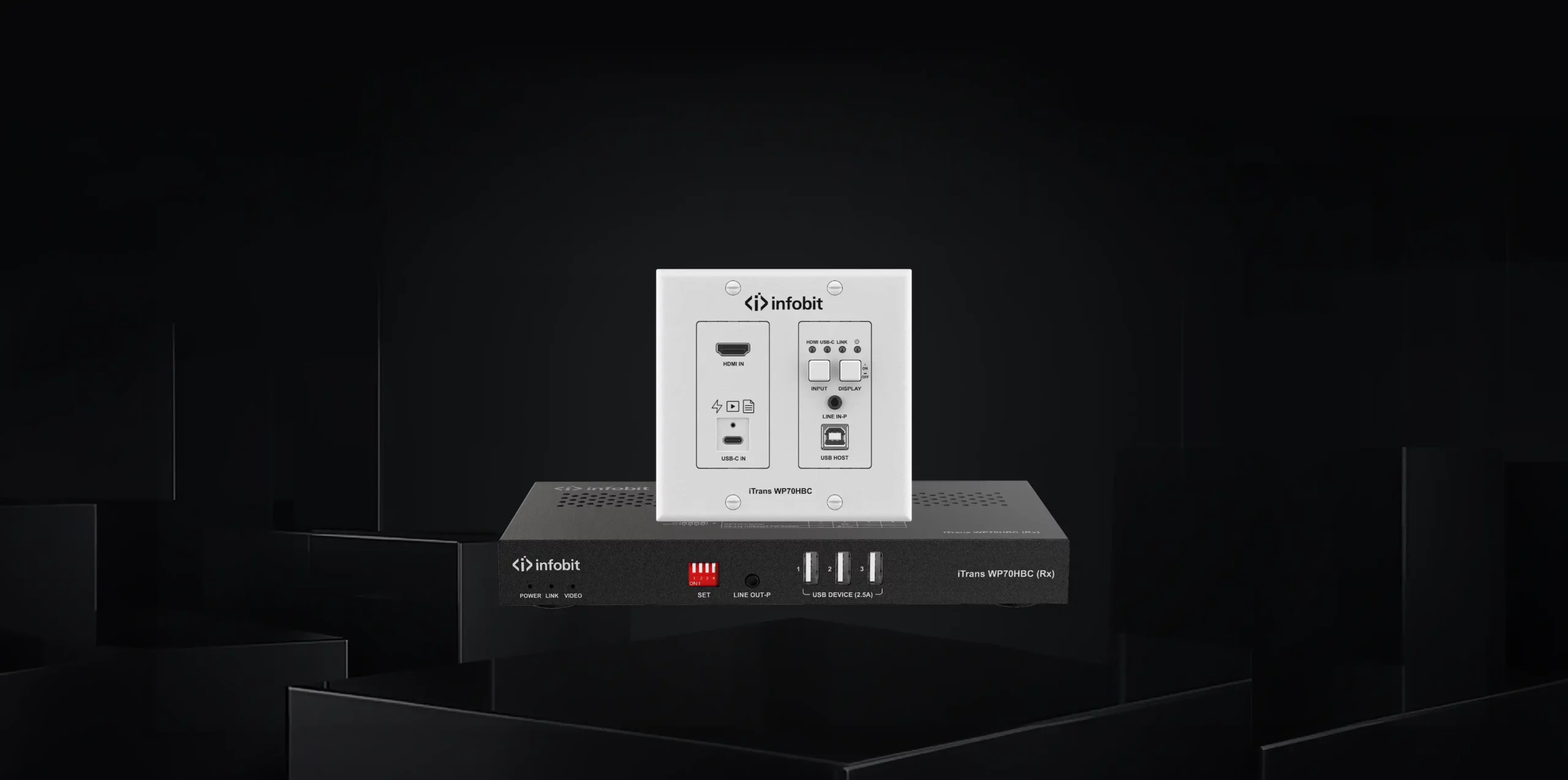

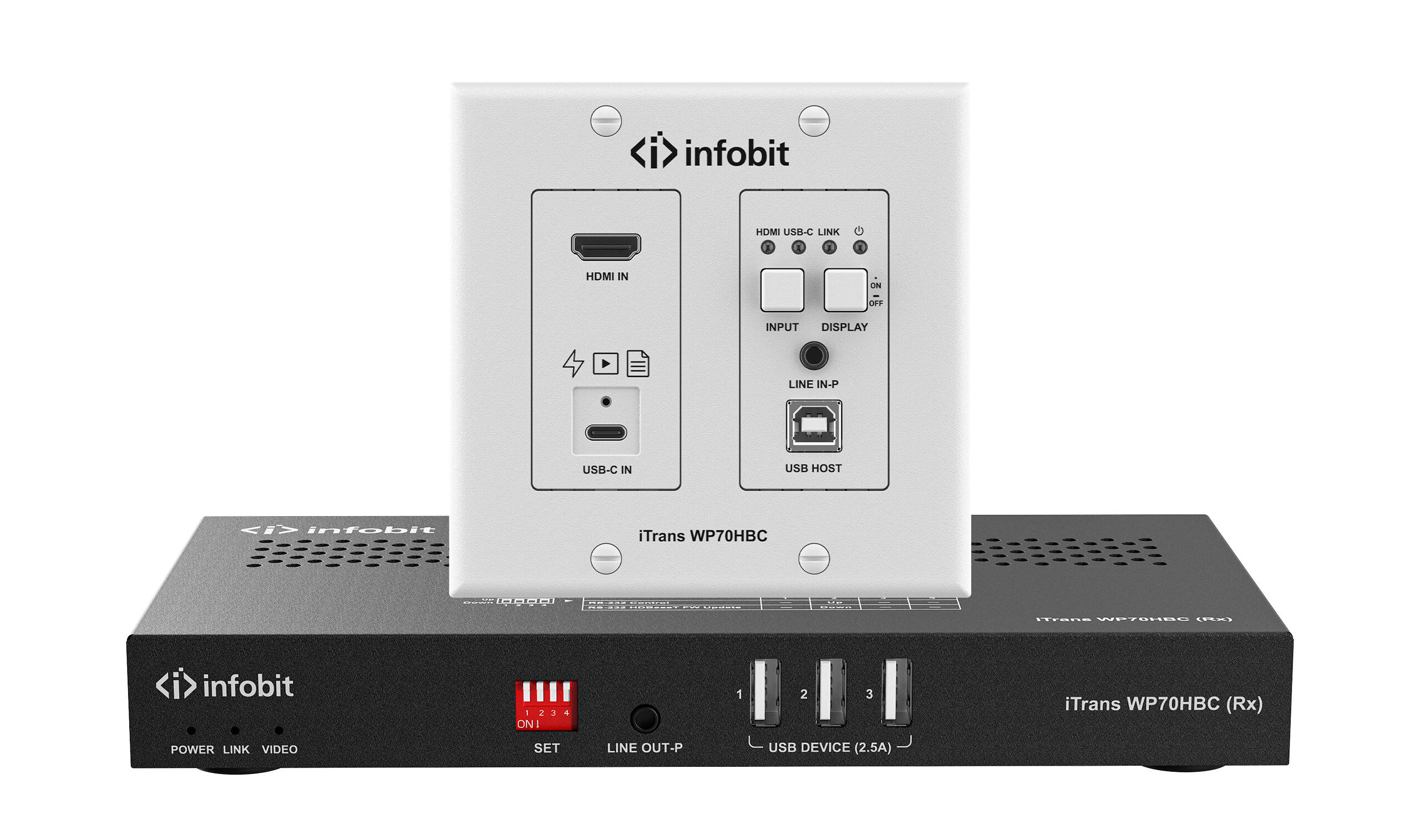

2 x 1 wall plate switch transmitter over HDBT 3.0

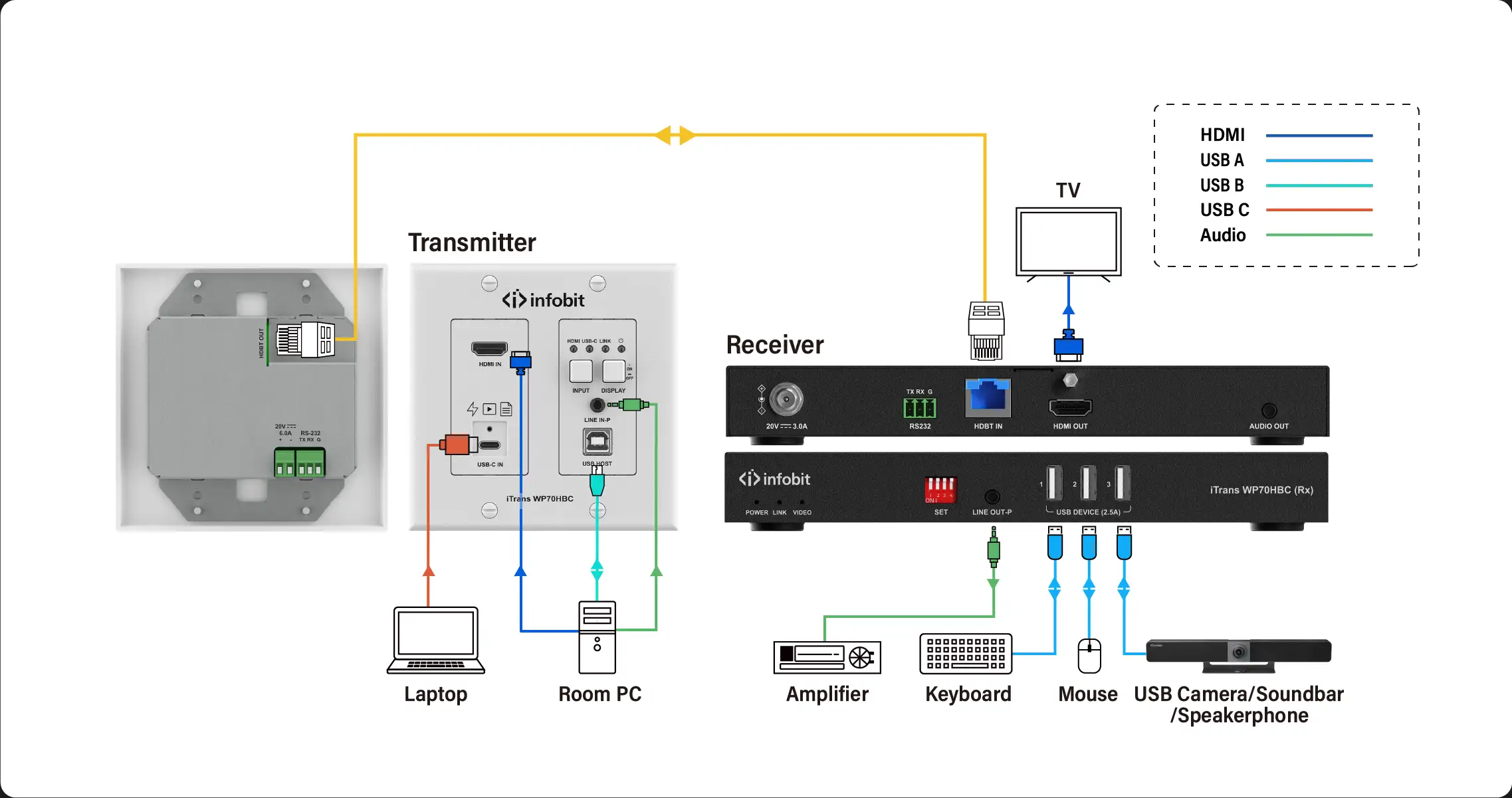

Supports automatic and manual switching (button & API commands) between the inputs of USB-C and HDMI + USB-B.
Full-featured USB-C input supports 4K video and USB data delivery, as well as 60W charging*.
HDMI 2.0 input supports video resolutions up to 4K@60Hz 4:4:4 8bit and HDCP 2.2.
Supports transmission of 4K@60Hz 4:4:4 8bit signal up to 40m/131ft and of 4K@30Hz 4:4:4 8bit signal up to 70m/230ft via a Cat 6A or above cable.
An additional analog pass-through channel allows for independent audio distribution to the HDBT receiver.
High-speed USB 2.0 pass-through with data rate up to 300Mbps.
The RS232 port supports command pass-through, API control and firmware update.
PoH+ PD function enables the transmitter to be powered by an HDBT receiver.
Supports control of the display on/off through CEC.
US 2-Gang version.
*Note: The USB-C 60W charging requires an additional power adapter to be connected to the wall plate transmitter.
