iTrans WP70C

iTrans WP70C (US)

Video resolution up to 4K2K@50/60Hz 4:4:4

Compliant with HDMI 2.0b, HDCP 2.2, and Display Port 1.2a

HDMI input supports 18Gbps video bandwidth;

USB-C input supports 5.4Gbps video bandwidth

Distance up to 230ft / 70m for 1080P@60 or 131ft / 40m for 4K@60 via a single CAT6/6a/7 cable

Support 3D, HDR10 and Dolby Vision

HDMI audio formats support LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, and DSD

Support HDMI and USB-C input

With USB-C charging port

US 1-Gang version

Input signal selection supports automatic mode and manual mode

Support PoE function (only from Receiver to Transmitter)

The receiver is included

Chat Now

Datasheet

Model	iTrans WP70C
Name	4K60 HDBaseT Wallplate Extender Kit with USB C and HDMI, 70m (US 1-Gang)
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2
DP Compliance	Display Port 1.2a
Video Bandwidth	USB-C: 5.4 Gbps; HDMI: 18 Gbps
Video Resolution	480i~1080p50/60Hz, 4Kx2K@24/30Hz, 4k2k@60Hz
Color Space	RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
Color Depth	8/10/12-bit (1080P@60Hz); 8-bit (4K@60Hz)
HDR	Support
HDMI Audio Formats	LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Transmission Distance	Max distance (1080P): 230ft / 70m over CAT6/6a/7 Max distance (4K): 131ft / 40m over CAT6/6a/7
ESD Protection	Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Transmitter	Inputs: 1 x HDMI Type A [19-pin female] 1 x USB-C Outputs: 1 x HDBaseT Out [RJ45, 8-pin female] 1x USB-C (only for charging) Controls: 1x RS-232 [3-pin phoenix connector] 1x FW [Micro USB, Update port]
Receiver	Inputs: 1x HDMI IN [Type A, 19-pin female] 1x HDBaseT IN [RJ45, 8-pin female] Outputs: 1x HDMI OUT [Type A, 19-pin female] 1x AUDIO OUT [Phoenix jack] Controls: 1x RS-232 [3-pin phoenix connector] 1x FW [Micro USB, Update port]
Housing	Metal Enclosure
Color	White
Dimensions	Wall plate: 33.3mm [W] x 65.7mm [D] x 68.7mm [H] Faceplate: 69.9mm [W] x 3mm [D] x 114.3mm [H] Receiver: 200mm [W] x 102.8mm [D] x 22mm [H]
Weight	Wall plate: 197g, Receiver: 517g
Power Supply	PoE (only from Receiver to Transmitter)
Power Consumption	Wall plate: 7.92W (Max); Receiver: 6W (Max)
Operating Temperature	32 – 104°F / 0 – 40°C
Storage Temperature	-4 – 140°F / -20 – 60°C
Relative Humidity	20 – 90% RH (no condensation)

Diagram

Download

iTrans WP70C (US 1-Gang) User Manual_V1.2.pdf

0.88M

2025-05-28

Related Products

iTrans WP70B (US)
Video resolution up to 4K@60Hz 4:4:4 Compliant with HDMI 2.0b, HDCP 2.2, and DisplayPort 1.2a Supports 18Gbps video bandwidth Support HDMI and USB-C input Distance up to 230ft / 70m for 1080P or 131ft / 40m for 4K via a single CAT6/6a/7 cable Support HDR10 and HDR10+ Audio formats support Dolby Atmos, TrueHD, Digital+, Digital; DTS X, HD Master Audio, HD High Resolution Audio, 5.1; PCM 2-8Ch Input signal selection supports automatic mode and manual mode USB2.0 extension with Receiver Support PoE function (only from Receiver to Transmitter) With USB-C charging port US 1-gang version Available in white color

DETAILS
iTrans WP70-T (US)
HDMI 2.0 18Gbps input, bi-directional IR and RS232. Uncompressed video, audio and control signals 230ft /70 meters (1080p) or 130ft/ 40 meters (4K60) *Note: Receiver not included, can be purchased separately.

DETAILS
iTrans WP210-T (US)
One HDMI 2.0 18Gbps input, one VGA with audio input Bi-directional IR and uni-directional USB signals Uncompressed video, audio and control signals 230ft /70 meters (1080p) or 130ft/ 40 meters (4K60) *Note: Receiver (model iTrans E100K-R) is not included, must be purchased separately.

DETAILS
iTrans WP100HC (UK)
Support video resolution up to 4K2K@60Hz (4:4:4) HDMI 2.0b, HDCP 2.2/1.x, and DP 1.2a compliant HDMI input supports 18Gbps video bandwidth Up to 7.1 channels of HD audio Input signal source selection supports button switching HBT mode: Audio and video signals can be transmitted up to 100m for 4K60/4K30/1080P LRM mode: Audio and video signals can be transmitted up to 150m for 4K30/1080P Built-in EDID DIP switch supports intelligent EDID management Built-in audio DIP switch supports analog audio embedding Built-in POC Transmit bidirectional Infrared control signal together with the HDMI signal. Transmit bidirectional RS-232 control signal together with the HDMI signal. The Receiver supports USB 2.0 signal transmission Standard UK version wall box

DETAILS
iTrans WP200-Kit (US)
6-Button Keypad with volume knob 3-Input Switching Wallplate Transmitter (2 HDMI, 1 VGA) Multi-Function Receiver with Built-In 2x25W 4/8-ohm Amplifier Web Configuration for simplified installation Panel buttons, RS-232, Telnet, SSH, a Web GUI

DETAILS

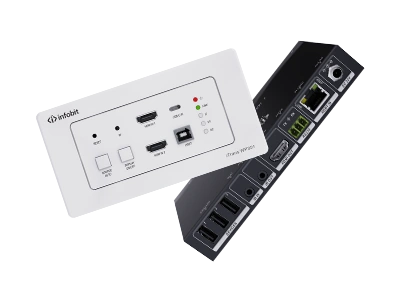

iTrans WP301-Kit (EU)
