iTrans HD-ARC

HDMI ARC audio input.

Supports AES67 protocol.

Controllable via Dante Controller.

Sample Rate 44.1/48kHz

Frequency Response 20Hz-20kHz, ±0.5dB

Chat Now

Datasheet

Model	iTrans HD-ARC
Name	2CH ARC to Dante Converter
Sample Rate	44.1/48kHz
Bit Depth	24-bit
Protocol	Support AES67
Power	IEEE 802.3af PoE
Frequency Response	20Hz-20kHz, ±0.5dB (same sample rate)
THD+N	< 0.0001%@0 dBFS(same sample rate)
SNR	>160dB, A weighting
Crosstalk	<-140dB, A weighting
Device Name	Dante Encoder
Power	DC 5V 3A
Operation Temperature	-5℃ ~ +55℃
Storage Temperature	-25℃ ~ +70℃
Power Consumption	1W
Dimension (LWH)	114 x 48 x 26 mm
Net Weight	175g

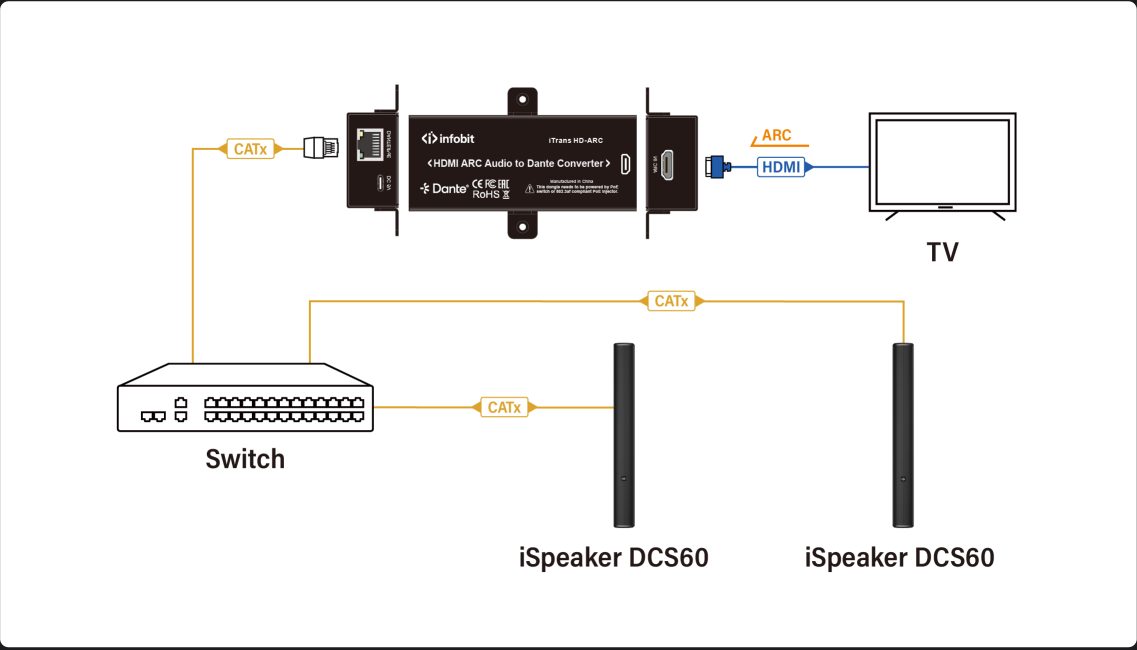

Diagram

Download

iTrans HD-ARC User Manual V1.0.pdf

0.65M

2025-12-16
