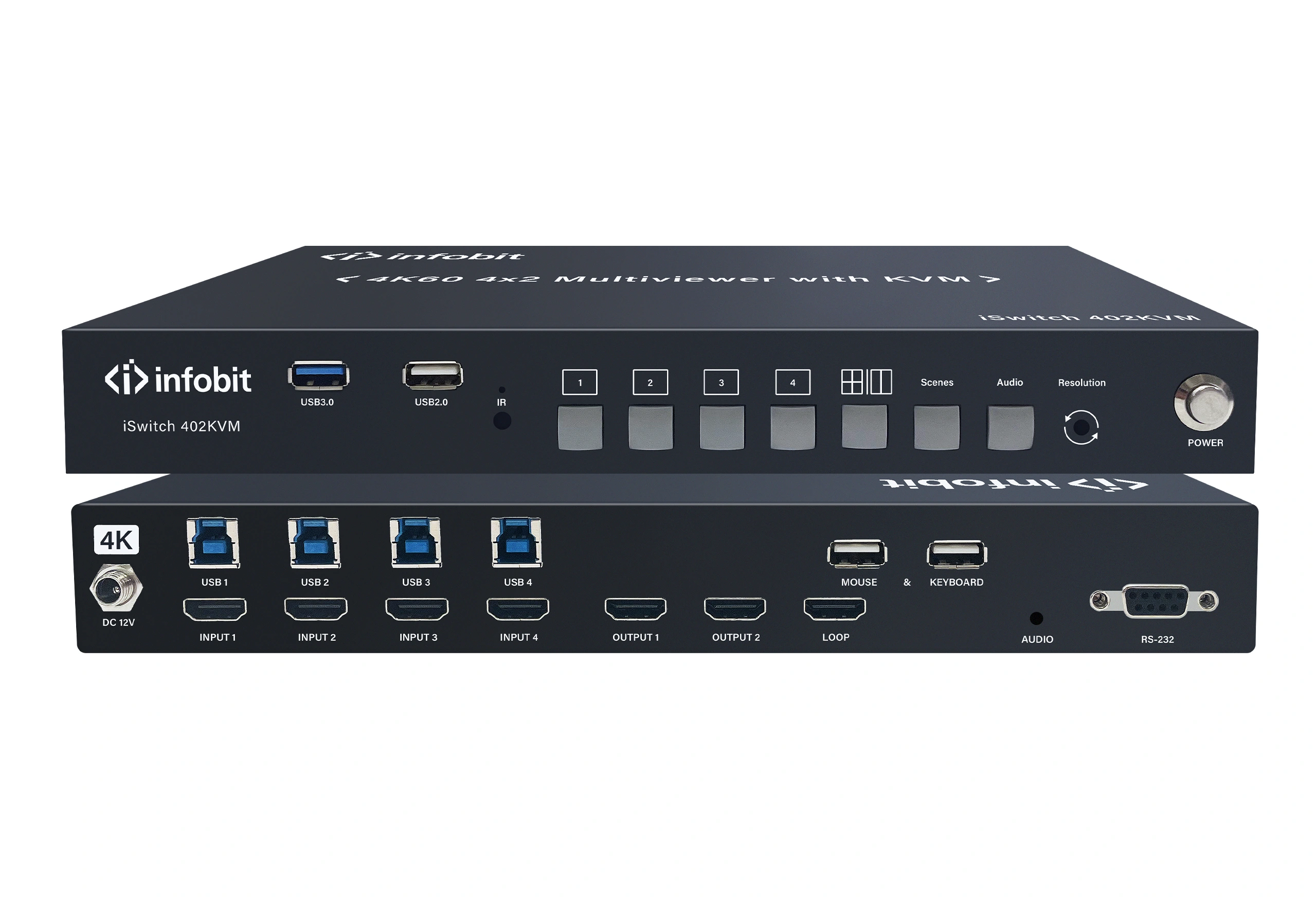

iSwitch 402KVM: 4K60 4x2 Multiviewer with KVM, unlimited layouts

iSwitch 402KVM

4xHDMI 2.0 inputs, 2xHDMI 2.0 outputs,1xHDMI 2.0 loop out, all up to 4K@60Hz 4:4:4.

Display and control 4 input sources with only one mouse and keyboard set.

Play-and-Play, no need for control software

Adjust the input window size and switch signals by mouse and keyboard.

The position and size of the 4 input windows can be adjusted arbitrarily.

Multiple display layouts include quad-view, triple-view, dual-view, and full view.

Quad-view for 2 duplicate outputs or dual-view for 2 different outputs.

External USB devices like a printer, webcam, microphone, and speakerphone can be shared by 4 PCs at the same time via the front USB ports.

Each video window supports free overlay, resize, move and overlap.

Chat Now

With OSD

The iSwitch 402KVM with OSD which lets you manage multiple computers
with just one set of keyboard, monitor and mouse.

Free-Controlling

INFOBIT’s Free-Controlling features instant access and control
to target any video source by allowing the mouse cursor to
move across window borders boundlessly and seamlessly.

Unlimited Single Display Layouts

With the 11x built-in layout shortcuts, multi-sourced video data can be displayed in various display modes – Full Screen, Quad View, PiP (picture in picture), PbP (picture by picture), and PoP (picture on picture). In addition, user can drag-and-drop any image to create any unlimited layouts.

Dual-Display Mode

With dual output setup, multi-sourced video data can be displayed in various display modes, while a selected source can be shown in full screen on the secondary display, improving operational efficiency without missing any important details.

Multiple Control

The iSwitch 402KVM supports RS232, IR remote, Front button and OSD controlling.

Datasheet

Model	iSwitch 402KVM
Name	4K60 4×2 Multiviewer with KVM

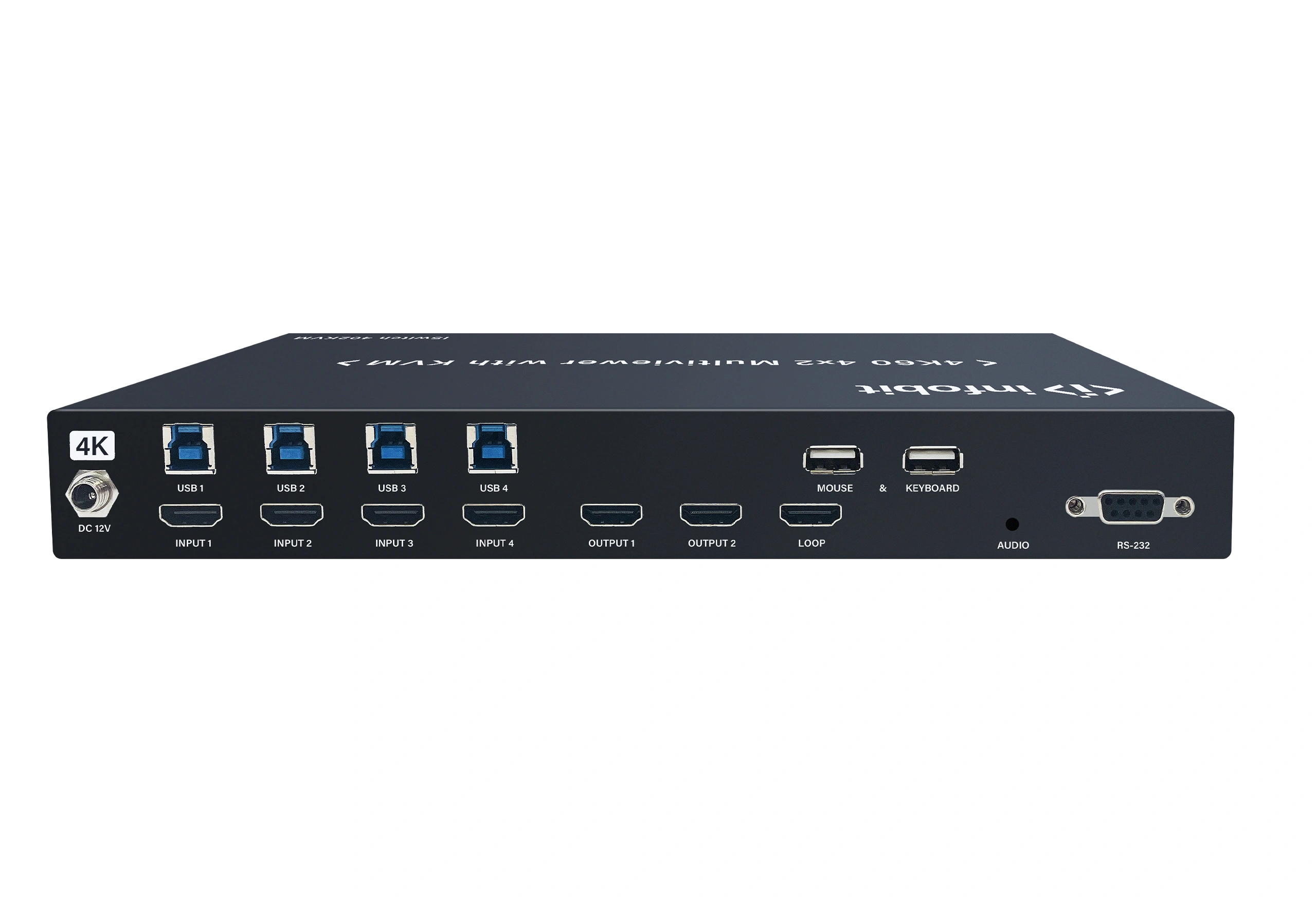

Inputs	4 x HDMI, 4 x USB/BM, 1 USB2.0+1 USB3.0
Outputs	2 x HDMI, 1 x HDMI LOOP out
Audio Output	1 x 3.5mm
Input resolution	3840×2160@60Hz, 4:4:4
Output resolution	3840X2160@60Hz, 3840X2160@30Hz, 1920X1200@60Hz, 1920X1080@60Hz, 1920X1440@60Hz, 2048X1152@60Hz, 2560X1080@60Hz, 2560X1440@60Hz,2560X1600@60Hz, DCI 3840X2160@30Hz, DCI 3840X2160@60Hz.
Display mode	Quad/Triple/Dual/Full-view mode( for 2 duplicate outputs) Dual/Full view modes ( for 2 different outputs)

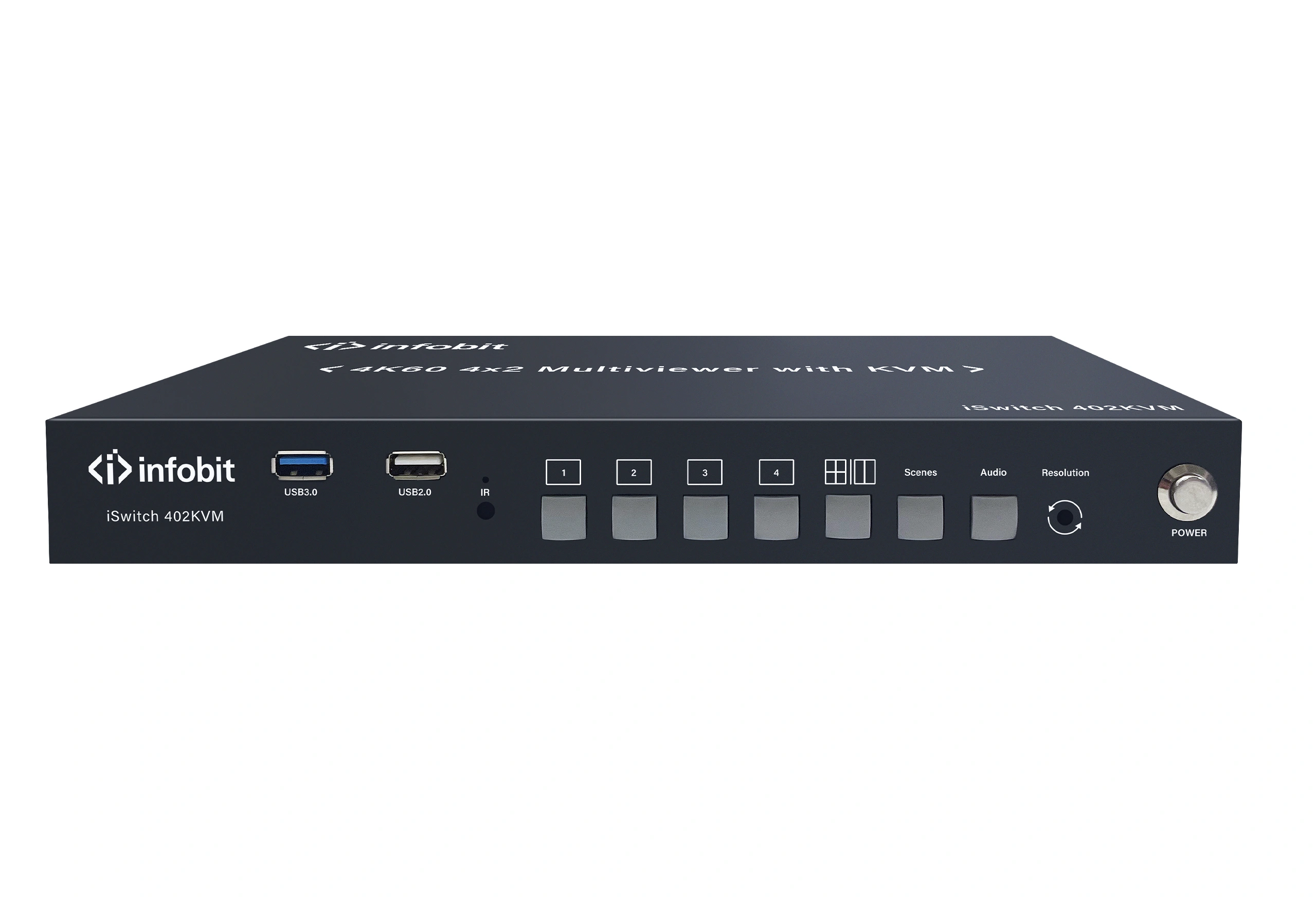

Front Panel Buttons	1/2/3/4: Short press the number button 1/2/3/4 to select input 1/2/3/4 in full screen. Long-press the number button 1/2/3/4 to select the input 1/2/3/4 to loop out. 田: Quad view mode for 2 duplicate outputs or Dual view mode for 2 different outputs Scenes: Select preset scenes from M1, M2, and M3. Audio: Select embedded audio from 4 HDMI inputs Resolution: Press the button to select the output resolution. ON/OFF: Power on/off switch. USB: An External USB device can be shared by 4 input PCs
IR	1 x IR remote control
USB	2 x USB/AM for mouse and keyboard
RS232	Command for the third-party control system
Power	DC 12V 2A
Power consumption	22W
Operating Temperature	-20°C ~ 60°C
Operating Humidity	10~90% RH
Dimensions	280x127x35 mm ( LxWxH )
Weight	1Kg
