HDMI 16 ports KVM Switcher,FHD or 4K HDMI KVM switchers

iSwitch 1601HKL

16 ports HDMI KVM Switchers

Complies with HDMI 2.0 (with FHD resolution by default) standards and supports the HDCP protocol.

A set of USB keyboard and mouse to control 16 HDMI-connected computers.

Equipped with a built-in dual-port USB Hub, fully compatible with USB 2.0 devices.

Two flexible switching methods: Front panel buttons and keyboard hotkeys.

Supports resolutions up to 1920×1080@60Hz. 4K60 is customized.

Multi-platform support for Windows, Linux, and macOS.

Chat Now

Datasheet

Model	iSwitch 1601HKL
Name	16 x 1 HDMI FHD KVM Switcher
Number of connected PC	16x
PC connection port	16x HDMI Female; 16x USB Type B Female
Client connection port	2x USB Type A Female (for Keyboard/Mouse); 2x USB 2.0 Type A Female; 1x HDMI Female;
HDMI standard	2.0
Maximum video resolution	1920×1080/60 by default; 3840 x 2160@60Hz (customized)
Panel buttons	17
LED indicators	17
Port switching method	Push buttons; Hotkeys.
Power Supply	DC12V/1A
Operation temperature	-40 ～ +55°C
Dimension (mm)	440 X 150 X 45mm

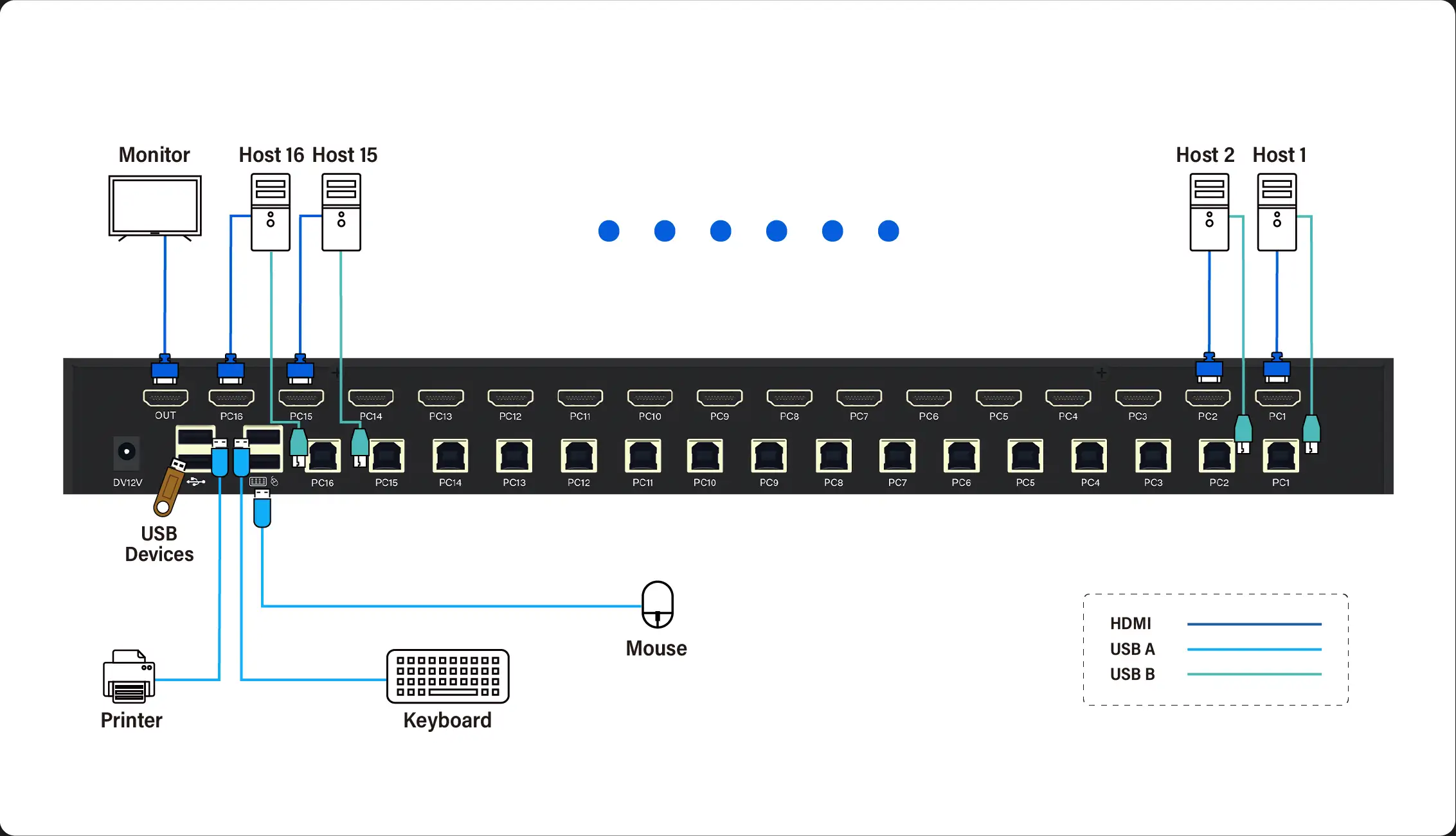

Diagram

Download

iSwitch 1601HKL User Manual V1.0.pdf

1.7M

2026-04-10
