iSpeaker Mini-15--B
iSpeaker Mini-15

15W Mini Ceiling Speaker

iSpeaker Mini-15
iSpeaker Mini-15
iSpeaker Mini-15
iSpeaker Mini-15
iSpeaker Mini-15
iSpeaker Mini-15
iSpeaker Mini-15
iSpeaker Mini-15
iSpeaker Mini-15
iSpeaker Mini-15
iSpeaker Mini-15

4Ω 15W Rated Power

Small-factor size, space-saving

2.5” Full range speaker

Aluminum Cone

85dB Sensitivity

Frequency Response: 90Hz-20KHz

With a magnetic mesh cover

iSpeaker Mini-15
iSpeaker Mini-15
iSpeaker Mini-15
iSpeaker Mini-15
iSpeaker Mini-15

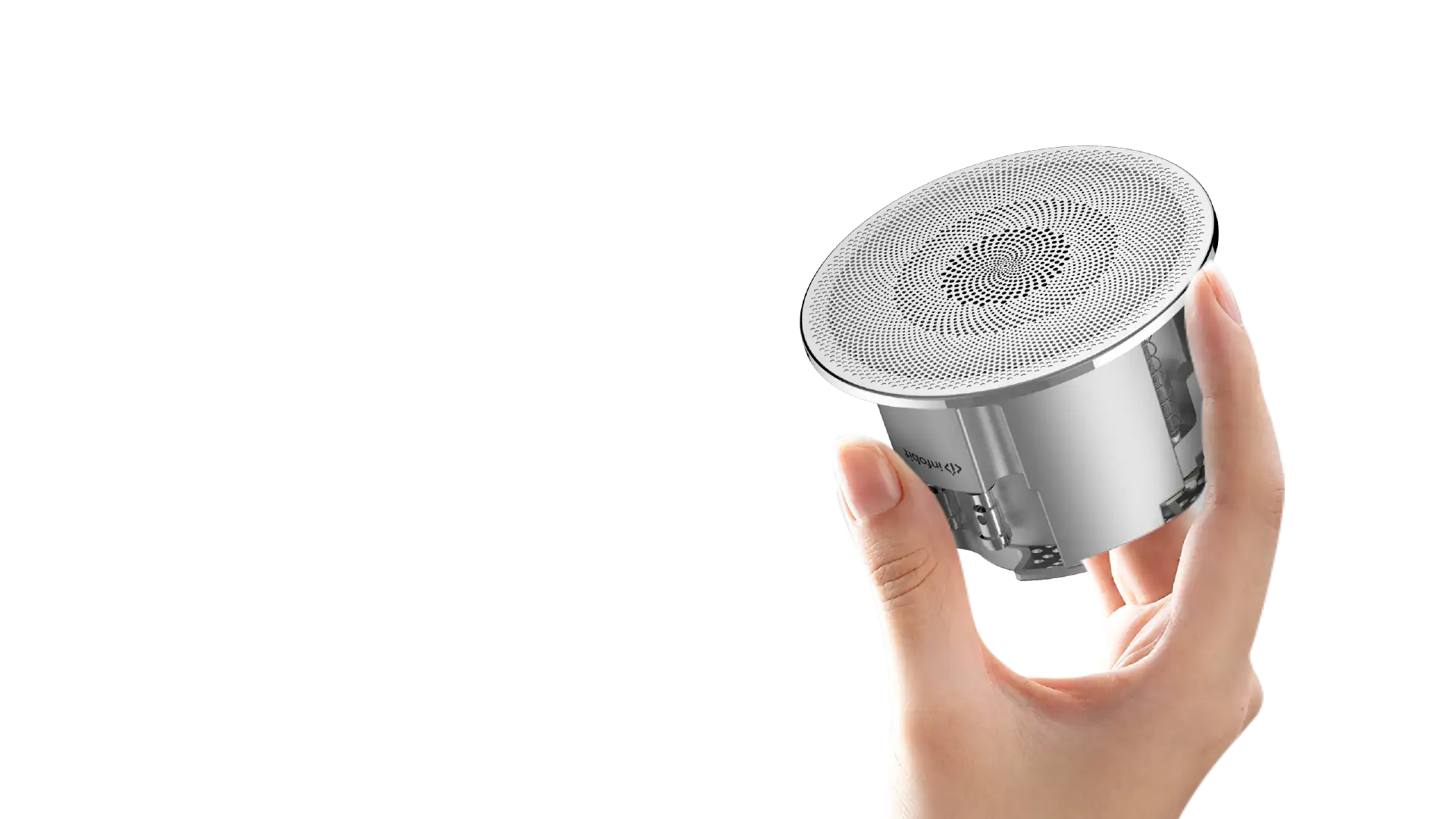

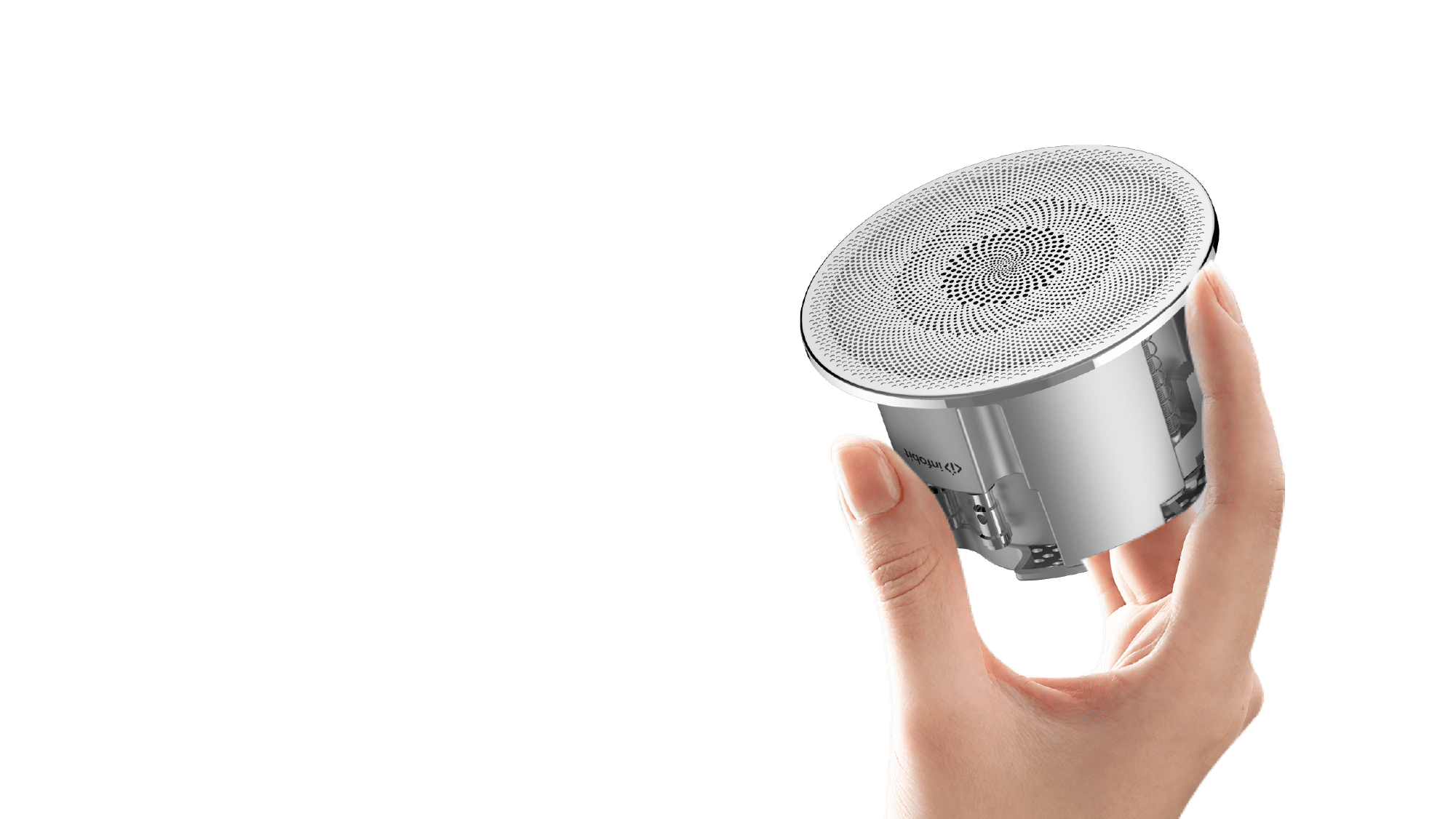

 Small But Powerful
Small But Powerful
The 2.5” compact in-ceiling speakers is suitable for small spaces where typical 6"-8" diameter drive unit speakers would be too large.

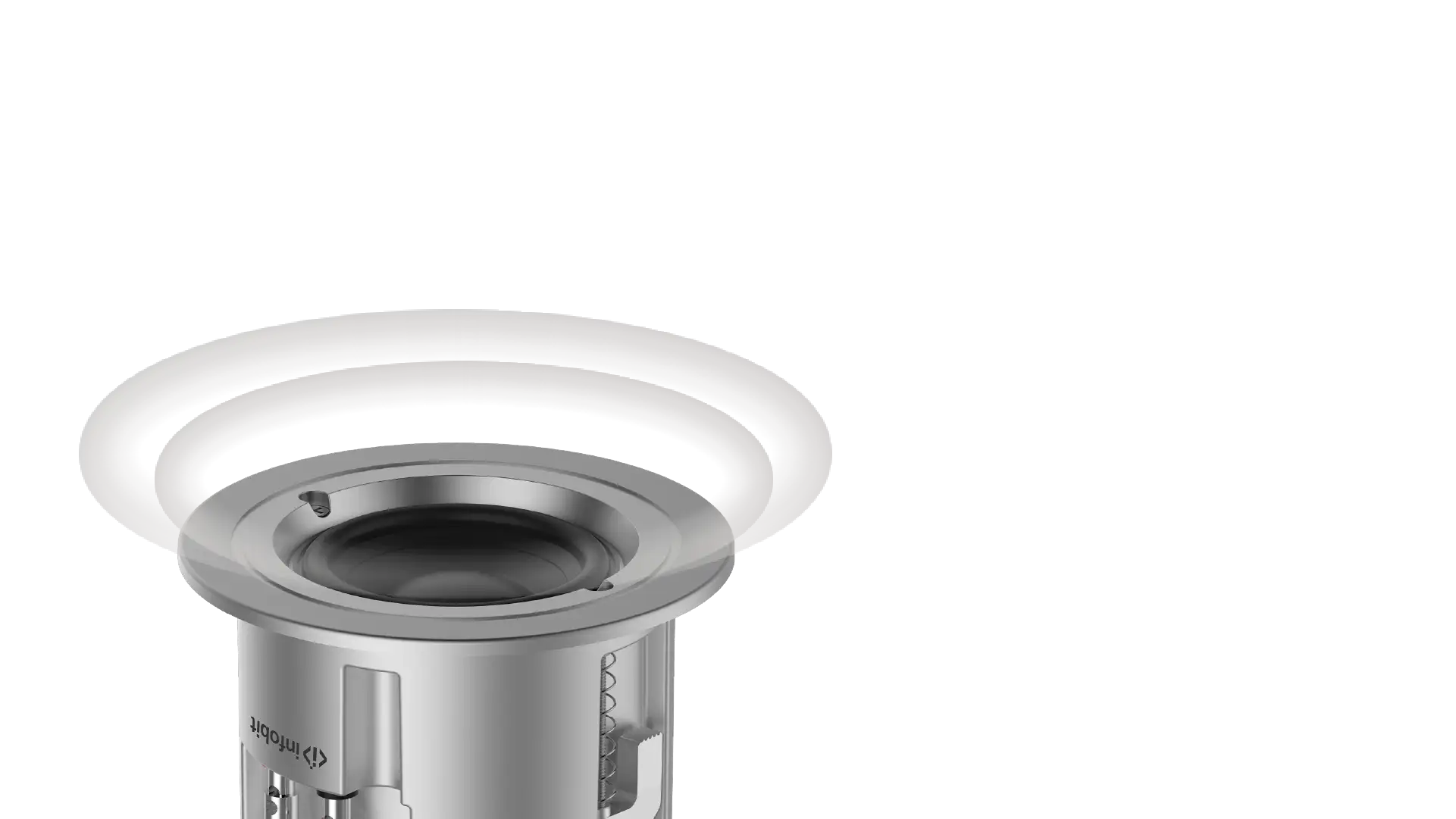

 Wow-factor Sound Quality
Wow-factor Sound Quality
With 2.5" full-range unit with dynamic response.

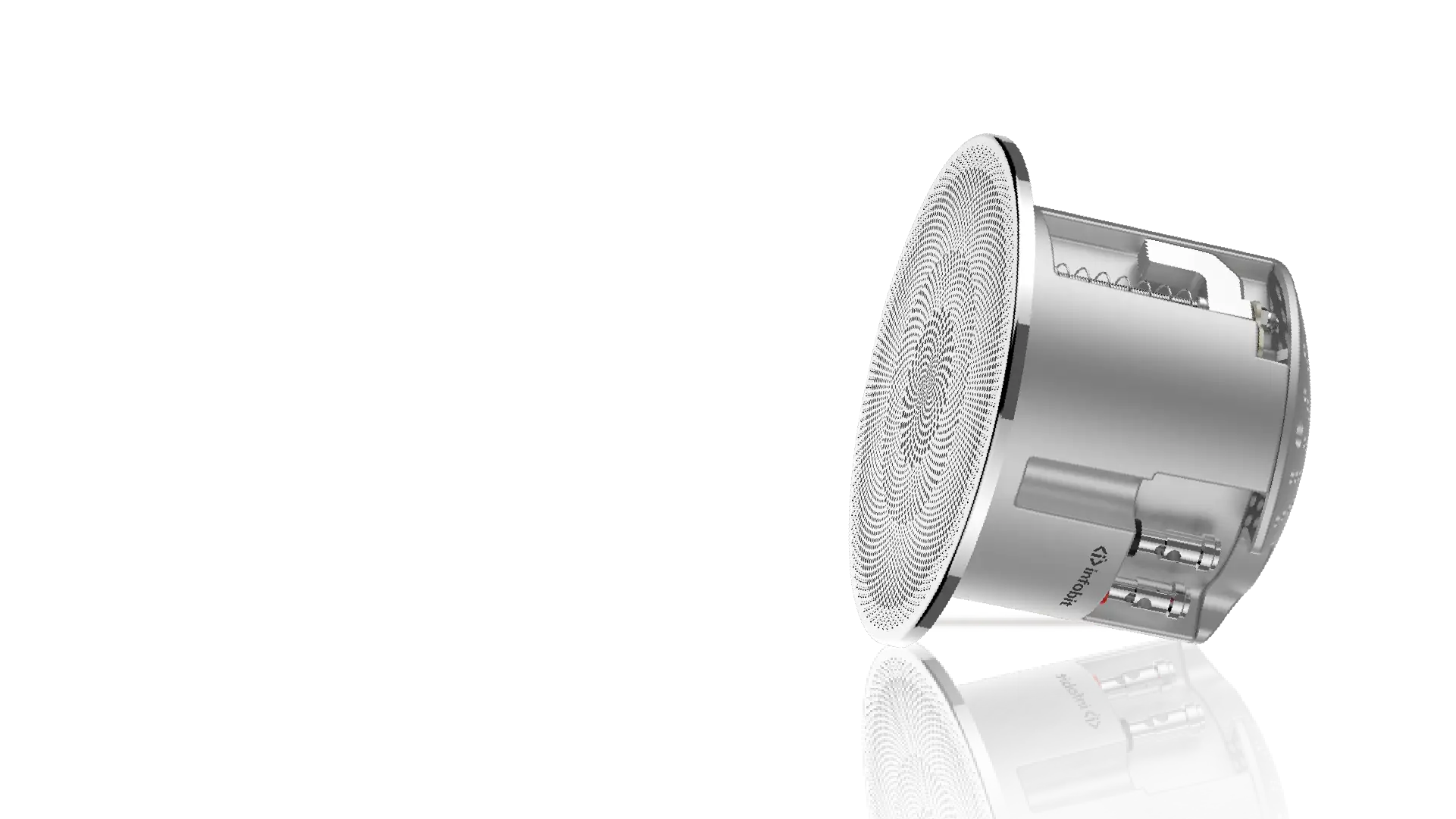

 Stylish and Intelligent Design
Stylish and Intelligent Design
The elegant mesh cover is designed with 6x magnetic points, can flushed into any decorative enviroment.

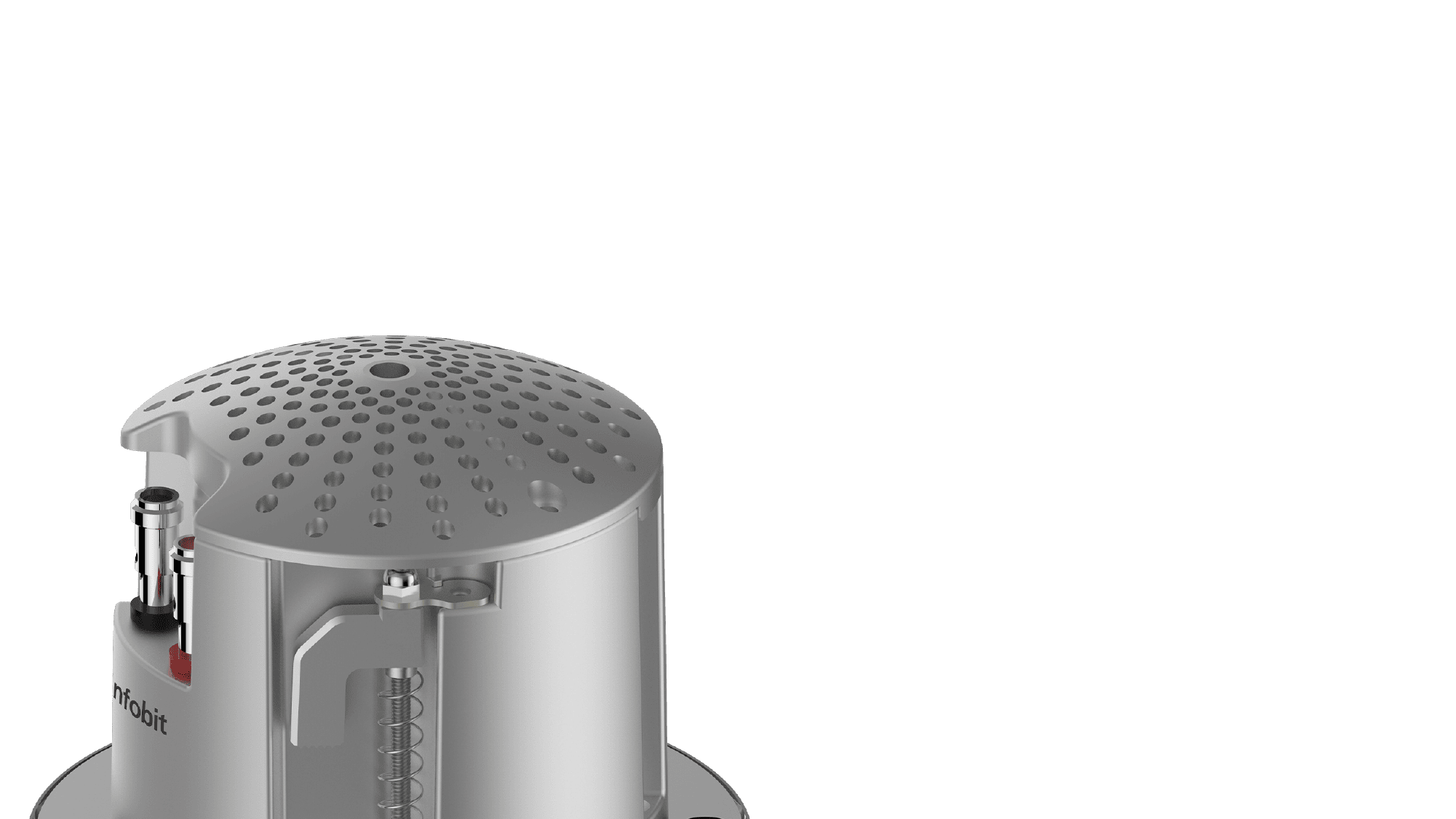

 Pure Aluminum Barrel
Pure Aluminum Barrel
Lightweight and easy to install.

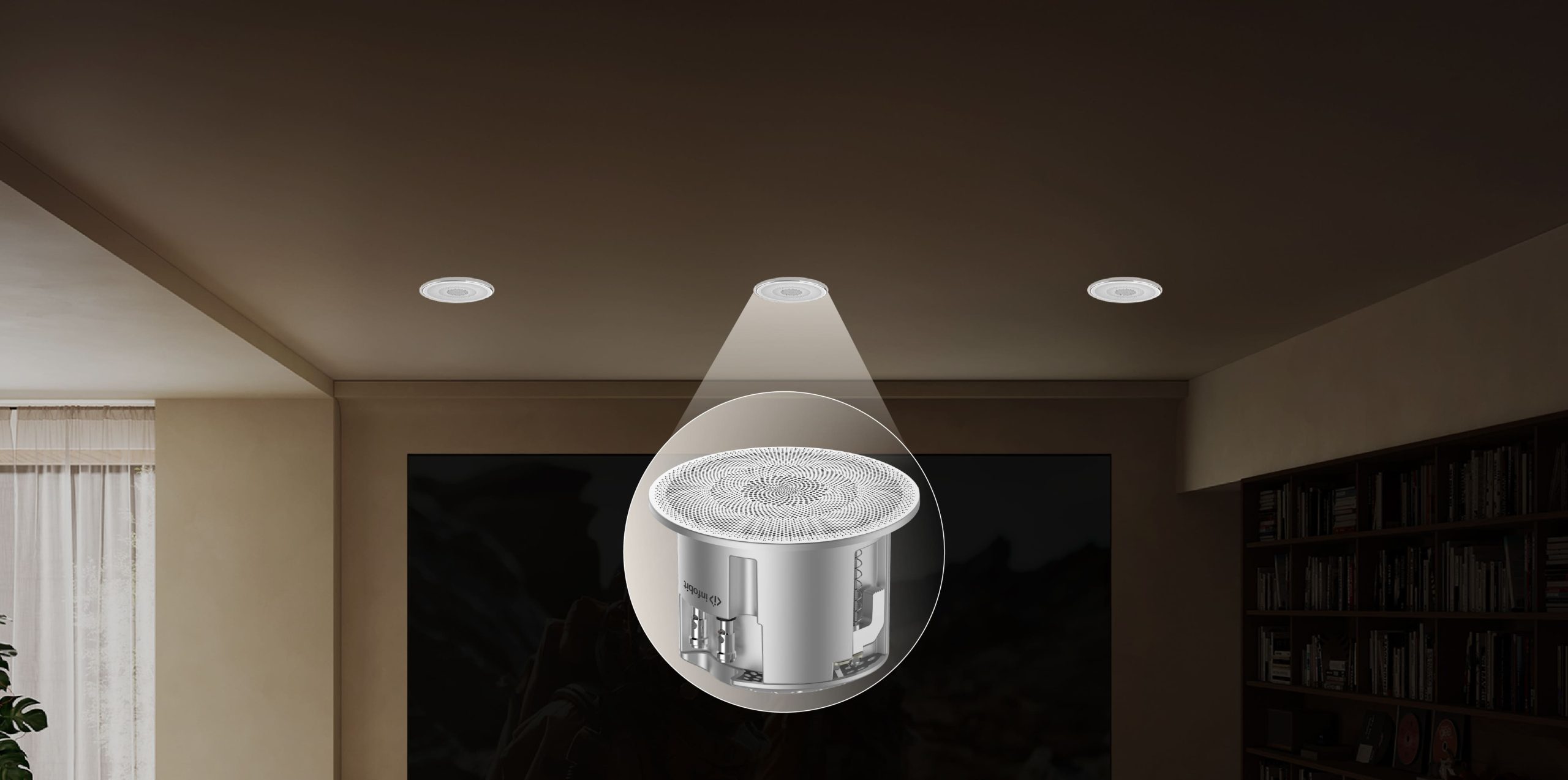

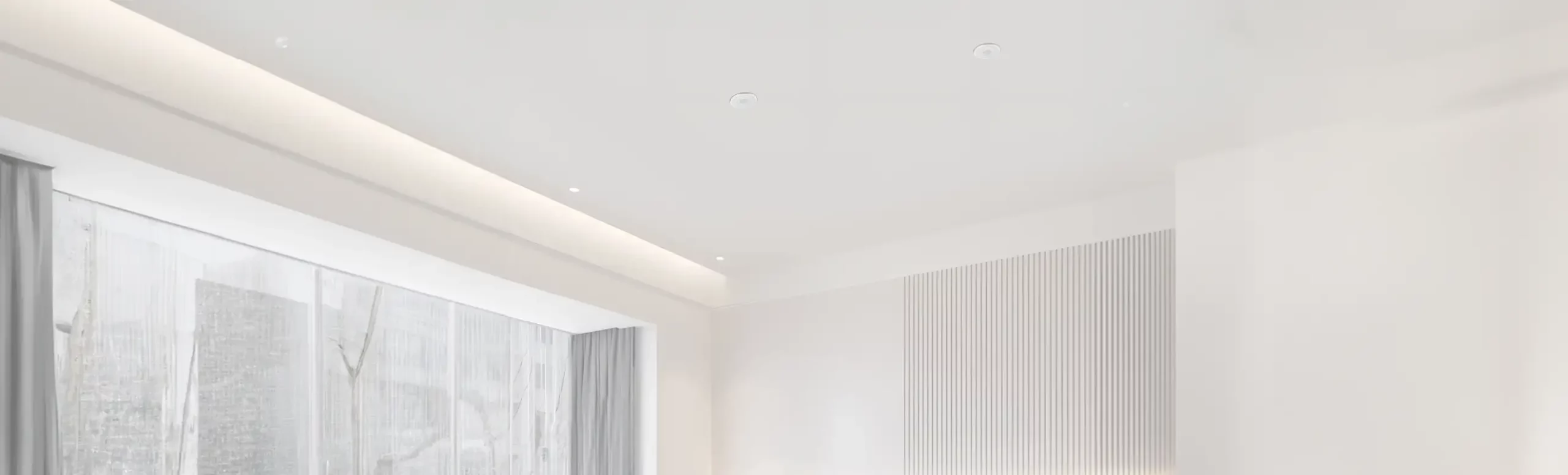

 Embedded Design
Embedded Design
Embed in both residential and commercial environments such as offices, retail stores, coffee shops, restaurants, hospitality, reception/waiting rooms, lounges, foyers, hallways, and auxiliary spaces.
Datasheet
Model iSpeaker Mini-15
Name 15W Mini Ceiling  Speaker
Speaker Type  In-ceiling
Driver Unit  2.5″ Full range
Diaphragm MTL  Aluminium
Nominal impedance
Sensitivity (2.83v/1m)  85 dB
Frequency Response  90Hz-20KHz
Recommended Amp Power  5-100 watts
Dimension  Φ109 x 73.1mm
Mounting Depth  68mm
Cut-out  Φ 87mm
Product Weight  0.39kg
Grille Material  Stainless iron
Enclosure Material Aluminium alloy
Operating Temperature – 10℃~+50℃
Storage Temperature – 20℃~+60℃
Humidity 90% (non-condensing)
Download
  • iSpeaker Mini-15 Datasheet V1.0.pdf
    2.53M
    2025-07-01
  • iSpeaker Mini-15 User Manual V1.0.pdf
    2.72M
    2025-07-01
Related Products
  • iSpeaker AAC4
    Rated power (8Ω): 40W Rated power (70V): 40W/20W/10W/5W Rated power (100V): 40W/20W/10W Frequency Response: 57Hz-20KHz 6.5-inch semi-automatic High Voltage and Constant Impedance Tweeter: 1″ rotatable silk soft dome Woofer: 6.5″ polypropylene cone Sensitivity: 90dB@1W/1m
  • iSpeaker AAC6
    1x6.5"+1x1" dome, coaxial design. Rated power (8Ω fixed resistance): 60W (240W, PEAK) Rated power (70V constant voltage): 20W/10W/5W/2.5W Rated power (100V constant voltage): 40W/20W/10W/5W Easy wiring: Front-out wiring cable raceway.
  • iSpeaker DAC6S
    1x6.5"+1x1" dome Output power of 60W Rated power (8Ω fixed resistance): 60W Easy wiring: Front-out wiring cable raceway. Supports Dante
  • iSpeaker DCS60
    Rated power 60W Supports Dante Diffusion angle: 20° vertically, 120° horizontally Supports PoE: 802.3af/802.3at/802.3bt Sensitivity of 93dB
  • iSpeaker CS100
    Music/ human voice adjustable Rated power (4Ω): 100W Rated power (70V): 60W / 30W / 15W / 7.5W Rated power (100V): 30W / 15W / 7.5W / 3.7W Diffusion angle: 20° vertically, 120° horizontally
  • iSpeaker P30B
    5.25” full range PP woofer speaker 70 Volt/100 Volt transformer with 8 Ohm bypass 70V power taps 30W, 15W, 7.5W, 3.8W and 1.9W. 100V power taps 30W, 15W, 7.5W, 3.8W. Pendant wall speaker of special dispersion loudspeakers.

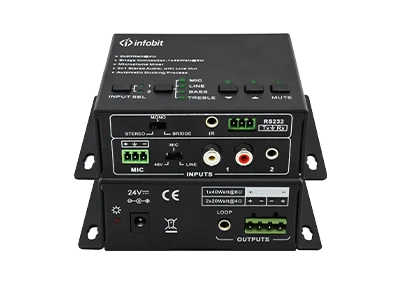

  • iSound PA20
