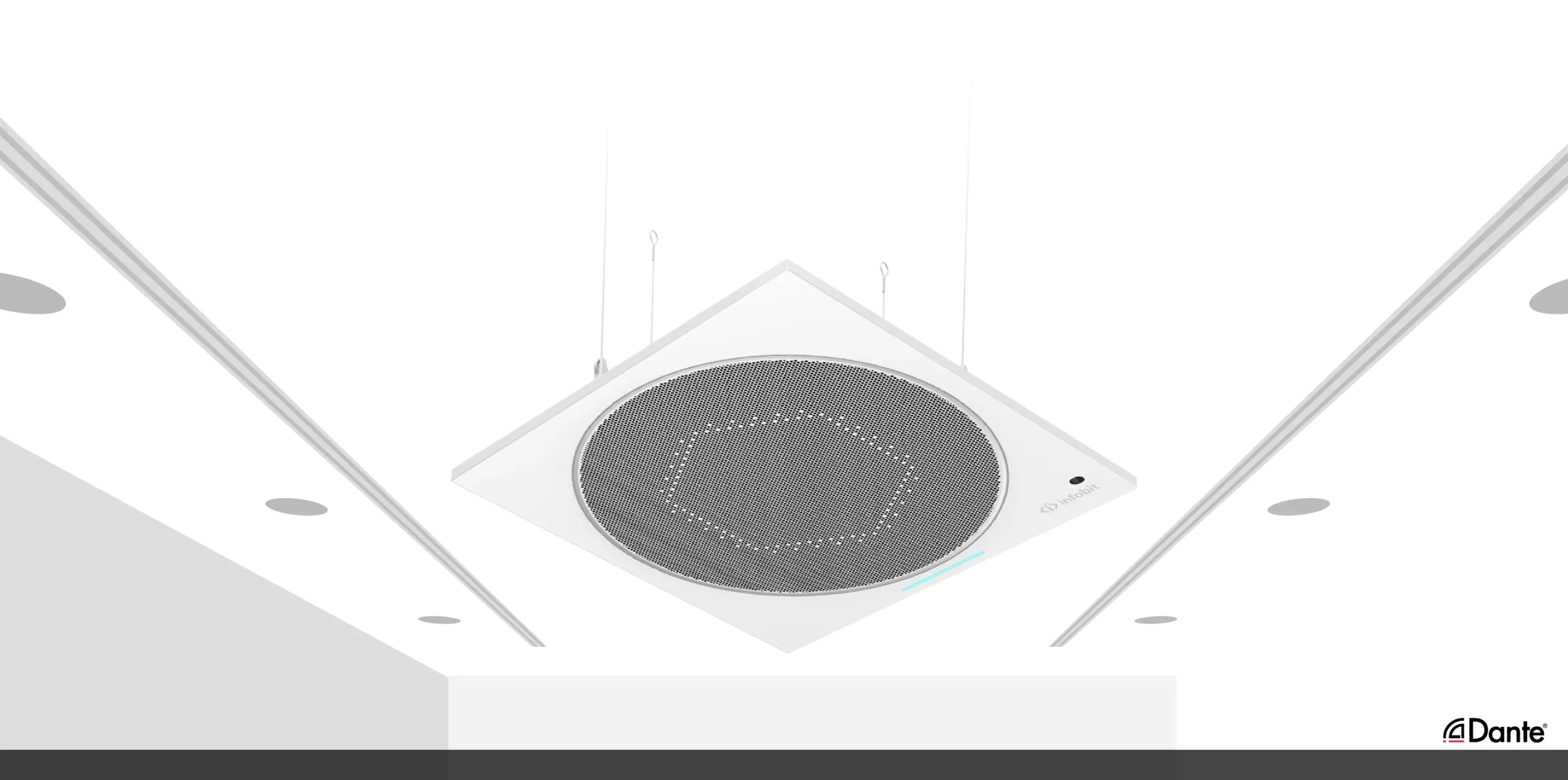

iSpeaker-CM360 - B1

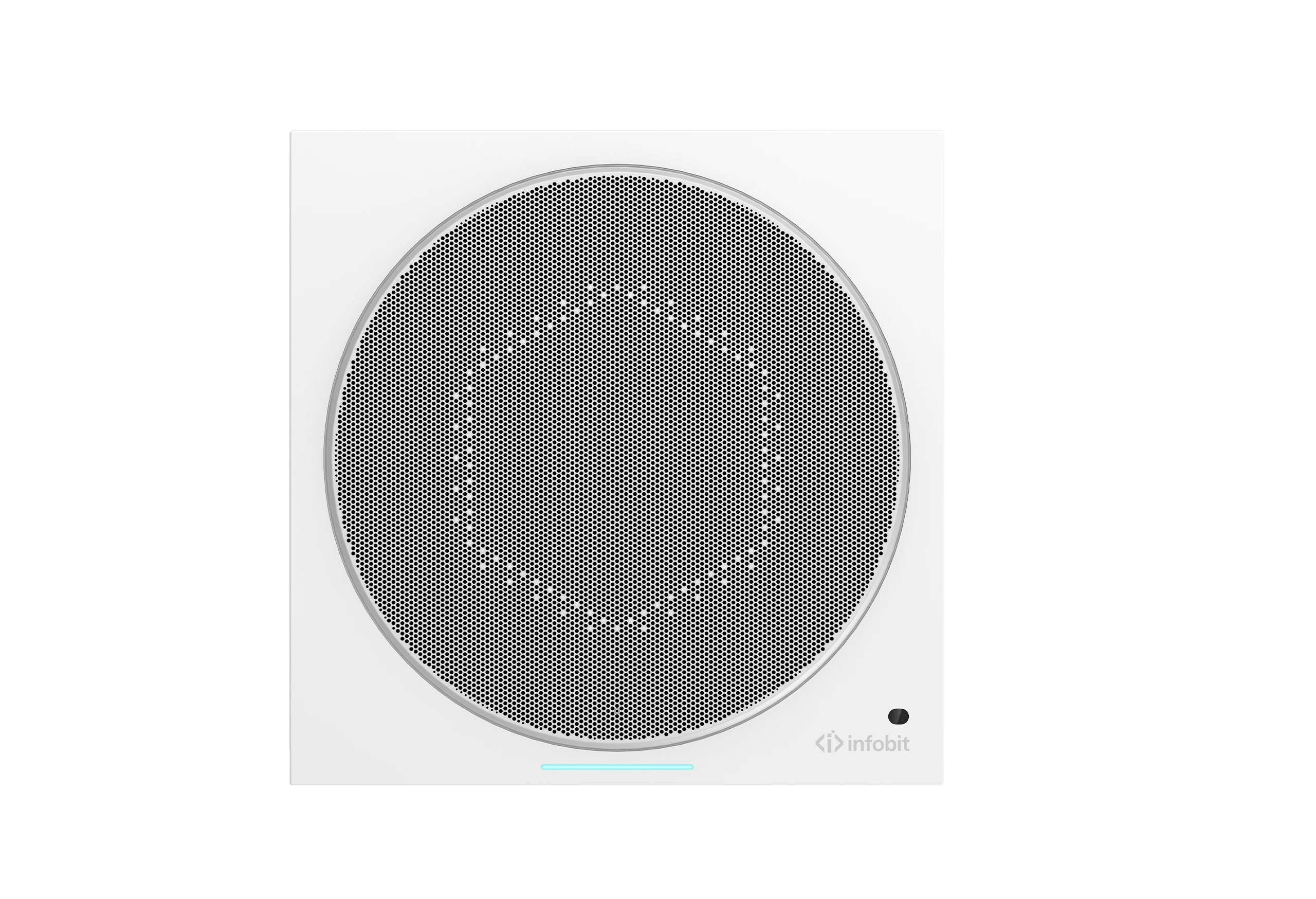

iSpeaker CM360

Dante Ceiling Microphone

iSpeaker CM360
iSpeaker CM360
iSpeaker CM360
iSpeaker CM360
iSpeaker CM360
iSpeaker CM360
iSpeaker CM360
iSpeaker CM360
iSpeaker CM360

128x MEMS microphone array.

1x RJ45 Dante PoE port.

With the IR Remote to control mute/unmute, volume, pickup or reinforcement modes.

Supports both sound pickup and local sound reinforcement modes separately or simultaneously.

Supports unlimited cascading.

Supports 8x local pickup zones.

Supports 8x local sound reinforcement zones.

Supports 1x local mute zone.

Supports AI Noise Reduction Suppression, AI Reverberation Suppression, AI Feedback Suppression, AI Echo Cancellation.

Supports camera tracking.

Supports 8 8-meter pickup distance.

Supports a user-friendly GUI.

Supports online firmware upgrade.

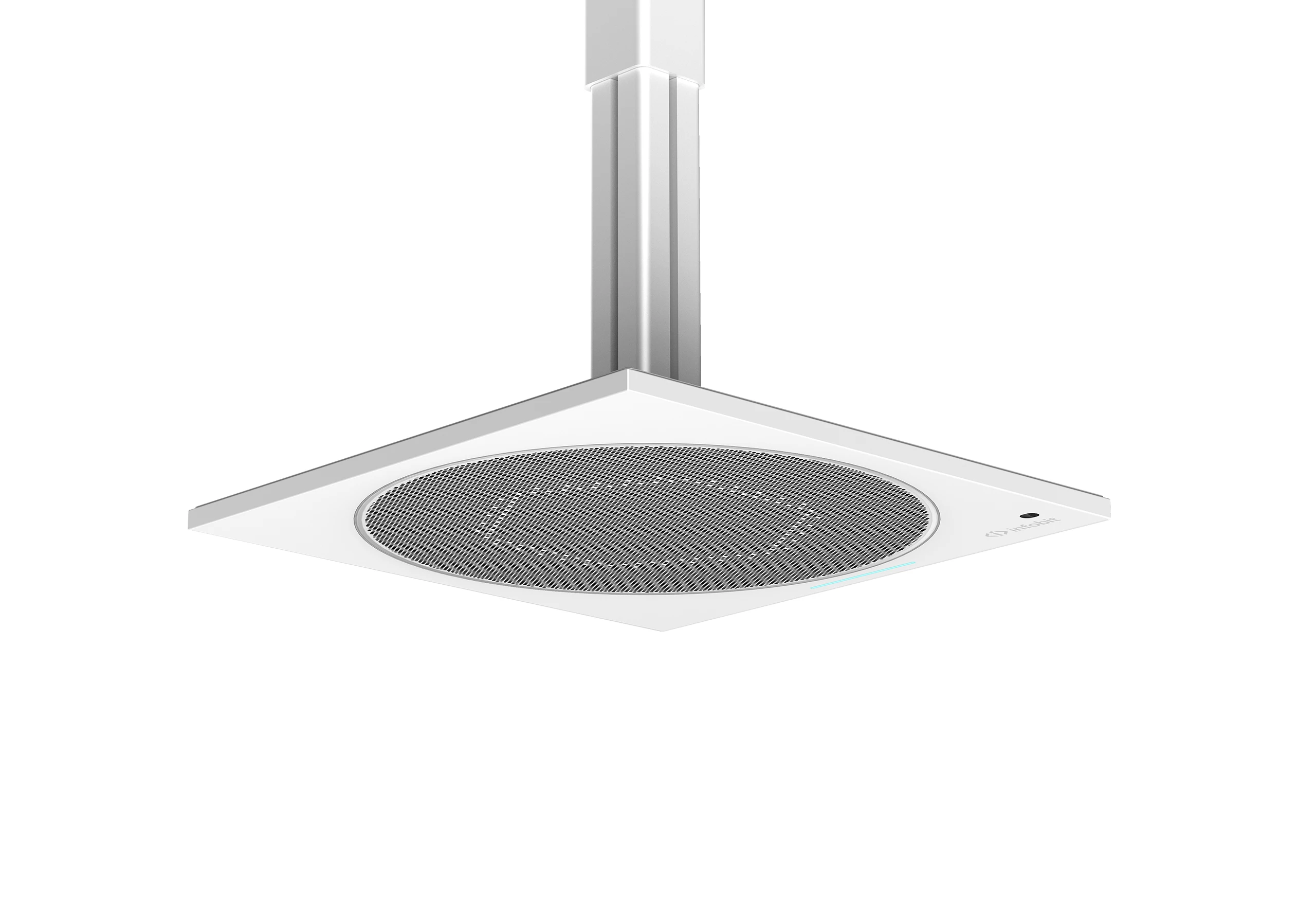

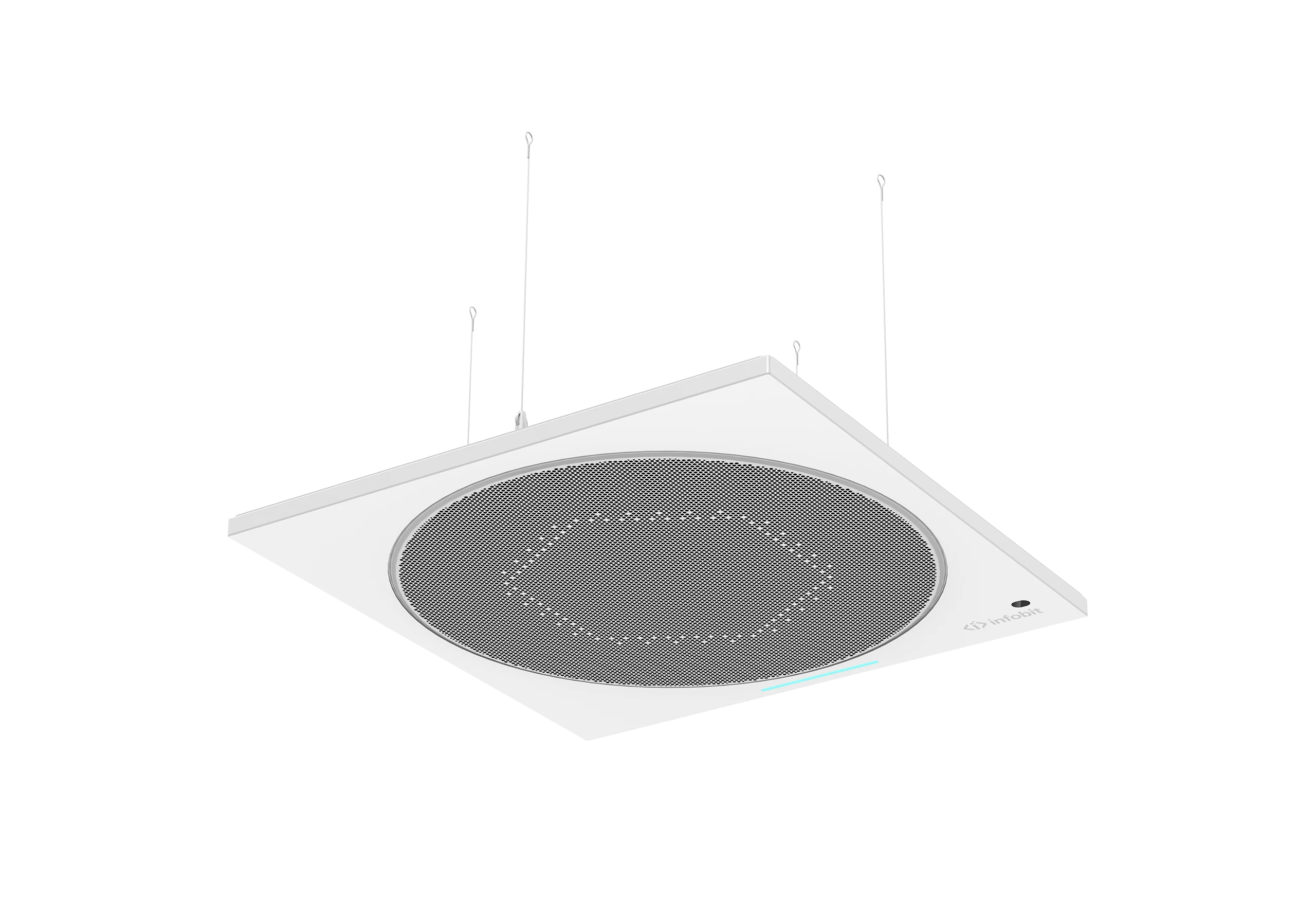

3x different mounting ways, like pendant ropes, mounting bracket, or in-ceiling mounting.

Note: NOT AVAILABLE IN CHINA (INCLUDING HK, MACAU, AND TAIWAN)

iSpeaker CM360
iSpeaker CM360
iSpeaker CM360
iSpeaker CM360

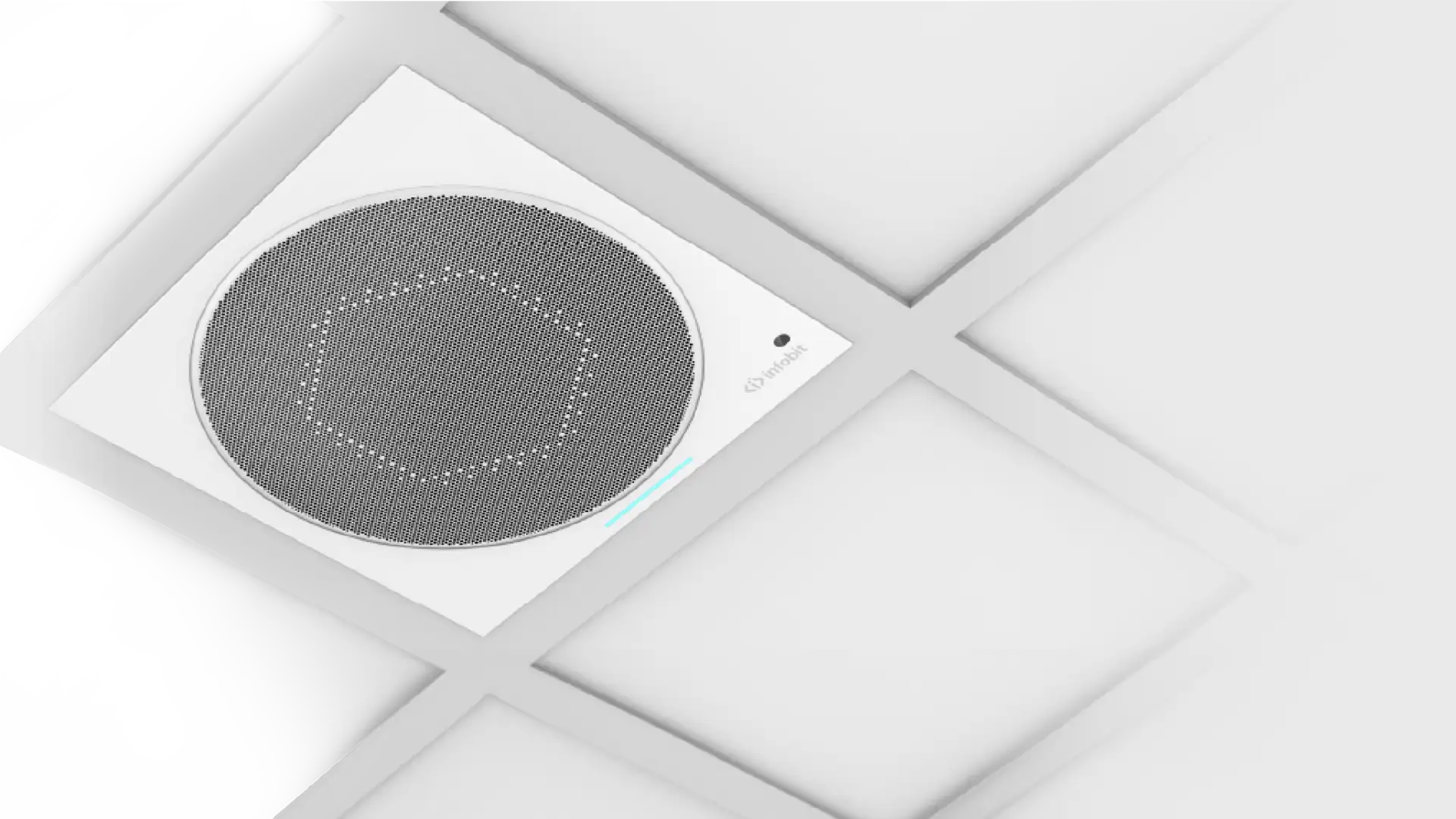

 HIGH-END CEILING MICROPHONE
HIGH-END CEILING MICROPHONE
With 128x MEMS microphones array,
support 8 meters pickup range.
Support Dante-powered unlimited cascading.

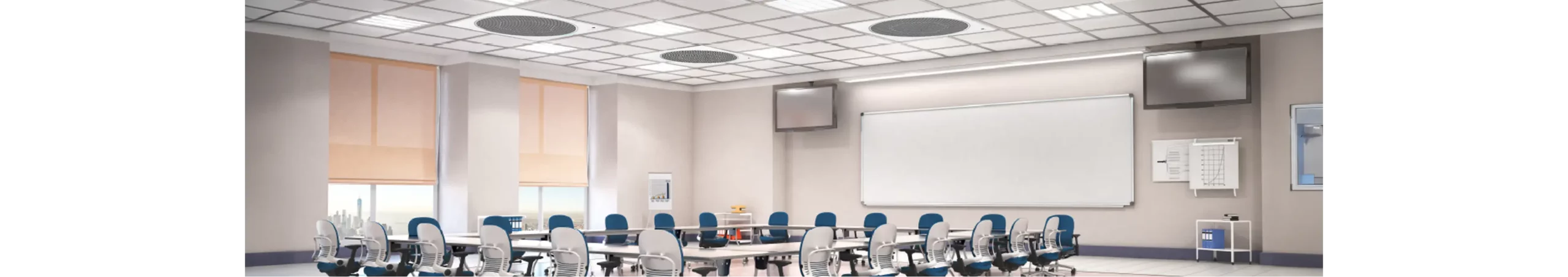

 FOR EDUCATION ROOMS
FOR EDUCATION ROOMS

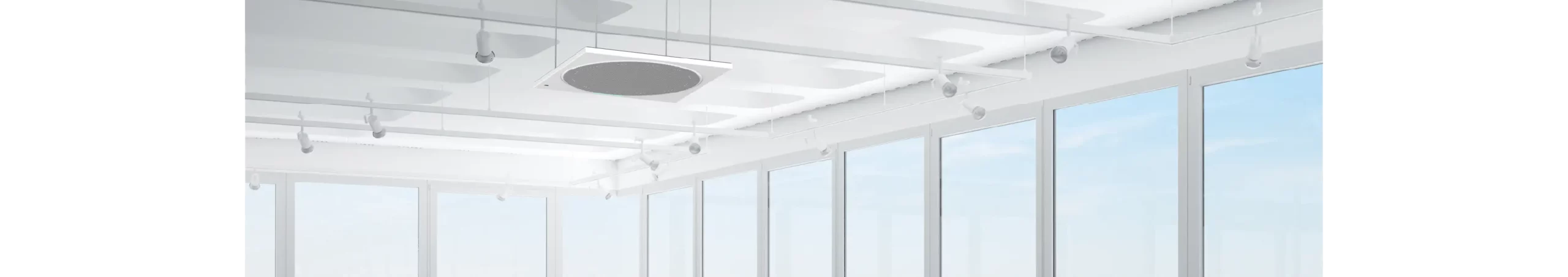

 FOR MEETING ROOMS
FOR MEETING ROOMS

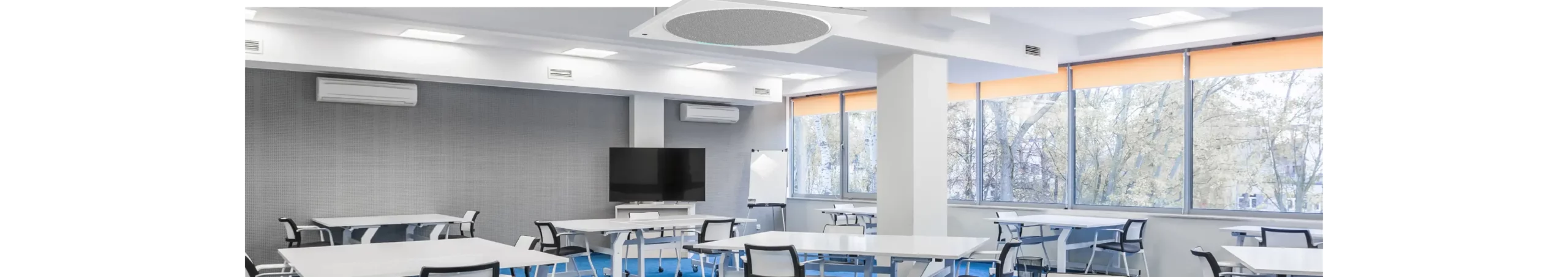

 FOR TRAINING HALLS
FOR TRAINING HALLS

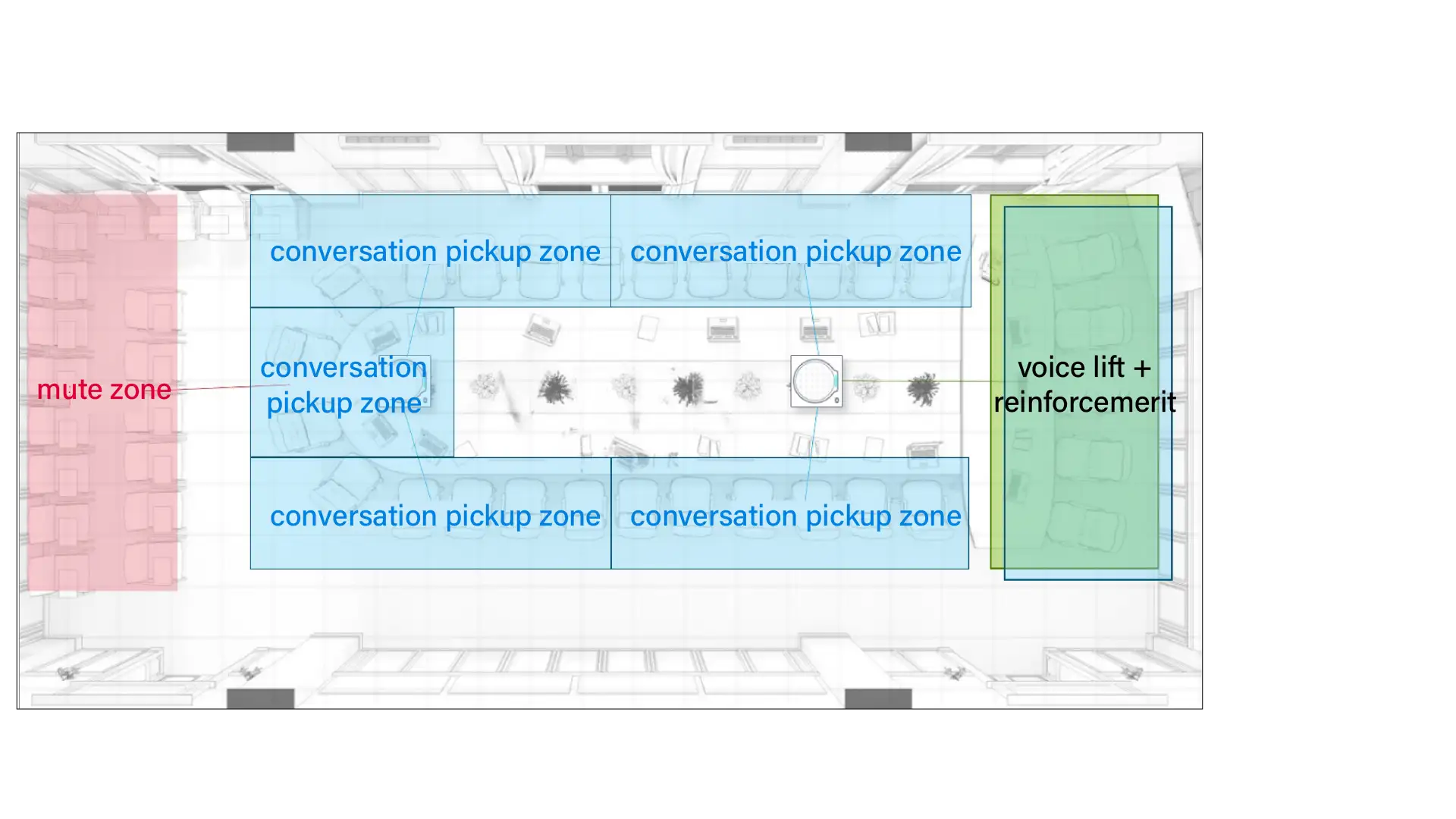

 FLEXIBLE ZONES MANAGEMENT
FLEXIBLE ZONES MANAGEMENT
Supports 8x sound pickup zones,
8x local sound reinforcement zones and 1x mute zone.
Datasheet
Model iSpeaker CM360
Name Dante Ceiling Microphone
Color White
Size 597mm*597mm*53.5mm
Net Weight 5KG
Power Supply PoE
Installation Method Ceiling mount
Mic Type 128-unit MEMS microphone array
Sensitivity -38dBv/94dB SPL @1KHz
Signal-to-Noise Ratio 65dBv/94dB SPL@1KHz, A-weighted
Dante Channels 2×2
Remote Meeting Pickup Channel 1x
Local Sound Reinforcement Channel 1x
Remote Conversation Pickup Zones 8x
Local Sound Reinforcement Pickup Zones 8x
Sampling Rate 48kHz
Maximum Background Noise Suppression 35dB
AI Noise Reduction Suppression Support
AI Reverberation Suppression Support
AI Feedback Suppression Support
AI Echo Cancellation Support
Delay (Automatic Mixing Output, Including Dante) <30ms
Cascade Quantity Unlimited
Cascade Method Dante audio
RJ45 Port 1x (Dante Audio Transmission, PoE)
USB C Port 1x ( For debug)
Reset Button 1x
Download
  • iSpeaker CM360 Brochure V1.2
    1.63M
    2024-09-29
  • iSpeaker CM360 Brochure Brief V1.0.pdf
    4.69M
    2025-07-29
  • INFOBIT iSpeaker CM360 Tender Spec for System Integrators V1.0.pdf
    0.1M
    2024-09-29
  • INFOBIT iSpeaker CM360 software manual v1.0.pdf
    9.28M
    2024-09-29
  • INFOBIT iSpeaker CM360 hardware Manual V1.0.pdf
    1.88M
    2024-09-29
