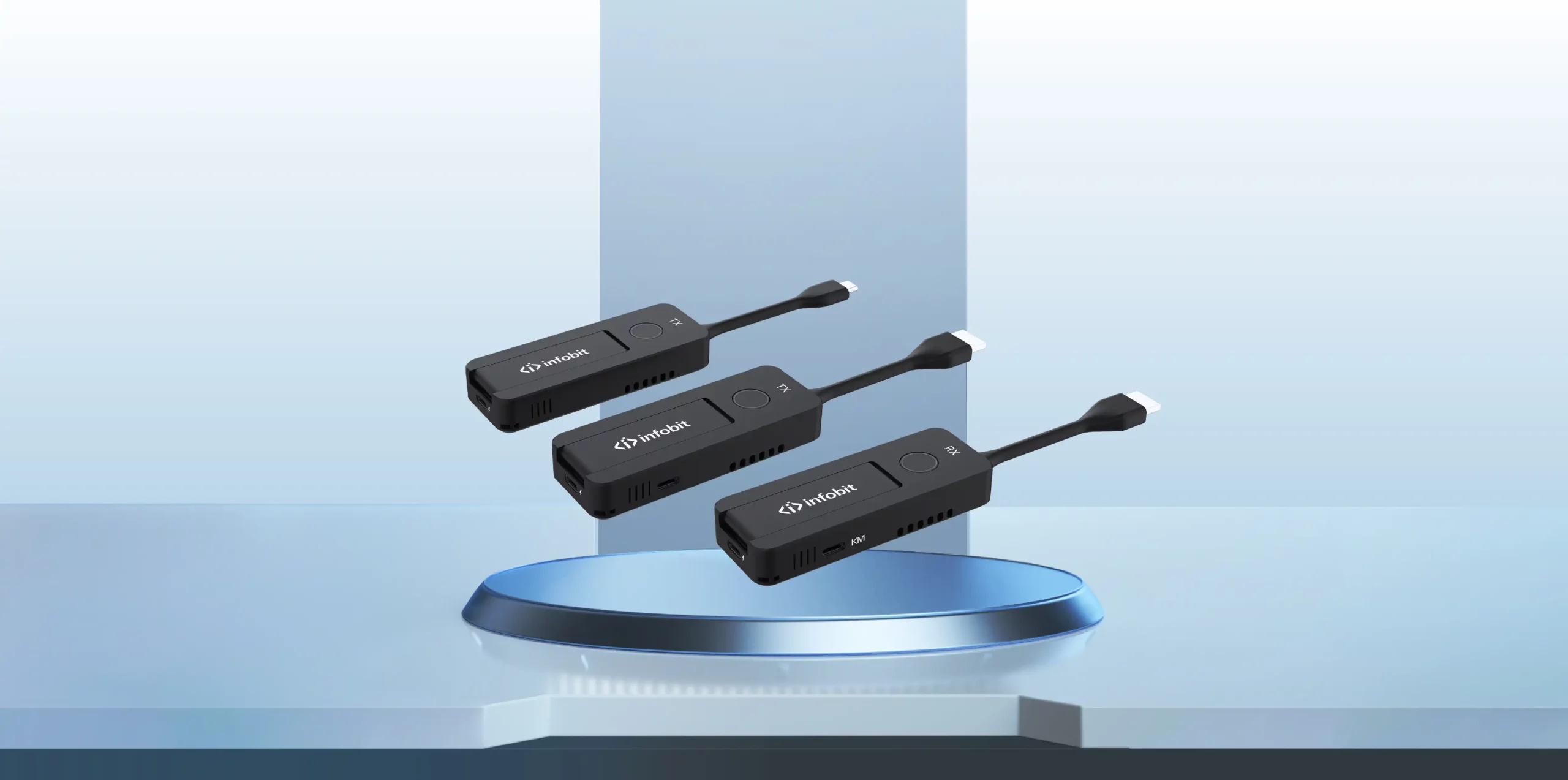

iShare Flip--B00
iShare Flip

4K60 Wireless Extenders

iShare Flip
iShare Flip
iShare Flip
iShare Flip
iShare Flip
iShare Flip
iShare Flip
iShare Flip
iShare Flip
iShare Flip
iShare Flip

Ultra Resolution: Supports 4K60 ultra-resolution transmission.

Super Smooth Playback: Proprietary Seamless Technology ensures smooth video playback.

Auto Pairing & Connection: Automatically establishes a connection using the most favorable Wi-Fi channel to guarantee exceptional wireless performance.

Long Coverage: Transmission distance of up to 30 meters in a clear line of sight, (Suggest not exceeding 30m)

1-N Mode: Supports one transmitter to multiple receivers mode (Max. 4x Rx).

N-1 Mode: supports many-transmitters-to-one-receiver mode. (Max. 16x Tx)

Touch-back Control: Support controlling the source PC from the touch screen.

iShare Flip
iShare Flip
iShare Flip
iShare Flip
iShare Flip
 ONE-to-ONE Mode
ONE-to-ONE Mode
The iShare Flip supports 1x Wireless Tx to 1x Rx connection.
 1-to-N Mode
1-to-N Mode
It supports one transmitter to
multiple-receivers mode.
 N-to-1 Mode
N-to-1 Mode
It supports many-transmitters to one receiver mode.
 4K Resolution
4K Resolution
The iShare Flip support transmitting 4K60Hz 4:4:4 video
up to 30-100m distance with super-lower latency
less than 100ms.
Datasheet
Models iShare Flip-HT iShare Flip-CT iShare Flip-HR
Name HDMI Tx USB C Tx HDMI Rx
Video Versions HDMI 2.0 DisplayPort 1.4 HDMI 2.0
HDCP HDCP 2.2 HDCP 2.2 HDCP 2.2
Resolutions 2160P/60fps; 1080p/60fps; 1080p/30fps; 1080p/24fps; 1080i/50fps; 1080i/60fps; 720p/30fps; 720p/60fps; 480p/60fps
Audio Format PCM
Audio Channel 2 channels
Latency About 100ms
USB KVM Supports touch panel back control
1-N Mode Yes
N-1 Mode Yes
Auto pairing Yes
Auto connection Yes
Wireless Standard IEEE 802.11a/b/g/n/ac 5.8G
Security WPA2-AES128 Advanced Encryption Standard
Antennas 1x 3dBi high-sensitive Antenna
Distance Up to 100 meters in the clear line of sight (Suggest not exceeding 30m)
The distance will be shorter in obstructed environments
I/O Ports HDMI in x 1; Type C x 1 (for power/data); Button x 1 USB C in x 1; Type C x 1 (for power/data); Button x 1 HDMI Out x 1; Type C x 1 (for power/data);  Type C x 1 (KM touch); Button x 1
Power Supply 5V/2A (USB-powered)
Dimension 195x37x16.5mm
Weight 64g 50g
Download
  • iShare Flip Datasheet V1.0.pdf
    0.68M
    2025-09-25
  • iShare Flip User Manual V1.0.pdf
    2.61M
    2025-09-25
Related Products

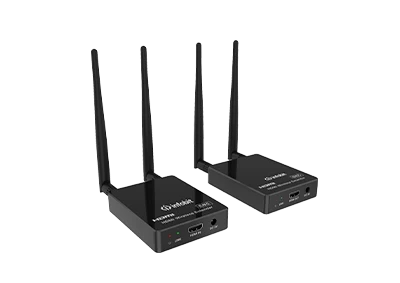

  • iTrans W100
