iMatrix-C604--B0

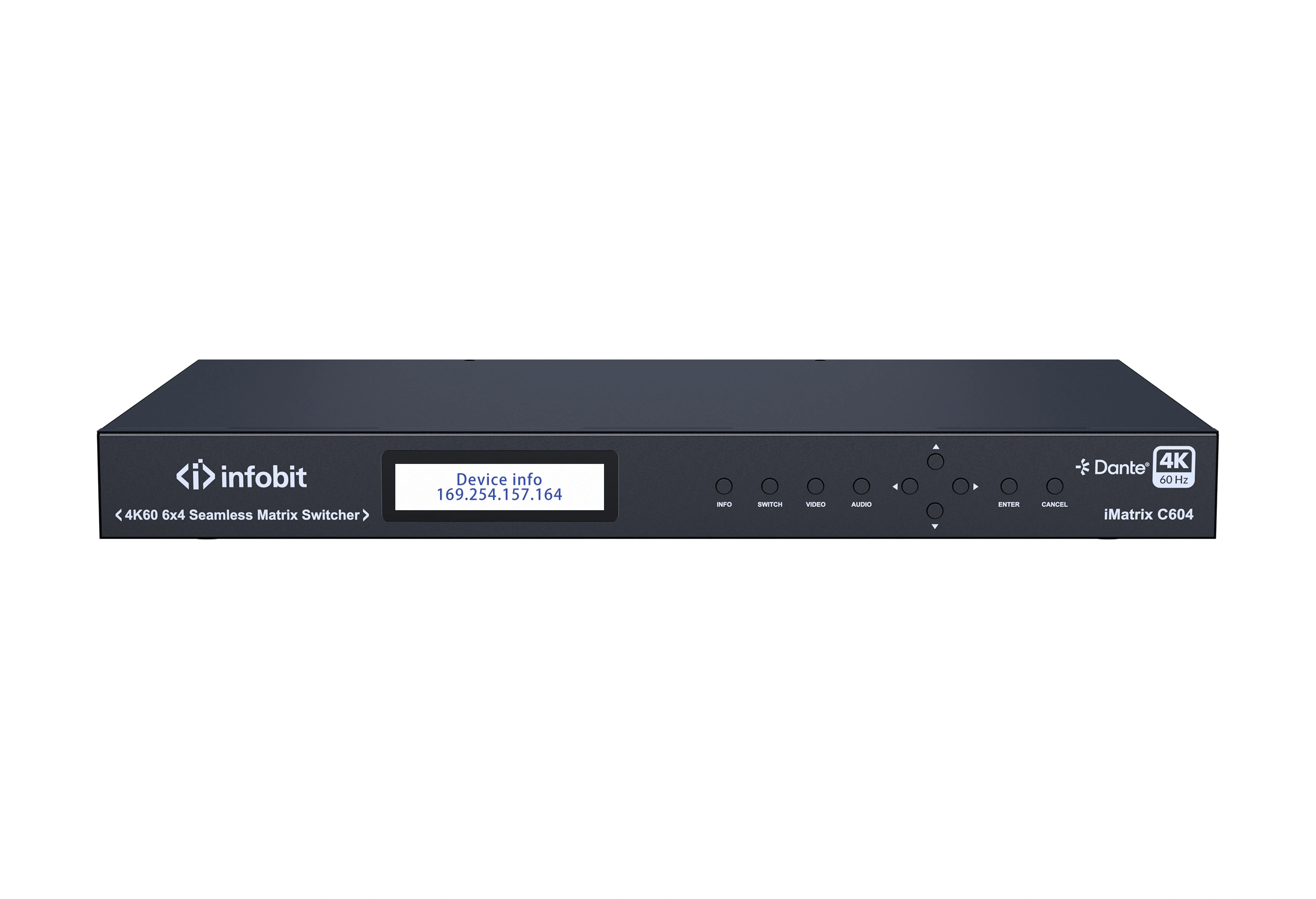

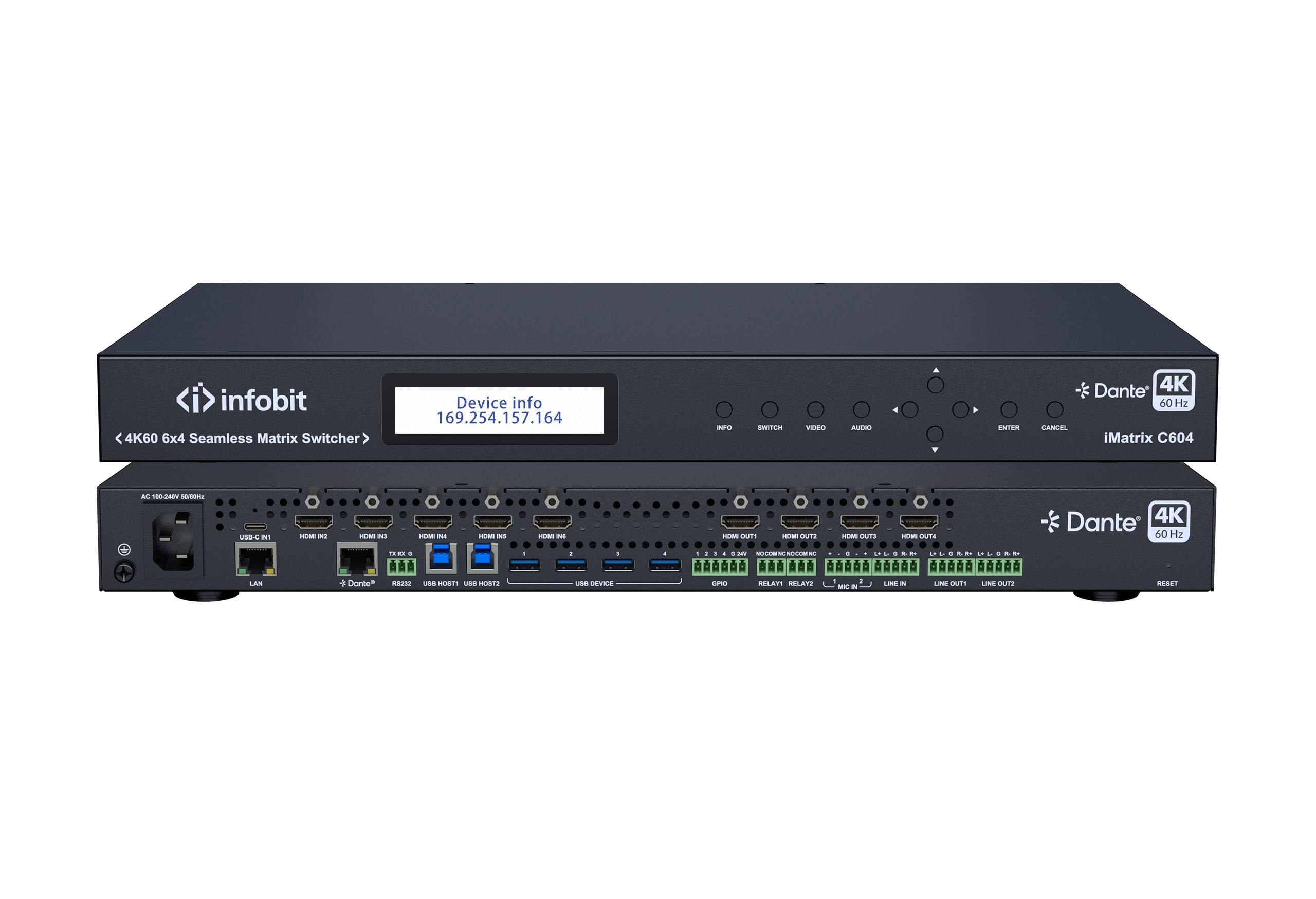

iMatrix C604

HDMI and USB C 6x4 Seamless Matrix Switcher with Dante and DSP

4K60

4K60

USB C

USB C

HDMI

HDMI

Dante

Dante

Seamless Switching

Seamless Switching

iMatrix C604
iMatrix C604
iMatrix C604
iMatrix C604
iMatrix C604
iMatrix C604
iMatrix C604
iMatrix C604
iMatrix C604
iMatrix C604
iMatrix C604

Inputs and outputs support resolutions up to 4K@60Hz 4:4:4 8-bit.

Supports HDCP 2.3 and is backward compatible.

HDMI outputs support free scaler from 480p to 2160p, and provide seamless transition without seeing black screen switching.

Full-featured USB-C input port, supports 4K@60Hz, USB 3.1 gen1, 1G network, and PD 3.0 charging up to 60 watts.

Supports USB host switching and USB device extension.

Switching USB hosts include 1x USB3.0 type-C port and 2x local USB3.0 type-B ports;

USB devices include 4x local USB 3.0 type-A ports.

Versatile audio connection and DSP.

2x Mic inputs, and 1x LINE input

1x USB audio input and 1x USB audio output, with 48KHz sampling frequency

Dante 4×4 with various sampling rates

HDMI audio de-embedding with sampling frequency up to 192KHz

Supports 2x balanced audio outputs.

Multi-Channel audio DSP Processing—simultaneously processing audio input and output signals, including gain, EQ, etc.

Supports GPIO control and relay control.

Multiple control options, including front panel buttons, RS-232, and LAN (Web UI &Telnet).

iMatrix C604
iMatrix C604
iMatrix C604
iMatrix C604
iMatrix C604
 4K Video Resolution
4K Video Resolution
Both inputs and outputs support max. resolution 4K60Hz 4:4:4

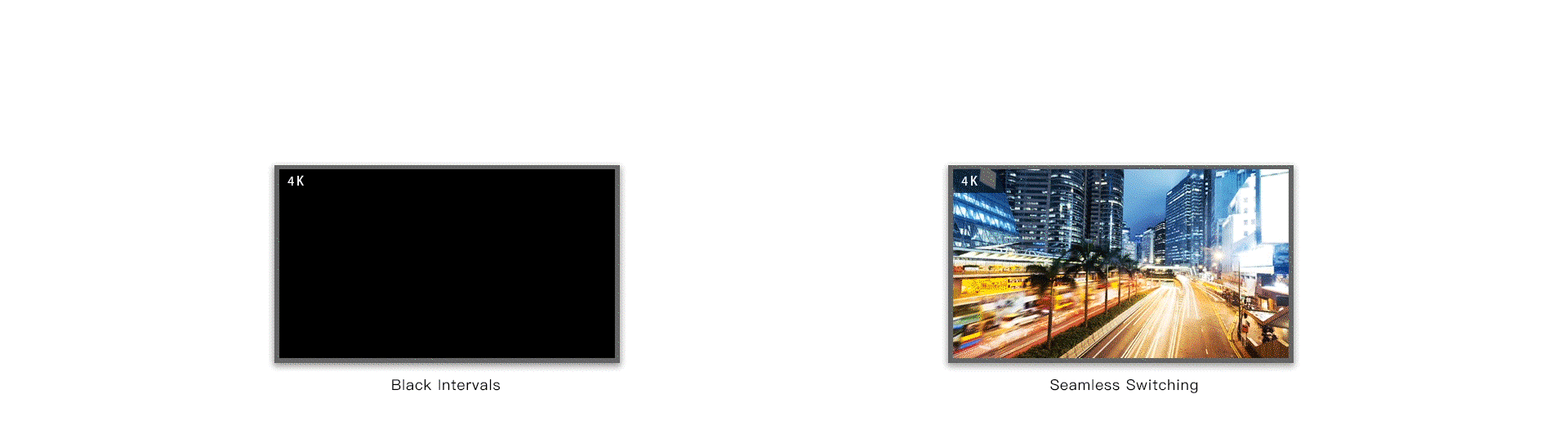

 Seamless Switching
Seamless Switching
With the instant switching technology, there is no black screen intervals between the signals changing.
 With USB C IN
With USB C IN
Full-featured USB-C input port,
supports 4K@60Hz video, USB 3.1 gen1, 1G network,
and PD 3.0 charging up to 60 watts.

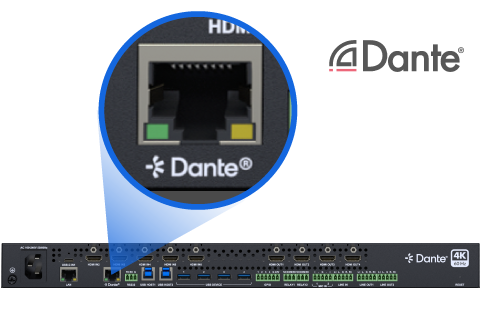

 Support Dante Audio
Support Dante Audio
It supports Dante 4x4 inputs x outputs audio channels.

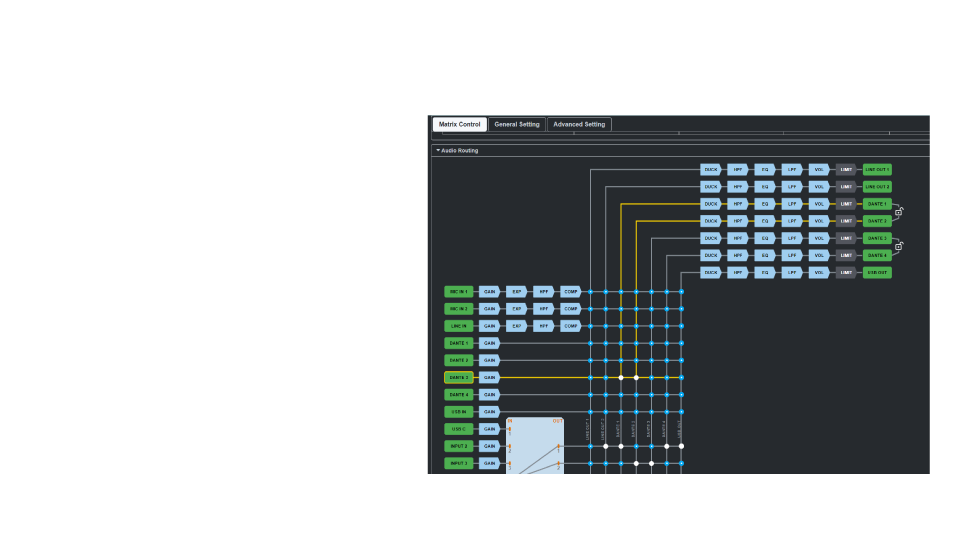

 With DSP
With DSP
Multi-Channel audio DSP Processing.
Enables simultaneously processing of audio input and output signals,
including gain, EQ, etc.

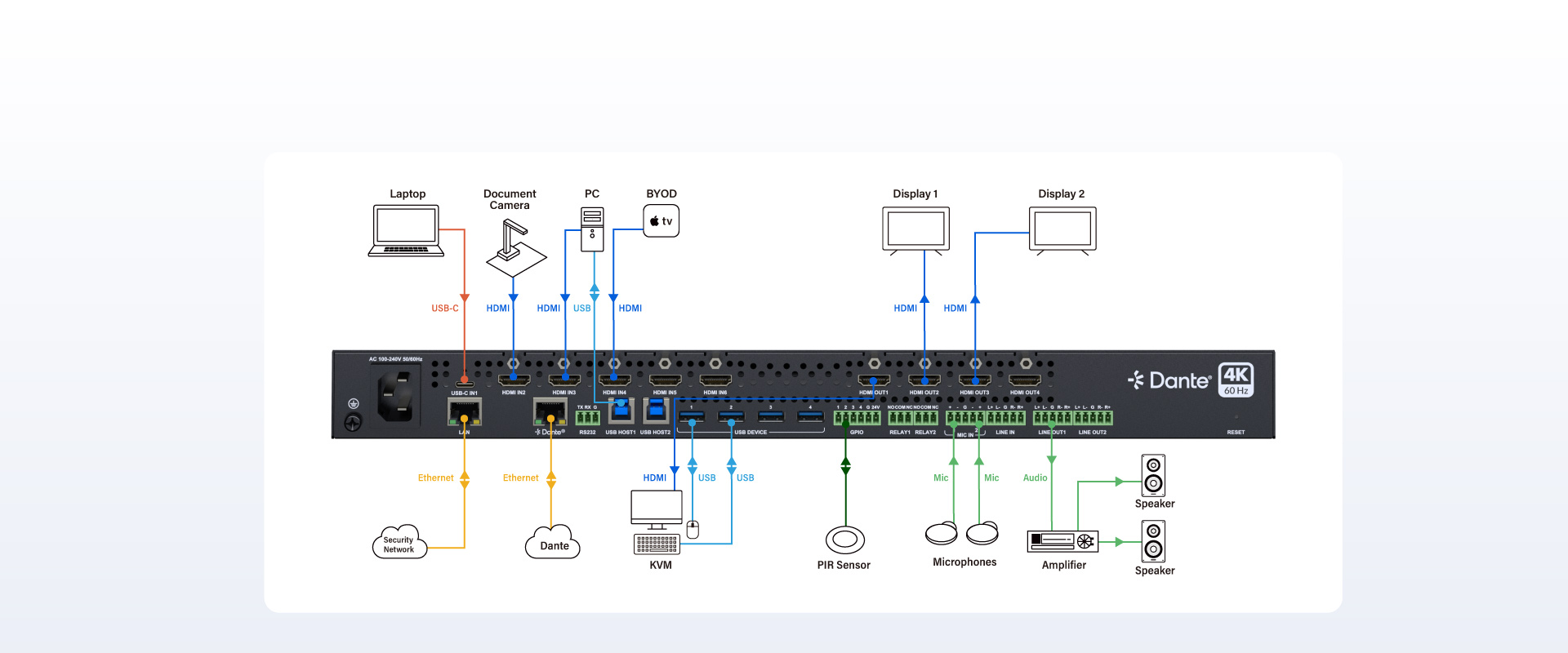

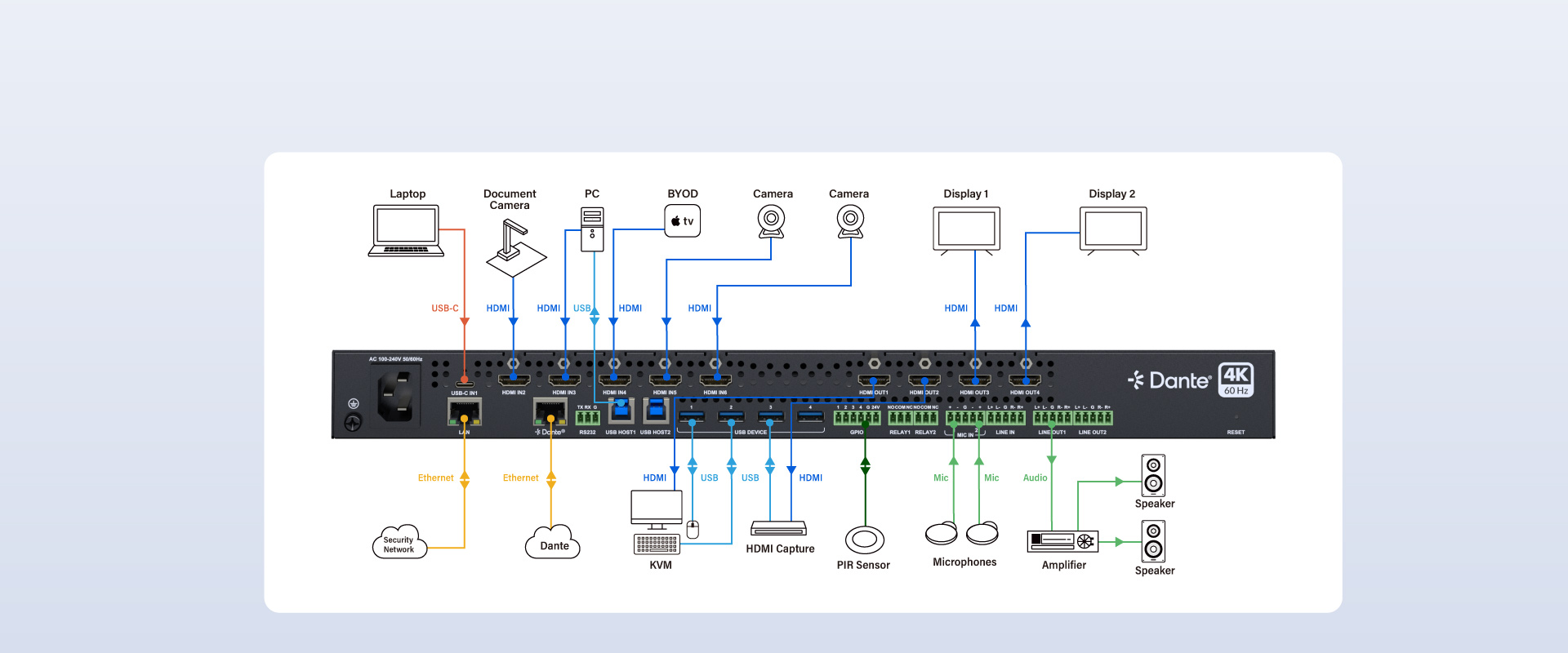

 Local Presentation
Local Presentation
It supports seamless switching between visitor's PC, Room PC, BYOD devices in meeting rooms or among teacher's laptop,
class PC or document camera in education applications.

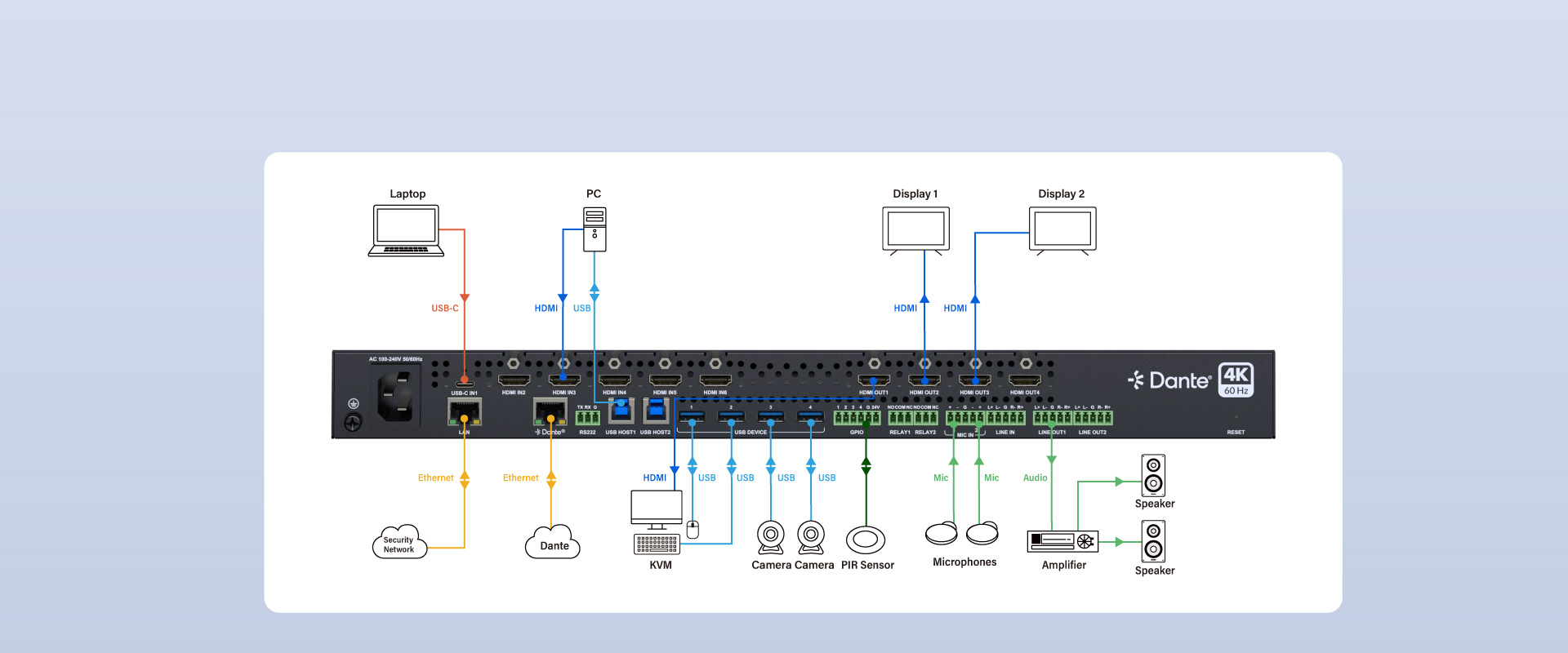

 Large Lecture Hall
Large Lecture Hall
It supports seamless switching among lecture's laptop, Room PC, document camera, web cameras, or BYOD devices in trainining applications.

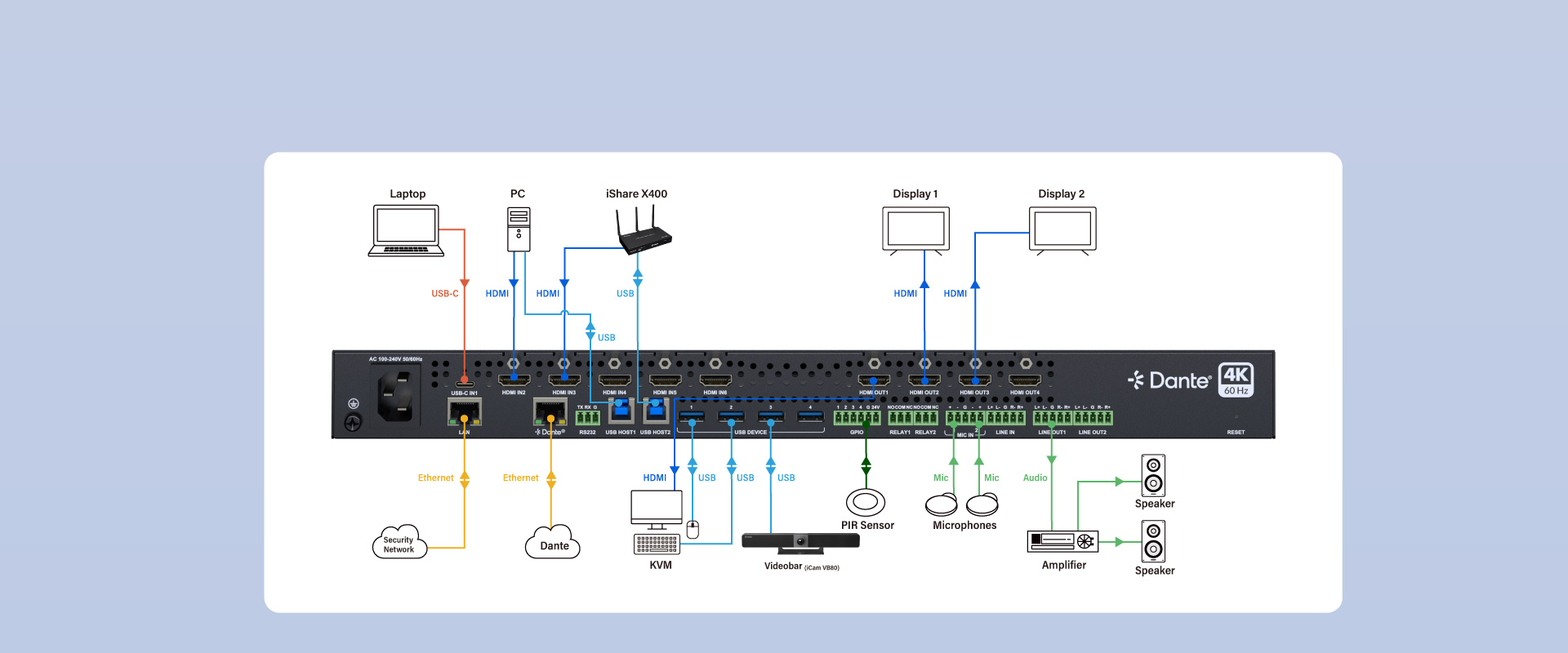

 Meeting Room
Meeting Room
It supports seamless switching among meeting guests laptop, Room PC or BYOD devices and share the web camera signals in meeting room applications.
Datasheet
Model iMatrix C604
Name HDMI and USB C 6×4 Seamless Matrix Switcher
Inputs 1x USB C, 5x HDMI
Outputs 4x HDMI
Input / Output Signal Type 4K@60Hz 4:4:4 8bit, HDCP 2.3
Input Resolutions  Max. 4K60Hz 4096×2160
Output Resolutions Max. 4K60Hz 4096×2160
USB Host 1x USB C, 2x USB B
USB Devices 4x USB A
Dante 1x RJ45 4×4 Dante Audio
Audio Format USB-C/HDMI/MIC IN/LINE IN/LINE OUT: PCM 2.0
Built-in DSP YES
GPIO YES
Maximum Data Rate HDMI: 18Gbps
USB-C: 5Gbps (per lane)
Control Method Front panel buttons, RS-232, LAN (Telnet API & Web UI)
Operating Temperature/ Humidity 32°F ~ 113°F (0°C ~ 45°C), 10% ~ 90%, non-condensing
Storage Temperature/ Humidity -4°F ~ 158°F (-20°C ~ 70°C), 10% ~ 90%, non-condensing
Power AC 100~240V 50/60Hz
Power Consumption  TBD
ESD Protection Human body model: ±8kV (air-gap discharge) / ±4kV (contact discharge)
Dimensions (W x H x D) 17.32” x 1.71” x 12.99” (440mm x 43.5mm x 330mm)
Net Weight 10.03lbs (4.55kg)
Download
  • iMatrix C604 Datasheet V1.0.pdf
    1.39M
    2025-05-07
  • iMatrix C604 User Manual V1.0.pdf
    2.52M
    2025-05-07
  • iMatrix C604 Design Spec for integrators V1.0.pdf
    0.07M
    2025-05-07
  • API Command Set_iMatrix C604_V1.0.0.pdf
    0.51M
    2025-05-07
  • 2.52M
