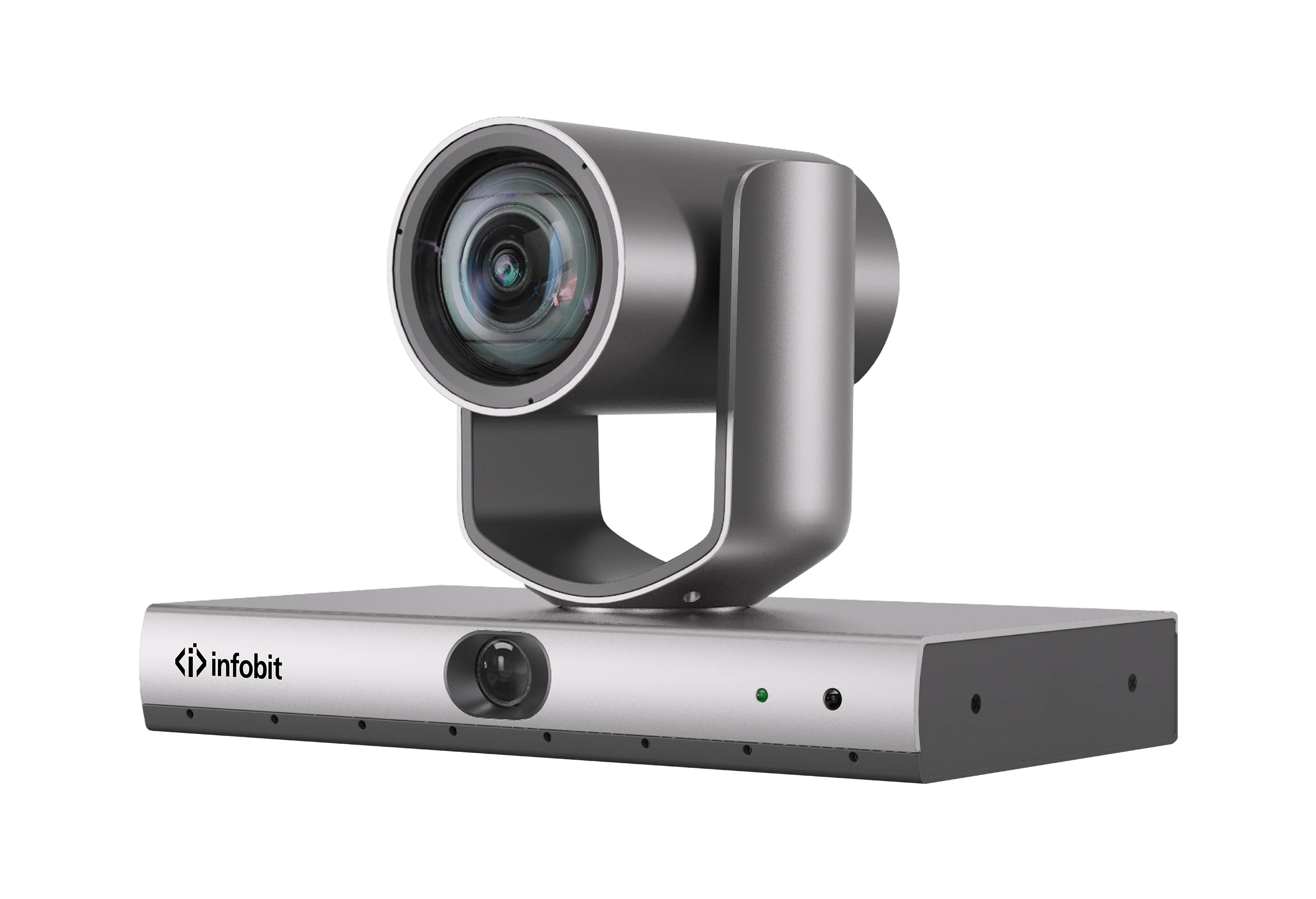

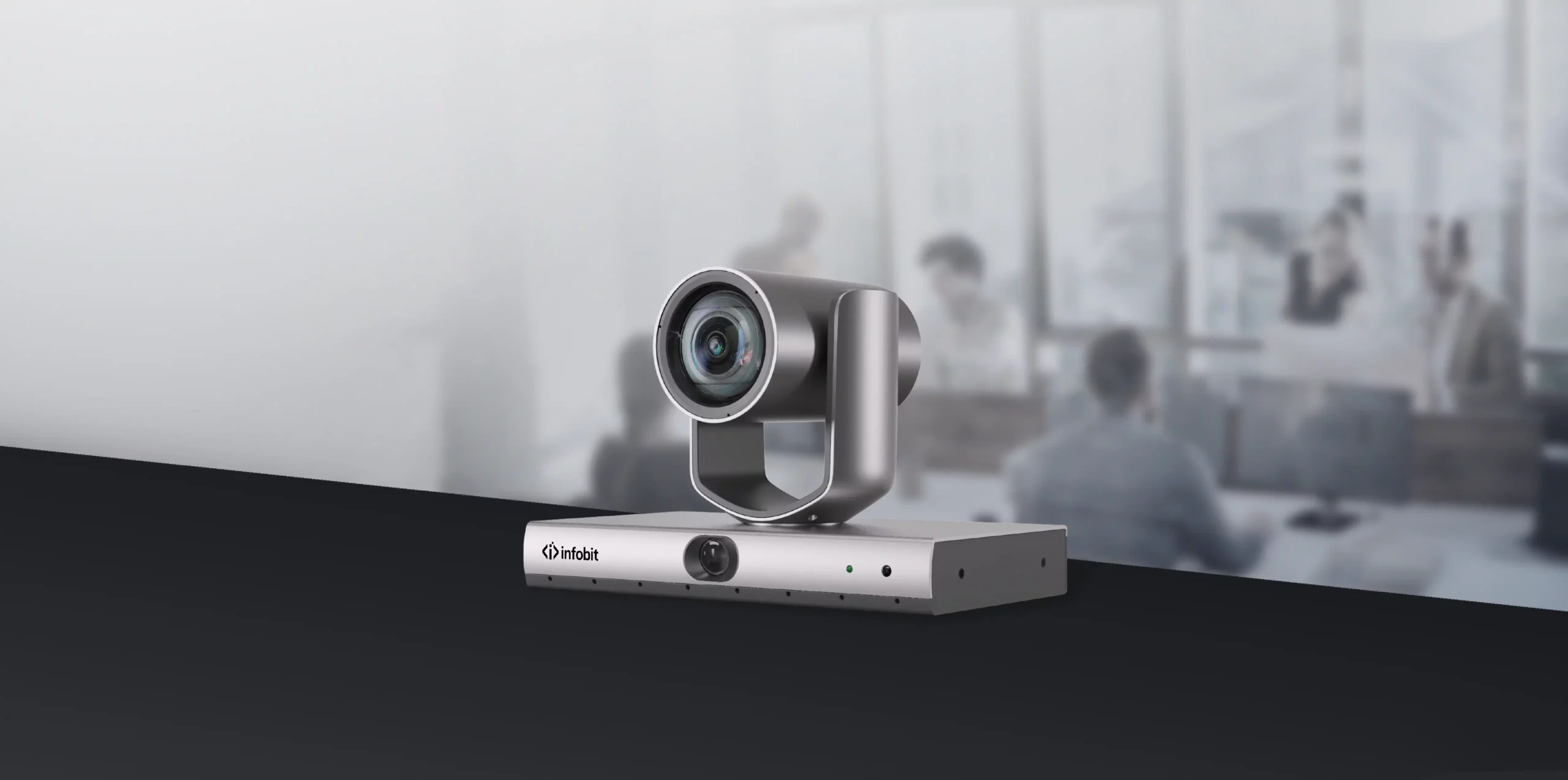

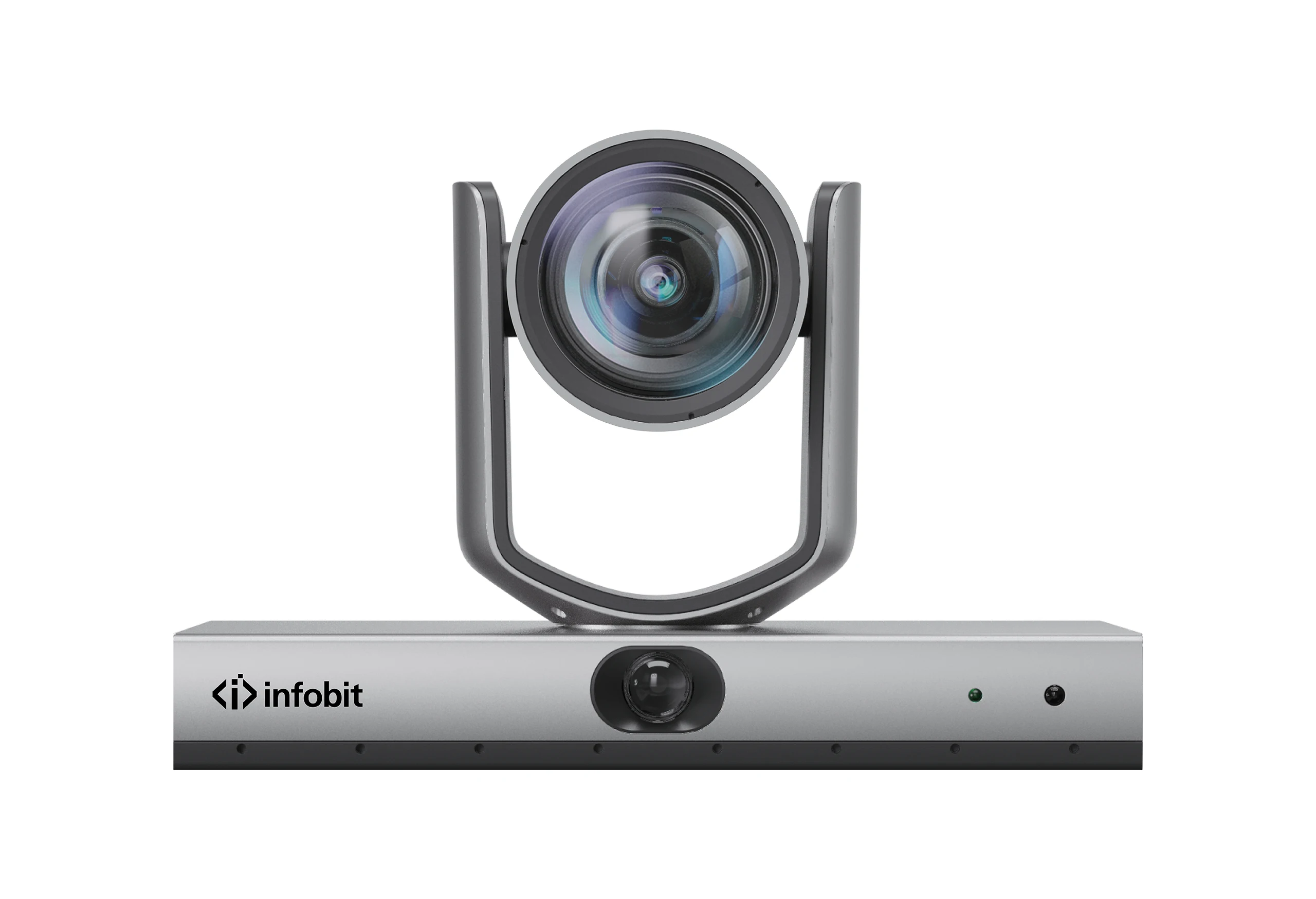

iCam PT40

Implemented with AI audio positioning, body detection, and recognition tech, precisely frame speakers, giving the best views of speakers and other attendees.

Innovative dual-lens design for tracking views and full views with auto and quick switching.

Various modes of speaker tracking and auto recognition, and a close-up shot of board writing.

No hand operation is involved, helping attendees focus on the meeting and discussion.

Designed for medium and large-sized meeting rooms, classrooms, and halls, covering a range of up to 8 meters.

Tracking cams: 12X optical zoom, HFOV up to 72.5°.

Simultaneous outputs over HDMI, USB3.0, 3G-SDI, and Ethernet, resolution up to 1080P60.

USB HOST interface for external mic input.

Compatible with popular conference hardware and cloud platforms of ZOOM, MS Teams etc.

Compatible with INFOBIT iSpeaker CM360 AI voice Tracking

Chat Now

Segment tracking

Never miss a step. Enhance the capturing of content on multiple displays with Segment Tracking. Create 4 Content Zones that allow for immediate recognition and tracking of your target as they move between Content Zones, perfectly capturing the content on display rather than your presenter.

Stage tracking

Track your target in any environment.Get high quality, hands-free video streaming and recording with Stage Tracking.
Fluidly track your target with Effective Zone settings allowing for up to 8 blocking zones to capture strategic professional looking video.

Wide area tracking

Capture every interaction. Track your target everywhere with Wide Area Tracking. Wide Area Tracking provides presenters the flexibility to leave the stage and interact with a crowd or students, all while being continuously tracked even if they become obscured by other people or objects.

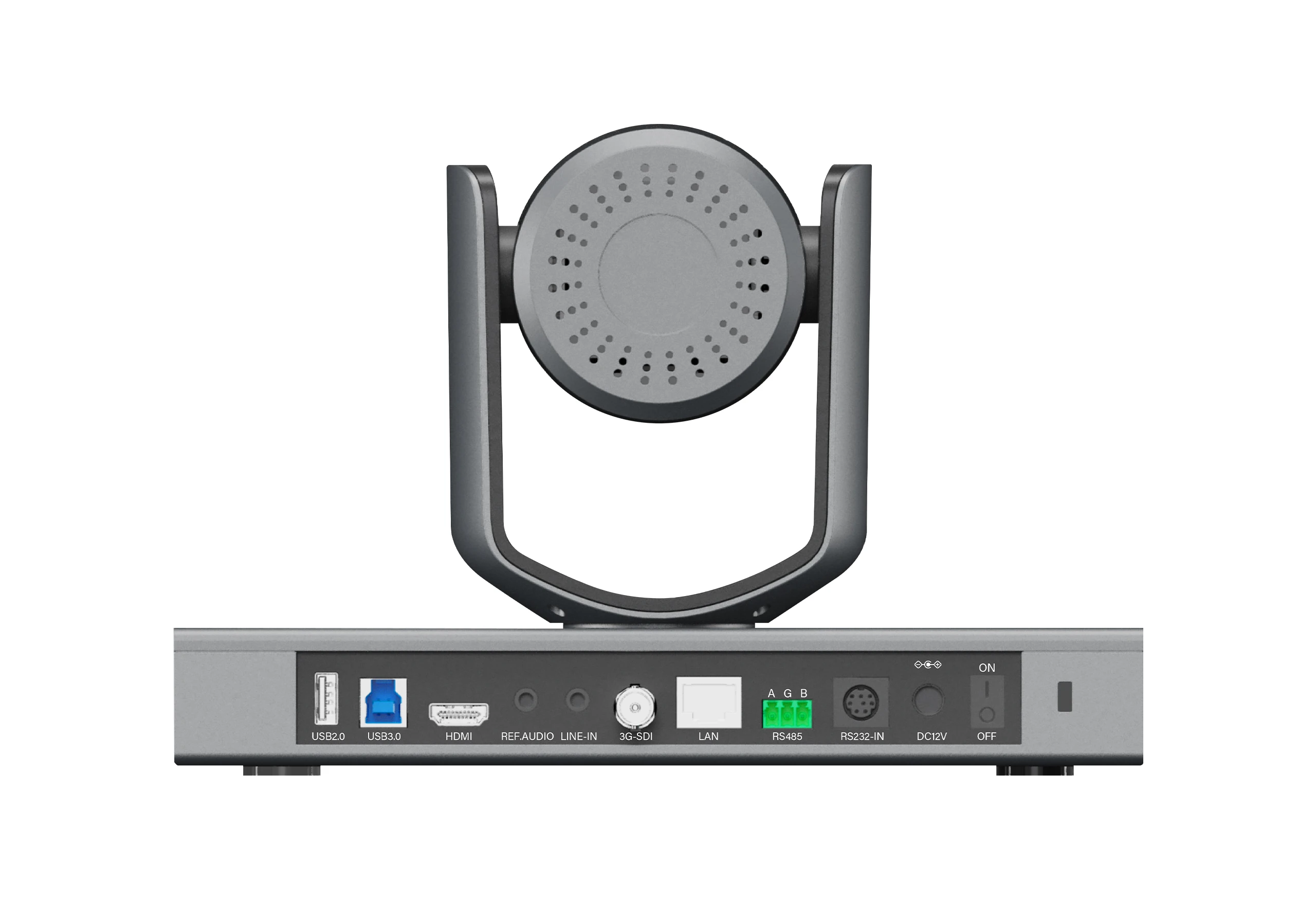

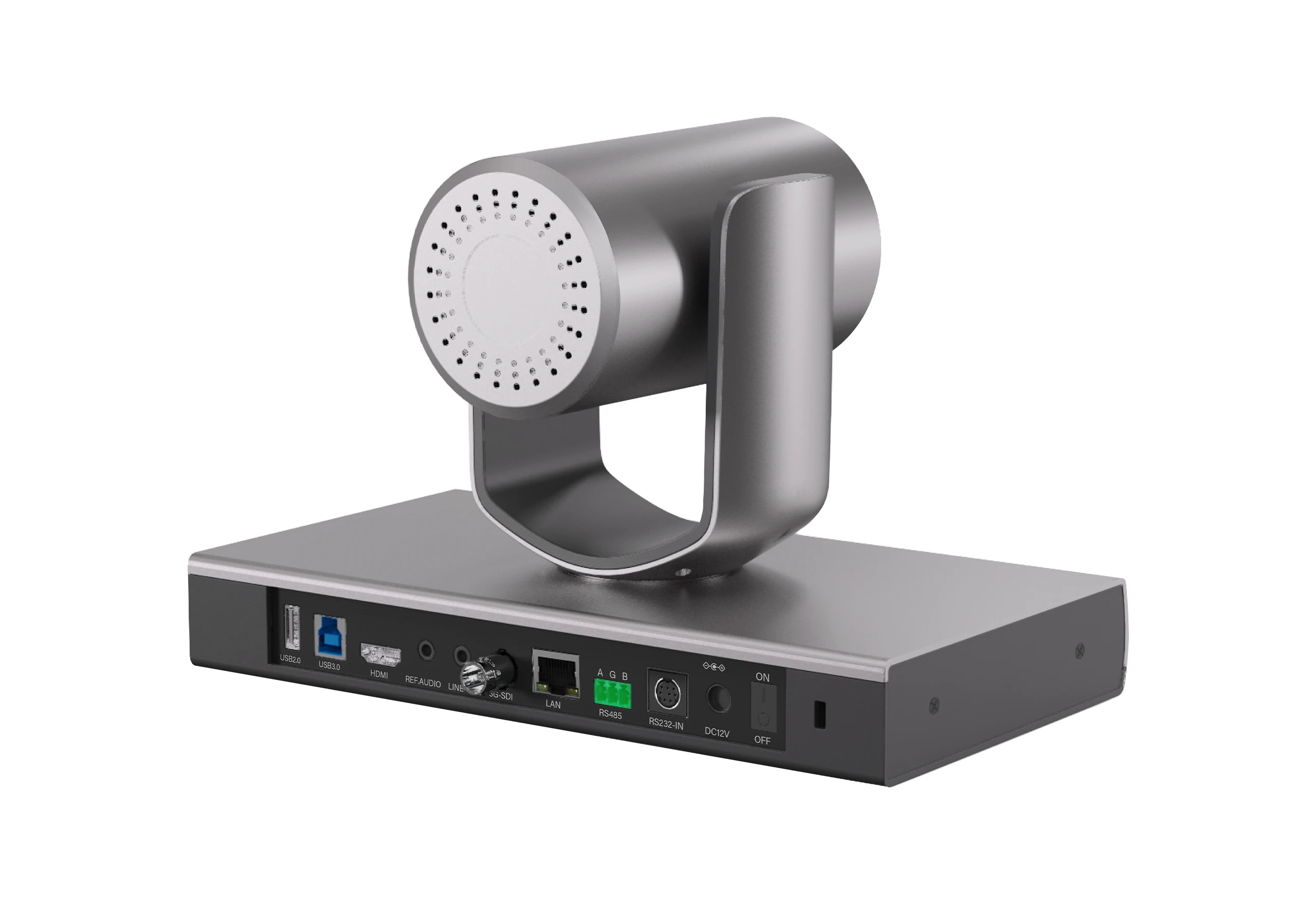

Enriched Ports

Supports HDMI, 3G-SDI, LAN, USB, Line IN. Dual stream outputs.

Track in the crowd

With the extraordinary intelligent tracking technology,
the iCam PT40 automatically identify
and lock the lecturer and keep tracking.

Strong face detection

With the super strong AI-based face detection technology,
the iCam PT40 can track even the lecturer waring mask

AI Inteligent motion tracking

The iCam PT40 can auto adjust the tilt angle as per
the lecturer's motion and height.

Tile motion tracking

The iCam PT40 can keep tracking even the teacher standing
among the students.

Focus tracking

The iCam PT40 keeps tracking the teacher
only rather than other moving person.

Track with lights ON/OFF

The iCam PT40 keep tracking the teacher only
and NOT track any moving objects/person
on display or projection screen.

Applications

The iCam PT40 is ideal solution for traditional classroom, ladder classroom, training room and multimedia room.

Datasheet

Model	iCam PT40
Name	1080P HD Dual-lens PTZ Camera
Close-up
Image Sensor	1/2.8″ CMOS, 2.14 megapixel
Focal Lens	f=4.1mm-49.2mm
Iris	F1.6-F2.8
Optical Zoom	12x
Digital Zoom	16x
Horizontal Viewing Angle	72.5°-6.3°
Focus System	Auto, Manual, PTZ Trigger, One Push Trigger
Shutter Speed	1/50-1/10,000s
Gain	Auto / Manual
White Balance	Auto, One Push, Manual, Static Color Temperature
Exposure Control	Auto, Manual, Shutter Priority, Iris, Bright
Full View Camera
Image Sensor	1/2.8″ CMOS，214 megapixel
Focal Lens	f=1.89mm
Pan Angle	110°
White Balance	Auto
Exposure Control	Auto
Function
Pan Angle	-130° ~+130°
Tilt Angle	-30° ~+90°
Pan Speed	0.2°/s~90°/s
Tilt Angle	0.2°/s~60°/s
Preset Number	64
Menu	English
Interface
Network	One channel 10/100M RJ-45 POE optional 1. Video channel1080P30/P25, 720P30/P25, 360P30/P25 2. Image compression supports H.264, H.265 3. Audio compression support AAC 4. Protocols support ONVIF, RTSP, TCP, UDP, RTMP 5. Support Multi-stream: one close-up, one full-view, one switch, three streams
3G-SDI	One channel 3G-SDI, Video resolution 1080P60/P50/P30/P25, 720P60/P50
HDMI	One channel HDMI Out, Output audio Video resolution 1080P60/P50/P30/P25, 720P60/P50
USB 2.0	One channel USB 2.0 Type-A HOST
USB 3.0	One channel USB 3.0 Type-B USB3.0 Output format: 1. UVC supports the UVC1.1 protocol 2. UVC video format supports YUY2, NV12: video resolution 1080P30/P25, 720P30/P25, 480P30/P25 3. H.264/H.265/MJPEG: video resolution support 1080P60/P50/P30/P25, 720P60/P50/P30/P25, 360P60/P50/P30/P25 4. UAC audio format PCM
Audio	One channel LINE IN, 3.5mm Audio Interface
Reference audio	One channel REF, 3.5mm Audio Interface
Control Interface	One channel RS-485, One channel RS-232 IN
Power	DC12V
Power switch	Yes
Remote control	Infrared remote control
General
Protocol	VISCA
Power Consumption	<20W
Operating Environment	Operating Temperature 0 ~ 40°C, Operating Humidity10%RH ~ 90 %RH
Storage Environment	Storage Temperature -20℃ ~ +60°C, Operating Humidity 10%RH ~ 95 %RH
Dimensions(L×W×H)	245mm×145mm×165mm
Weight	≤2kg
Body Color	Gray
