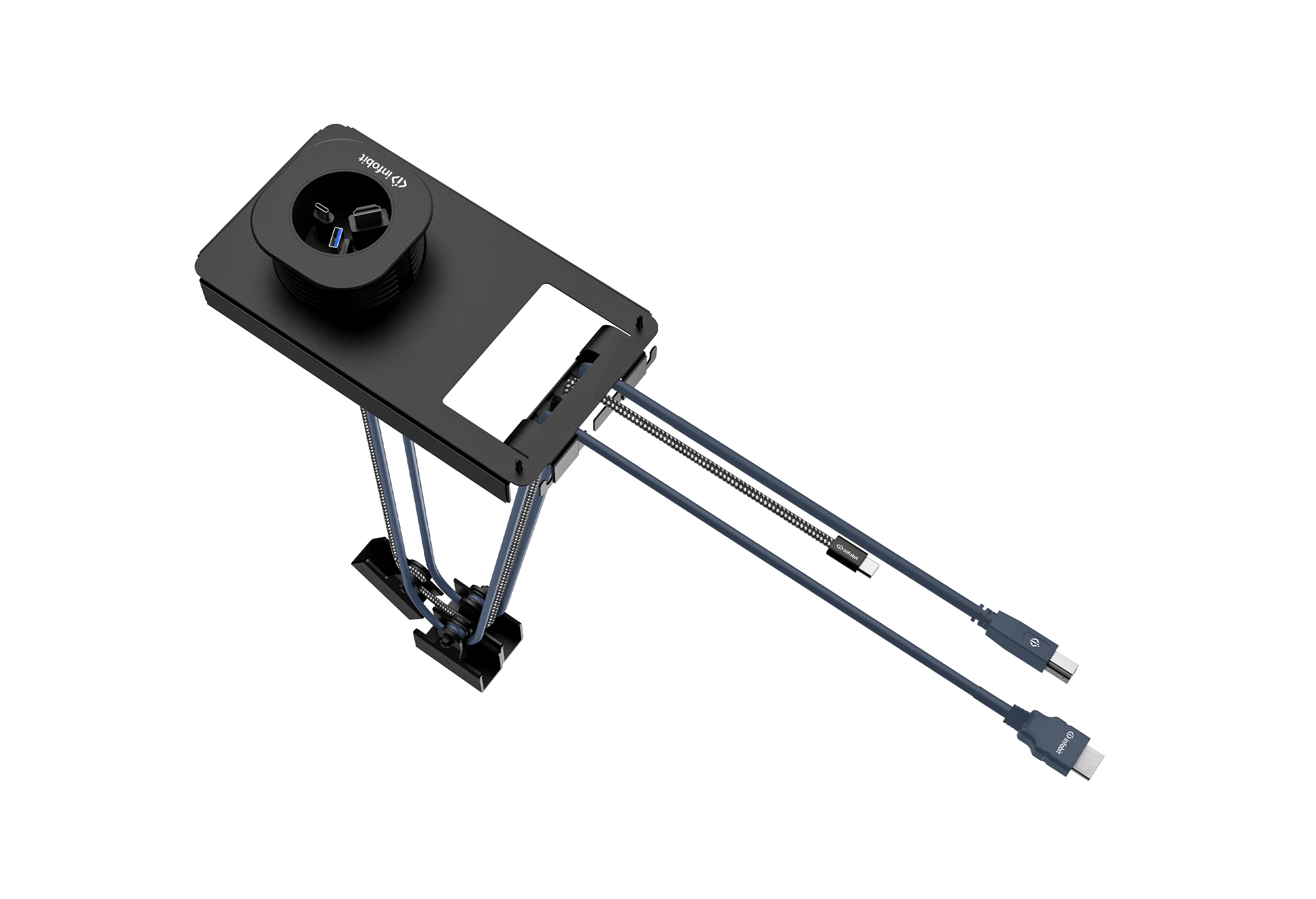

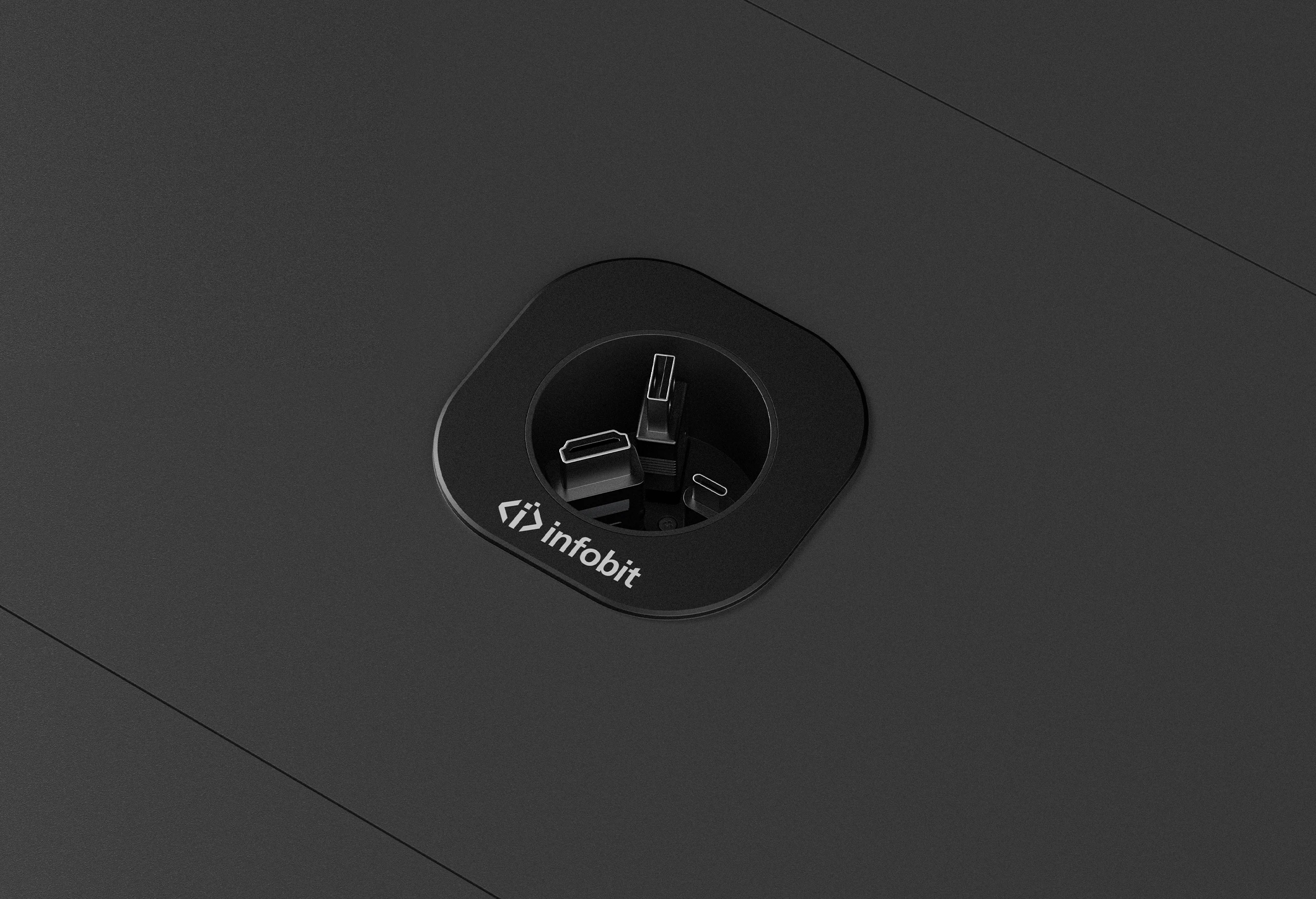

iBox Core-500

Retractable cables design

Provides quick and easy access to AV cables.

Ideal for conference tables, lecterns, or other meeting spaces.

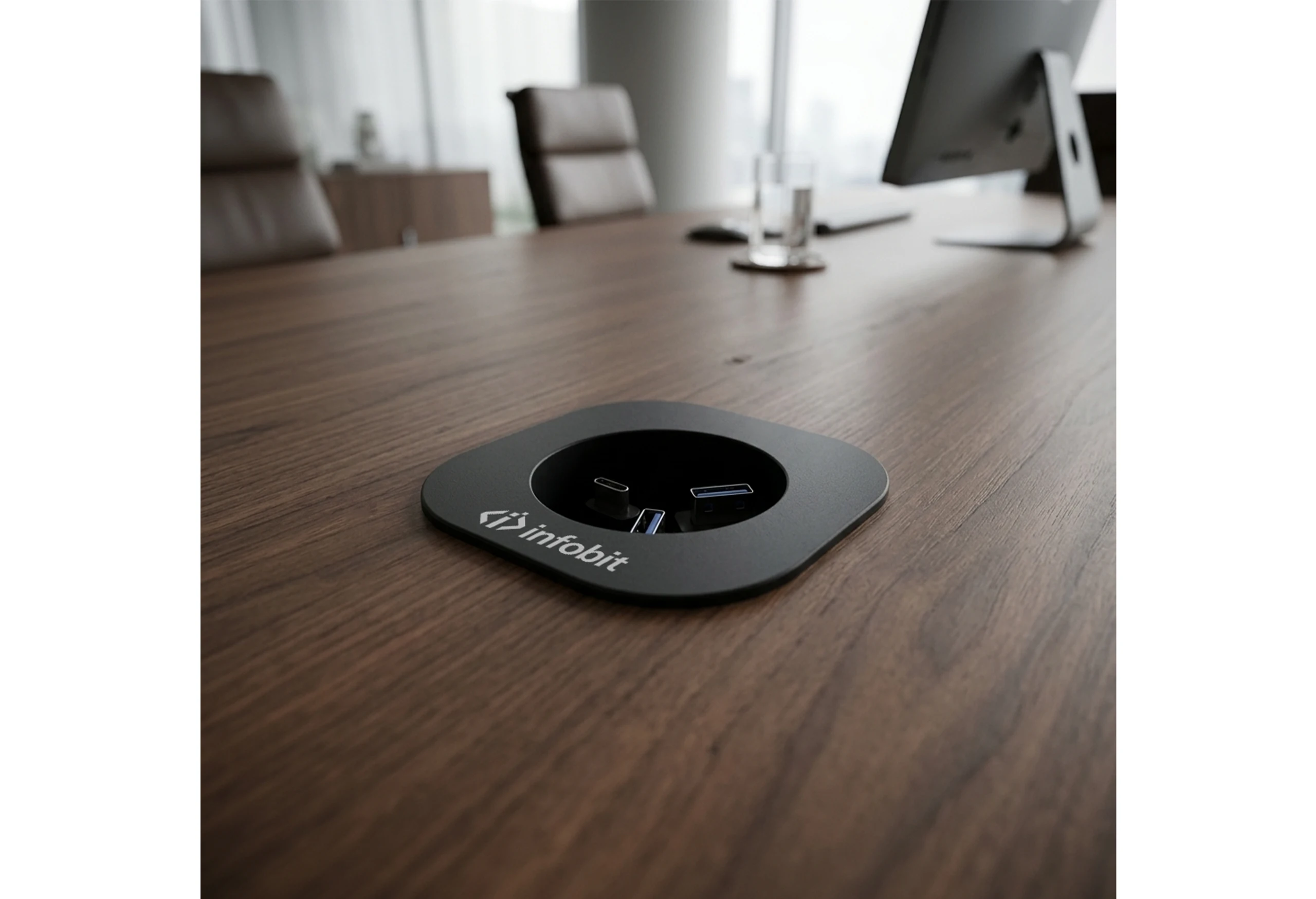

Features a sleek insert design that blends seamlessly with any décor.

Easily installs into a table or other surface up to 75mm (2.95”).

Recommended table opening size: 80mm (3.15”).

Includes an under-table bag to conceal cables, ensuring a clean and tidy installation.

1x HDMI 4K60 cable, 1x 5Gbps USB A to B cable, and 1x USB4 C to C cable.

Supports HDMI 2.0, 4K60Hz 4:4:4 video resolution. The supper-soft HDMI cable length is 2m.

Supports USB 3.0 5Gbps USB a to B super-soft cable, 2m in length.

The USB-C to USB-C fully featured cable supports 20Gbps, 240W PD, and 4K60Hz video.

Chat Now

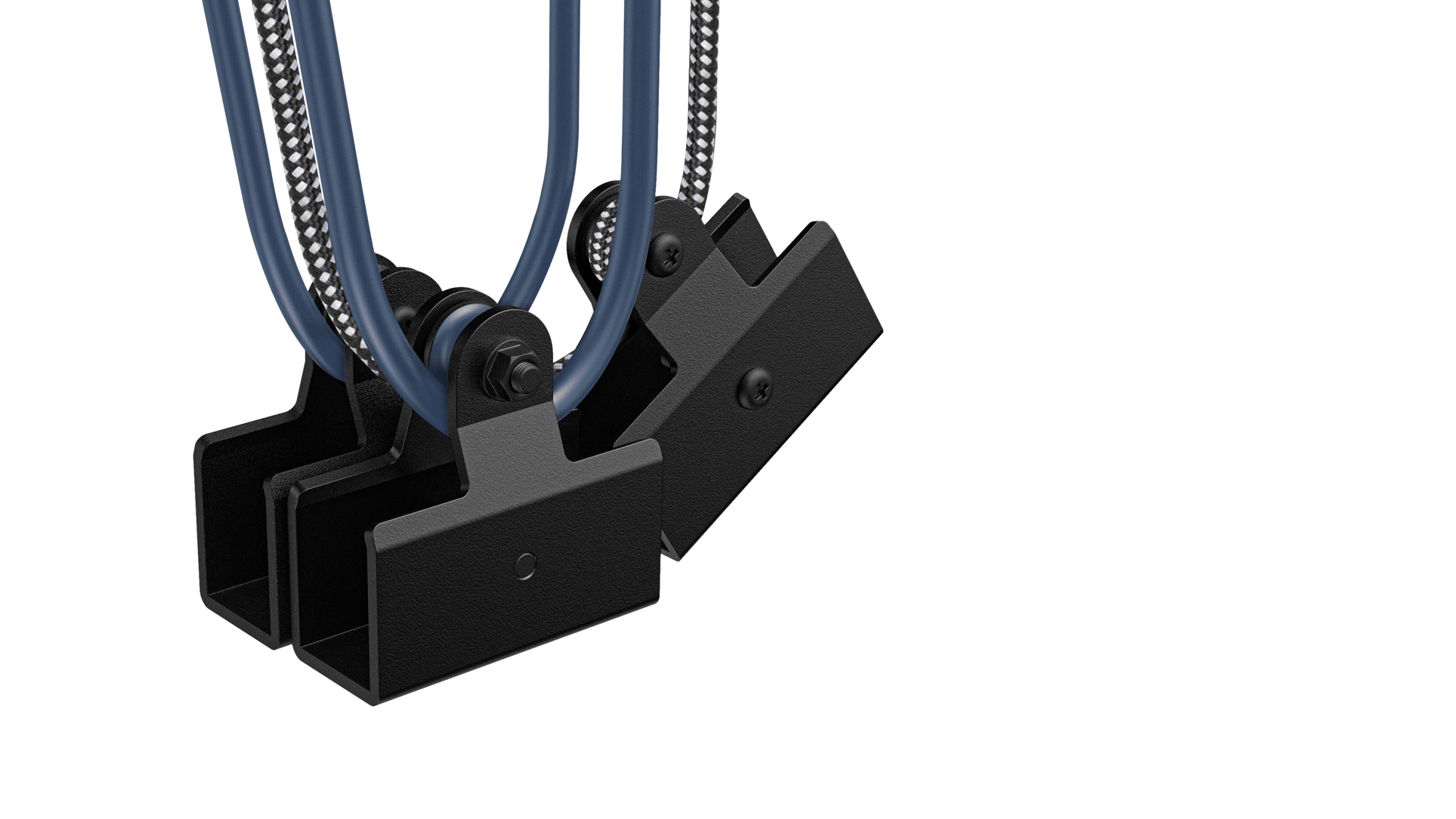

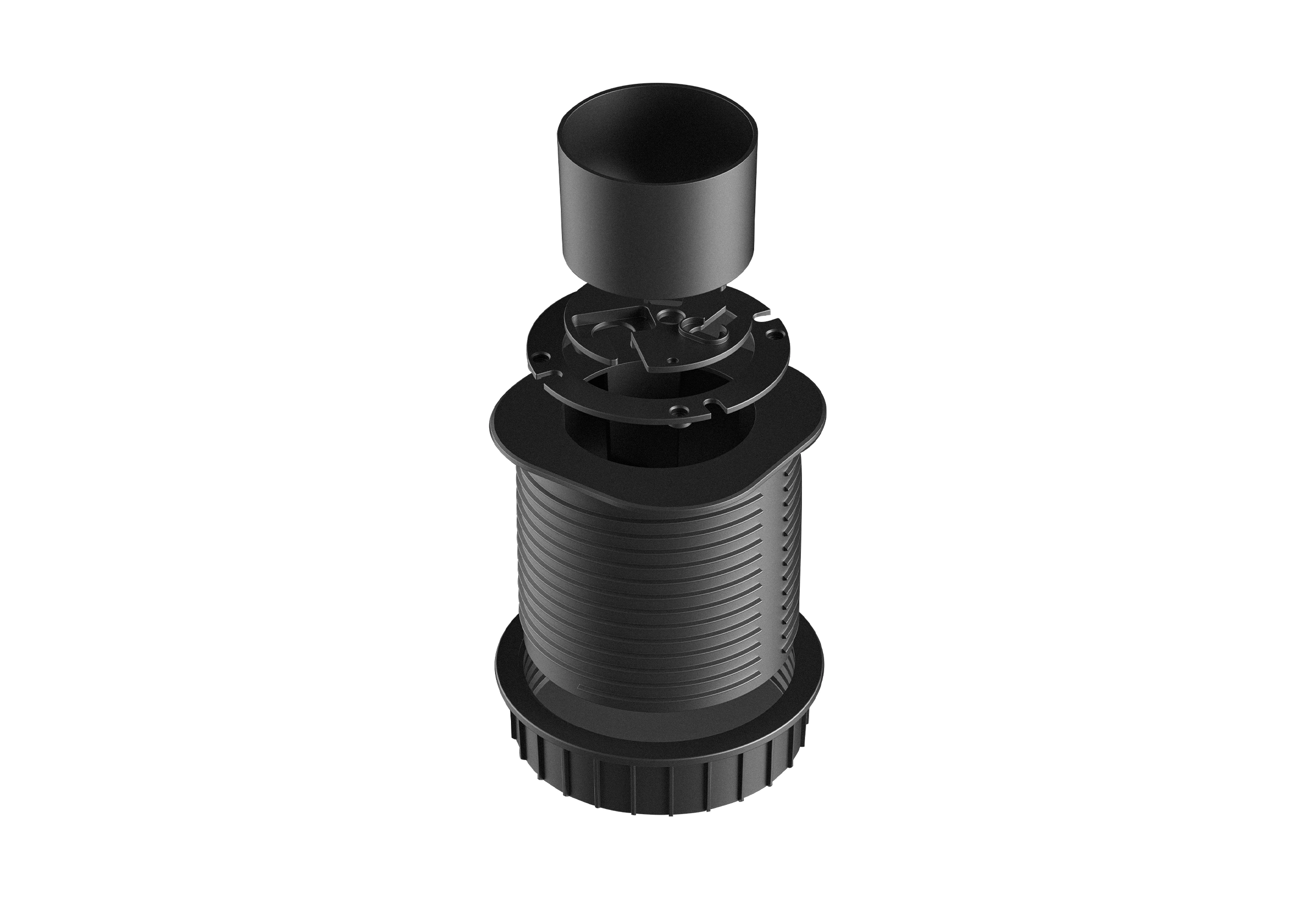

Stability Matters

More easier design, more stable!

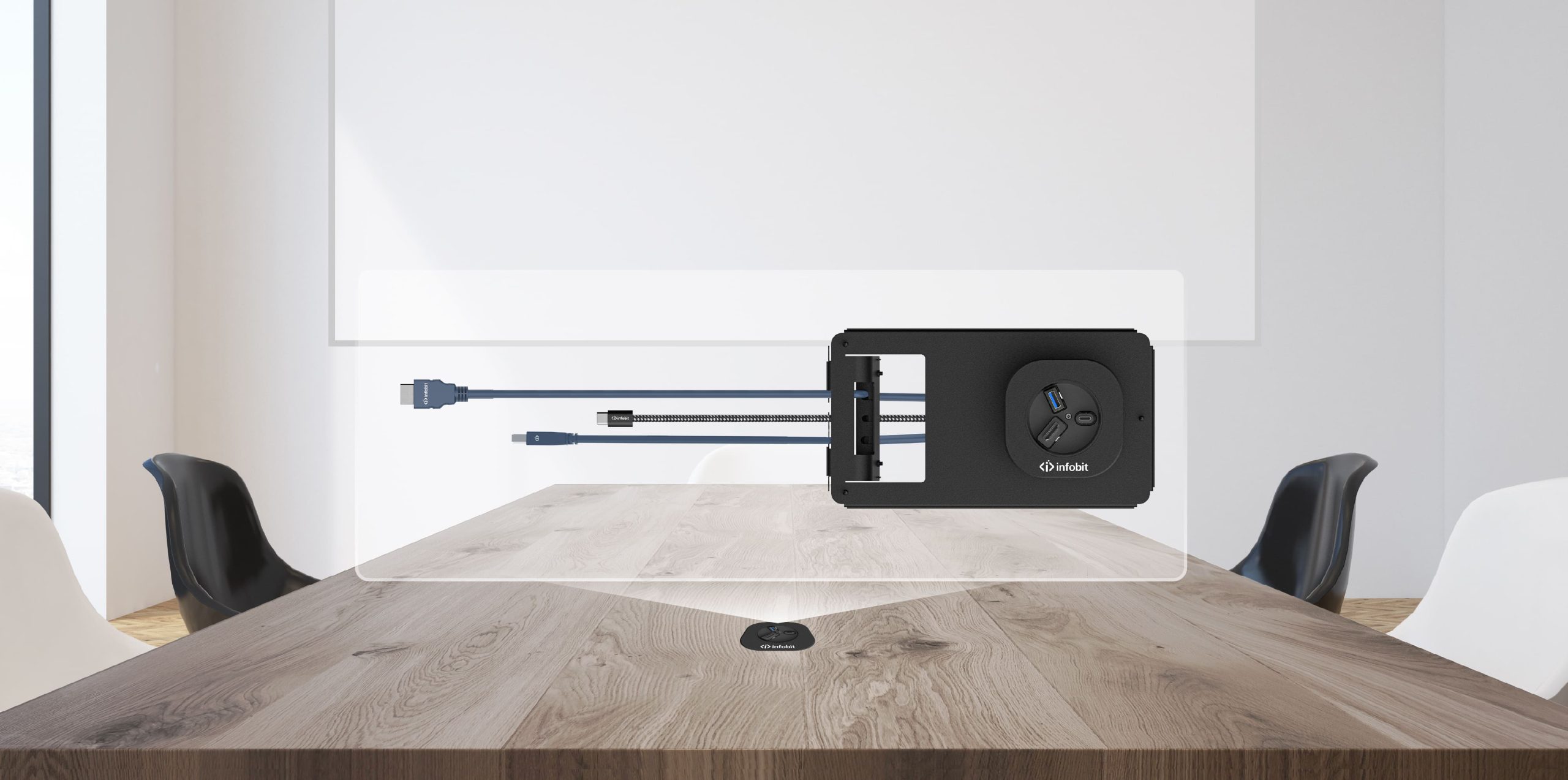

With the "Gravity Retractable" structure,
users never worry about the repairing or maintenance.

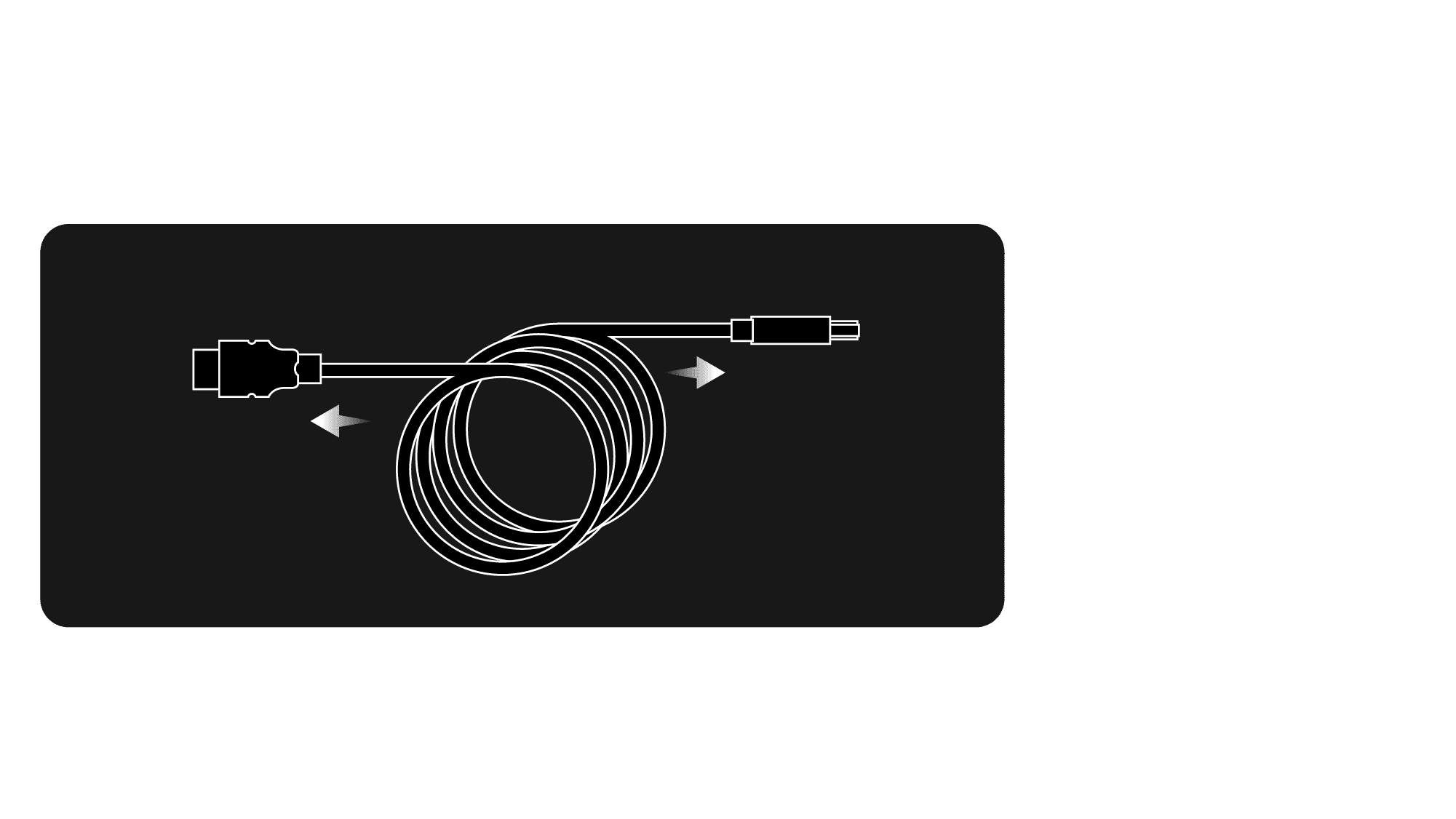

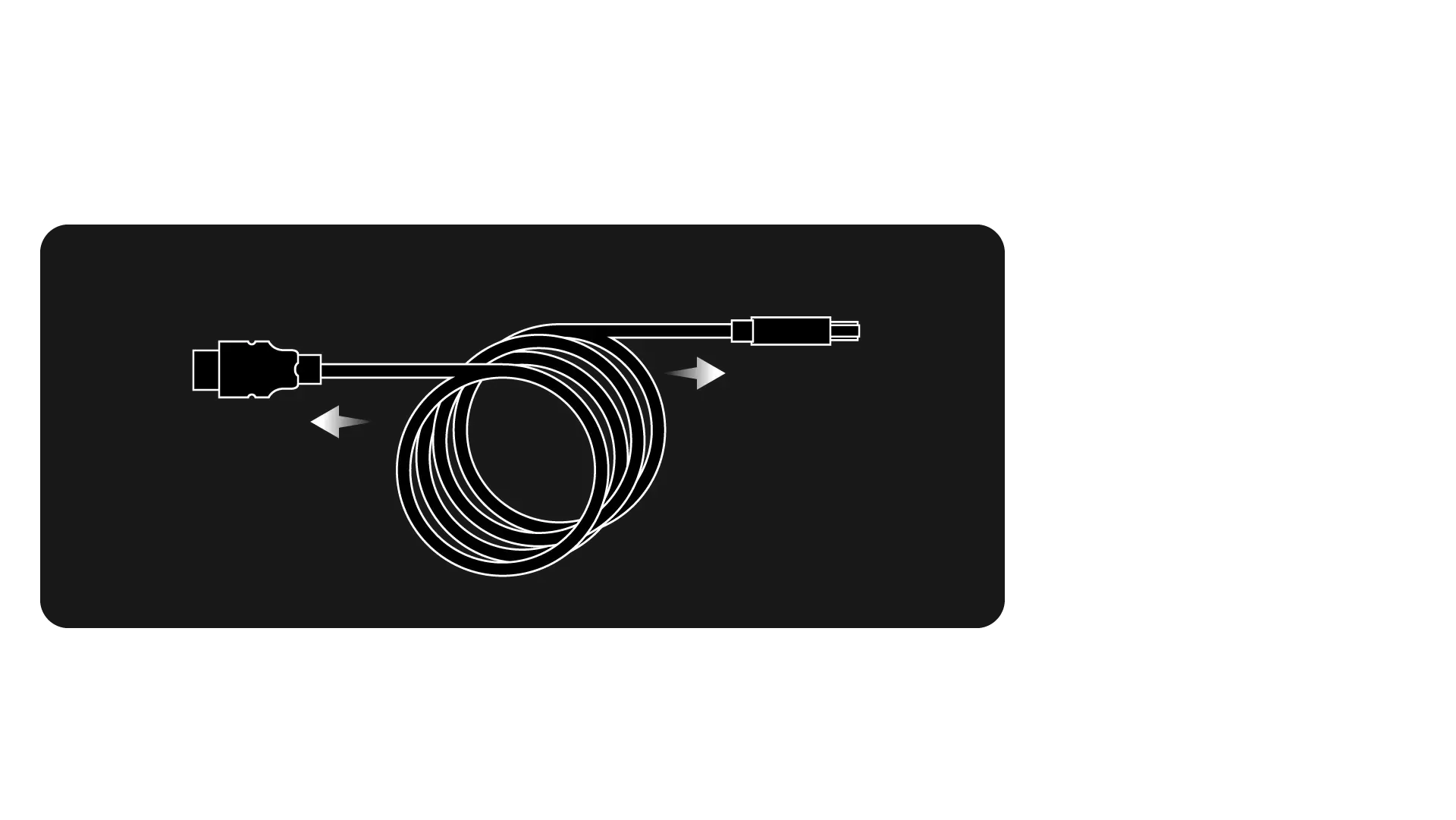

Retractable Cables

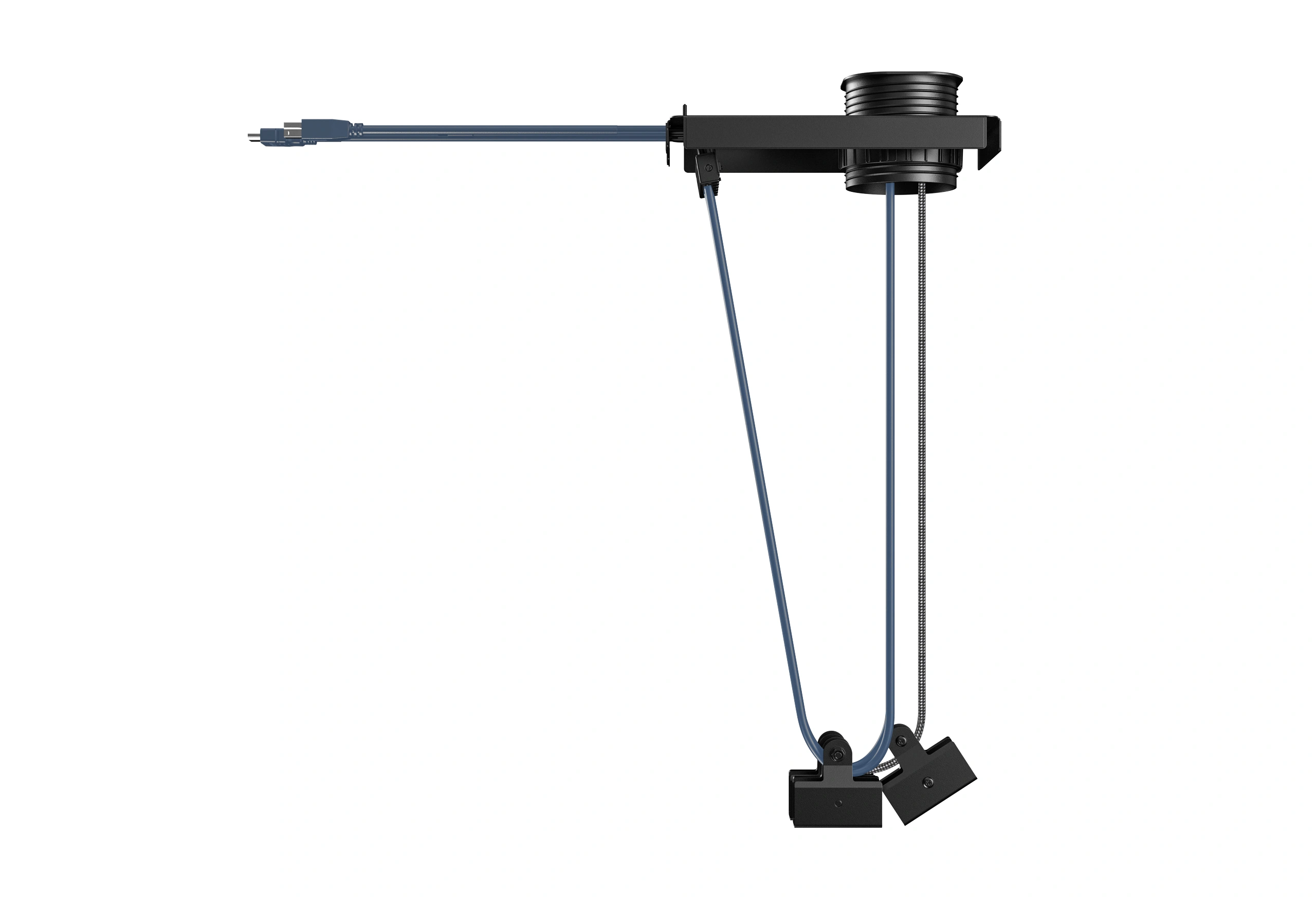

The built-in retractable cable structure allows users to
extend up to 1.2m above the table without tangling and
excessive bending during the meeting.

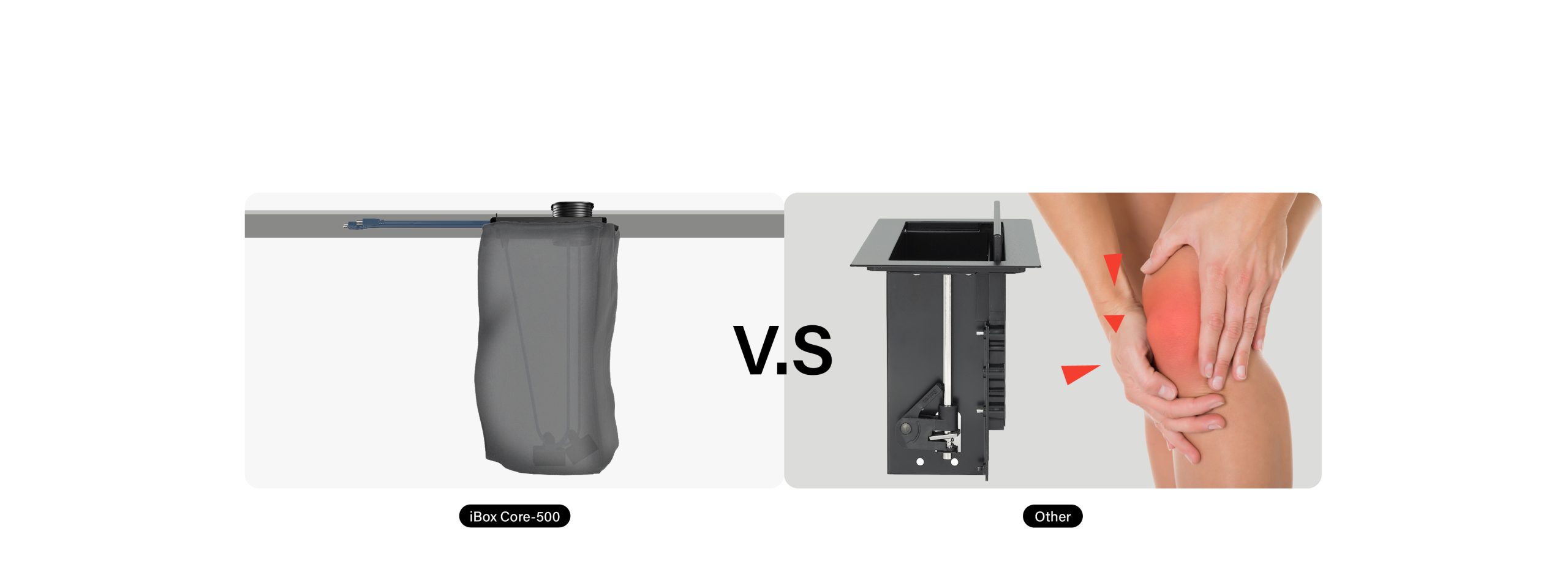

No Hurt!

User will never get hurt with the soft Polyester cable bag.
Clean and Safe!

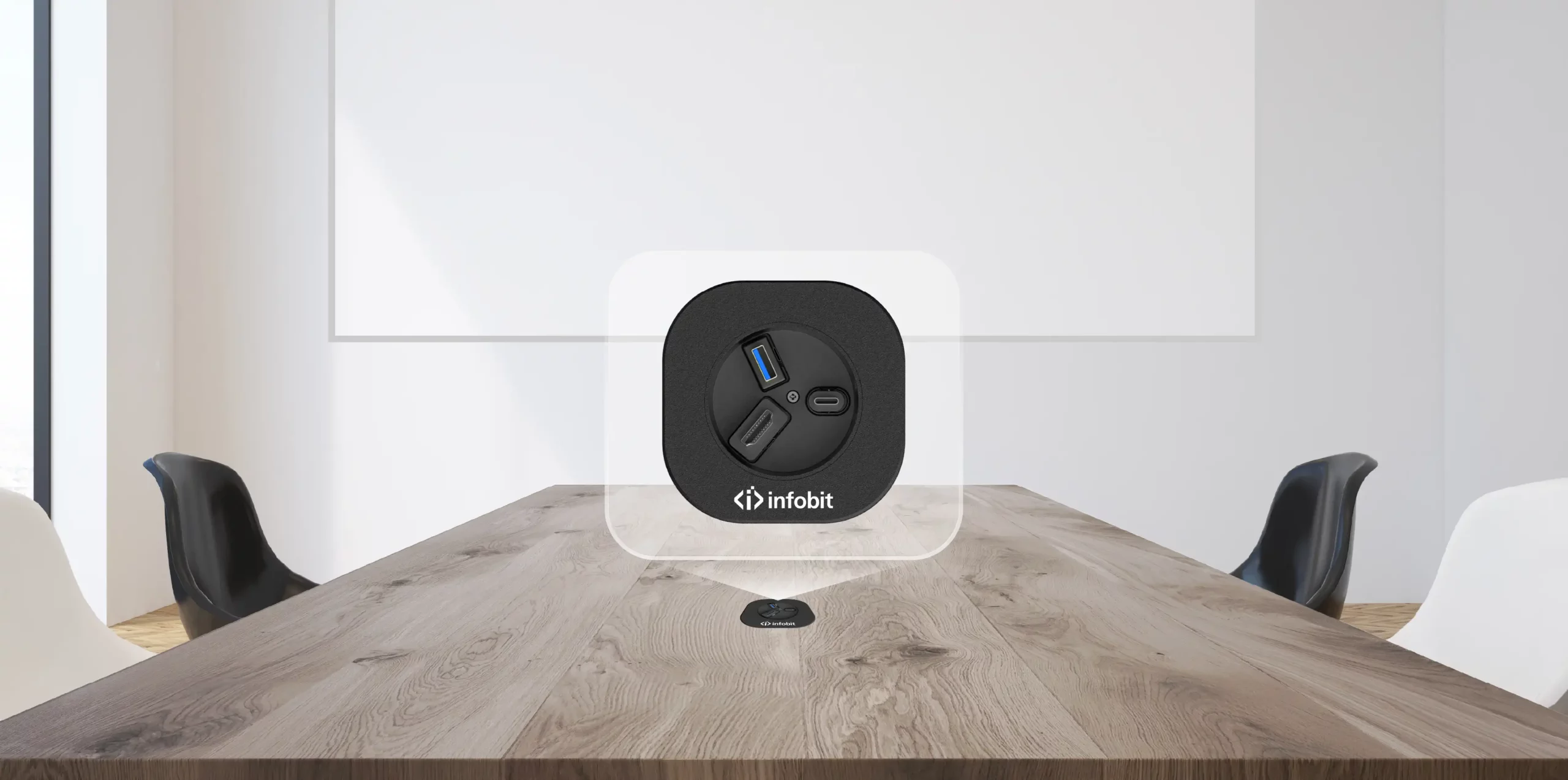

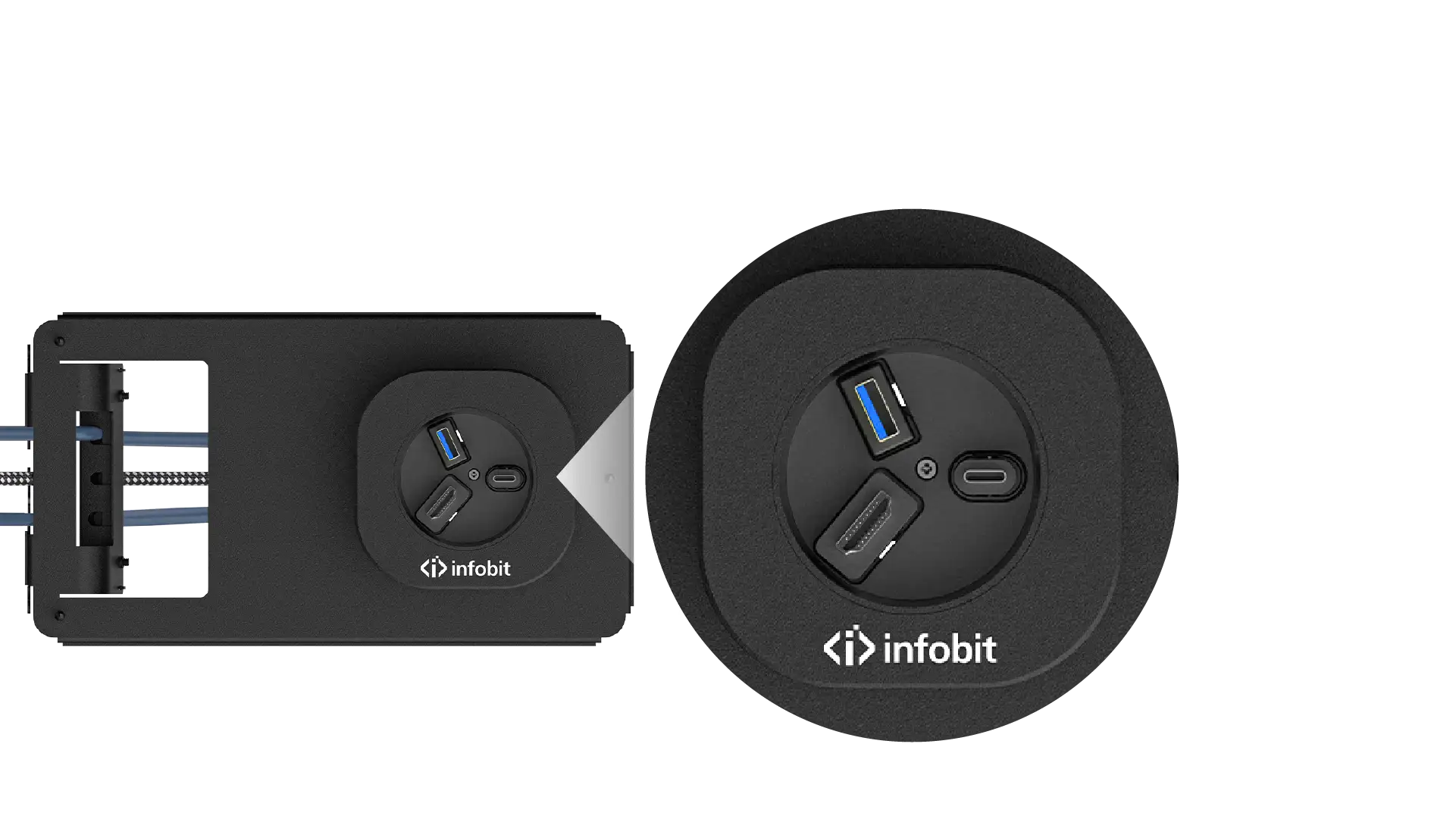

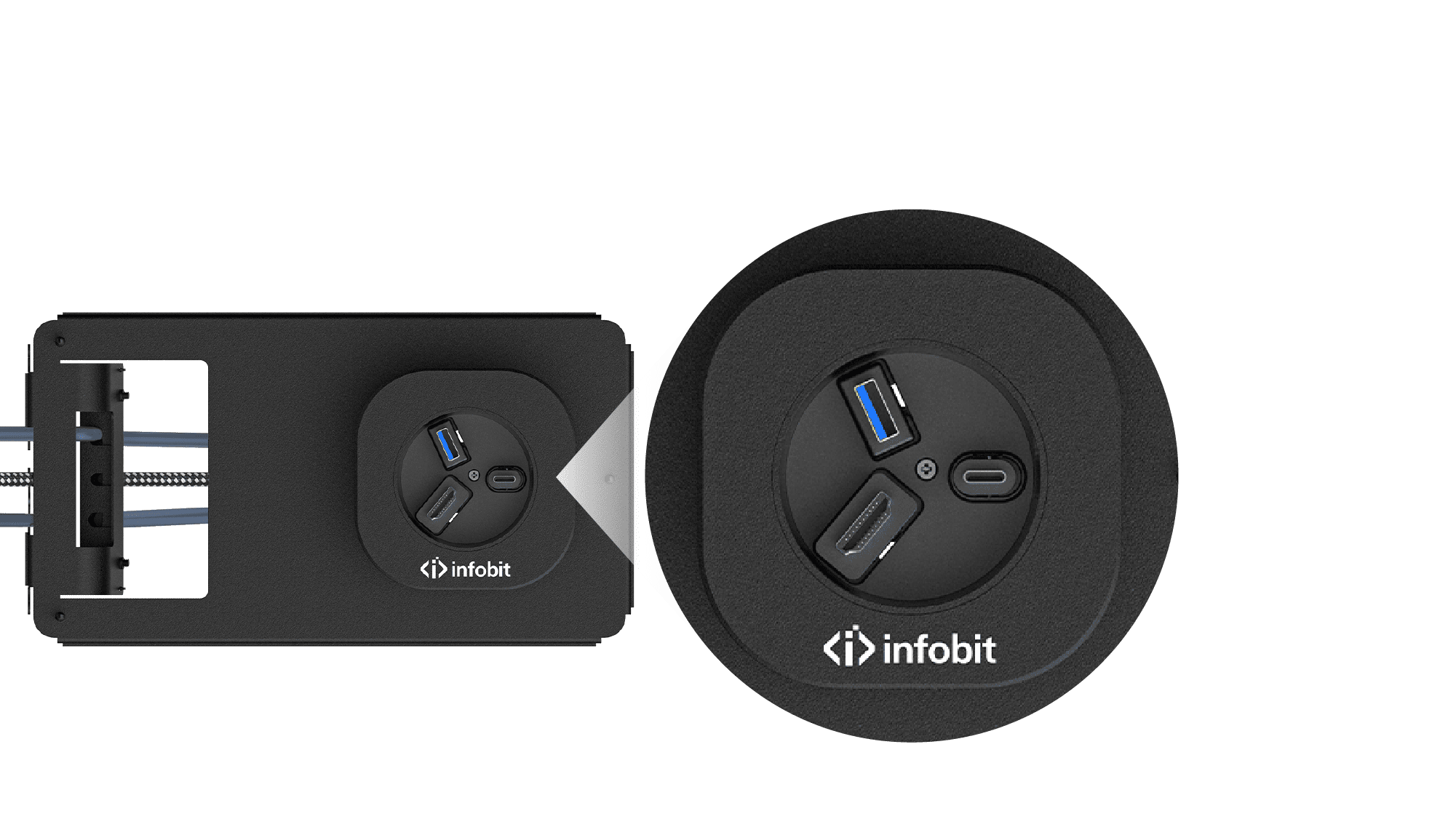

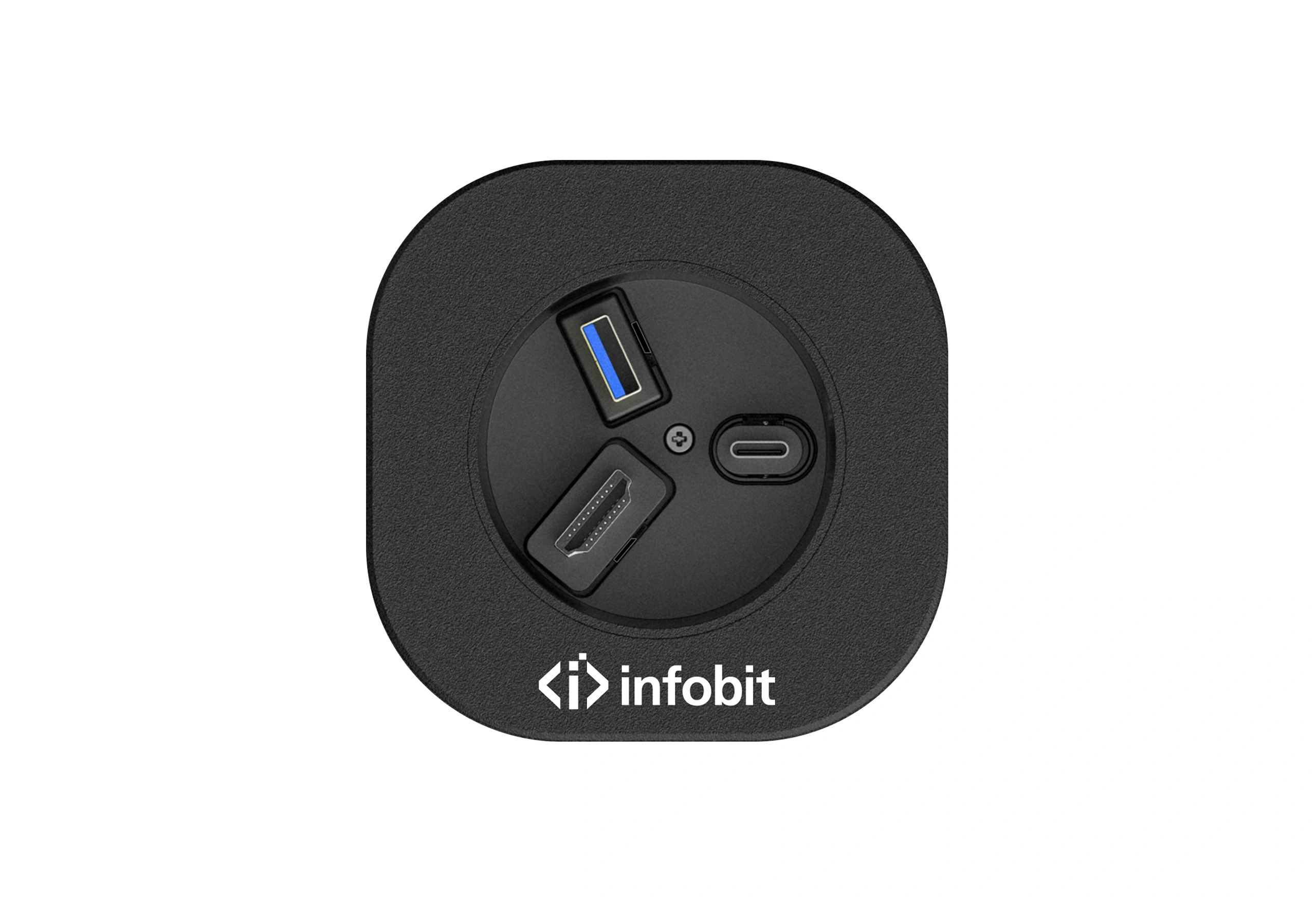

Multiple Connections

The iBox Core-500 supports USB C and HDMI + USB A inputs,
allowing users to connect BYOD/ BYOM devices simultaneously.
Easy and seamlessly switch between user's PC and ROOM PC.

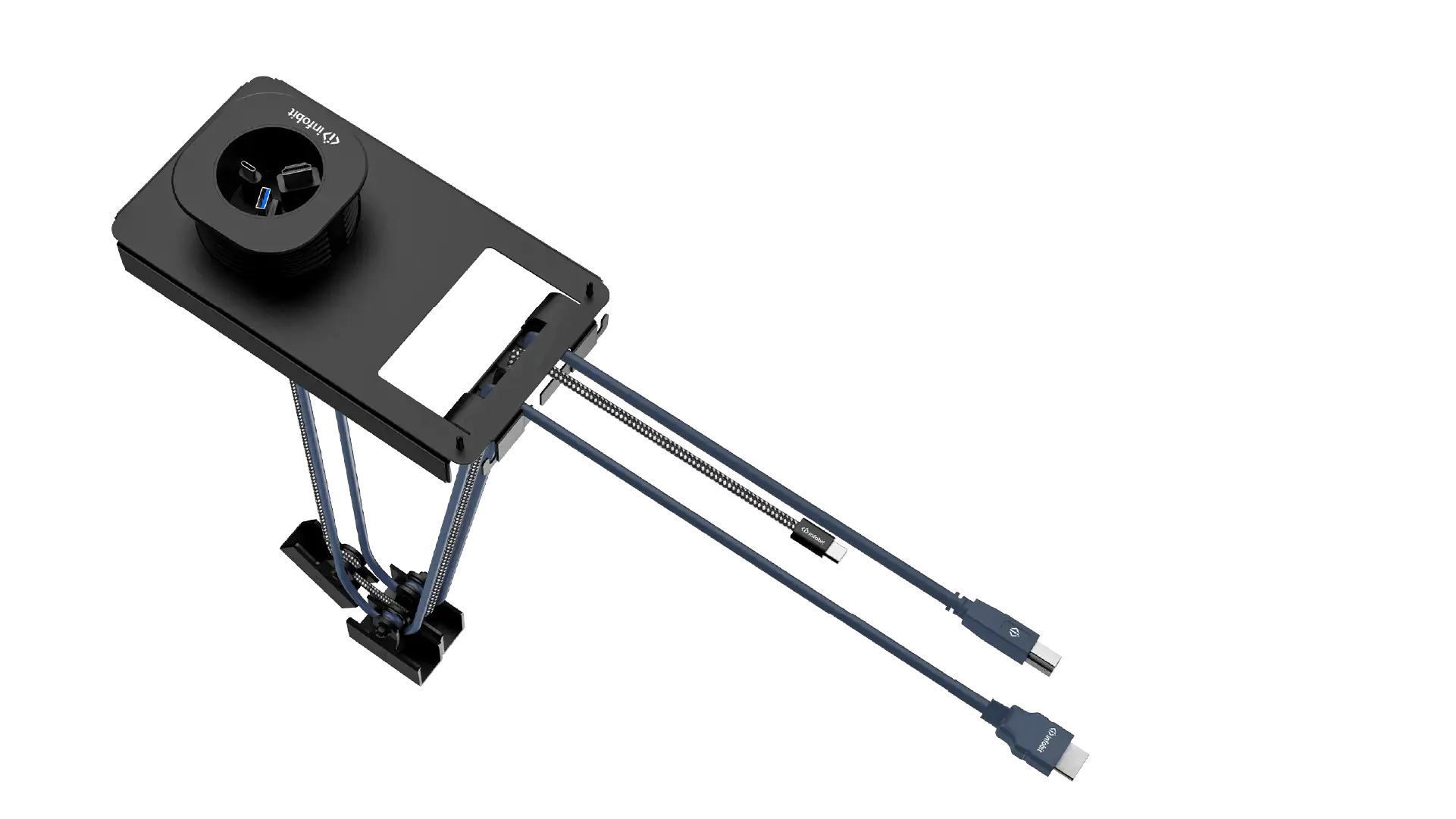

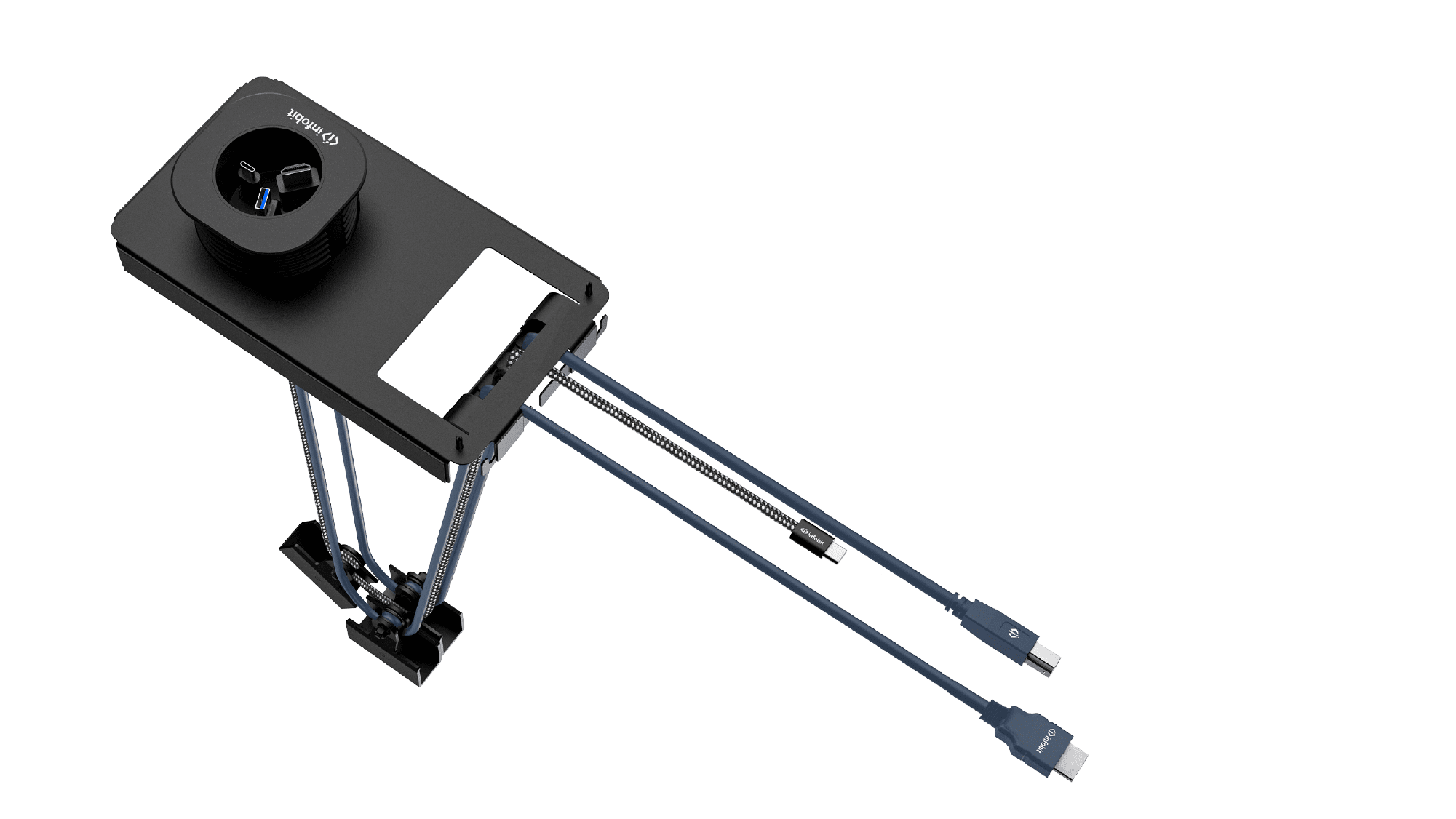

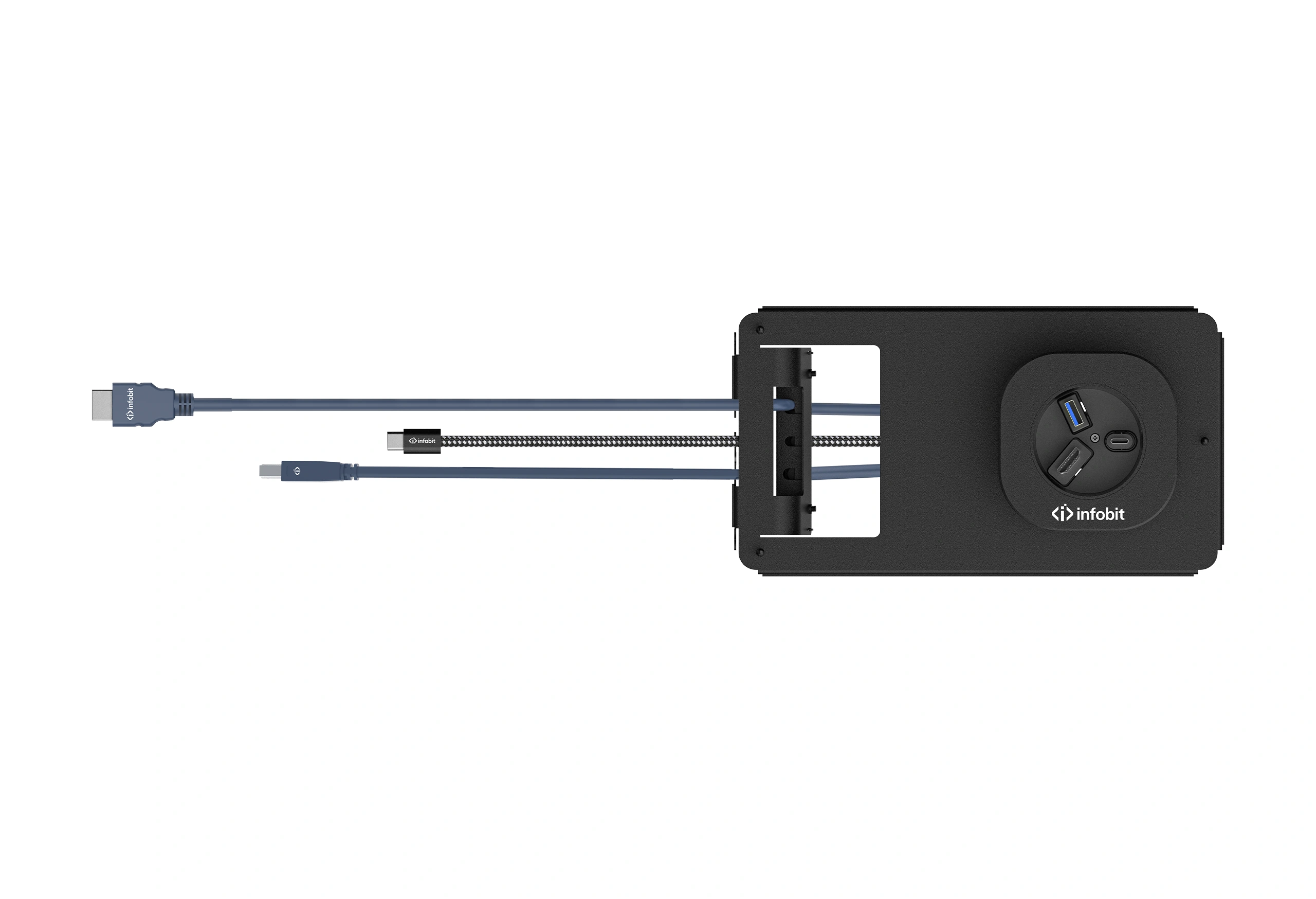

Integrated Cable Management

With a neat cable management structure,
it keeps the tables free of messy wiring,
providing a super clean and professional workspace.

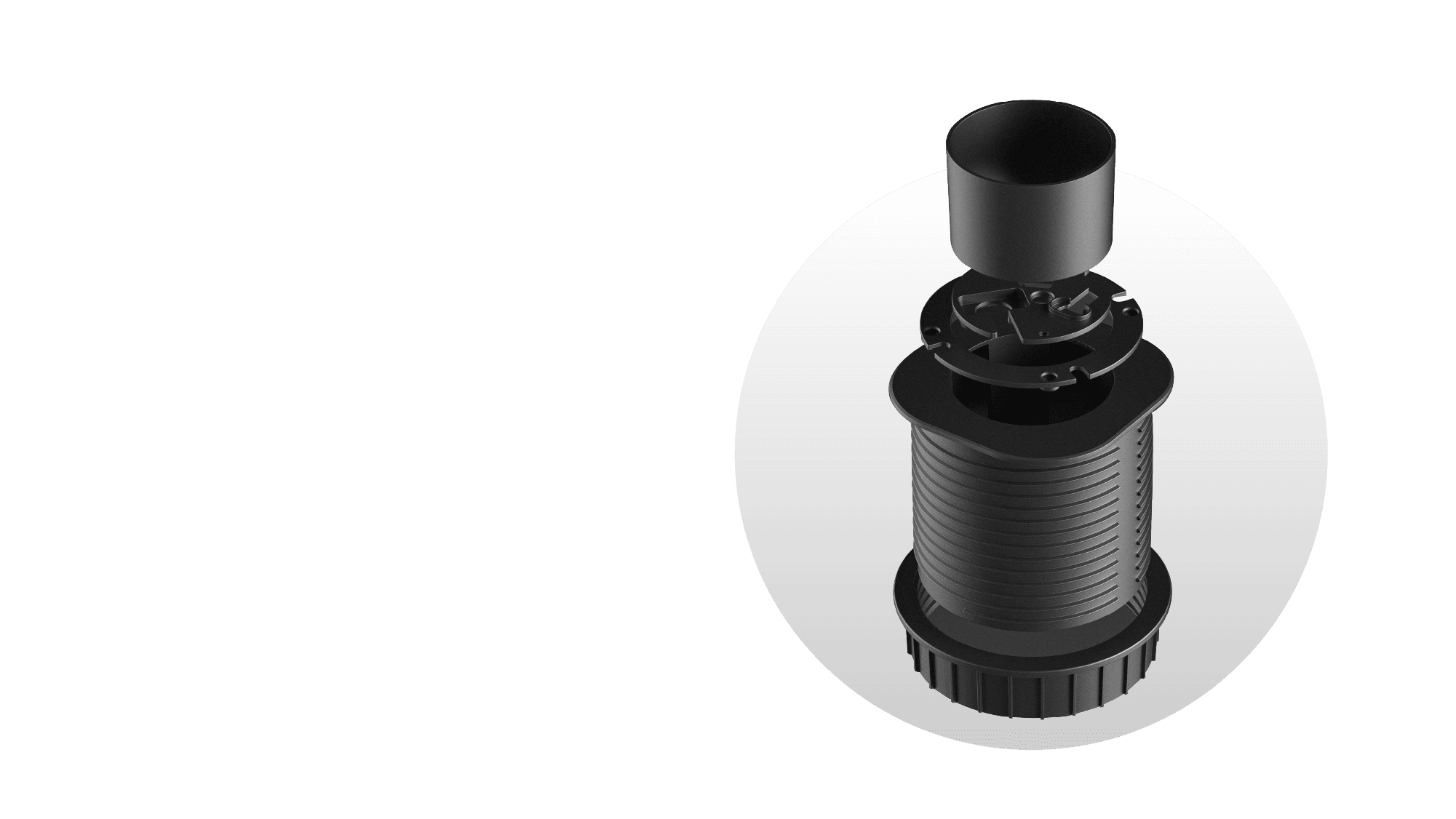

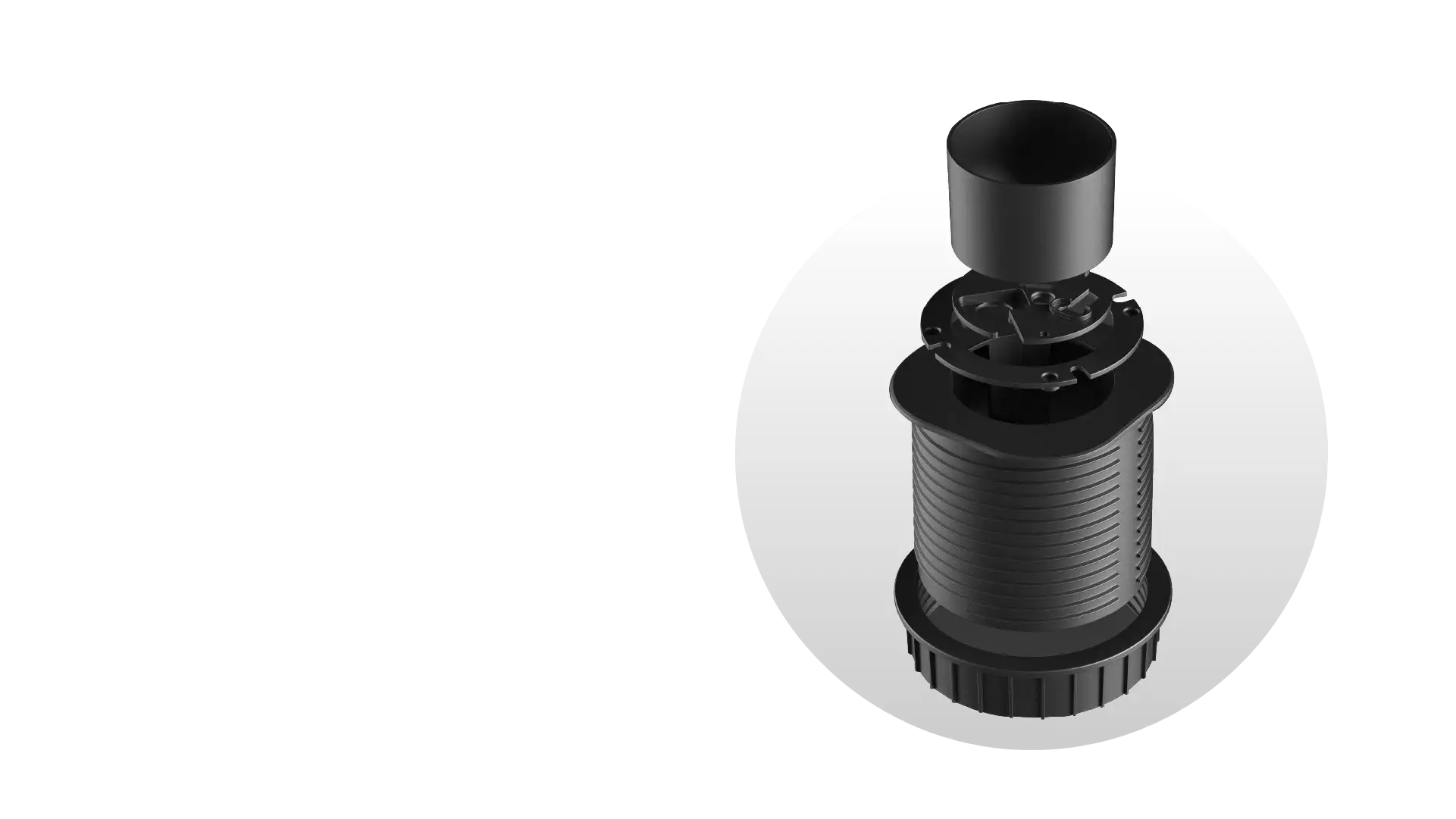

Compact and Easy to Install

The compact design supports table thicknesses from 5mm to 45mm,
ensure super-easy installation.

Datasheet

Model	iBox Core-500
Name	Retractable In-Desk Table Box with USB C, HDMI and USB 3.0
HDMI Cable	HDMI 2.0, Length: 2m, (Model: iCable H4KS-02)
USB-C Cable	USB 3.2 Gen2, Length: 2m, (Model: iCable U4-CC2020)
USB-A to USB-B Cable	USB 3.2 Gen1, Length: 2.0m, (Model: iCable U3S-AB02)
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity	10% to 90%, non-condensing
Enclosure Type	Plastic
Mounting	Flush tabletop mount
Dimensions (W x D x H)	86mm x 86mm x 75mm / 3.39” x 3.39” x 2.95”
Recommended Table Opening	80mm/3.15”
Min./Max. Table Thickness	5mm–45mm / 0.2”–1.77”
Net Weight	0.15kg/0.33lb (for Enclosure only)

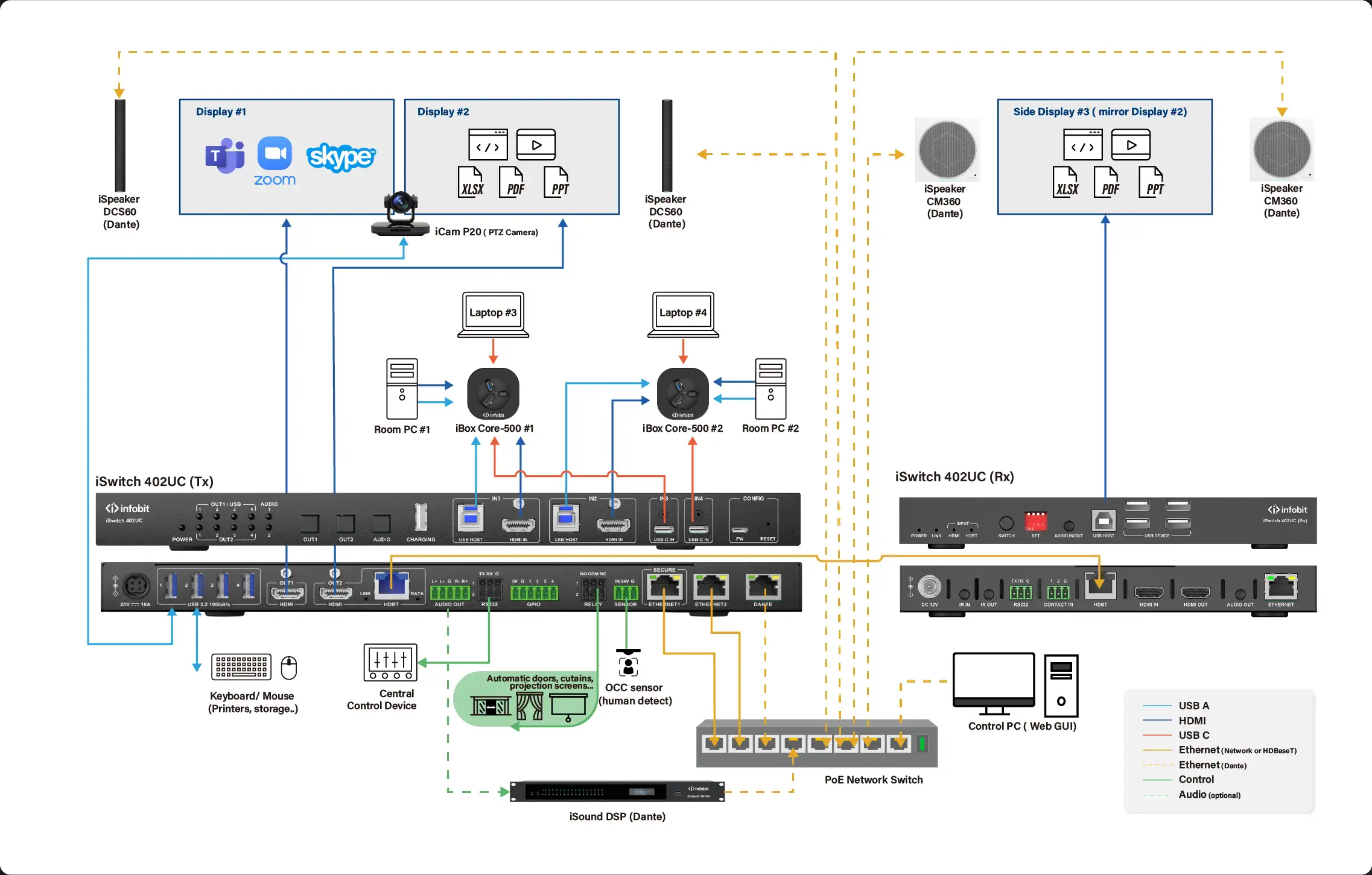

Diagram

Download

iBox Core-500 Datasheet V1.0.pdf

0.67M

2025-09-28
iBox Core-500 User Manual V2.0.pdf

1.37M

2025-10-09

Related Products

iCable H4KS
Resolution 4K@60Hz (4:4:4) High-Quality Connectors - 24K gold−plated connectors resist corrosion and offer the best possible connectivity. Supports HDMI Ethernet Supports ARC (Audio Return Channel) Super-soft design. Varied Selection of Lengths - Available in versions of 1m, 2m, 3m, 5m, 7m and 10m.

DETAILS
iCable USB4
USB C to C male, with E-Marker 240W or 60W Power Delivery 40 Gbps length: 0.5m, 1.2m 20 Gbps length: 2m, 4m, 5m Support Thunderbolt 3

DETAILS
iCable U3S-AB
High-Speed Data Transfer: up to 5Gbps Universal Compatibility: The USB A male to B male cable connects computers with a USB 3.0 port (also compatible with USB 2.0) to a variety of USB peripherals. Durable and Flexible Design: Engineered with premium materials, this USB-to-USB cable features molded strain-relief connectors for added durability and long-lasting performance. Superior Signal Performance: The USB Type A-B cable features a combination of gold-plated connectors, bare copper conductors, and foil & braid shielding enhances cable performance, providing error-free data transmission and fast charging speed. Enjoy stable, high-quality connections every time. Super-soft design. Varied Selection of Lengths - Available in versions of 1m, 2m, 3m.

DETAILS
iBox TP
1x Universal Power Socket, 1x HDMI, 1x USB A charging, 1x 3.5mm Audio, 2x RJ45 Multi connectivity ports Pneumatic Lift Pop-up Lid Universal power socket is compatible with all sorts of power plugs Easy to install and terminate

DETAILS

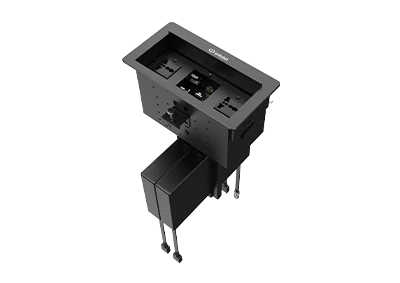

iBox Flex
Two universal power sockets Combination of any 4 Modules: HDMI, USB A, USB C, RJ45 Intuitive Use – Pull and stop or pull and retract. Maximum Cable Extension – Up to 1 m

DETAILS

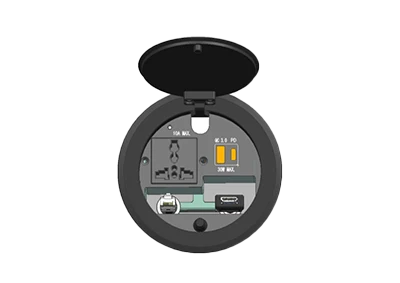

iBox TPC
1x Universal Power, 1x USB A charging, 1x USB C charging, 1x RJ45 cable, 1x HDMI cable Multi connectivity ports Pneumatic Lift Pop-up Lid Sandblasted anodized aluminum top finish Universal power socket is compatible with all sorts of power plugs

DETAILS

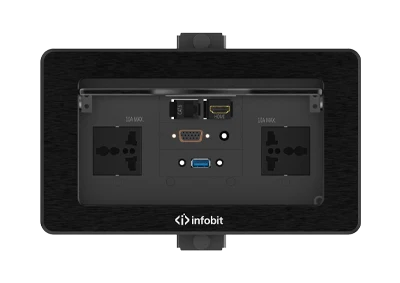

iBox TPD
