iWall-8K106-B0

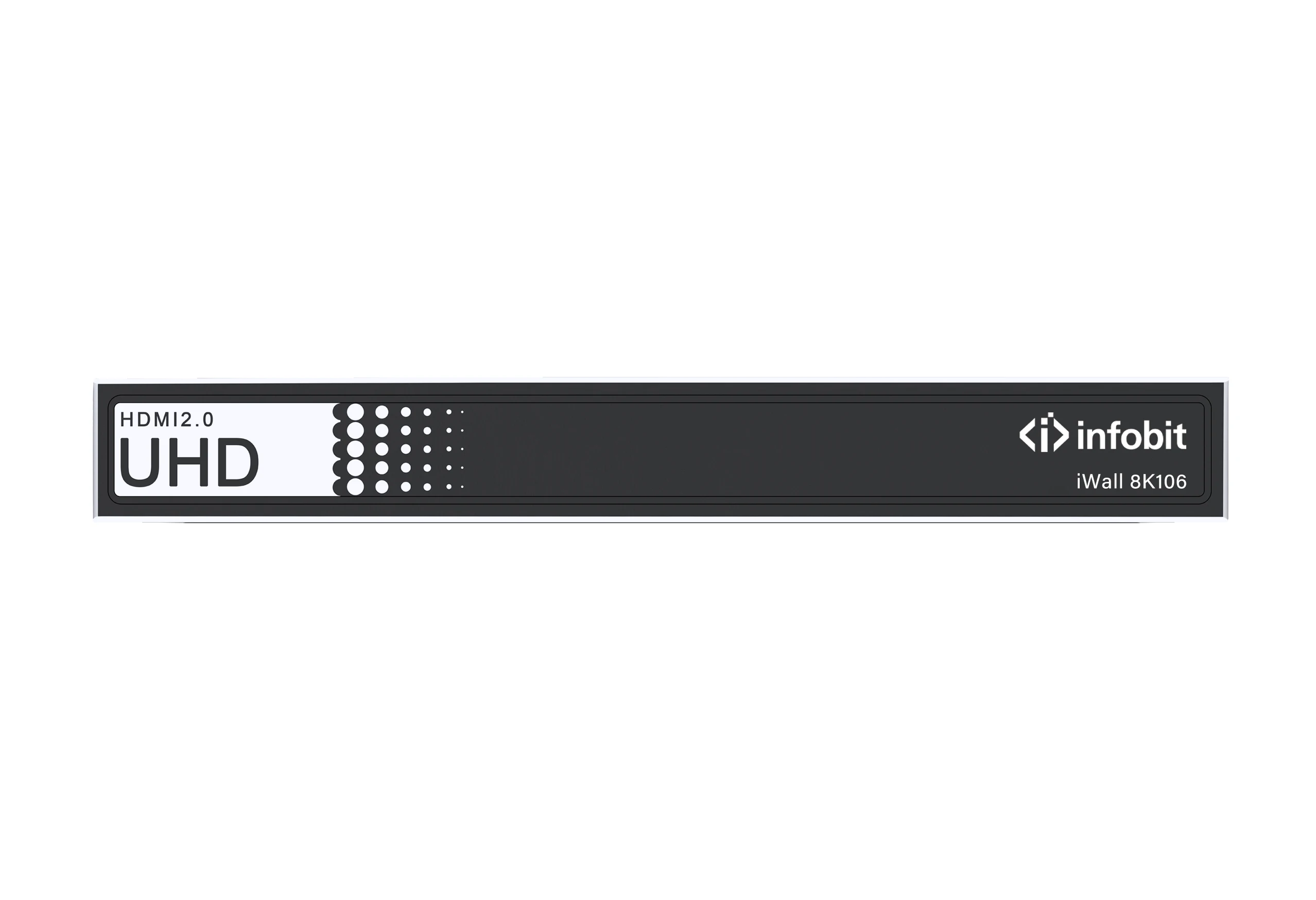

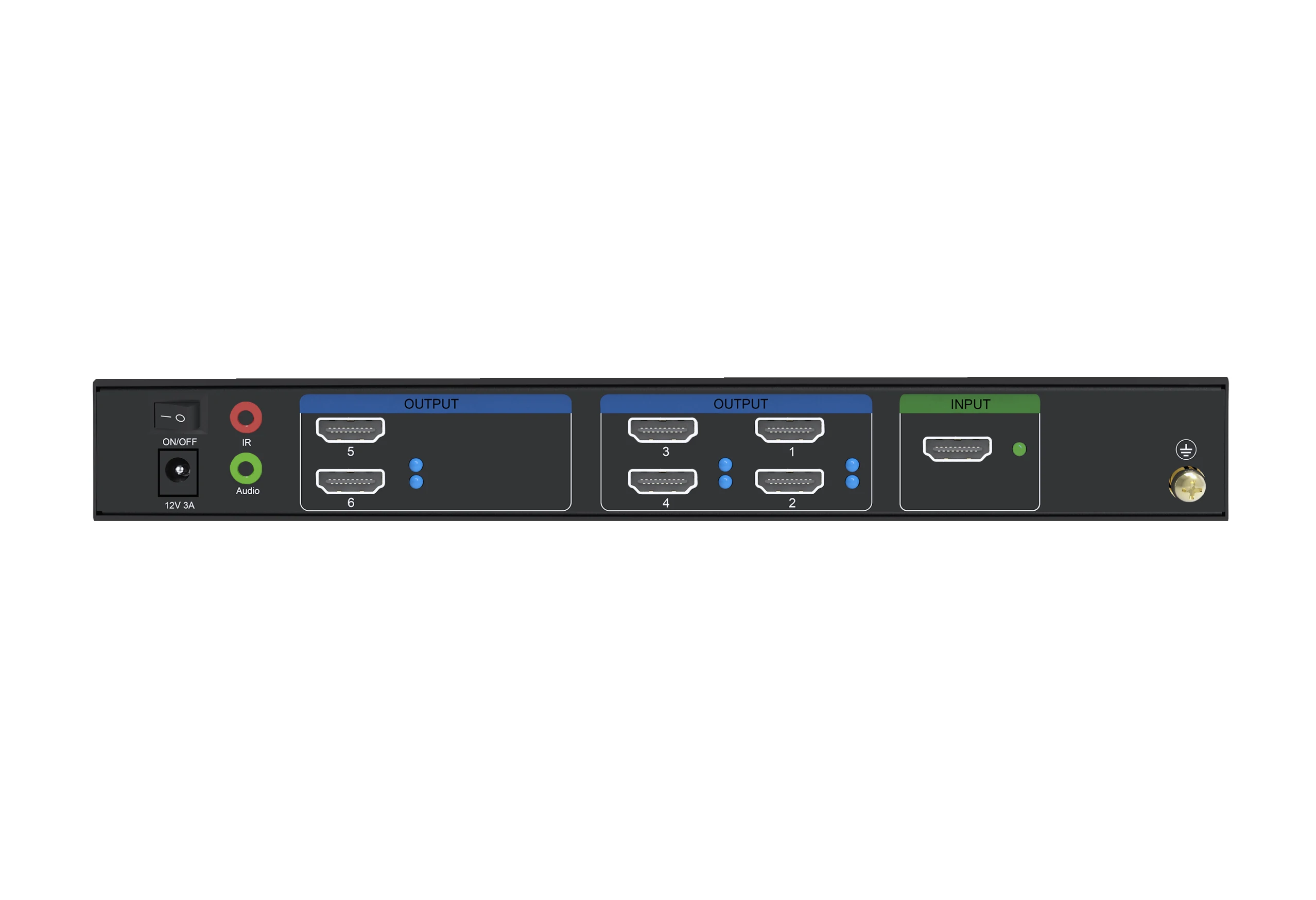

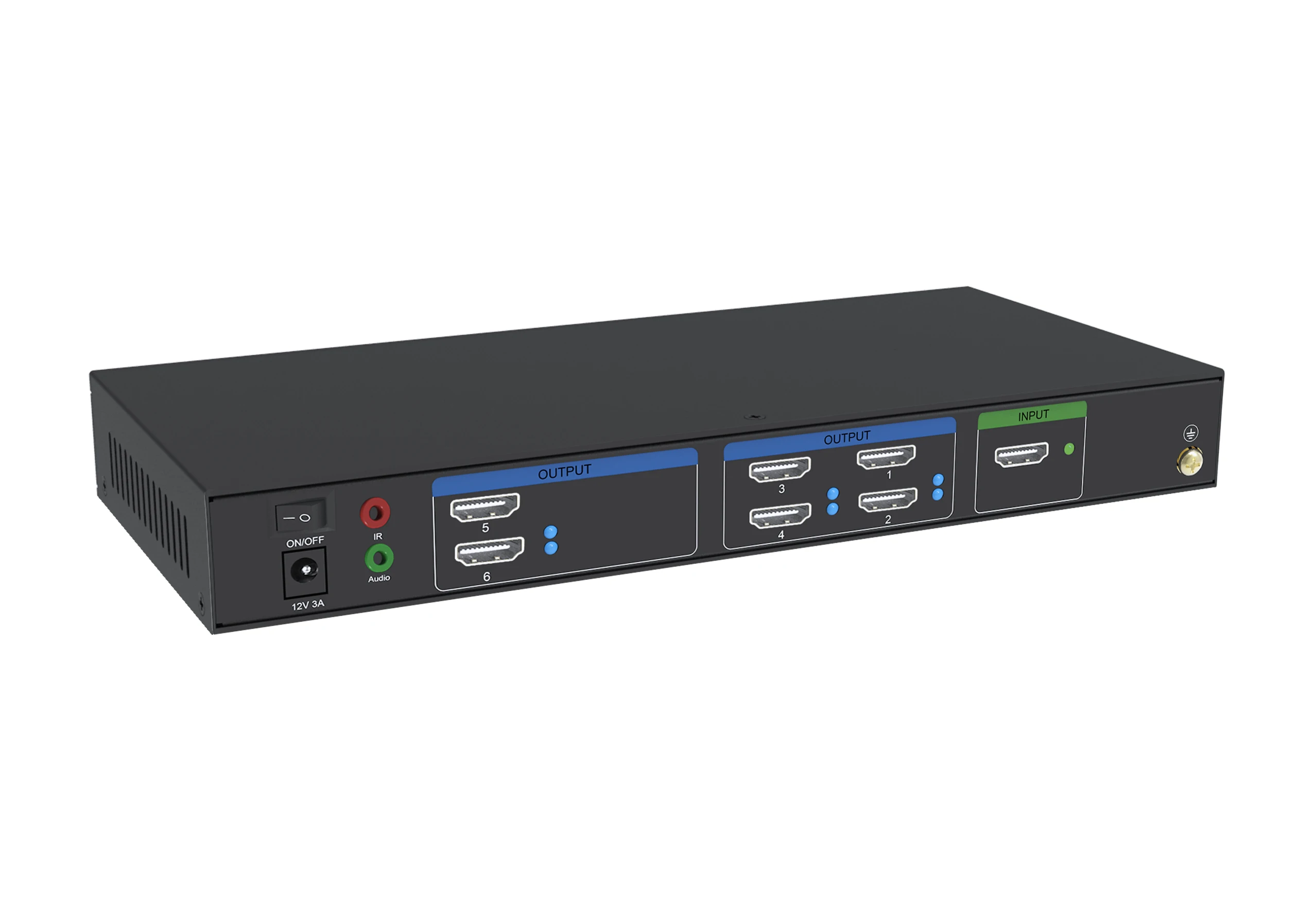

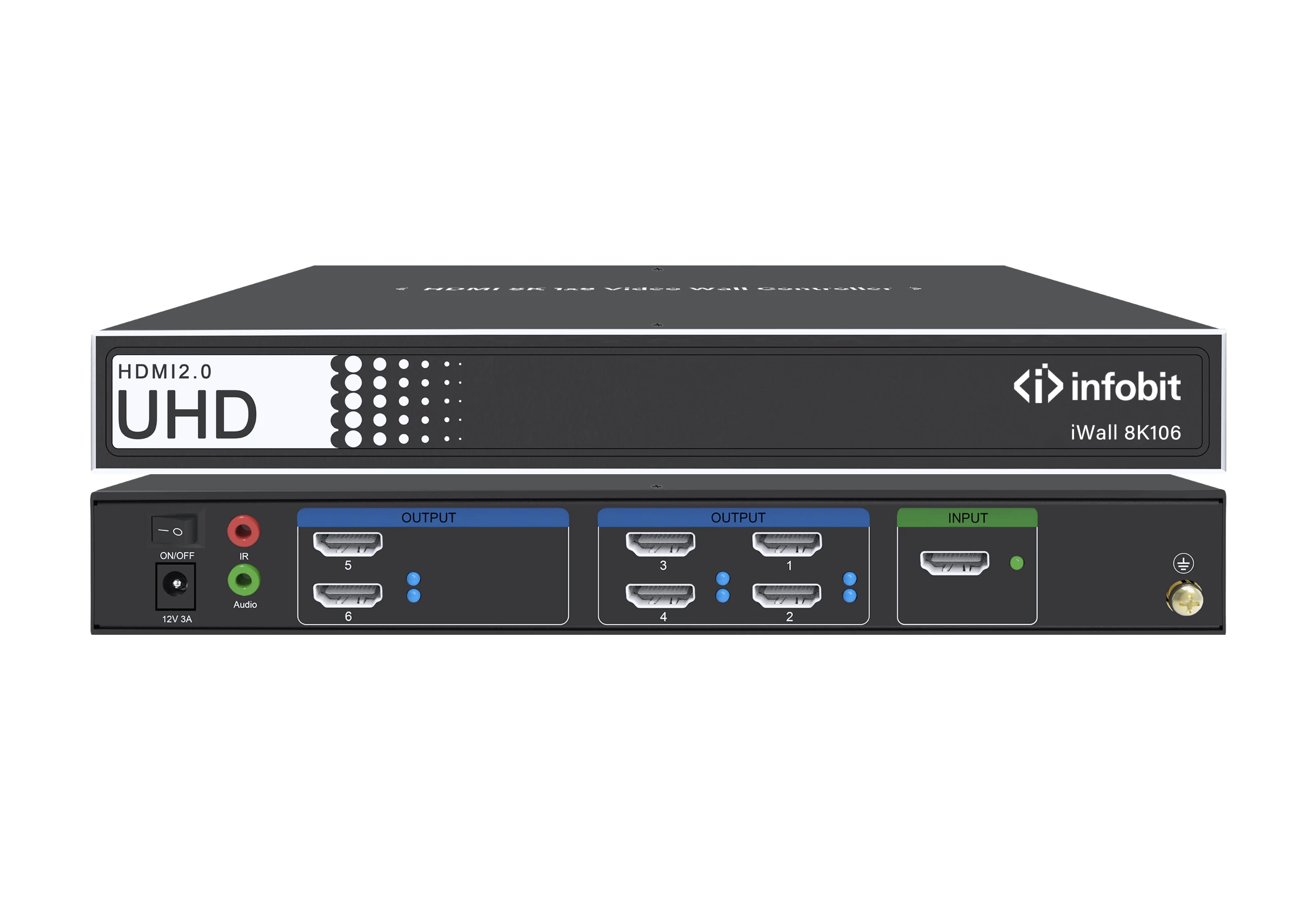

iWall 8K106

HDMI 8K 1x6 Video Wall Controller

8K-INPUT

8K-INPUT

Audio-Extract

Audio-Extract

Cascading

Cascading

Plug-&-Play

Plug-&-Play

Multiple-Videowall-Layouts

Multiple-Videowall-Layouts

Pixel-to-Pixel

Pixel-to-Pixel

iWall 8K106
iWall 8K106
iWall 8K106
iWall 8K106
iWall 8K106
iWall 8K106
iWall 8K106
iWall 8K106
iWall 8K106

Pure hardware, support 24×7 working.

Supports point-to-point low latency: from the input to the output latency <30ms.

The power consumption is as low as 40W, and the noise is <40dB.

Supports custom output resolutions, with more than 8 million pixels.

Supports input 4K@60Hz or 8K@30Hz ultra -high-definition signals.

Supports output 2K ultra-high-definition signal.

Built-in audio de-embedding.

The device output ports synchronized automatically without any latency.

A single unit can output up to 6 HDMI HD signals.

A single unit can input up to 1 HDMI UHD signal.

Supports both landscape and portrait video walls.

Supports cascading.

iWall 8K106
iWall 8K106
iWall 8K106
iWall 8K106
 8K READY
8K READY
The iWall 8K106 supports true 8K UHD 4:4:4 video input and 1080P FHD outputs.
It supports both landscape and portrait screens.

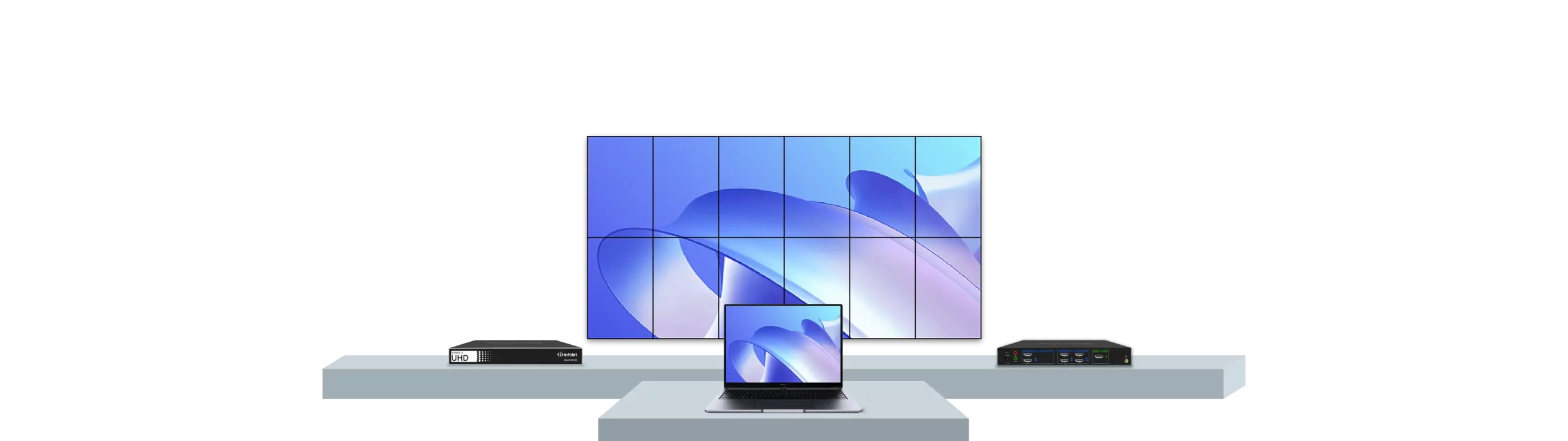

 CASCADING
CASCADING
Multiple units of the iWall 8K106 controllers can be cascaded for large-scale videowall.
 AUDIO EXTRACT
AUDIO EXTRACT
The iWall 8K106 supports audio de-embedded.
Datasheet
Model iWall 8K106
Features UHD signal input and 2K outputs, videowall, audio extract.
UHD IN 1
HD OUT 6
Dimensions 277*185*35mm
Cascade Supports
Weight 3KG
Consumption 40W
Single unit resolutions: Landscape 1*1 1920*1080@60Hz   1*2 3840*1080@ 60Hz
1*3 5760*1080@60Hz   1*4 7680*1080@ 60Hz
2*1 1920*2160@60Hz   2*2 3840*2160@ 60Hz
2*3 5760*2160@30Hz   3*1 1920*3240@ 30Hz
3*2 3840*3240@30Hz   4*1 1920*4320@30Hz
5*1 1920*5400@30Hz   6*1 1920*6480@25Hz
Single unit resolutions: Portrait 1*1 1920*1080@60Hz  1*2 3840*1080@60Hz
1*3 5760*1080@60Hz  1*4 7680*1080@60Hz
2*1 1920*2160@60Hz  2*2 3840*2160@60Hz
2*3 5760*2160@30Hz  3*1 1920*3240@30Hz
3*2 3840*3240@ 30Hz 4*1 1920*4320@ 30Hz
5*1 1920*5400@30Hz  6*1 1920*6480@ 25Hz
INPUT 1x HDMI 2.0, supports 7680*4320P@30Hz, 3840*2160P@60Hz, backward compatible.
OUTPUTS 6x HDMI 1.3, maximum support 1920*1080P@60Hz, customizable resolution.
Power supply DC 12V / 3A
Operating temp. Working temperature: 0℃~50℃
Working humidity Relative humidity: 10% to 90% without condensation
Download
  • iWall 8K106 User Manual V2.0.pdf
    0.57M
    2024-06-27
  • iWall 8K106 Brochure V1.0.pdf
    5.56M
    2025-07-30
Related Products

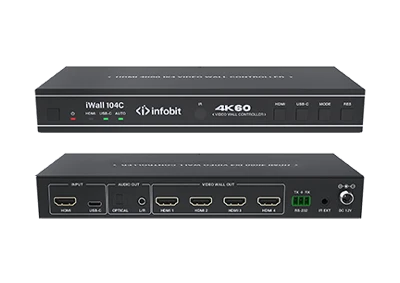

  • iWall 104C
    1x HDMI IN, 1x USB C IN, 4x HDMI OUT Up to 4K@60Hz 4:4:4 Support 8x video wall modes Support image 180° rotation Control via front panel buttons, IR remote and RS-232
  • iWall 104P
    Supports 2 inputs, resolution up to 4K60. Outputs support image 90°, 180° and 270° rotation Supports 4 HDMI with 1920*1200@60Hz resolution outputs. Supports multiple videowall layouts: 2x2, 1x4, 4x1, 1x3 ... Supports the videowall edge adjustment.

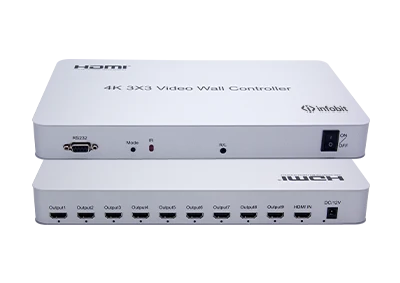

  • iWall 109
    Support 1 HDMI input Support 9 HDMI outputs Support multiple video wall modes, easy to operate, plug and play Support 8/10/12 bit deep color Support IR control

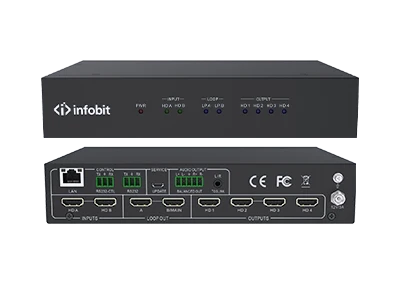

  • iWall 204
    2x4 HDMI 4K60 18Gbps Video Wall Controller HDMI 2.0 and HDCP 2.2 compliant Support 2 channels HDMI loop out Support 180º rotation Support PIP on the video wall
  • iWall 209
    2x9 HDMI 4K60 18Gbps Video Wall Controller HDMI 2.0 and HDCP 2.2 compliant Support 2 channels HDMI loop out Support PIP on video wall Support 180º rotation

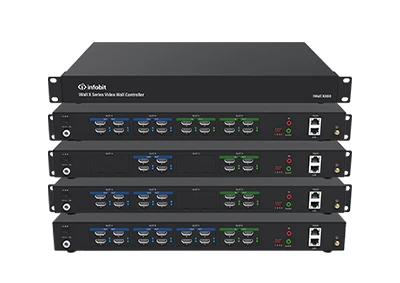

  • iWall X
