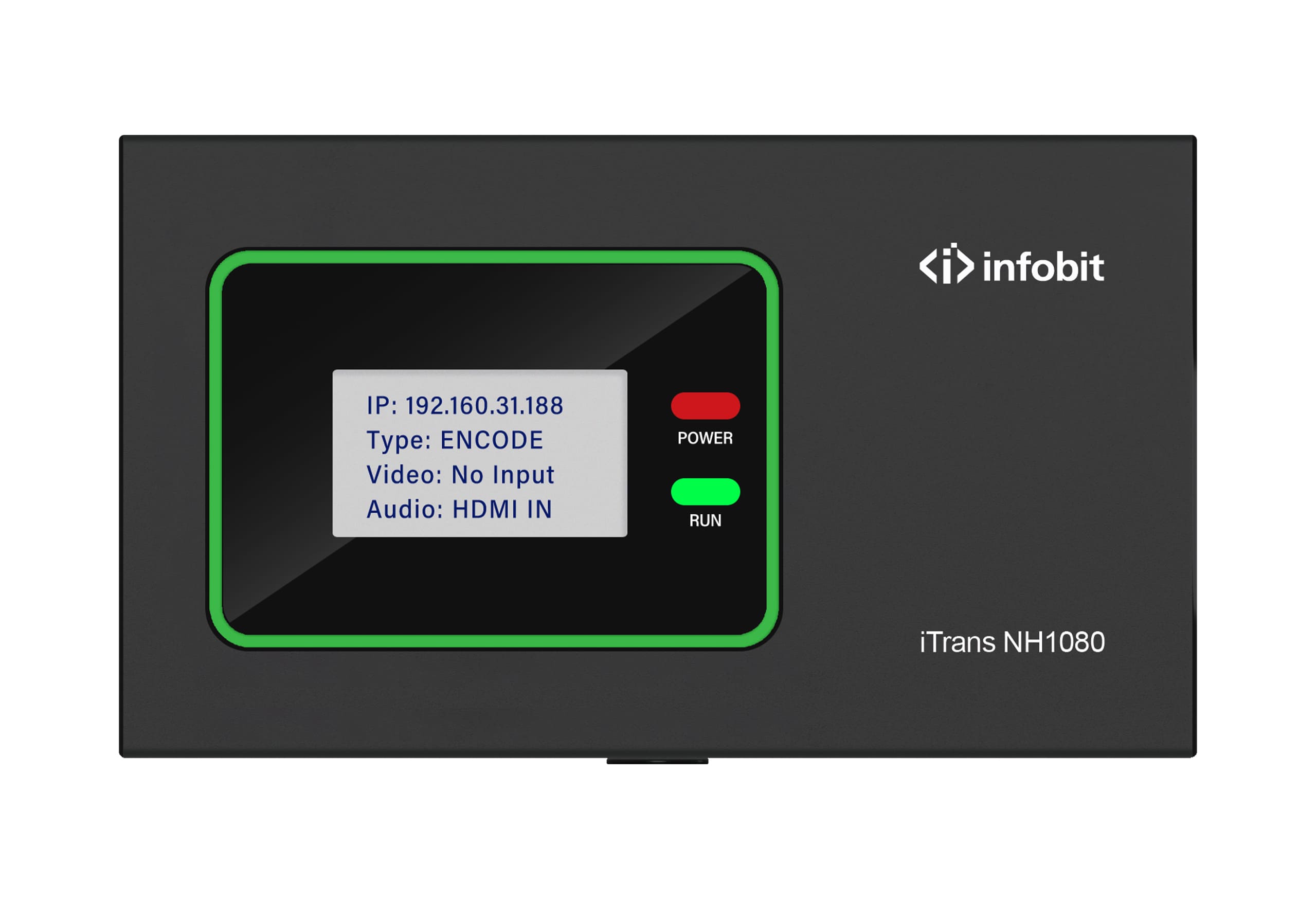

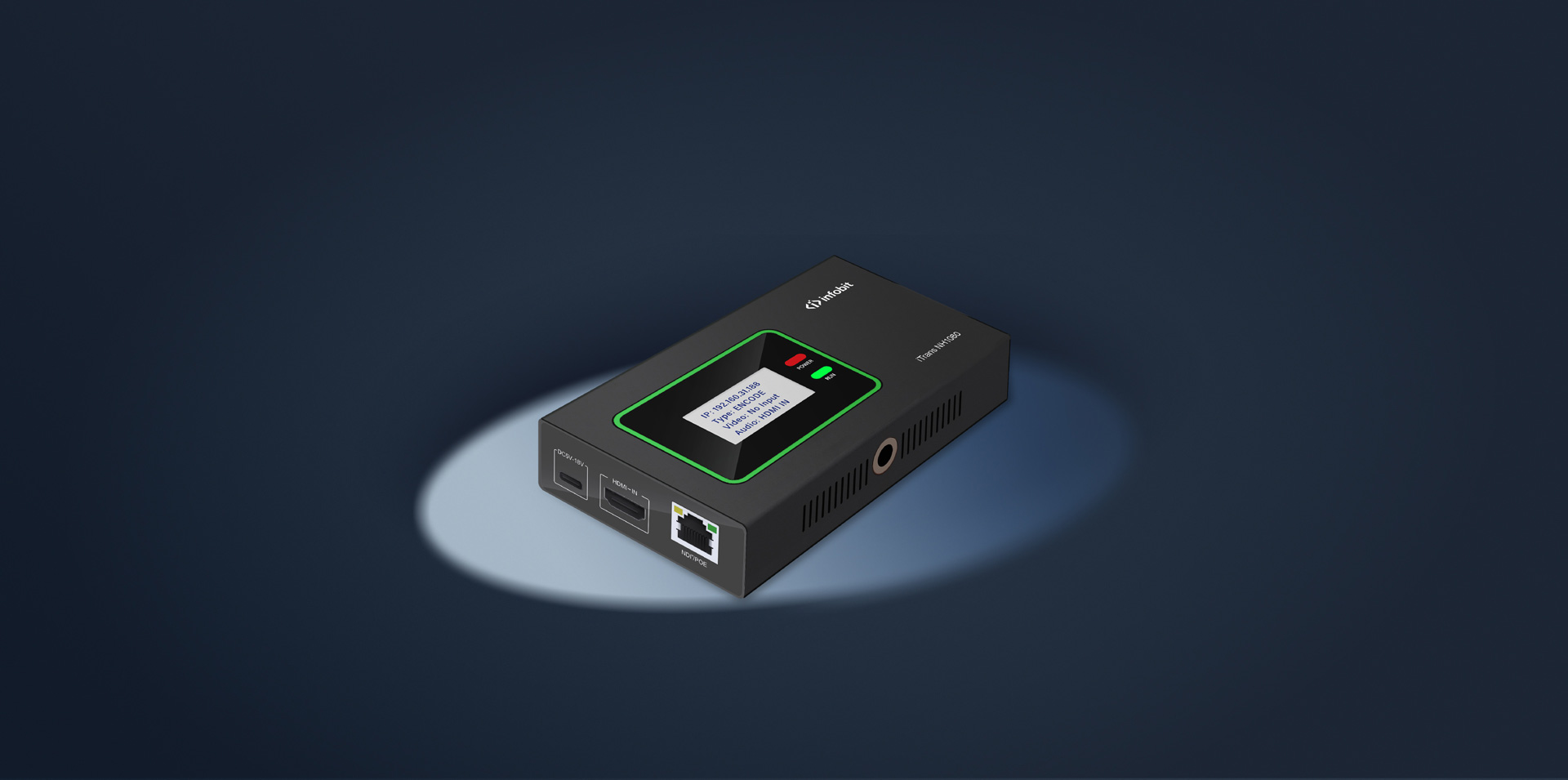

iTrans NH1080

Support FULL NDI, codec

Encoder and Decoder all-in-one design.

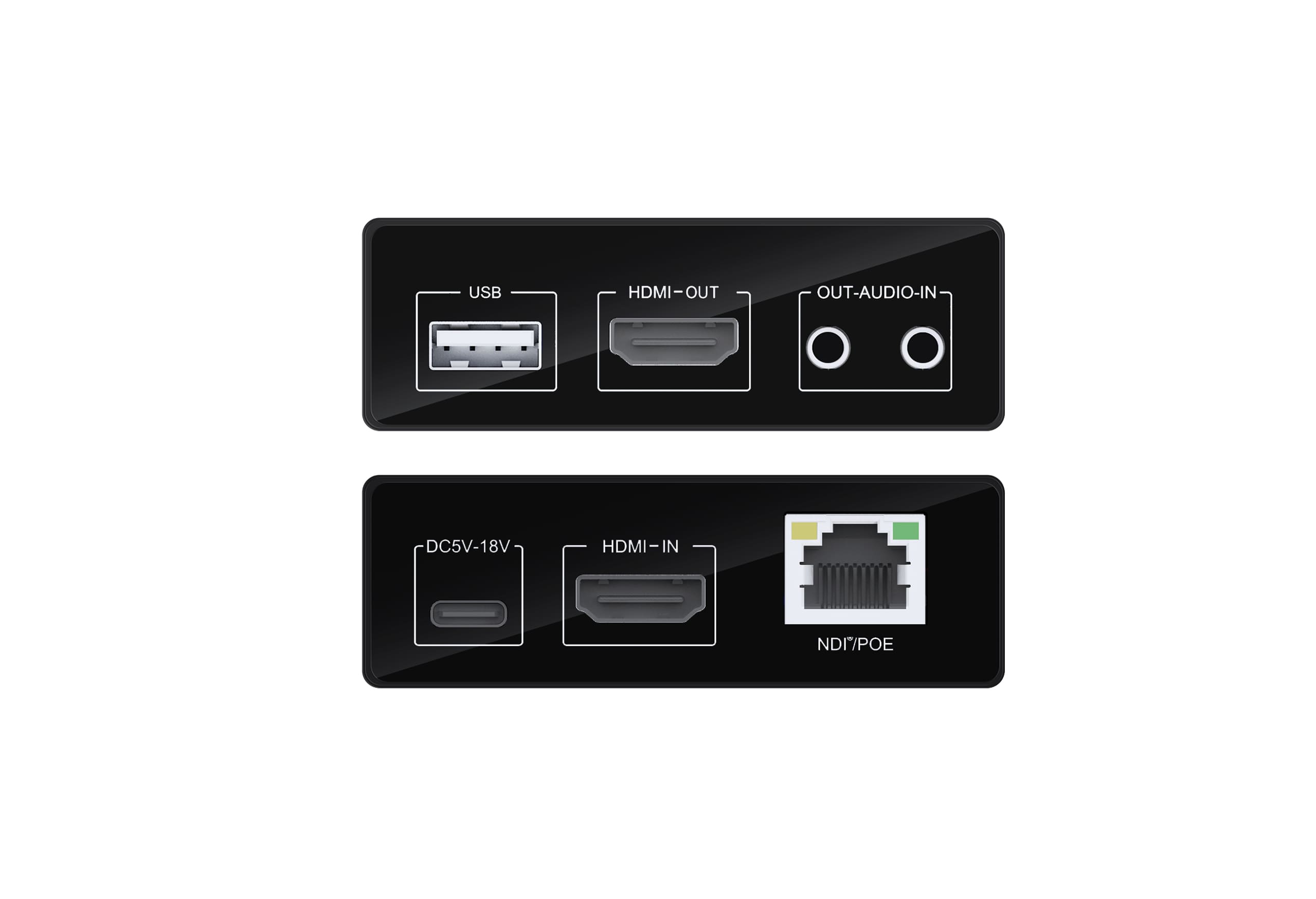

The encoder supports the HDMI loop-out

The HDMI input resolution is as 1080P/60, 1080P/59.94,1080P/50, 1080P/30, 1080P/29.97, 1080P/25, 1080P/24, 720P/60, 720P/50

Support PoE power supply

Support PTZ camera control

Support TALLY light display

Support audio embedding and de-embedding

Can be configured via the WEB GUI

Support Multicast

Chat Now

Multiple Functional

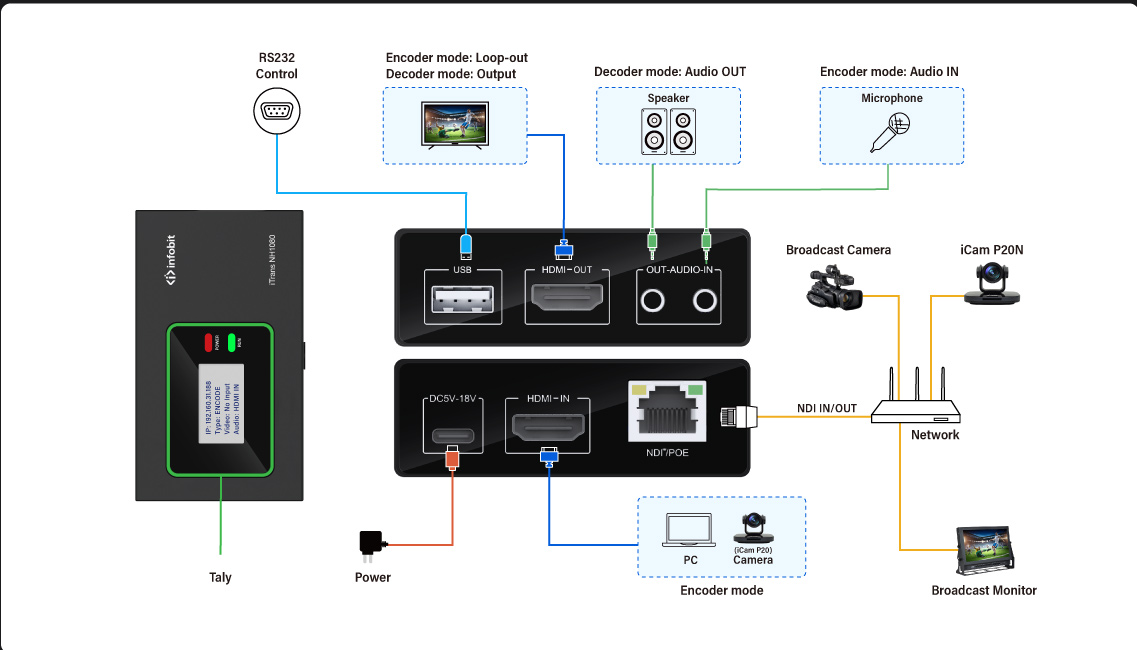

The iTrans NH1080 can be used as an encoder, decoder, converter and broadcast hub.

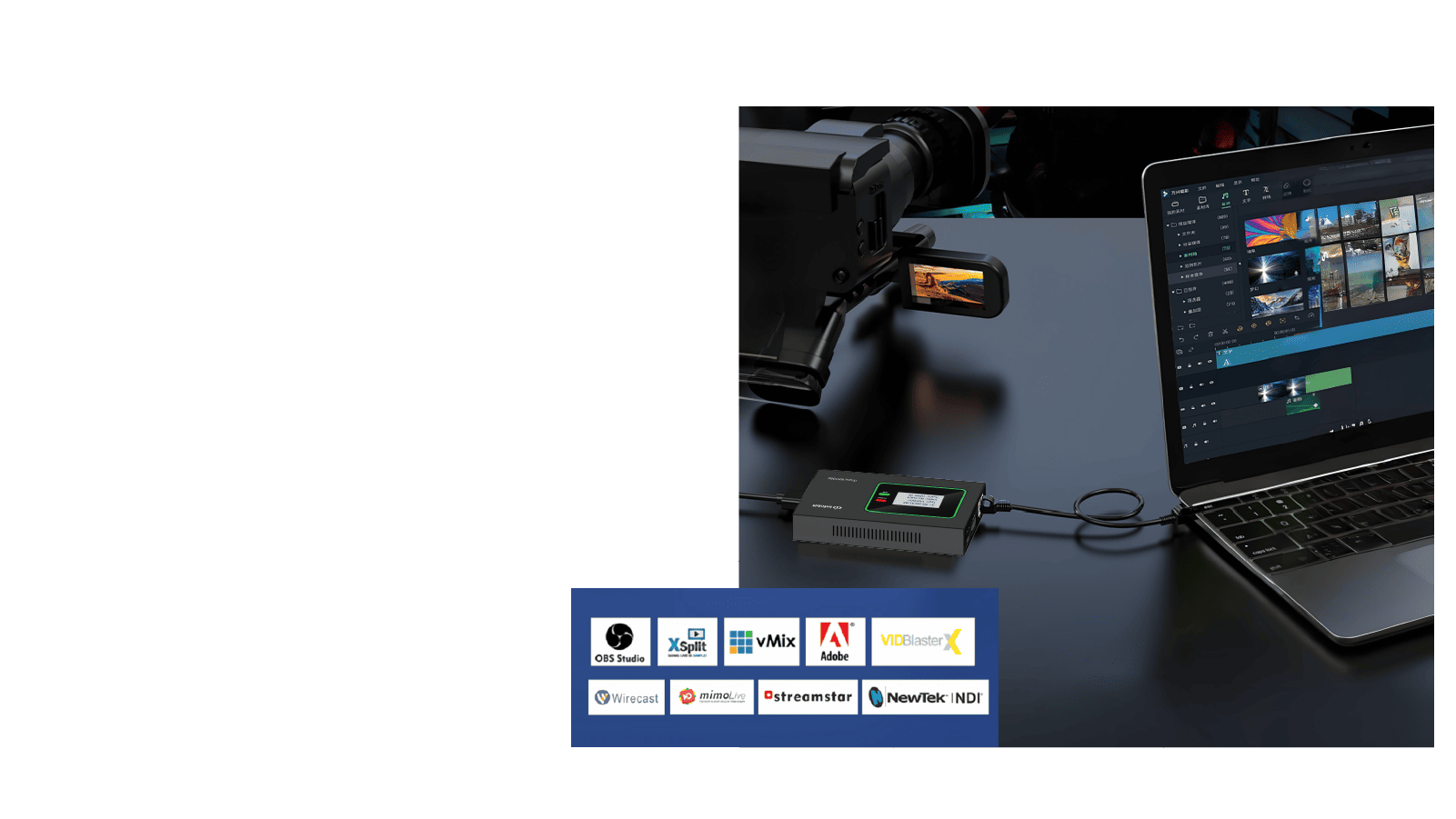

Highly Compatibility

It is compatible with OBS, XSplit, VMix, Adobe, VIDBlasterX, Wirecast, mimoLive, streamaster and NewTek NDI...

High Definition NDI Image

High-def image quality, lower latency NDI technology, designed for professional IP streaming applications.

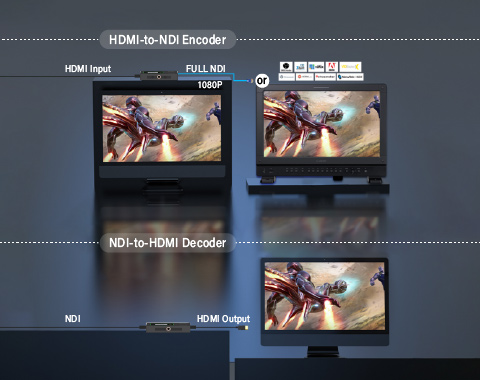

Encoder & Decoder

HDMI-to-NDI encoding and NDI-to-HDMI decoding all-in-one design.

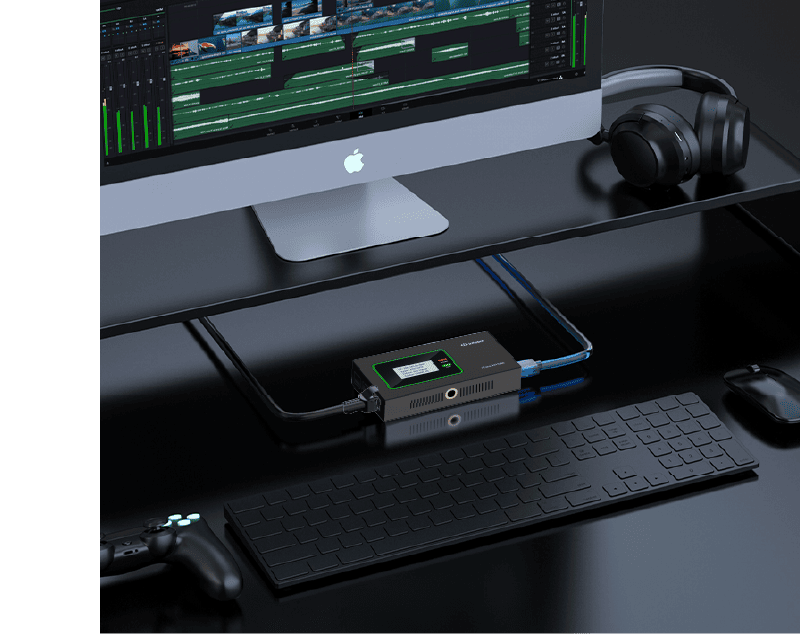

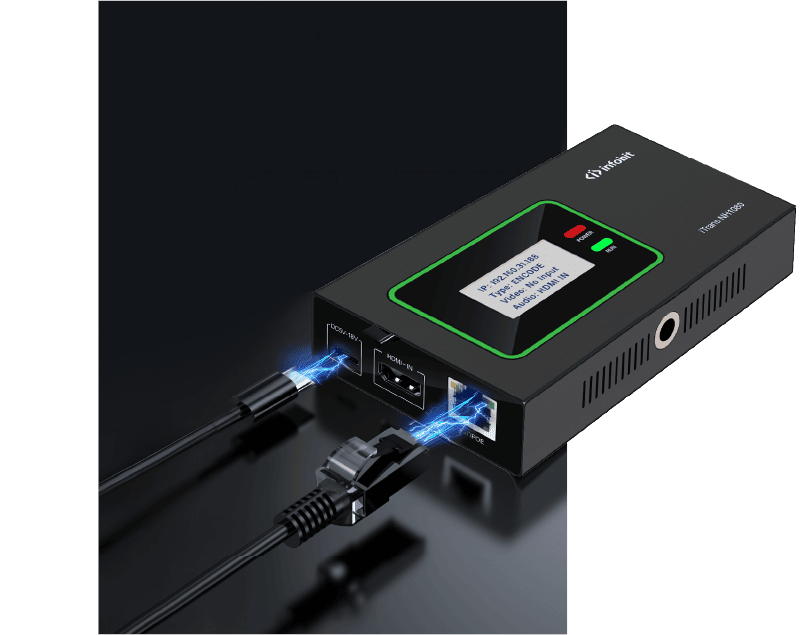

PoE/Type-C
Dual power supply

Supports Power over Ethernet (POE),
only one network cable is needed to realize power supply and network transmission,
greatly simplifying the wiring issues. In addition, it also support USB C power.

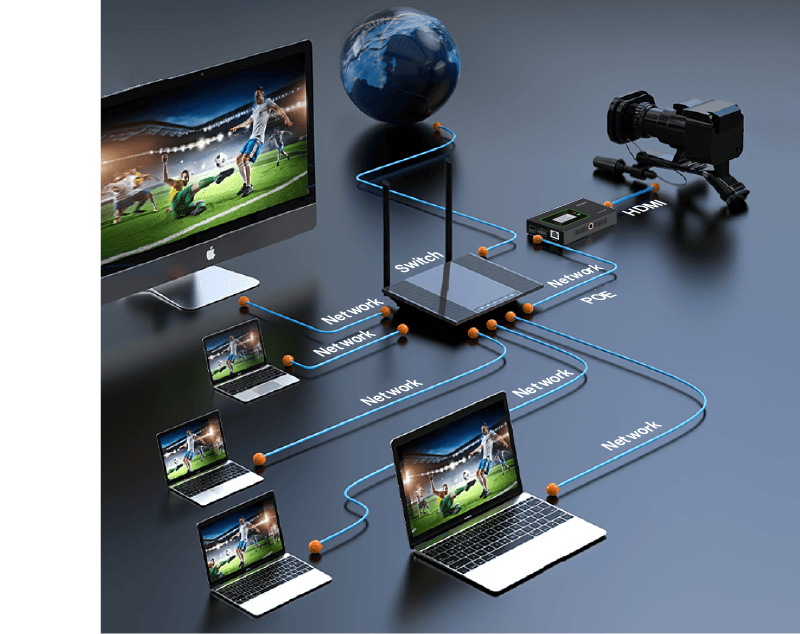

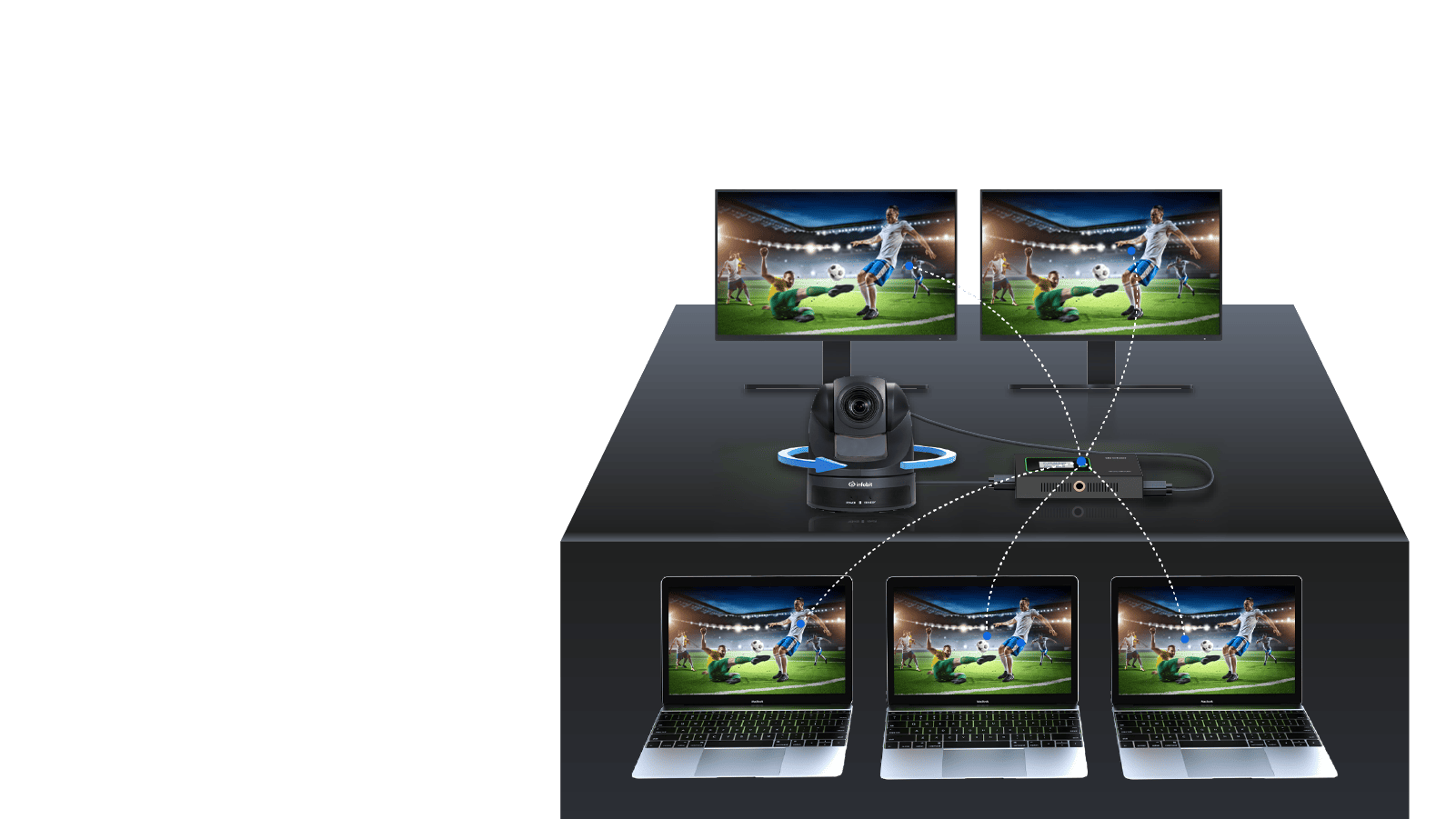

Optimize Your Live Production Workflow

Using ND encoding and transmission technology, HDM video signals can be converted into ND streams for simultaneous use by all systems in the same network, breaking through the limitations of physical distance transmission, and greatly outperforming live production in terms of high quality and low latency.

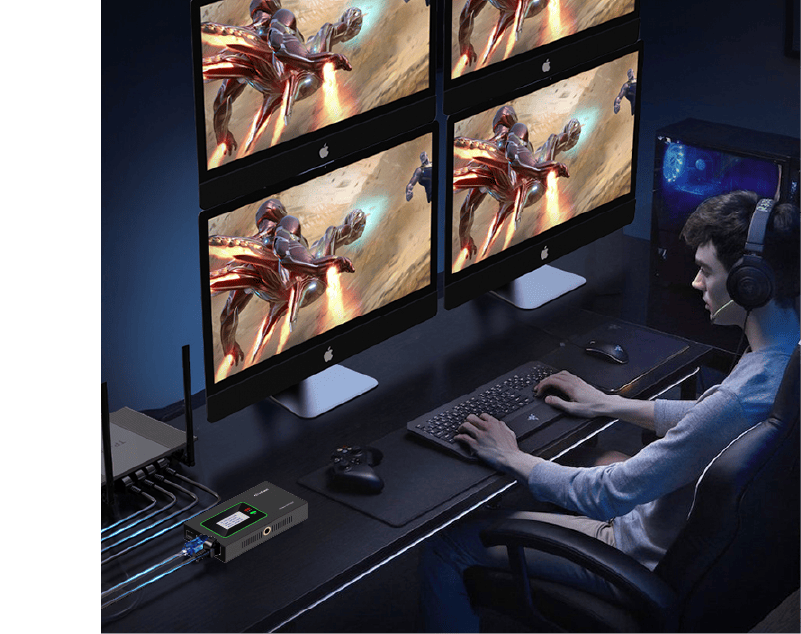

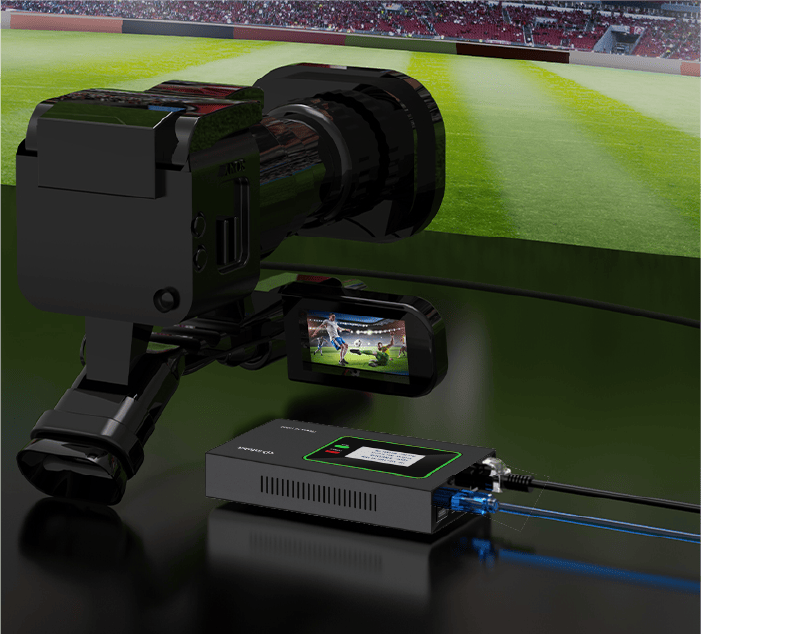

Designed for Video Production

The high-definition and low-latency ND1 technology is specially designed for video production, and is a professional IP production equipment.

PTZ control

You can easily control your
PTZ camera using the USB-to-RS232 cable.

Datasheet

Model	iTrans NH1080
Name	HDMI 1080P Full NDI Encoder/ Decoder
Encoder	HDMI to NDI
Decoder	NDI to HDMI
NDI Type	1080p Full NDI
HDMI IN resolution	1080P/60, 1080P/59.94,1080P/50, 1080P/30, 1080P/29.97, 1080P/25, 1080P/24, 720P/60, 720P/50
Tally Light	Yes
PTZ Camera Control	Yes
Power Supply	DC 12V 1A or PoE
Web GUI	Yes
Audio embed	Yes
Audio de-embed	Yes
HDMI Loopout	Yes
Bandwidth	1G network switch
Product Dimension	132x76x26mm
Package Dimension	174x118x76x87mm
Net Weight	230g
Gross Weight	660g
Consumption	Max. 4W
Operating Temperature	32 – 104°F / 0 – 40°C
Storage Temperature	-4 – 140°F / -20 – 60°C
Relative Humidity	20 – 90% RH (no condensation)
