iTrans DU-TR-22B

Compliant with USB 2.0 Full-Speed Operation

Compliant with USB Audio Device Class Specification V1.0

Analog sound card, supporting MIC input and SPK output

Audio sampling rate supports 44.1kHz, 48kHz and 96kHz (24bit)

Dante solution supports AES67 RTP audio transmission

Support USB 5V power supply and POE function (IEEE802.3af Class 0)

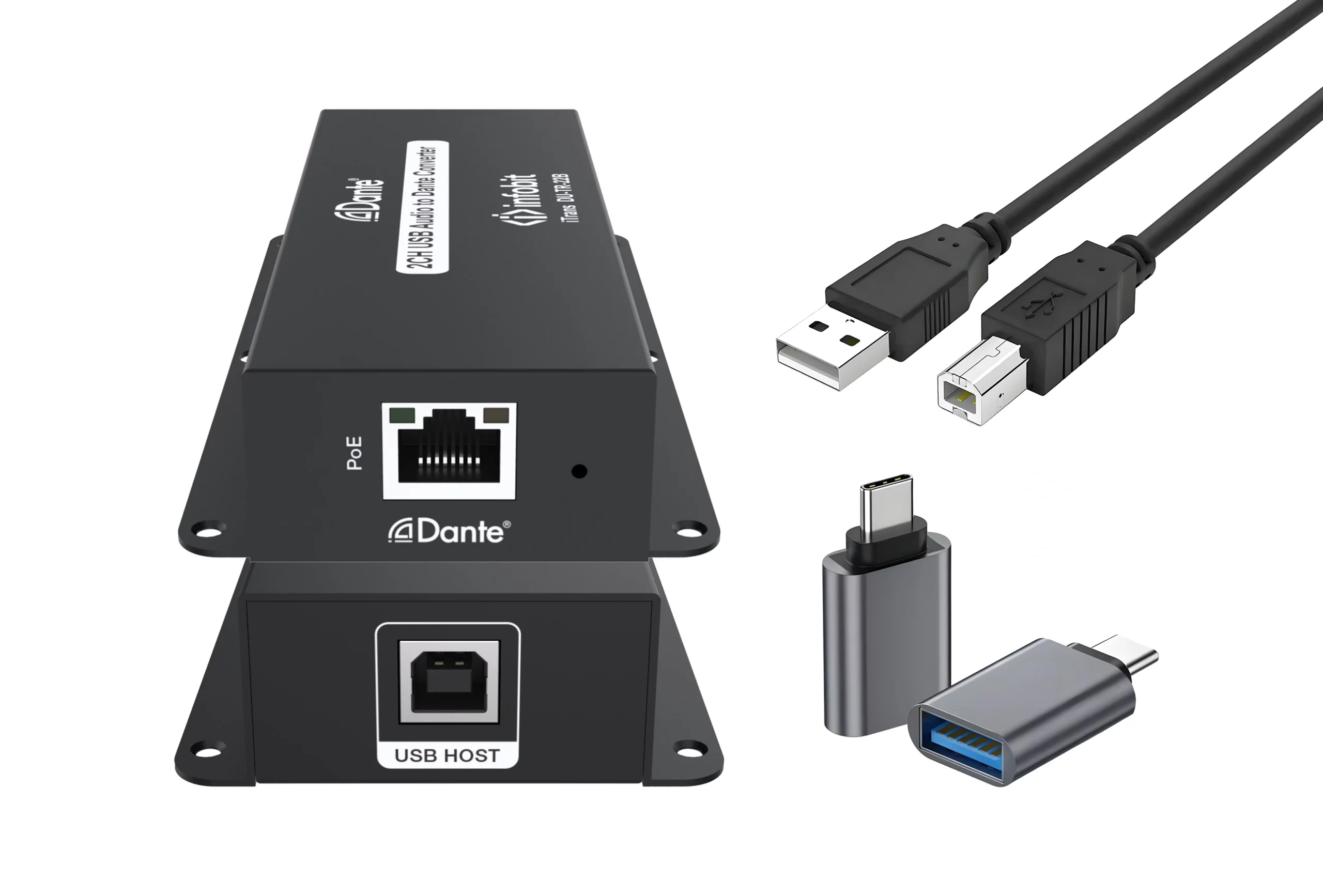

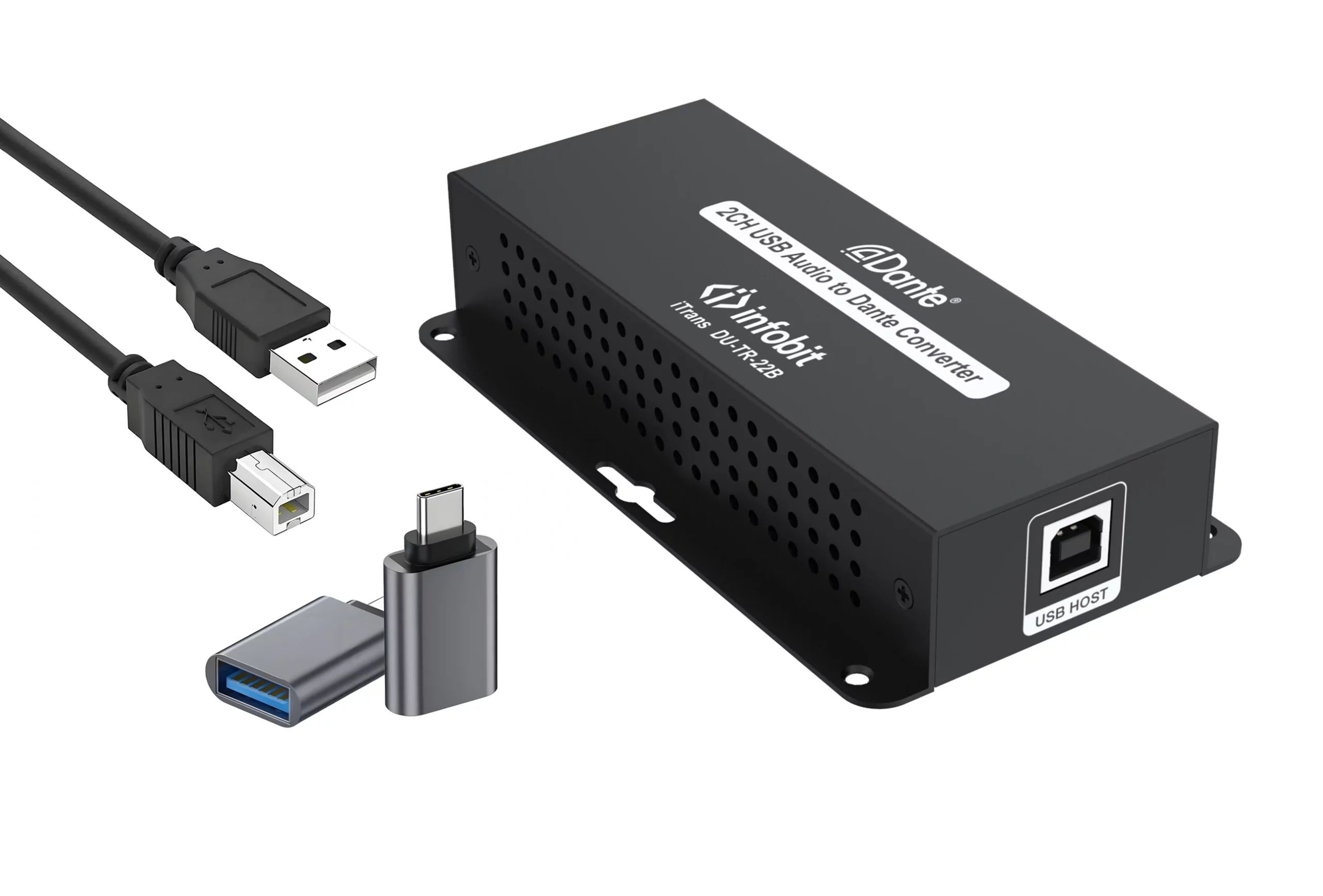

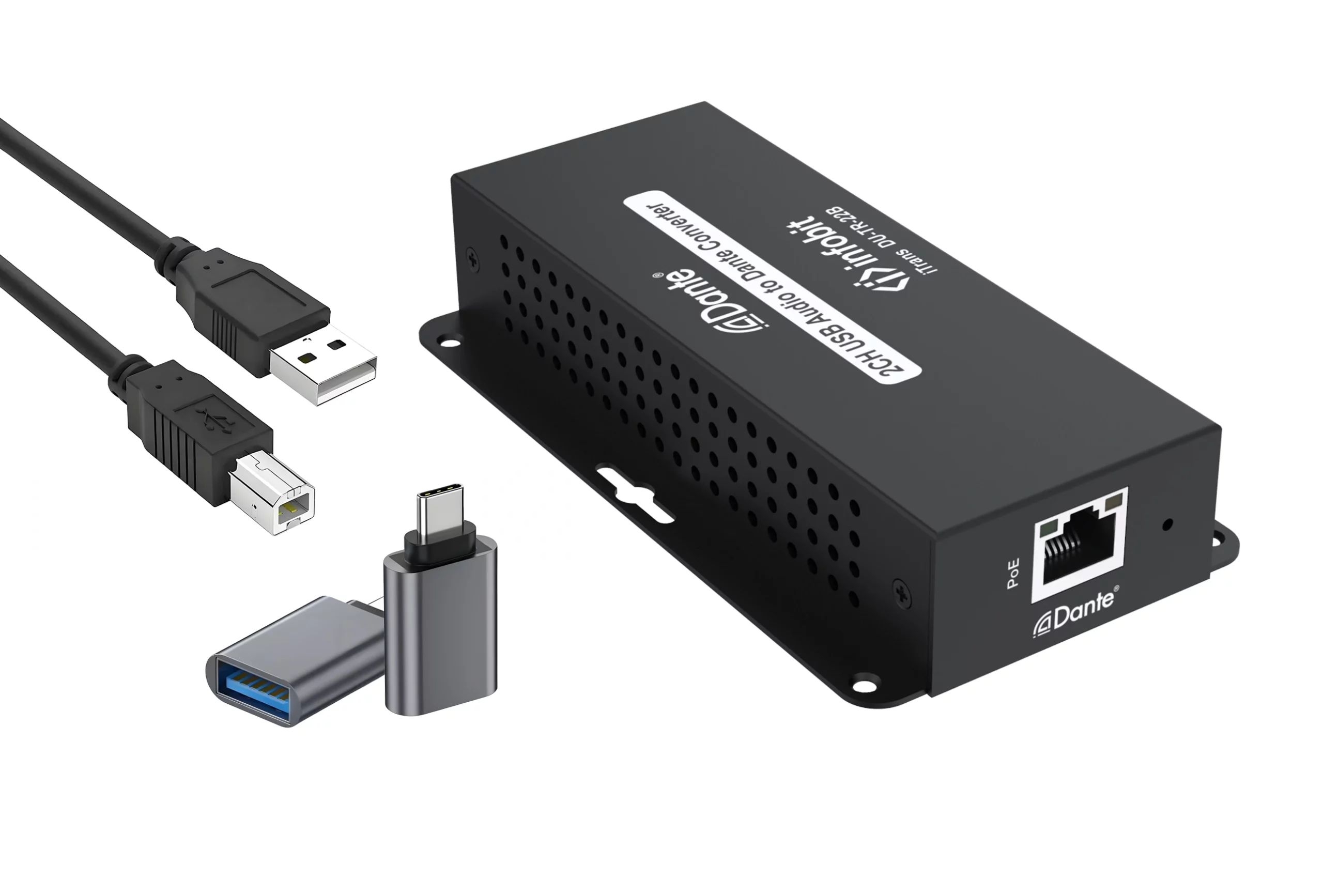

Includes 1x USB-A Male to USB-B Male cable, and 1x USB-C Male to USB-A Female adapter. Compatible with both USB-A and USB-C PC sources.

Chat Now

Datasheet

Model	iTrans DU-TR-22B
Name	iTrans Dante USB Transmitter Receiver, 2CH USB B
Video Network Bandwidth	100M
Audio Formats	PCM 2.0 44.1kHz/48kHz/96kHz, up to 24bit
Transmission Distance	100m (CAT6/6A)
Frequency Response	20Hz to 20kHz
Input & Output	1x USB-B 1x DANTE [RJ45 connector, POE]
Housing	Metal Enclosure
Color	Black
Dimensions	120mm[W] x 47mm[D] x 26mm[H]
Weight	188g
Power Supply	USB input: 5V-500MA POE input: IEEE802.3af Class 0
Power Consumption	1W
Operation Temperature	32 – 104°F / 0 – 40°C
Storage temperature	-4 – 140°F / -20 – 60°C
Relative Humidity	20 – 90% RH (no condensation)
Control Method	Dante Controller

Diagram

Download

iTrans DU-TR-22B User Manual_V1.1.pdf

0.24M

2025-11-21
